Absorption Heat Pump

LG Absorption Heat Pump is a highly efficient and economical system that supplies hot water with the temperature up to 80℃ by using 70-80% of the unused energy, such as waste heat source.
LG Absorption heat pump, showcased in a grey hue, consists of a series of linear and cylindrical pipe assemblies. LG Absorption heat pump, showcased in a grey hue, consists of a series of linear and cylindrical pipe assemblies.

Absorption Heat Pump

TAB 1
Features
Features INQUIRE TO BUY

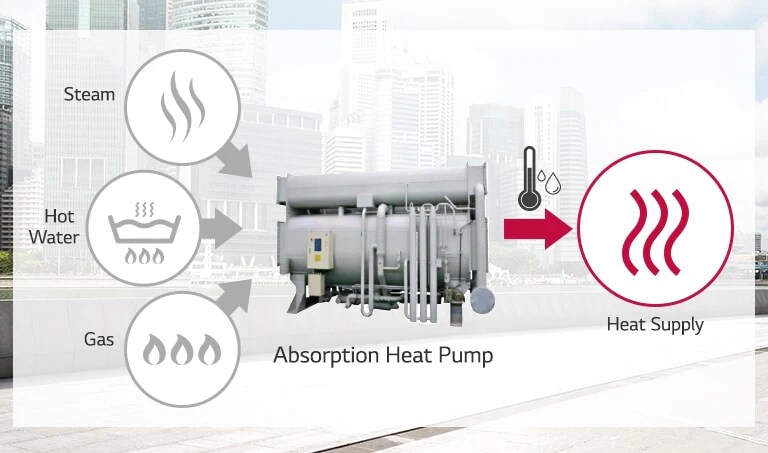

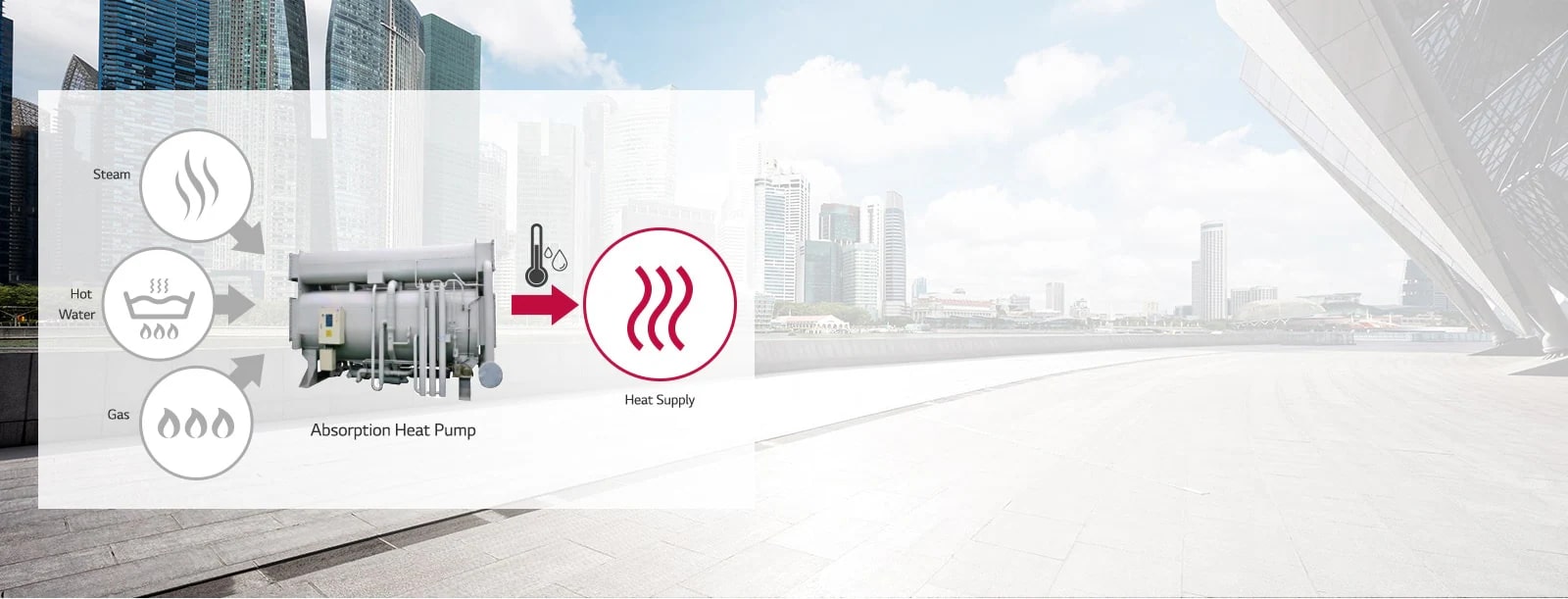

Three circles on the left, denoting steam, hot water, and gas, are linked to a absorption heat pump, which connects to curved lines on the right. Three circles on the left, denoting steam, hot water, and gas, are linked to a absorption heat pump, which connects to curved lines on the right.

Utilizing Unused Energy as Heat Source with LG Heat Pump Solution

It is a system that supplies high temperature water up to 80℃ by using 70-80% of unused energy such as waste heat source, river water and ground water discharged from power plants and sewage treatment plants. It can save energy economically because it draws low temperature heat energy to high temperature heat energy with small amount of energy.

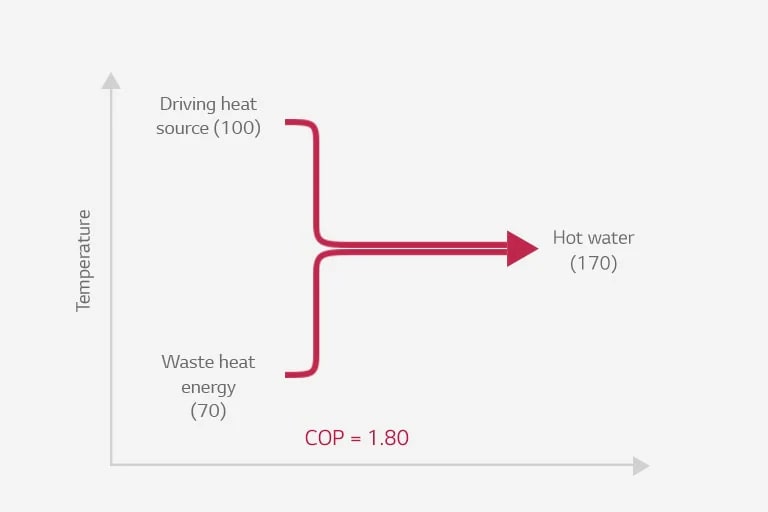

  • Graph shows two lines, top for driving heat source, bottom for waste heat energy, merging in the middle, symbolizing hot water.

    Absorption Heat Pump Type1

    This system produces medium-temperature energy by using operating high-temperature energy and low-temperature waste heat energy. It is an economic option as it reduces the heating amount by absorbing heat from the low temperature heat sources to be utilized in mid-temperature.

  • Central line in graph, representing waste heat energy, splits into top (driving heat source) and bottom (waste heat energy) directions.

    Absorption Heat Pump Type2

    This system produces high-temperature and low-temperature energy by using waste heat energy of medium temperature. When the heat is supplied at the mid-temperature, it is converted into high temperature and low temperature, which is a very useful method for recovering industrial waste heat.

Three red lines show the connection between the absorption concentration control and MICOM on the left. The right illustrates a power failure process. Three red lines show the connection between the absorption concentration control and MICOM on the left. The right illustrates a power failure process.

Absorbent Concentration Control & Prevention

The absorption control concentration is calculated by the crystal control protection logic built in the controller, and the prevention control is executed when the concentration rises above the set value. With automatic control, it prevents pre-absorption of liquid crystals and calculates the time from power failure to complete revocery through the independent timer.
  • 3 small circles are arranged in a triangular pattern on the outline of a larger circle. Each small circle features a 3-part partition at its center.

    Superior Installation Convenience

    3 Parts Partition enables easy installation at narrow places such as remodeling & renovation sites.

  • Front view of the LG absorption unit, two dotted-outline rectangles with red arrows suggest that these components can be opened.

    Easy Pipe Cleaning

    When cleaning the piping, only the water box cover can be opened without disconnecting the piping.

  • The rectangular control panel is central, with a vacuum pressure transmitter connected to a red dot on the left, and an X30 controller on the right.

    Digital Pressure Check

    Digital pressure gauge is used to monitor the pressure inside the refrigerator in real time. The vacuum rate is automatically set and saved. The saved data can be used to accurately and quickly monitor and diagnose leakage.

  • A person holds a tablet displaying a control solution. Four red lines extend from the tablet, connecting to buildings on the left.

    Optimized Central Control

    Control solutions such as ACP and AC Smart enable easy monitoring and allow remote control to manage various HVAC models at anywhere.

    Learn more

Absorption Heat Pump Line Up

LG Absorption Heat Pump lineup chart includes WCPX heat pump, detailing model name, and usRT. LG Absorption Heat Pump lineup chart includes WCPX heat pump, detailing model name, and usRT.
A man in a suit holds a smartphone in his right hand, displaying the LG website. A man in a suit holds a smartphone in his right hand, displaying the LG website.

Inquire To Buy

Please inquire to buy for more information on the product and we will get in touch with you soon.
