LSAA012-MX component-copyModelName

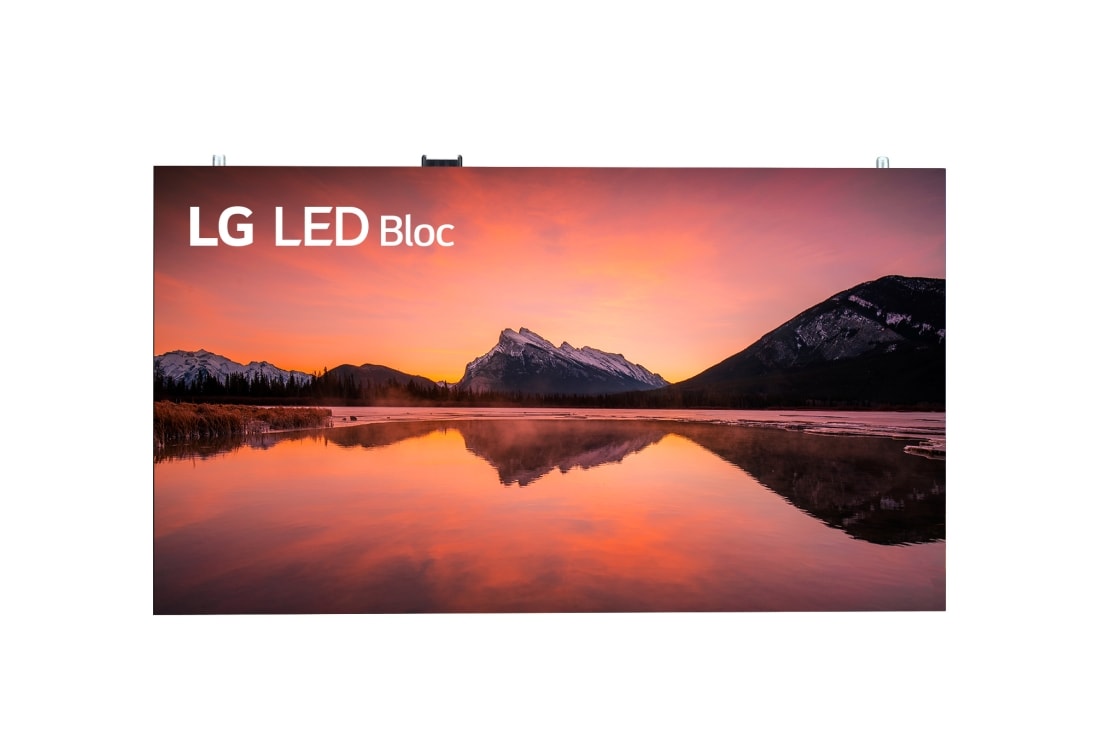

LG LED Bloc

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSAA012-MX)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSAA012-MX)
    $
    $
    LG Members Price
Total
LG LED Bloc

Winner of Design Awards

Red Dot Design Award 2020

IDEA Design Award 2020

2020 PIN UP Design Awards

2020 Good Design Award Korea

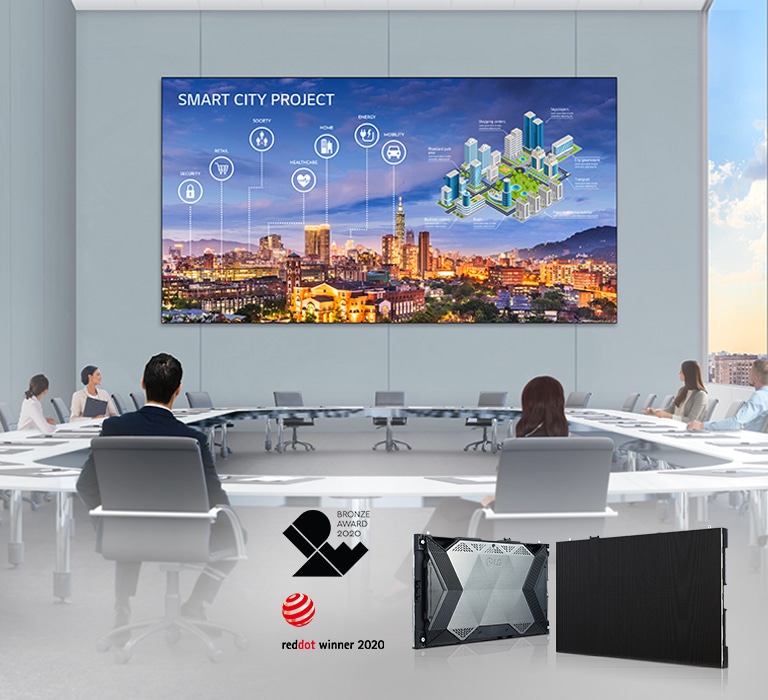

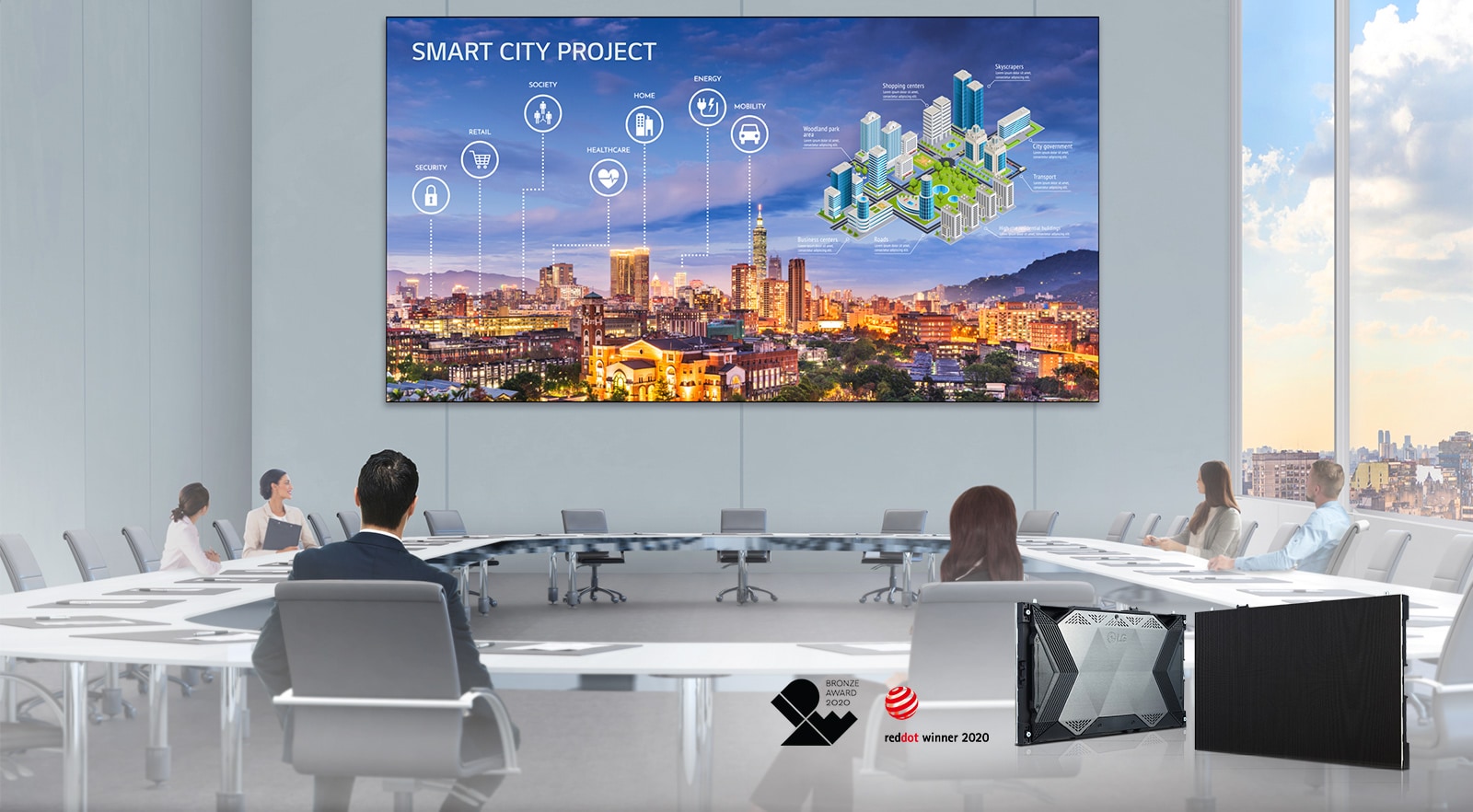

True Innovation Behind Simplicity

With unrivaled picture quality and optimum cable-less design,Expand the Possibilities of Business Space Itself.
True Innovation Behind Simplicity True Innovation Behind Simplicity

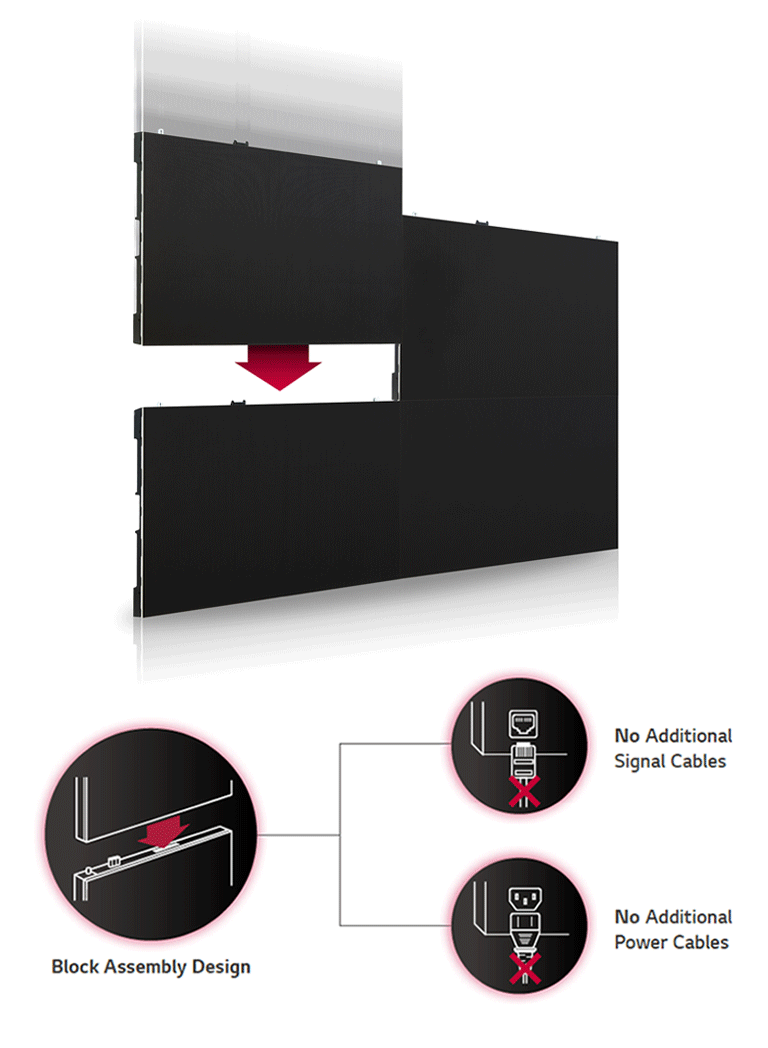

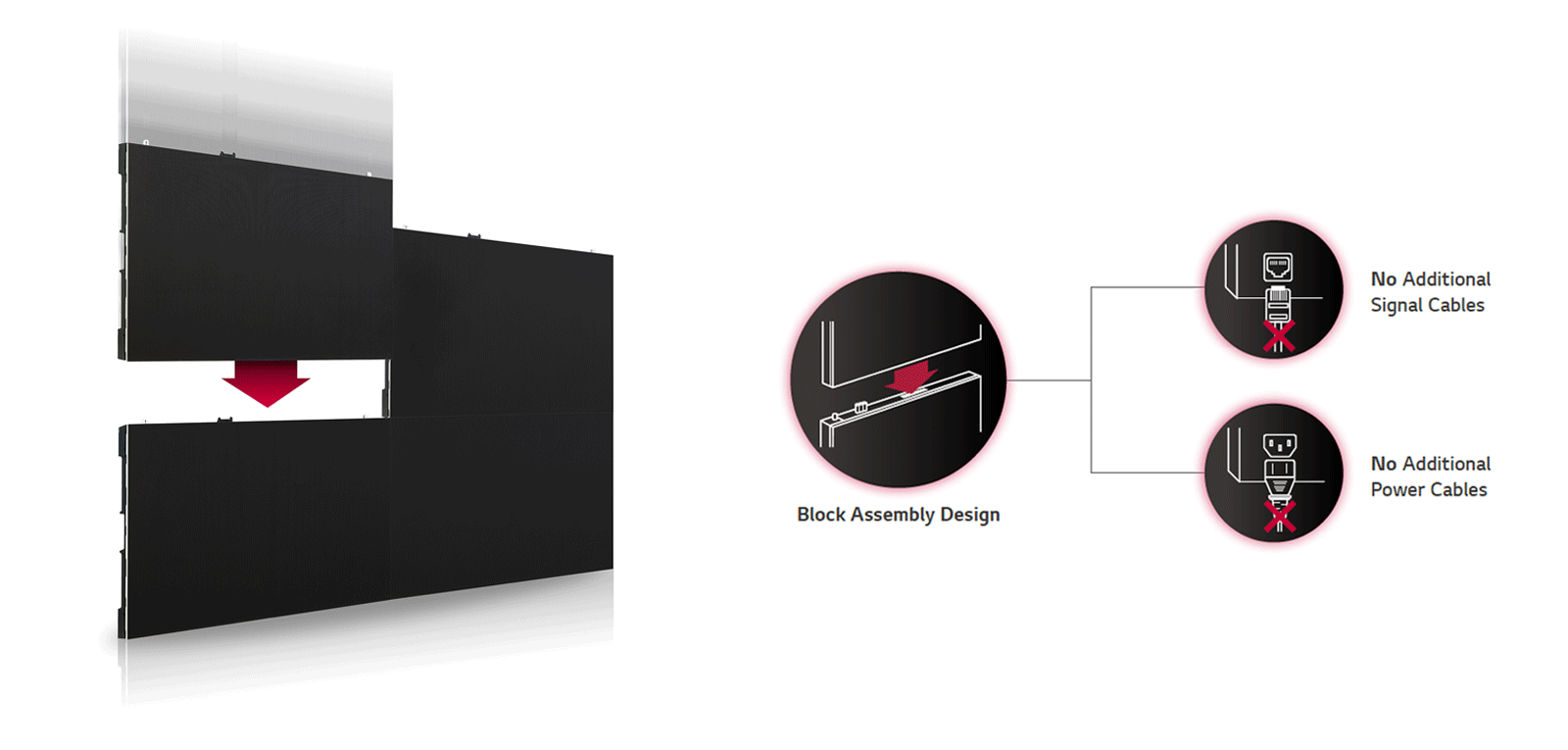

Why “Optimum Cable-less” LED

The LSAA series is the innovative LED signage applying the wireless transmission technology with *non-contact connectors. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAA series easier to be installed than ever before.
Why “Optimum Cable-less” LED Why “Optimum Cable-less” LED
* Non-Contact Connectors: Near-field wireless connectors that use RF(Radio Frequency) to transmit and receive data between two devices.

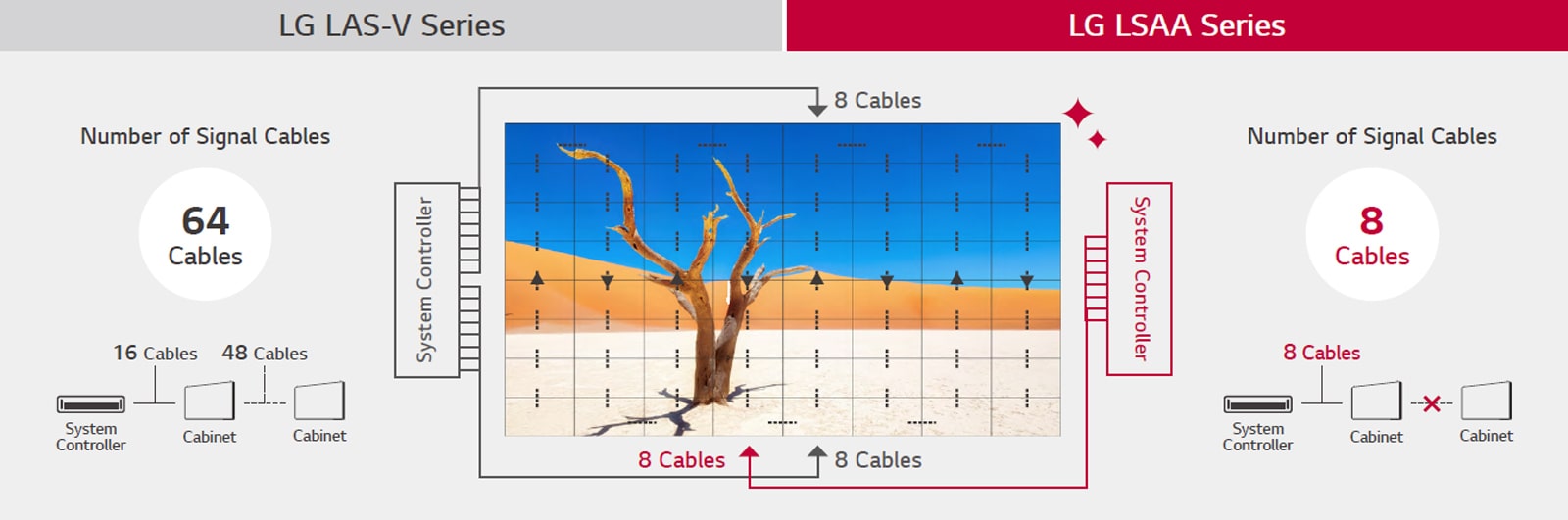

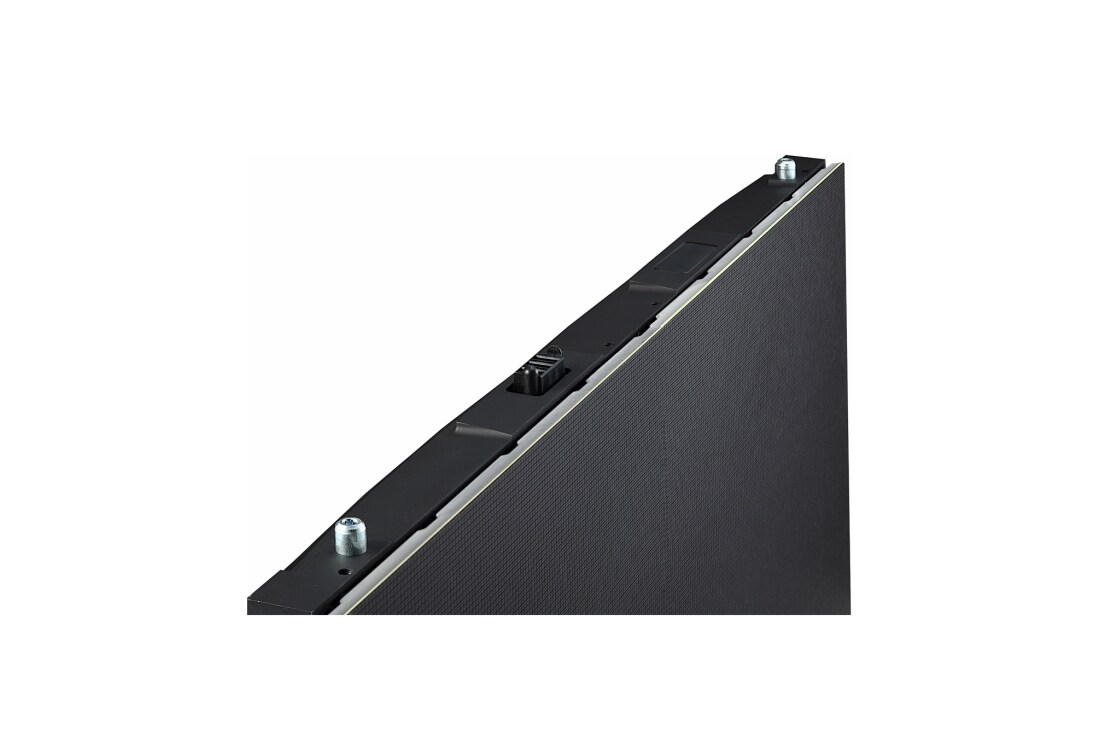

Optimum cable-less design for simple installation Optimum cable-less design for simple installation

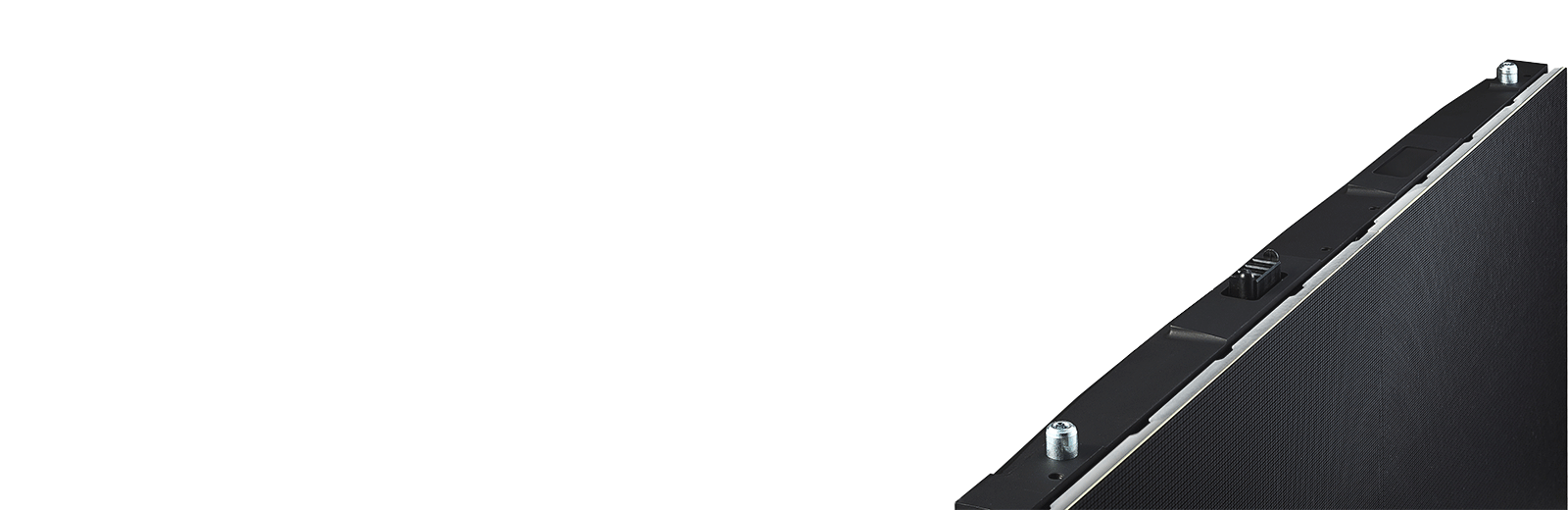

Wireless Data Transfer & Cable-less Power Docking Wireless Data Transfer & Cable-less Power Docking

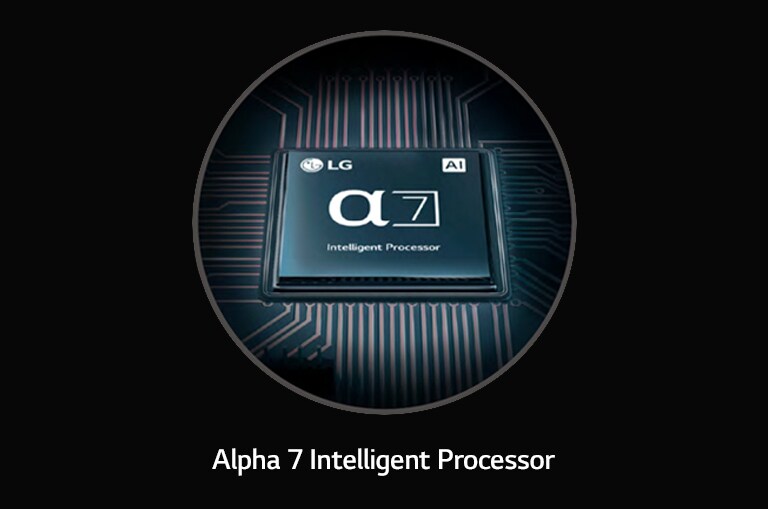

Optimized Image Quality with AI-powered Image Processor Optimized Image Quality with AI-powered Image Processor

Optimized Image Quality with AI-powered Image Processor

The "Alpha 7 Intelligent Processor" applied to the LSAA series recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.
* The above functions are created by using deep learning AI technology to improve the picture quality.

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact.
The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
Vivid Color Expression Powered by HDR Vivid Color Expression Powered by HDR
* HDR10 Pro is LG's own HDR solution for processing HDR signal by using enhanced dynamic tone mapping.

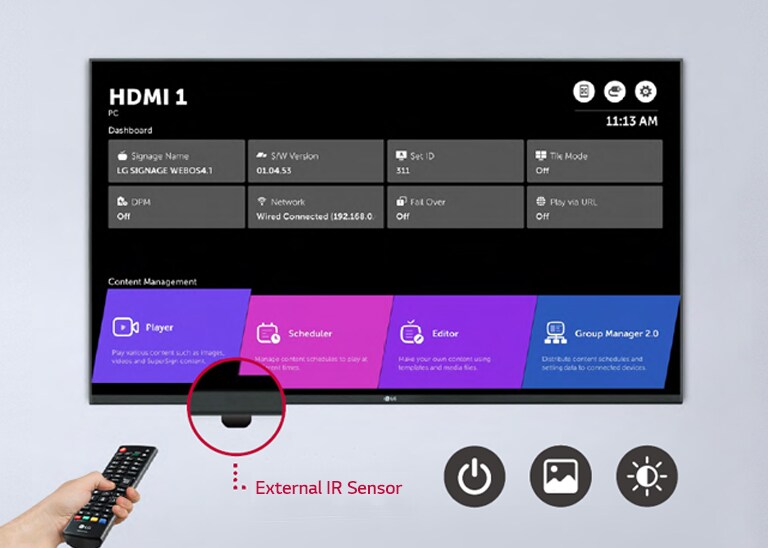

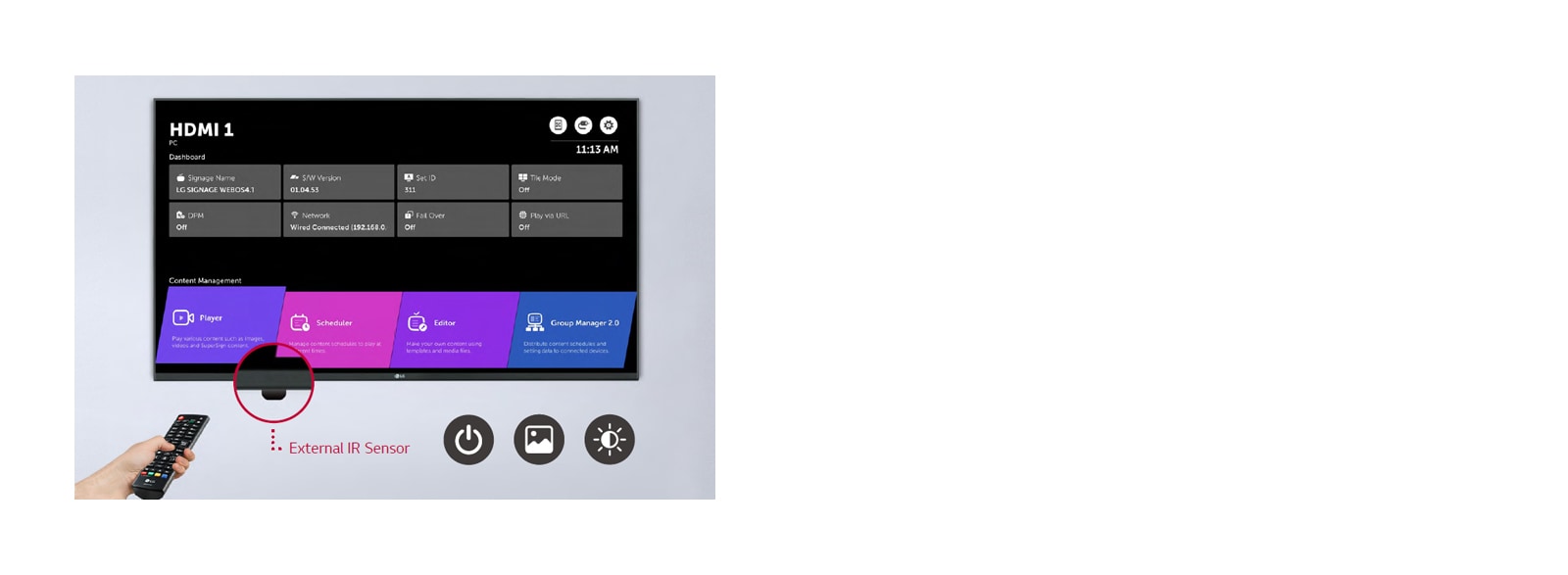

Easy Remote Control Support Easy Remote Control Support

Easy Remote Control Support

The LSAA series allows users to easily access the settings, such as Picture Mode, volume, etc. by using a remote control instead of connecting to a PC. It uses the same UI as general LG digital signage, so users can easily adapt to it.
* The easy-viewing UI menu is available for over 1,280 × 720 resolution screens.

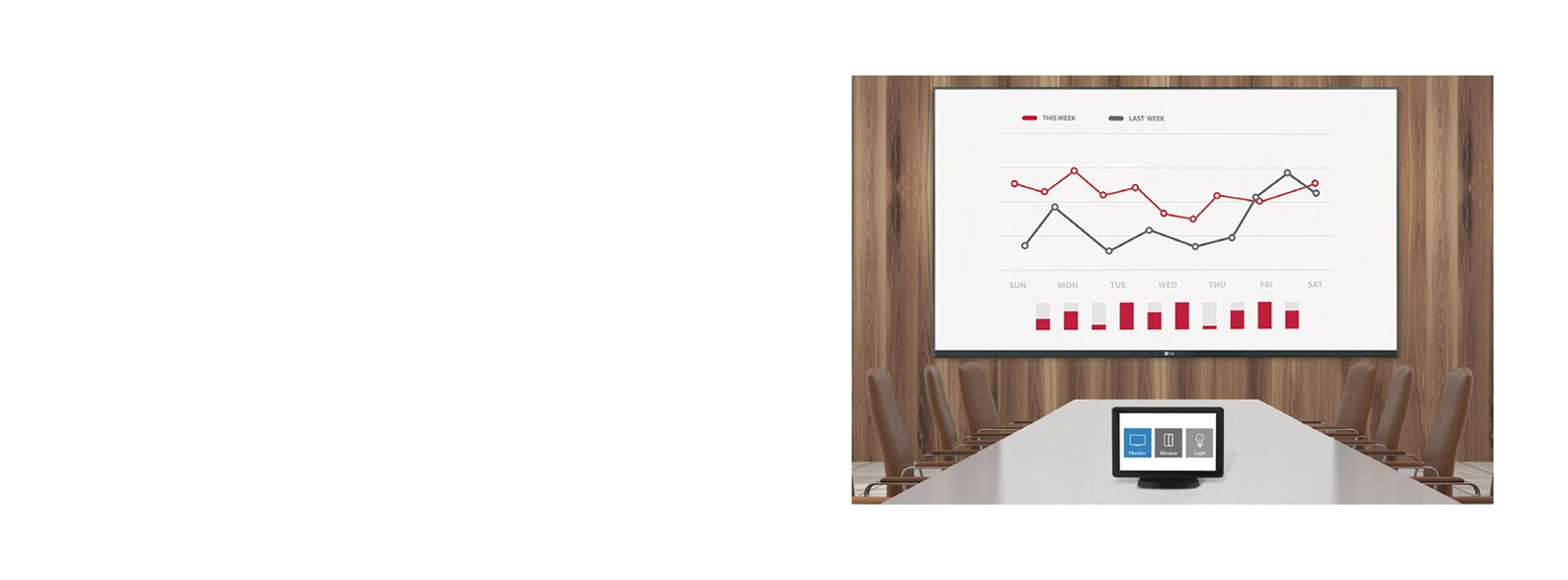

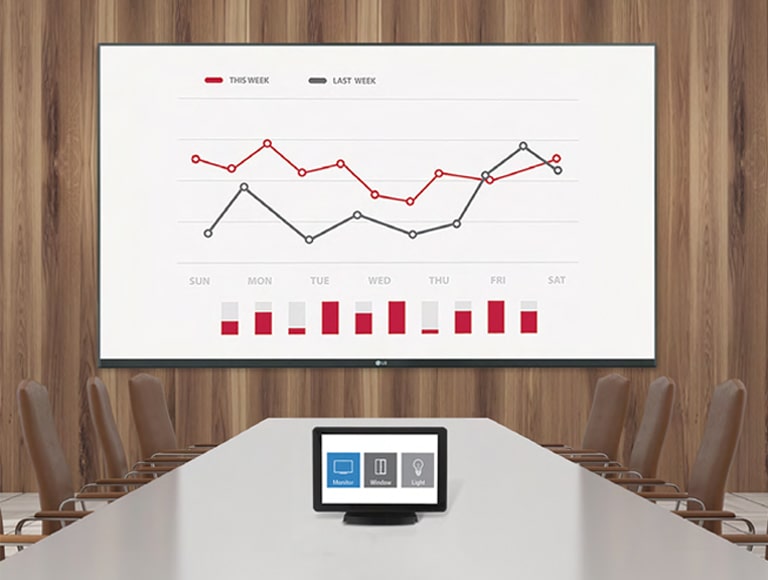

Compatibility with AV Conference Systems Compatibility with AV Conference Systems

Compatibility with AV Conference Systems

The LSAA series has been certified Crestron Connected® for a high level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network-based control

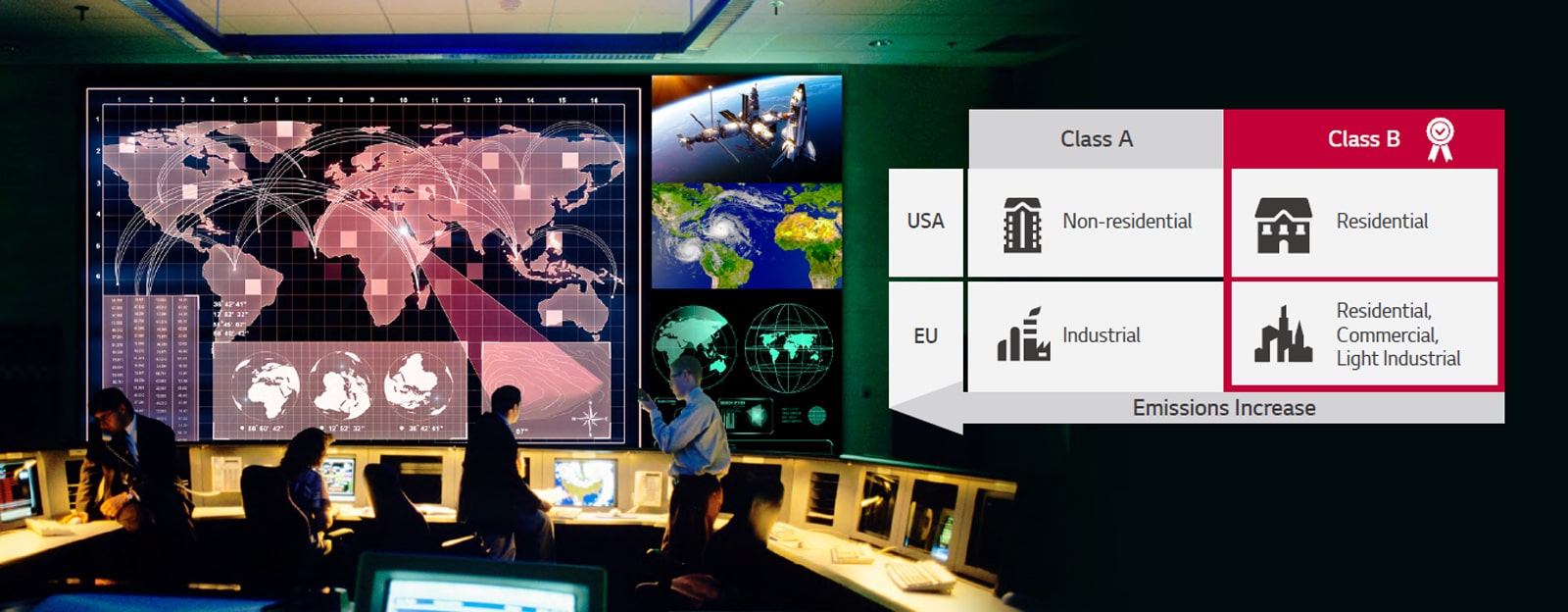

EMC Class B Certified

The LG LSAA Series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments.
Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.
EMC Class B Certified EMC Class B Certified

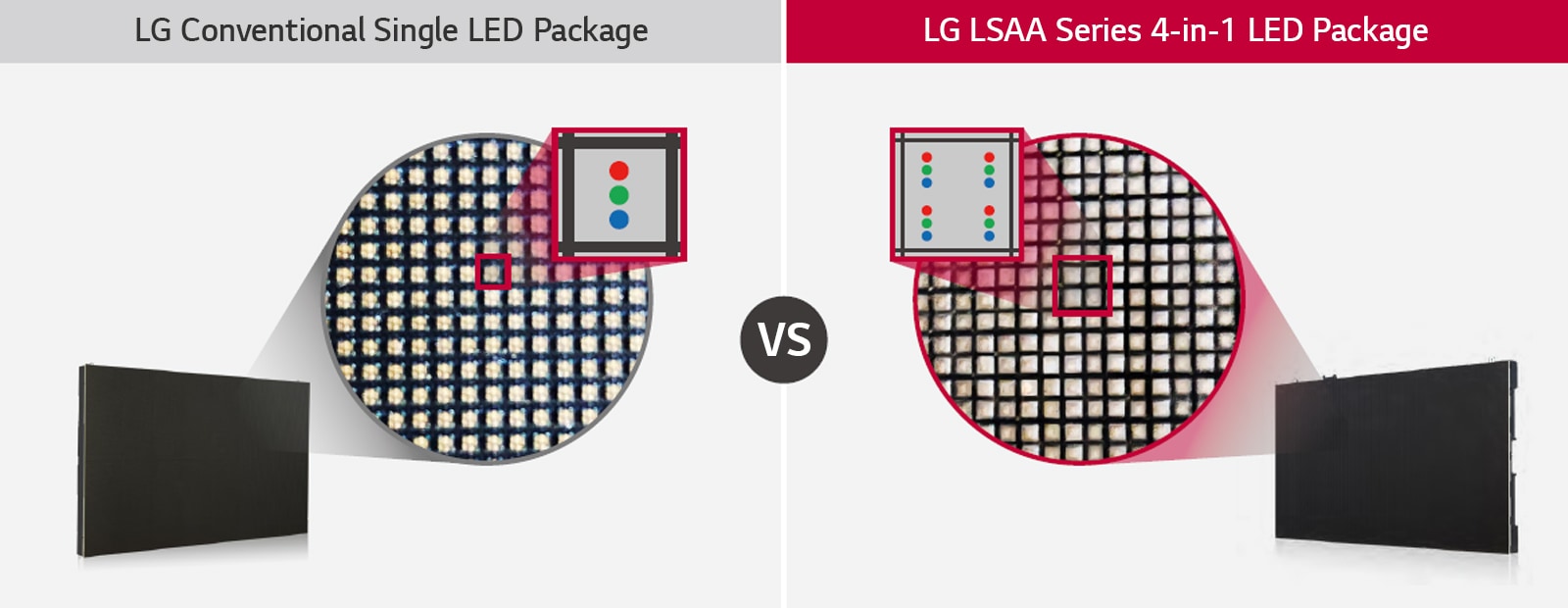

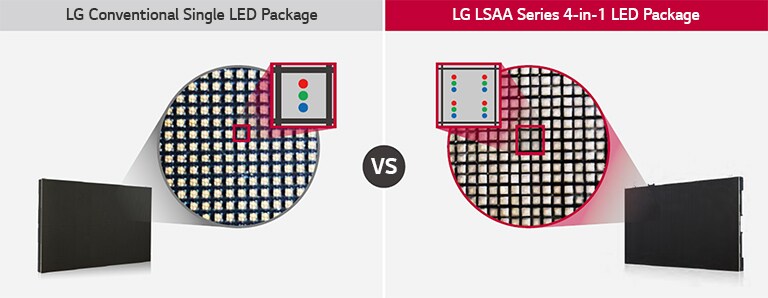

4-in-1 LED Package

Unlike LG's conventional LED signage in which one light source constitutes one small LED package, the LSAA series has applied four light sources at once to its wider LED package. So the attached area of 4-in-1 LED package can be wider than the conventional single LED package, making the LED signage surface smoother and suitable for up-close uses such as corporate meeting rooms etc.
4-in-1 LED Package 4-in-1 LED Package

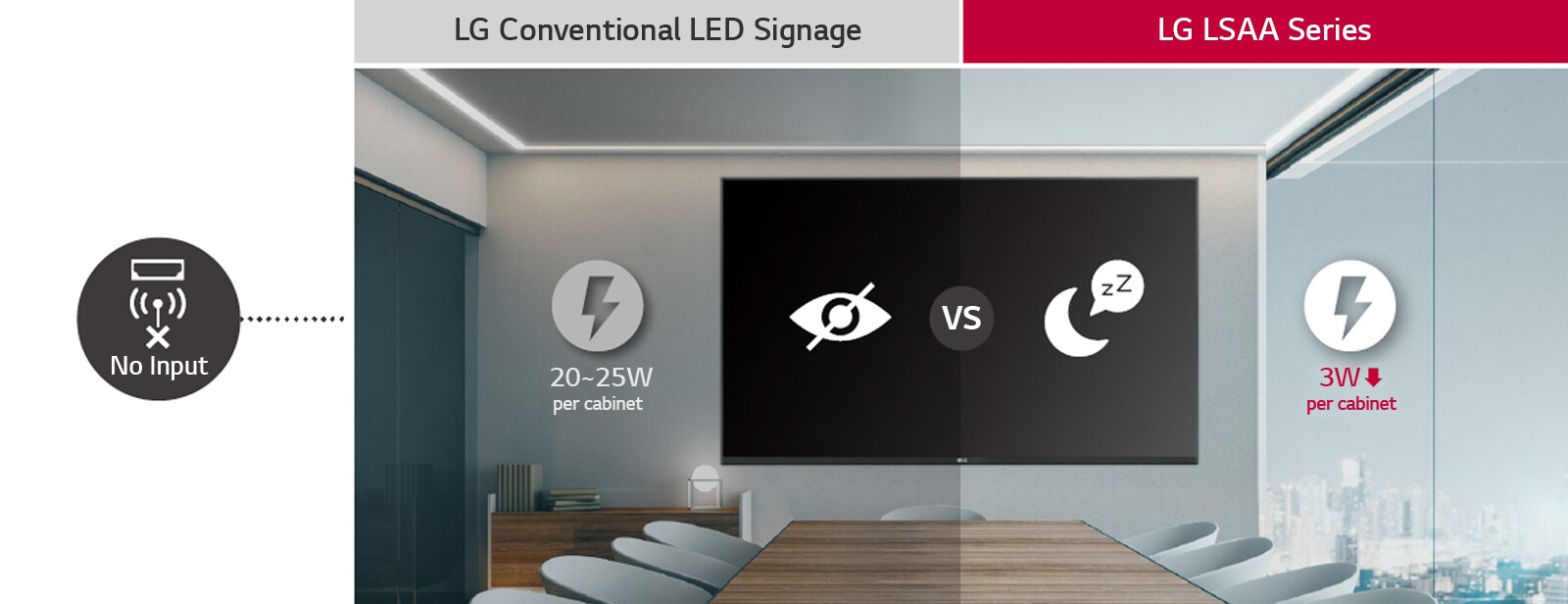

Standby Mode

When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.
Standby Mode Standby Mode

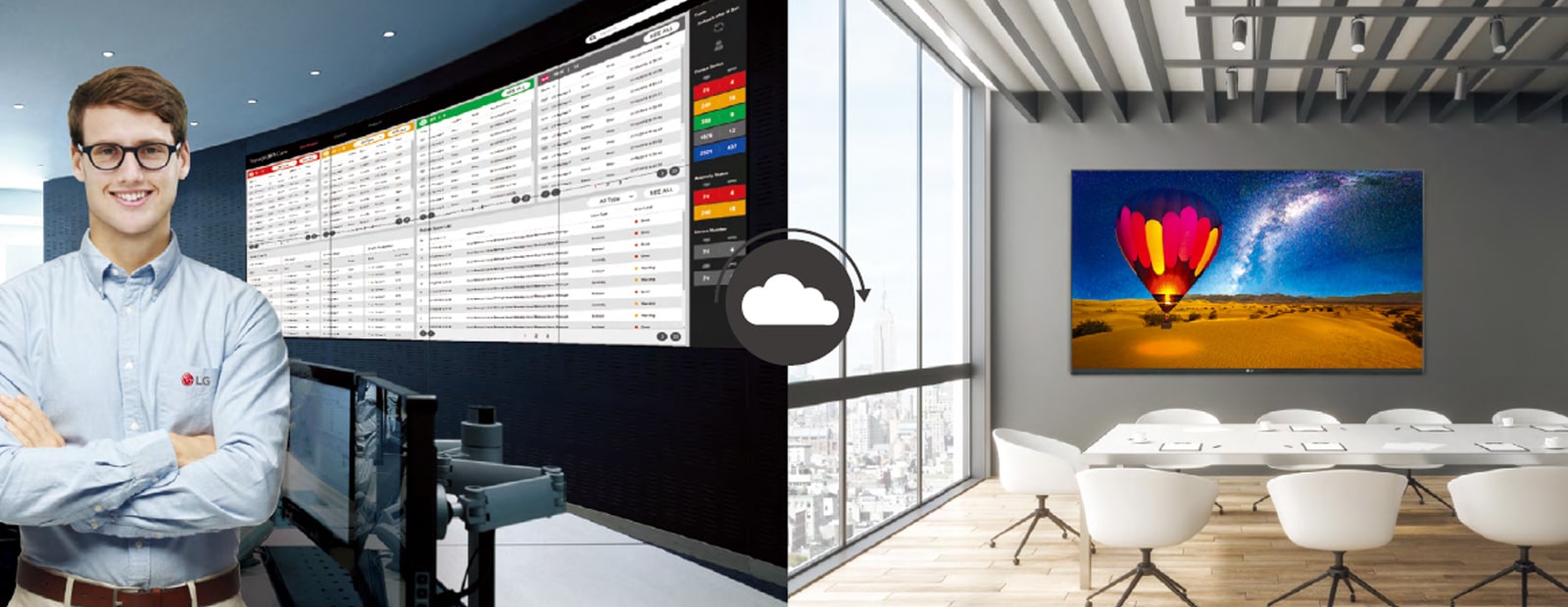

Real-time ConnectedCare Service

Maintenance is easier and faster with the optional ConnectedCare* service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Real-time ConnectedCare Service Real-time ConnectedCare Service
* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

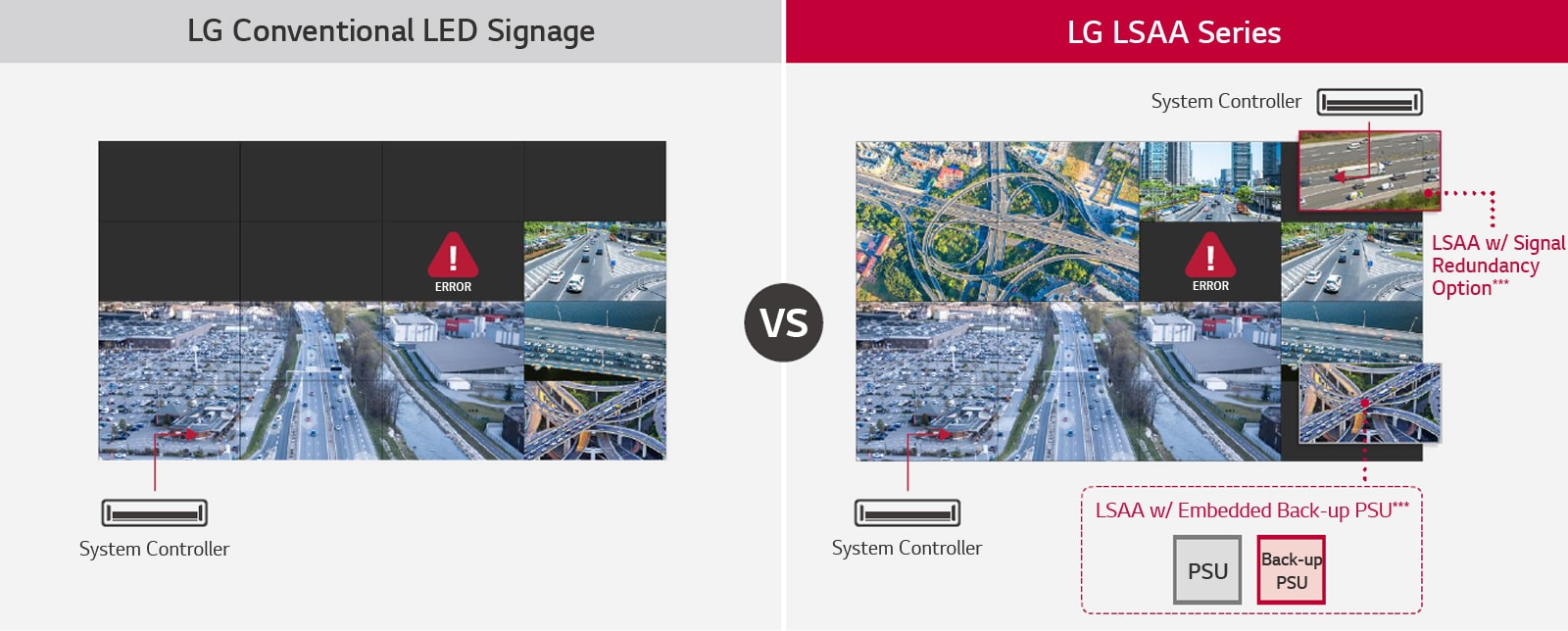

Power / Signal Redundancy Support

The LSAA series is designed to support redundancy of signal and power, providing users with comfort. With optional embedded back-up power supply unit and signal redundancy, customers can assure the continuous operation of the screen without power failure, while the dual controllers minimize screen failure with a bi-directional signal input.
Power / Signal Redundancy Support Power / Signal Redundancy Support
* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
** The power/signal redundancy features are available from the fourth quarter of 2020.
*** The power/signal redundancy models are optional.
Close
PHYSICAL PARAMETER
  • Pixel Configuration
    SMD, 4 Pixels in 1 PKG
    Pixel Pitch (mm)
    1.25
  • Module Resolution (W x H)
    240 × 90
    Module Dimensions (W x H, mm)
    300 ×112.5
  • Weight per Module (kg)
    0.20
    No. of Modules per Cabinet (W × H)
    2 × 3
  • Cabinet Resolution (W × H)
    480 × 270

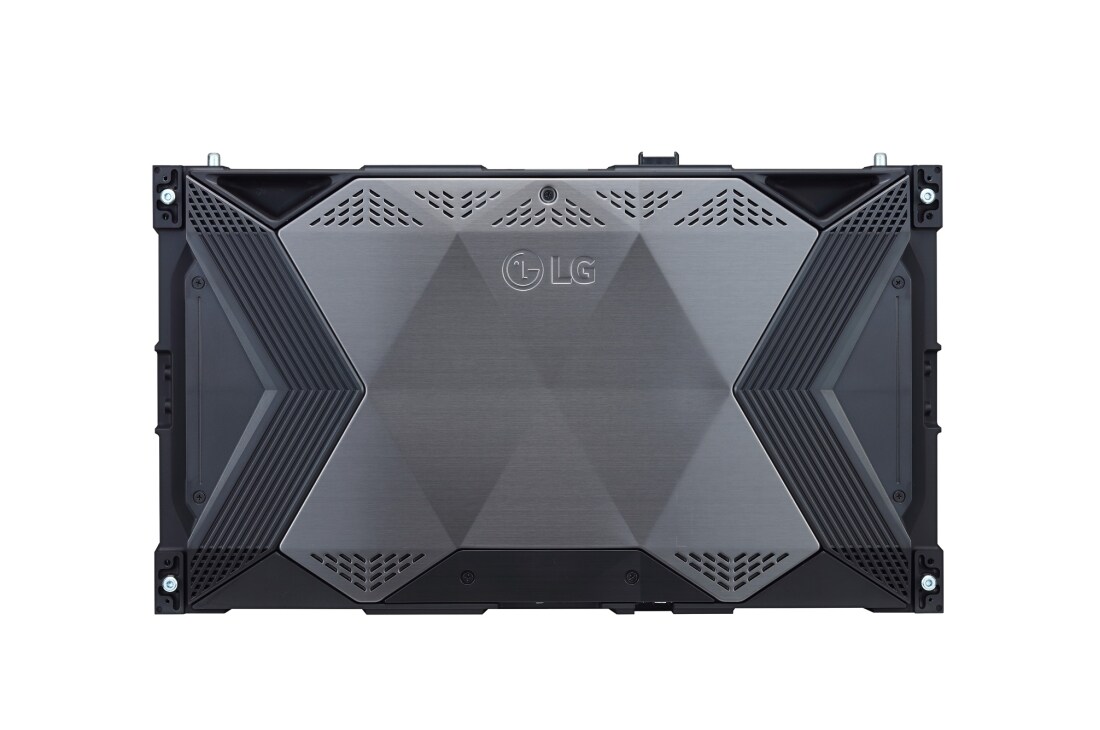

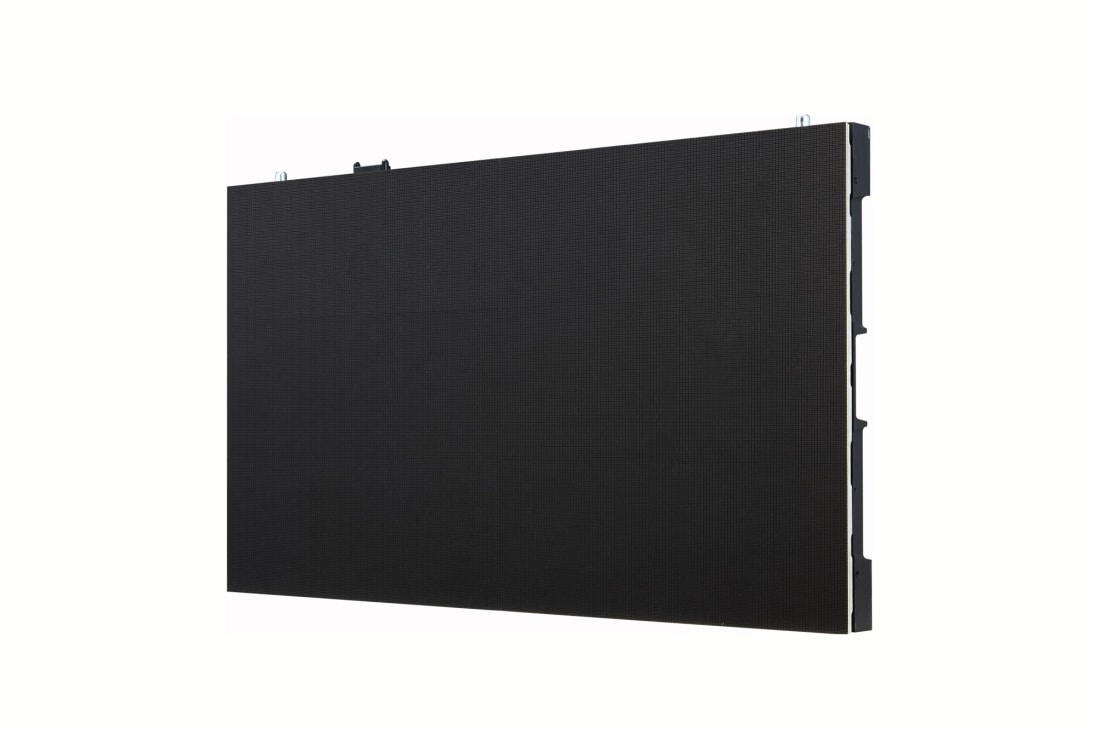

    Cabinet Dimensions (W × H × D)
    600 × 337.5 × 44.9
  • Cabinet Surface Area (m²)
    0.203
    Weight per Cabinet (kg/cabinet)
    7.3
  • Weight per Square Meter (kg/m²)
    36.1
    Physical Pixel Density (pixels/m²)
    640,000
  • Flatness of Cabinet
    ±0.5 mm
    Cabinet Material
    Die-casting Aluminum
  • Service Access
    Front and Rear
    * Module can be accessed only from the front.
OPTICAL PARAMETER
  • Brightness
    600nit (Typ.) 1,200nit (Peak)
    Color Temperature
    (Default/Adjustable)
    6,500K / 2,800~10,000K
    * Adjustable via LED Assistant on PC
  • Visual Viewing Angle
    (Horizontal)
    170
    Visual Viewing Angle
    (Vertical)
    170
  • Brightness Uniformity
    98%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    Peak. 8,000:1 Typ. 4,000:1
    Processing Depth (bit)
    20
  • HDR Compatibility
    HDR10, HDR10 Pro
    * LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping
ELECTRICAL PARAMETER
  • Power Consumption
    (W/cabinet, Max.)
    112
    Power Consumption
    (W/cabinet, Avg.)
    67
  • Power Consumption
    (W/m², Max.)
    555
    Heat Dissipation
    (BTU/h/Cabinet, Max.)
    383
  • Heat Dissipation
    (BTU/h/Cabinet, Avg.)
    230
    Heat Dissipation
    (BTU/h/m², Max.)
    1,894
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840

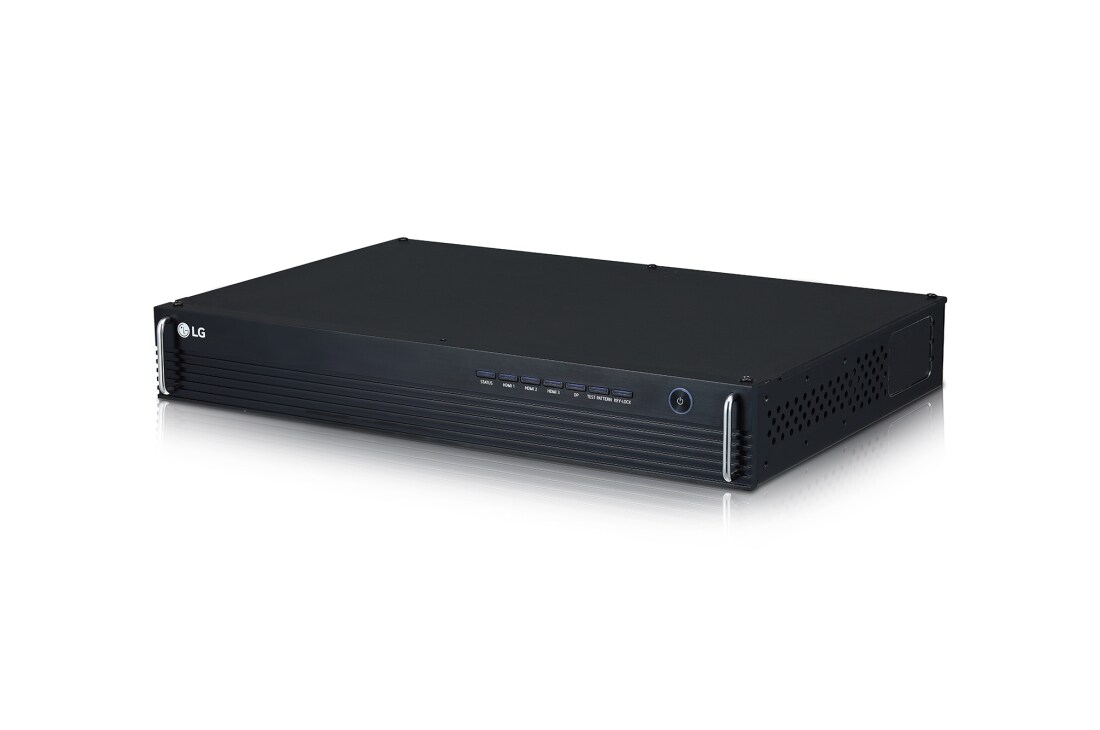

CONTROLLER

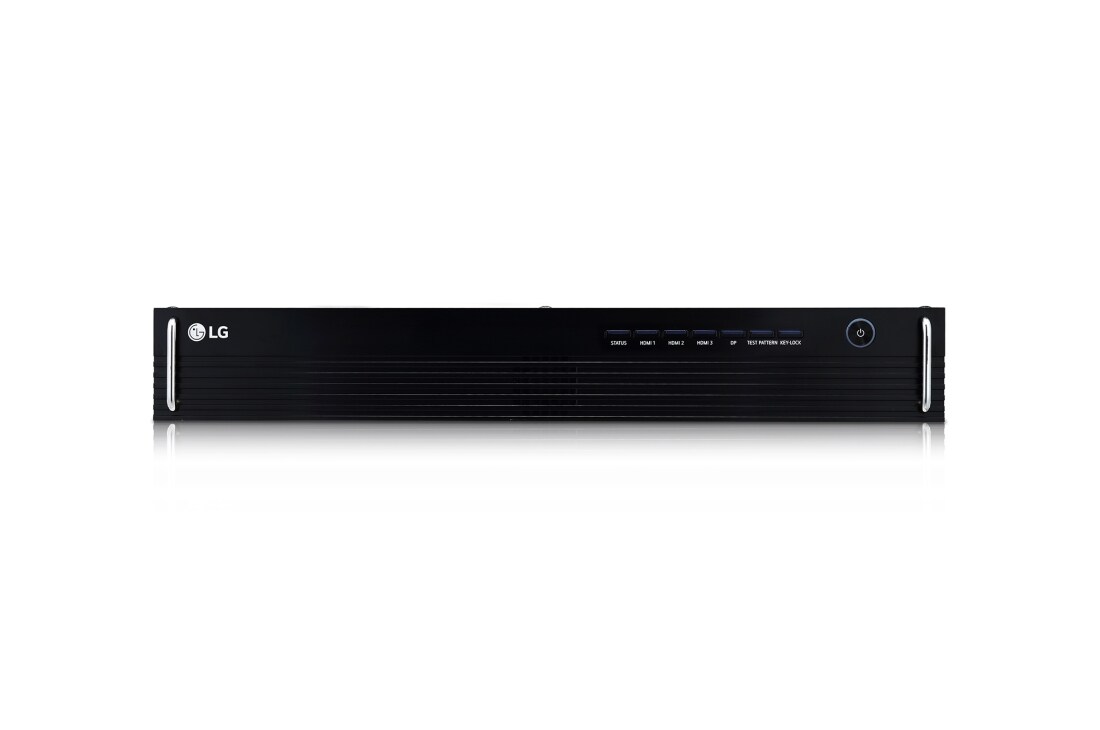

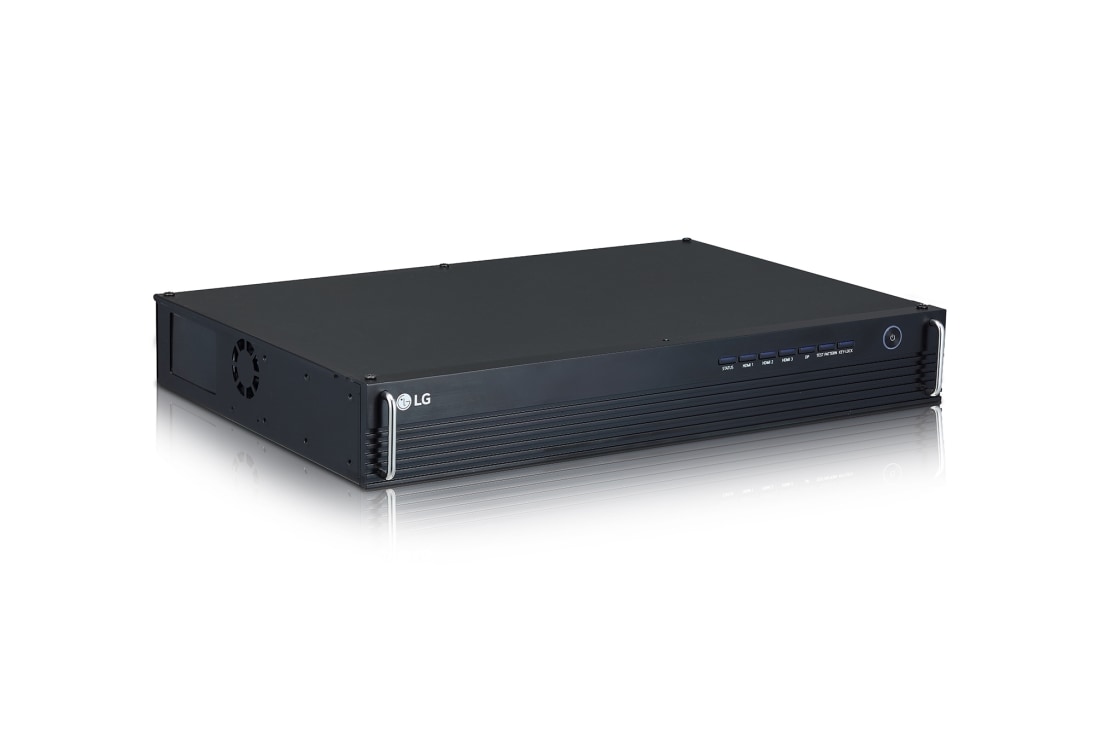

  • Controller
    CSAA-012X
OPERATION CONDITIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    0°C to 40°C
  • Operating Humidity
    10-80%RH
    IP rating Front / Rear
    IP20 / IP20
CERTIFICATION
  • Certification
    Safety 60950-1, EMC Class B, BS476 Part7 Class1
Environment
  • Environment
    RoHS
ACCESSORY
  • Optional
    Wall Mount Kit, Frame Kit
