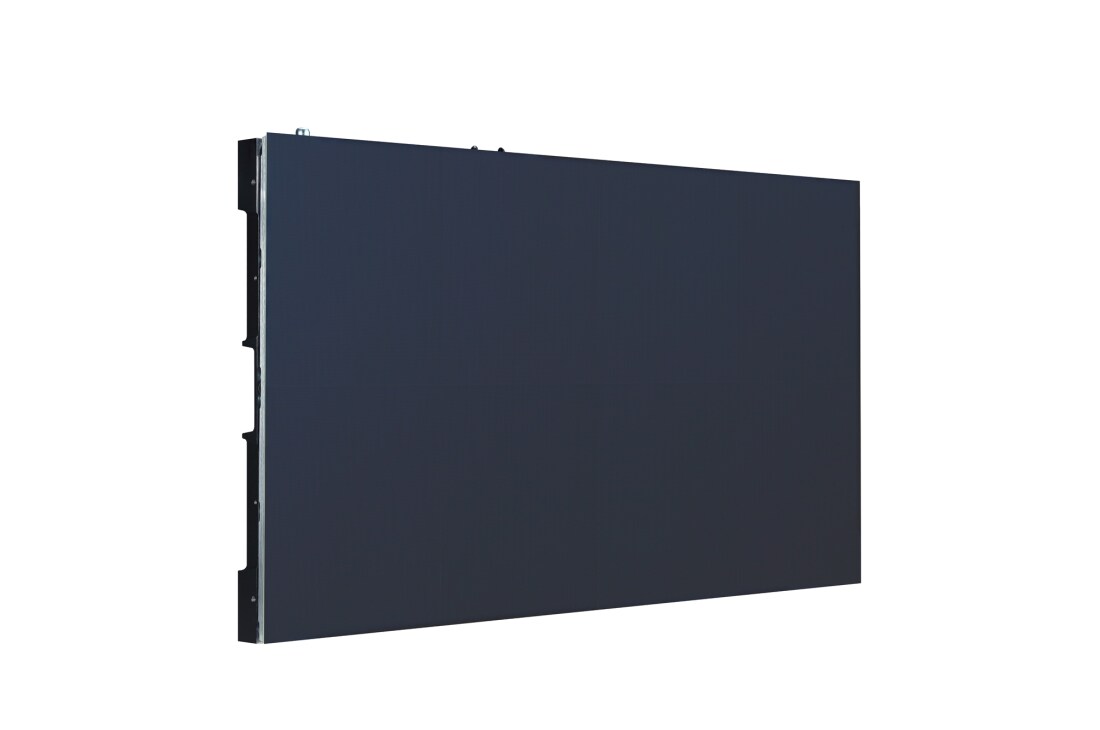

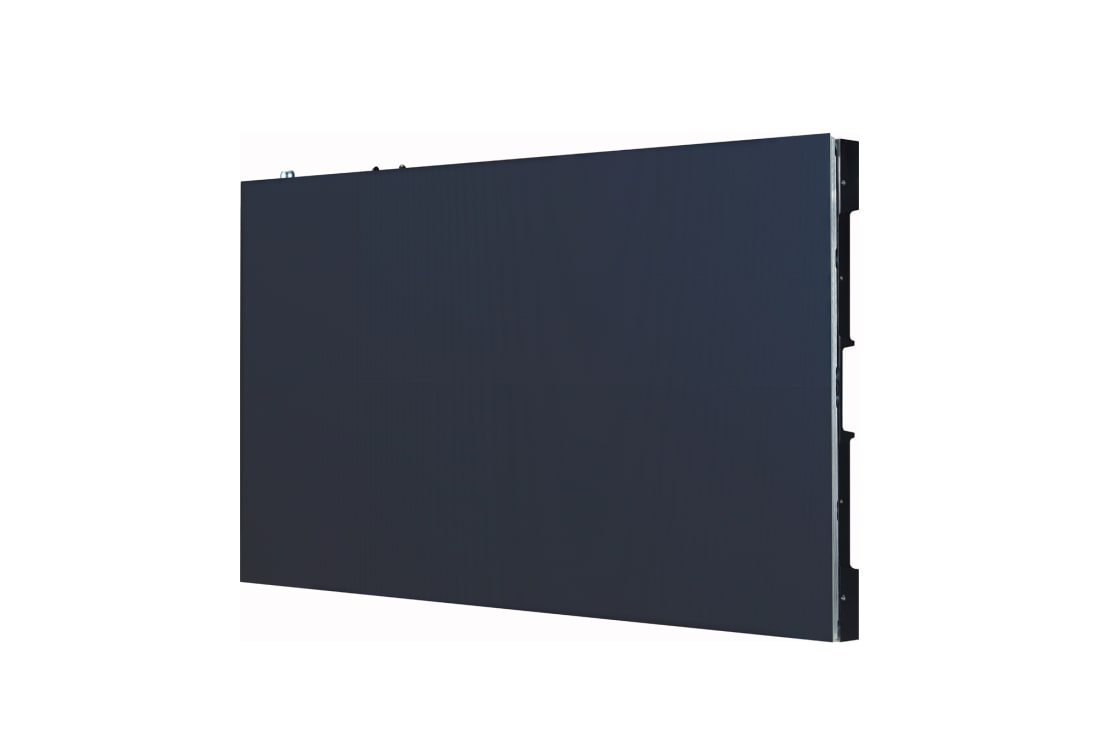

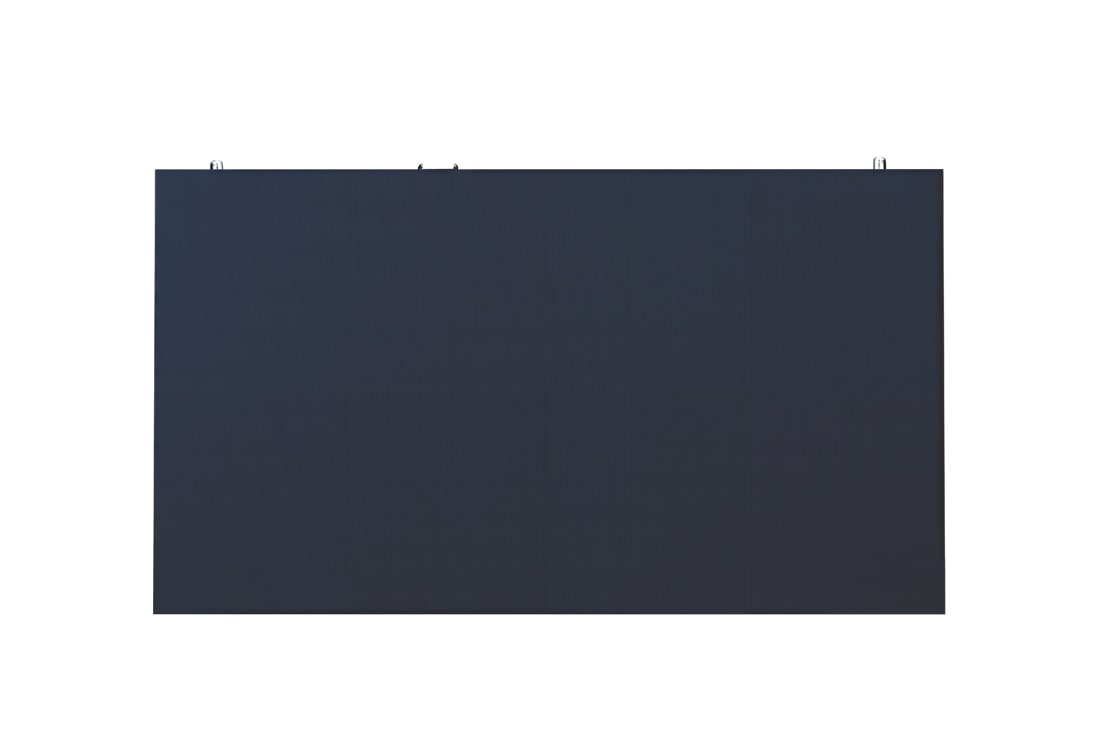

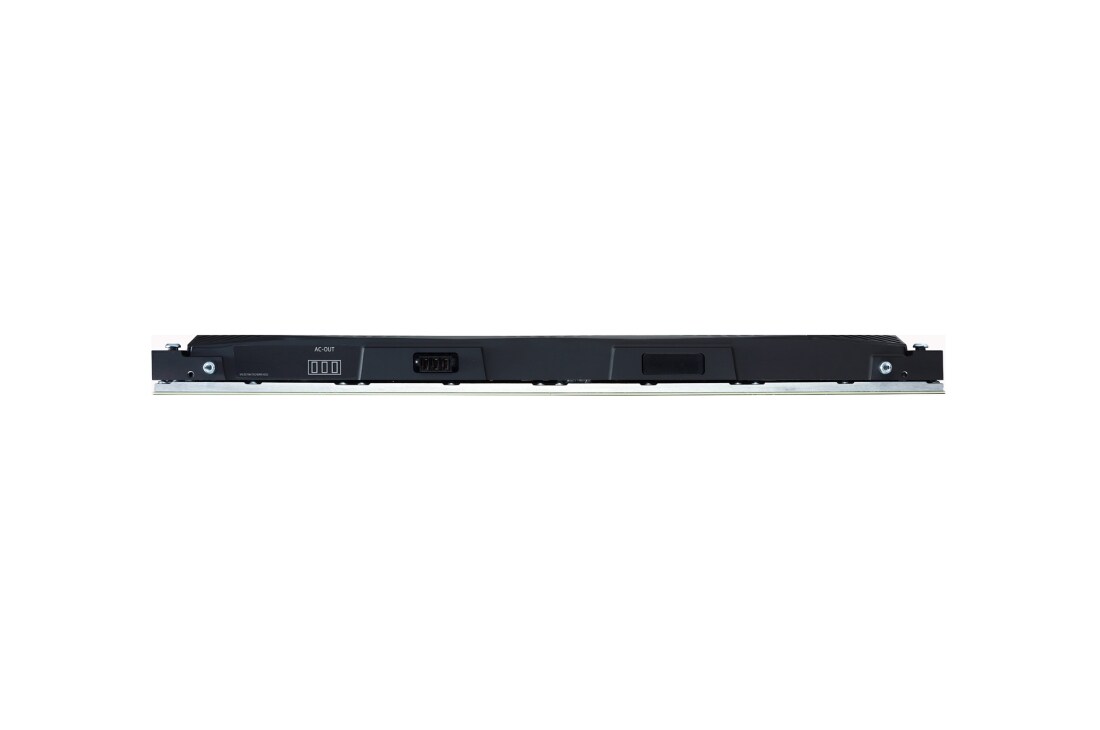

LSAB009-M1 component-copyModelName
LG MAGNIT

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSAB009-M1)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSAB009-M1)
    $
    $
    LG Members Price
Total
LG MAGNIT
LG MAGNIT Virtual Showroom1 LG MAGNIT Virtual Showroom2

LG MAGNIT Virtual Showroom

Explore more about LG MAGNIT and find the potentials at LG Digital Connect.
Explore

Winner of Design Awards

Red Dot Design Award 2020

IDEA Design Award 2020

2020 PIN UP Design Awards

2020 Good Design Award Korea

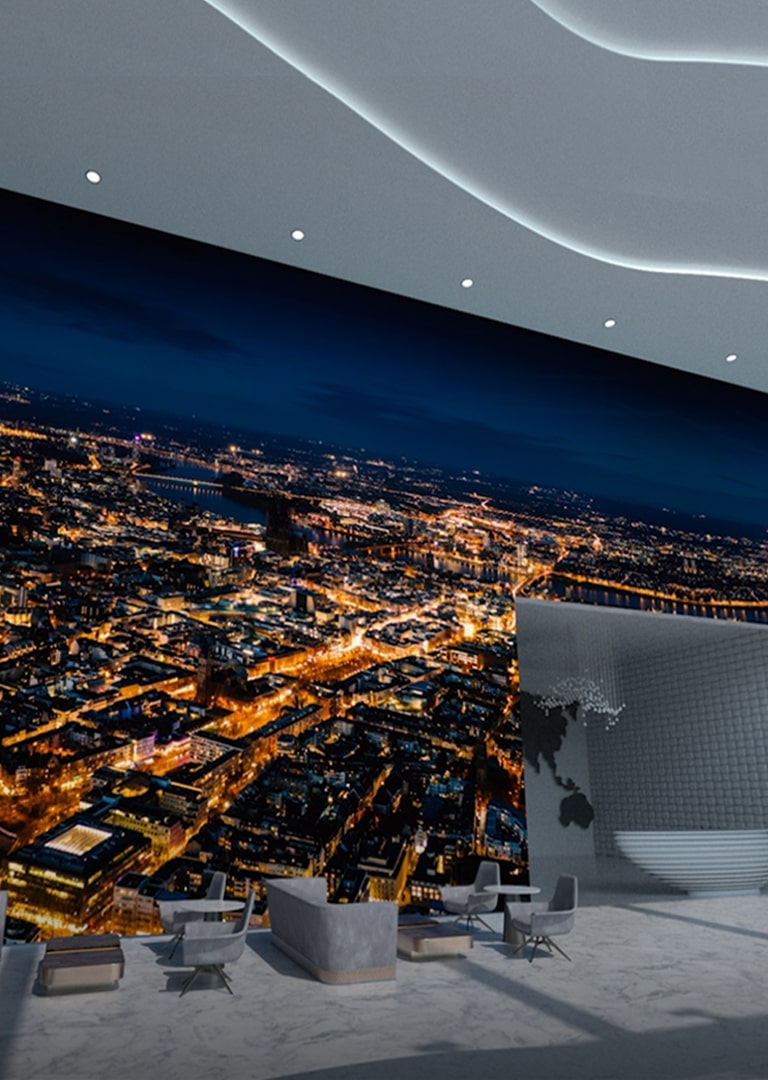

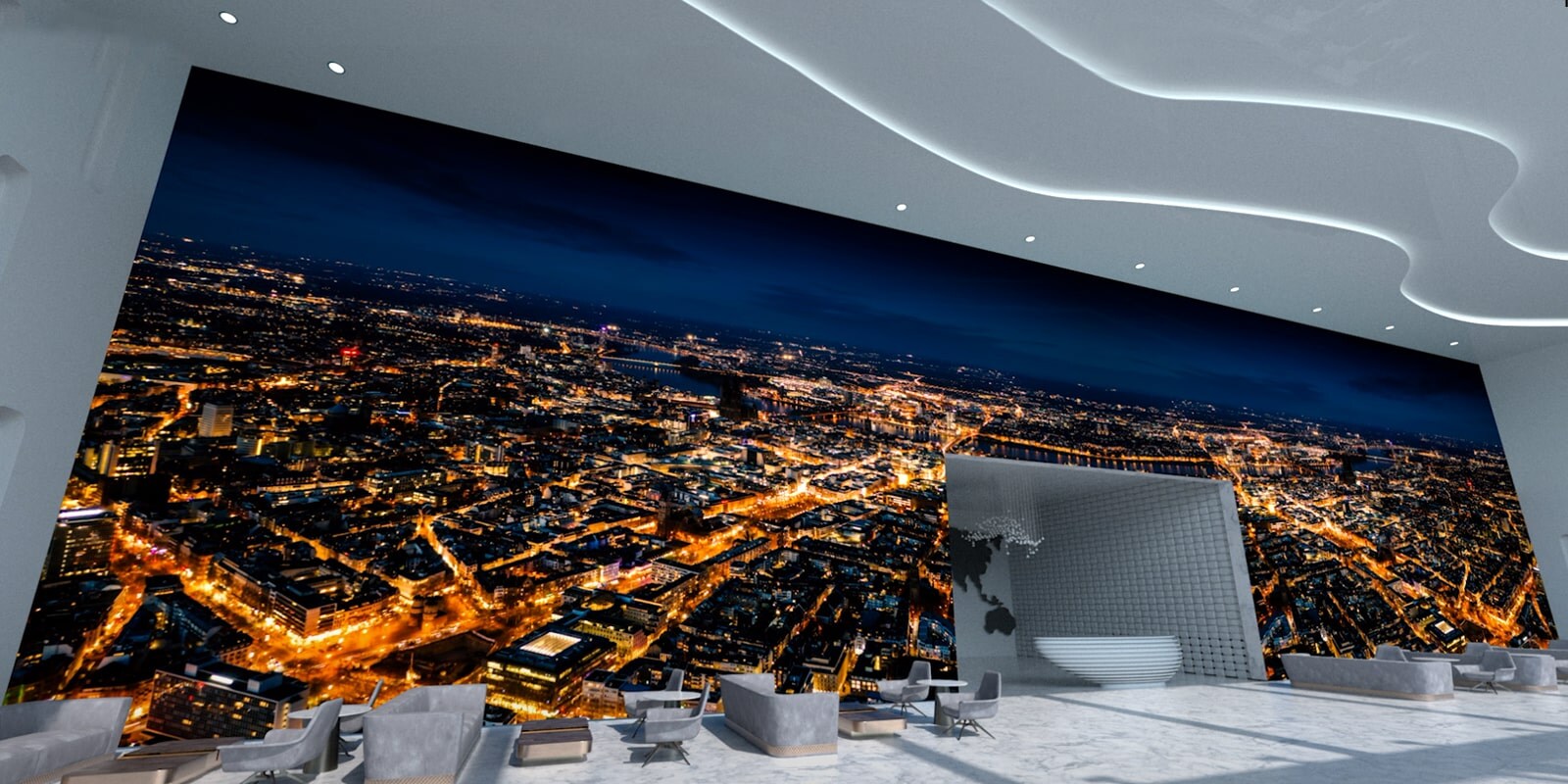

LG MAGNIT, Your First Micro LED Display LG MAGNIT, Your First Micro LED Display

LG MAGNIT,
Your First Micro LED Display

See the magnificent success that LG MAGNIT brings to business and recreation.
Watch the Full Movie

True Innovation behind
New Depths

LG MAGNIT delivers immersive and eye-popping visuals that make every viewing experience memorable. Bring your imagination into life, through ultra-fine details visualized by a colorful mosaic of Micro LED chips.
True Innovation behind New Depths True Innovation behind New Depths

Black Immersion,
Enlivened Details

By removing a package surrounding R, G, B LED chips and applying LG’s own Full Black Coating technology, LG MAGNIT surprisingly delivers much deeper black than the conventional package LED signage*. This not only enhances color vividness, but also makes the details which were hidden in the shadows appear, providing audiences a sense of immersion.

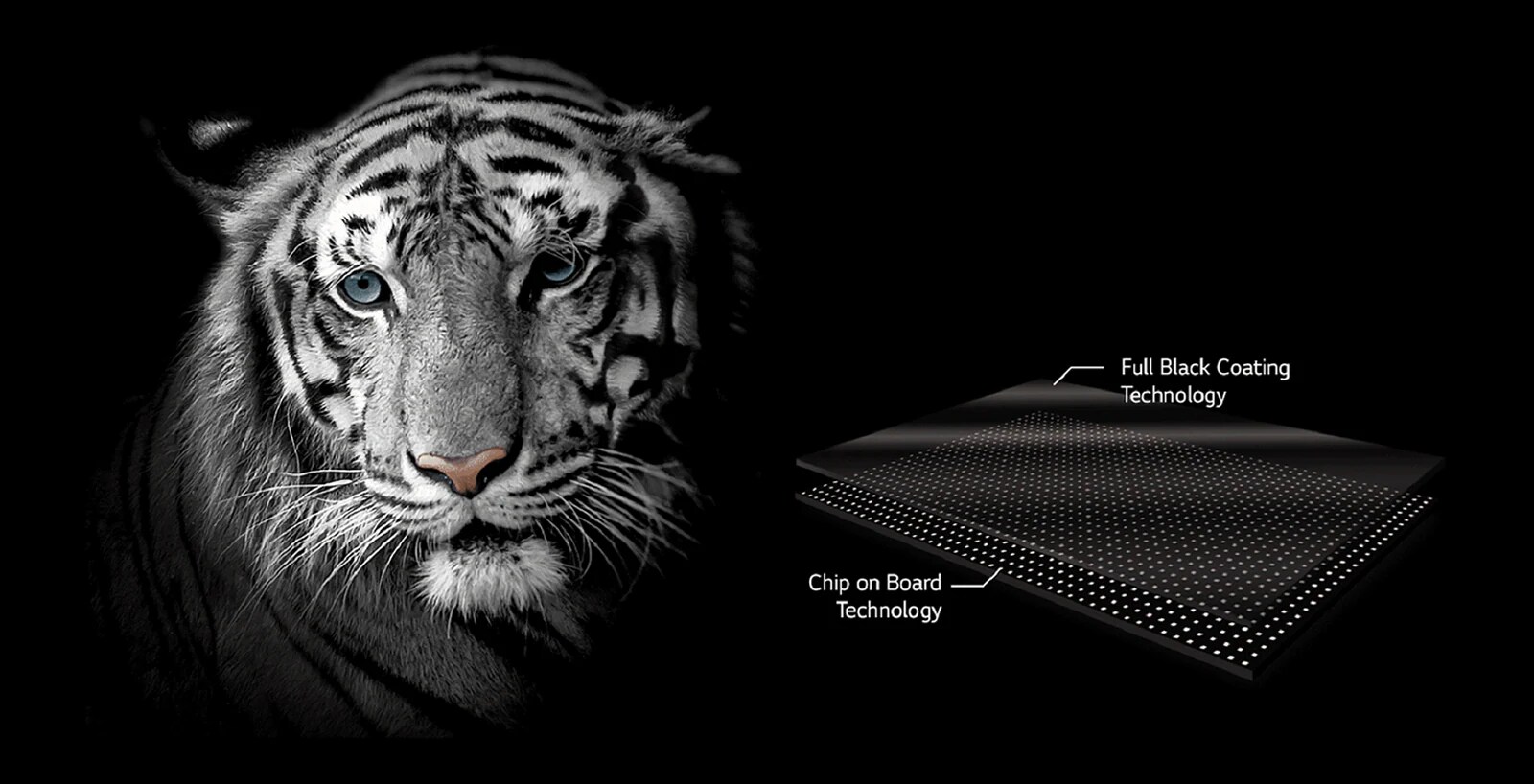

A face of a white tiger for emphasizing the black color A face of a white tiger for emphasizing the black color
* Based on LG's conventional LED Signage

Stronger Light and Shadow

The solid black LG MAGNIT makes also results in superbly high contrast ratio which is a vital part of the picture quality. The difference between the dark parts and the light parts is clearly great, making every part of the content distinctive.
Floor fountain with different colors to show difference between LG Conventional LED Signage and MAGNIT about contrast ratio and distinctiveness Floor fountain with different colors to show difference between LG Conventional LED Signage and MAGNIT about contrast ratio and distinctiveness

Accurate Colors as Intended

By carefully selecting an LED chip which is a key factor to determine color purity, its narrowed wavelength allows LG MAGNIT to show uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports it to describe colors close to the original color, which is essential for places where exact color representation is demanding.
The Seattle Great Wheel shining with lots of colors The Seattle Great Wheel shining with lots of colors
Alpha 7 Intelligent Processor Alpha 7 Intelligent Processor

Intelligent Image Processor

The Alpha 7 Intelligent Processor which is adopted from LG’s TV technology recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.
* The above functions are created by using deep learning AI technology to improve the picture quality.

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
Night view of a village on HDR and SDR, having difference in color spectrum and contrast ratio Night view of a village on HDR and SDR, having difference in color spectrum and contrast ratio
* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.

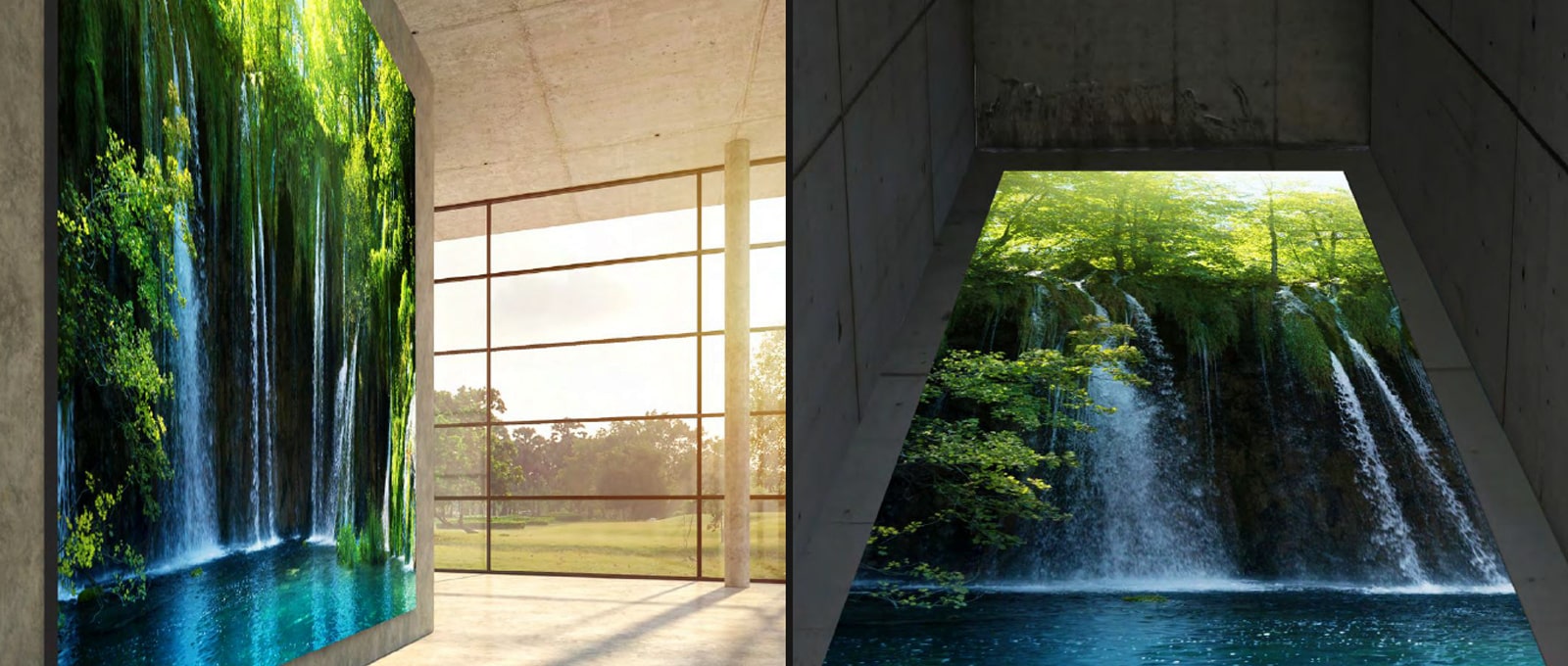

Wide Color Viewing Angle

Thanks to the structure of LG MAGNIT, it minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated even from the side angles, captivating various pedestrians even if it is installed in a large public places.
MAGNIT showing waterfall viewed from the side angles MAGNIT showing waterfall viewed from the side angles

Care Less with Sturdy Design

Through several layers of coated film, LG MAGNIT can protect its LED chips from risks caused by water drops, dust, static electricity or physical impacts. Considering that it is usually installed in public places where many people come and go, its stability is vitally important to minimize unforeseen accidents.

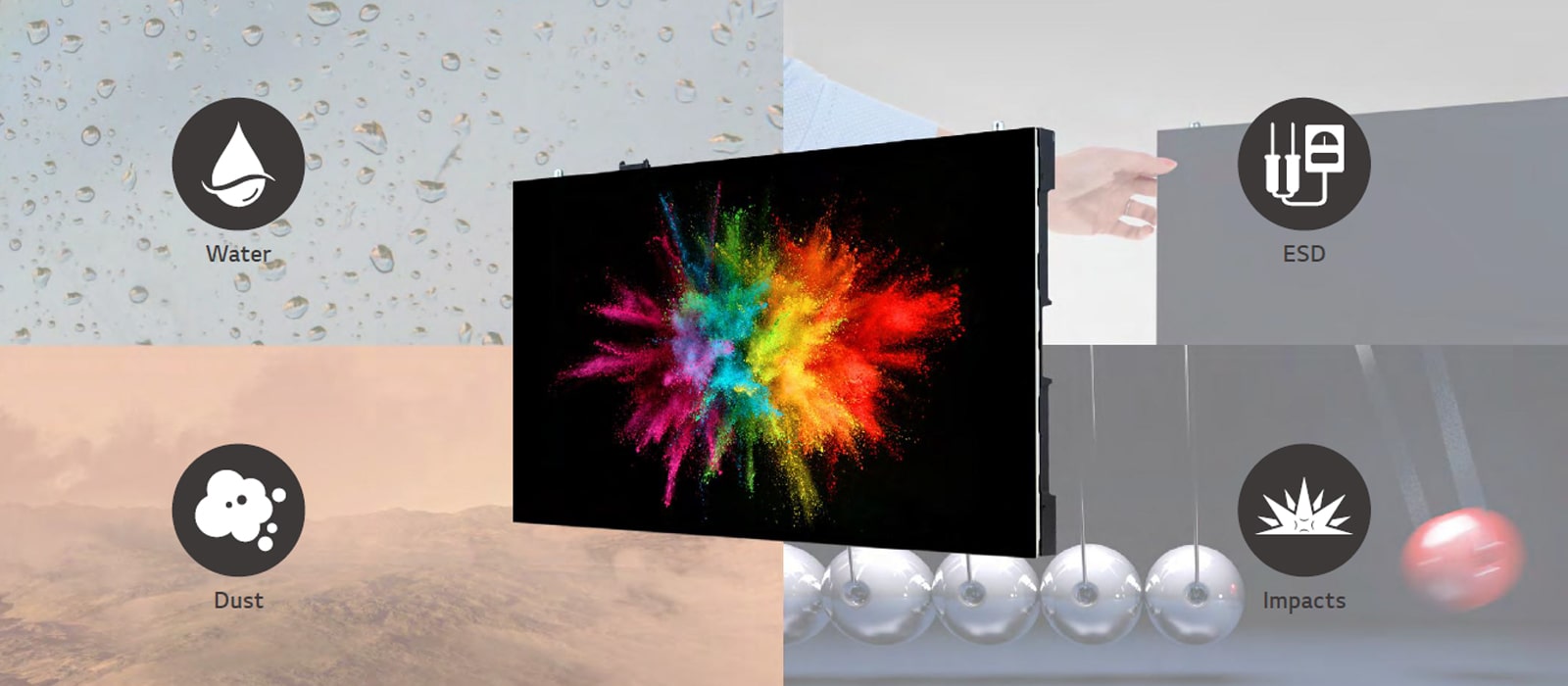

Protecting LED chips from water drops, dust, static electricity and physical impacts Protecting LED chips from water drops, dust, static electricity and physical impacts
* Based on in-house testing in accordance with the certification criteria, or under actual operating conditions.

Sleek Look with Smooth Surface

The screen surface of LG MAGNIT is very smooth just as LCD, making it looks nice even when the screen is off. Also, audiences or installers feel soft when touching the screen. If fingerprints are on the surface, they can be simply removed by wiping with a soft cloth without the need for any chemicals.
The sleek look of MAGNIT with smooth surface The sleek look of MAGNIT with smooth surface

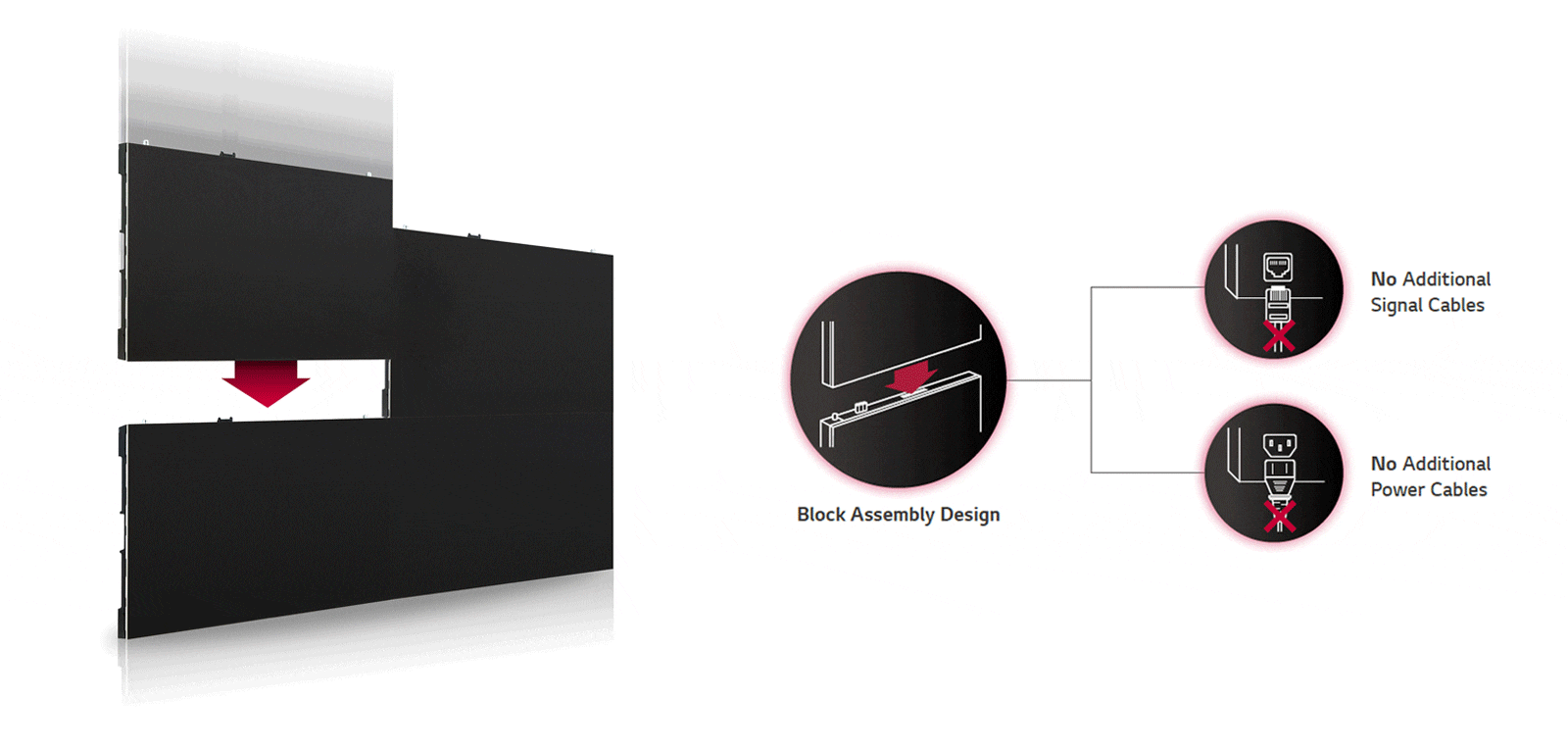

Optimum Cable-less Design for Simple Installation

The wireless broadband transmission technology has been adopted. No signal and power cable connection is required between the cabinets and you don't need cables except for connecting the screen to its system controller and power.

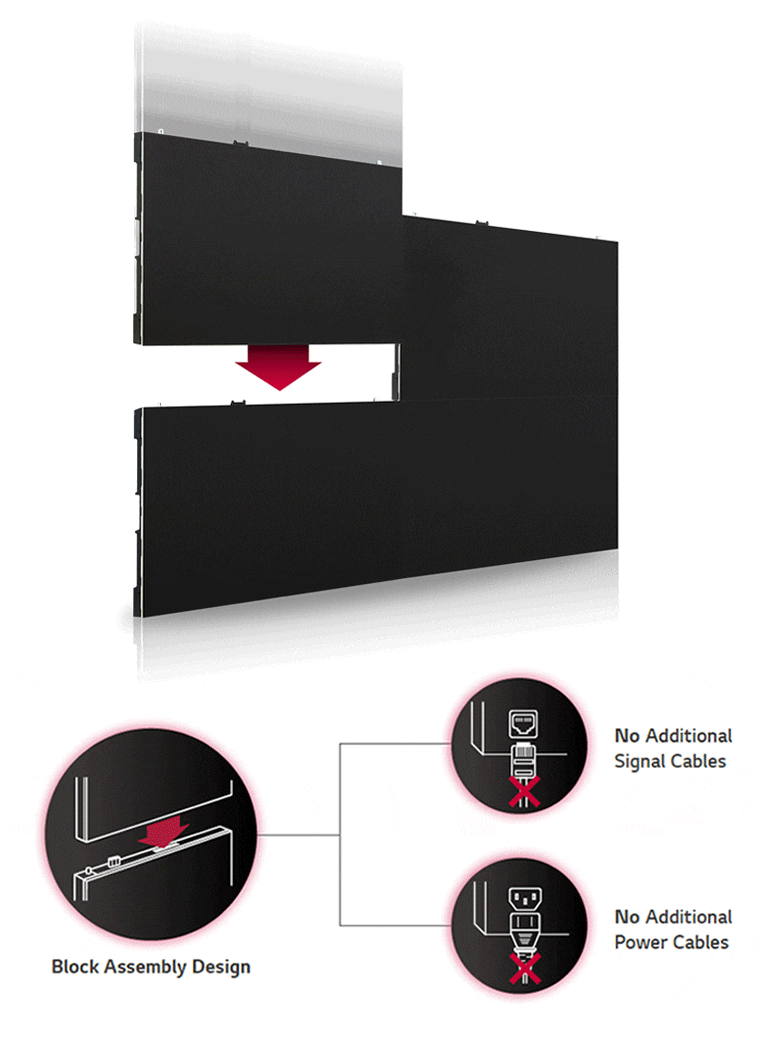

The wireless broadband transmission technology enables cabinets to connect to each other, and its assembly design simplifies rear structure of the screen. The wireless broadband transmission technology enables cabinets to connect to each other, and its assembly design simplifies rear structure of the screen.
Wireless Data Transfer & Cable-less-Power Docking Wireless Data Transfer & Cable-less-Power Docking

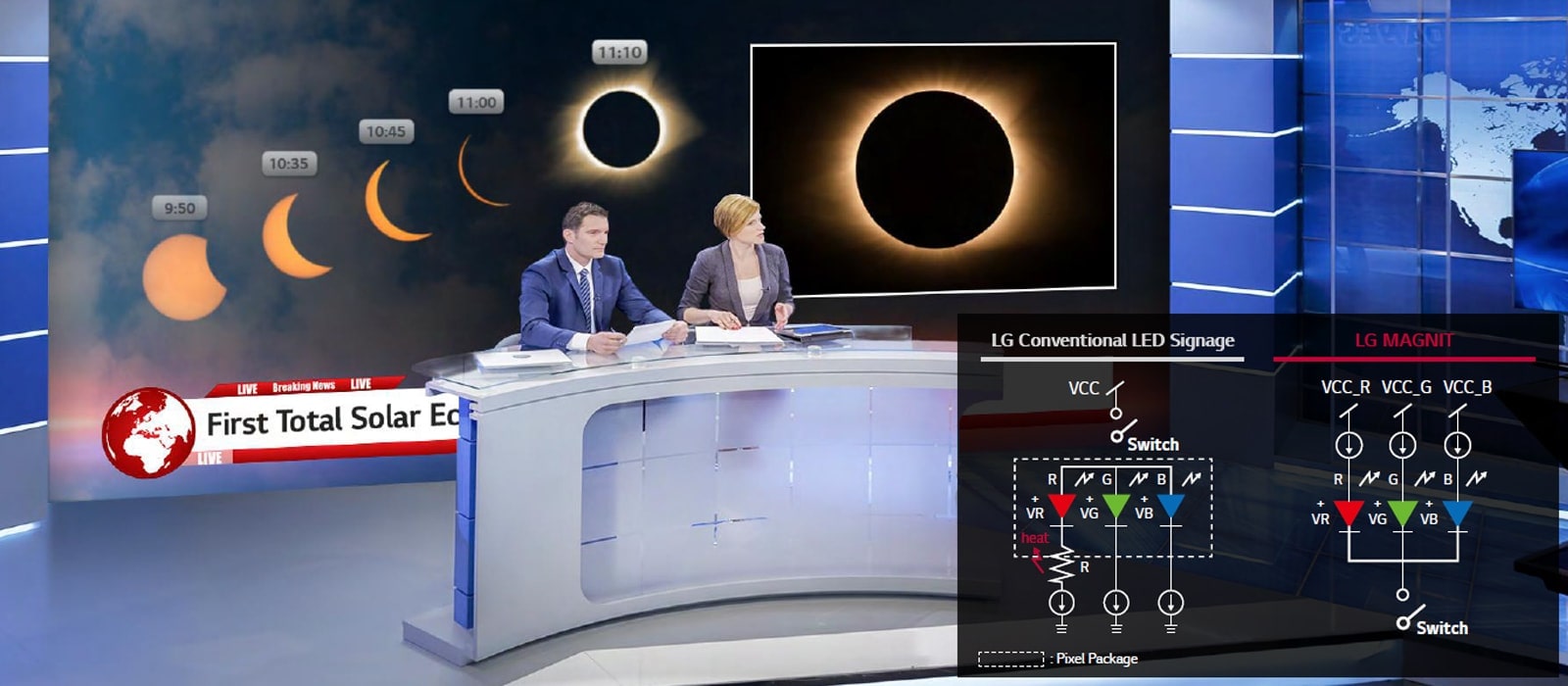

Efficient Power Consumption by Colors

Common Cathode Drive-IC is one of the reasons why LG MAGNIT has low power consumption. It supplies the right necessary voltage to each R, G, B sub-pixel individually to minimize unnecessary power consumption.
A backdrop of broadcasters composed of LG MAGNIT and a comparison of current flow to LED chips between MAGNIT and LG's conventional LED Signage. A backdrop of broadcasters composed of LG MAGNIT and a comparison of current flow to LED chips between MAGNIT and LG's conventional LED Signage.

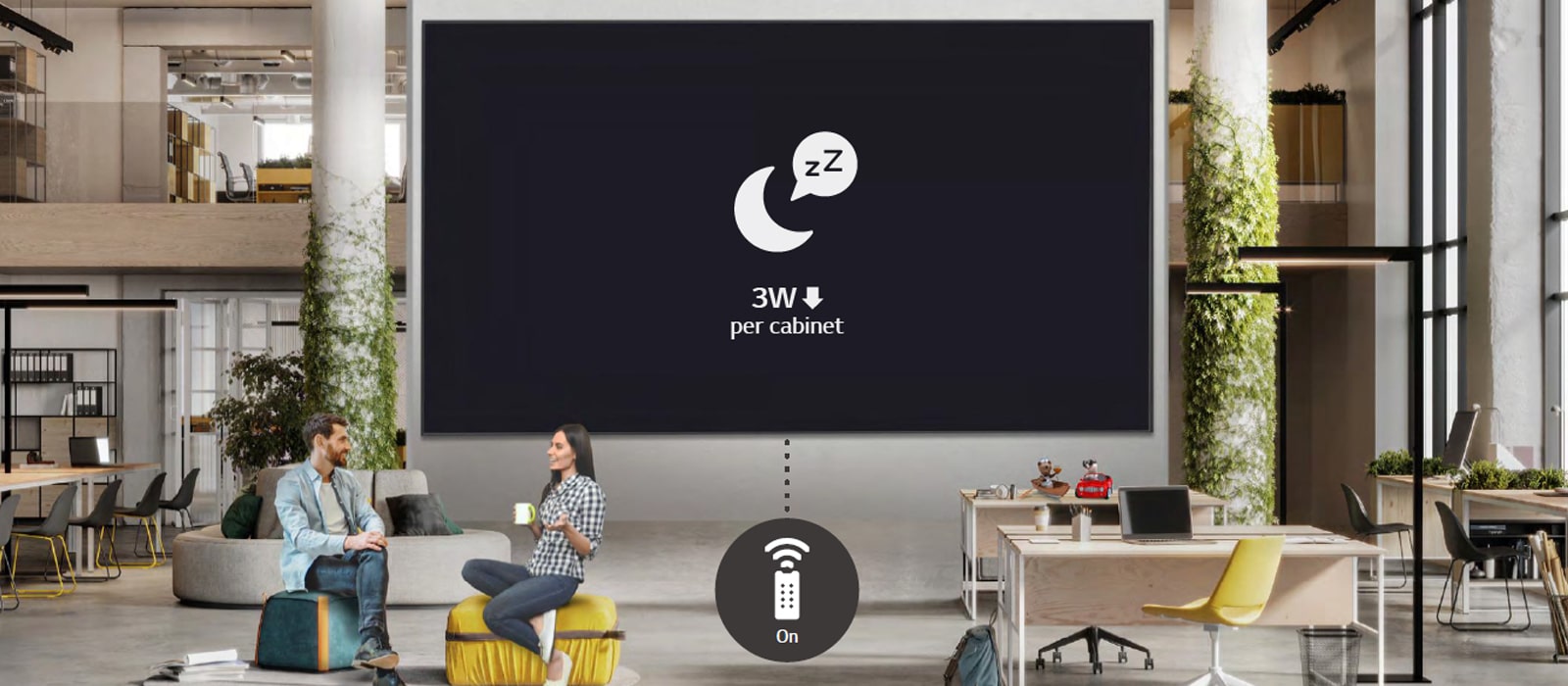

Power Saving Standby Mode

When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.
Employees are resting in the office without using the display which is in standby mode for minimizing power consumption. Employees are resting in the office without using the display which is in standby mode for minimizing power consumption.

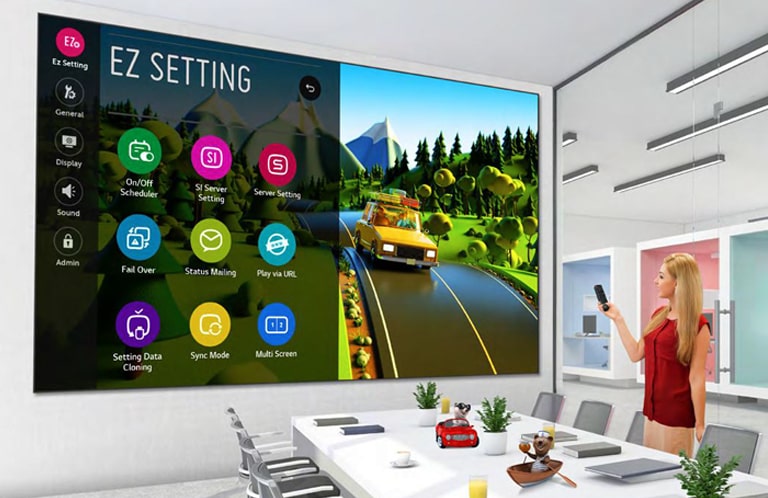

A woman in a conference room accessing the setting easily with a remote control A woman in a conference room accessing the setting easily with a remote control

Intuitive UX with Remote Control

By applying the same intuitive UI* as general LG digital signage, the user can easily adapt to it. It also allows users to easily access the settings by using a remote control instead of connecting to a PC.
* Available for over 1,280 × 720 resolution screen.
People having a conference with the MAGNIT and there is a AV controller on the desk. People having a conference with the MAGNIT and there is a AV controller on the desk.

Compatibility with AV Control System

LG MAGNIT has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network-based control

Dedicated Accessories for Tidiness

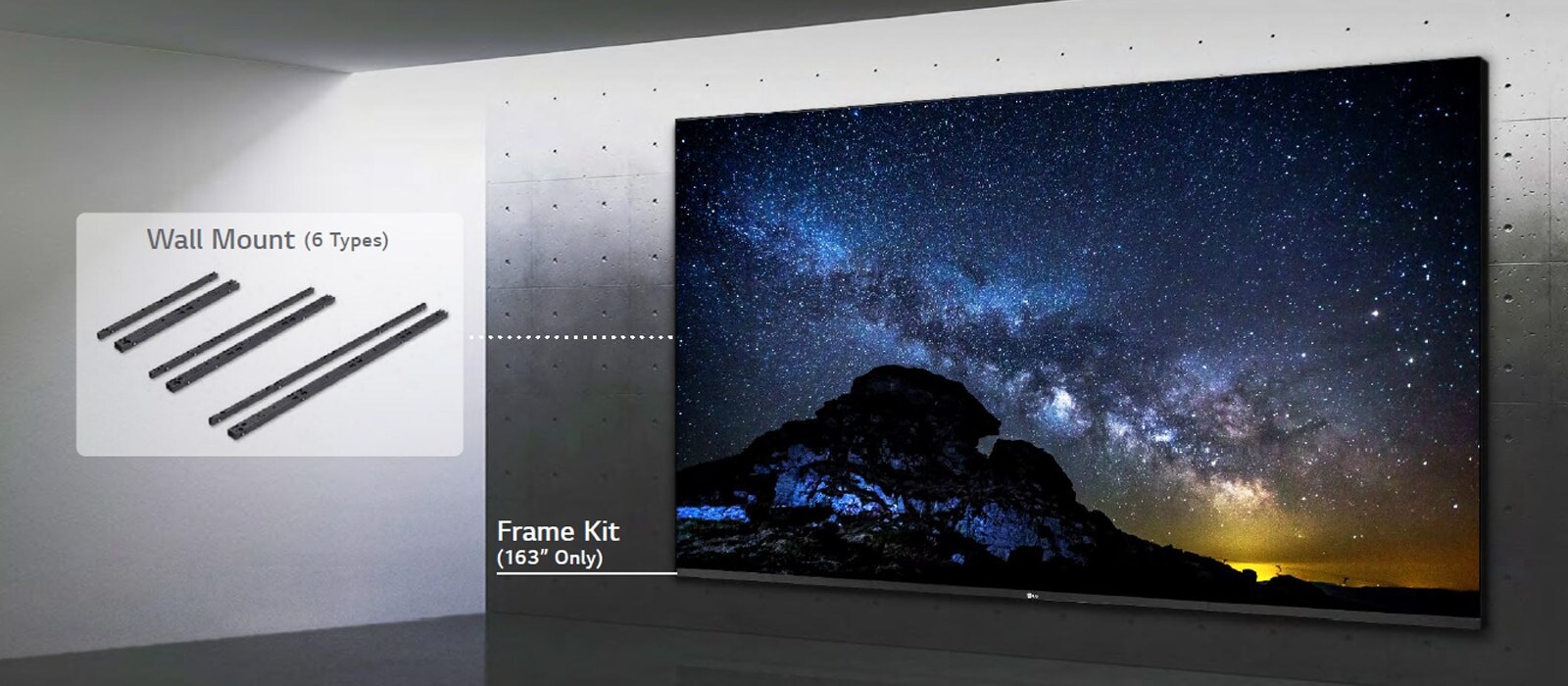

Three pairs of wall mount accessories and a frame kit are provided as options for LG MAGNIT. The wall mounts can be combined with any screen size to be installed clearly and neatly. Also, when building a screen of 163-inch, Ultra HD resolution, the frame kit will make the display have a smooth edge.
LG MAGNIT being installed neatly with wall mount kits and a frame kit. LG MAGNIT being installed neatly with wall mount kits and a frame kit.

Total Content Management

LG MAGNIT is compatible with LG SuperSign CMS solution which is all-in-one content management solution for content editing, scheduling and distribution. Managers can operate LG’s commercial displays including LG MAGNIT all at once, enabling systematic and efficient management.

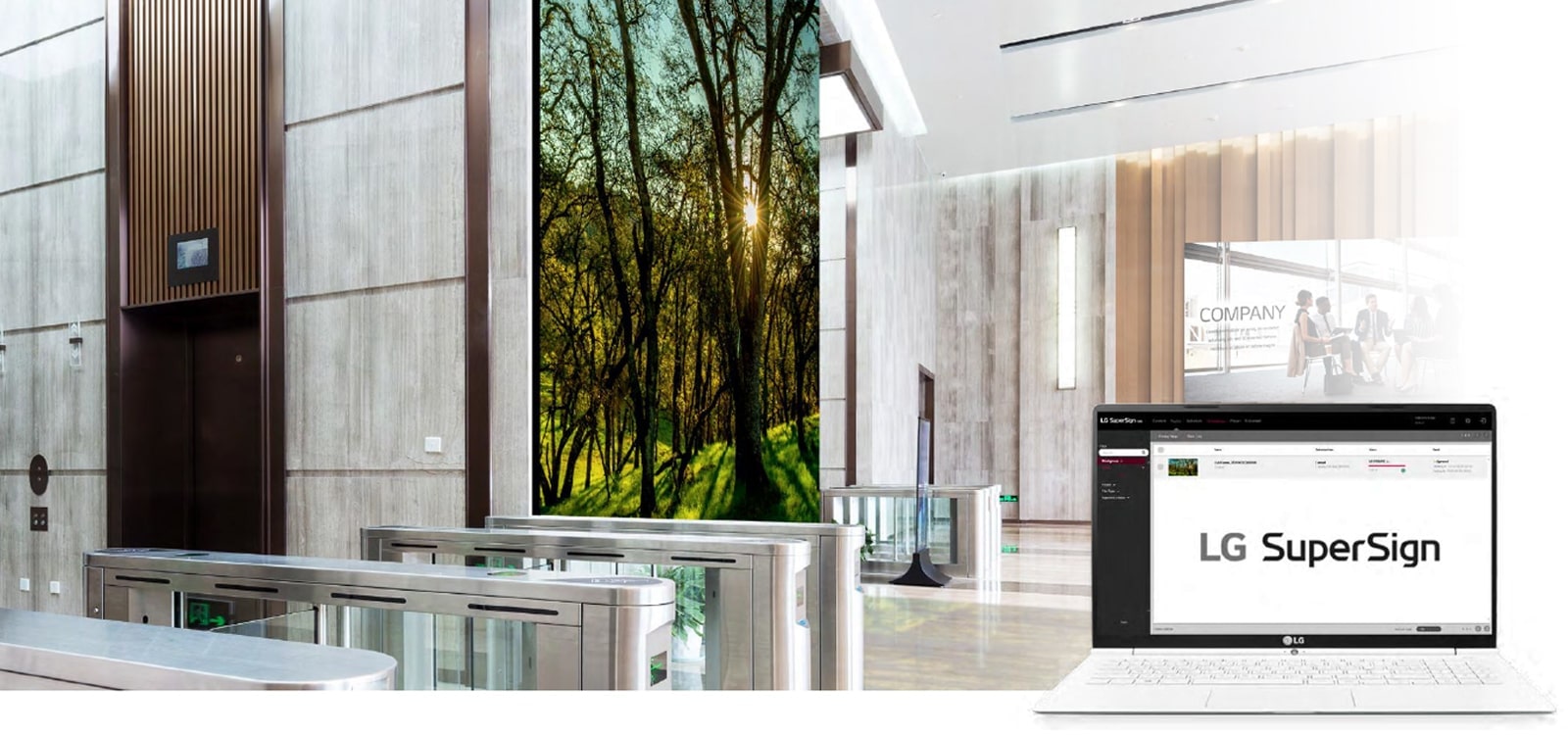

The MAGNIT is installed in a corporate lobby, and it is being managed by LG SuperSign solution. The MAGNIT is installed in a corporate lobby, and it is being managed by LG SuperSign solution.

Real-time ConnectedCare Service

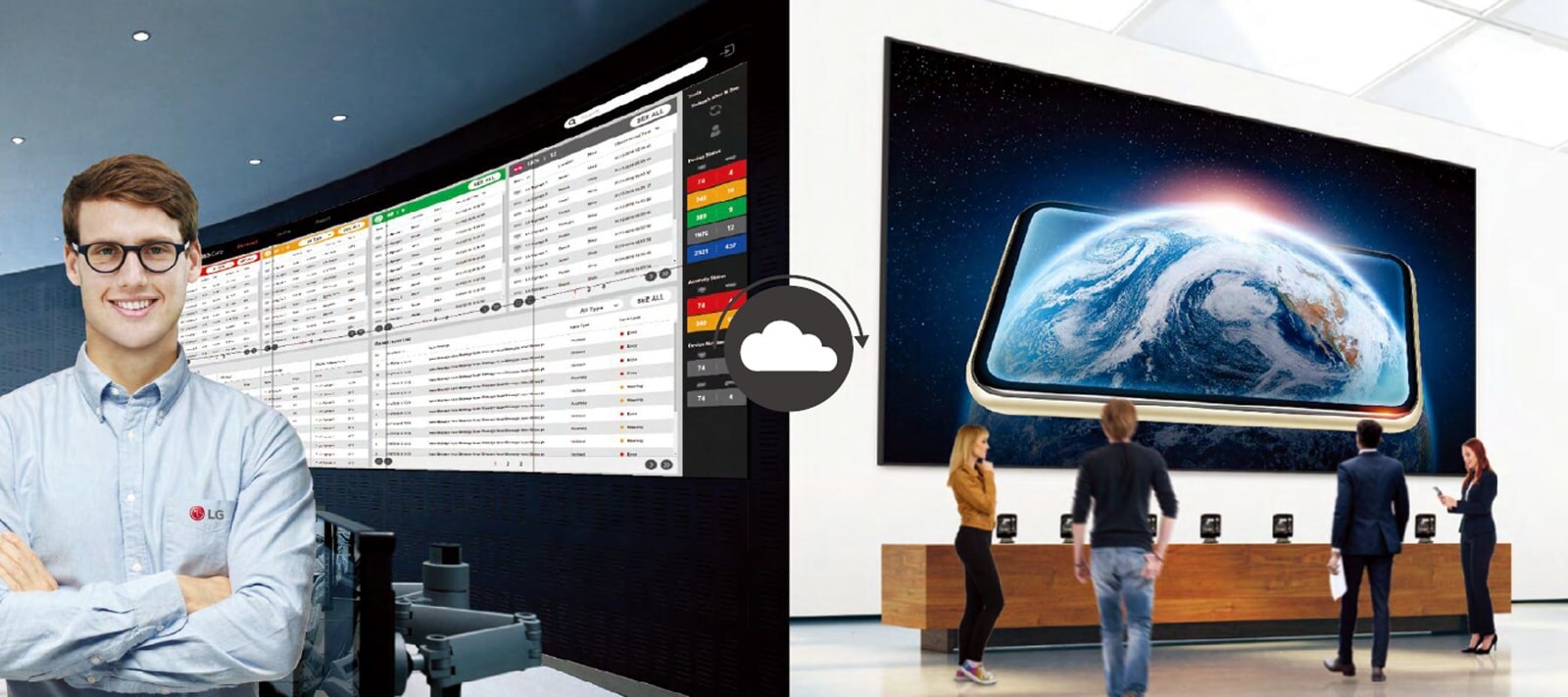

Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
LG engineer is monitoring the status of MAGNIT installed in electronic equipment stores in real-time. LG engineer is monitoring the status of MAGNIT installed in electronic equipment stores in real-time.
* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
Close
PHYSICAL PARAMETER
  • Pixel Configuration
    1R, 1G, 1B (Chip on Board)
    Pixel Pitch (mm)
    0.93
  • Module Resolution (W x H)
    160 × 180
    Module Dimensions (W x H, mm)
    150 × 168.8
  • Weight per Module (g)
    150
    No. of Modules per Cabinet (W × H)
    8 (4 × 2)
  • Cabinet Resolution (W × H)
    640 × 360
    Cabinet Dimensions (W × H × D, mm)
    600 × 337.5 × 44.9
  • Cabinet Surface Area (m²)
    0.203
    Weight per Cabinet (kg/cabinet)
    7.0
  • Weight per Square Meter (kg/m²)
    34.6
    Physical Pixel Density (pixels/m²)
    1,137,778
  • Flatness of Cabinet (mm)
    ±0.5
    Cabinet Material
    Die-casting Aluminum
  • Service Access
    Front and Rear (Module : Front Only)
OPTICAL PARAMETER
  • Min. Brightness (After Calibration)
    1,200 nit (Peak.) / 600 nit (Max.)
    Color Temperature
    7,300 K / 3,200~9,300 K (Adjustable by LED Assistant on PC)
  • Visual Viewing Angle (H×V)
    160° × 160°
    Brightness Uniformity
    ≥95%
  • Color Uniformity
    ±0.02Cx, Cy
    Contrast Ratio (10 lux)
    150,000 : 1
  • Processing Depth (bit)
    20
    HDR Compatibility
    HDR10, HDR10 Pro*
    * HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
ELECTRICAL PARAMETER
  • Driver-IC Type
    Common Cathode
    Power Consumption (W/cabinet, Max.)
    125
  • Power Consumption (W/cabinet, Avg.)
    85
    Power Consumption (W/m², Max.)
    617
  • Heat Dissipation (BTU/h/Cabinet, Max.)
    426
    Heat Dissipation (BTU/h/Cabinet, Avg.)
    290
  • Heat Dissipation (BTU/h/m², Max.)
    2,104
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840
CONTROLLER
  • Controller
    CSAB-009X
OPERATION CONDITIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature
    0°C to +40°C
  • Operating Humidity
    10-80%RH
    IP Rating (Front / Rear)
    IP50 / IP20
CERTIFICATION
  • Certification
    Safety 60950-1, EMC Class A, BS476 Part 7 Class 1
Environment
  • Environment
    RoHS
Optional Accessory
  • Optional Accessory
    Wall Mount Kit, Frame Kit
