MULTI V 5

LG MULTI V 5 is an integrated solution that combines advanced technologies for high rise buildings. It provides maximum energy efficiency while minimizing operational costs and its Dual Sensing Control senses humidity & temperature.
MULTI-V-5_01_MULTI-V-5_16112017_D_1511769169369 MULTI-V-5_01_MULTI-V-5_16112017_D_1511769169369_1515378879351

MULTI V 5

The Multi V 5, alongside the indoor unit with powerful air purification and the efficient ventilation, allows you and your building to breathe clean and fresh air just like the ones in a forest.
02_1513753701535 02_1513753795275

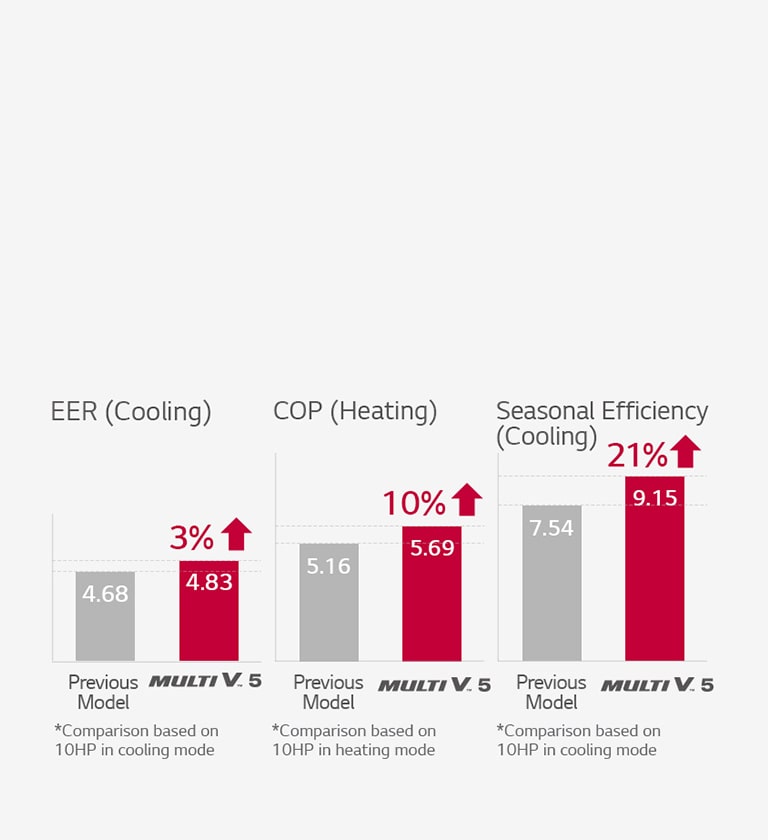

Ultimate Efficiency

MULTI V 5 ensures world’s best class energy efficiency with innovative technologies.
MULTI-V-5_03_Dual-Sensing-Control_16112017_D_1510816002379 MULTI-V-5_03_Dual-Sensing-Control_16112017_M_1511769458005

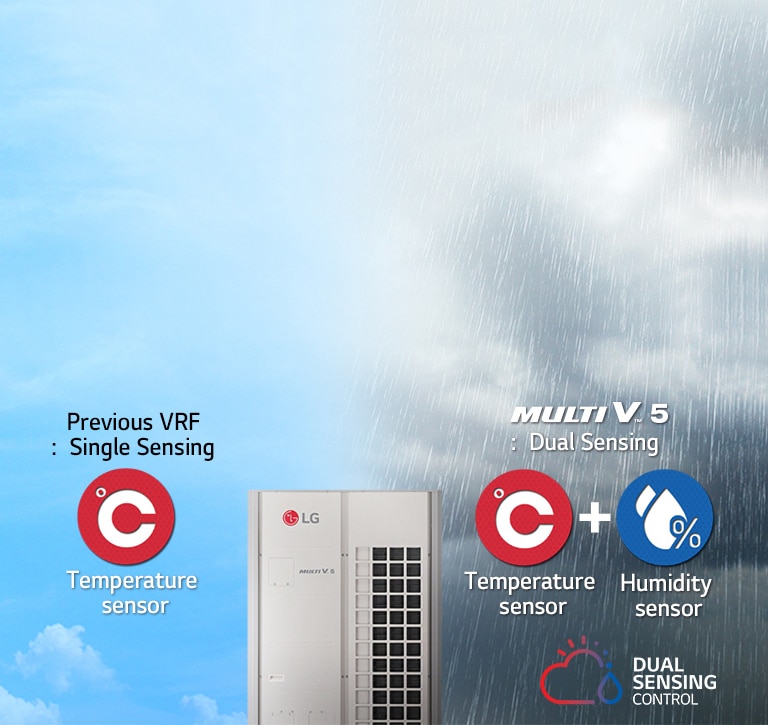

Dual Sensing Control

Dual Sensing Control senses both humidity and temperature for economical and comfortable operation.
  • MULTI-V-5_04_01_Smart-Load-Control_16112017_D_1510816275959

    Smart Load Control

    Smart load control manages cooling load by sensing both temperature and humidity to increase energy efficiency.

  • MULTI-V-5_04_02_Comfort-Cooling_16112017_D_1510816269346

    Comfort Cooling

    Comfort cooling helps maintain operation at mild cooling mode without stopping in between operations.

  • MULTI-V-5_04_03_Enhanced-Heating-Operation_16112017_D_1510816264180

    Enhanced Heating

    Increased heating hour with delay in frosting of heat exchanger due to precise dew point prediction.

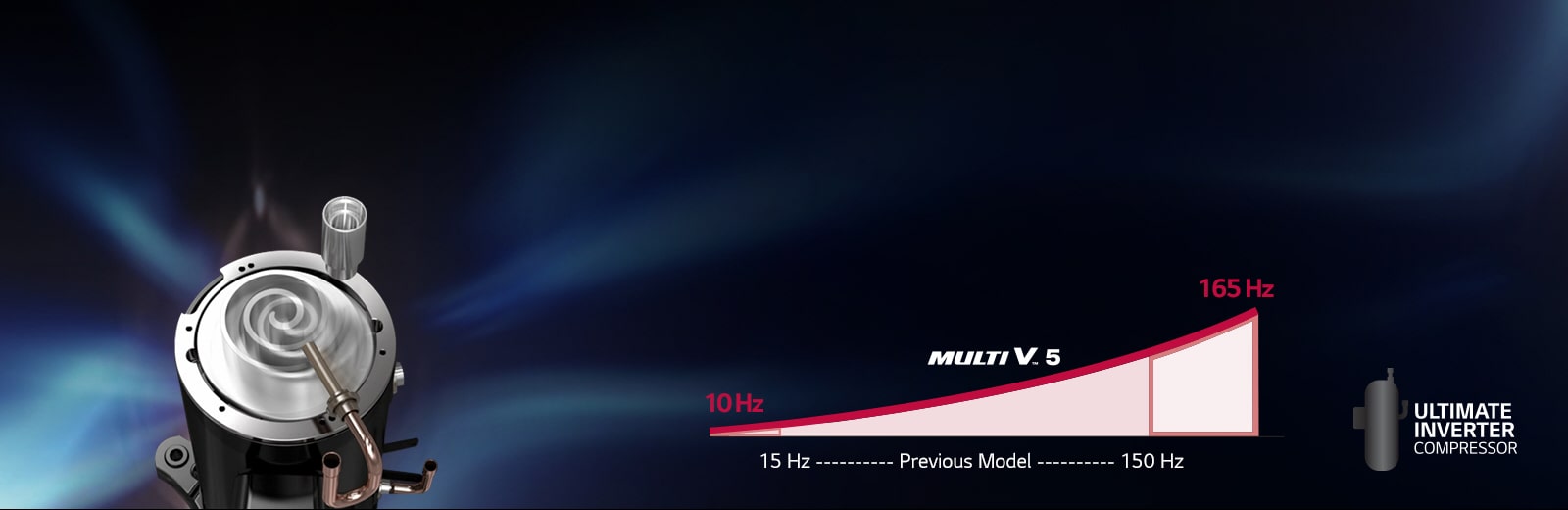

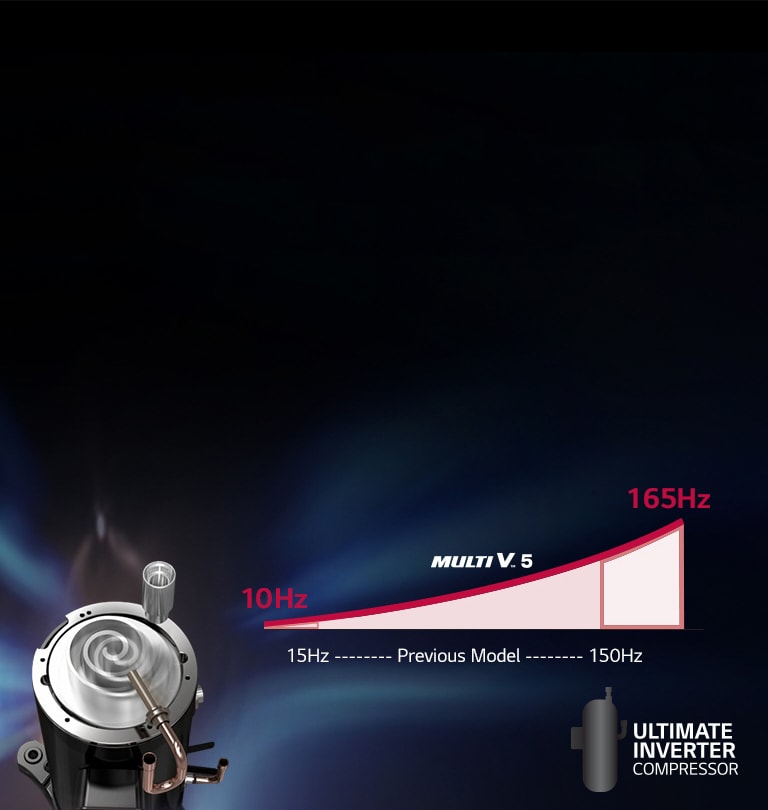

MULTI-V-5_05_Ultimate-Inverter-Compressor_16112017_D_1510816307498 MULTI-V-5_05_Ultimate-Inverter-Compressor_16112017_M_1511769481274

Ultimate Inverter Compressor

Ultimate Inverter Compressor improves energy efficiency and enhances compressor reliability.
  • MULTI-V-5_06_01_Enhanced-Bearing-with-PEEK-Material_16112017_D_1510816441560

    Enhanced Bearing with PEEK Material

    Enhanced bearing with PEEK (Polyetheretherketone) material increases durability and reliability of compressor via lubricative bearing material and refined shape.

  • MULTI-V-5_06_02_Vapor-Injection_16112017_D_1510816446352

    Vapor Injection

    Two-stage compression effect provides efficient heating operation in low temperature conditions.

  • MULTI-V-5_06_03_Smart-Oil-Management_16112017_D_1510816617418

    Smart Oil Management

    Oil sensor runs oil recovery operation only if necessary to increase compressor efficiency. It also balances and manages oil level in both compressors.

  • MULTI-V-5_06_04_HiPOR_16112017_D_1510816626291

    HiPOR™

    HiPOR™ (High Pressure Oil Return) minimizes energy loss with direct oil return.

Image of clean air provided to the office through Multi V 5. Image of clean air provided to the office through Multi V 5.

The Optimal High-Efficiency Air Quality Solution

Install LG ERV alongside Multi V 5 and enjoy energy-saving ventilation. ERV reacts to outdoor temperatures and CO2 levels to provide more efficient heating and cooling.

An image representing the continuous heating of Multi V 5. An image representing the continuous heating of Multi V 5.

Continuous Heating

With delayed defrost via humidity sensor, partial defrost and smart oil management via oil sensor, continuous heating technology has been improved.
MULTI-V-5_07_Flexible-Installation_16112017_D_1510816656098 feature07_19122017_M_1513649331542

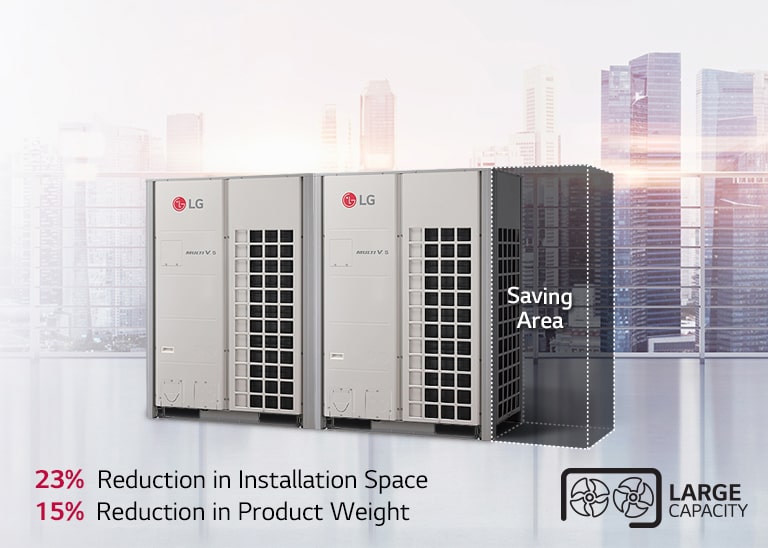

Flexible Installation with Large Capacity Outdoor Unit

With improvements in core parts, MULTI V 5 single outdoor unit can provide large capacity up to 26HP. This allows flexible use of floor space by minimizing installation area and significantly decreasing total installed weights.

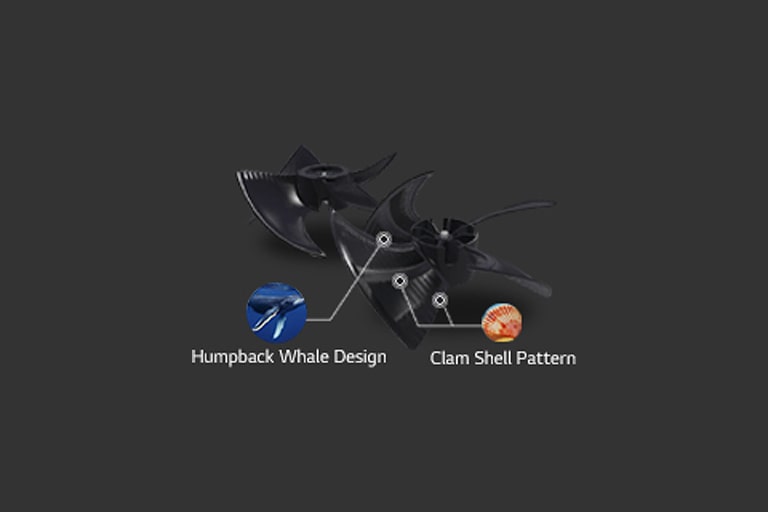

  • MULTI-V-5_08_01_Biomimetics-Technology-Fan_16112017_D_1510816753035

    Biomimetics Technology

    Enhanced fans increase air flow rate up to 10% while reducing power consumption up to 20%.

  • MULTI-V-5_08_02_Increased-Air-Flow-Rate_16112017_D_1510816758266

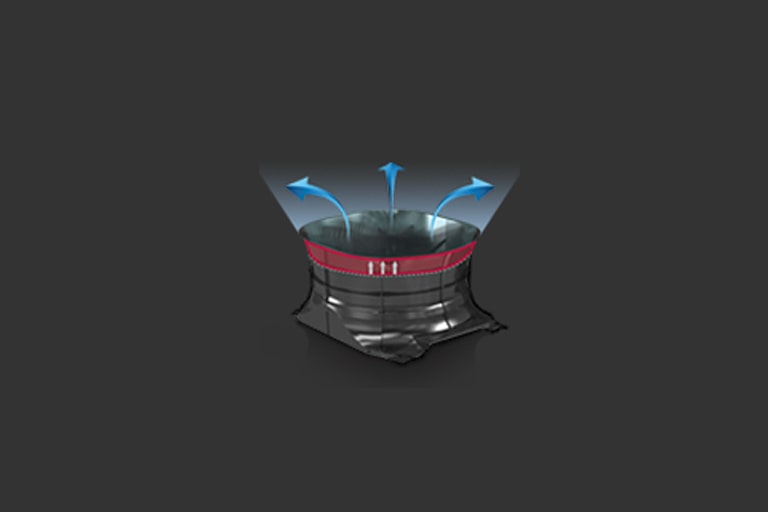

    Increased Air Flow Rate

    Extended shroud provides higher heat exchanging capacity to increase air flow rate.

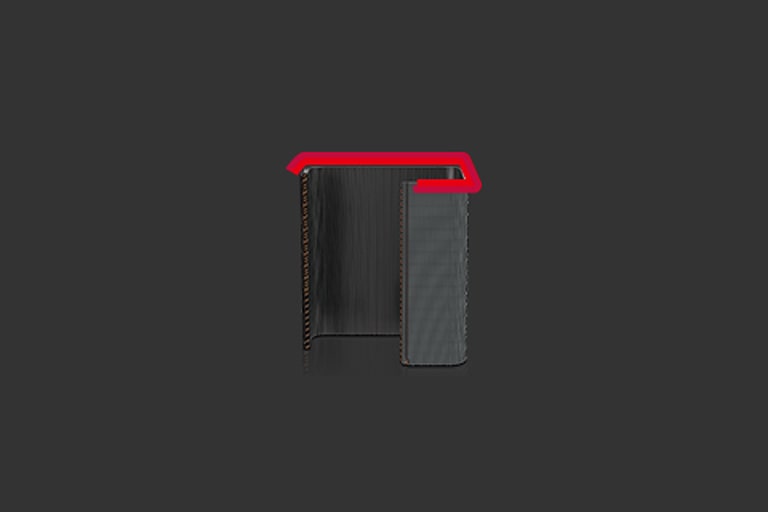

  • MULTI-V-5_08_03_4-sided-Heat-Exchanger_16112017_D_1510816768702

    4-sided Heat Exchanger

    It improves heat transfer up to 20 which eventually enhances capacity and performance.

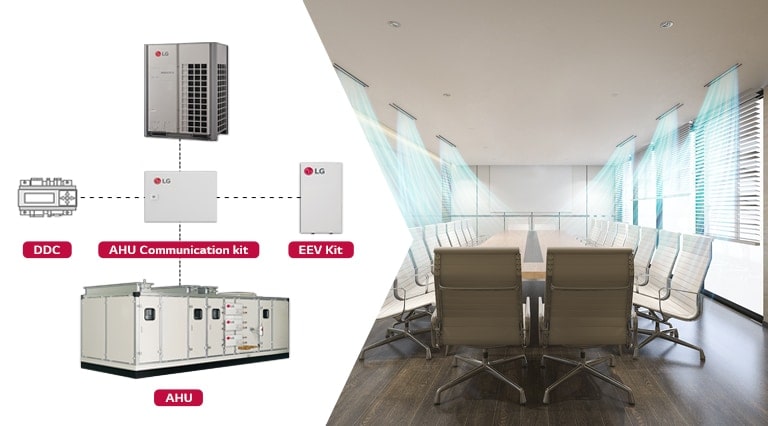

An image that expresses the easy control with Multi V-AHU connection of Multi V 5. An image that expresses the easy control with Multi V-AHU connection of Multi V 5.

Easy Control with Multi V-AHU Connection

MULTI V can be connected to the DX coil of an Air Handling Unit for fresh air conditioned environment.
Various control options are prepared for LG controllers or supplied DDC, which can contact signal or Modbus protocols.

MULTI-V-5_11_MULTI-V-5-is-an-Applicable-Solution-for_16112017_D_1512718007287 MULTI-V-5_11_MULTI-V-5-is-an-Applicable-Solution-for_16112017_M_1510817036703

MULTI V 5 is an Applicable Solution for

MULTI-V-5_12_MULTI-V-5-Line-Up_16112017_D_1510817110508 MULTI-V-5_12_MULTI-V-5-Line-Up_16112017_M_1512718144718

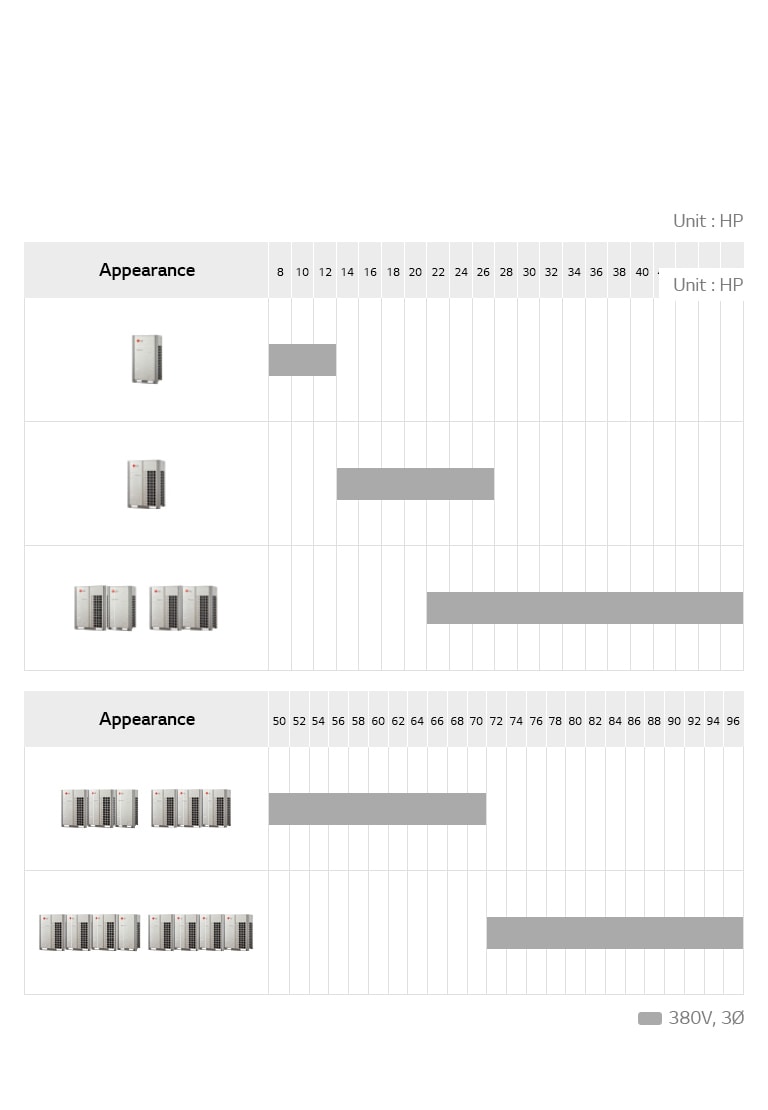

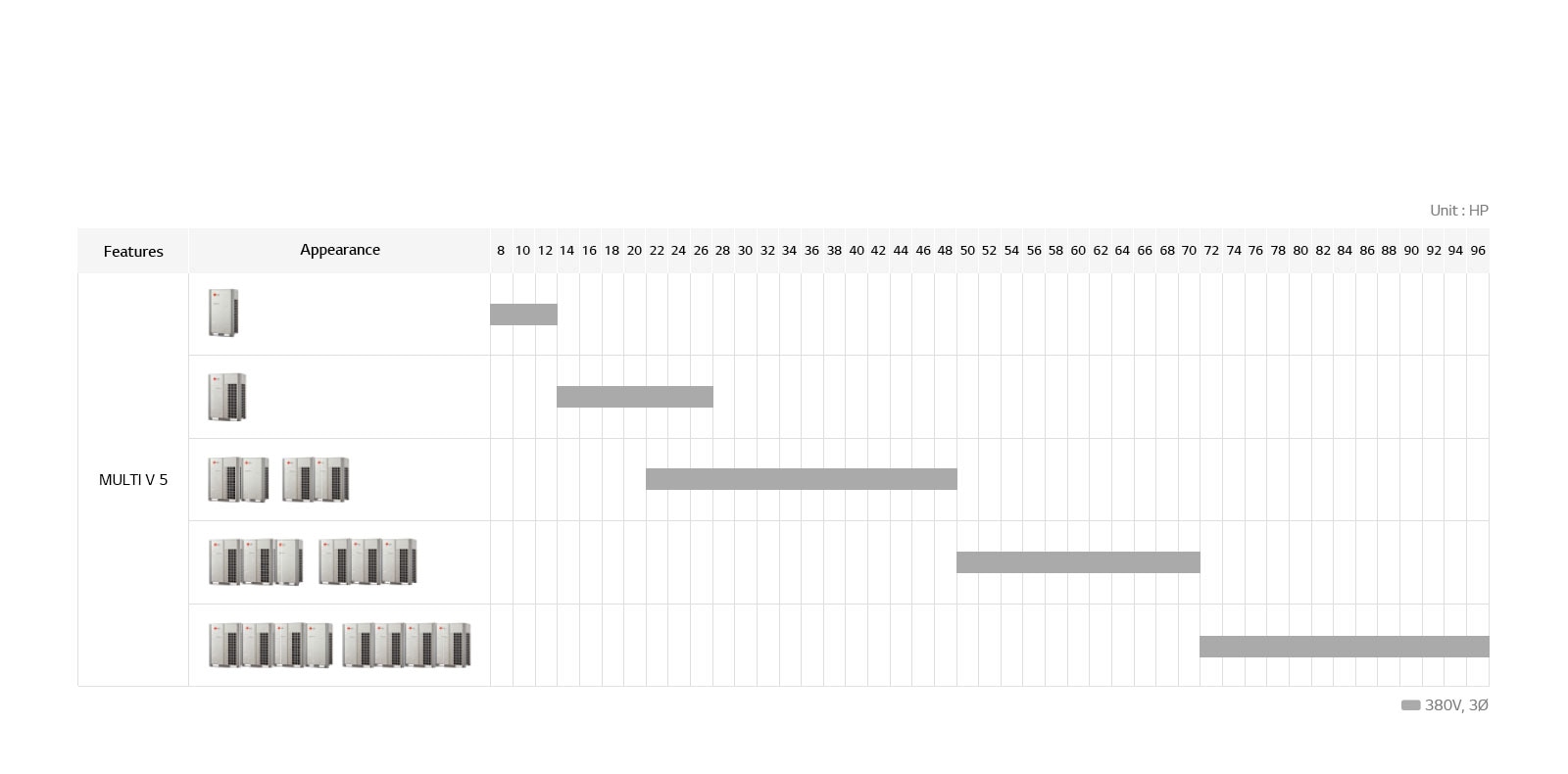

MULTI V 5 Line Up

[PC]Inquiry to Buy_1516255102043 [Mobile]Inquiry to Buy_1516255117146

Inquiry To Buy

Please inquiry to buy for more information on the product and we will get in touch with you soon.
Learn More

Catalogue & Leaflet & Document Download

Title , Size Table List
Resource Type Title Size
Spec Sheet KR_MV_IDU_4series_R410A,R32_5060Hz_Global_MFL55028426_0CVP0-12H(July.2021)_spec.xlsx File XLSX107K
Spec Sheet KR_MV5_R410A_380V,5060Hz_HP_SA_MFL67474050_0CVV0-01L_Jan.2021_spec.xlsx File XLSX228K
Catalogue 2021 Multi V Catalogue (Commercial Air Solutions)_210317.pdf File PDF62,278K

For more materials, manuals or engineering support, please go to resource download
