ARNU09GTRB4 component-copyModelName

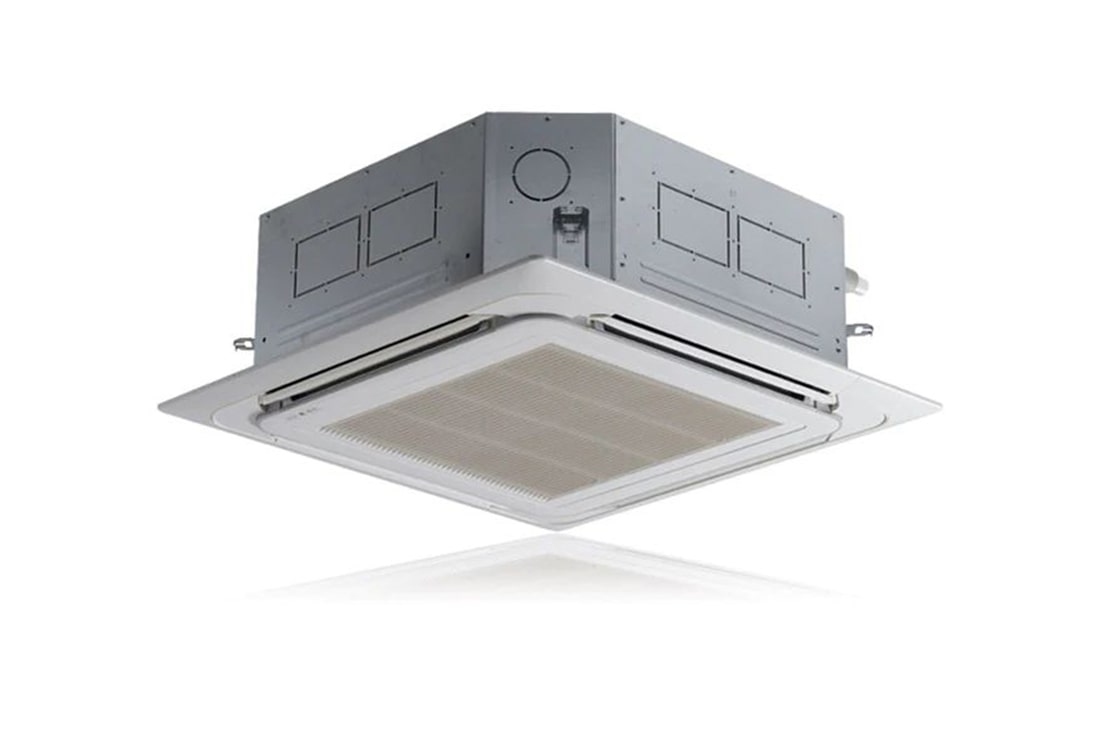

MULTI V™ 4 WAY CEILING CASSETTE (2.8 KW COOLING, 3.2 KW HEATING)

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ARNU09GTRB4)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ARNU09GTRB4)
    $
    $
    LG Members Price
Total
MULTI V™ 4 WAY CEILING CASSETTE (2.8 KW COOLING, 3.2 KW HEATING)

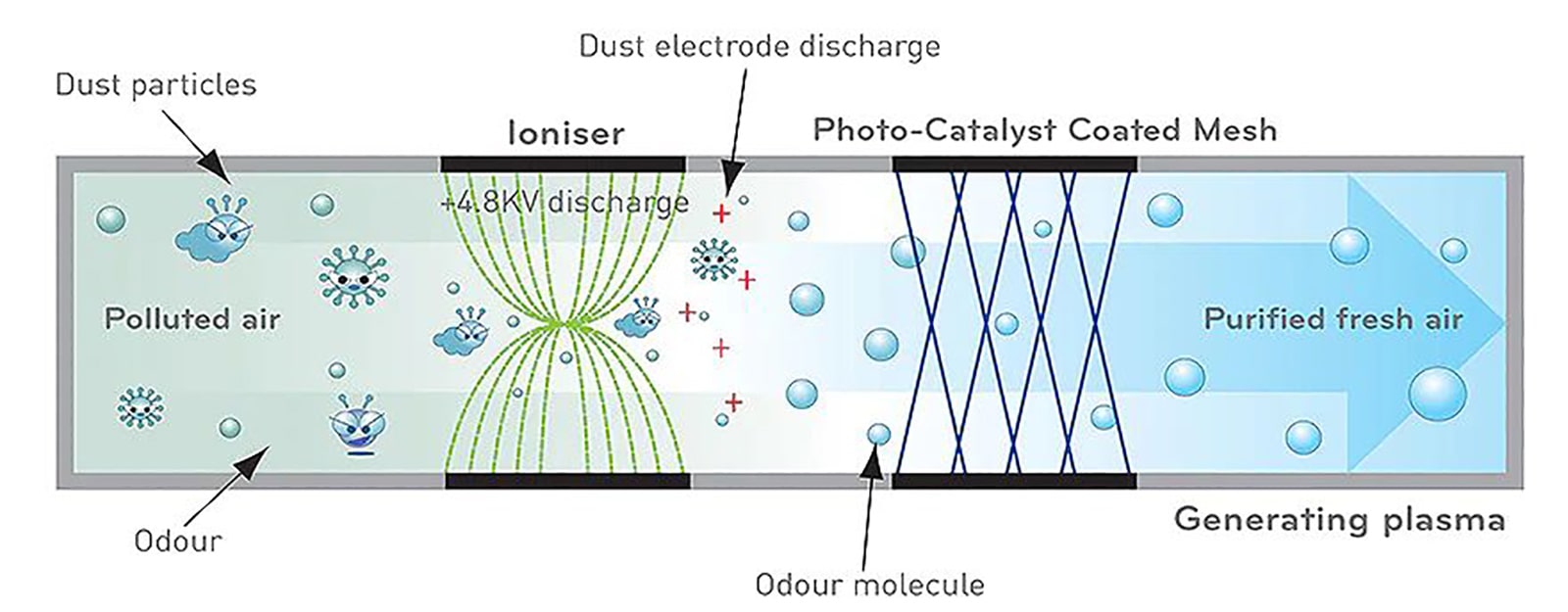

NEO-PLASMA AIR PURIFYING SYSTEM

Removes microscopic contaminants and dust in the air to help prevent allergies.
NEO-PLASMA AIR PURIFYING SYSTEM NEO-PLASMA AIR PURIFYING SYSTEM

  • JET COOL

    Jet Cool can cool a room to 18°C in a mere 30 minutes*. (Depending on the size of the room)

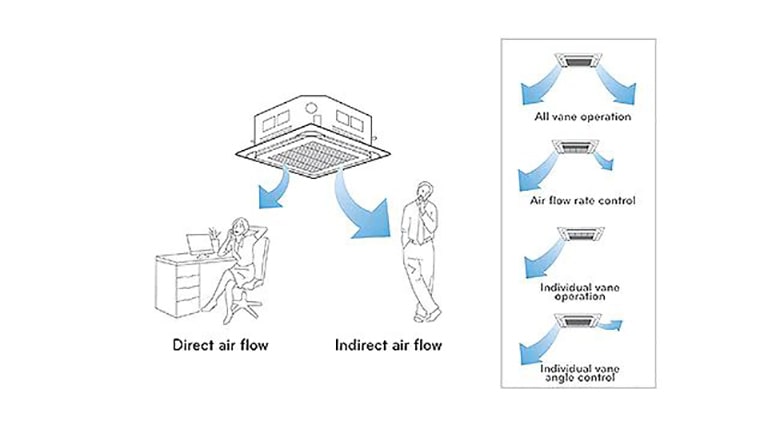

INDEPENDENT VANE OPERATION

INDEPENDENT VANE OPERATION

The different vanes on our cassette units can be controlled independently. So whether you want to target airflow to a specific place in your room or would prefer a more balanced air circulation, the cassette has a setting to suit.

  • AUTO-CHANGEOVER

    Automatically switches to cooling- or heating- mode to maintain the optimum room temperature during season changes.

Close
COOLING CAPACITY
  • kW
    2.8
    kcal/h
    2,400
  • Btu/h
    9,600
HEATING CAPACITY
  • kW
    3.2
    kcal/h
    2,800
  • Btu/h
    10,900
POWER INPUT(H/M/L)
  • W
    14 / 13 / 12
CASING
  • Casing
    Galvanized Steel Plate
DIMENSIONS(WXHXD)
  • Body - mm
    570 x 214 x 570
    Body - inch
    22-7/16 x 8-7/16 x 22-7/16
  • Decoration Panel #1
    PT-UQC
    Decoration Panel #1 - mm
    700 x 22 x 700
  • Decoration Panel #1 - inch
    27-9/16 x 7/8 x 27-9/16
    Decoration Panel #2
    PT-QCHW0
  • Decoration Panel #2- mm
    620 x 34 x 620
    Decoration Panel #2- inch
    24-13/32 x 1-11/32 x 24-13/32
  • Decoration Panel #3
    PT-QAGW0
    Decoration Panel #3 - mm
    620 x 35 x 620
  • Decoration Panel #3 - inch
    24-13/32 x 1-3/8 x 24-13/32
PANEL COLOR
  • Panel Color
    #1, #2 : Morning fog
    #3 : White
COIL
  • Rows x Columns x FPI
    2 x 8 x 18
    Face Area - m²
    0.21
FAN
  • Type
    Turbo Fan
    Motor Output x Number - W
    43 x 1
  • Air Flow Rate (H / M / L) - m³/min
    8.0 / 7.5 / 7.1
    Air Flow Rate (H / M / L) - ft³/min
    283 / 265 / 251
  • Drive
    Direct
    Motor type
    BLDC
TEMPERATURE CONTROL
  • Temperature Control
    Microprocessor, Thermostat for cooling and heating
SOUND ABSORBING THERMAL INSULATION MATERIAL
  • Sound Absorbing Thermal Insulation Material
    Foamed polystrene
SAFETY DEVICE
  • Safety Device
    Fuse
PIPE CONNECTIONS
  • Liquid Side - ㎜(inch)
    Ø 6.35 (1/4)
    Gas Side - ㎜(inch)
    Ø 12.7 (1/2)
  • Drain Pipe(Internal Dia.) - mm(inch)
    25(1)
NET WEIGHT
  • Body - kg(lbs)
    13.7(30.2)
    Packaged - kg(lbs)
    16.0(35.3)
SOUND PRESSURE LEVELS(H/M/L)
  • dB(A)
    30 / 29 / 27
SOUND POWER LEVELS(H/M/L)
  • dB(A)
    48 / 46 / 45
POWER SUPPLY
  • Ø, V, Hz
    1, 220 - 230 - 240, 50/60
RUNNING CURRENT BY VOLTAGE
  • Rated - A
    0.10 - 0.09 - 0.09
MAXIMUM RUNNING CURRENT
  • A
    0.20
REFRIGERANT
  • Type
    R410A / R32
    Additional Charging Amount (CF Value of IDU) - kg(each)
    0.25 / 0.21
  • Control
    EEV
TRANSMISSION CABLE
  • Transmission cable
    1.0~1.5 x 2C
