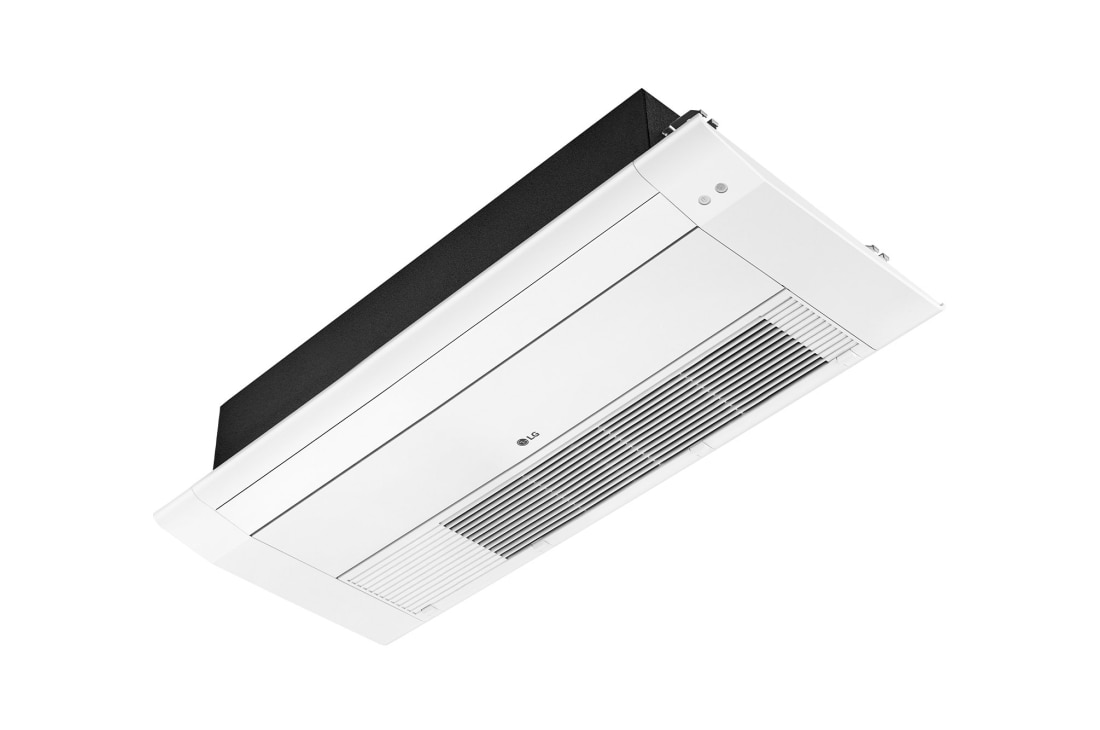

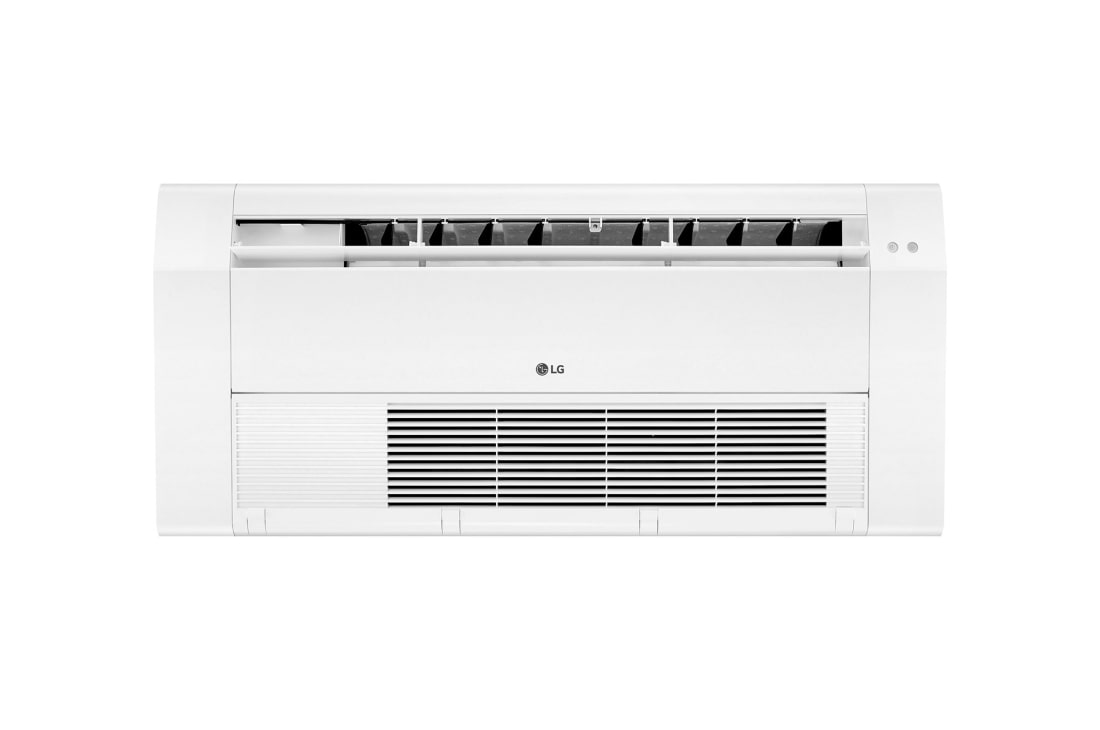

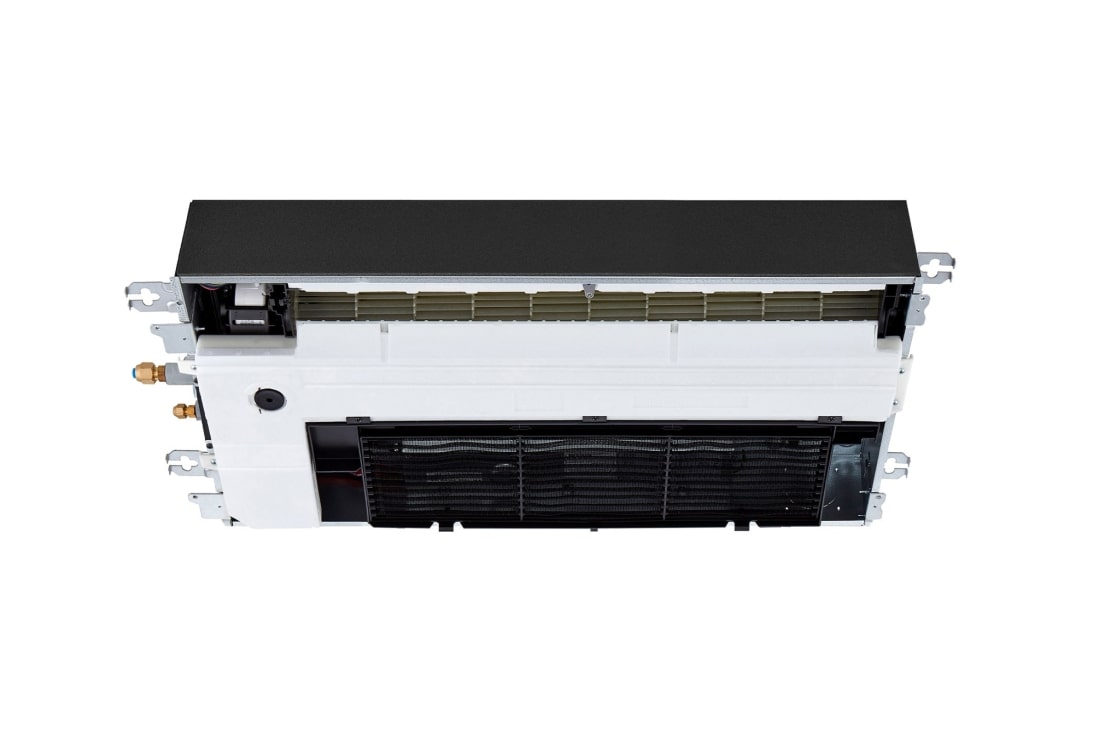

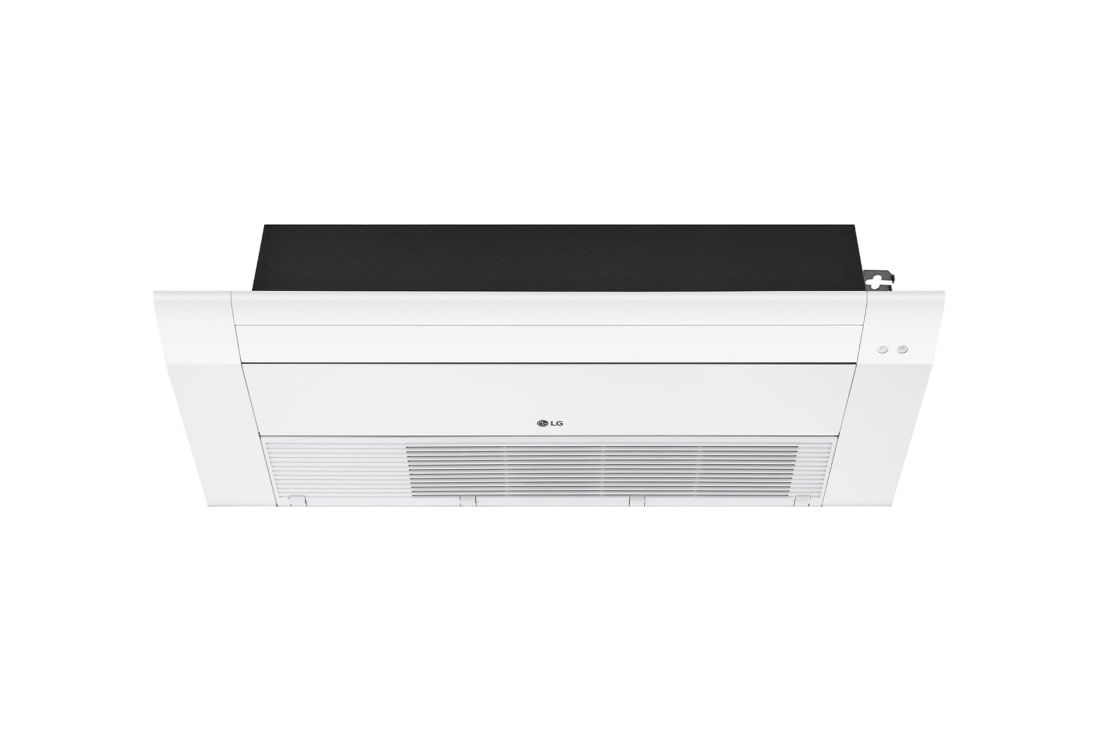

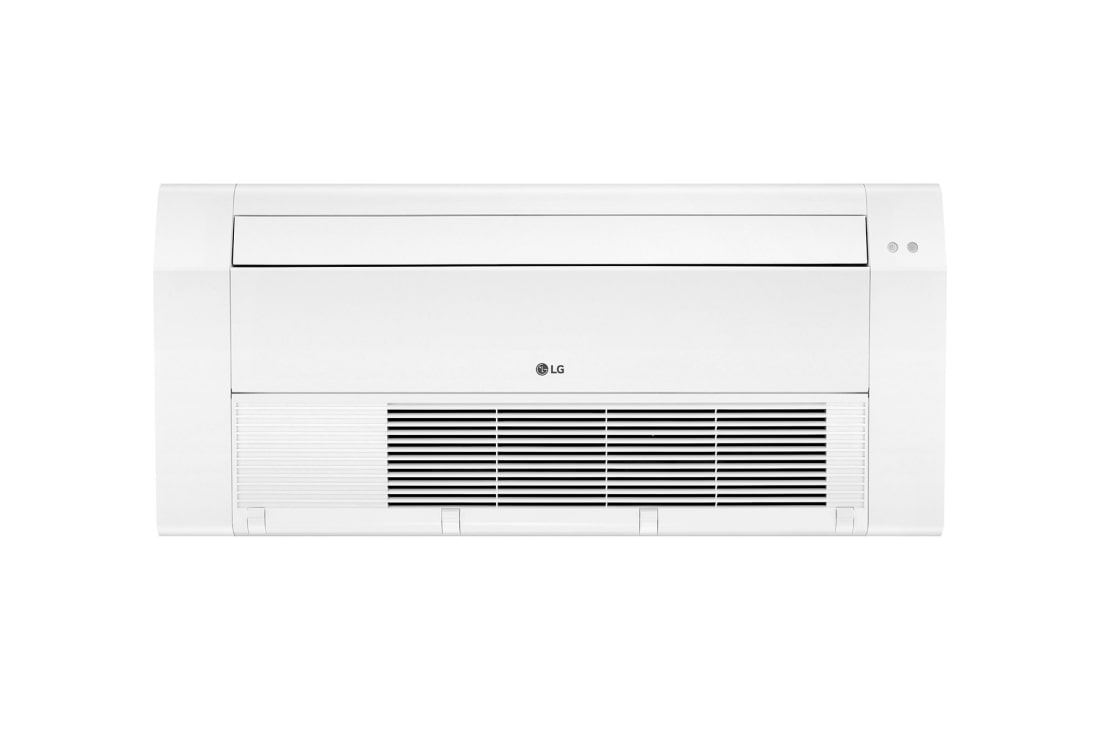

Ceiling Mounted 1-Way Cassette Unit 7.1kW ARNU24GTTB4
Ceiling Mounted Cassette1 Ceiling Mounted Cassette2

Ceiling Mounted Cassette

Maximizing the indoor aesthetics with comfortable environment
The New Cassette with<br>Air Purification1 The New Cassette with<br>Air Purification2

The New Cassette with
Air Purification

LG Cassette type indoor unit is equipped with the air purification function. It offers a solution to the problem of ultrafine dust that harms our bodies. This is the CAC*-certified, high-performance product that delivers clean, cool air to your large space.
*Certification Air Conditioner, the Korea Air Cleaning Association strictly tests the air cleaning function of air conditioner products and certifies reliable products.
Air Purification Filter that Removes 99.9％ of PM1.01 Air Purification Filter that Removes 99.9％ of PM1.02

Air Purification Filter that Removes 99.9％ of PM1.0

Powerful 4 step air purification filter removes up to 99.9％ PM 1.0 ultrafine dust. In addition, it can be used semi-permanently, as it can be maintained by washing with water without a regular change of the filter.
*The Air Purification Kit can be purchased as an option.
Provide Healthy Air in a Large Space1 Provide Healthy Air in a Large Space2

Provide Healthy Air in a Large Space

It is a larger air purification area than the cooling area. It can cover up to 147m² to create a clean and healthy environment in various vertical spaces, such as kindergartens, schools, and shopping malls.
  • Real-Time Air Quality Monitoring1 Real-Time Air Quality Monitoring2

    Real-Time Air Quality Monitoring

    Real-time monitoring with a wireless or wired remote controller, panel LED lamp, and smart phone
  • Convenient Attachment and Detachment1 Convenient Attachment and Detachment2

    Convenient Attachment and Detachment

    Easier installation by attachment to the indoor unit body.

Compact Design & Size

New 4 Way Cassette panel adapted unibody shape. Its panel size is fit into the ceiling tile. Moreover, the indoor unit with slim and compact dimensions has reduced the restriction which enables successful installation in various spaces.
Compact Design & Size1 Compact Design & Size2

Auto Elevation Grille

Auto Elevation Grille allows easy filter cleaning with 4-point support structure, auto leveling and auto stop detection features and memory located at user's level.
Auto Elevation Grille1 Auto Elevation Grille2
Independent Vane Control1 Independent Vane Control2

Independent Vane Control

The independent vane operation feature uses separate motors, making it possible to control all four vanes independently.
6-Step Vane Control1 6-Step Vane Control2

6-Step Vane Control

There are 6 different steps to control air flow direction with 1 way cassette. It also has the vane for auto swing that moves between left and right sides for up to 120 degrees.
  • Minimized Height1 Minimized Height2

    Minimized Height

    The height of 1 Way Cassette is 132mm, making it the ideal solution for installation in limited space.
  • Flexible Installation1 Flexible Installation2

    Flexible Installation

    The access for inspection at 1 Way Cassette does not require additional ducted space making the installation environment uncomplicated.
Ceiling Mounted Cassette Line Up1 Ceiling Mounted Cassette Line Up2

Ceiling Mounted Cassette Line Up

Contact Us1 Contact Us2

Contact Us

Please contact us for more information on the product and we will get in touch with you soon.
Learn More
Close
CAPACITY
  • Cooling - kW
    7.1
    Cooling - kcal/h
    6,100
  • Cooling - Btu/h
    24,200
    Heating - kW
    7.1
  • Heating - kcal/h
    6,100
    Heating - Btu/h
    24,200
POWER INPUT
  • Power Input(H / M / L) - W
    51 / 33 / 26
CASING
  • Casing
    Galvanized Steel Plate
DIMENSIONS(W × H × D)
  • Body - ㎜
    1,180 × 132 × 450
    Body - inch
    46-15/32 × 5-3/16 × 17-23/32
  • Front Panel - ㎜
    1,420 × 34 × 500
    Front Panel - inch
    55-29/32 × 1-11/32 × 19-11/16
COIL
  • Rows × Columns × FPI
    2 × 12 × 18
    Face Area - m²
    0.24
FAN
  • Type
    Cross Flow Fan
    Motor Output × Number - W
    30.0
  • Running Current - A
    0.30
    Air Flow Rate(H / M / L) - m³/min
    14.6 / 13.3 / 11.5
  • Air Flow Rate(H / M / L) - ft³/min
    575.4 / 469.5 / 406
    Drive
    Direct
  • Motor type
    BLDC
TEMPERATURE CONTROL
  • Temperature Control
    Microprocessor, Thermostat for cooling and heating
SOUND ABSORBING THERMAL INSULATION MATERIAL
  • Sound Absorbing Thermal Insulation Material
    Foamed polystyrene
SAFETY DEVICE
  • Safety Device
    Fuse

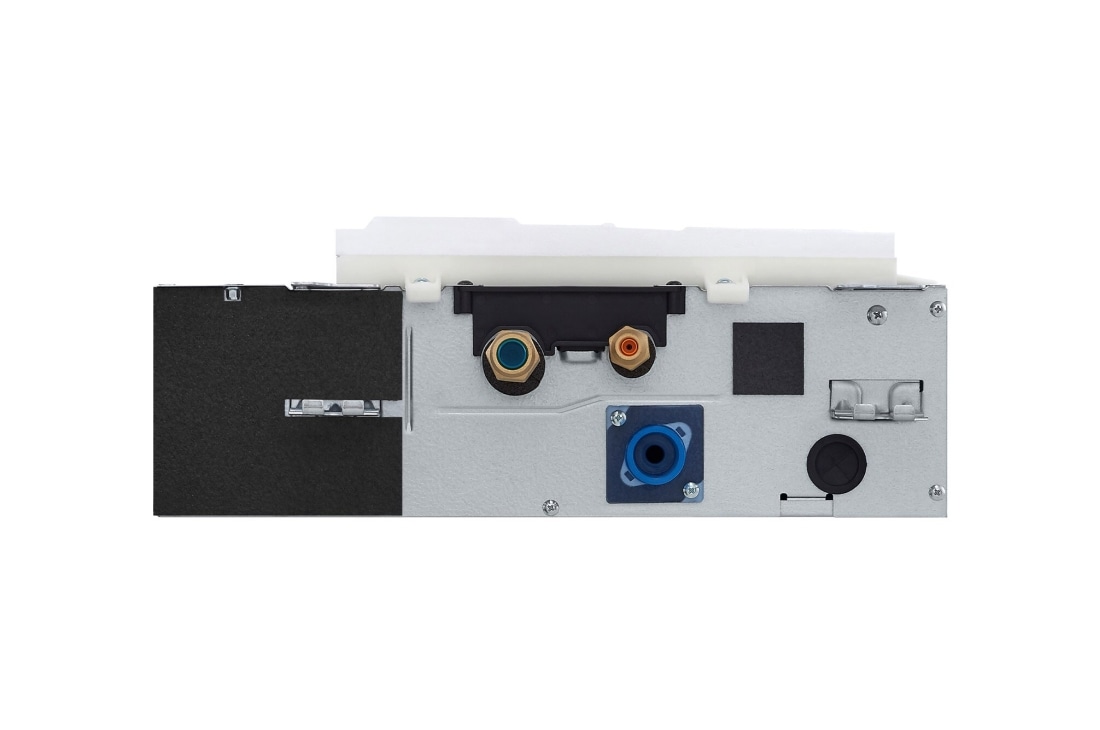

PIPE CONNECTIONS
  • Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
    Gas Side - ㎜(inch)
    Ø 15.88 (5/8)
  • Drain Pipe(Internal Dia.) - ㎜(inch)
    Ø 25 (1)
NET WEIGHT
  • Body - kg(lbs)
    15.6 (34.4)
SOUND PRESSURE LEVELS
  • H / M / L - dB(A)
    43 / 40 / 36
SOUND POWER LEVELS
  • H / M / L - dB(A)
    59 / 53 / 50
POWER SUPPLY
  • Power Supply - Ø, V, Hz
    1, 220-240, 50
    1, 220, 60
REFRIGERANT CONTROL
  • Refrigerant Control
    EEV
TRANSMISSION CABLE
  • Transmission Cable - ㎟ × Cores
    1.0-1.5 × 2C
DECORATION PANEL(ACCESSORY)
  • Panel Color
    Noble White
    Panel Name(Accessory)
    PT-UTC(Grill), PT-UTD(Panel)
