ARNU30GSVA4 component-copyModelName

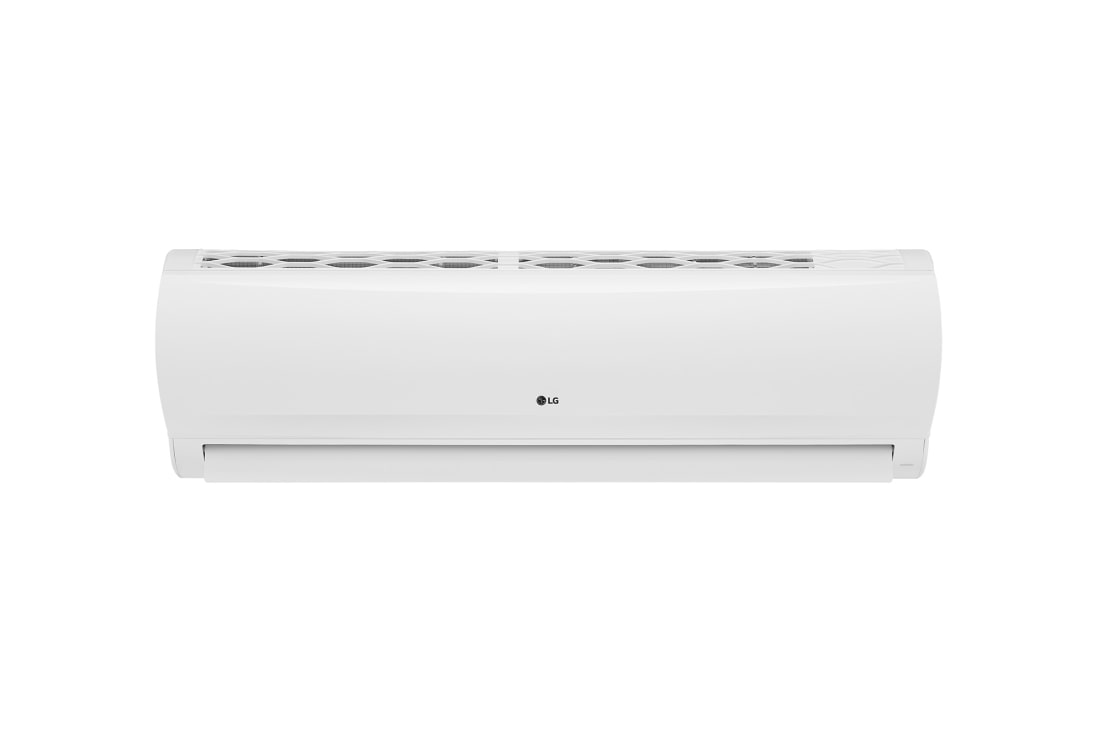

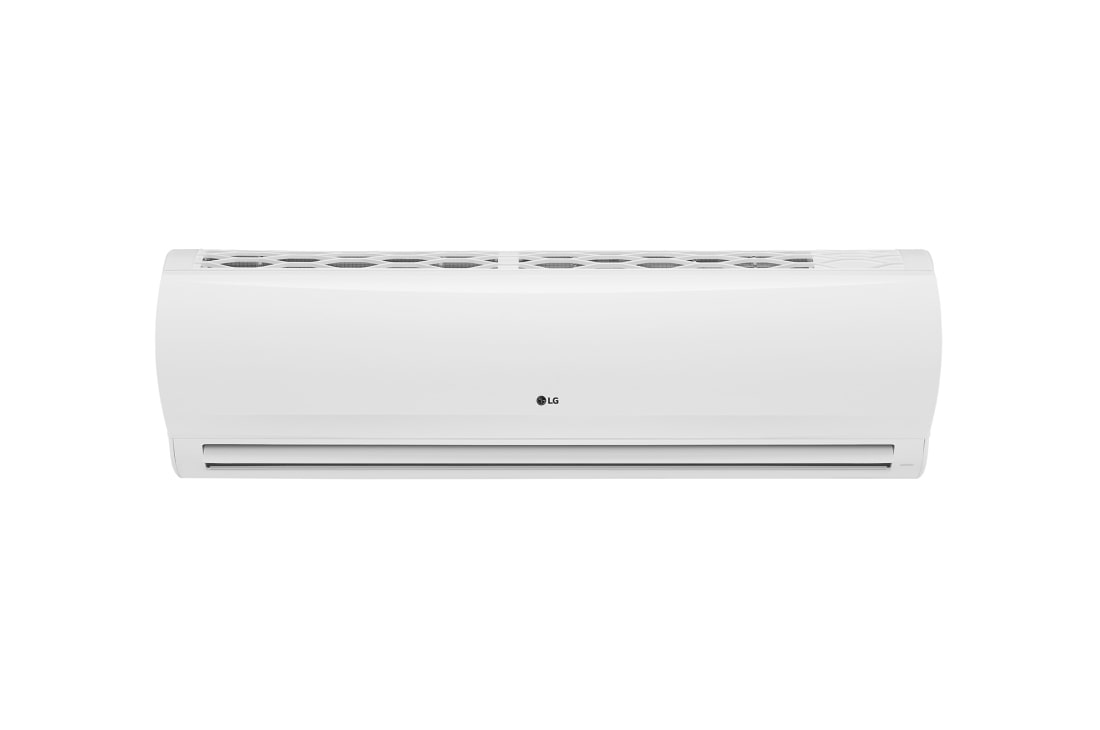

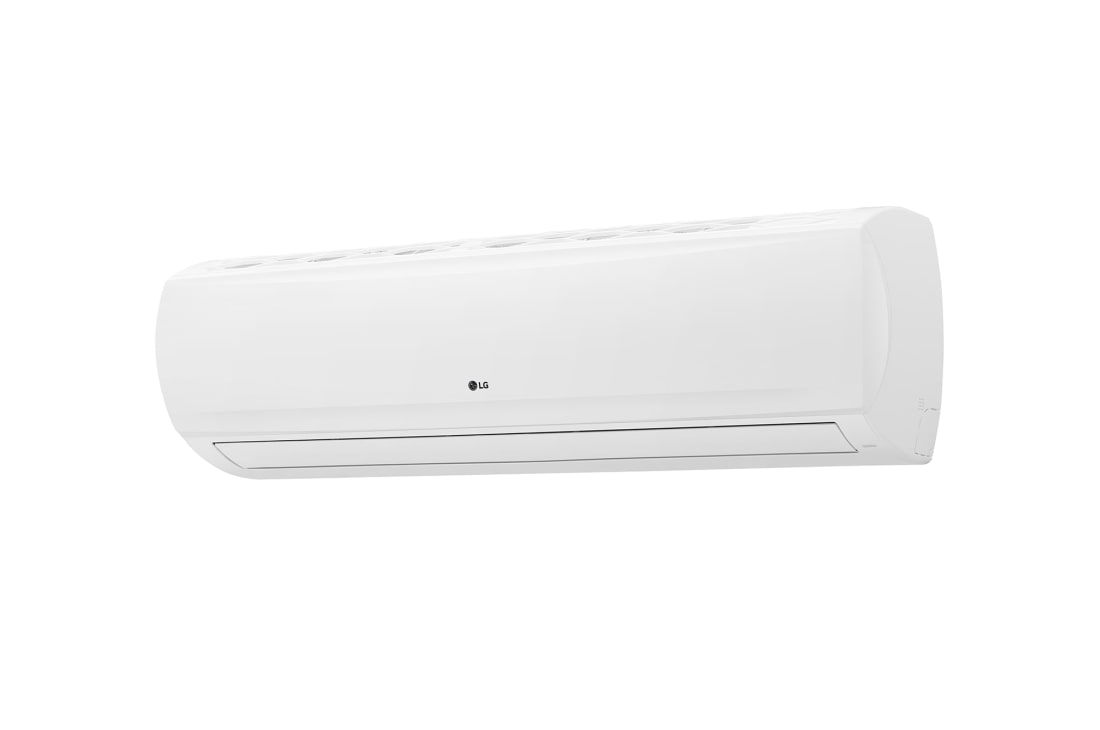

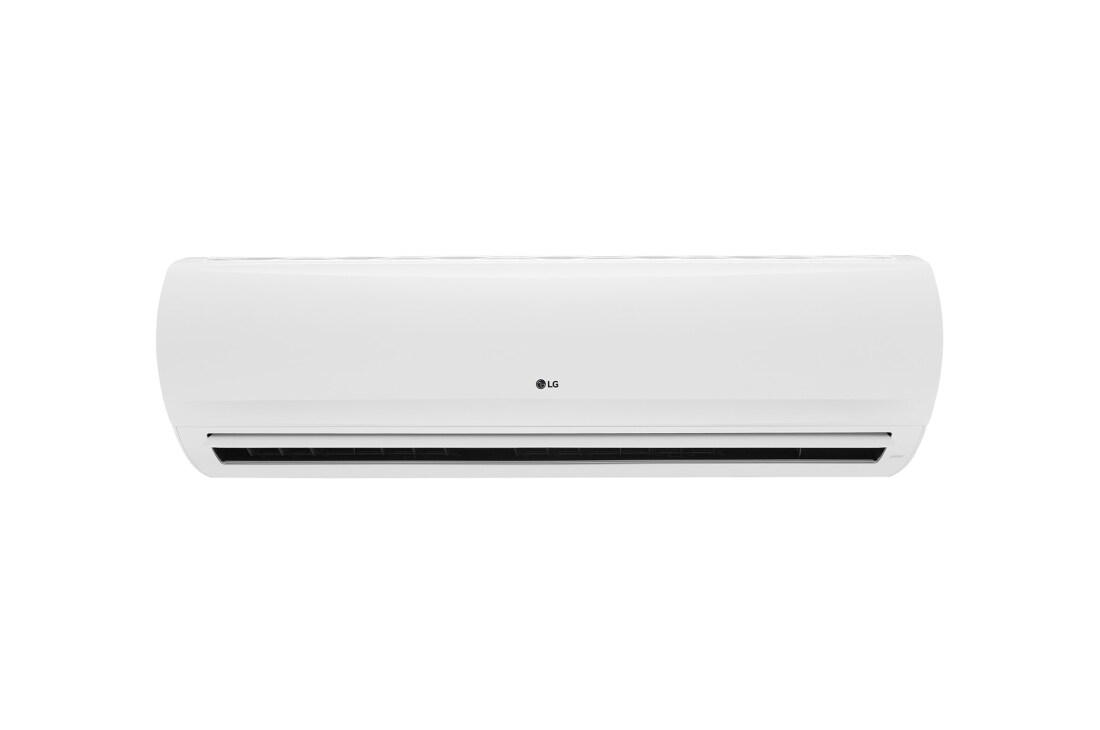

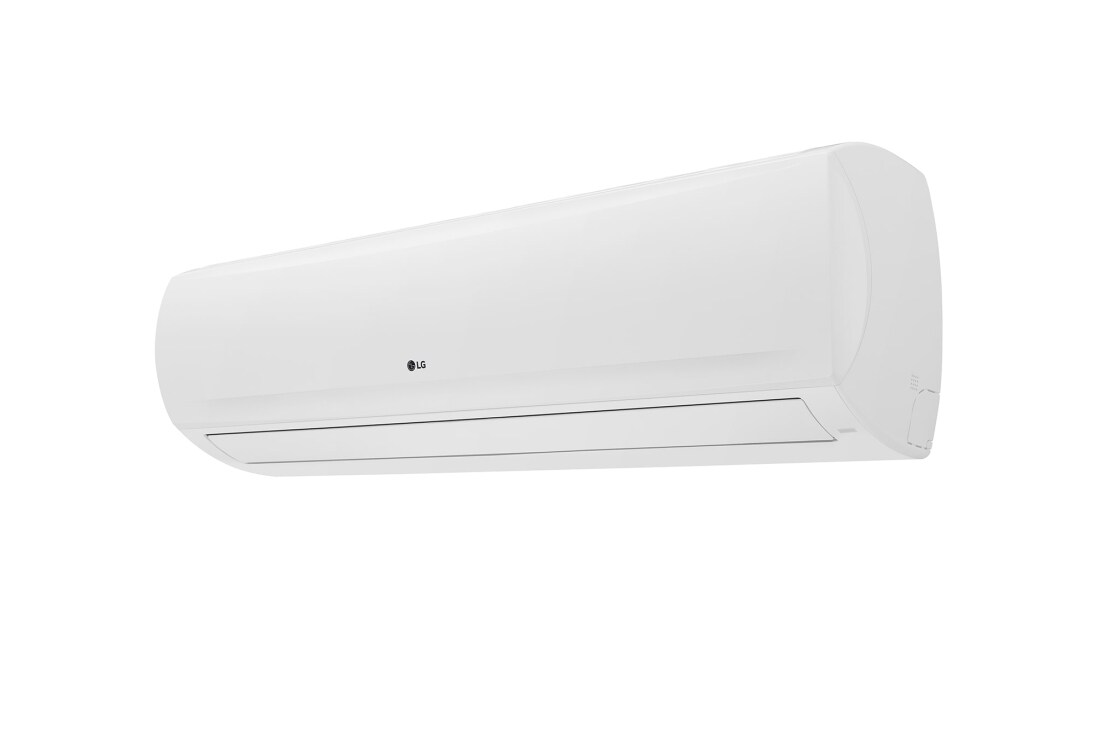

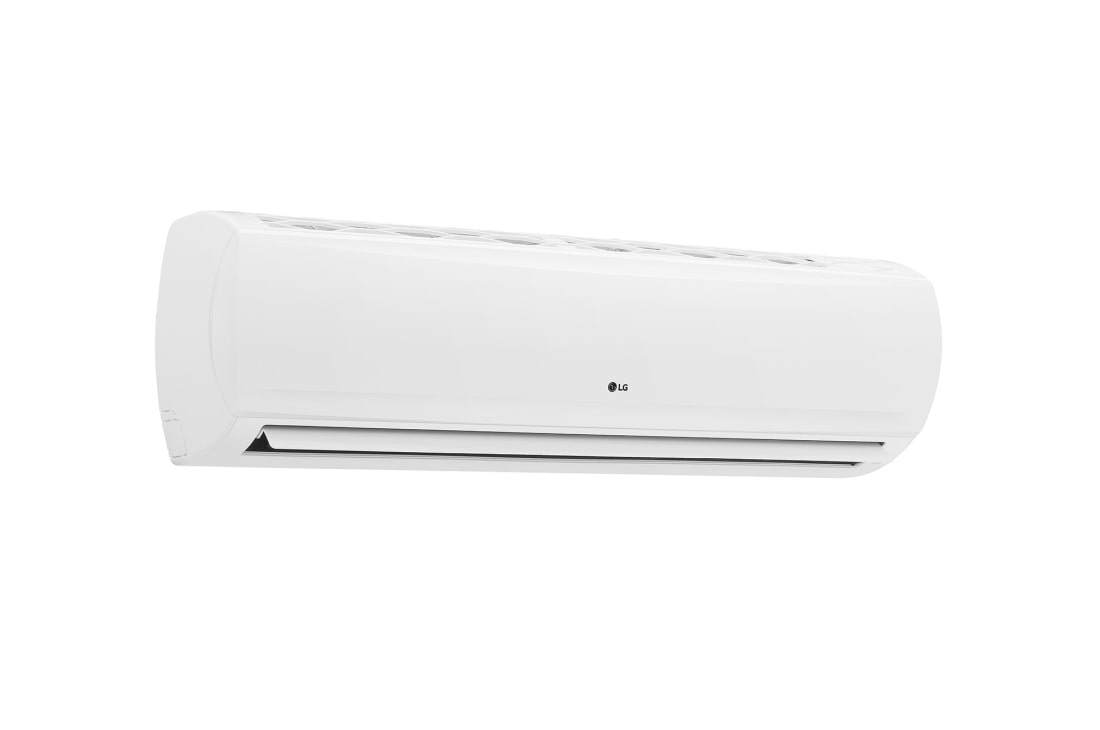

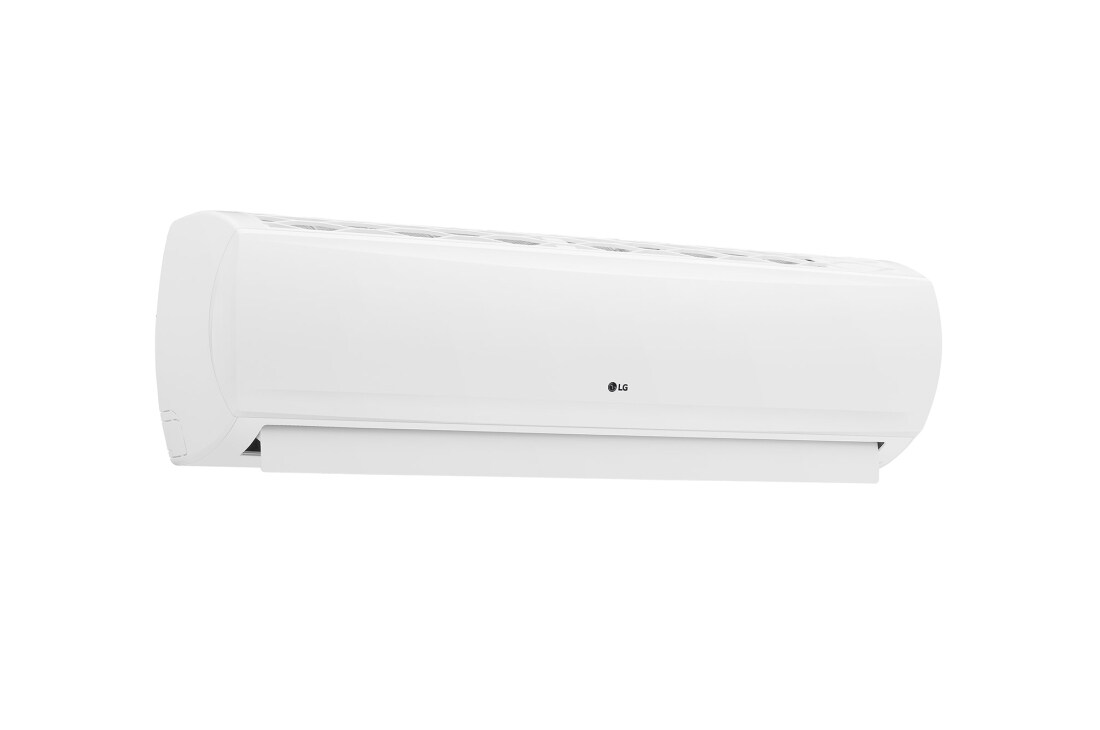

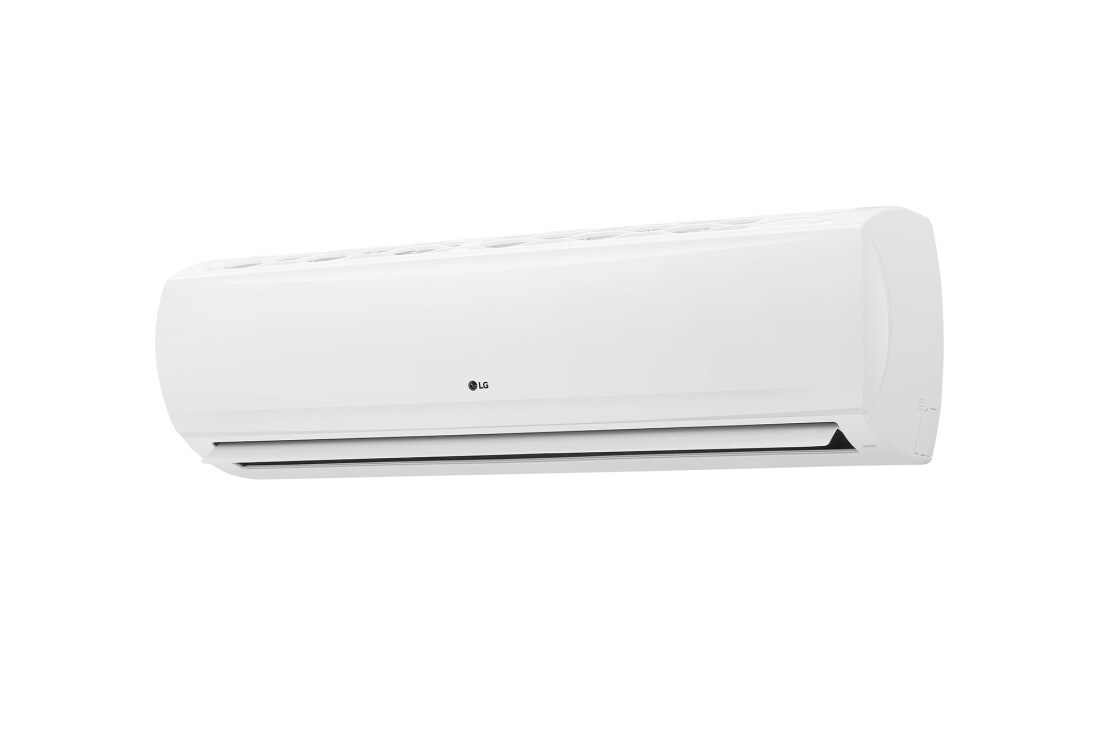

Wall Mounted Unit 8.8kW ARNU30GSVA4
See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ARNU30GSVA4)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ARNU30GSVA4)
    $
    $
    LG Members Price
Total

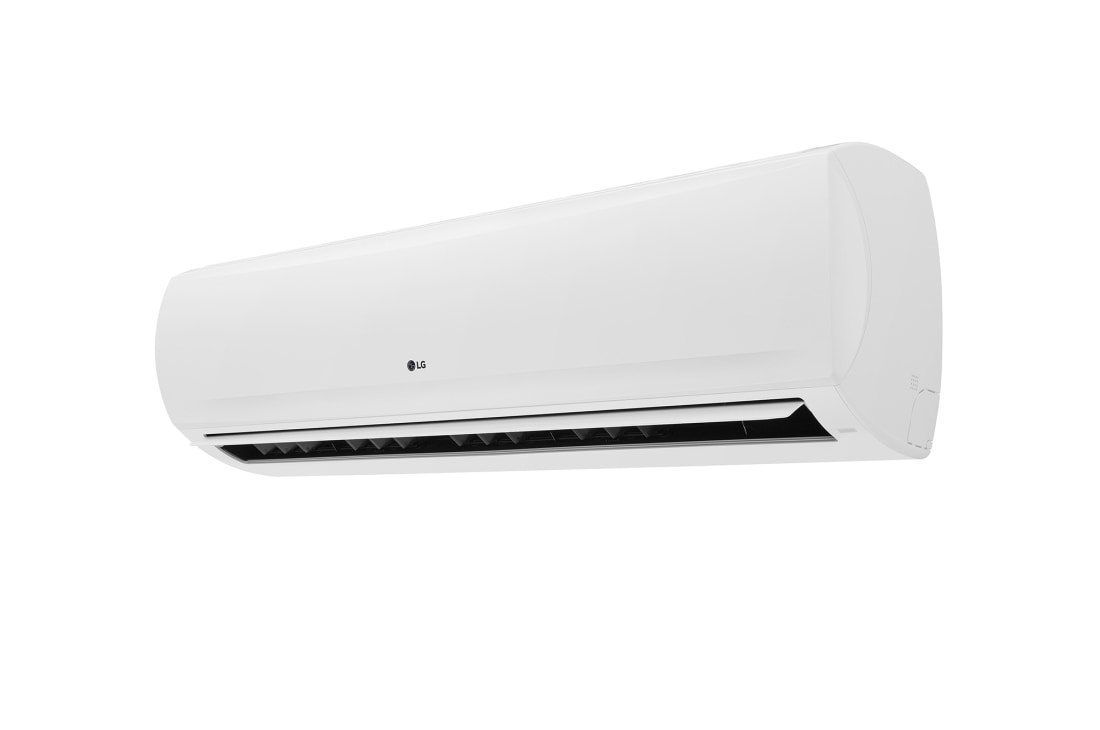

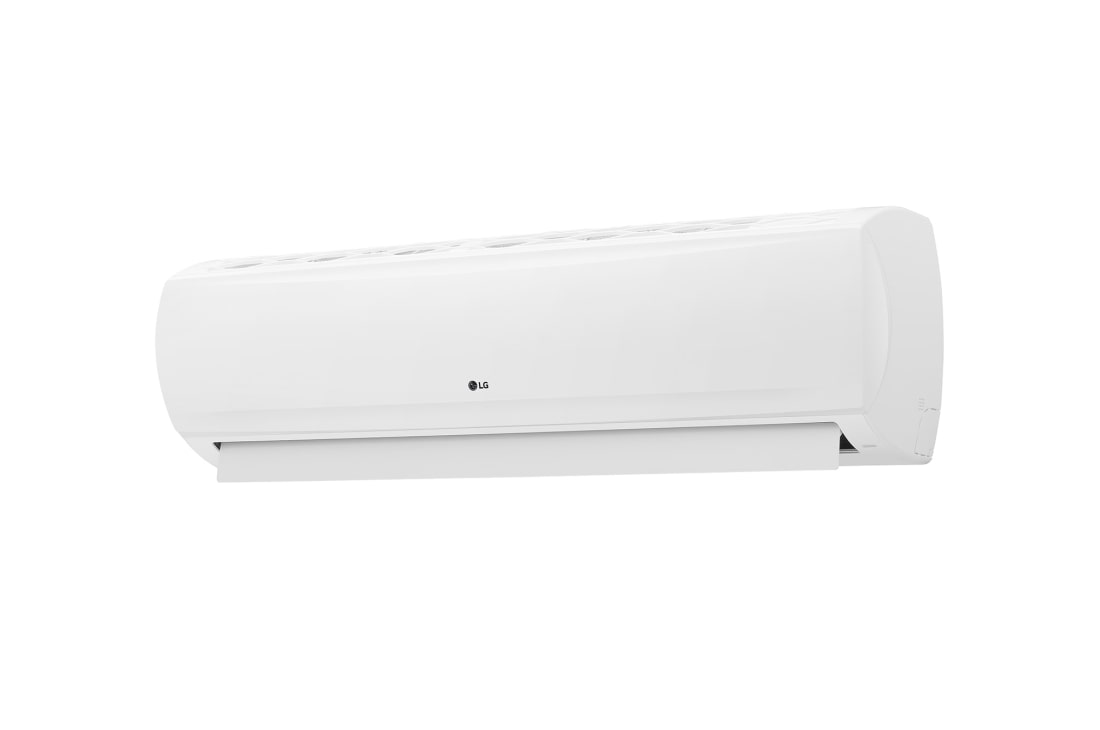

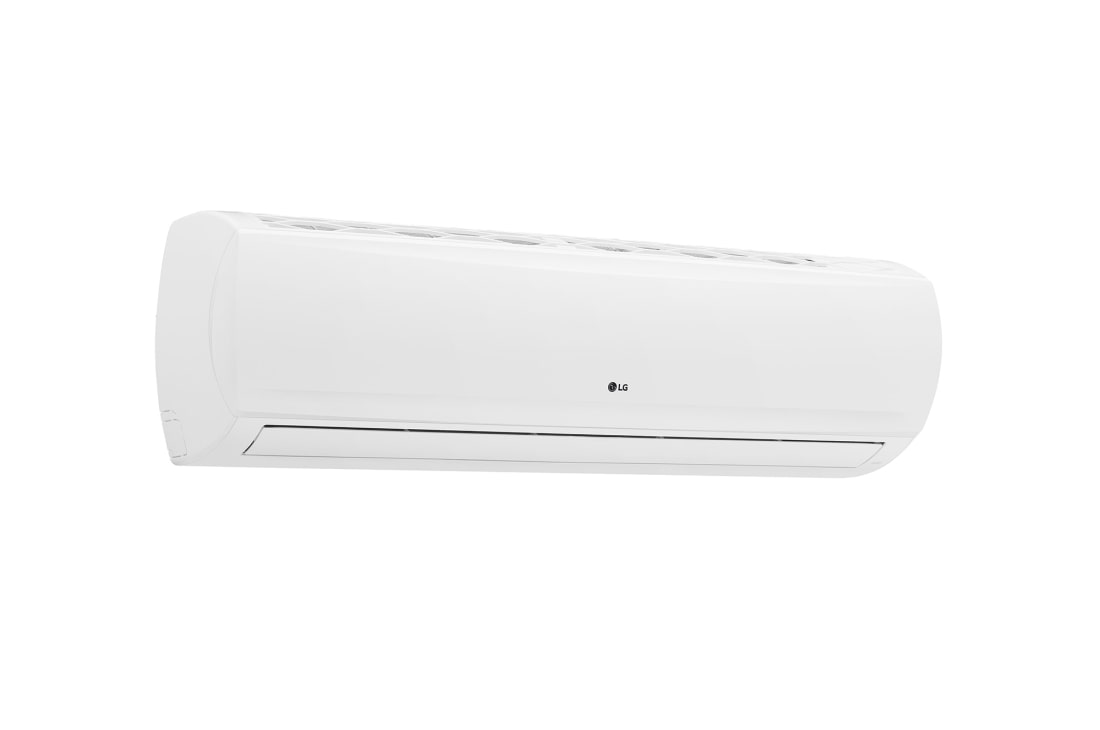

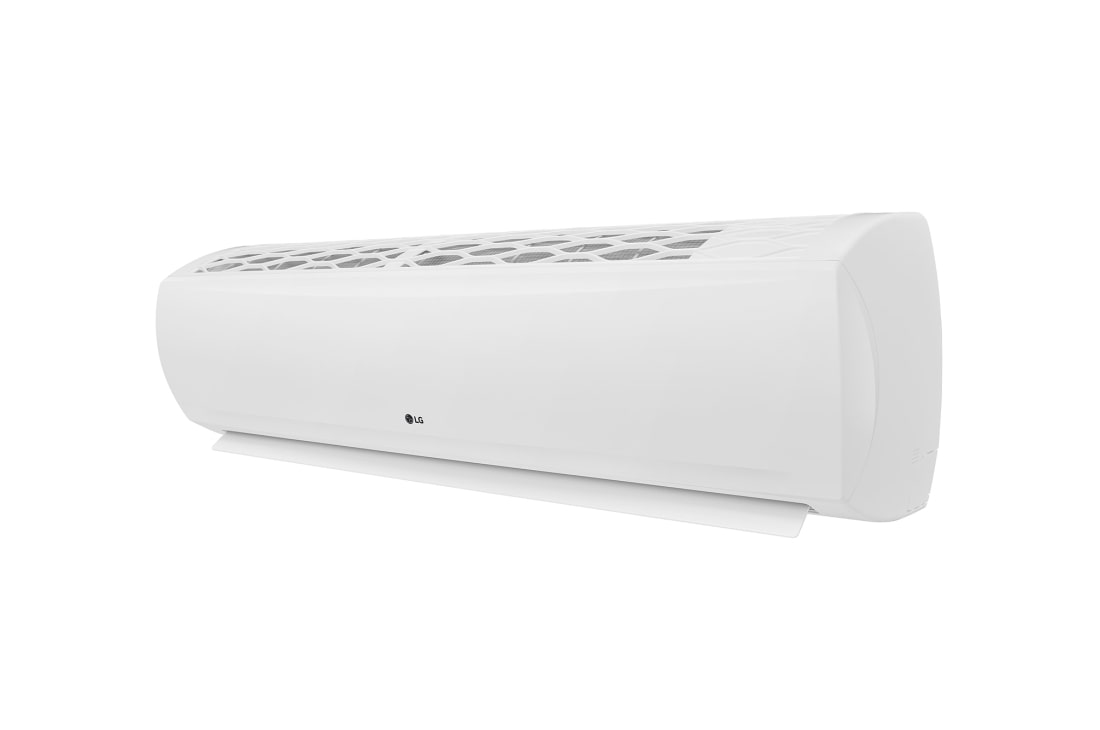

Wall Mounted Unit 8.8kW ARNU30GSVA4
Wall Mounted Unit1 Wall Mounted Unit2

Wall Mounted Unit

Providing optimized comfort for any type of applications
Quick & Easy Installation1 Quick & Easy Installation2

Quick & Easy Installation

Wall Mounted Unit is designed for an easy and efficient installation, making possible to install several units in a short period of time.
  • Plasmaster lonizer+1 Plasmaster lonizer+2

    Plasmaster lonizer+

    The powerful Plasmaster Ionizer+ protects you from odors and harmful substances in the air to sterilize not only the air passing through the air conditioner, but also surrounding surfaces for a safer, cleaner environment. It reduces harmful microscopic particles by infusing the air passing through the air conditioner with over 3 millions ions.

Aesthetic Design1 Aesthetic Design2

Aesthetic Design

The stylish wall mount indoor unit well-matches the interior design. The ARTCOOL series have outstanding designs and have been awarded the International Forum design award, the reddot design award and the G Mark.
Wall Mounted Unit Line Up1 Wall Mounted Unit Line Up2

Wall Mounted Unit Line Up

Contact Us1 Contact Us2

Contact Us

Please contact us for more information on the product and we will get in touch with you soon.
Learn More
Close
CAPACITY
  • Cooling - kW
    8.8
    Cooling - kcal/h
    7,500
  • Cooling - Btu/h
    30,000
    Heating - kW
    9.4
  • Heating - kcal/h
    8,100
    Heating - Btu/h
    32,000
POWER INPUT
  • Power Input(H / M / L) - W
    54 / 43 / 31
CASING
  • Casing
    White
DIMENSIONS(W × H × D)
  • Body - ㎜
    1,190 × 346 × 265
    Body - inch
    46-27/32 × 13-5/8 × 10-7/16
COIL
  • Rows × Columns × FPI
    2 × 18 × 19 + 1 × 6 × 19
    Face Area - m²
    0.34
FAN
  • Type
    Cross Flow Fan
    Motor Output × Number - W × No.
    113 × 1
  • Running Current - A
    0.51
    Air Flow Rate(H / M / L) - m³/min
    23.0 / 20.0 / 17.0
  • Air Flow Rate(H / M / L) - ft³/min
    812 / 706 / 600
    Drive
    Direct
  • Motor type
    BLDC
TEMPERATURE CONTROL
  • Temperature Control
    Microprocessor, Thermostat for cooling and heating
SOUND ABSORBING THERMAL INSULATION MATERIAL
  • Sound Absorbing Thermal Insulation Material
    Foamed polystyrene
AIR FILTER
  • Air Filter
    Resin Net(washable)
SAFETY DEVICE
  • Safety Device
    Fuse
PIPE CONNECTIONS
  • Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
    Gas Side - ㎜(inch)
    Ø 15.88 (5/8)
  • Drain Pipe(Internal Dia.) - ㎜(inch)
    Ø 16 (5/8)
WEIGHT
  • Body - kg(lbs)
    16.6 (35.6)
SOUND PRESSURE LEVELS
  • H / M / L - dB(A)
    49 / 44 / 42
POWER SUPPLY
  • Power Supply - Ø, V, Hz
    1, 220-240, 50
    1, 220, 60
REFRIGERANT CONTROL
  • Refrigerant Control
    EEV
TRANSMISSION CABLE
  • Transmission Cable - ㎟ × Cores
    1.0-1.5 × 2C
