Discontinued
BG630 component-copyModelName
Business Wireless Projector

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Business Wireless Projector
Close
INPUT SIGNAL COMPATIBILITY
  • Digital(HDMI)
    1080i/p , 720p , 576p , 480p
    RGB
    up to WSXGA+(1680x1050@60Hz)
  • Component Video
    1080i/p , 720p , 576i/p , 480i/p
    Composite Video
    NTSC-M/NTSC 4.43/PAL/PAL-M/PAL-N/SECAM
GENERAL SPECIFICATION
  • Aspect Ratio Control
    4:3/Just scan/Set by Pro./16:9/Zoom/Cinema Zoom
    Sound
    7W Mono or 5W Mono
  • Dimension (mm)
    356x246.4x92
    Weight (kg)
    3.8 kg
  • Power Consumption
    330W
    Power Supply
    AC 100 ~ 240V(Free Voltage), 50Hz/60Hz
PROJECTION SYSTEM
  • Native Resolution
    XGA (1024 x 768)
    Brightness(ANSI-Lumens)
    3200A (Typ 2600A)
  • Contrast Ratio(FOFO)
    5000:1
    Noise (dB)
    High Brightness: Typ 33dB(A), Economic: Typ 30dB(A)
  • Uniformorty(JBMMA 9point)
    80%
    Projection Lens
    Focus: Manual, Zoom: Manual 1.2x
  • Projection Image
    Screen Size: 30"~300", Standard: 100"@2.97m, Throw Ratio: 1.46(Wide)/1.75(Tele)
    Projection Offset
    90%

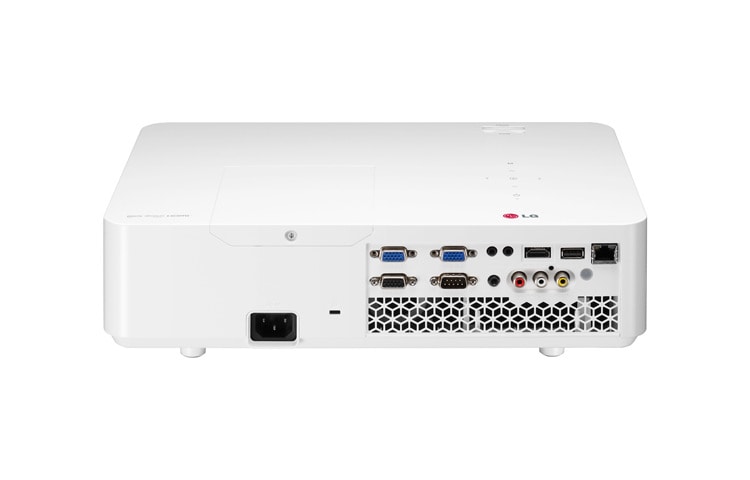

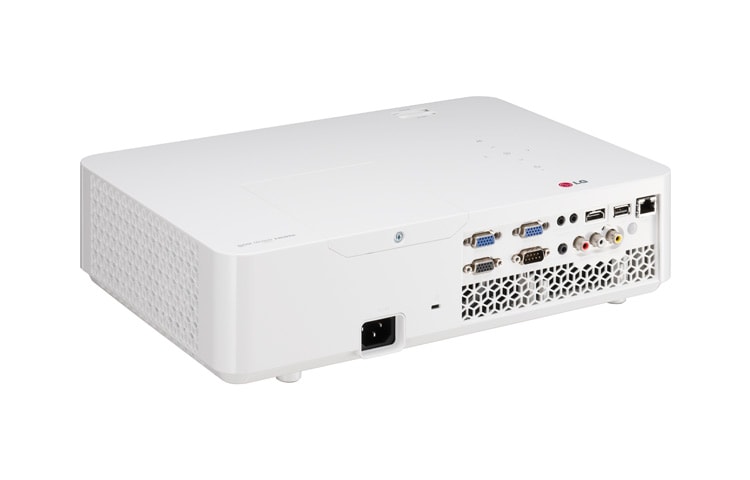

INPUT/OUTPUT TERMINALS
  • RGB Input
    2
    RGB Output
    1
  • Composite(AV) in
    1 (RCA)
    Component (YPbPr)
    RGB to Component
  • HDMI
    1 (Ver 1.3)
QUESTIONS? LET US HELP

View BG630 Product Support

Simply choose a support option from the icons below:

Compare

0
Compare 0
The CES Innovation Awards are based upon descriptive materials submitted to the judges. CTA did not verify the accuracy of any submission or of any claims made and did not test the item to which the award was given.
This LG portable projector lets you enjoy up to a 300" class screen to support large group presentations. WiDi and HD DivX make sharing content from other compatible deivices simple. And, with 3200 ANSI and 5000:1 contrast ratio, you'll see bright and vibrant images to really bring your presentaiton to life.
