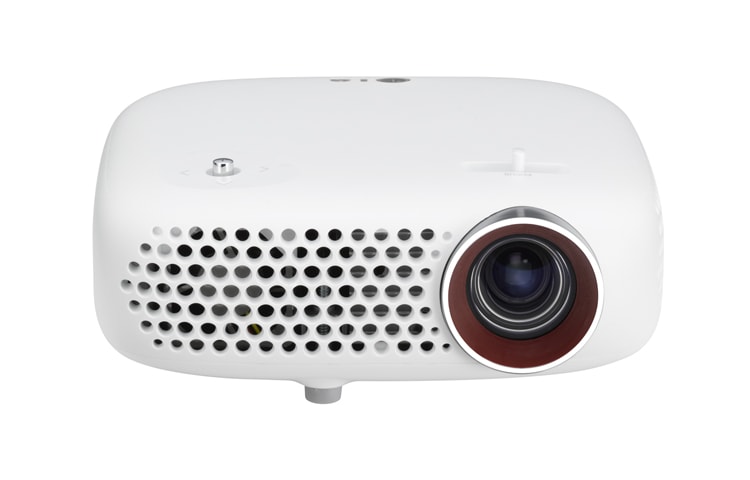

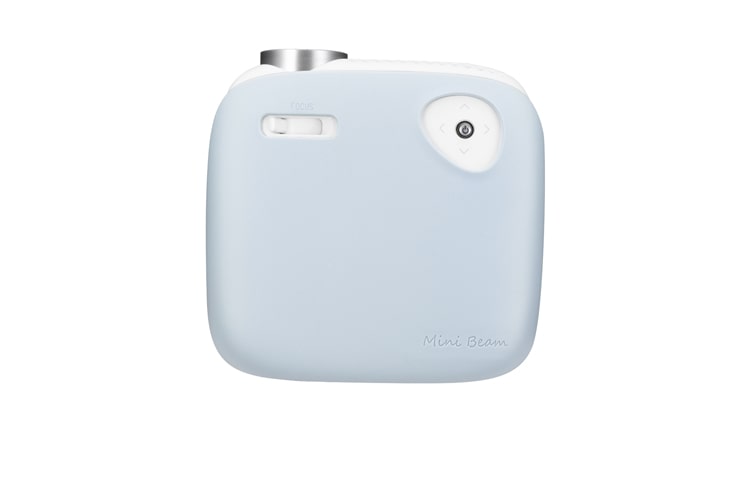

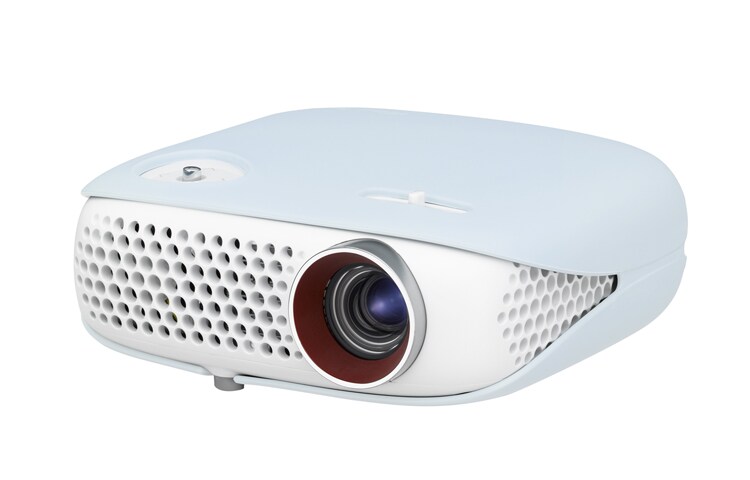

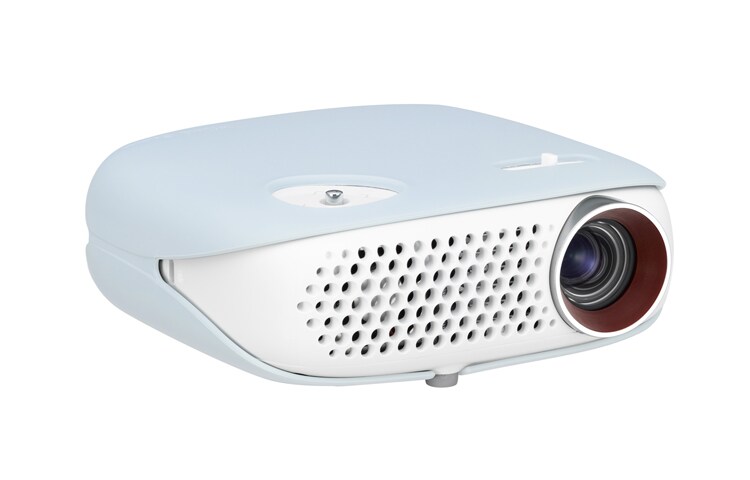

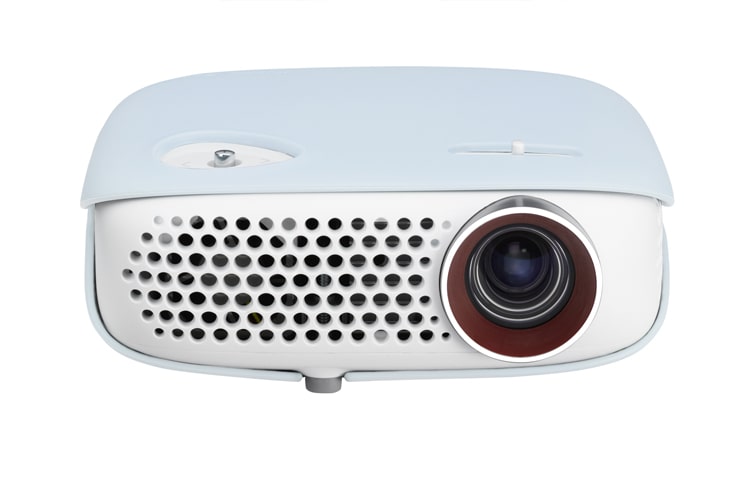

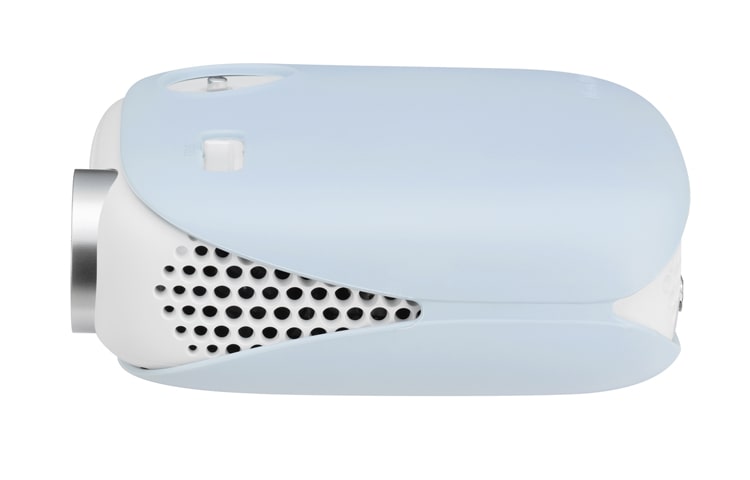

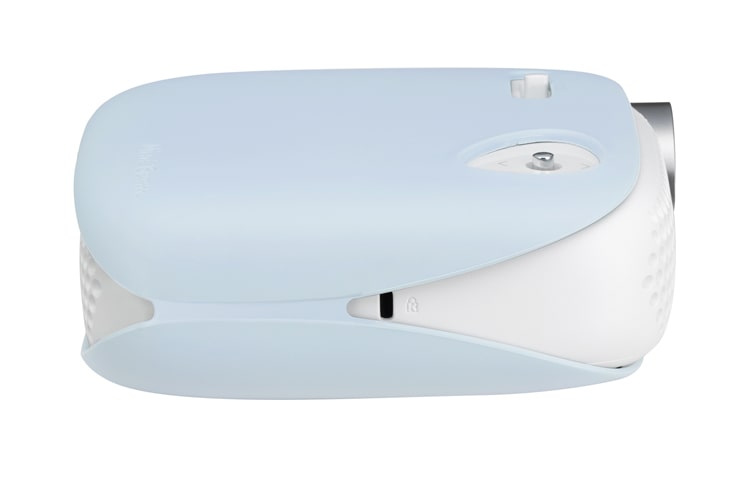

PW800G component-copyModelName
800Ansi Minibeam

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

800Ansi Minibeam
Close
PROJECTION SYSTEM
  • Native Resolution
    WXGA(1280x800)
    Brightness (Lumen, lm)
    800
  • Contrast Ratio (Full On Full Off)
    100,000:1
    Noise - High Brightness
    34 dB(A)
  • Noise - Normal
    31 dB(A)
    Noise - Economic
    26 dB(A)
  • Uniformorty(JBMMA 9point)
    90% ↑
    Projection Lens - Focus
    Manual
  • Projection Lens - Zoom
    Fixed
    Projection Image - Screen Size
    25" ~ 100"
  • Projection Image - Standard
    40"@1.3m
    Projection Image - Throw Ratio
    1.5
  • Projection Offset
    100%
    Light source - Type
    RGB LED
  • Light source - Life High Brightness
    30,000 Hrs
GENERAL SPECIFICATION
  • Menu Language
    Korean / English / French/ Spanish/ German / Italian / Swedish / Portuguese / Chinese Simplified / polish/ Brazilian Portuguese/ Russian/ Greek / Arabic/ Turkish / Taiwanese
    Aspect Ratio Control
    4:3/Just scan/Set by Pro./ 16:9/Zoom/Cinema Zoom/Full
  • Sound
    1W + 1W Stereo
    Net Size (mm) (W x D x H)
    140 x 140 x 50
  • Net Weight (kg or g)
    600g
    Power Consumption (Max.)
    65W
  • Stand-by Power
    <0.5W
    Power Supply
    Adapter (100V – 240V @ 50~60 Hz)
  • Operation Temperature
    0 ~ 40℃
    Input Signal Compatibility - Digital(HDMI)
    1080p/1080i/720p/480p/576p
  • Input Signal Compatibility - RGB
    up to WSXGA+(1680x1050@60Hz)
    Input Signal Compatibility - Component Video
    1080p/1080i/720p/480p/480i/576p/576i
  • Input Signal Compatibility - Composite Video
    480i/576i
INPUT/OUTPUT TERMINALS
  • RGB in
    1
    RGB(PC) Audio in
    1
  • Composite(AV) in
    Phone to AV in
    Composite(AV) Audio in
    Phone to AV in
  • Component (YPbPr)
    RGB to Component in
    Component (YPbPr) Audio in
    RGB to Component in
  • Audio Out
    1 (Φ3.5)
    HDMI
    1 (MHL)
  • USB
    1 (Type A)
MAIN FEATURES
  • 3D
    DLP 3D Ready (DLP Link)
    Digital Keystone Correction
    Yes (Vertical)

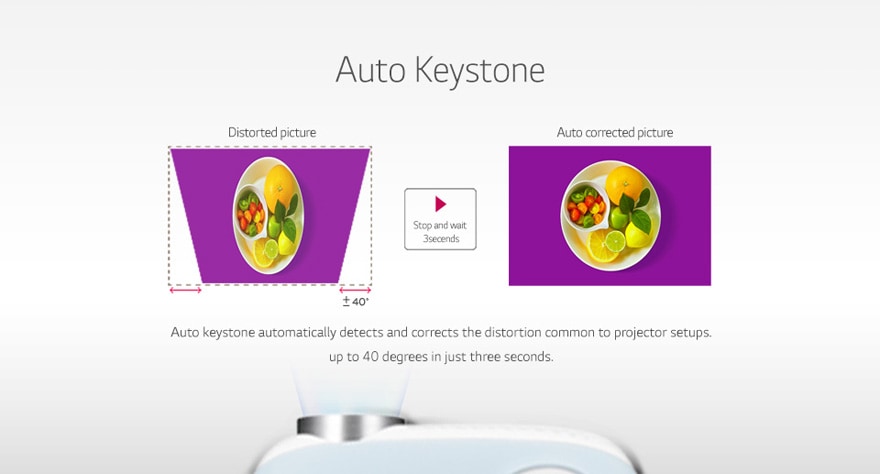

  • Auto Keystone
    Yes (Vertical)
    Picture Still
    Yes
  • Auto Source Detection (Auto Input Search)
    Yes
    Quick(Instant) Power on/off
    Yes (on 10 Sec off 2 Sec)
  • Auto Sleep (Off)
    Yes
    Sleep Timer
    Yes
  • Blank
    Yes (Blue, Green, Logo)
    Image Flip
    Yes (Horizontal/Vertical)
  • Color Temperature Adjustment
    Yes
    Brilliant Color™ (Overlap Duty)
    Yes
  • Black Level Control
    Yes
    Expert controlvADJ
    Yes
  • Gamma Correction
    Yes
    Noise Reduction
    Yes
  • Automatic Standby
    Yes
ADDED FEATURES
  • USB Host (DivX, MP3, Photo)
    Yes (HD DivX)
    File(Office) Viewer
    Yes
  • Wireless Mirroring
    Screen Share
    Wired Mirroring (Cable sold separately) - MHL
    Yes
  • Wired Mirroring (Cable sold separately) - Apple Digital AV Adapter
    Yes
    Wired Mirroring (Cable sold separately) - Slimport
    Yes
  • Self Diagnosis
    Yes
DESIGN
  • Cabinet Color
    White
    Local Key
    Joystick
  • Kensington Lock
    Yes
    Leg-Stand
    Yes
  • Tripod hole (for Tripod, Ceiling mount)
    Yes
ACCESSORY
  • Carry Bag

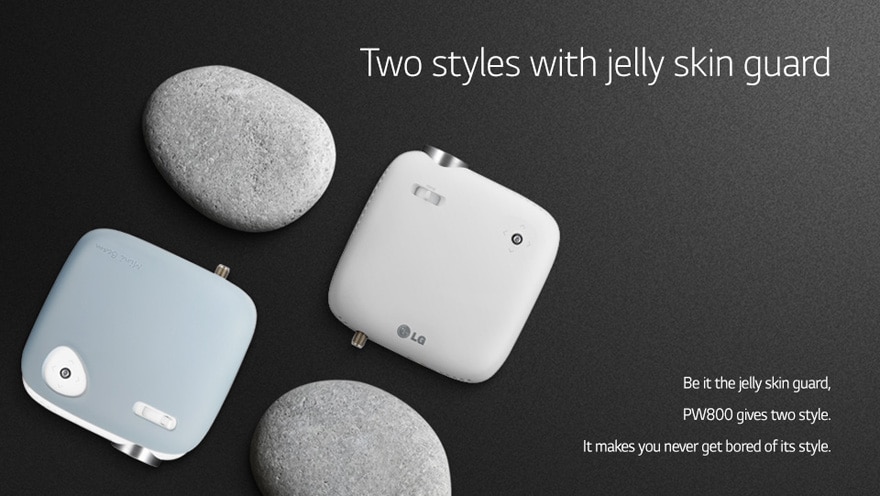

    Pouch (Jelly Skin Guard)
    Manual (Full or Simple Book) (TBD)
    simple Book (China: Full Book)
  • CD Manual
    Yes (Except China)
    Warranty Card
    Yes
  • 3D Glasses
    DLP Link Glasses (sold separately)
    Cable - Phone to AV (Composite)
    1
  • Cable - Adaptor
    1
    Cable - Power cord
    1
  • Remote Controller
    Remote (Card Type) + Battery
    Conformances(Regulation)
    CE/CB, FCC/UL, NOM etc. Global
