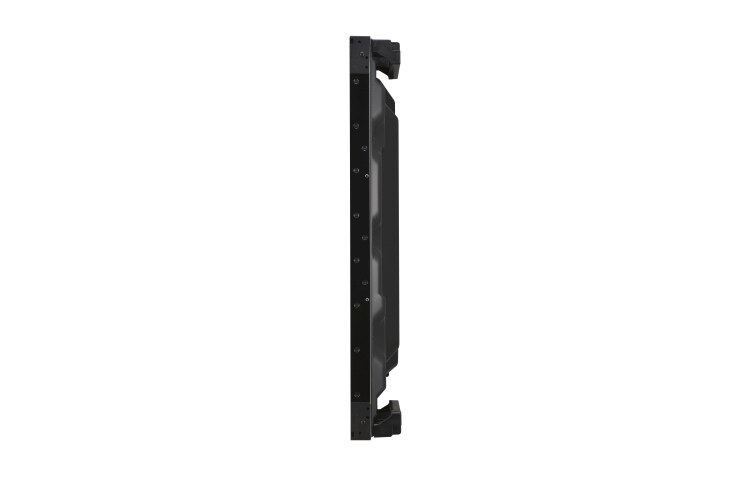

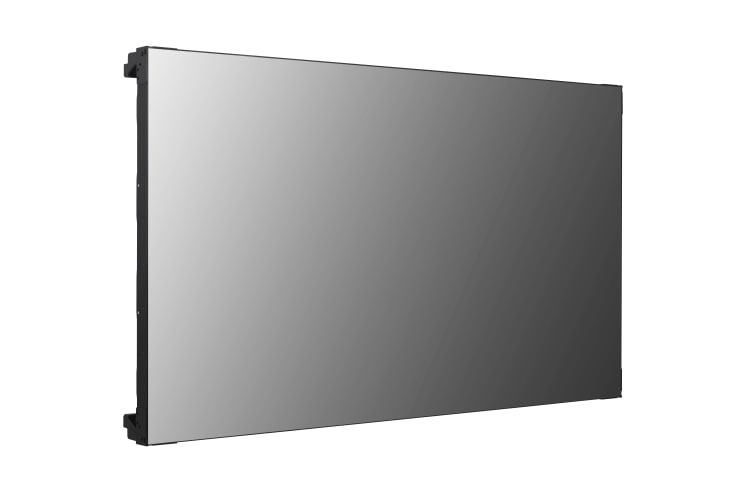

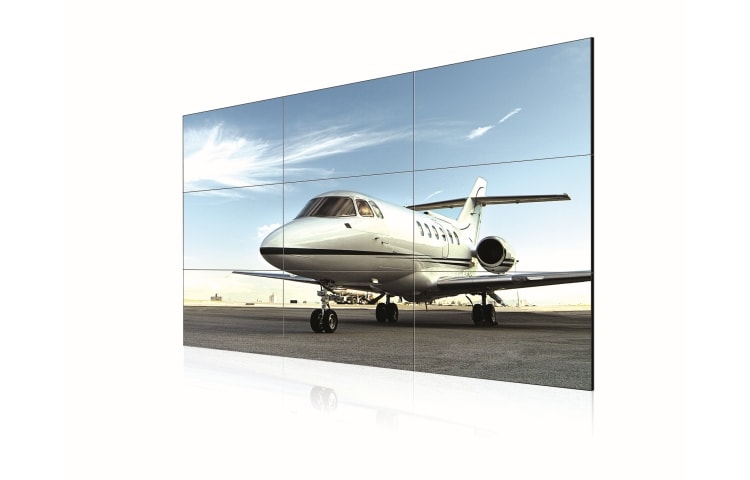

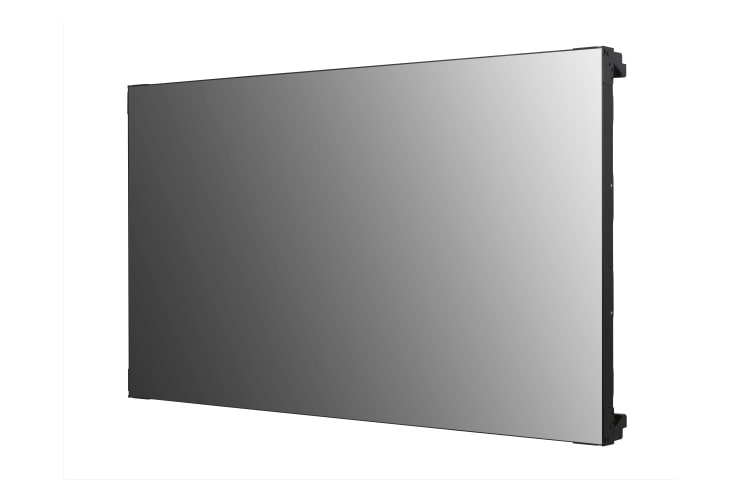

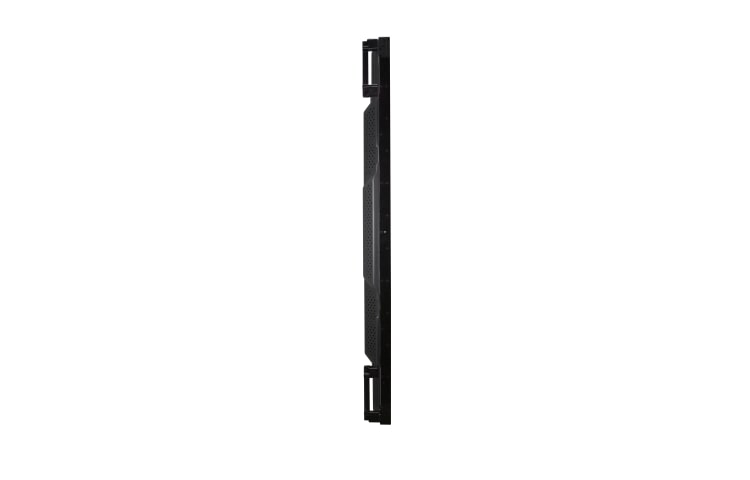

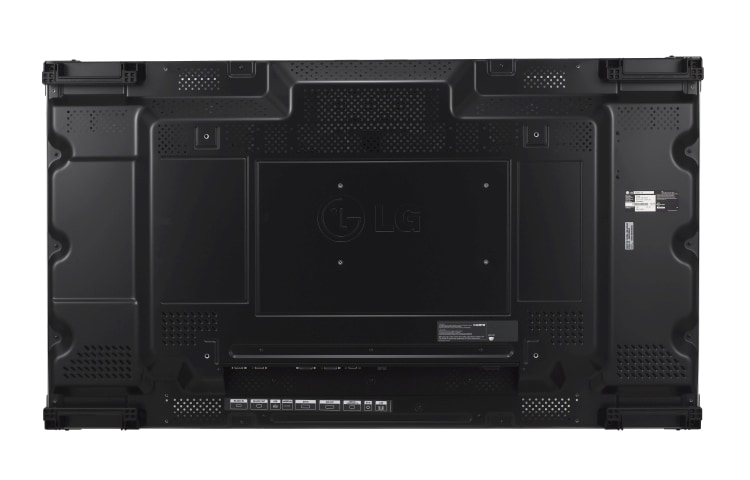

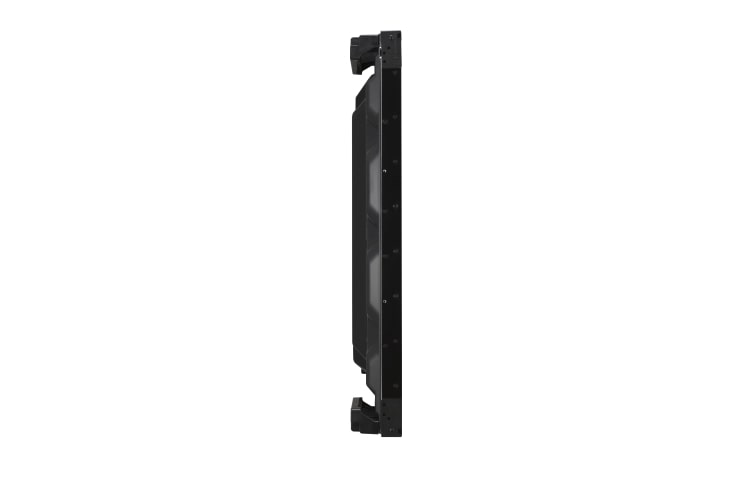

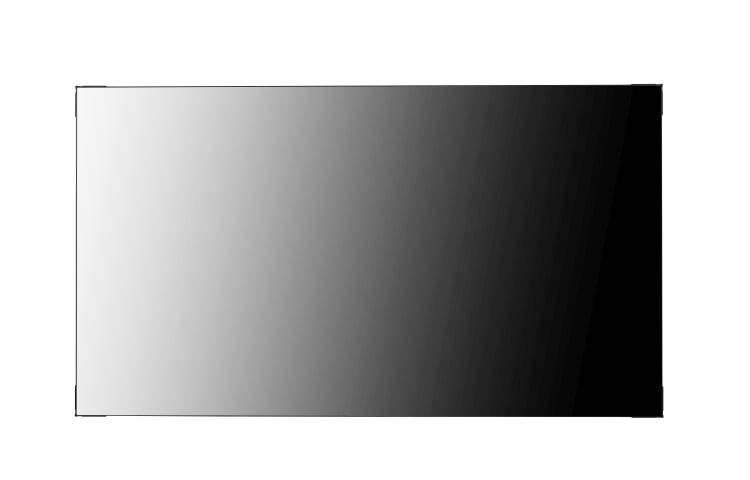

55'' LG Video Wall LV35A SERIES

LG 55'' LG Video Wall LV35A SERIES, 55LV35A, thumbnail 1

LG 55'' LG Video Wall LV35A SERIES, 55LV35A, thumbnail 2

LG 55'' LG Video Wall LV35A SERIES, 55LV35A, thumbnail 3

LG 55'' LG Video Wall LV35A SERIES, 55LV35A, thumbnail 4

LG 55'' LG Video Wall LV35A SERIES, 55LV35A, thumbnail 5

LG 55'' LG Video Wall LV35A SERIES, 55LV35A, thumbnail 6

LG 55'' LG Video Wall LV35A SERIES, 55LV35A, thumbnail 7

LG 55'' LG Video Wall LV35A SERIES, 55LV35A, thumbnail 8

ADD TO WISHLIST

Discontinued

55LV35A component-copyModelName

55'' LG Video Wall LV35A SERIES

Key Features

Full HD
IPS panel
Native Resolution 1920 x 1080
Brightness 500cd/m2

Enquire To Buy Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Full HD
IPS panel
Native Resolution 1920 x 1080
Brightness 500cd/m2

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

55" LG Video Wall LV35A SERIES

Full HD 1080p

SUPER NARROW BEZEL

47" super narrow bezel 4.9mm and 55" super narrow bezel 3.5mm video wall displays create visually stunning digital walls that are easily installed, maintained and managed.

REDUCED BLACKENING EFFECT

Even under direct sunlight exposure, LG commercial monitors are resistant to blackening effects and provide quality images for semi-outdoor or window display usage. This means you can save on costs related to purchasing IR blockers or extra cooling systems. What's more, you can save on space since no glass covers are needed for the monitors.

EXCELLENT PICTURE WIDE VIEWING ANGLES

Super In Plane Switching or IPS provides better light transmission than non-IPS panels allowing you to watch the screen at wider viewing angles with minimal variation in contrast.

MINIMISED IMAGE DISTORTION FROM TOUCH PRESSURE

The liquid crystal structure of an IPS panel does not deform when exposed to touch pressure, so when an external pressure is applied to the screen the image is not distorted.

SOFTWARE - SUPERSIGN V

• Content Split/Compression for Regular Matrix & Non-formal Irregular Video Wall Layouts
• Synchronised content playback

SOFTWARE - SUPERSIGN C

• Remote Monitor Control Solution
• Enhanced Auto Calibration
- Accurate colour adjustment in a short time

SuperSign C allows control of one or more monitors remotely via network and RS232 serial. To optimise the wall solution, the Auto Calibration software makes adjusting the White Balance feature easy.

*Version 1.3 Super Sign Elite-C will only work with Spider Solution

24/7 OPERATION

LG's Premium Signage Video Wall display is designed for 24/7 operation for continuous business use

Landscape & Portrait

Flexible usage in Landscape or Portrait orientation.

PANEL

Screen Size

55" (139cm)

Panel Technology

IPS
Aspect Ratio

16:9

Native Resolution

1920 x 1080 (Full HD)
Brightness

500cd/m²

Contrast Ratio

1,400:1
Dynamic CR

500,000:1

Response Time

12ms (G to G)
Viewing Angle (HxV)

178° x 178°

Colour

Black

CONNECTIVITY INPUT(REAR)

Digital

HDMI (1), DVI-D (1) with HDCP for all input

Analog

RGB (1), Component(RGB Shared), AV(RGB Shared)
External Control

RS232C(1), RJ45 (1), IR Receiver (1)

USB

Yes (1)

CONNECTIVITY OUTPUT(REAR)

Digital

DVI-D (1)

External Control

RS232C (1)

PHYSICAL SPECIFICATION

Bezel Width

2.25mm (L/R) / 1.25mm (R/B)

Monitor Dimension(W x H x D)

1213mm x 684mm x 89mm
Weight (head)

23kg

Carton Dimensions(W × H × D)

1353mm X 850mm X 225mm
Packed Weight

30.0kg

VESA™ Standard Mount Interface

600mm × 400mm

SPECIAL FEATURES

Additional

Time, Information, Temprature Sensor, Languages, Position/Size, DPM Select, File Play with USB, Tile mode, Source Selection, Auto config/Phase, ISM Method, Input Label, Smart Energy Saving, Auto Power/Soure Memory, Brightness/Contrast/Backlight, Supersign-W lite

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

POWER

Power Supply

100-240V~, 50/60Hz

Typical / Smart Energy Saving On

160W/90W
DPM

0.7W

Power Off

0.5W
Power Type

Built In Power

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB TUV / KC

EMC

FCC Class "A", CE, KCC, C-Tick
ErP/US EPA

NA / No

MEDIA PLAYER COMPATIBILITY

External Media Player Attachable

Yes

ACCESSORY

Included

Remote Controller, Manual, Guide Bracket, Power Cable, IR Receiver, RS-232C Cable

Warranty

DVI cable
Optional

600 x 400 (AP-WX60), WM-L640V (Landscape), WM-P640V (Portrait)
