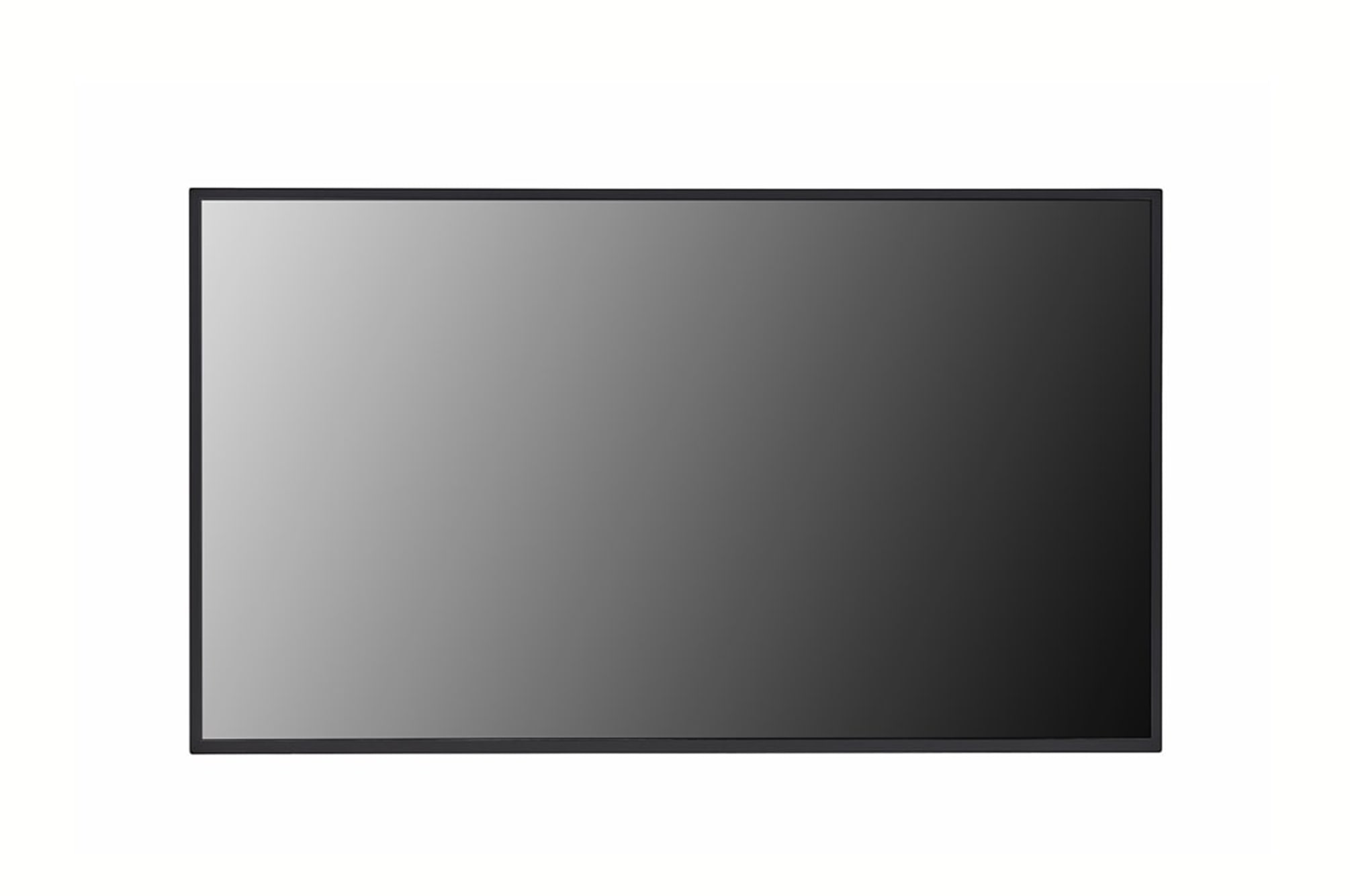

Touch Open Frame
Key Features
New In-Cell Touch Open Frame for Optimal Customization1
* All images in this page are for illustrative purposes only.

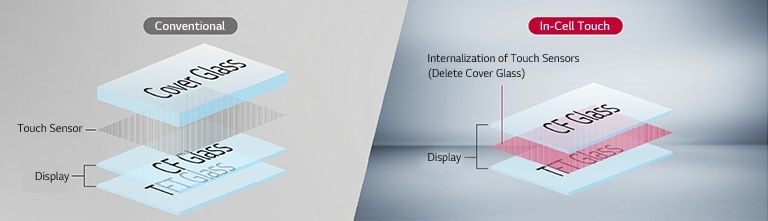

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Slim & Light1
Compared to general touch products, TNF5P implements clear picture quality due to the less layer component.
Clear Picture Quality1
Users can access to free design tools through the integrated parts such as touchscreen, display and webOS.
Design Flexibility1
*Standard commercial webOS
*Screen images are simulated.

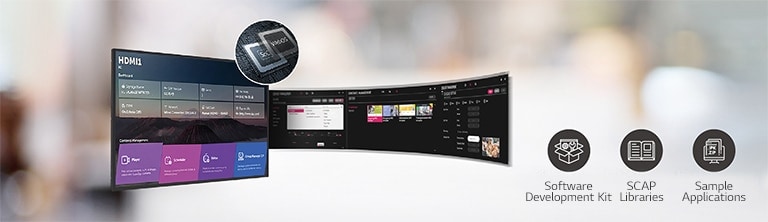

The webOS 6.0 smart signage platform provides convenience with intuitive GUI** and simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
High-Performance with<br>webOS 6.01
* SoC : System On Chip
** GUI : Graphical User Interface
Screen Size (Inch)
32"
Panel Technology
IPS
Native Resolution
1,920 x 1,080 (FHD)
Brightness
500
Contrast Ratio
1,000:1
Color Gamut
NTSC 72%

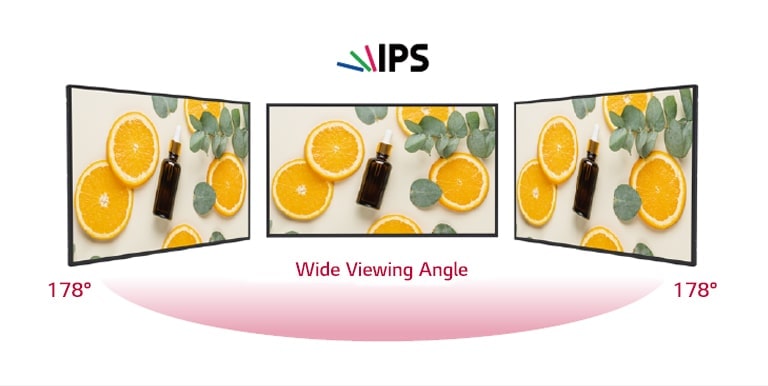

Viewing Angle (H x V)
178 × 178
Color Depth (Number of Colors)
8bit, 16.7 Million colors
Response Time
9ms (G to G)
Surface Treatment (Haze)
Haze 25%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24 / 7
Portait / Landscape
Yes / Yes
Bezel Color
Black
Bezel Width
11.3/11.3/11.3/13.2 mm
Weight (Head)
5.8 kg
Monitor Dimensions (W x H x D)
723.0 x 419.4 x 39.1 mm
Carton Dimensions (W x H x D)
812 x 510 x 142 mm
VESA Standard Mount Interface
200 x 200
Internal Memory (eMMC)
8GB (System 5GB + Available 2.48GB)
Temperature Sensor
Yes
Acceleration(Gyro) Sensor
Yes
USB Plug & Play
Yes
Fail over
Yes
Video Tag
Yes
Play via URL
Yes
Screen Rotation
Yes
Gapless Playback
Yes
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Status Mailing
Yes
Control Manager
Yes
Cisco Certification
Yes
Crestron Connected
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
Operation Temperature
0°C to 40°C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
48 W
Max.
65 W
BTU (British Thermal Unit)
164 BTU/Hr(Typ.), 222 BTU/Hr(Max.)
Smart Energy Saving (70%)
34 W
DPM
0.5 W↓
Power off
0.5 W↓
Safety
CB / NRTL
EMC
FCC Class “A” / CE / KC
ERP / Energy Star
N/A / Yes
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign Cloud
Yes
Mobile CMS
Yes
Connected Care
Yes
Basic
Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver
Available Object Size for Touch
Ø6mm ↑
Response Time ('Paint' app on Windows 10 PC)
90ms ↓
Accuracy (Typ.)
3.5 mm
Interface
USB 2.0
Operating System Support
Win 10 / 11, Android
Multi Touch Point
Max. 10 Points
To access more technical documentation and resources, please visit the LG B2B partner portal.
