Stretch Signage

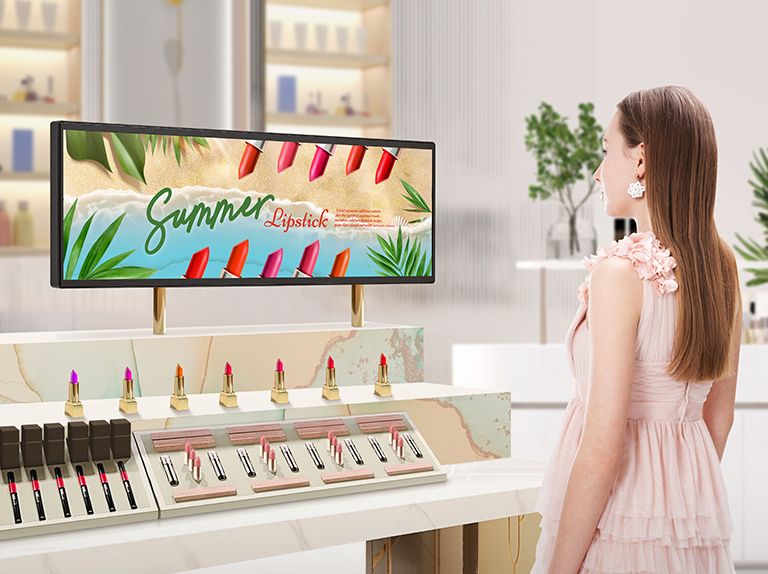

Inside a bright cosmetics store, there is a BH7N installed at the lipstick section. A woman is watching a vivid advertisement displayed on the wide screen of BH7N.
Image has been simulated to enhance feature understanding, and may differ from actual use.
Image has been simulated to enhance feature understanding, and may differ from actual use.
Image has been simulated to enhance feature understanding, and may differ from actual use.
Image has been simulated to enhance feature understanding, and may differ from actual use.

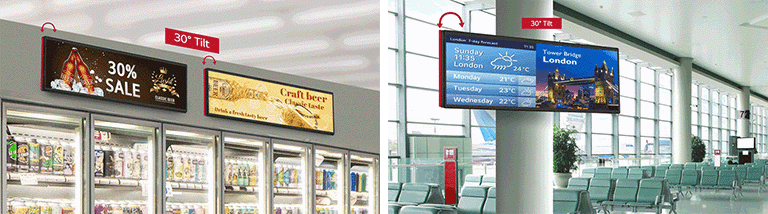

With a tilting capability of 30° when installed at a higher height, BH7N enhances customer perception and satisfaction.
The BH7N is installed higher than eye level but tilted at a 30° angle, ensuring that the screen content is well-visible.
Image has been simulated to enhance feature understanding, and may differ from actual use.

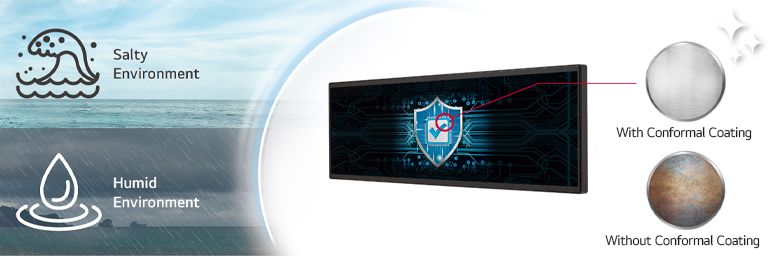

Optimized for business environments, the BH7N is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation.
The BH7N has conformal coating on the power board to protect display even in a salty or humid environment.

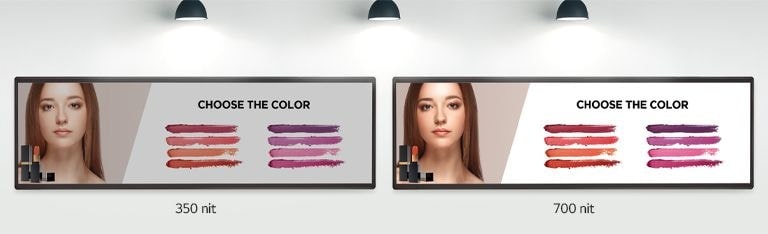

With a great brightness of 700 cd/m2, the BH7N series clearly deliver content and attract public attention, making it suitable display for marketing in airports, retail, shopping malls etc.
BH7N has a brightness of 700 nits, so it is clearly visible, even under strong light.
It has been simulated to enhance feature understanding, and may differ from actual use.

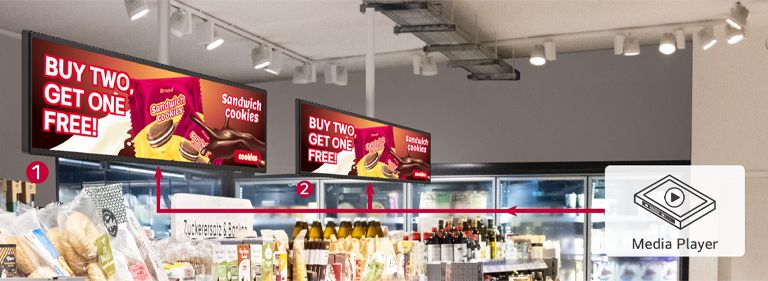

A daisy chain allows you to conveniently and efficiently play the same content on multiple displays using just one media player. This eliminates the need to install separate media boxes for each display, as the entire operation can be handled by a single media player, which can result in cost savings during installation.
Multiple displays in the market are being managed at once through Daisy Chain.
* You can play media by connecting an external HDMI.

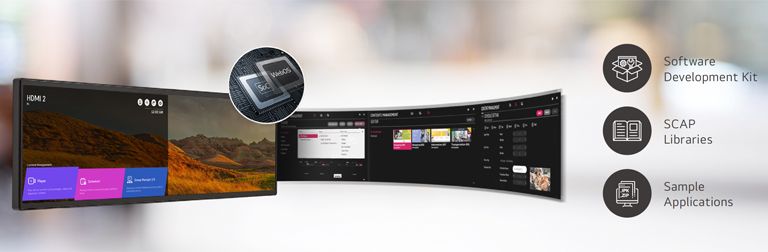

LG webOS 6.0 is available on BH7N series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.*
Several tasks that can be done through the LG webOS smart platform are arranged in the BH7N screen.
* GUI : Graphical User Interface
Image has been simulated to enhance feature understanding, and may differ from actual use.
Easy and Fast maintenance is available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
The one of LG employee is remotely monitoring the BH7N screen installed in a client workplace by using cloud-based LG monitoring solution, called LG ConnectedCare.
* LG ConnectedCare is the brand name of LG Signage365Care Service.
SuperSign is an integrated and intuitive content management solution for creative and organised digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
The manager of a clothing store is creating advertisements that will be displayed on the BH7N screen installed on the store wall using content management software, SuperSign.
Image has been simulated to enhance feature understanding, and may differ from actual use.
Screen Size (Inch)
37"
Panel Technology
IPS (ADS)
Back Light Type
Edge

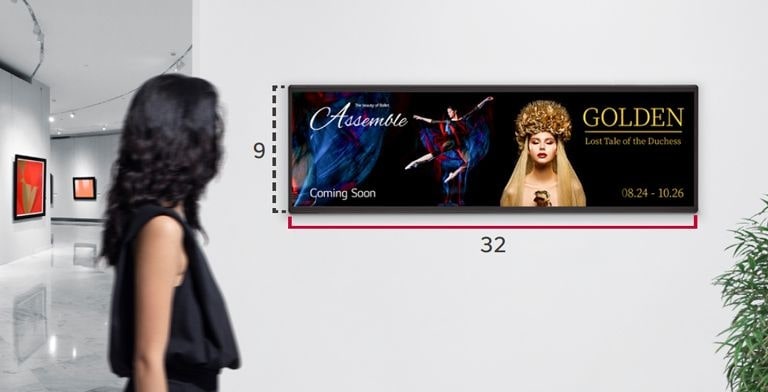

Aspect Ratio
32:9
Native Resolution
1920x540 (FHD)
Refresh Rate
60Hz
Brightness
700nit(Typ)
Contrast Ratio
1,000:1
Dynamic CR
1,000,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178 X 178
Color Depth (Number of Colors)
8 bit, 16.7 Million colors
Response Time
14ms (G to G)
Surface Treatment (Haze)
Haze 25%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
HDMI In
Yes (2, HDMI Daisy cahin support) HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI2: ARC
DP In
Yes (1)
RS232C In
Yes (1)
RJ45(LAN) In
Yes (1)
IR In
Yes (1)
USB In
USB2.0 Type A(1, USB Auto Playback)
HDMI Out
Yes (1)
Audio Out
Yes (1), Speaker NA(Audio line Out)
RS232C Out
Yes (1)
Bezel Color
Black
Bezel Width
T/R/L/B : 15.6/9.3/9.3/15.6
Weight (Head)
7kg
Packed Weight
9kg
Monitor Dimensions (W x H x D)
922.3 x 288.3 x 43.5 mm (without IR)
VESA Standard Mount Interface
400×200mm
Operation Temperature
0°C to 40°C
Operation Humidity
10 % to 80 %
Power Supply
AC 100~240V~, 50/60Hz
Power Type
Built-In Power
Typ.
40W
Max.
50W
BTU (British Thermal Unit)
136.4 BTU↓/Hr(Typ.), 170.6BTU↓/Hr(Max.)
Smart Energy Saving (70%)
30W±10%
DPM
0.5 W
Power off
0.5W
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Mobile CMS
Yes
Connected Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkiye, Arabic, polski
Basic
Remote Controller(include battery 2ea), Power Cord(1.55 M*1), QSG, Regulation Book, Phone to RS232C Gender,Power Cord Clip
Tilt (Face down)
Yes (Max 30 degree)
Conformal Coating (Power Board)
Yes
To access more technical documentation and resources, please visit the LG B2B partner portal.
