All Spec
PANEL
-
Screen Size
32"
-
Panel Technology
IPS
-
Aspect Ratio
16 : 9
-
Native Resolution
1,920 x 1,080 (FHD)
-
Brightness
350 cd/m²
-
Contrast Ratio
1,100:1
-
Viewing Angle (H x V)
178 x 178
-
Response Time
10 ms (G to G BW), 7.1 ms (WOT)
-
Surface Treatment (Haze)
AGP Haze 1%
-
Life Time (Typ.)
50,000 Hrs
-
Guaranteed Operating Hours
18 Hrs
-
Orientation
Landscape & Portrait

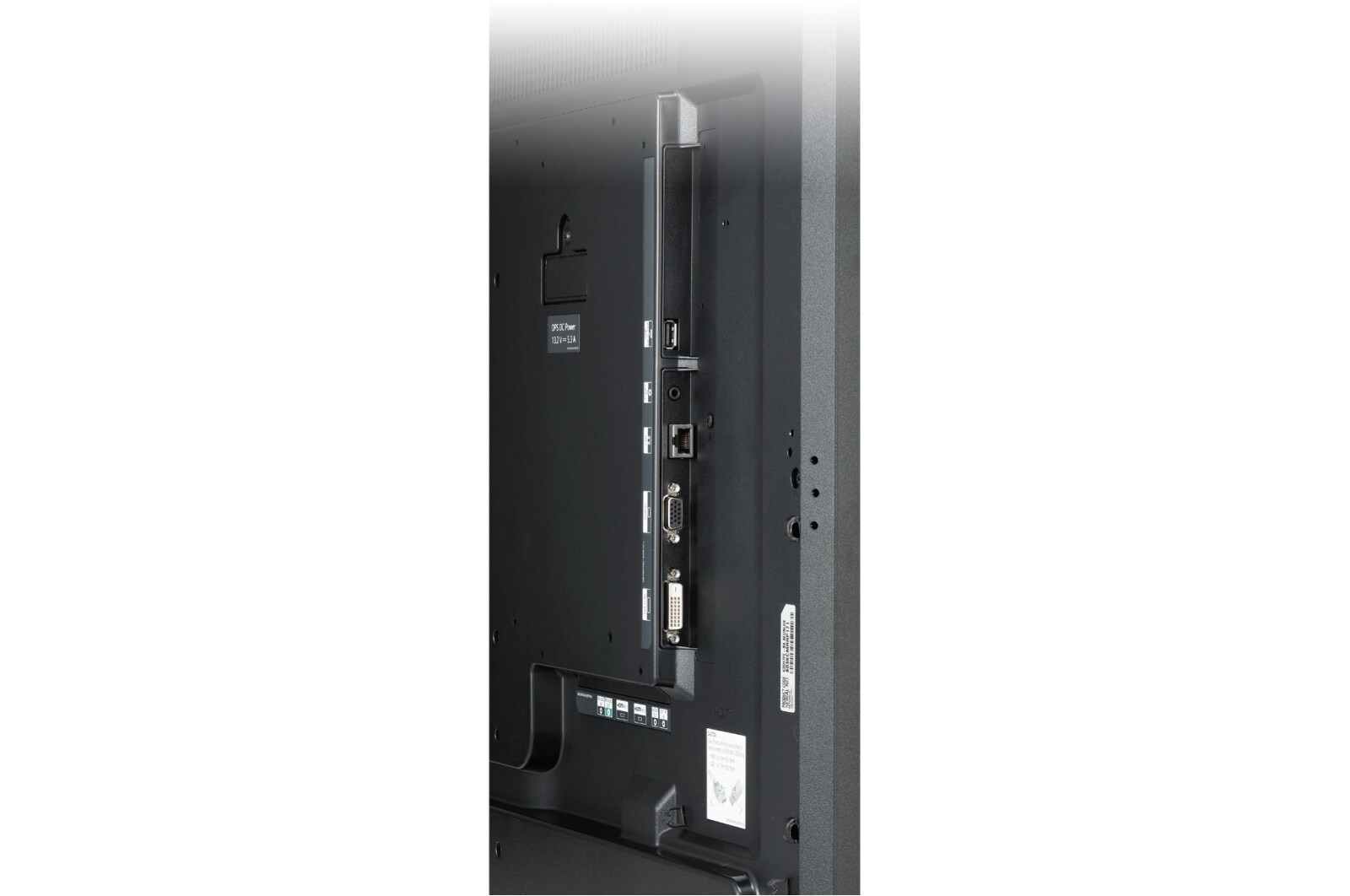

CONNECTIVITY
-
Input
HDMI (2), DVI-D, RGB, Audio, USB
-
Output
Audio (Off/Fixed/Variable)
-
External Control
RS232C In/out, RJ45 In, IR In
MECHANICAL SPECIFICATION
-
Bezel Colour
Black
-
Bezel Width
13 mm (T/R/L), 18 mm (B)
-
Monitor Dimension (W x H x D)
729.4 x 428.9 x 55.5 mm
-
Weight (Head)
5.4 kg
-
Monitor with Optional Stand Dimensions (W x H x D)
729.4 x 481 x 154.2 mm
-
Weight (Head+Stand)
6.2 kg
-
Carton Dimensions (W x H x D)
810 x 510 x 132 mm
-
Packed Weight
6.7 kg
-
VESA™ Standard Mount Interface
200 x 200 mm
ENVIRONMENTAL CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10% to 80%
POWER
-
Power Supply
100-240V~, 50/60Hz
-
Power Type
Built-In Power
-
Power Consumption-Typ./Max
45 W / 80 W
-
Power Consumption-Smart Energy Saving
31.5 W
SOUND
-
Speaker
20 W (10 W x 2)
CERTIFICATION
-
Safety
AS/NZS 60950,CB Scheme
-
EMC
AS/NZS CISPR32,RCM
-
ErP / Energy Star
Yes / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
-
OPS Type Compatible
Yes
-
External Media Player Attachable
Yes (MP500 / MP700)
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign CMS
-
Control and Monitoring Software
SuperSign Control / Control+
ACCESSORIES
-
Basic
Remote Controller (2ea Batteries Included), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
-
Optional
Stand (ST-322T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T32E)
