All Spec
PANEL
-
Screen Size (Inch)
-
49
-
Panel Technology
-
IPS / M+
-
Back Light Type
-
Direct
-
Aspect Ratio
-
16:9
-
Native Resolution
-
1920 x 1080 (FHD)
-
Refresh Rate
-
60Hz
-
Brightness
-
3,000nit (Typ.), 2,400nit (Min.)
-
Contrast Ratio
-
1,300:1
-
Dynamic CR
-
500,000:1
-
Color Gamut
-
NTSC 67%
-
Viewing Angle (H x V)
-
178º x 178º
-
Color Depth (Number of Colors)
-
16.7 Million colors
-
Response Time
-
8ms (G to G)
-
Surface Treatment (Haze)
-
Haze 3%
-
Life time
-
50,000Hrs (Typ.)
-
Operation Hours (Hours/Day)
-
24/7
-
Portait / Landscape
-
YES / YES
-
Transparency
-
N/A
-
QWP (Quarter Wave Plate)
-
YES
CONNECTIVITY
-
HDMI In
-
YES (2ea)
-
HDMI In (HDCP Ver.)
-
2.2
-
DP In
-
YES (HDCP 1.3)
-
DVI-D In
-
YES
-
RGB In
-
NO
-
Audio In
-
YES
-
RS232C In
-
YES
-
RJ45(LAN) In
-
YES (1ea)
-
IR In
-
YES
-
USB In
-
USB2.0 Type A (1ea)
-
HDMI Out
-
NO
-
DP Out
-
YES
-
Audio Out
-
NO
-
Touch USB
-
NO
-
External Speaker Out
-
YES
-
RS232C Out
-
YES
-
RJ45(LAN) Out
-
NO
-
IR Out
-
NO
-
Daisy Chain
-
NO
MECHANICAL SPECIFICATION
-
Bezel Color
-
Black
-
Bezel Width
-
T/R/L/B : 9/6.5/6.5/9mm
-
Weight (Head)
-
21.5Kg
-
Weight (Head+Stand)
-
N/A
-
Packed Weight
-
26.2Kg
-
Monitor Dimensions (W x H x D)
-
1092.7 x 626.4 x 105mm
-
Monitor Dimension with Stand (W x H x D)
-
N/A
-
Carton Dimensions (W x H x D)
-
1195 x 760 x 196mm
-
Handle
-
NO
-
VESA Standard Mount Interface
-
600 x 400 mm
PROTECTION GLASS
-
Thickness
-
N/A
-
Degree of Protection
-
N/A
-
Tempered / Chemical strengthening
-
N/A
-
Anti-Reflective
-
N/A
-
Infrared - Resistance (IR)
-
N/A
-
Shatter-Proof
-
N/A
FEATURE - HARDWARE
-
Internal Memory (eMMC)
-
8GB
-
Wi-Fi/BT (Built-in)
-
NO
-
Temperature Sensor
-
YES
-
Auto Brightness Sensor
-
YES
-
Pixel Sensor
-
NO
-
Proximity Sensor
-
NO
-
Current Sensor
-
NO
-
BLU Sensor
-
NO
-
Humidity Sensor
-
YES
-
Acceleration(Gyro) Sensor
-
NO
-
Power Indicator
-
YES
-
Local Key Operation
-
NO
-

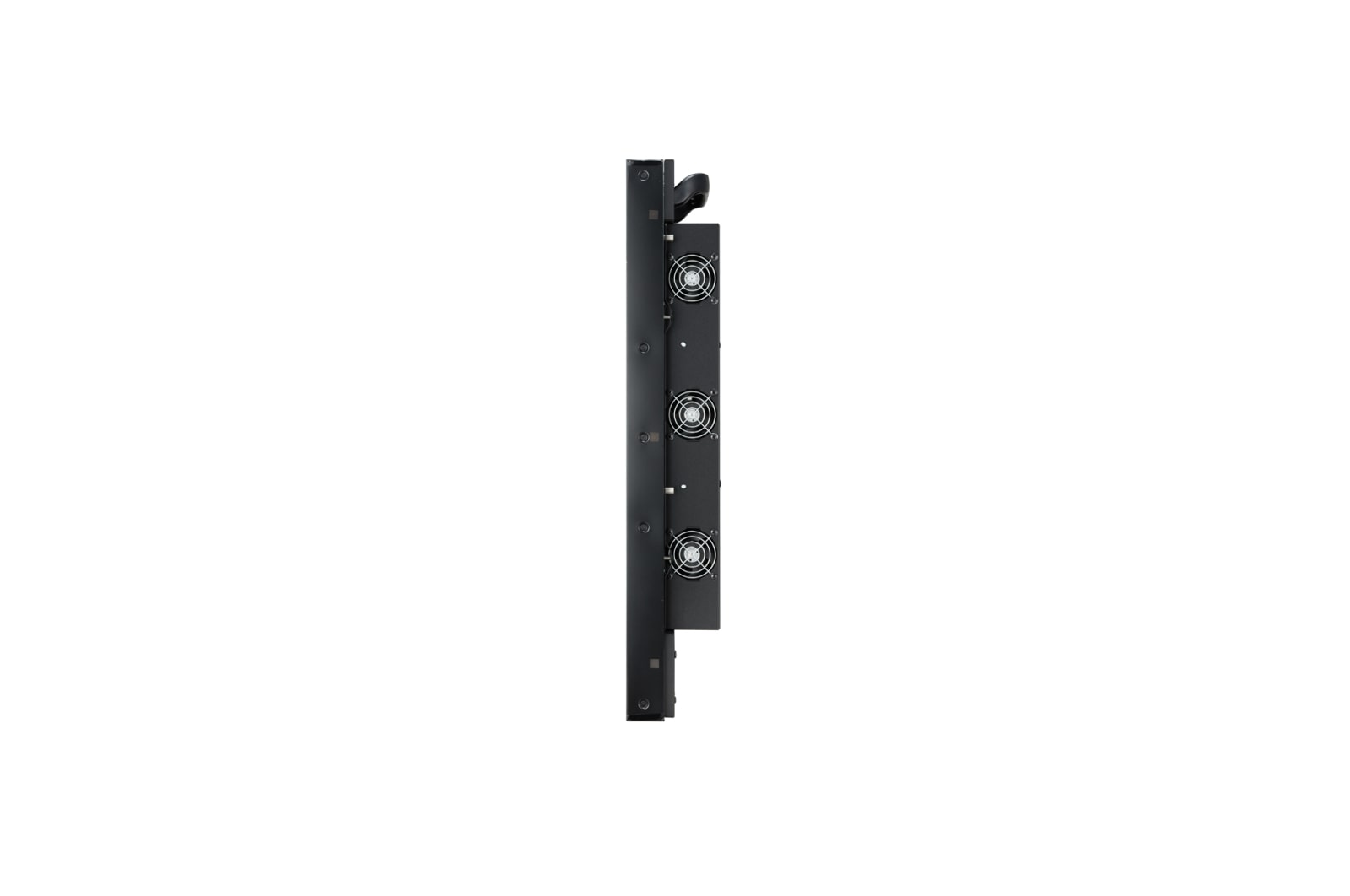

FAN (Built-in)
-
YES
FEATURE - SOFTWARE
-
OS Ver. (webOS)
-
webOS 3.0
-
Local Contents Scheduling
-
YES
-
Group Manager
-
NO
-
USB Plug & Play
-
YES
-
Fail over
-
YES
-
Booting Logo Image
-
YES
-
No Signal Image
-
NO
-
RS232C Sync
-
YES
-
Local Network Sync
-
YES
-
Backlight Sync
-
YES
-
PIP
-
NO
-
PBP
-
NO
-
Screen Share
-
NO
-
Video Tag
-
YES (2 Video Tag)
-
Play via URL
-
NO
-
Screen Rotation
-
YES
-
External Input Rotation
-
YES
-
Gapless Playback
-
YES
-
Tile Mode Setting
-
YES
-
Setting Data Cloning
-
YES
-
SNMP
-
YES
-
ISM Method
-
YES
-
Auto Set ID
-
YES
-
Status Mailing
-
YES
-
Control Manager
-
YES
-
Cisco Certification
-
NO
-
Crestron Connected
-
NO
-
Smart Energy Saving
-
YES
-
PM mode
-
YES
-
Wake on LAN
-
YES
-
Network Ready
-
NO
-
Beacon
-
YES
-
HDMI-CEC
-
YES
-
SI Server Setting
-
YES
-
webRTC
-
NO
-
Pro:Idiom
-
NO
-
Brightness Compensation
-
NO
-
W/B Setting by Grey scale
-
NO
-
Scan Inversion
-
NO
ENVIRONMENT CONDITIONS
-
Operation Temperature
-
0 °C to 50 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 40 °C (Direct Sunlight)
-
Operation Humidity
-
10 % to 80 %
POWER
-
Power Supply
-
AC 100-240V~, 50/60Hz
-
Power Type
-
Built-in Power
POWER CONSUMPTION
-
Typ.
-
250W (Full White) 232W (IEC 62087)
-
Max.
-
290W
-
BTU (British Thermal Unit)
-
853 BTU/Hr(Typ.), 990 BTU/Hr(Max.)
-
DPM
-
0.5W(DP, DVI-D, HDMI)
-
Power off
-
0.5W
SOUND
-
Speaker (Built-in)
-
NO
CERTIFICATION
-
Safety
-
IEC 60950-1 / EN 60950-1 / UL 60950-1
-
EMC
-
FCC Class "A" / CE / KC
-
ERP / Energy Star
-
NO / NO
-
ePEAT(US only)
-
NO
OPS COMPATIBILITY
-
OPS Type compatible
-
NO
-
OPS Power Built-in
-
NO
SOFTWARE COMPATIBILITY
-
SuperSign CMS
-
YES
-
SuperSign Control+
-
YES
-
SuperSign WB
-
NO
-
SuperSign Cloud
-
NO
-
Promota
-
NO
-
Mobile CMS
-
NO
-
Connected Care
-
YES
LANGUAGE
-
OSD
-
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
-
Basic
-
Remote Controller(including battery 2ea), Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)
-
Optional
-
AN-WF500 (Stand is not available)
SPECIAL FEATURE
-
Overlay Touch Compatibility
-
N/A
-
Smart Calibration
-
N/A
-
Tilt (Face up)
-
N/A
-
Tilt (Face down)
-
N/A
-
IP Rating
-
N/A
-
Conformal Coating (Power Board)
-
YES
-
Power Protection
-
N/A
-
Direct Sunlight
-
YES
DEDICATED FEATURE - TOUCH
-
Available Object Size for Touch
-
N/A
-
Response Time ('Paint' app on Windows 10 PC)
-
N/A
-
Accuracy (Typ.)
-
N/A
-
Interface
-
N/A
-
Protection Glass Thickness
-
N/A
-
Protection Glass Transmission
-
N/A
-
Operating System Support
-
N/A
-
Multi Touch Point
-
N/A
