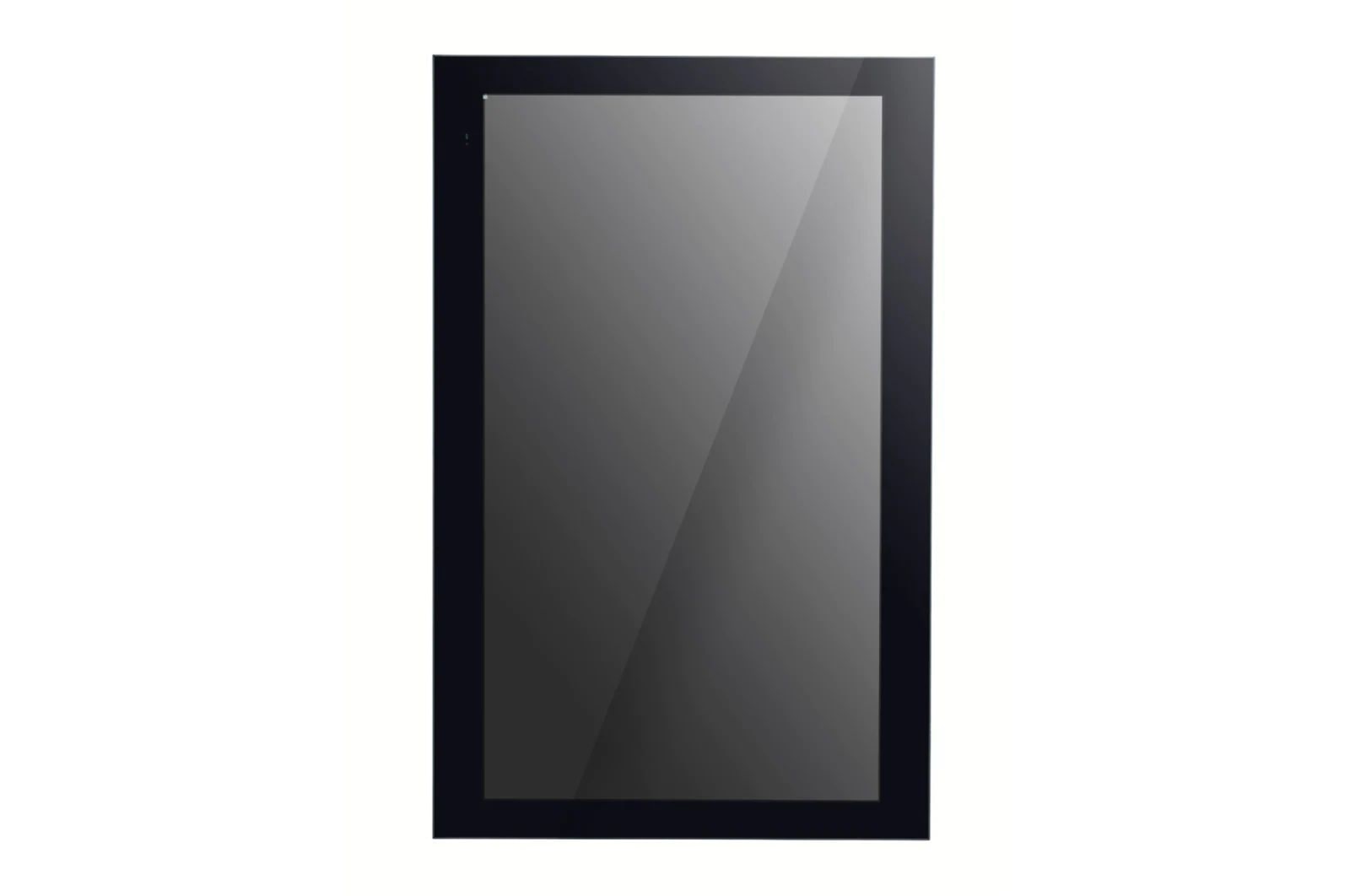

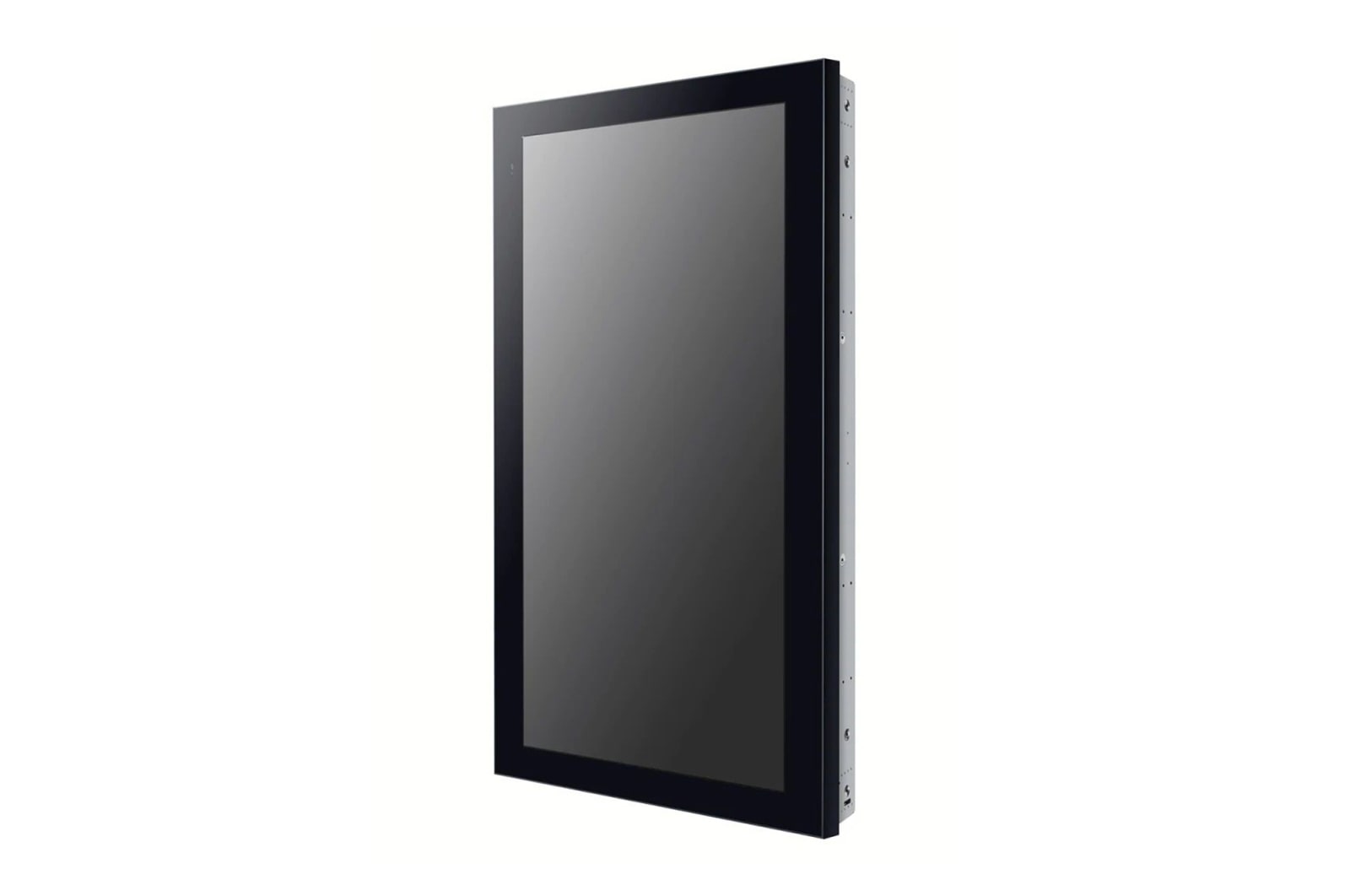

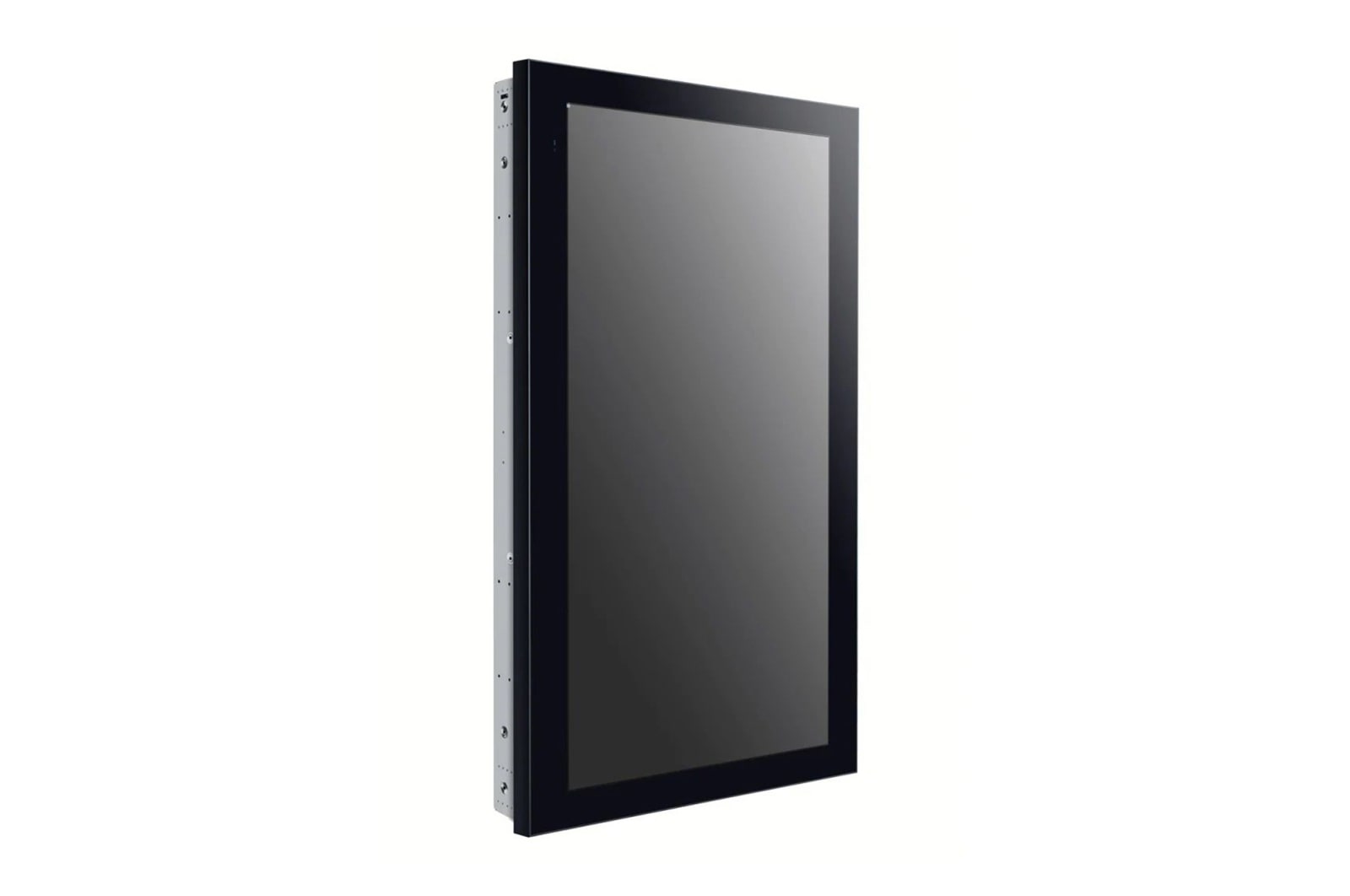

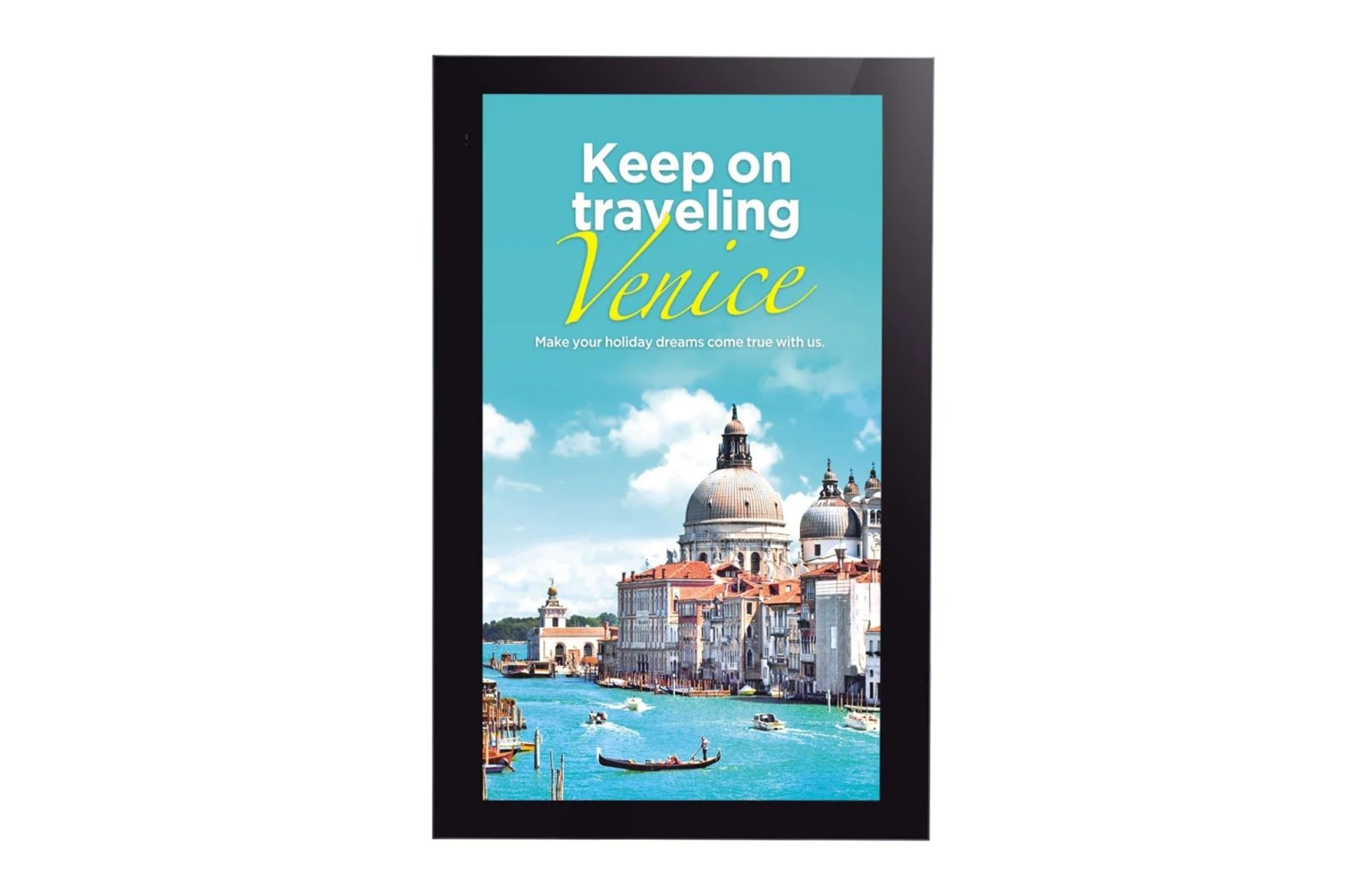

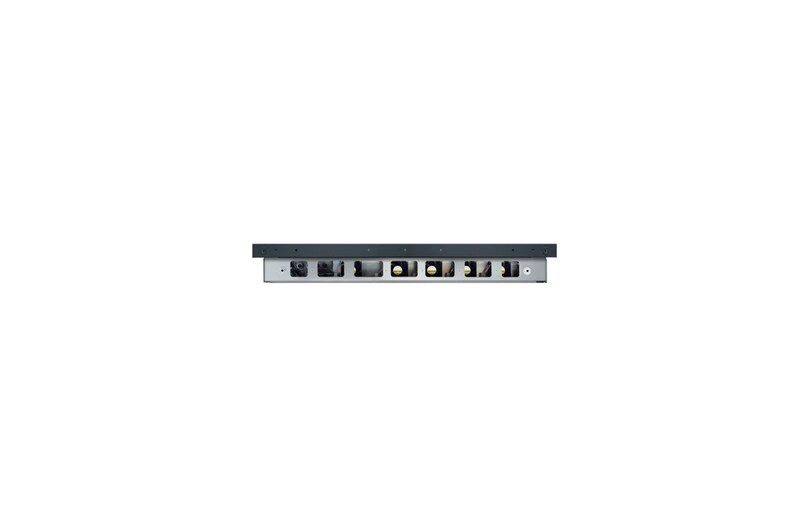

86” Outdoor Display Signage
Screen Size (Inch)
86
Panel Technology
IPS / RGB
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120Hz
Brightness
3,000nit (Typ.), 2,800nit (Min.)
Contrast Ratio
1,200:1 (Typ.)
Dynamic CR
500,000:1
Color Gamut
NTSC 68%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 3%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
YES
HDMI In
YES (1ea)
HDMI In (HDCP Ver.)
2.2
DP In
YES (HDCP 1.4)
DVI-D In
YES
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
NO
Audio Out
NO
Touch USB
NO
External Speaker Out
YES
RS232C Out
YES
RJ45(LAN) Out
YES
IR Out
NO
Daisy Chain
NO
Bezel Color
Black
Bezel Width
T/R/L/B : 101/135/135/101mm
Weight (Head)
276Kg
Weight (Head+Stand)
N/A
Packed Weight
310Kg
Monitor Dimensions (W x H x D)
1338 x 2100 x 187mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1503 x 2296 x 468mm
Handle
YES
VESA Standard Mount Interface
N/A
Thickness
9.52mm
Degree of Protection
YES (P2A)
Tempered / Chemical strengthening
Tempered strengthening
Anti-Reflective
YES
Infrared - Resistance (IR)
N/A
Shatter-Proof
YES
Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
YES
Proximity Sensor
NO
Current Sensor
YES
BLU Sensor
YES
Humidity Sensor
YES
Acceleration(Gyro) Sensor
YES
Power Indicator
YES
Local Key Operation
NO
FAN (Built-in)
YES
OS Ver. (webOS)
webOS 3.0
Local Contents Scheduling
YES
Group Manager
NO
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (2 Video Tag)
Play via URL
NO
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
NO
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
NO
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
NO
Pro:Idiom
NO
Brightness Compensation
YES
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C (with Solar) 0 °C to 50 °C (without Solar)
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
1450W (Full White) 680W (IEC 62087)
Max.
1850W
BTU (British Thermal Unit)
4948 BTU/Hr(Typ.), 6312 BTU/Hr(Max.)
DPM
1W
Power off
0.5W
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ERP / Energy Star
YES / NO
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
SuperSign Cloud
NO
Promota
NO
Mobile CMS
NO
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Basic
Remote Controller(Including Battery 2ea), HDMI Cable, USB Cable, Manual (IG&EIG), Regulation Book, Phone to RS232C Gender, LAN extension cable, Cord Grip rubber(3ea)
Optional
NO
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
IP56
Conformal Coating (Power Board)
YES
Power Protection
YES
Direct Sunlight
YES
Available Object Size for Touch
N/A
Response Time ('Paint' app on Windows 10 PC)
N/A
Accuracy (Typ.)
N/A
Interface
N/A
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operating System Support
N/A
Multi Touch Point
N/A
