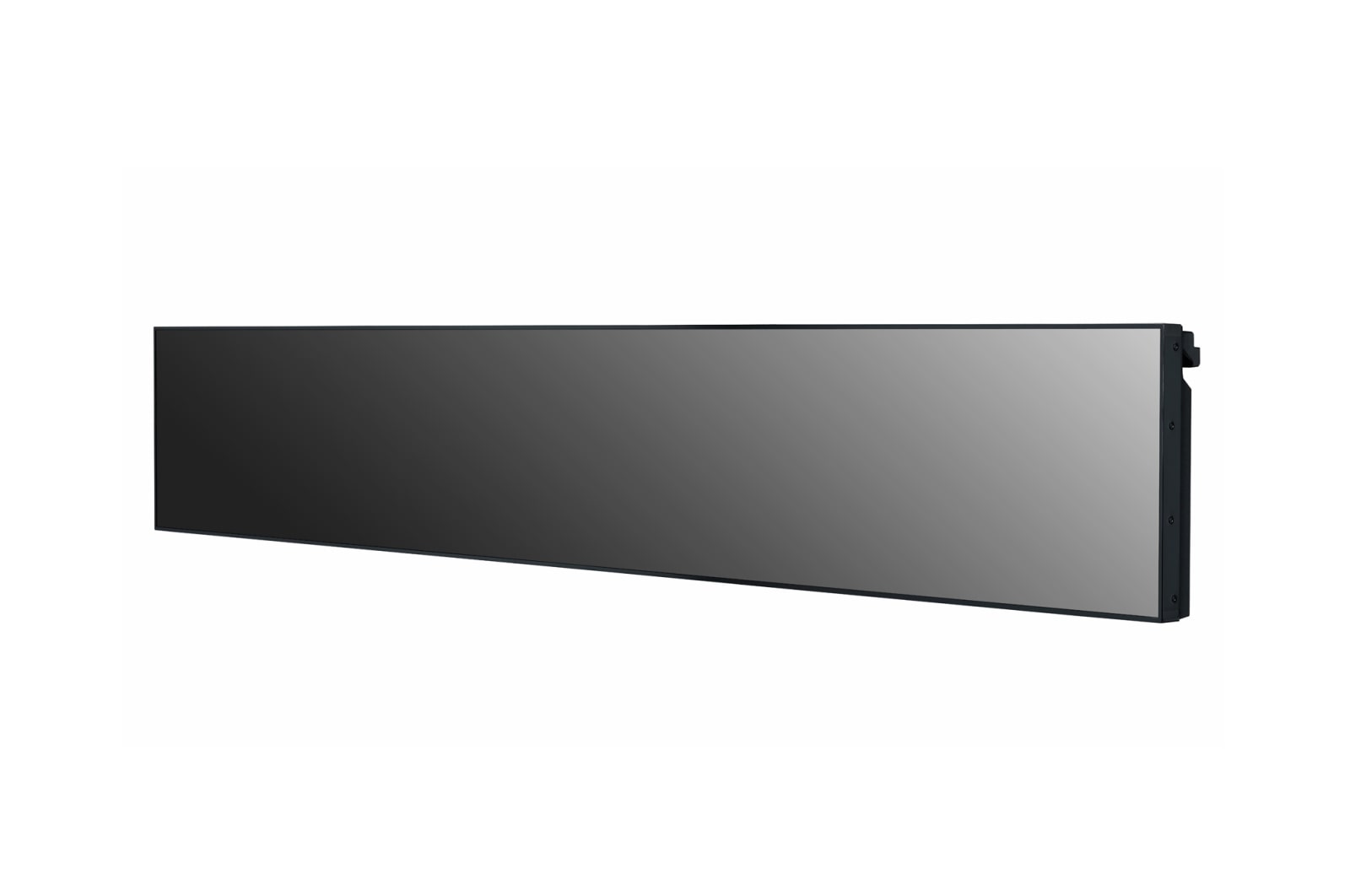

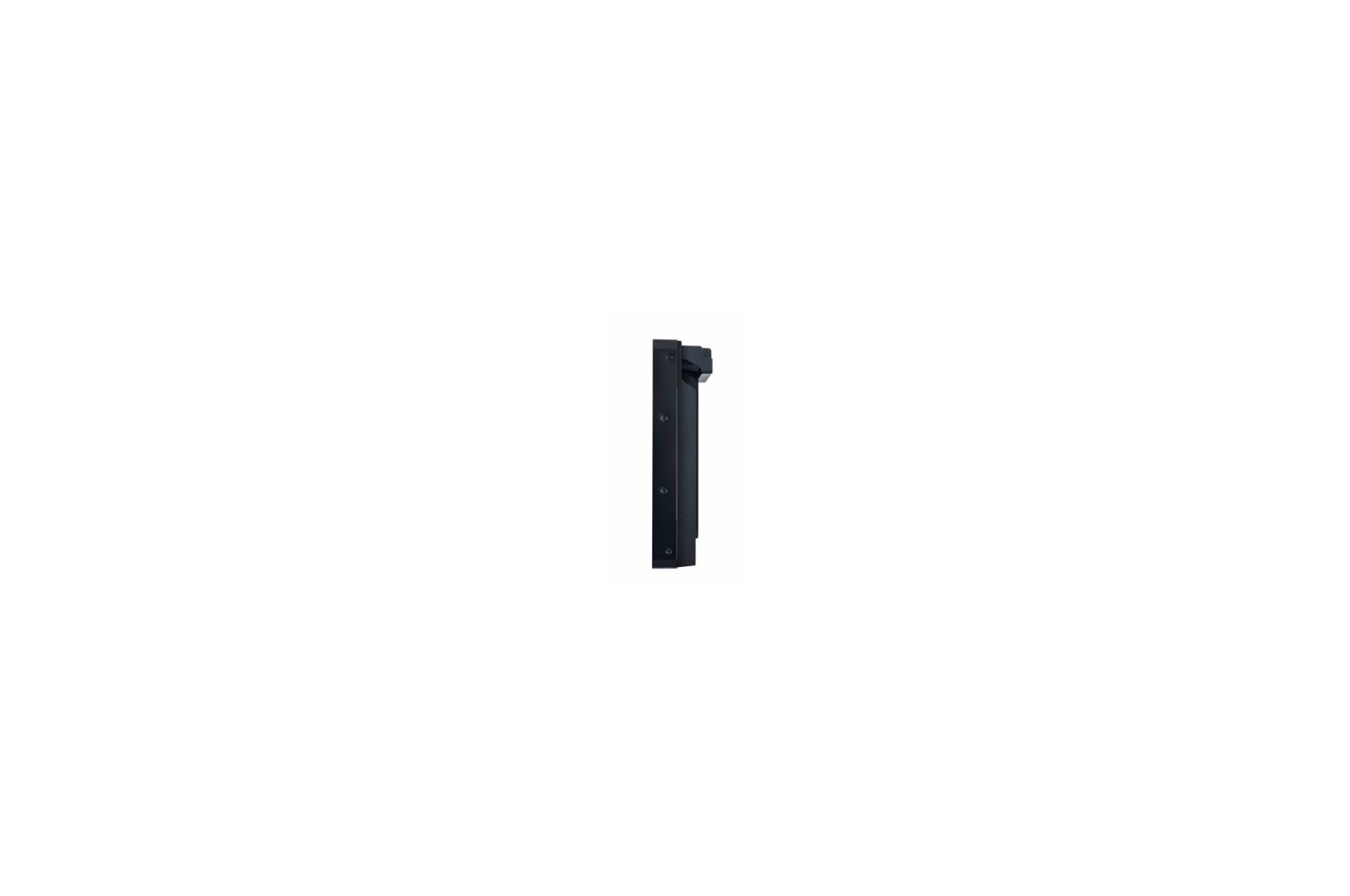

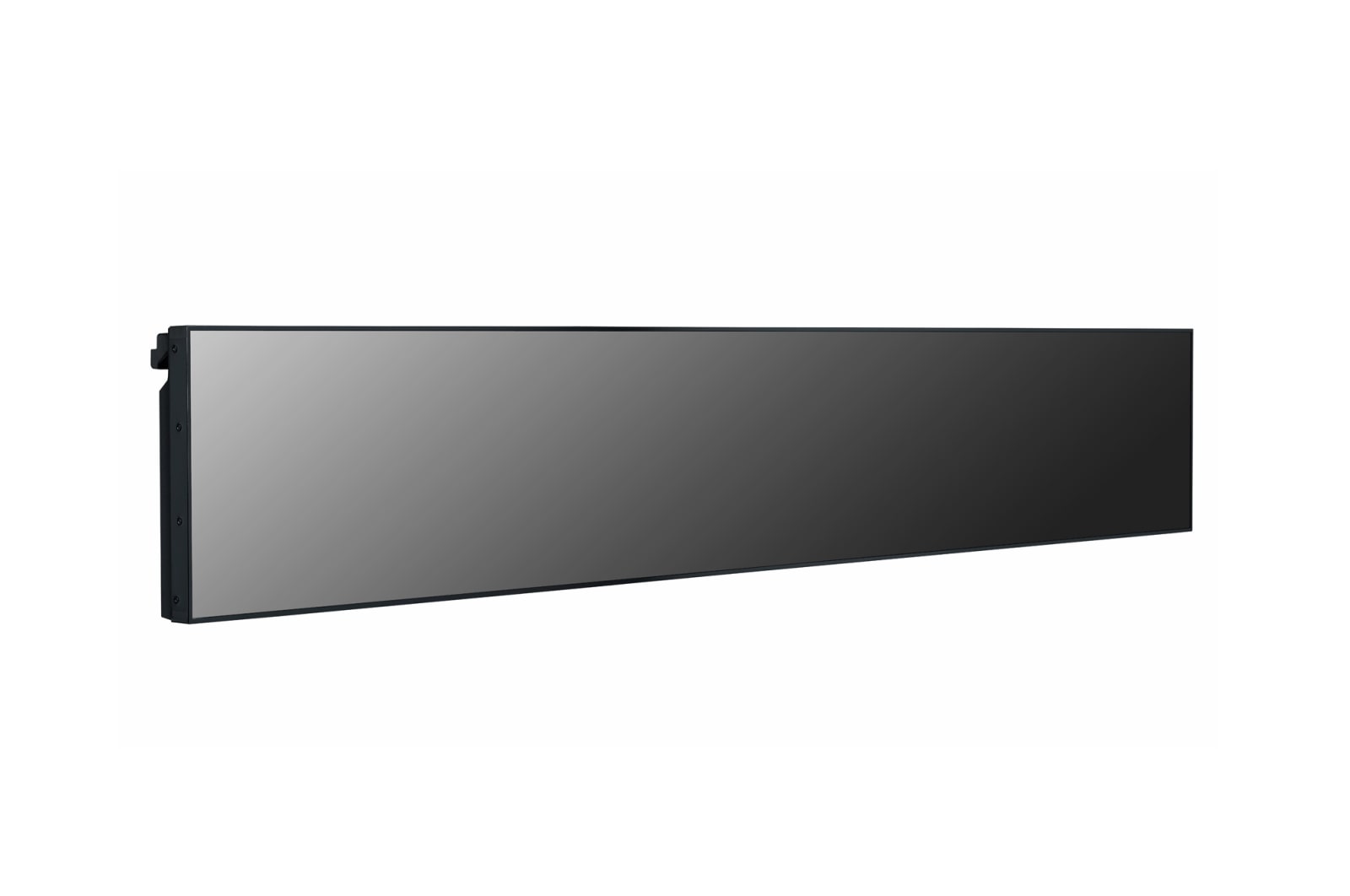

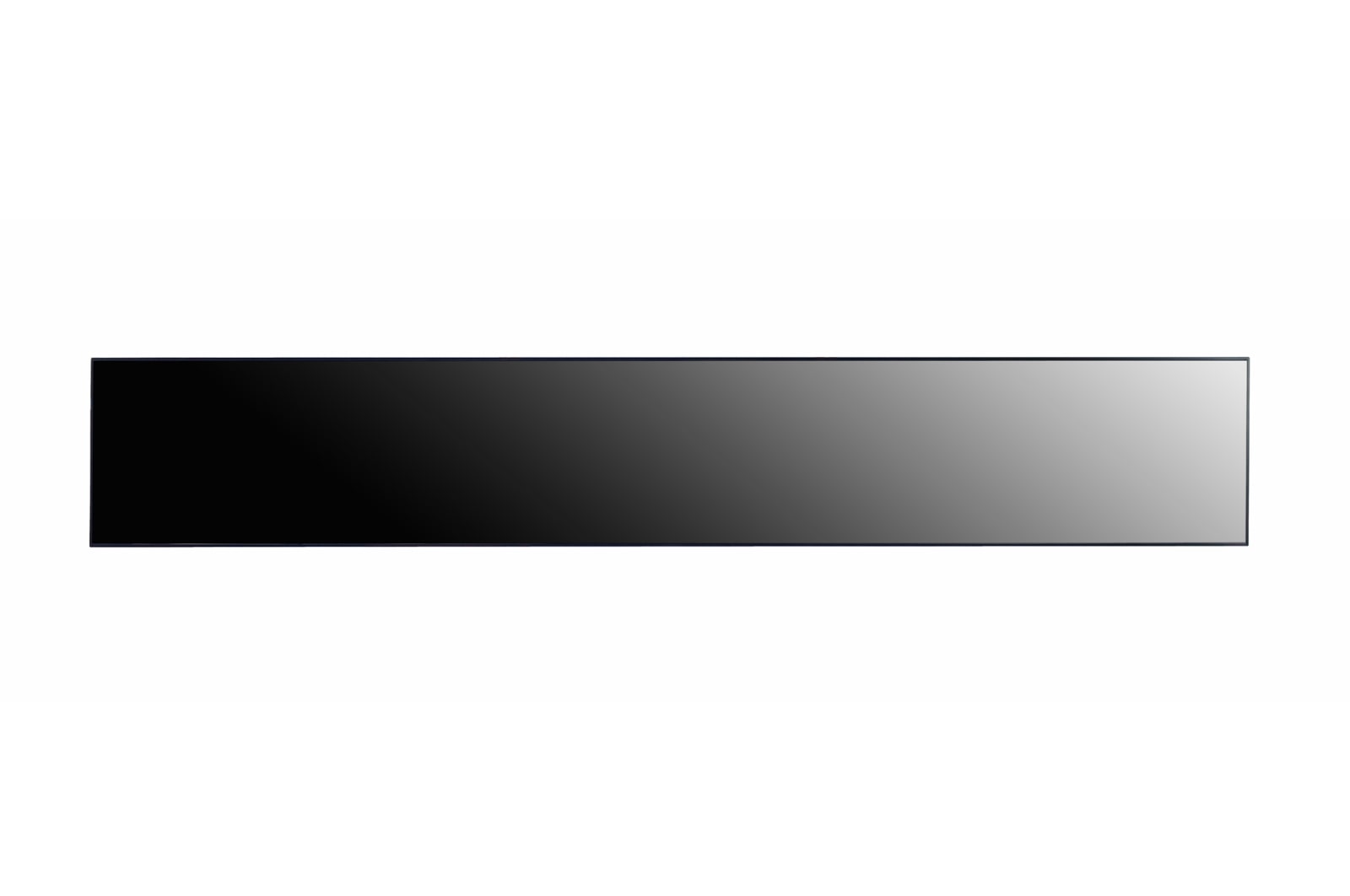

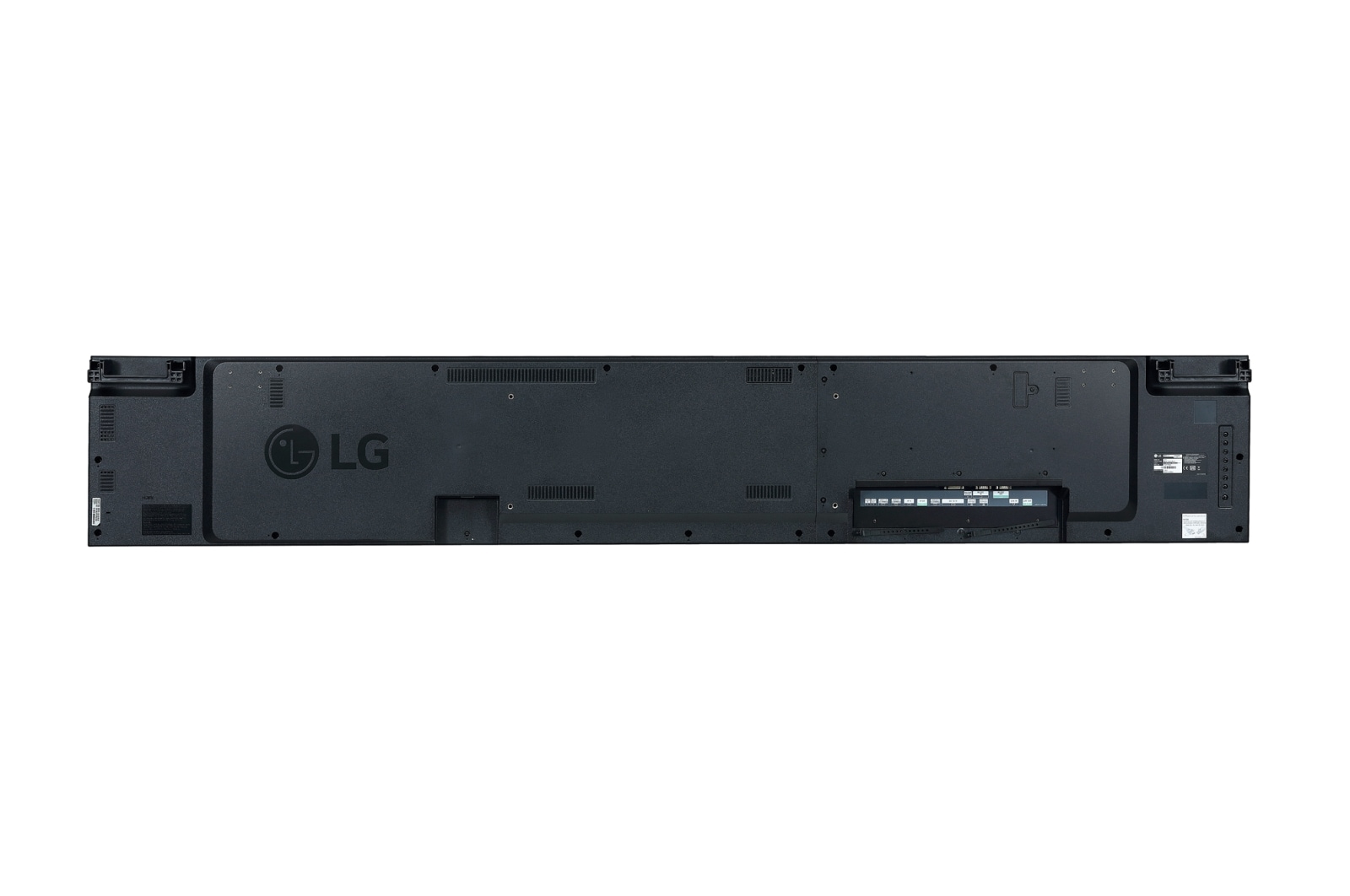

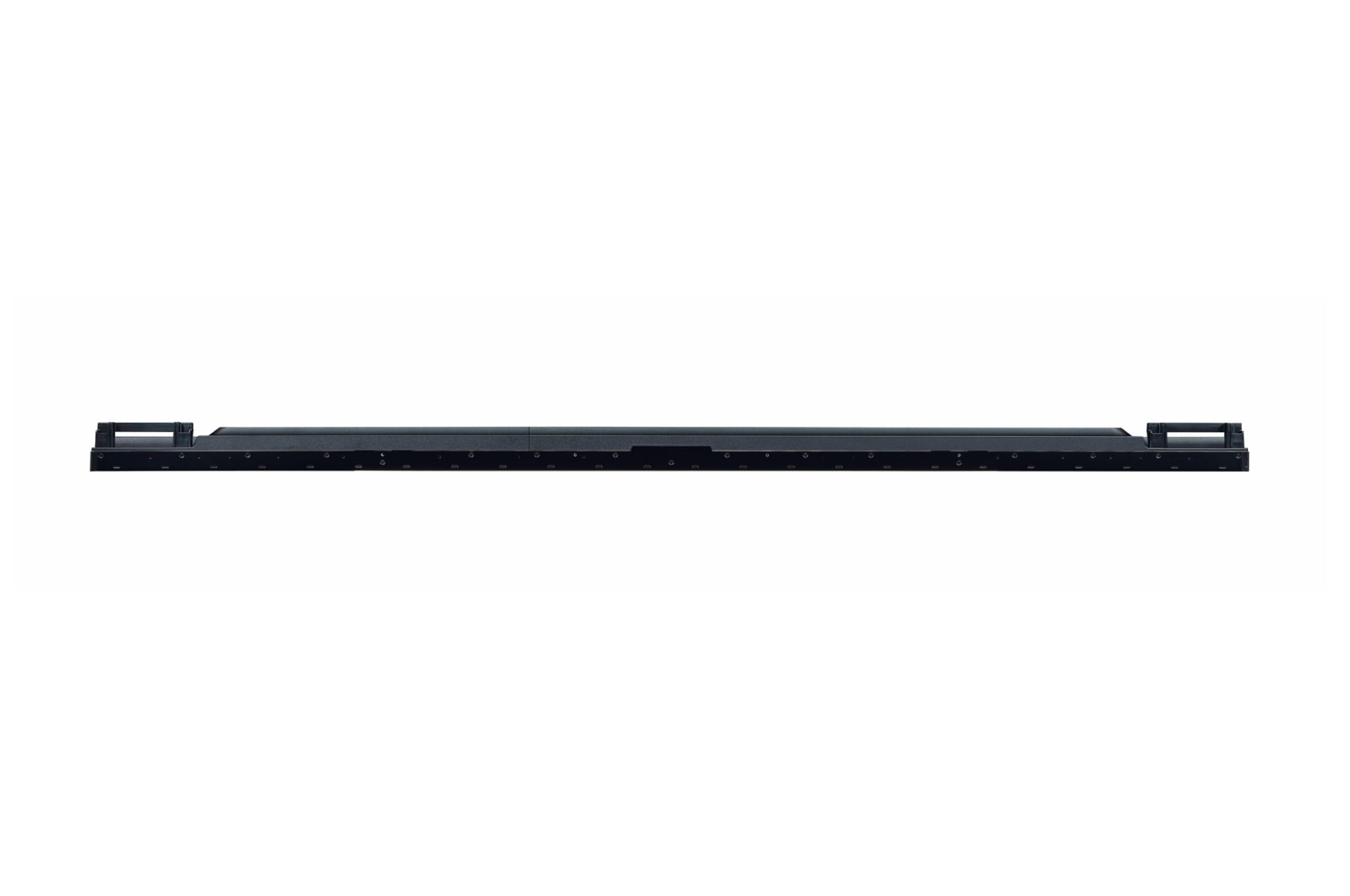

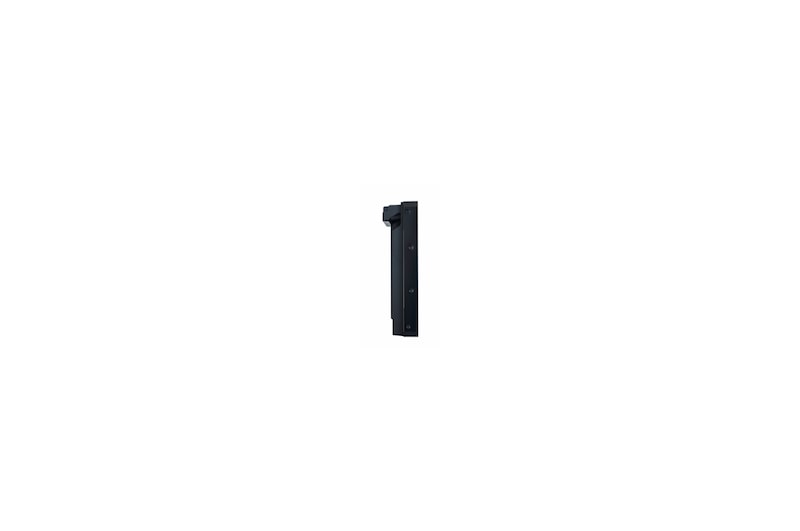

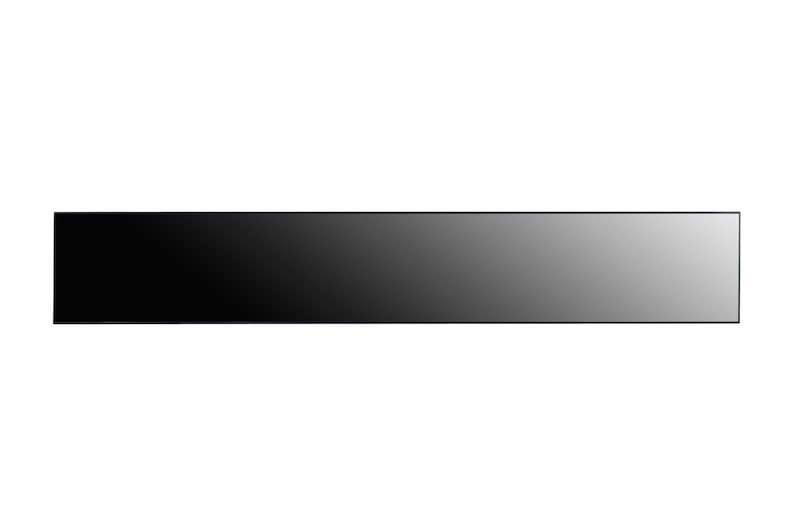

Ultra Stretch Signage
*All images in this page are for illustrative purposes only.
Screen Size (Inch)
86
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
58:9

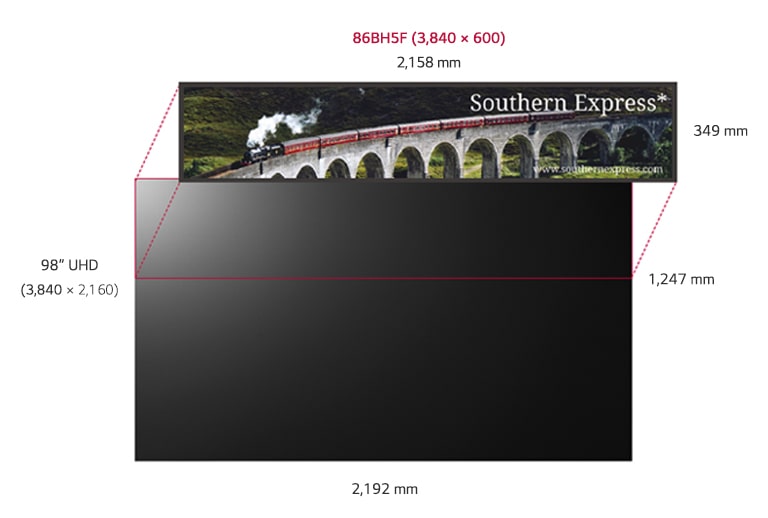

Native Resolution
3840 x 600 (FHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
500,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 10%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (HDCP 2.2/1.3)
DVI-D In
YES (HDCP 1.4)
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (2ea)
HDMI Out
NO
DP Out
YES
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
YES
IR Out
NO

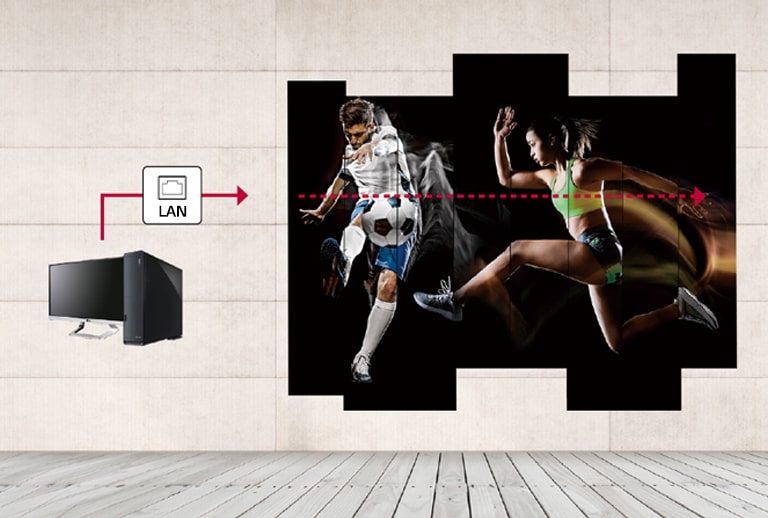

Daisy Chain
Input : HDMI, DP, DVI-D / Output : DP
Bezel Color
Black
Bezel Width
T/R/L/B : 5.9/4.4/4.4/5.9mm
Weight (Head)
20.5Kg
Weight (Head+Stand)
N/A
Packed Weight
38.2Kg
Monitor Dimensions (W x H x D)
2158.3 x 348.5 x 81.7mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
2290 x 599 x 228mm
Handle
YES
VESA Standard Mount Interface
600 x 200 mm
Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
YES
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 4.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO

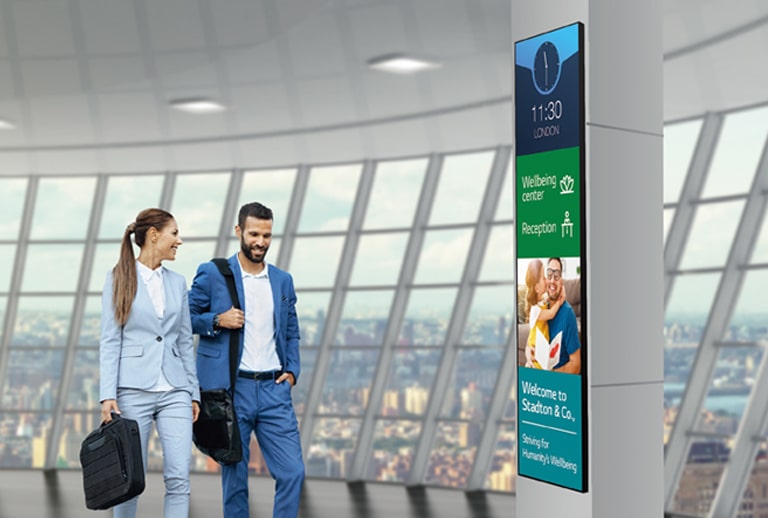

PBP
YES (4PBP)
Screen Share
NO
Video Tag
NO
Play via URL
NO
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
NO

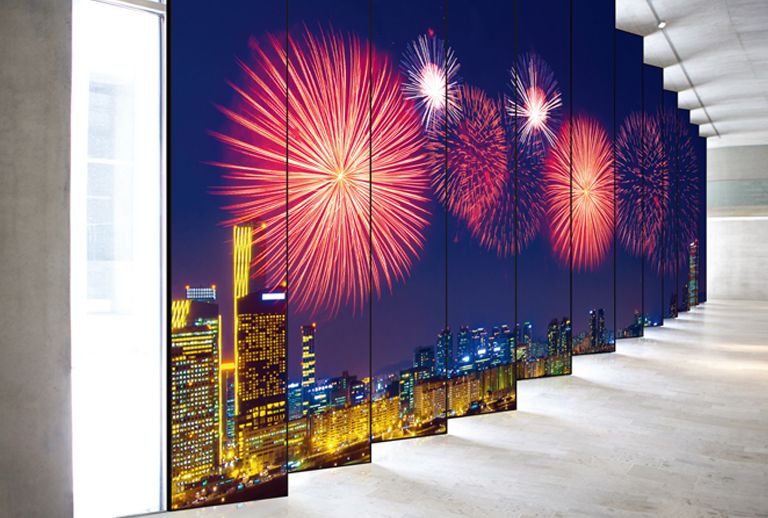

Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
NO
Beacon
YES
HDMI-CEC
YES
SI Server Setting
NO
webRTC
NO
Pro:Idiom
NO
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
220W
Max.
240W
BTU (British Thermal Unit)
751 BTU/Hr(Typ.), 819 BTU/Hr(Max.)
Smart Energy Saving (70%)
100W
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES(EU Only) / NO
ePEAT(US only)
NO
OPS Type compatible
YES (Piggyback)
OPS Power Built-in
NO
SuperSign CMS
NO
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
NO
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic
Basic
Remote Controller(including battery 2ea), Power Cord, DP cable, RS-232C Cable, IR/Light sensor receiver, Manual
Optional
OPS Kit(KT-OPSF)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A

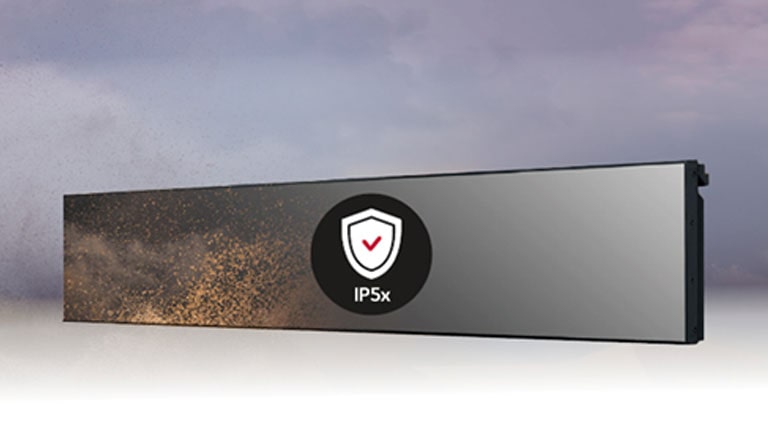

IP Rating
IP5X
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
