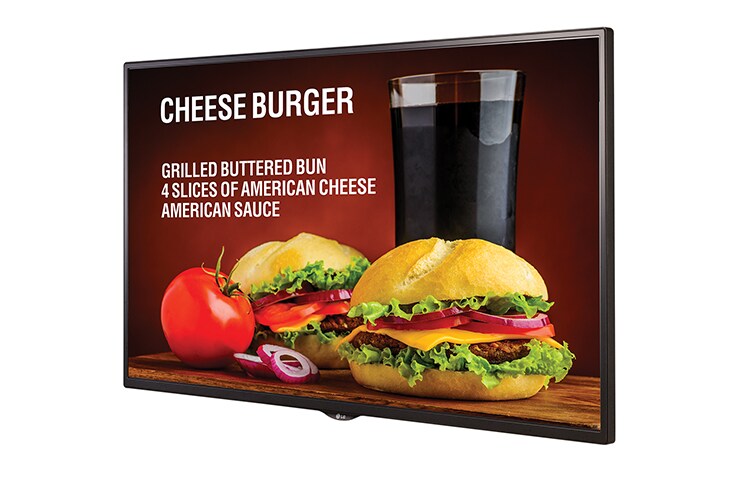

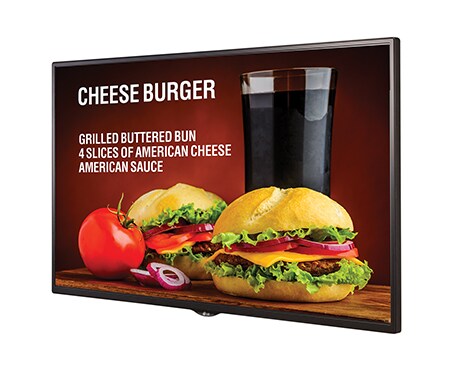

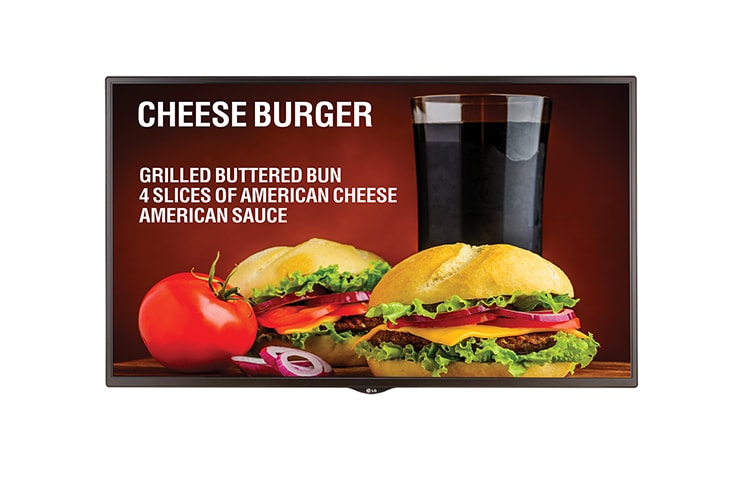

Standard Performance SM5KC Series
All Spec
PANEL
-
Screen Size
32" (80cm)
-
Panel Technology
IPS
-
Aspect Ratio
16:9
-
Native Resolution
1920 x 1080(FHD)
-
Brightness
400cd/m²
-
Viewing Angle (H x V)
178° x 178°
-
Surface Treatment
Hard coating (3H), Anti-glare treatment of the front polariser (Haze 1 % (Typ.))
-
Life Time
50,000 Hrs min.
-
Orientation
Portrait and Landscape
-
Response Time
10ms (G to G BW), 7.1ms (WOT)
CONNECTIVITY
-
Input
HDMI (1), DP (1), DVI-D (1), RGB (1), Audio, SD card (1), USB 3.0 (1)
-
Output
DP, Audio, External Speaker
-
External Control
RS232C in/out, RJ in, IR Receiver, Pixel Sensor
PHYSICAL SPECIFICATION
-
Bezel Colour
Black
-
Bezel Width
13 mm (T/R/L), 18 mm (B)
-
Monitor Dimension(W x H x D)
729 x 429 x 56 mm
-
Weight (head)
5.2kg
-
Carton Dimensions(W × H × D)
810 x 510 x 132 mm
-
Weight(head+stand)
6kg
-
Monitor with Optional Stand & Speaker Dimensions (W x H x D)
729 x 481 x 154 mm
-
Packed Weight
6.5kg
-
VESA™ Standard Mount Interface
200mm x 200mm
-
Weight(head+stand+speaker)
6.5 kg
SPECIAL FEATURES
-
Additional
Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), DPM Select, DPM wake up, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory (8 GB), USB Cloning, Easy Brightness Control, Holiday Schedule, Limited Mode, Wake on LAN, Failover, Mirroring, BEACON, Embedded Template
ENVIRONMENT CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10% to 80%
POWER
-
Power Supply
100-240V~, 50/60Hz
-
Power Type
Built In Power
-
Power Switch
No
STANDARD(CERTIFICATION)
-
Safety
AS/NZS 60950, CB Scheme
-
EMC
AS/NZS CISPR 22, RCM (Class A)
-
Energy Rating
N/A
MEDIA PLAYER COMPATIBILITY
-
OPS Type Compatible
Yes
-
External Media Player Attachable
No
SOFTWARE COMPATIBILITY
-
SuperSign W/Lite
Yes
-
SuperSign C
Yes
ACCESSORY
-
Basic
Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
-
Optional
Speaker (SP-5000),Stand (ST-322T),Pixel sensor (KT-SP0),Wall bracket (LSW230B),OPS Kit (KT-OPSA), HDBaseT (EB-B100)
POWER CONSUMPTION
-
Typ
60 W
-
Smart Energy Saving
45 W
White Paper
To access more technical documentation and resources, please visit the LG B2B partner portal.
