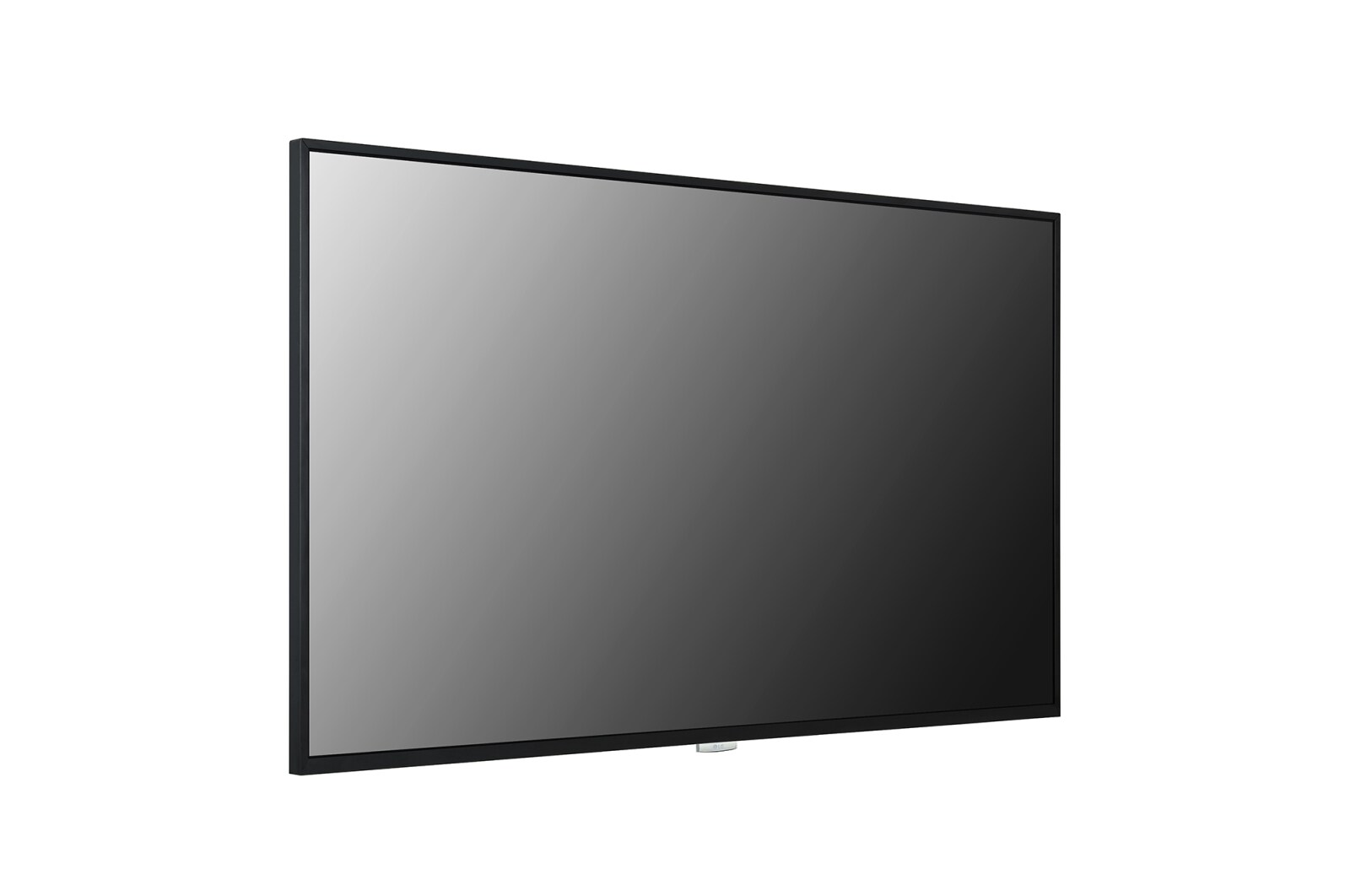

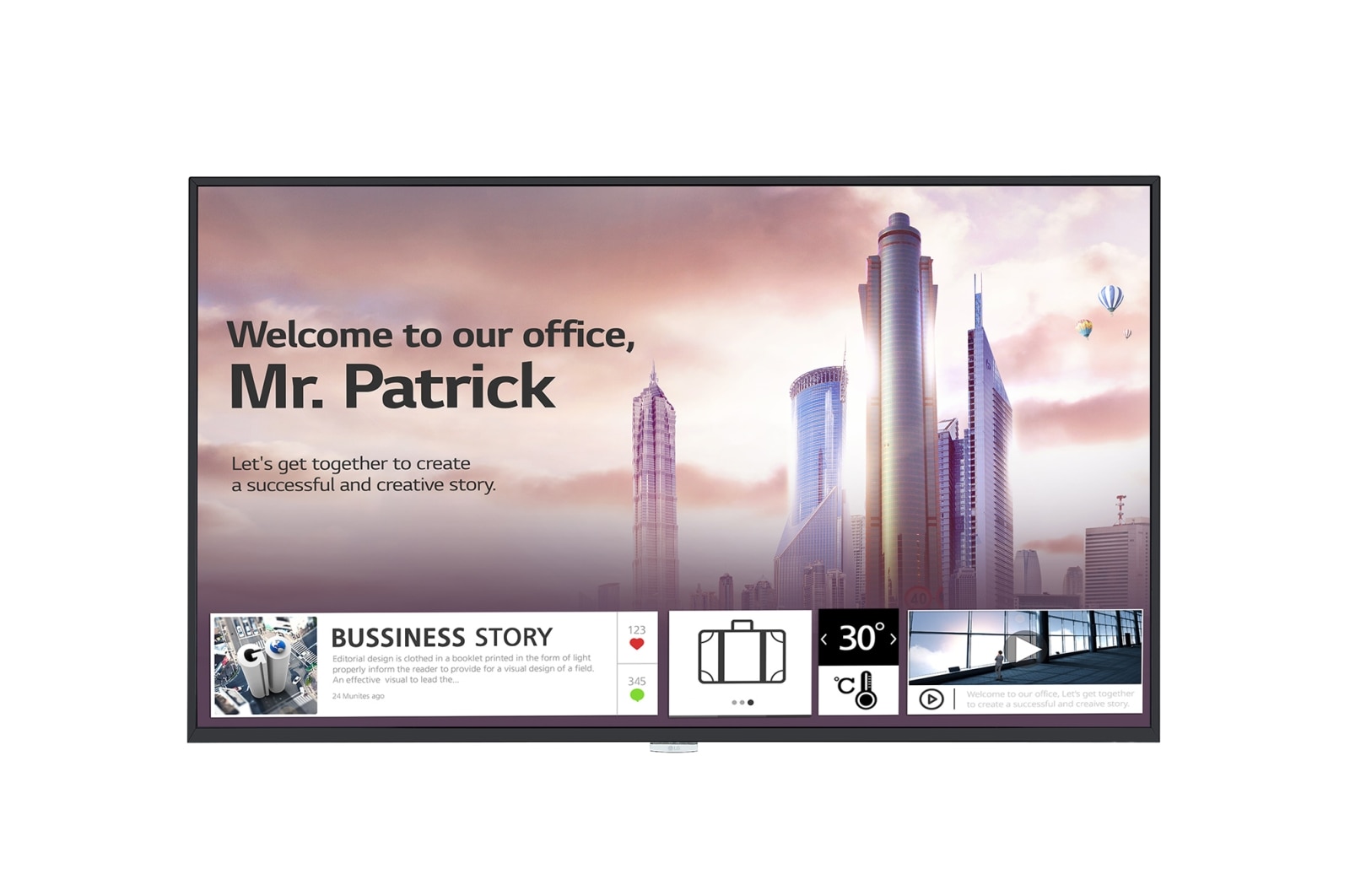

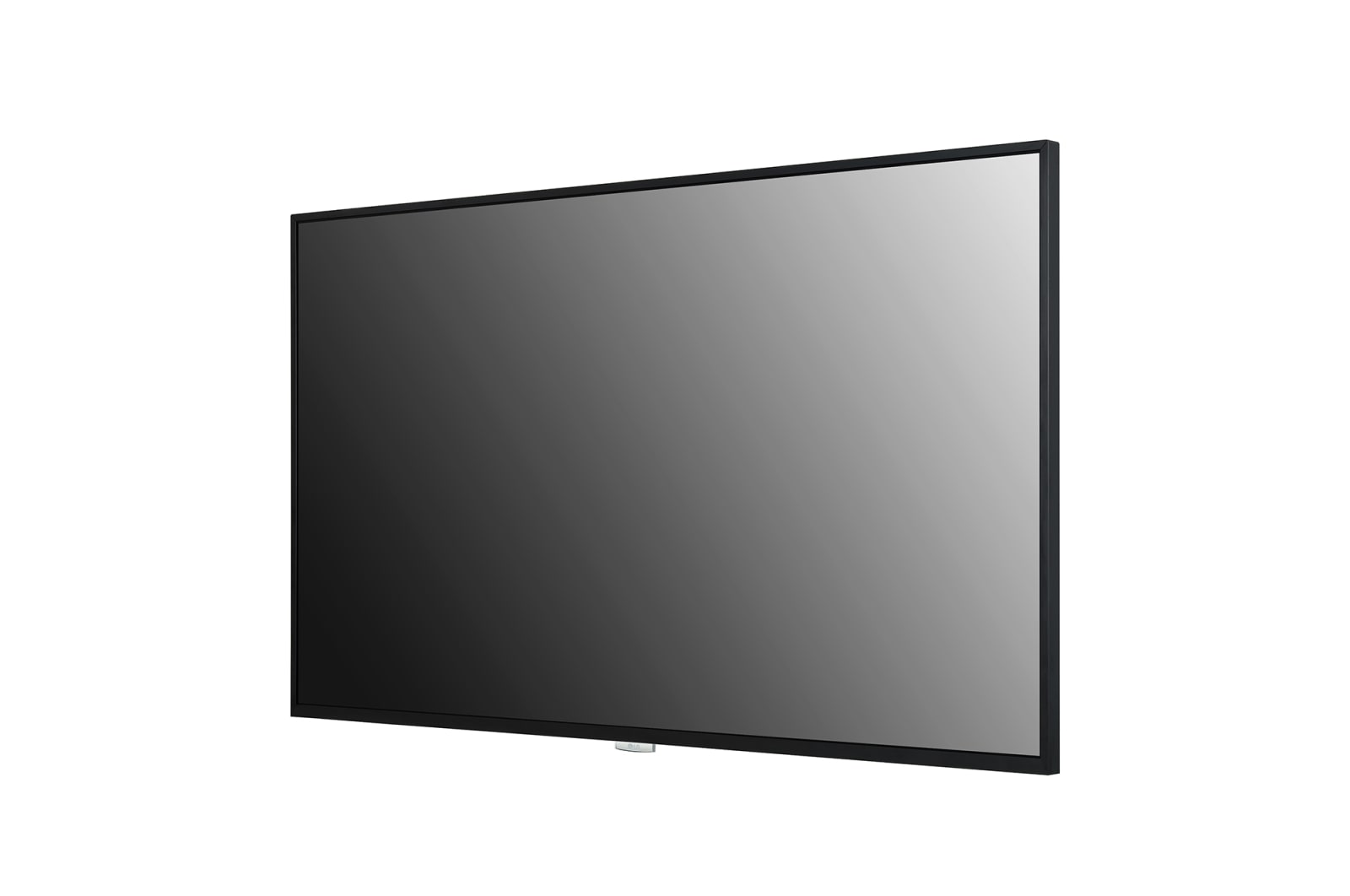

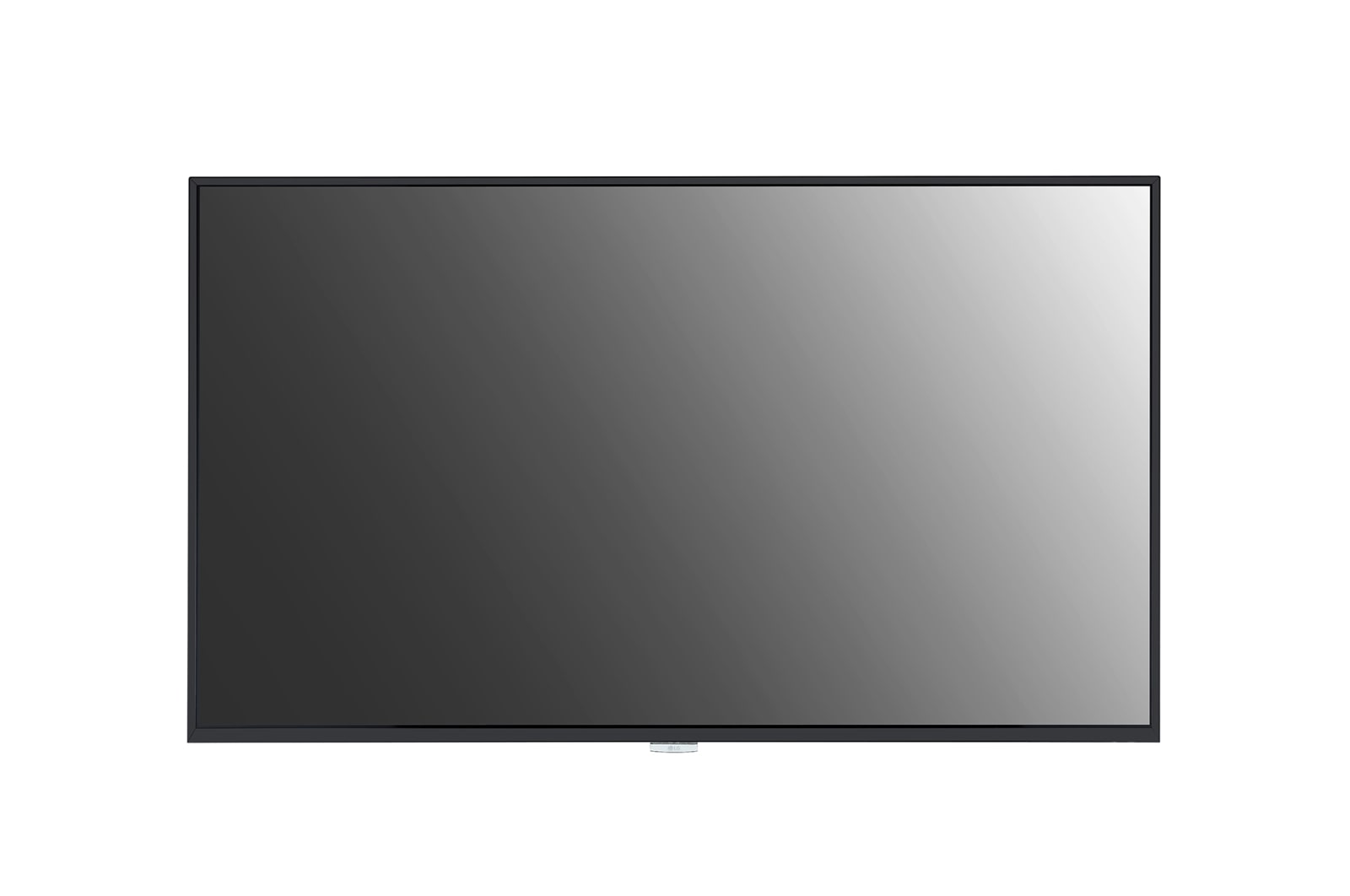

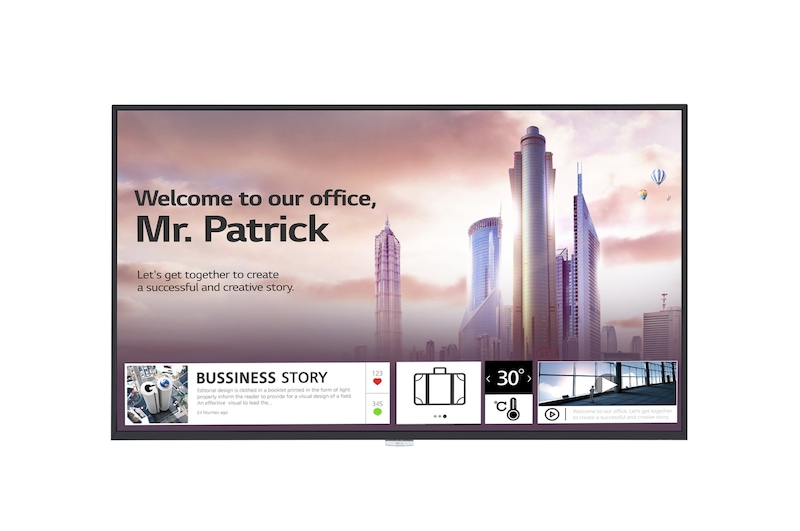

43UH5F-H

43" 500 nits UHD Signage

LG UHD Signage

SUPERB PICTURE QUALITY

Clear View with Anti-Glare Coating

Viewers can be distracted by reflections and glare when watching a screen in a brightly lit environment. The UH5F-H series has increased levels of haze surface treatment, which can enhance visibility and text readability.​

Clear View with Non-glare Coating.

*Images dramatised for illustrative purposes.​

SUPERB PICTURE QUALITY

ULTRA HD Resolution

The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. LG IPS panels allow you to enjoy lifelike picture quality with minimal variation from wide viewing angles. ​

ULTRA HD Resolution

SLEEK AND PRACTICAL DESIGN

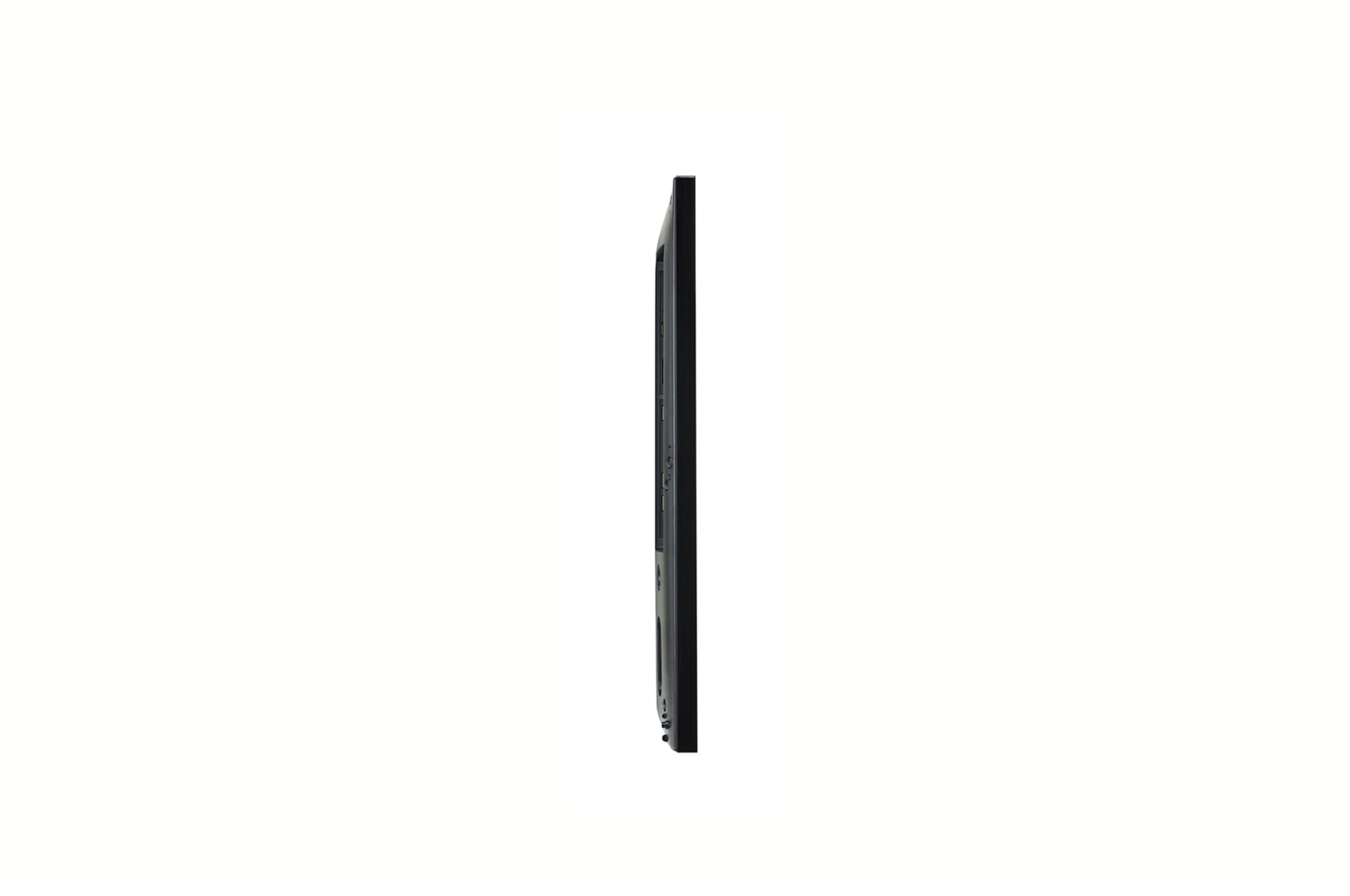

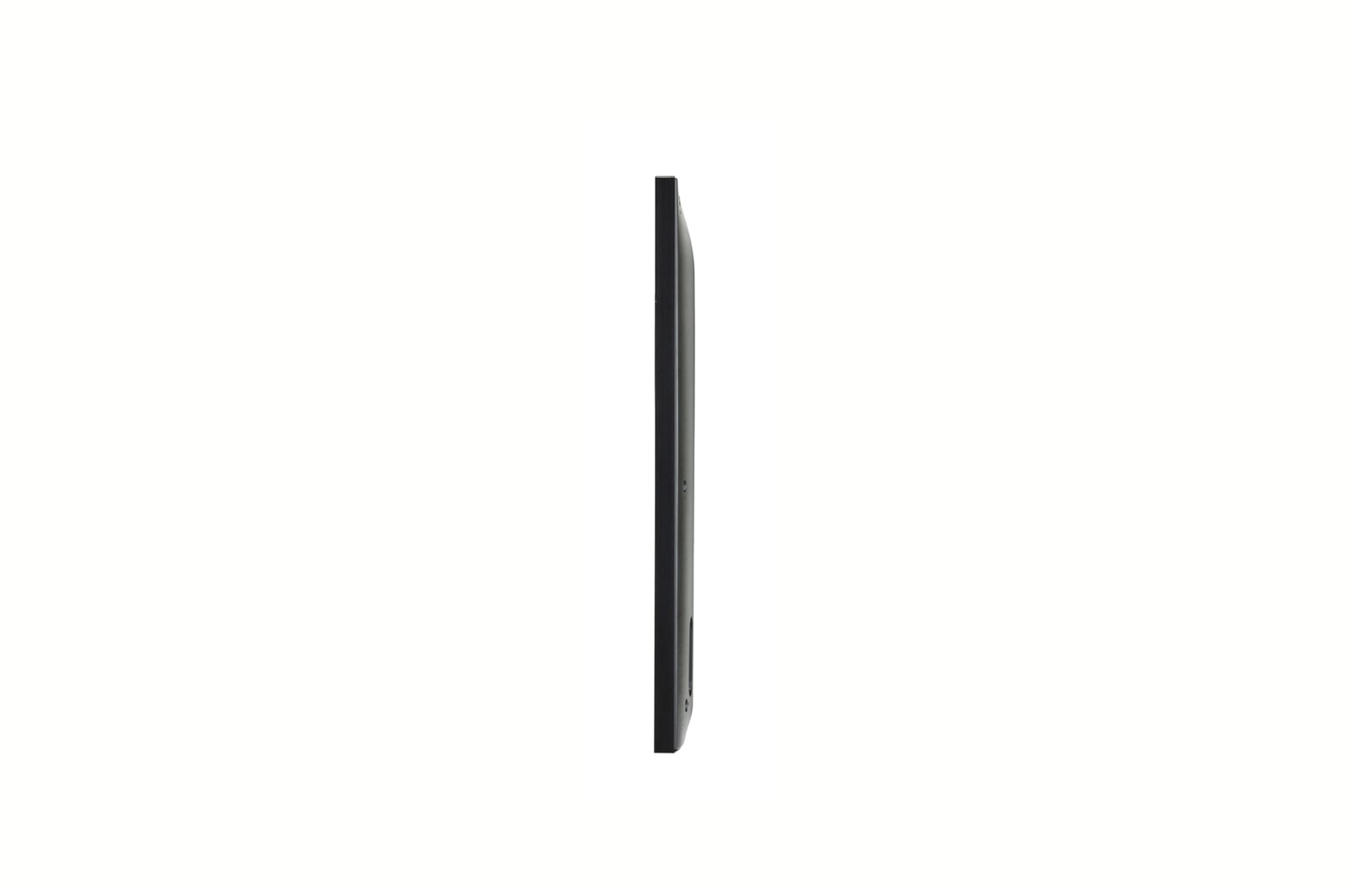

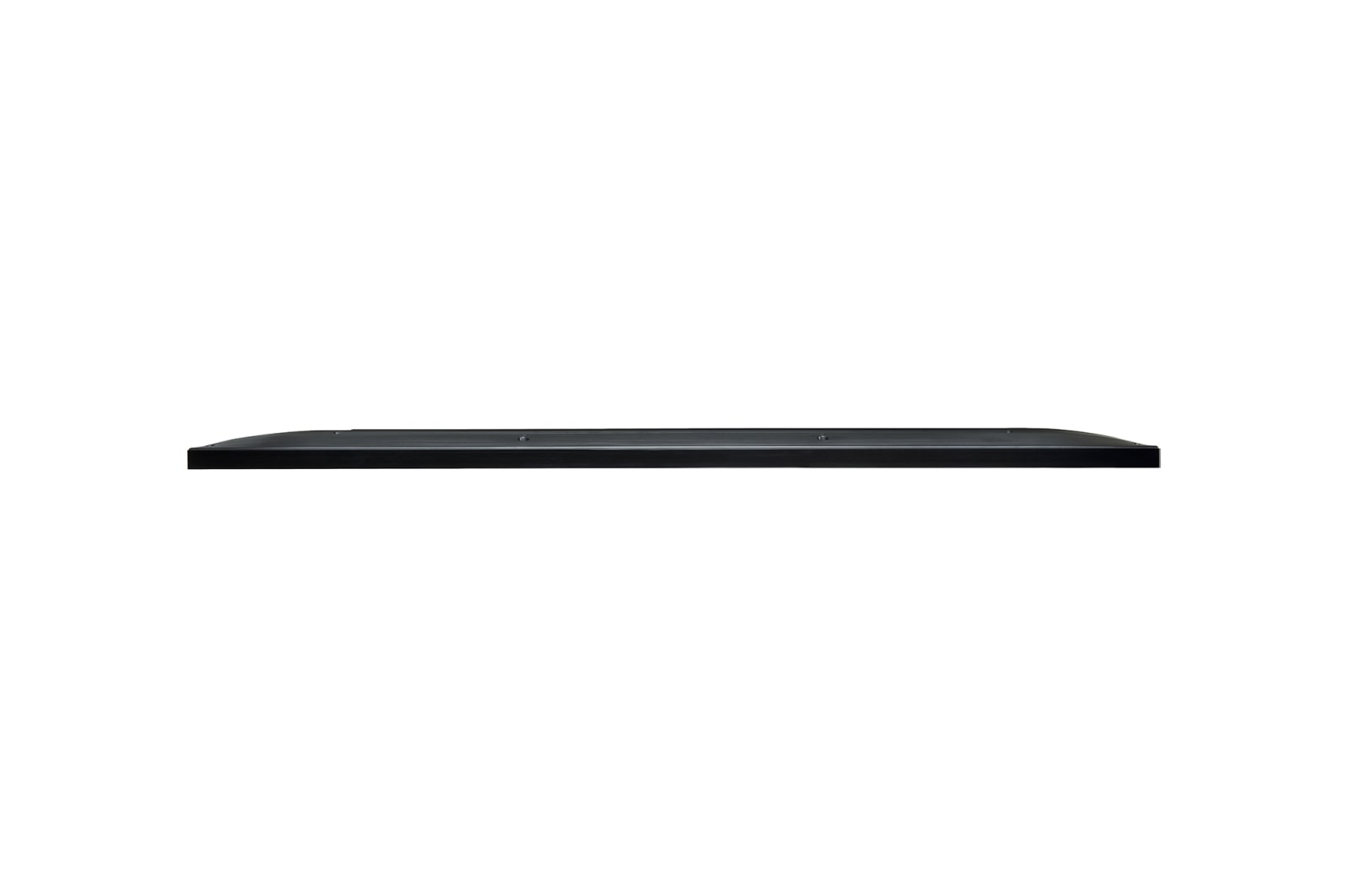

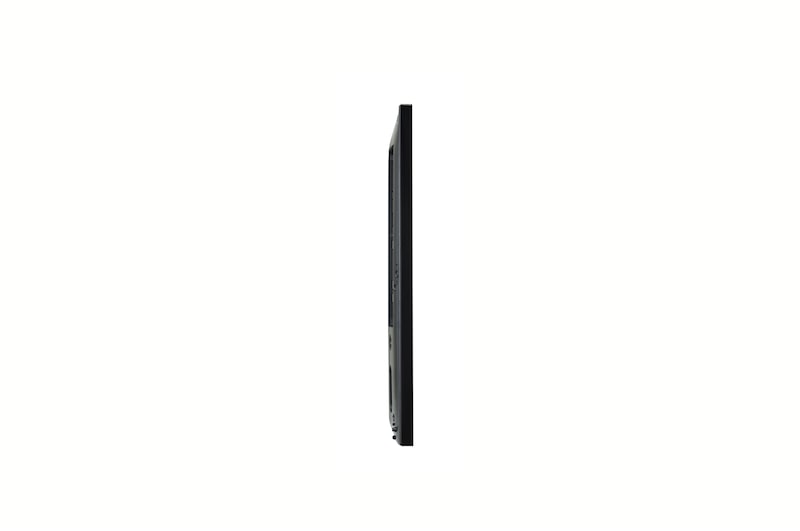

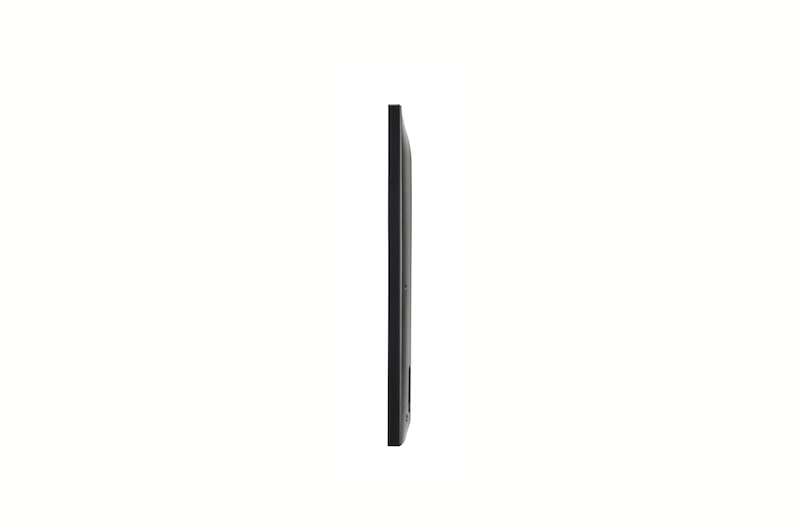

Narrow Bezel & Slim Depth

Compared to previous models, the UH5F-H series has a reduced bezel size* to provide a more immersive viewing experience. The slim depth also means that the immersive view is attained while maintaining a sleek look.​

Narrow Bezel

* Top/Right/Left bezels, as compared to the UH5E​

SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.​

Detachable Logo and Built-in Speaker.

PRODUCT RELIABILITY

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

IP5x Certified Design.

PRODUCT RELIABILITY

30° Tilting Installation

When a display is installed in a high location, it can be titled for a comfortable viewing experience. The UH5F-H series can be installed with 30° of tilt.​

30° Tilting Installation.

* Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)

EASY INSTALLATION

Auto Screen Rotatio

The UH5F-H series automatically detects its orientation (landscape or portrait mode) during the initial setup, so manual menu rotation is not required. The direction of the on-screen display and background content will already be set when you turn a display on for the first time.​

Auto Screen Rotatio.

EASY INSTALLATION

Fine Adjustment

The UH5F-H series is equipped with a sensor which can show users the horizontal angle the unit is tilted at, allowing it to be mounted at the desired angle.​

Fine Adjustment.

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Quad Core SoC (System on Chip) can execute several tasks at the same time without a separate media player. Additionally, the webOS platform enhances user convenience with intuitive UI and simple app development tools.​

High-Performance with webOS.

webOS SMART SIGNAGE PLATFORM

External Sensor Compatibility​

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc by using webOS application and USB plug-in.​

Various Sensor Applications.

External sensors are not included and must be purchased separately by a third-party provider. Application may need to be developed by customer-preferred developer.​

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F-H series has Crestron Connected Certification, a function and network-based control system that is dedicated to meeting rooms and that meets a growing need in the corporate meeting space market.​

Compatible with AV Control System.

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimal video meeting experience, the UH5F-H series has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.​

Compatible with Video Conference System.

*HDMI cable connection required for use of the Cisco Spark Room Kit.​

All Spec

PANEL

  • Screen Size (Inch)

    43

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,100:1

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    BT709 95%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 28%

  • Life time

    50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • DP In

    YES (HDCP 2.2/1.3)

  • DVI-D In

    YES (HDCP 1.4)

  • RGB In

    NO

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (1ea)

  • HDMI Out

    NO

  • DP Out

    YES

  • Audio Out

    YES

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    YES

  • RJ45(LAN) Out

    NO

  • IR Out

    NO

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L: 8.4mm, B: 14.4mm

  • Weight (Head)

    11.2Kg

  • Weight (Head+Stand)

    11.8Kg

  • Packed Weight

    13.7Kg

  • Monitor Dimensions (W x H x D)

    962.5 x 568.0 x 39.9mm (with LG Logo)

  • Monitor Dimension with Stand (W x H x D)

    962.5 x 613.1 x 290.0mm

  • Carton Dimensions (W x H x D)

    1060.0 x 660.0 x 152.0mm

  • Handle

    NO

  • VESA Standard Mount Interface

    200 x 200 mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    YES

  • Power Indicator

    NO

  • Local Key Operation

    YES

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 4.1

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    YES

  • Local Network Sync

    YES

  • Backlight Sync

    NO

  • PIP

    YES

  • PBP

    YES (4PBP)

  • Screen Share

    YES

  • Video Tag

    YES (4 Video Tag)

  • Play via URL

    YES

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    YES

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    YES

  • Beacon

    YES

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    YES

  • Pro:Idiom

    YES

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    75W

  • Max.

    110W

  • BTU (British Thermal Unit)

    256 BTU/Hr(Typ.), 375 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    60W

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    YES (10W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    YES(NewErP) / YES

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    YES (Piggyback)

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    NO

  • Promota

    YES

  • Mobile CMS

    YES

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    Stand(ST-653T), Wall bracket(LSW240B), OPS Kit(KT-OPSF)

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    Max. 30 degree

  • IP Rating

    IP5X

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    N/A

  • Direct Sunlight

    N/A

White Paper

To access more technical documentation and resources, please visit the LG B2B partner portal.
