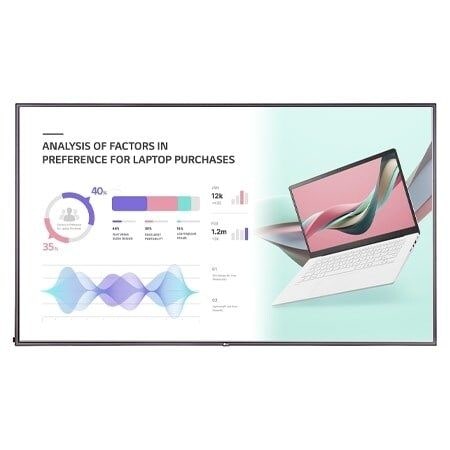

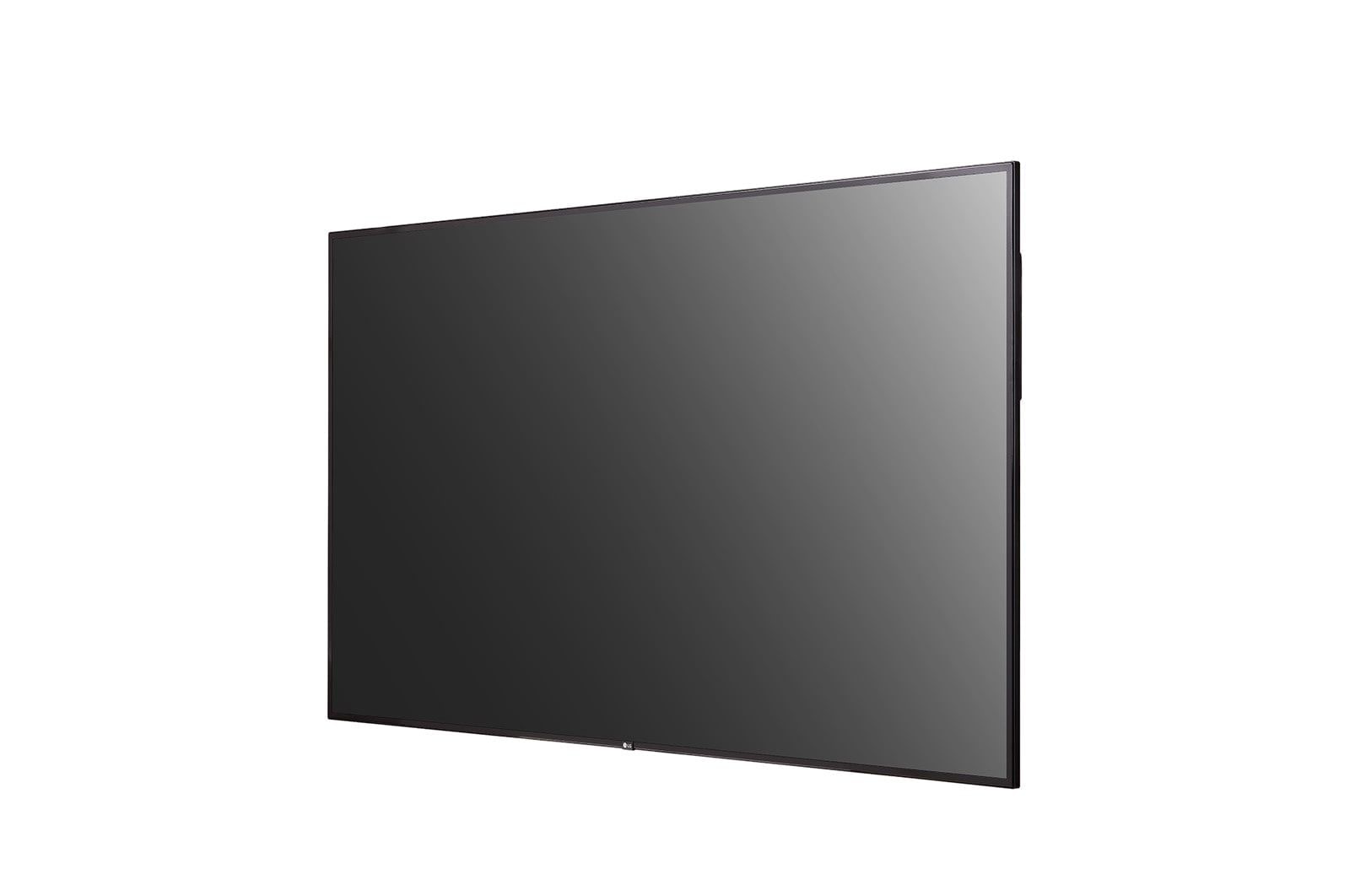

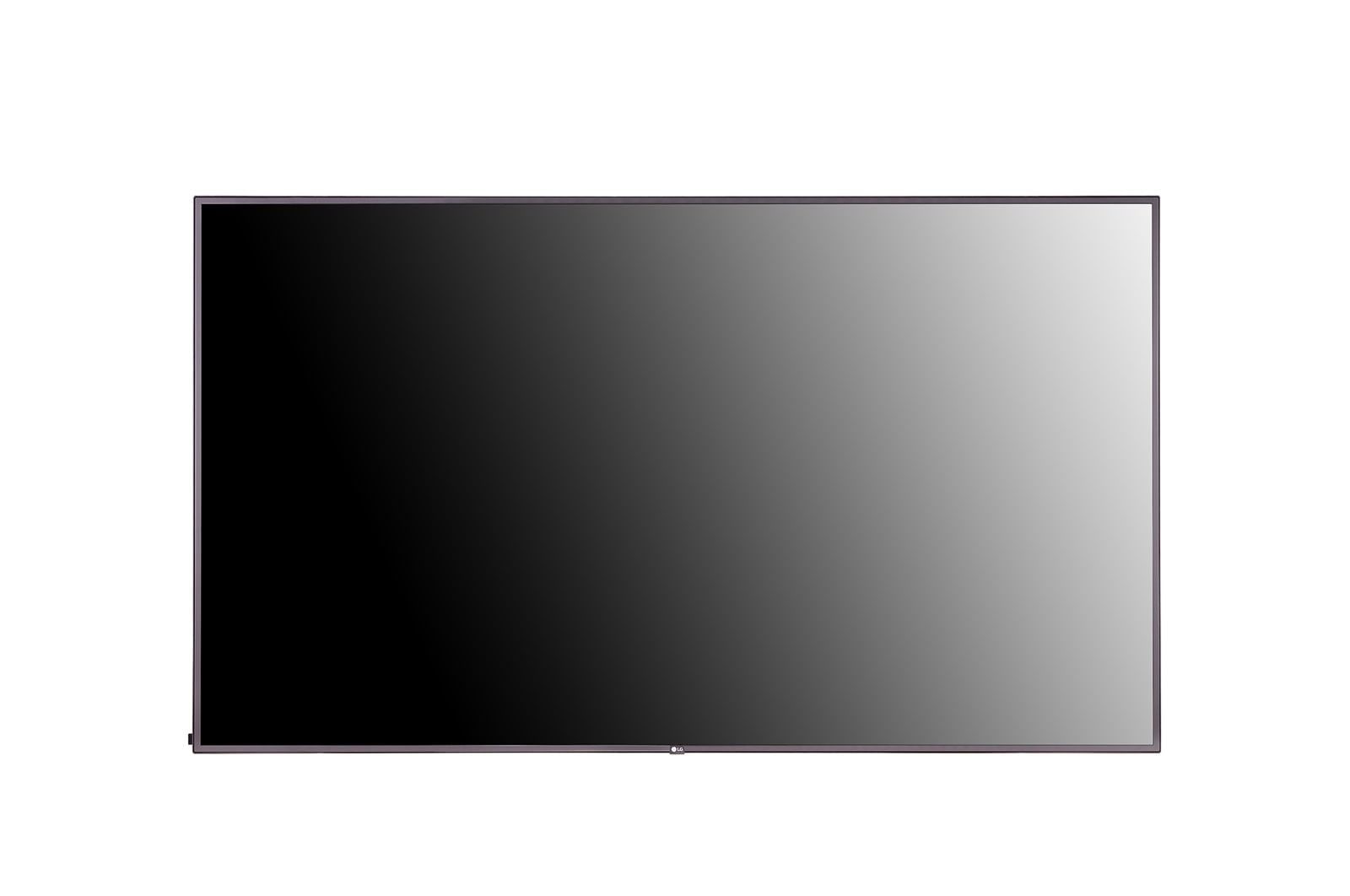

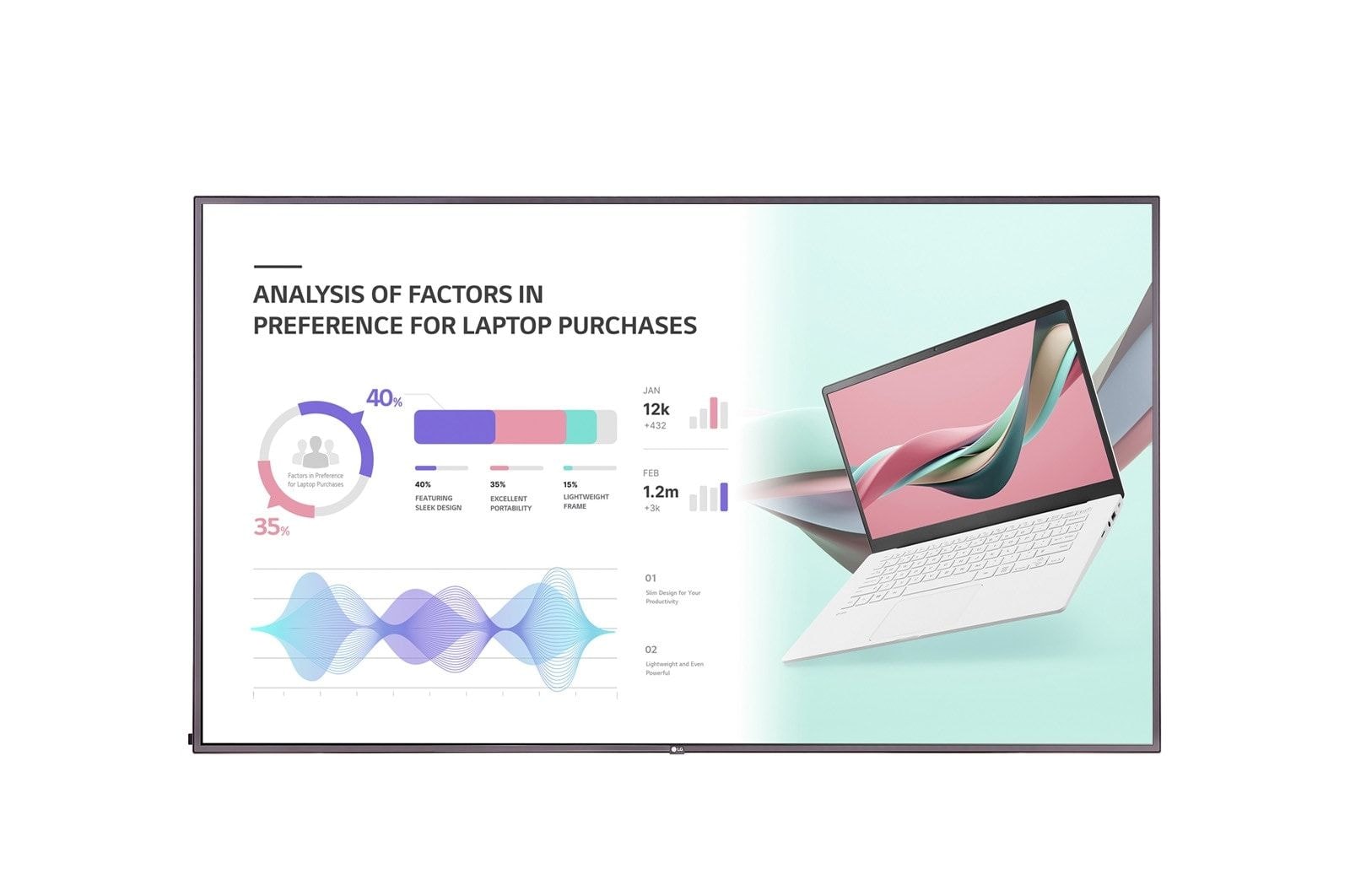

75" UHD Standard Signage
New High Haze UHD Standard Signage
A screen showing the meeting’s contents is installed on the meeting room’s wall.
* All images in this web page are for illustrative purposes only.

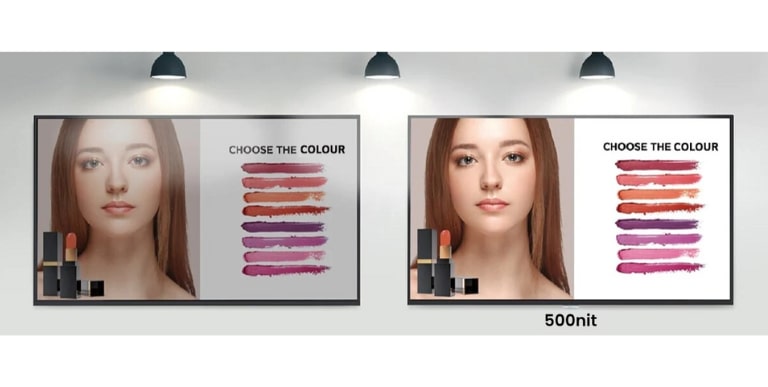

High Brightness
UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light.
*Images may differ from the actual product.

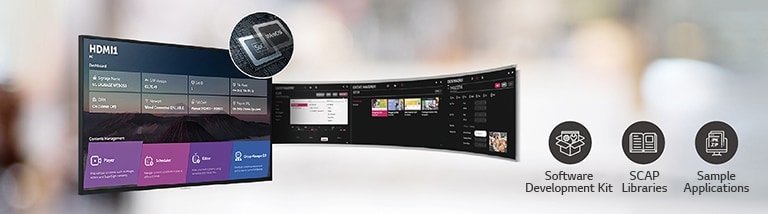

High-Performance with webOS
A number of tasks can be done at the same time with the intuitive GUI.

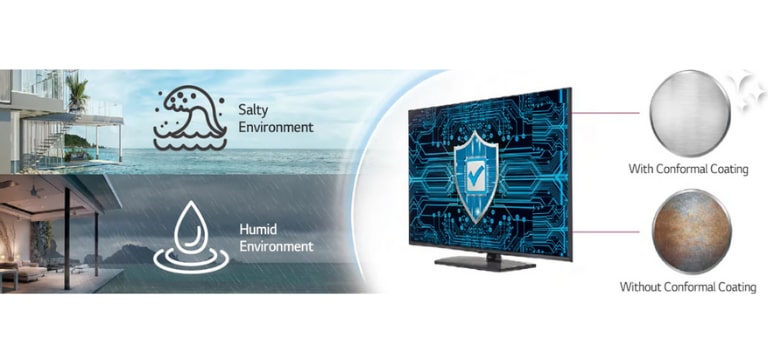

Conformal Coating
The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
*Actual images (TV display) available may differ from the example images shown.
* Images are illustrated to enhance feature understanding.

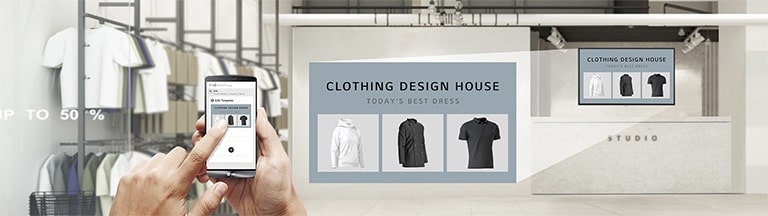

Mobile Content Management
In a clothing store, a user is using the app to produce promotional content to display on the UH5J-H installed on the store’s wall.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)

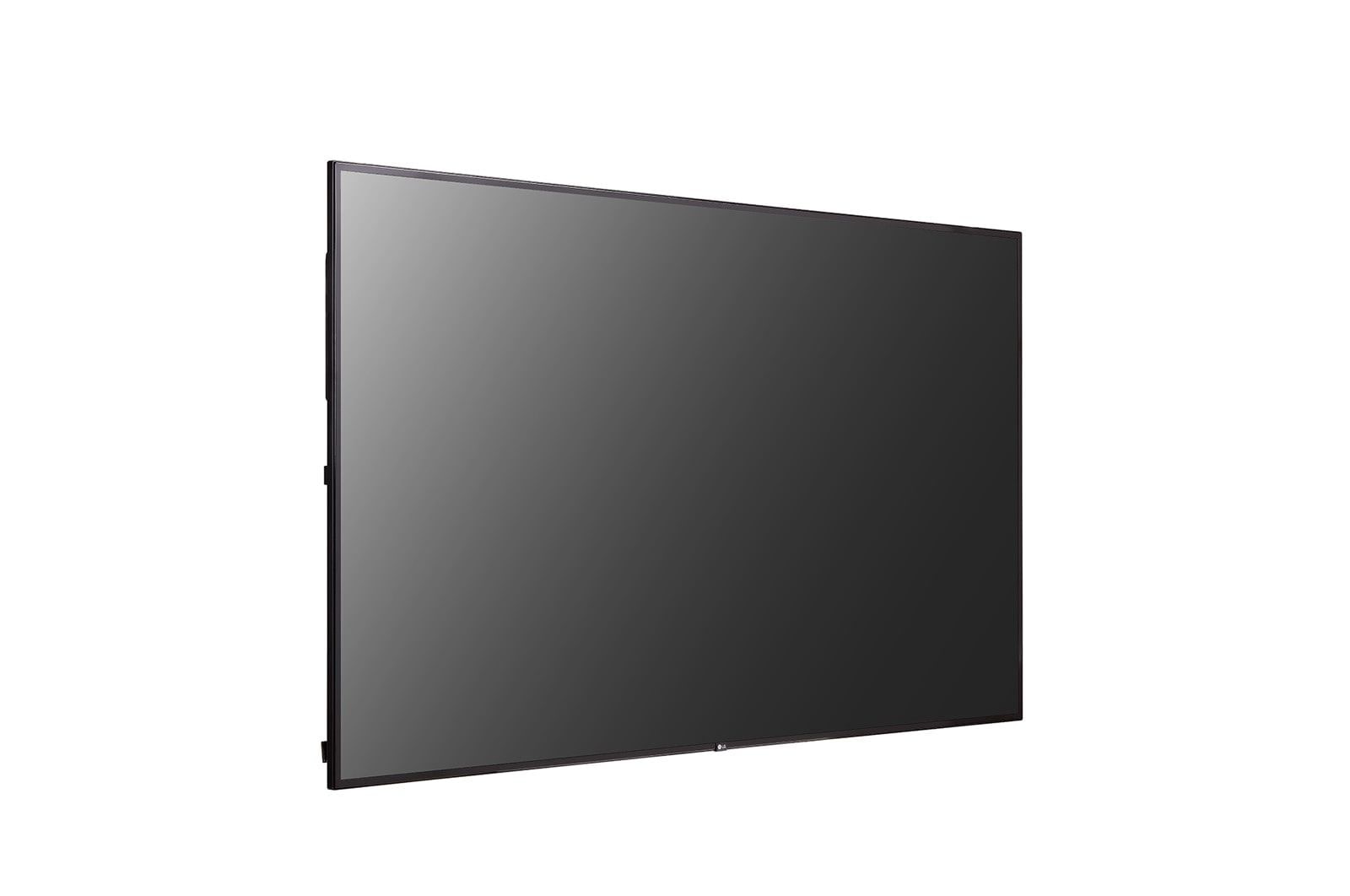

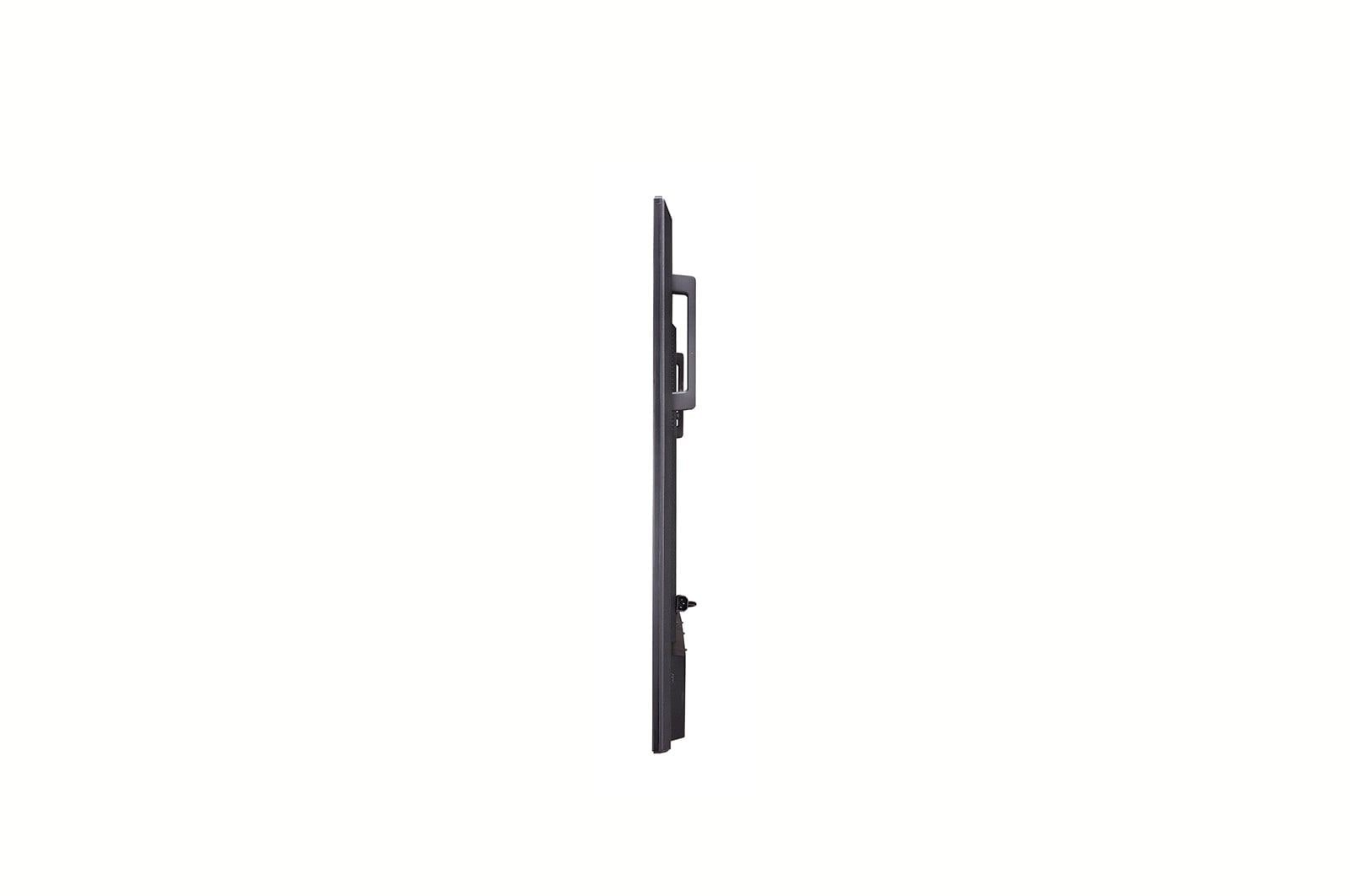

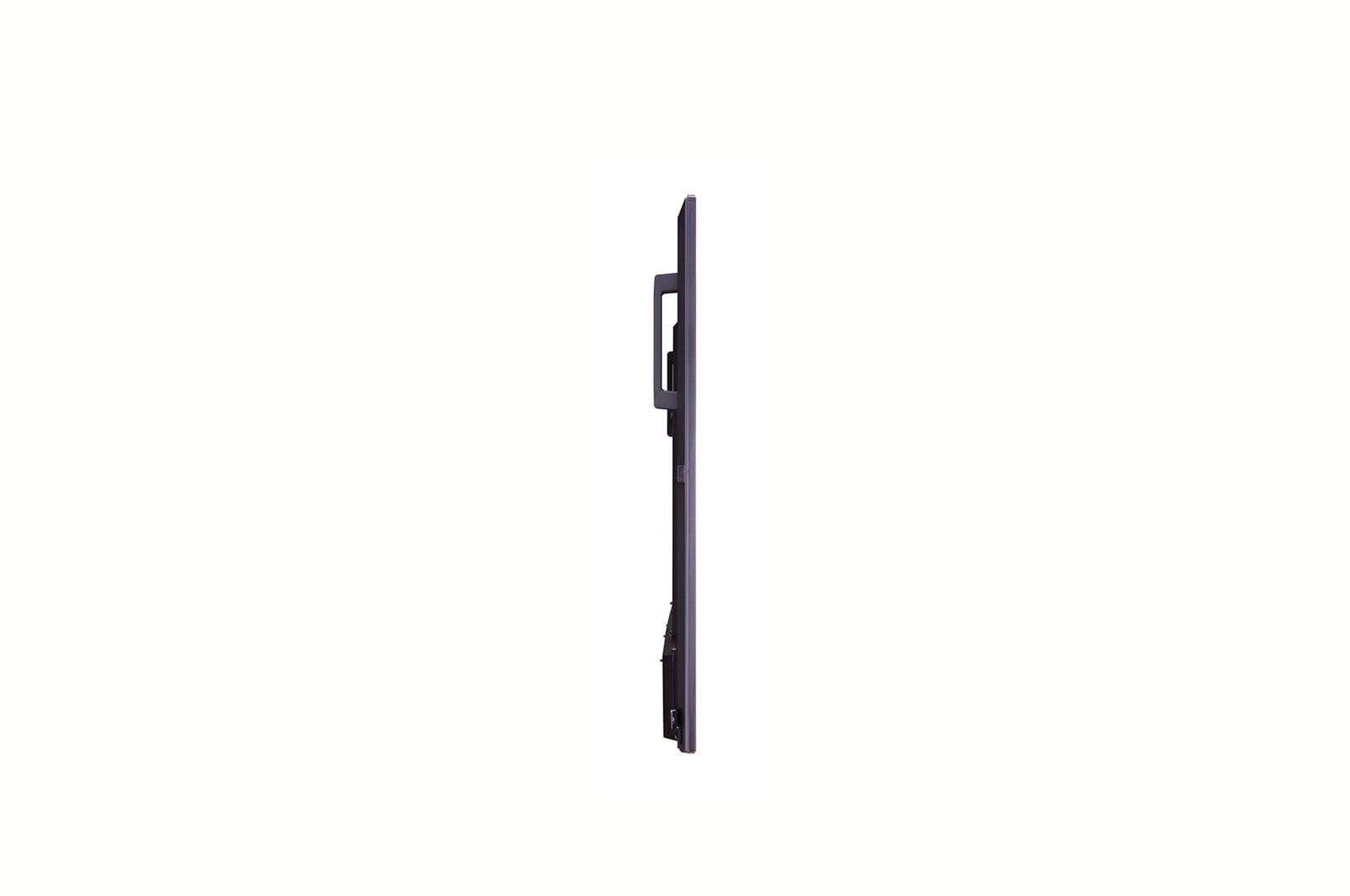

Gallery
All Spec
PANEL
-
Screen Size (Inch)
75
-
Panel Technology
IPS
-
Back Light Type
Edge
-
Aspect Ratio
16:9
-
Native Resolution
3840 x 2160 (UHD)
-
Refresh Rate
120Hz
-
Brightness
500nit (Typ.)
-
Contrast Ratio
1,100:1
-
Dynamic CR
1,000,000:1
-
Color Gamut
BT709 95%
-
Viewing Angle (H x V)
178º x 178º
-
Color Depth (Number of Colors)
1.07 Billion colors
-
Response Time
6ms (G to G)
-
Surface Treatment (Haze)
Haze 28%
-
Life time
50,000Hrs (Typ.)
-
Operation Hours (Hours/Day)
24/7
-
Portait / Landscape
YES / YES
-
Transparency
N/A
-
QWP (Quarter Wave Plate)
N/A
CONNECTIVITY
-
HDMI In
YES (3ea)
-
HDMI In (HDCP Ver.)
2.2/1.4
-
DP In
YES (HDCP 2.2/1.3)
-
DVI-D In
YES (HDCP 1.4)
-
RGB In
NO
-
Audio In
YES
-
RS232C In
YES
-
RJ45(LAN) In
YES (1ea)
-
IR In
YES
-
USB In
USB2.0 Type A (1ea)
-
HDMI Out
YES
-
DP Out
NO
-
Audio Out
YES
-
Touch USB
NO
-
External Speaker Out
NO
-
RS232C Out
YES
-
RJ45(LAN) Out
NO
-
IR Out
NO
-
Daisy Chain
Input : HDMI, DP / Output : HDMI
MECHANICAL SPECIFICATION
-
Bezel Color
Black
-
Bezel Width
Even bezel : 14.9mm
-
Weight (Head)
41.5Kg
-
Weight (Head+Stand)
N/A
-
Packed Weight
51.2Kg
-
Monitor Dimensions (W x H x D)
1682.4 x 960.3 x 57.9mm (without Handle and LG Logo)
-
Monitor Dimension with Stand (W x H x D)
N/A
-
Carton Dimensions (W x H x D)
1816 x 1123 x 228mm
-
Handle
YES
-
VESA Standard Mount Interface
600 x 400 mm
FEATURE - HARDWARE
-
Internal Memory (eMMC)
16GB
-
Wi-Fi/BT (Built-in)
YES
-
Temperature Sensor
YES
-
Auto Brightness Sensor
YES
-
Pixel Sensor
NO
-
Proximity Sensor
NO
-
Current Sensor
NO
-
BLU Sensor
NO
-
Humidity Sensor
NO
-
Acceleration(Gyro) Sensor
YES
-
Power Indicator
NO
-
Local Key Operation
YES
-
FAN (Built-in)
NO
FEATURE - SOFTWARE
-
OS Ver. (webOS)
webOS 6.0
-
Local Contents Scheduling
YES
-
Group Manager
YES
-
USB Plug & Play
YES
-
Fail over
YES
-
Booting Logo Image
YES
-
No Signal Image
YES
-
RS232C Sync
YES
-
Local Network Sync
YES
-
Backlight Sync
NO
-
PIP
YES
-
PBP
YES (4PBP)
-
Screen Share
YES
-
Video Tag
YES (4 Video Tag)
-
Play via URL
YES
-
Screen Rotation
YES
-
External Input Rotation
YES
-
Gapless Playback
YES
-
Tile Mode Setting
YES
-
Setting Data Cloning
YES
-
SNMP
YES
-
ISM Method
YES
-
Auto Set ID
YES
-
Status Mailing
YES
-
Control Manager
YES
-
Cisco Certification
YES
-
Crestron Connected
YES
-
Smart Energy Saving
YES
-
PM mode
YES
-
Wake on LAN
YES
-
Network Ready
YES
-
Beacon
YES
-
HDMI-CEC
YES
-
SI Server Setting
YES
-
webRTC
YES
-
Pro:Idiom
YES
-
Brightness Compensation
NO
-
W/B Setting by Grey scale
NO
-
Scan Inversion
NO
ENVIRONMENT CONDITIONS
-
Operation Temperature
0 °C to 40 °C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Supply
AC 100-240V~, 50/60Hz
-
Power Type
Built-in Power
POWER CONSUMPTION
-
Typ.
170W
-
Max.
230W
-
BTU (British Thermal Unit)
581 BTU/Hr(Typ.), 785 BTU/Hr(Max.)
-
Smart Energy Saving (70%)
120W
-
DPM
0.5W
-
Power off
0.5W
SOUND
-
Speaker (Built-in)
YES (10W x 2)
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class "A" / CE / KC
-
ERP / Energy Star
YES(NewErP) / YES
-
ePEAT(US only)
NO
OPS COMPATIBILITY
-
OPS Type compatible
YES (Piggyback)
-
OPS Power Built-in
NO
SOFTWARE COMPATIBILITY
-
SuperSign CMS
YES
-
SuperSign Control+
YES
-
SuperSign WB
YES
-
SuperSign Cloud
YES
-
Promota
YES (Not available for EU/CIS)
-
Mobile CMS
YES
-
Connected Care
YES
LANGUAGE
-
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
ACCESSORY
-
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
-
Optional
OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)
SPECIAL FEATURE
-
Overlay Touch Compatibility
N/A
-
Smart Calibration
N/A
-
Tilt (Face up)
N/A
-
Tilt (Face down)
N/A
-
IP Rating
N/A
-
Conformal Coating (Power Board)
YES
-
Power Protection
N/A
-
Direct Sunlight
N/A
