75" UHD Signage with webOS

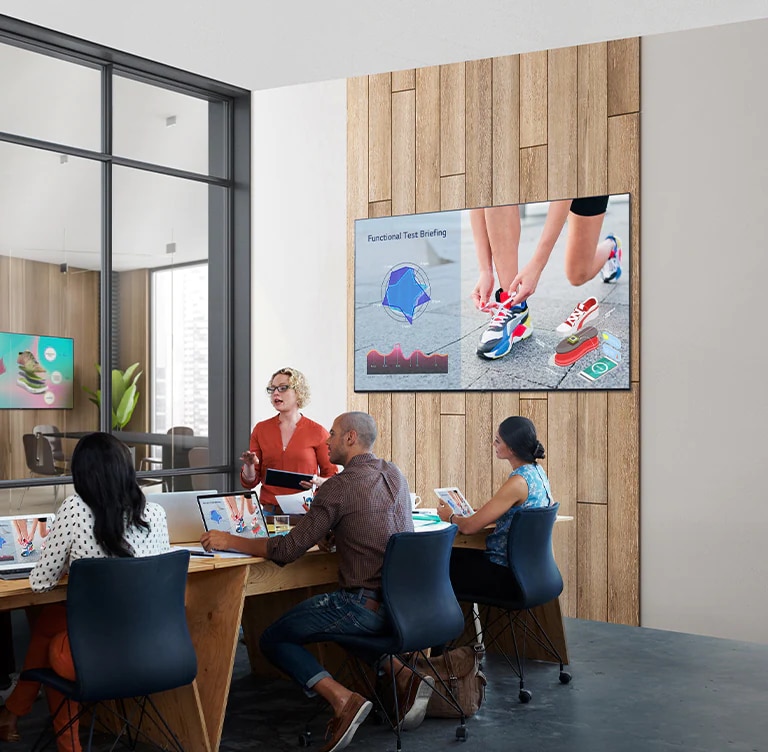

There are five people conducting a meeting in a room with UL3J series installed on the wall. There is another UL3J series installed across the meeting room on the wall past the window on the left.
* All images in this web page are for illustrative purposes only.
* e.g. showing specific promotional information according to weather change to store visitors

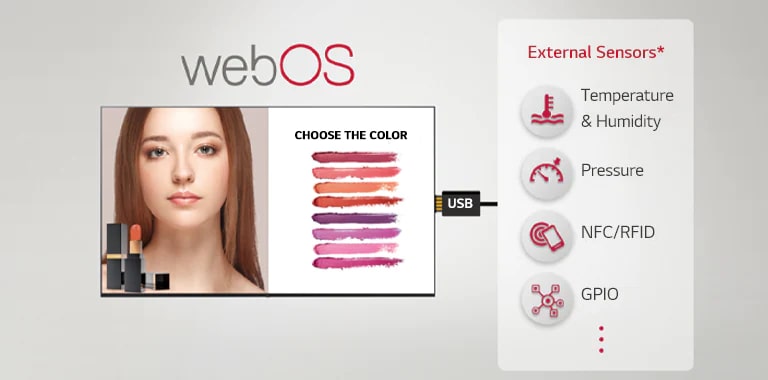

** External sensors need to be purchased separately and tested for compatibility with webOS platform.
"This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall."
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

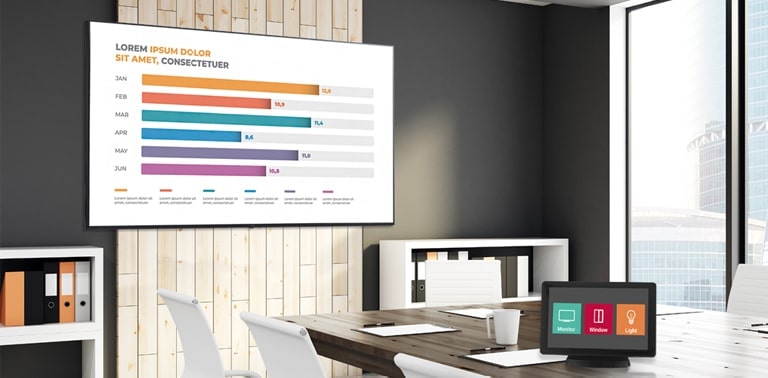

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
* Using an HDMI cable connection.

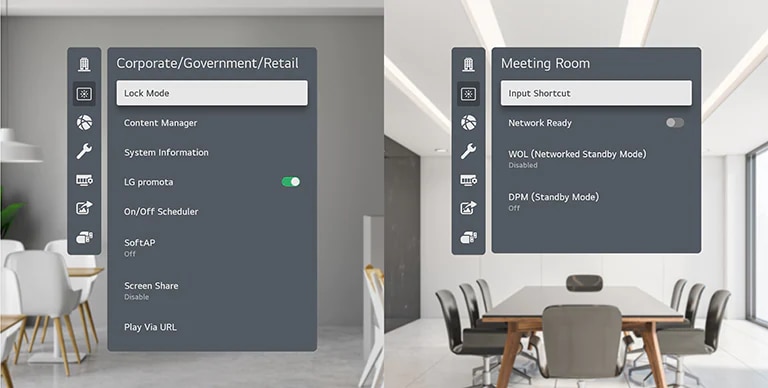

Most frequently used menus are categorized per industry on the left as “Corporate / Government / Retail” and on the right as the “Meeting Room”.
* Pre-set Support Vertical : Corporate / Government / Retail, Meeting room
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.
So please contact the LG sales representative in your region for more details.
Screen Size (Inch)
75
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
330nit (Typ.)
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Color Gamut
DCI 80%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 1%
Life time
30,000Hrs (Min.)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
NO
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
NO
USB In
USB2.0 Type A (2ea)
HDMI Out
NO
DP Out
NO
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO
Bezel Color
Ashed Blue

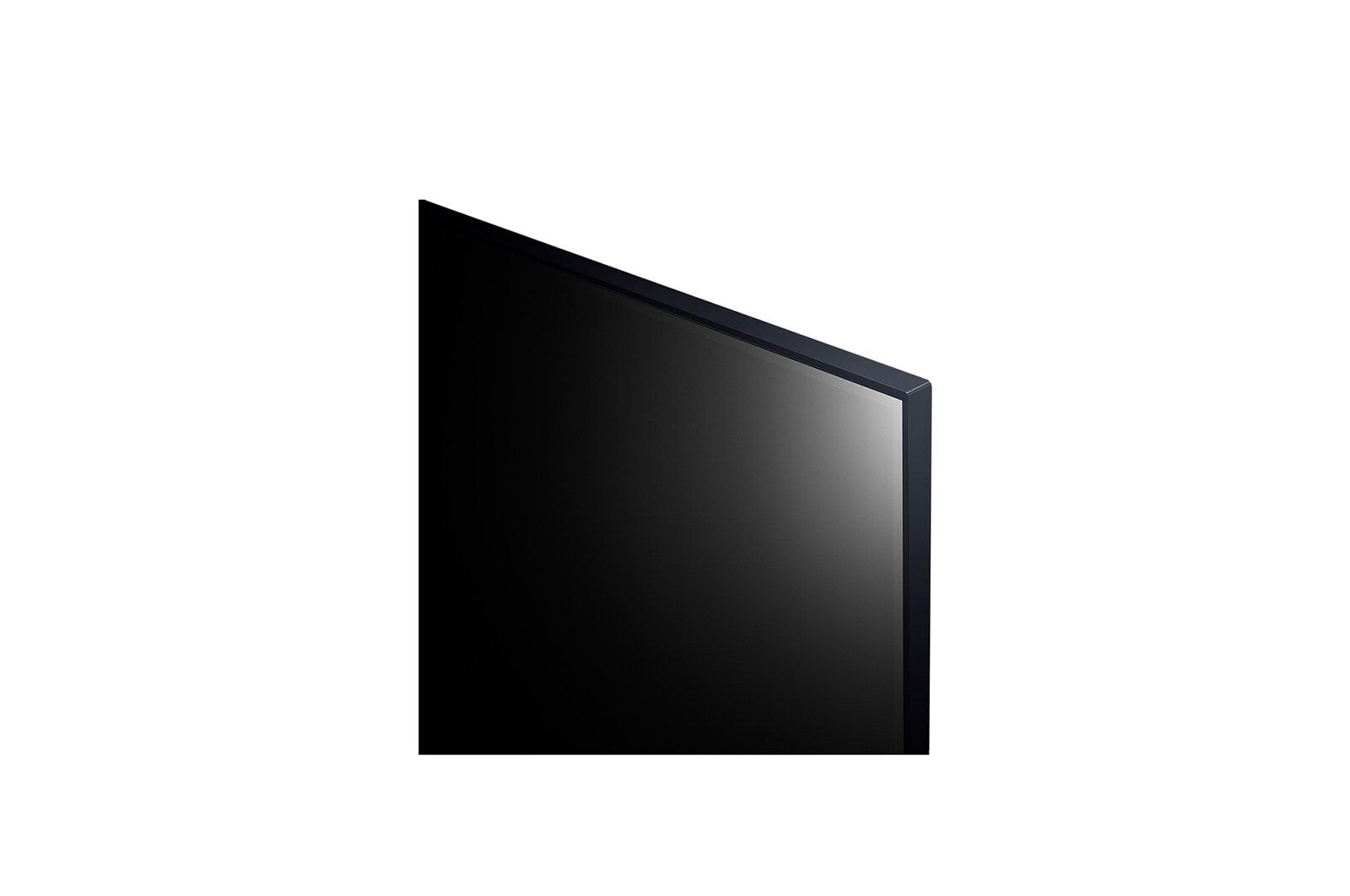

Bezel Width
Off : 7.9/7.9/7.9/18.4mm On : 13.9/13.9/13.9/19.9mm
Weight (Head)
31.4Kg
Weight (Head+Stand)
N/A
Packed Weight
40.3Kg
Monitor Dimensions (W x H x D)
1678 x 964 x 59.9mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1820 x 1115 x 200mm
Handle
NO
VESA Standard Mount Interface
400 x 400 mm
Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
YES
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
YES
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
155W
Max.
220W
BTU (British Thermal Unit)
529 BTU/Hr(Typ.), 751 BTU/Hr(Max.)
Smart Energy Saving (70%)
108.5W
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
YES (10W x 2)
Safety
CB / NRTL
EMC
FCC Class "A" / CE
ERP / Energy Star
NO / YES
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
YES (Not available for EU/CIS)
Mobile CMS
NO
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski
Basic
Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
Optional
NO
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
To access more technical documentation and resources, please visit the LG B2B partner portal.
