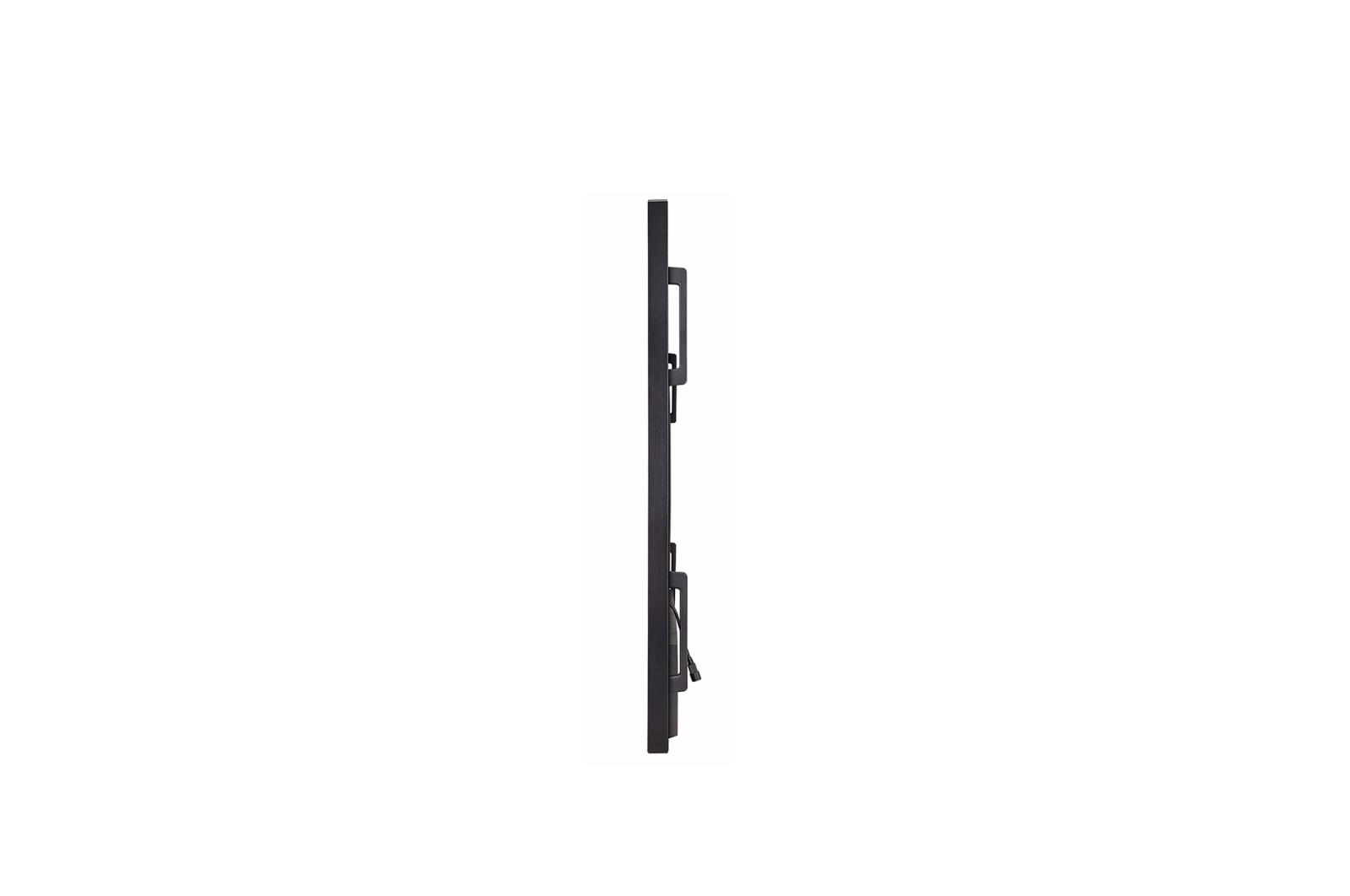

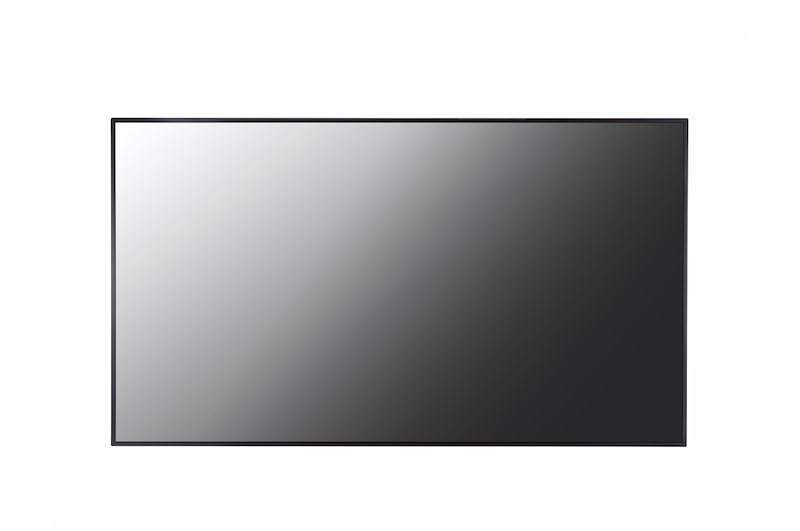

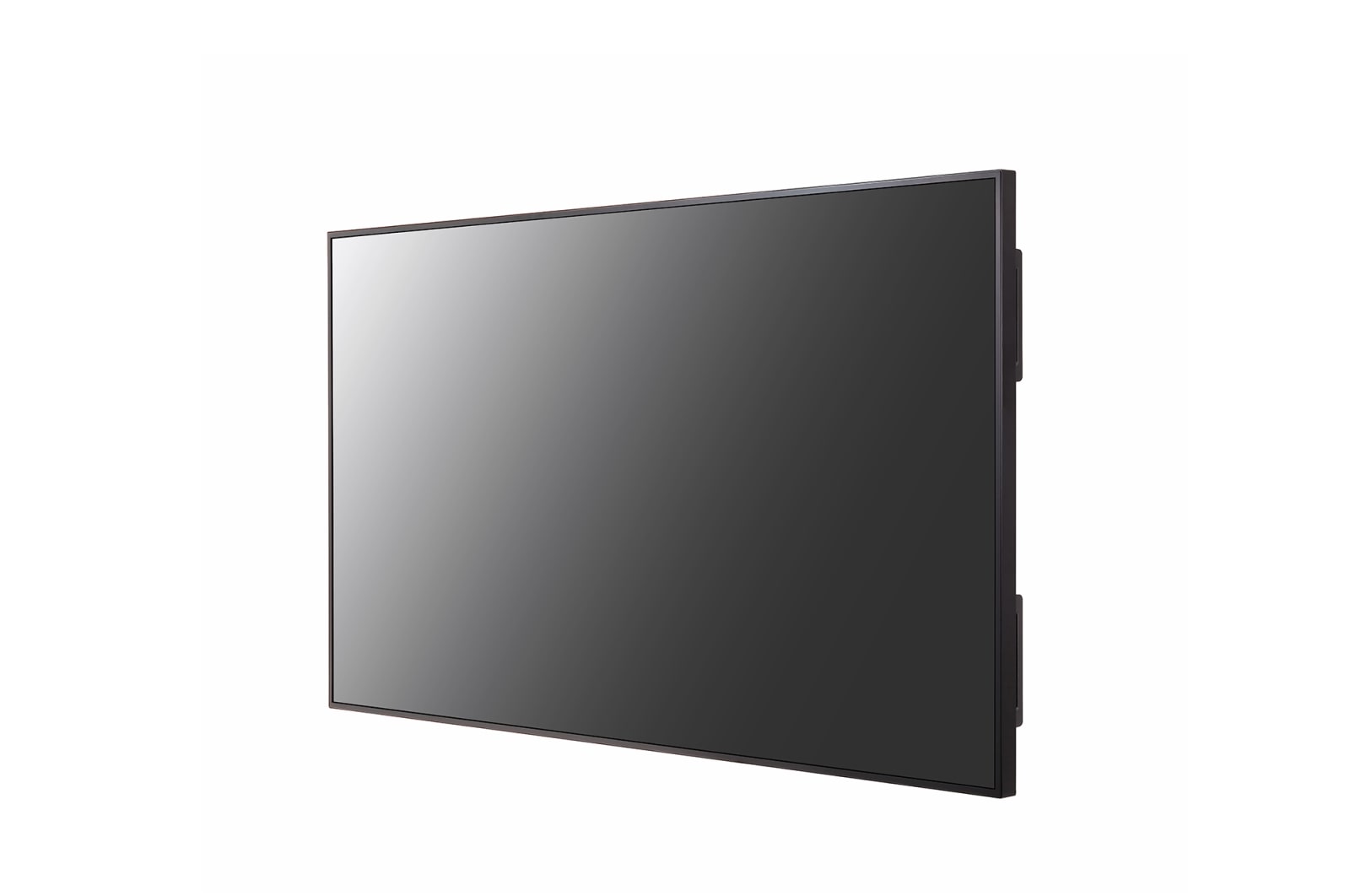

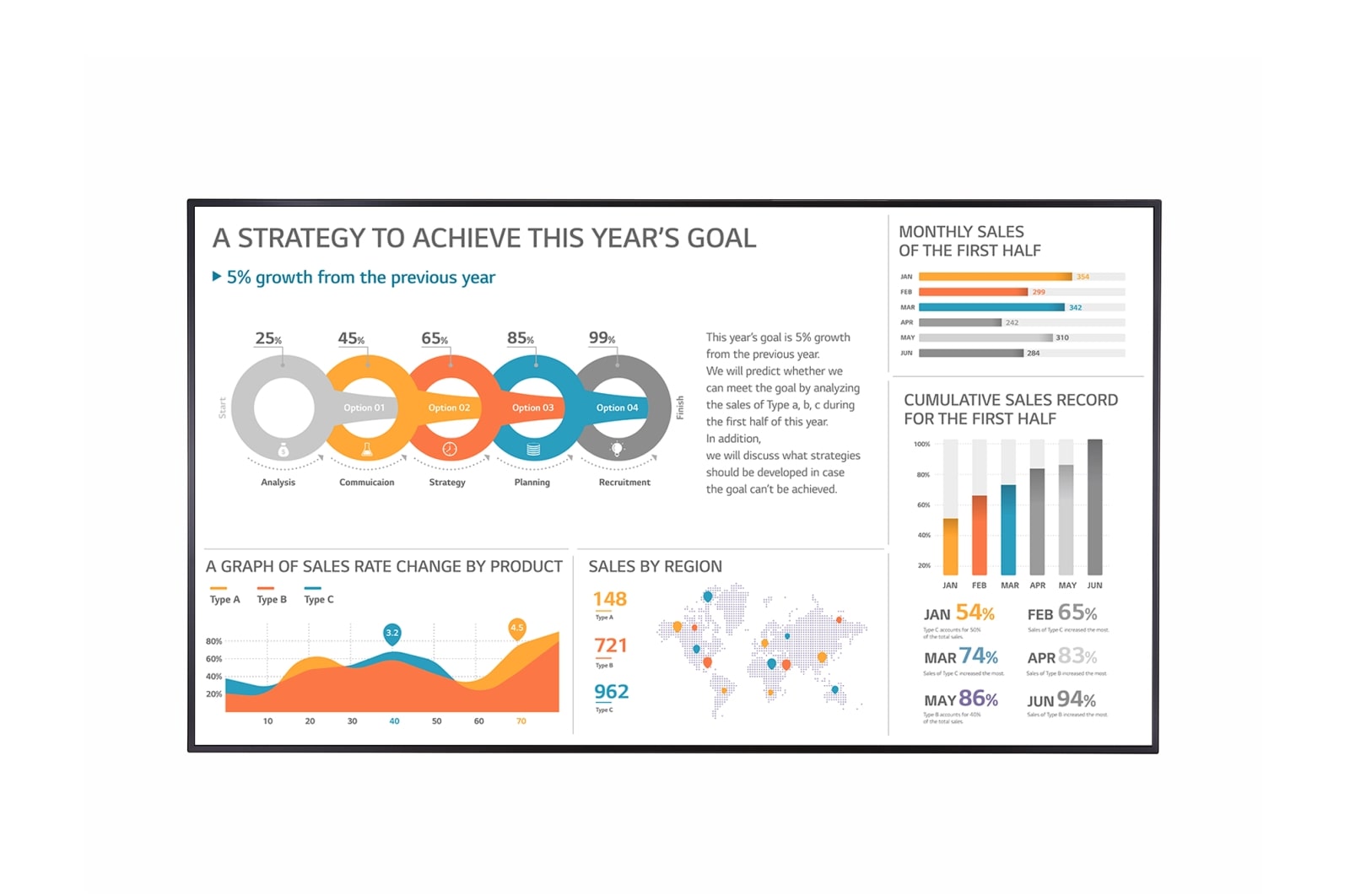

86" 500 nits UHD Signage
LG UHD Large Screen Signage.
Clear View with Non-glare Coating.
*Images dramatised for illustrative purposes.

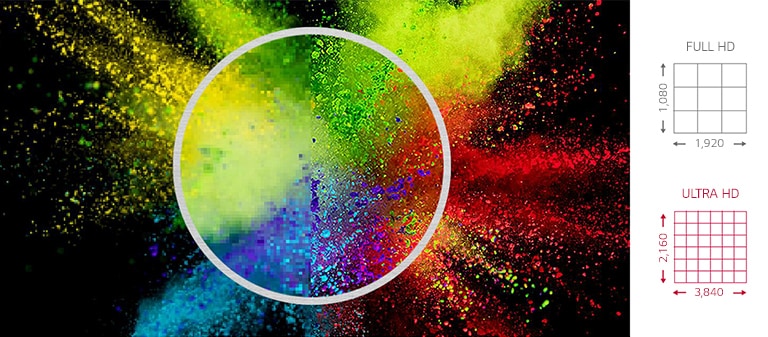

ULTRA HD Resolution.
High-Performance with webOS.

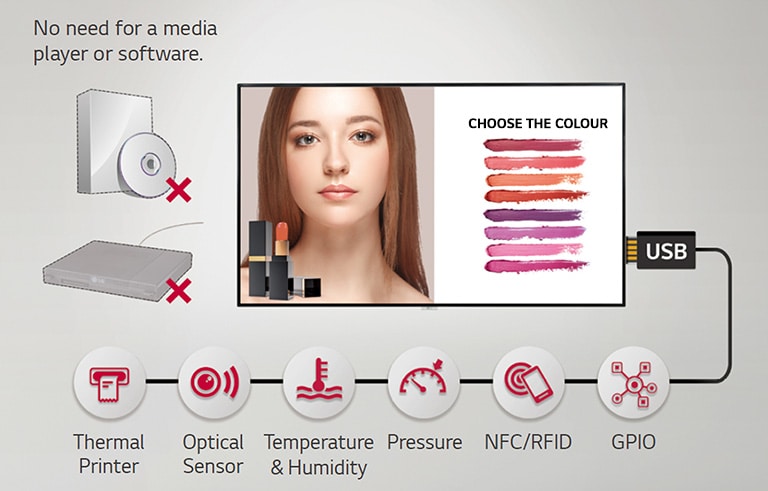

Various Sensor Applications.
External sensors are not included and must be purchased separately by a third-party provider. Application may need to be developed by customer-preferred developer.

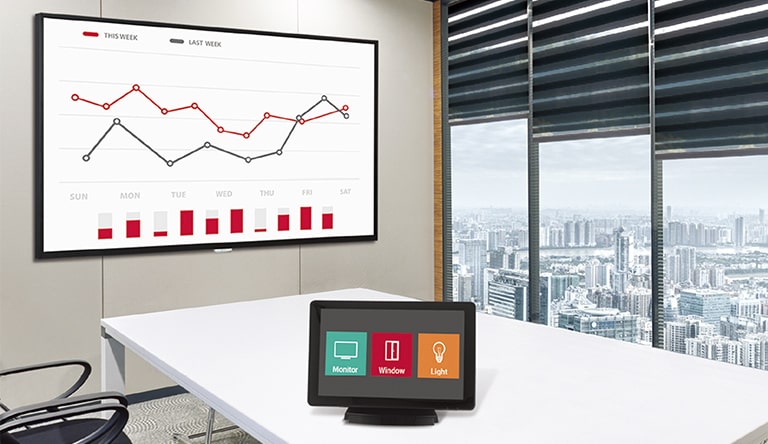

Compatible with AV Control System.
Compatible with Video Conference System.
*HDMI cable connection required for use of the Cisco Spark Room Kit.
Real-time Monitoring
* Network connection is required for webpage browsing

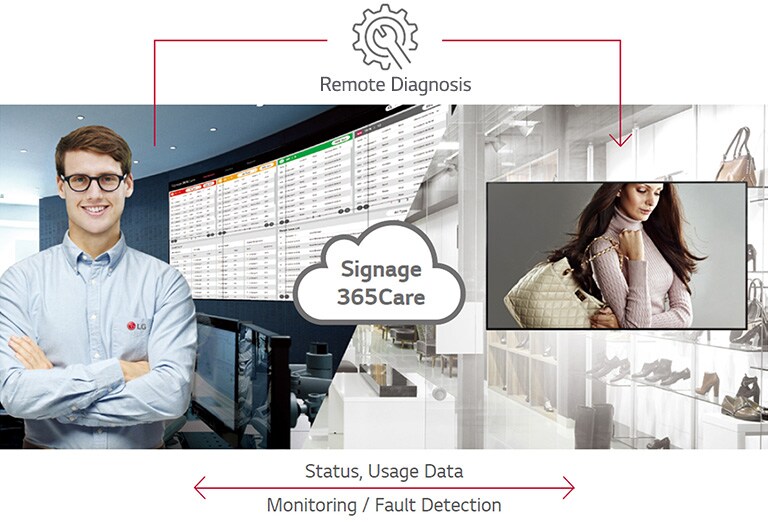

Real-time Cloud Care Service - Signage365care.
You must sign up for the Signage 365 Care service - additional charges apply.
Multiscreen Feature with PBP / PIP.
*Refer to user manual for supported resolutions in PBP/PIP modes.
Wireless Access Point.
*Up to 10 devices can connect to the wireless access point at the same time
Screen Size (Inch)
86
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 28%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (HDCP 2.2/1.3)
DVI-D In
YES (HDCP 1.4)
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (2ea)
HDMI Out
NO
DP Out
YES
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO
Bezel Color
Black
Bezel Width
Even bezel : 14.3mm
Weight (Head)
49.0Kg
Weight (Head+Stand)
N/A
Packed Weight
72.5Kg (With Pallet)
Monitor Dimensions (W x H x D)
1926.2 x 1097.2 x 60.6mm (without Handle and LG Logo)
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
2073 x 1250 x 285mm
Handle
YES
VESA Standard Mount Interface
600 x 400 mm
Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 4.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
YES
PBP
YES (4PBP)
Screen Share
YES
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
YES
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
NO
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
215W
Max.
280W
BTU (British Thermal Unit)
733.69 BTU/Hr(Typ.), 955.5 BTU/Hr(Max.)
Smart Energy Saving (70%)
150.5W
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
YES (10W x 2)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES(Old ErP for Jordan) / NO
ePEAT(US only)
NO
OPS Type compatible
YES (Piggyback)
OPS Power Built-in
YES
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
YES
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, DP Cable(1.8M), Regulation Book, Phone to RS232C Gender
Optional
OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
To access more technical documentation and resources, please visit the LG B2B partner portal.
