LG 65" CreateBoard™ - Interactive Whiteboard with Writing Software and Built-in Front Speakers

LG 65" CreateBoard™ - Interactive Whiteboard with Writing Software and Built-in Front Speakers

65TR3PJ-B

LG 65" CreateBoard™ - Interactive Whiteboard with Writing Software and Built-in Front Speakers

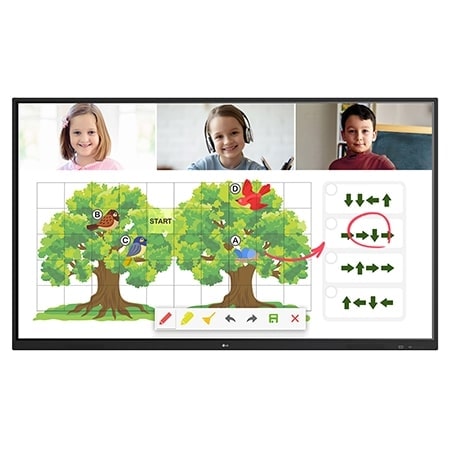

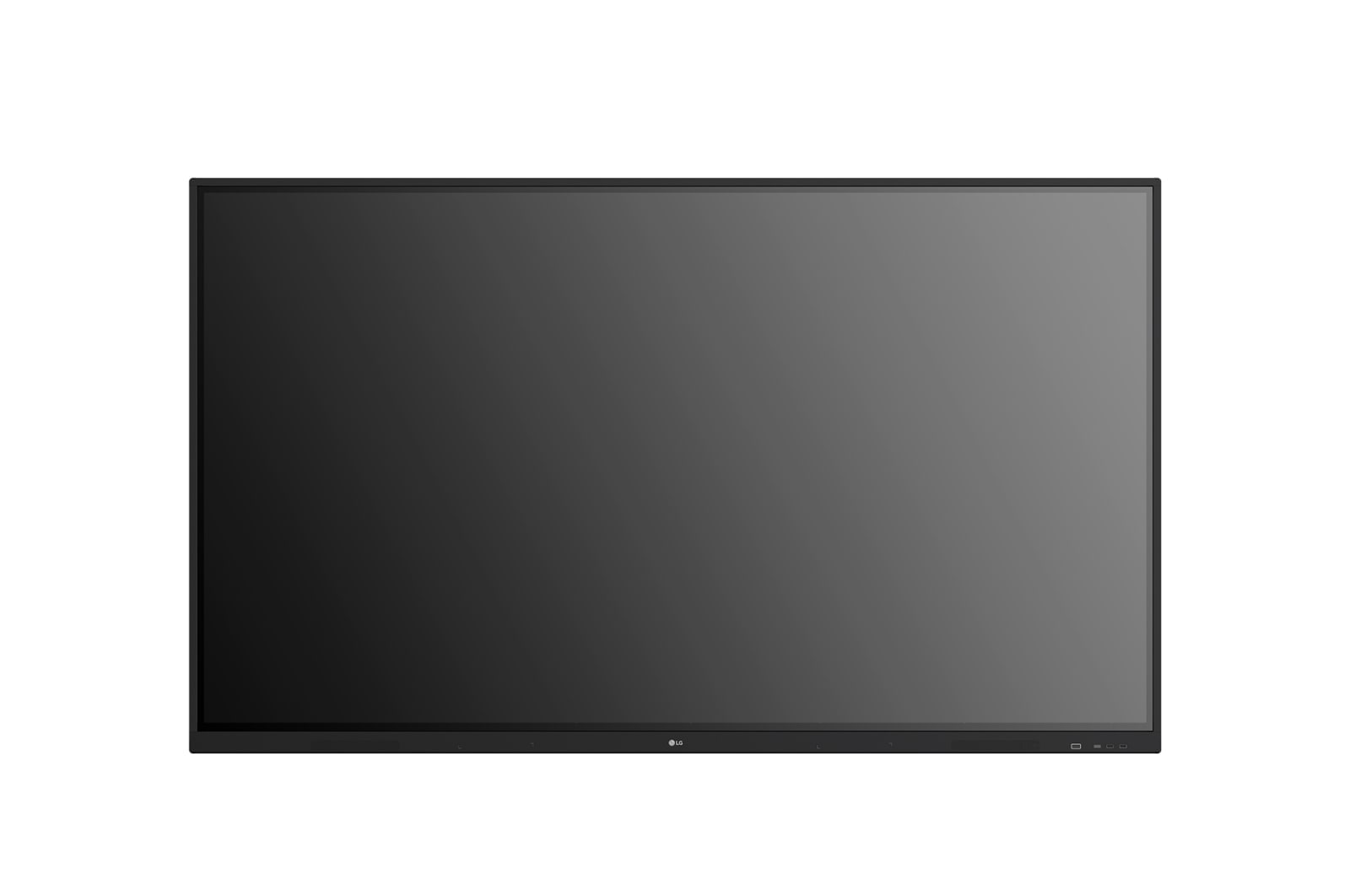

Front view with infill image

Multi Touch Interactive Whiteboard

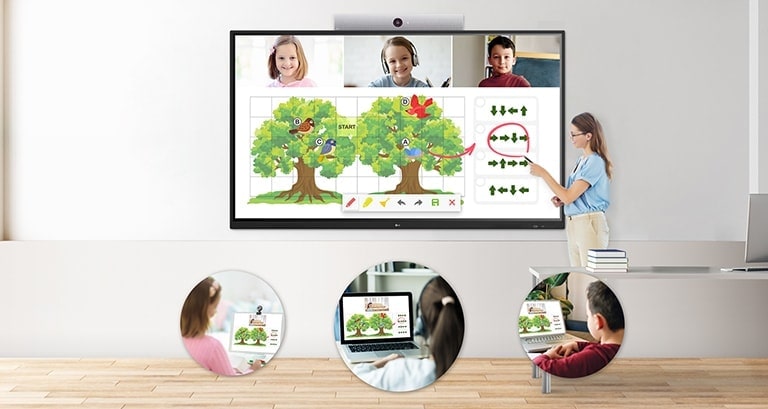

When the teacher marks it on the TR3DJ, it is displayed on the students' electronic device screens at the same time.

* All images are for illustrative purposes only.

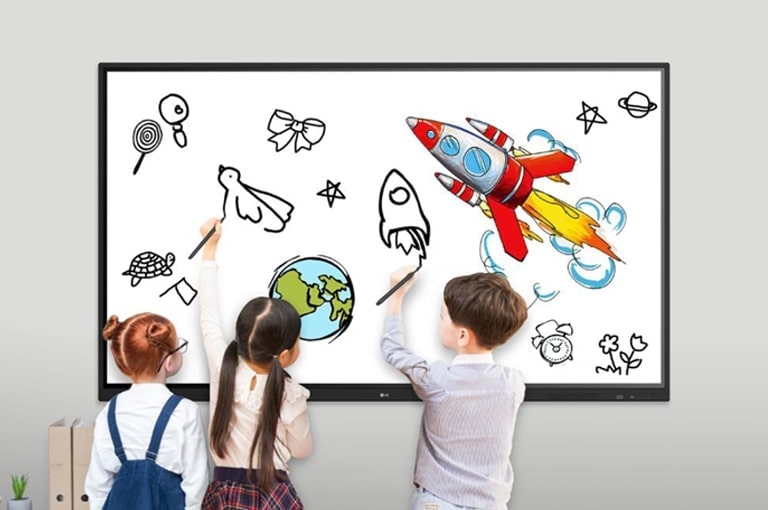

Multi Touch

Multi Touch

The TR3PJ series can have up to 20 points of touch simultaneously. This function offers an interactive experience board touch experience and makes collaboration easier.

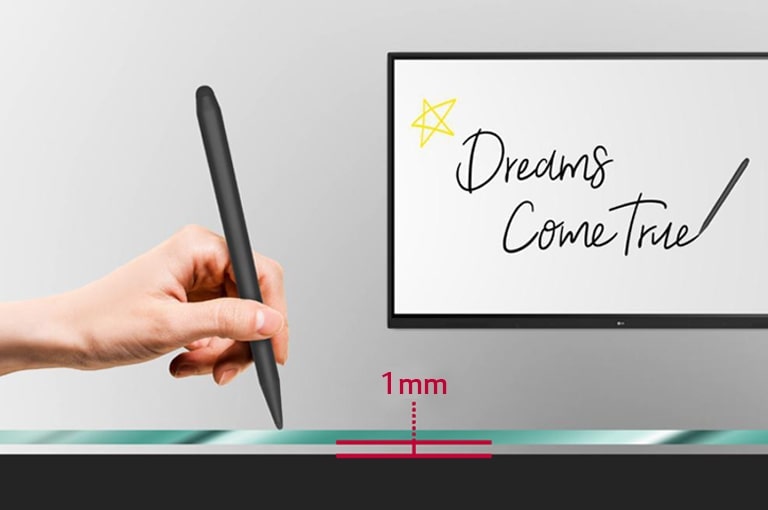

The user writes the words 'Dreams come true' with the electronic pen on the TR3DJ with 1mm gap between the screen and tempered glass.

Content Viewing

The 1mm gap between the screen and tempered glass assists with low parallax and offers a more responsive touch and writing experience.

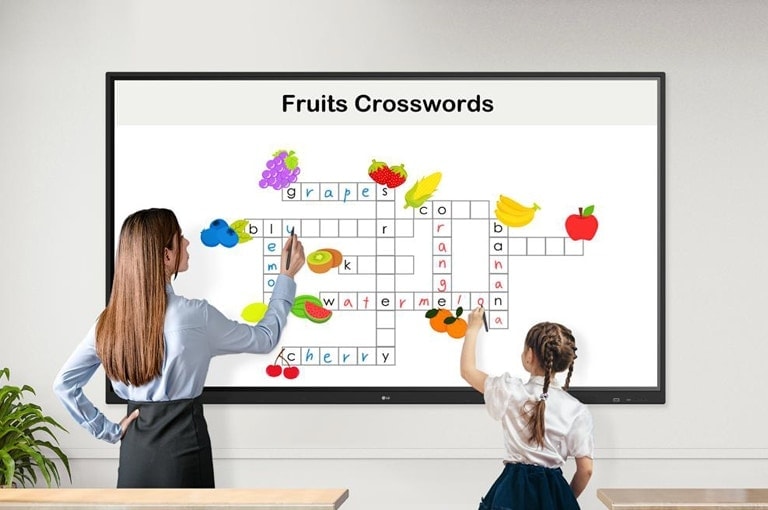

A teacher and a child are solving crosswords puzzles on the display together, using the Stylus Pens.

Dual Pens & Colours

Two pens and colours can be used at the same time.

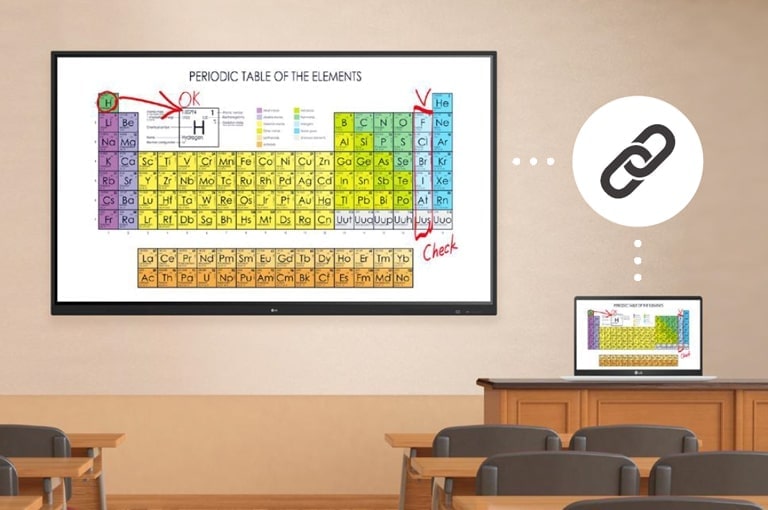

Same image is displayed on two separate screen, showing that the TR3DJ is capable of writing and annotate on all sources.

Input Content

The TR3PJ series enables information to be shared from a variety input sources and annotation of the content material on screen.
A teacher is having a class and the screen on the display is being shared to each students' laptop.

Air Class

Air Class supports connecting up to 30 students and offers interactive meetings for mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts. Air Class is easily accessible from the TR3PJ's main toolbar.

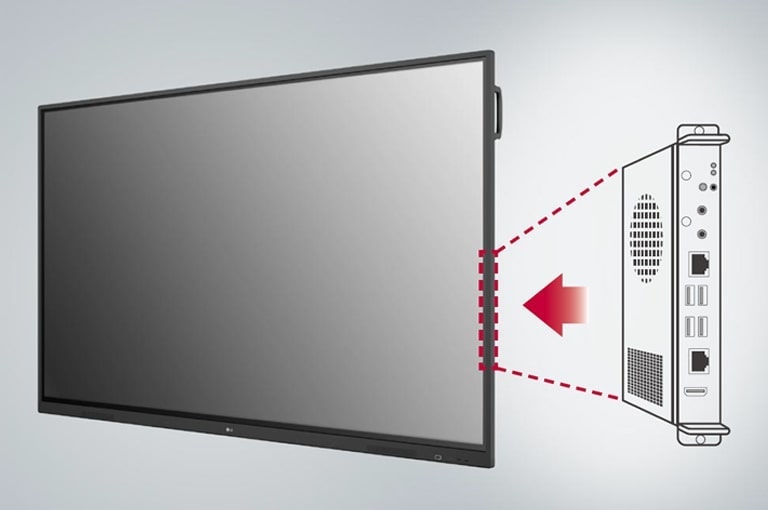

Built-in OPS Slot allows users to connect to an external desktop easily, which provides more expanded functions.

Built-in OPS Slot

The TR3PJ series supports Open Pluggable Specification (OPS) slots, allowing simple mounting of an OPS device to the back of the digital board.
The screens of students' laptops and teacher's mobile are being shared to the display.

Screen Share Applications

Screen Share Application enables up to six shared screens in real-time. It also supports Windows, Android, IOS, ChromeOS and MAC mirroring on the same network.

* All images are for illustrative purposes only.

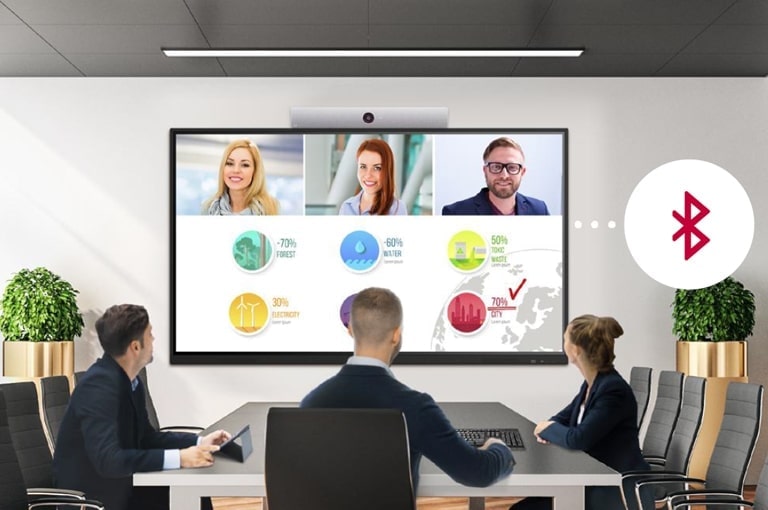

Three people are gathered in a conference room, having a virtual meeting with other people who are appearing on the screen.

Bluetooth Connectivity

TR3PJ supports Bluetooth wireless connections to various devices such as speakers, a mouse or a keyboard. This is great for building a hybrid environment so that online and offline meetings and classes can proceed smoothly.

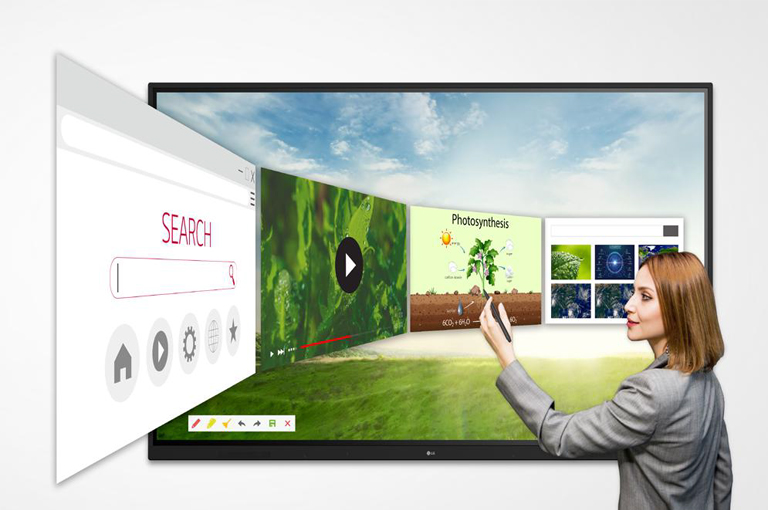

A woman searching for information using the web browser.

Web Browser

The TR3PJ series supports an embedded web browser, so you can search the web easily and quickly, without connecting to an external tablet or computer.

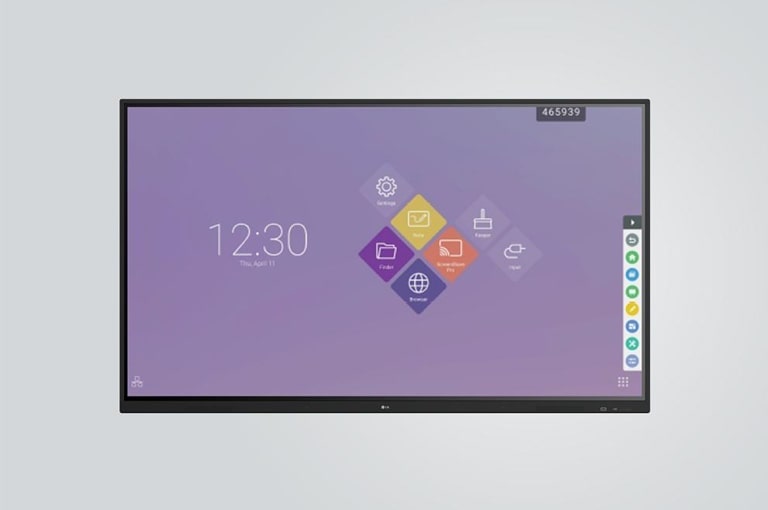

The Toolbar Function allows you to easily control various functions such as spotlight and air class.

Toolbar

Easily find the tools that you need on the toolbar. The annotation feature works on all file types, and you can highlight the section you wish to emphasise using the Spotlight function. It also features a countdown and stopwatch that can help you manage class time effectively.

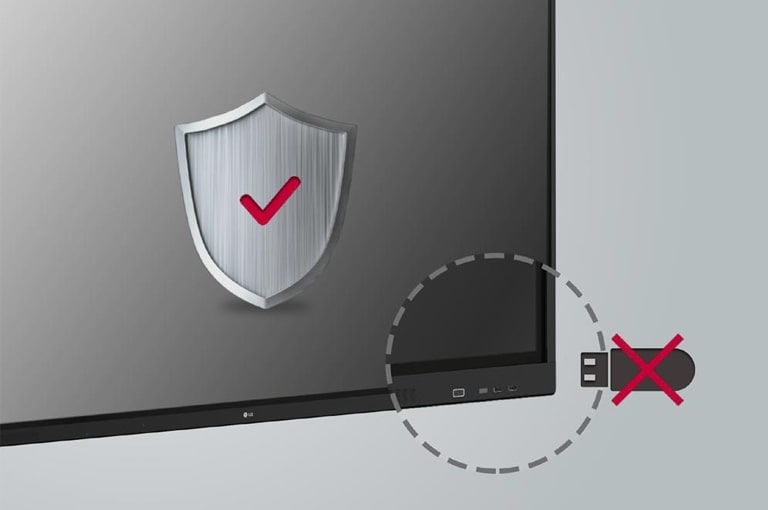

USB is not being able to be connected to a display for security.

USB Block

USB Block Mode is a security measure that helps prevent data from being copied to unauthorised devices, which is essential for being used in spaces where security is critical.
The teacher is teaching the students in class and the students are listening to the sounds from the TR3DJ.

Audio Experience

The TR3PJ series has built-in speakers in both sides of the front bezel which deliver high-quality sound and creates a clear audio experience.

All Spec

PANEL

  • Screen Size (Inch)

    65

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    390nit (Typ., without Glass)

  • Contrast Ratio

    5,000:1

  • Dynamic CR

    NO

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Response Time

    6.5ms (G to G)

  • Surface Treatment (Haze)

    Haze 25%

  • Life time

    30,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    16/7

  • Portait / Landscape

    NO / YES

CONNECTIVITY

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • DP In

    NO

  • DVI-D In

    NO

  • RGB In

    YES

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    NO

  • USB In

    USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)

  • HDMI Out

    YES

  • DP Out

    NO

  • Audio Out

    YES

  • Touch USB

    USB3.0 Type B (2ea)

  • External Speaker Out

    NO

  • RS232C Out

    NO

  • RJ45(LAN) Out

    YES

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 17.7/17.7/17.7/45.7mm

  • Weight (Head)

    40.2Kg

  • Packed Weight

    48.8Kg

  • Monitor Dimensions (W x H x D)

    1489 × 897 × 87.0mm

  • Carton Dimensions (W x H x D)

    1628 × 1005 x 208mm

  • Handle

    YES

  • VESA Standard Mount Interface

    600 x 400 mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    32GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    NO

  • Auto Brightness Sensor

    YES

  • Power Indicator

    YES

  • Local Key Operation

    YES

FEATURE - SOFTWARE

  • Booting Logo Image

    YES

  • PIP

    NO

  • PBP

    NO

  • Screen Share

    YES

  • Setting Data Cloning

    NO

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    NO

  • Wake on LAN

    YES

  • Network Ready

    NO

  • HDMI-CEC

    YES

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 90 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    190W

  • Max.

    400W

  • BTU (British Thermal Unit)

    648 BTU/Hr(Typ.), 1365 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    YES (16W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE

  • ERP / Energy Star

    YES / NO

OPS COMPATIBILITY

  • OPS Type compatible

    YES (Slot)

  • OPS Power Built-in

    YES

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, Simplified Chineses, Catalan, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Latvian, Thai

ACCESSORY

  • Basic

    Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

  • Optional

    NO

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    YES

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    Ø2 mm ↑

  • Response Time ('Paint' app on Windows 10 PC)

    10ms ↓

  • Accuracy (Typ.)

    ±1mm

  • Interface

    USB3.0

  • Protection Glass Thickness

    4mm (Anti-Glare)

  • Protection Glass Transmission

    0.87

  • Operating System Support

    Windows 7/8/10/XP/Linux/Mac/Android (Windows XP/Linux/Mac Support one point touch)

  • Multi Touch Point

    Max. 20 Points

DEDICATED FEATURE - CREATE BOARD

  • CPU

    Quad core A73

  • GPU

    Mail G52 Multicore 2

  • Memory(RAM)

    4GB

  • Storage

    32GB

  • Wi-Fi

    802.11a/b/g/n/ac/ax

  • LAN

    Gigabit LAN

  • Bluetooth

    Bluetooth 5.0

  • OS ver. (Android)

    Android 9

To access more technical documentation and resources, please visit the LG B2B partner portal.
