All-in-one Smart Series
All-in-one Smart Series
LG LED All-in-One Smart Series

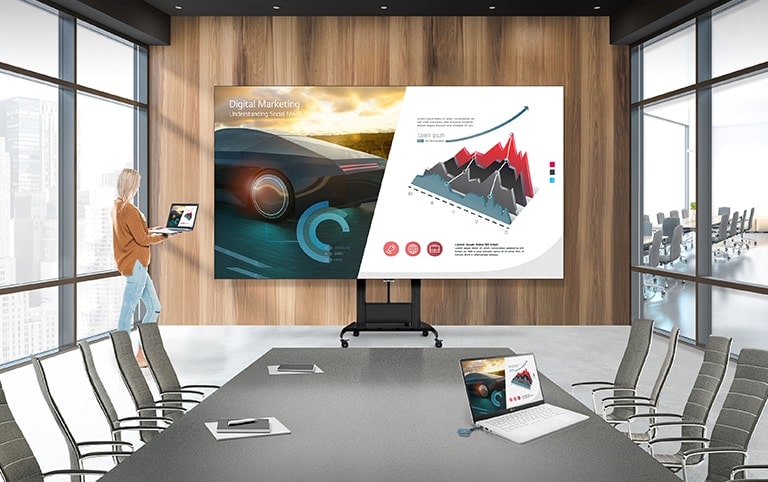

The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share.
*All images in this web page are for illustrative purposes only and may differ from the actual product.
One:Quick Share dongle shown is not included with the product.

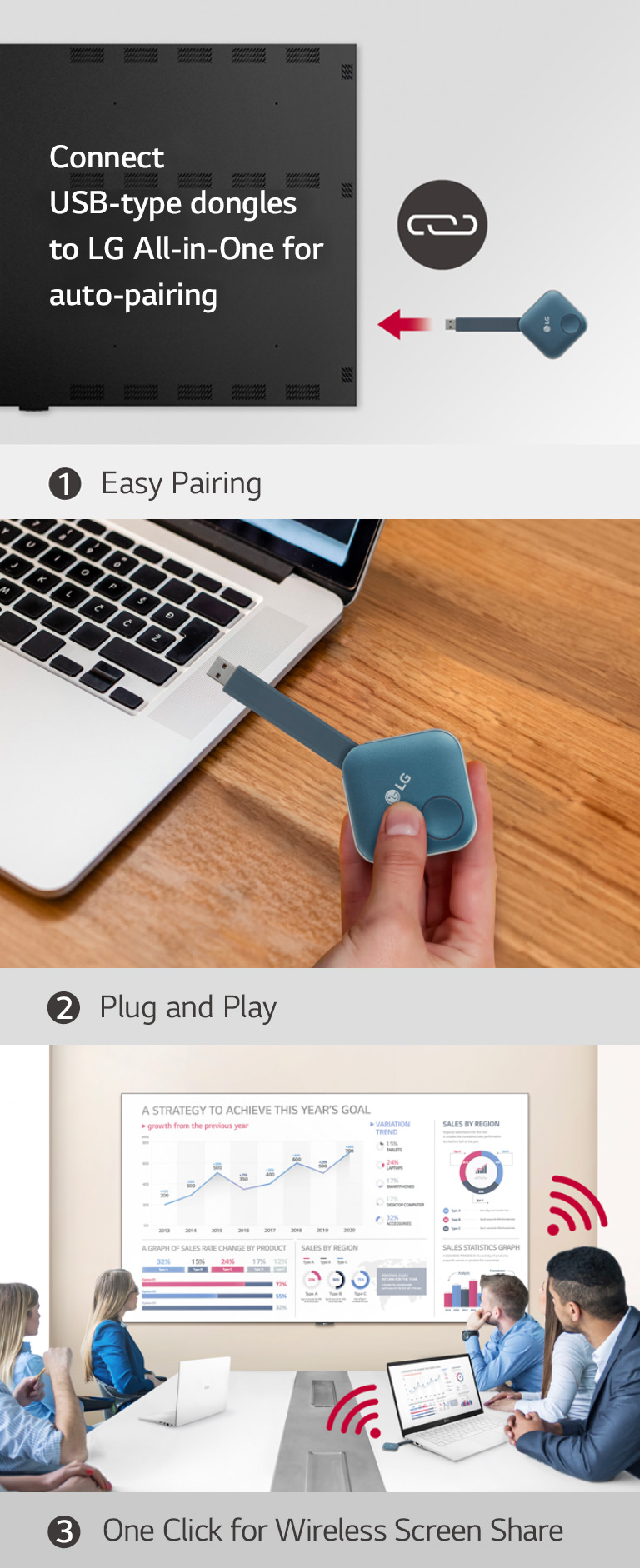

LG’s Wireless Screen Sharing Solution, LG One:Quick Share
This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
^ LG One:Quick Share needs to be purchased separately.

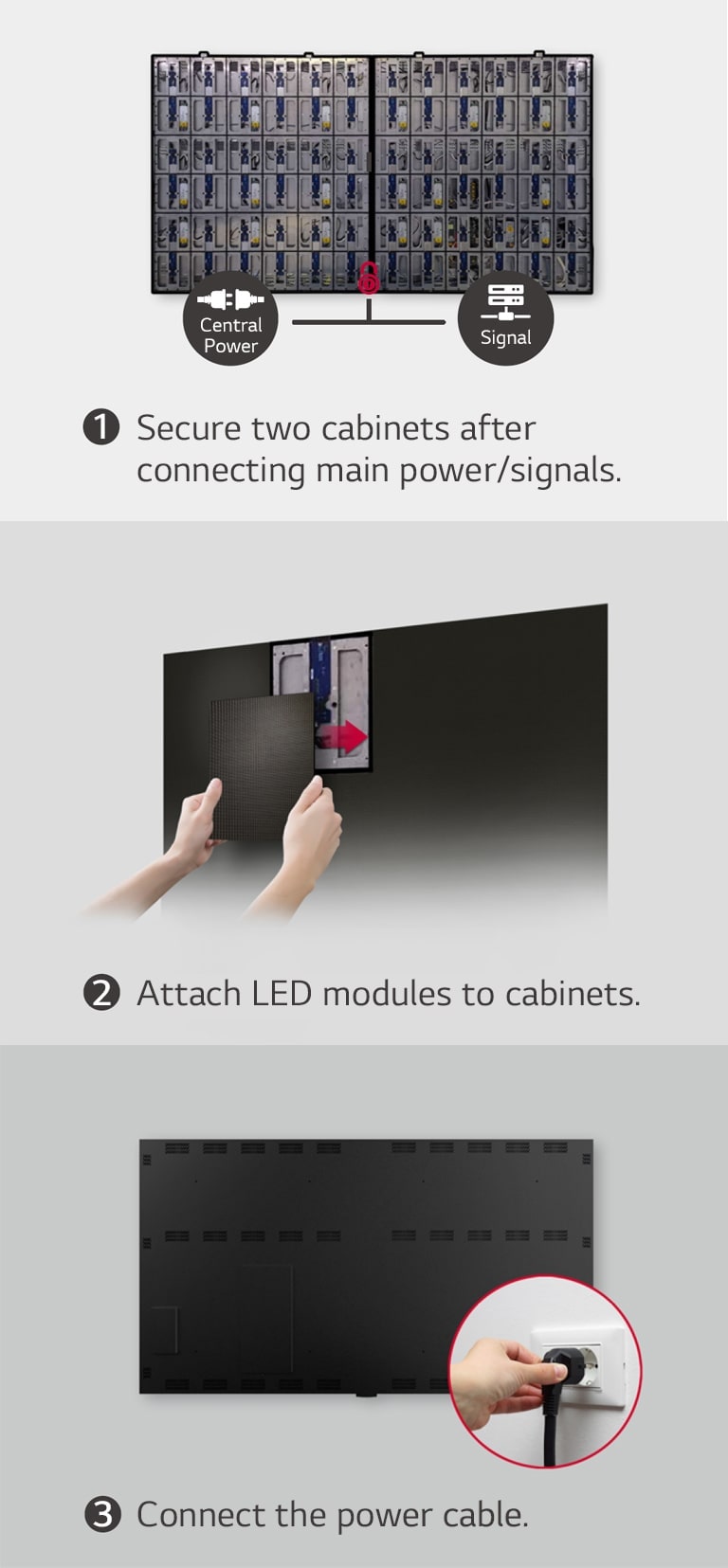

Easy Installation
LG LAEC015 Easy Installation
*Fixing screws or installing wall mount / accessories is needed additionally.

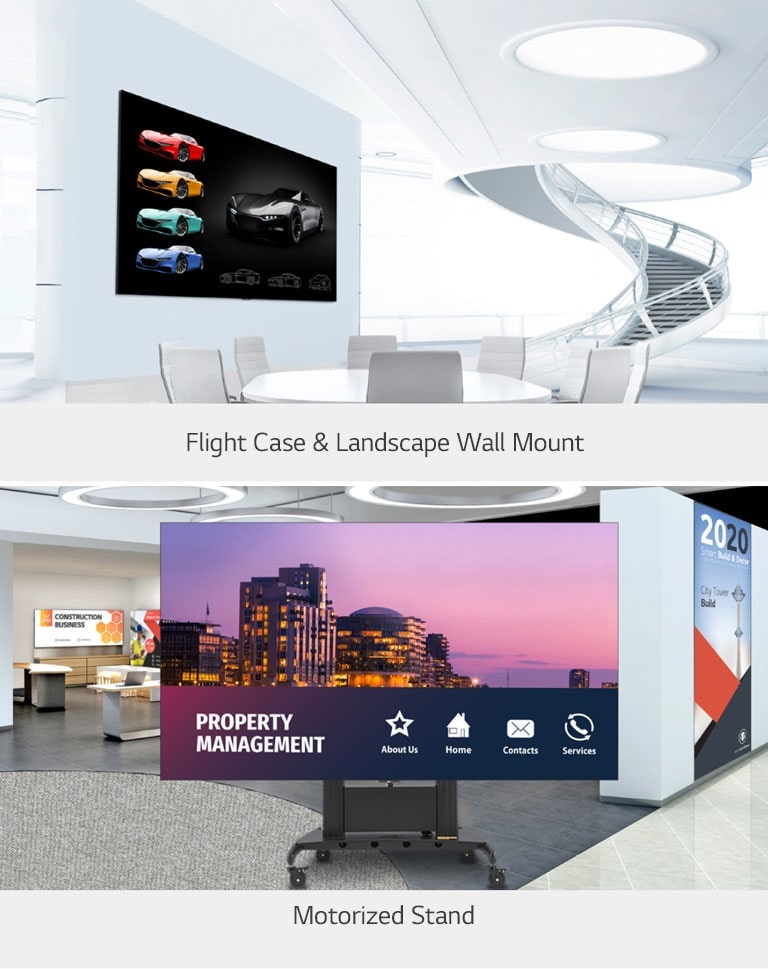

Installation Accessories
LG LAEC015 Dedicated Installation Accessories
*Optional (Available for Purchase Separately).
*The availability of LG ConnectedCare differs by region.
Connected Care service requires separate purchase

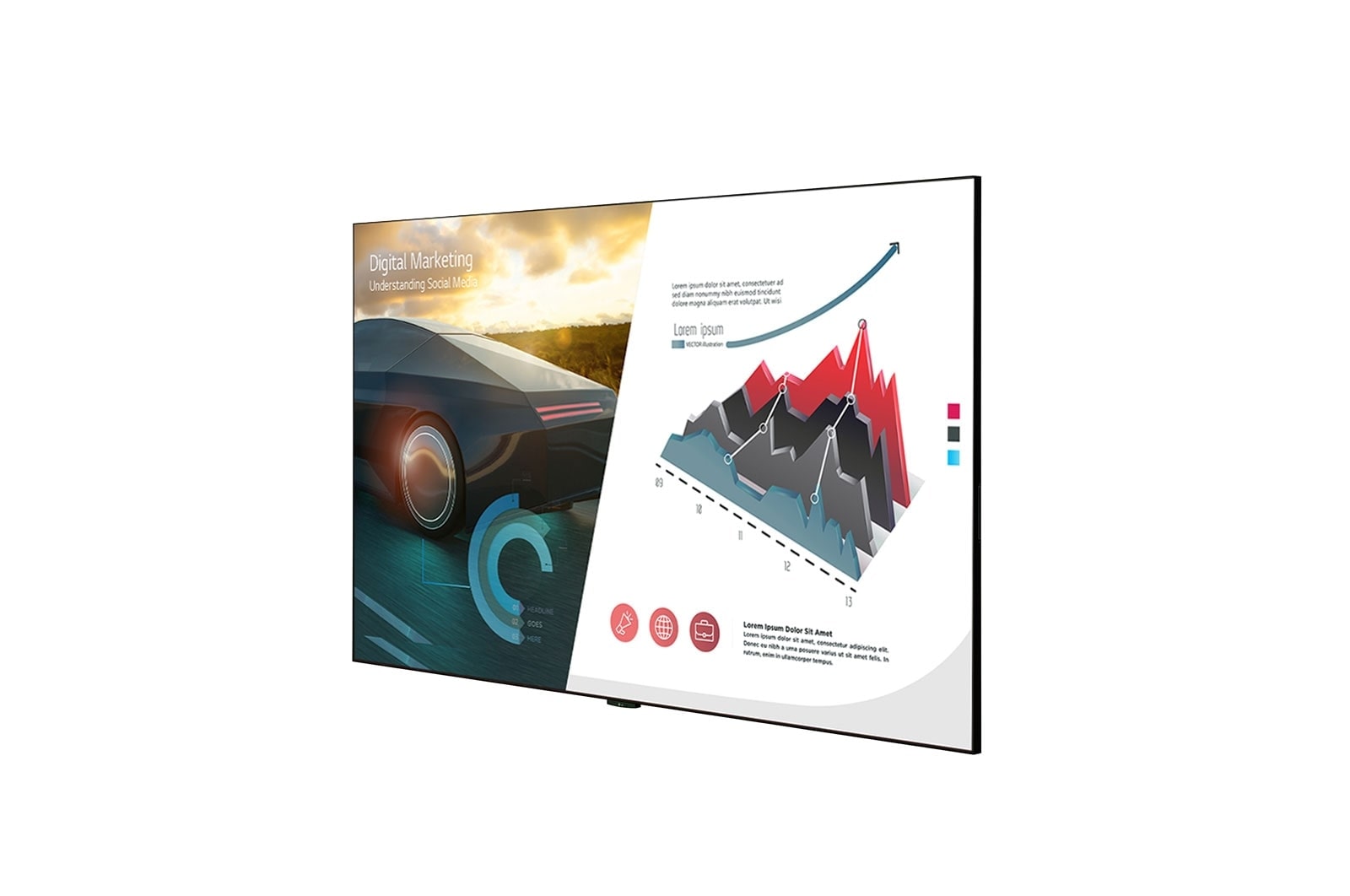

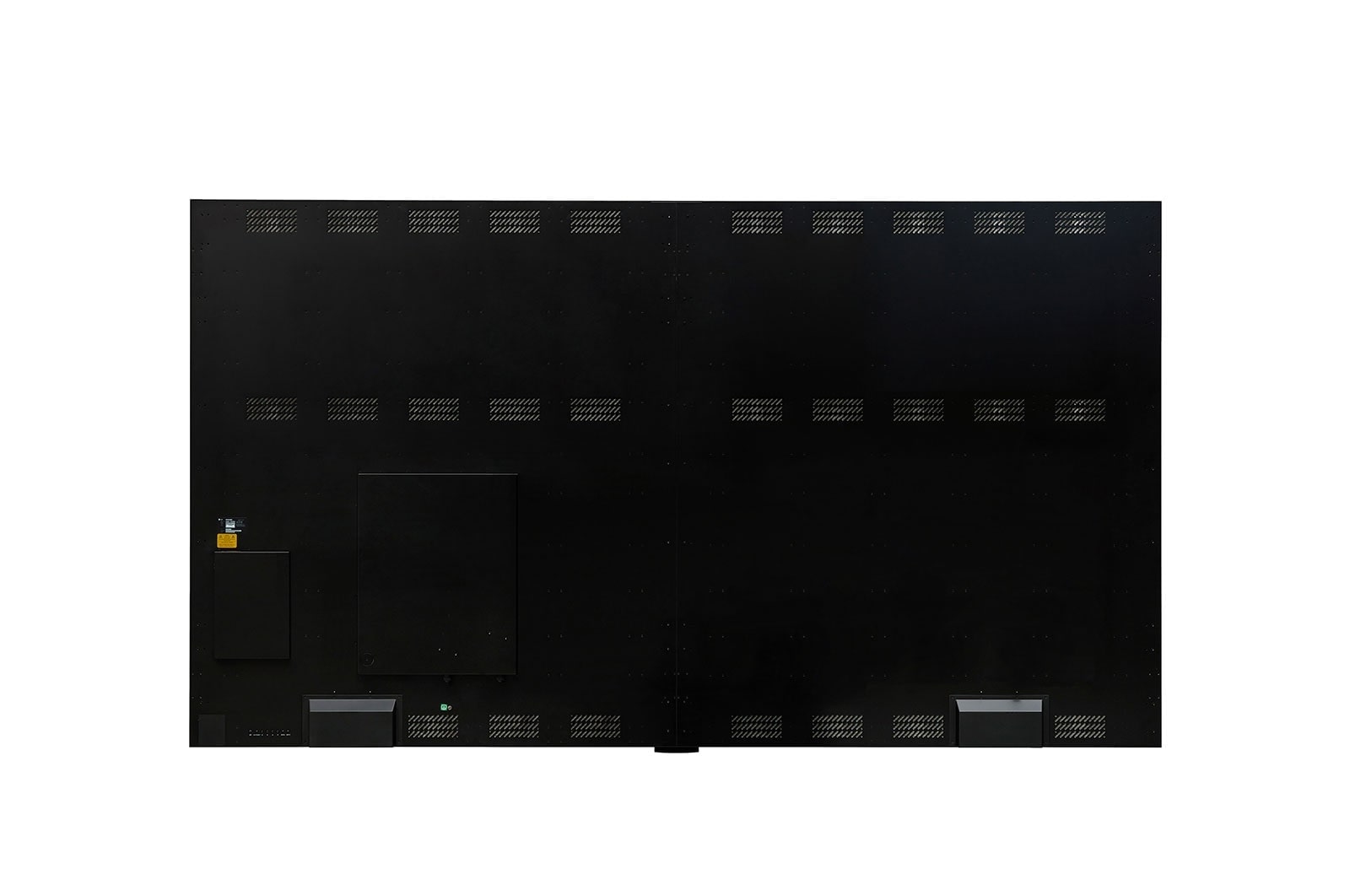

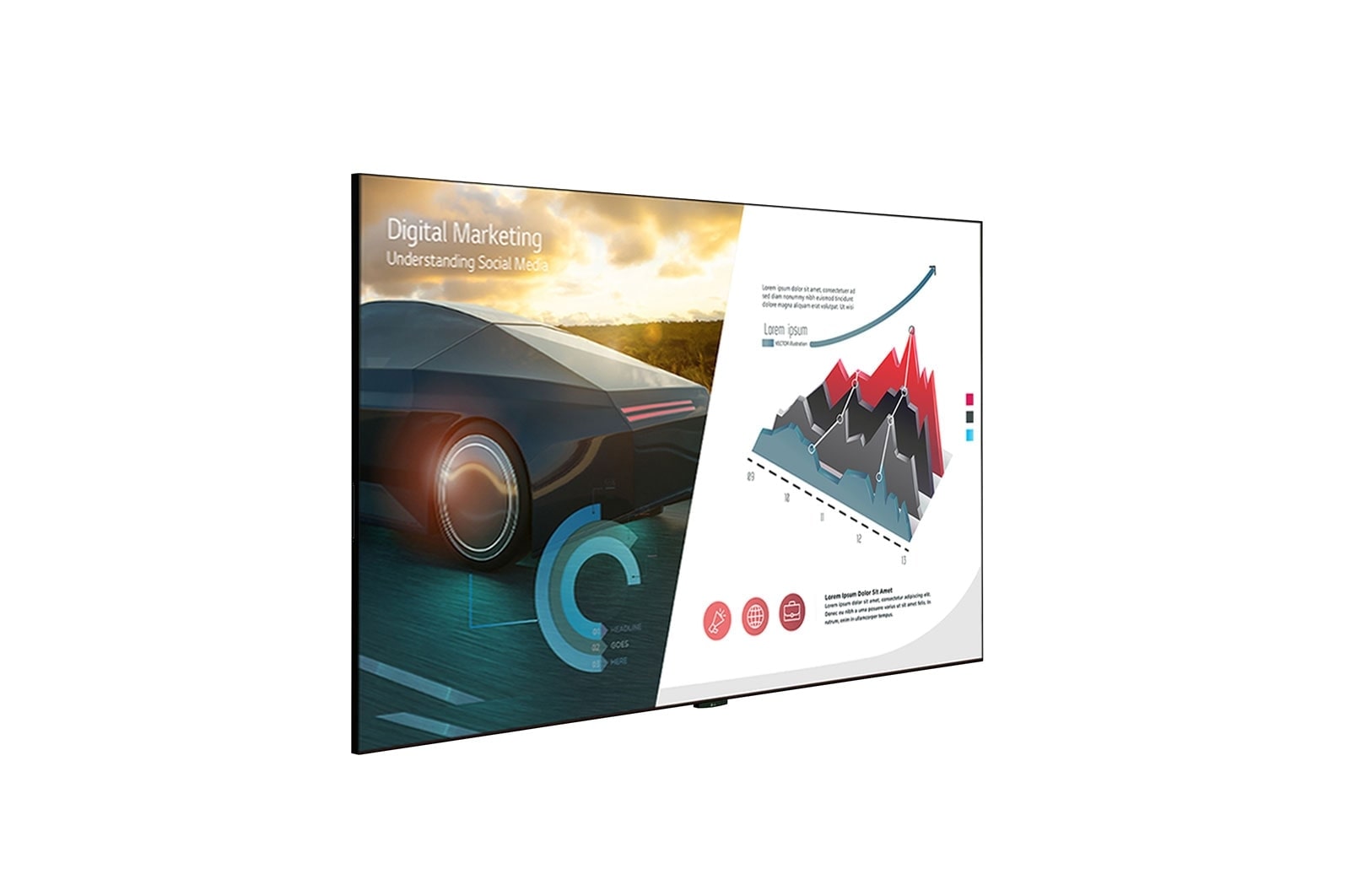

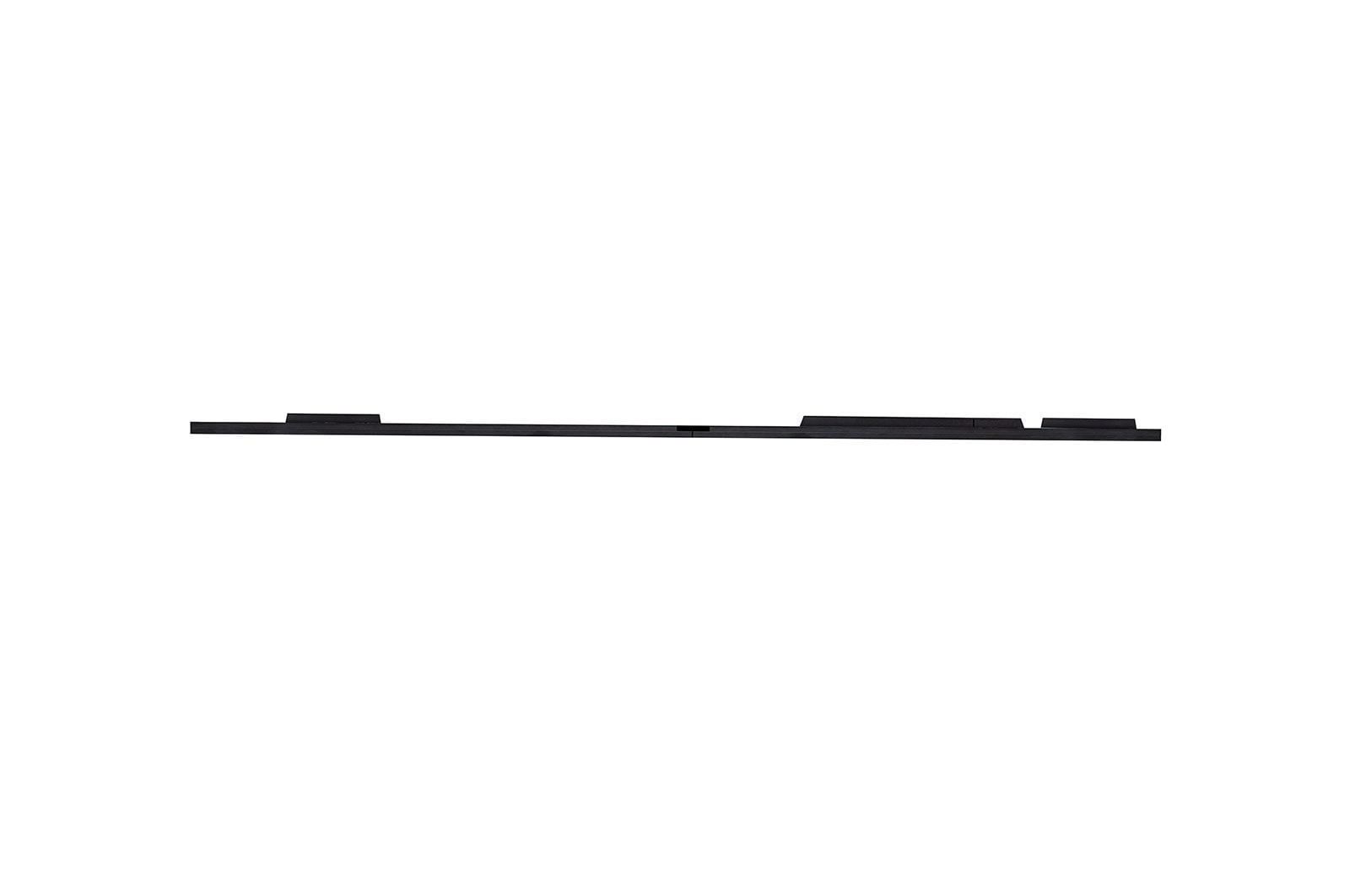

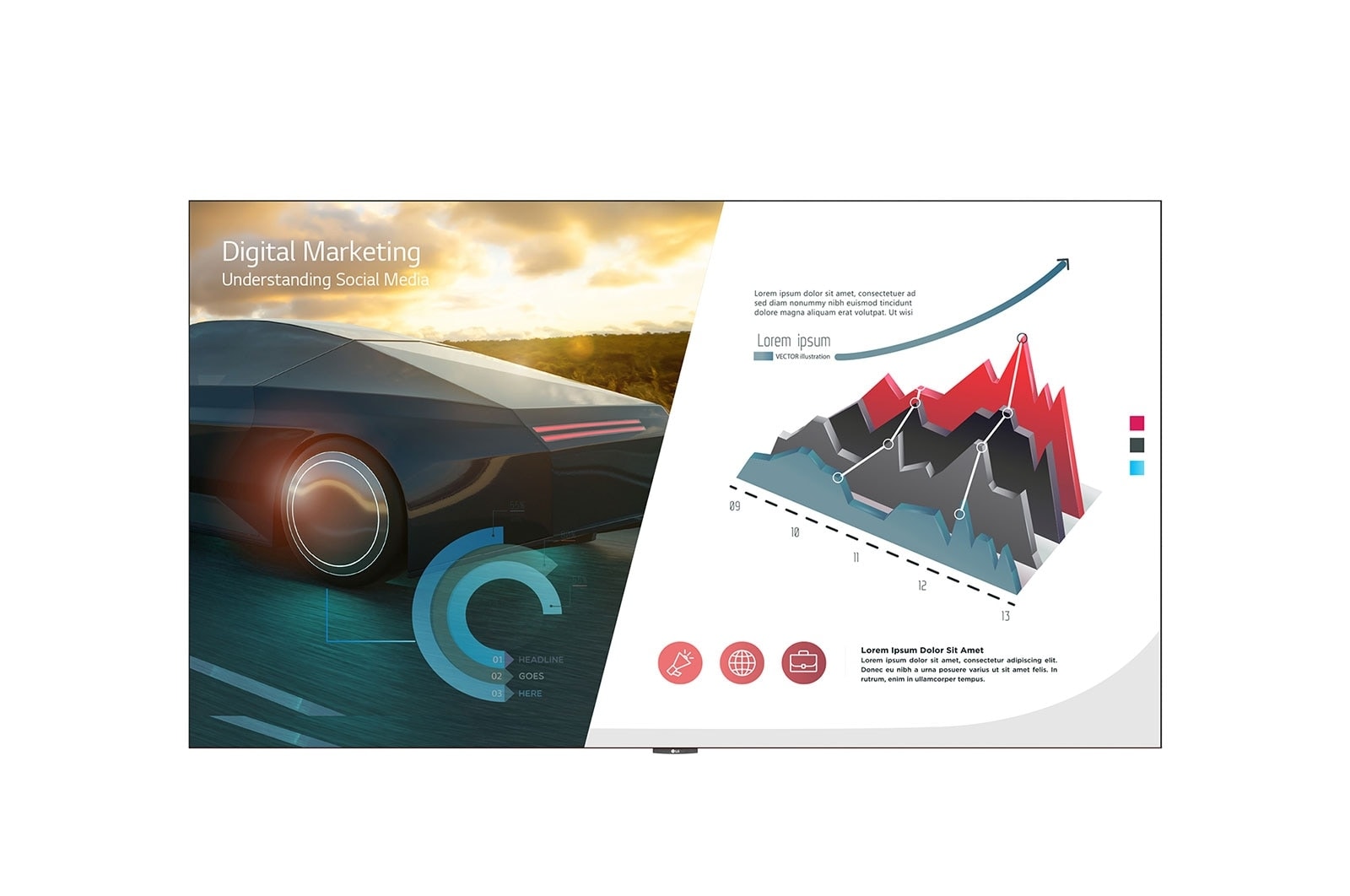

Gallery
All Spec
PHYSICAL PARAMETERS
-
Pixel Configuration
3 in 1 SMD
-
Pixel Pitch (mm)
1.56
-
Screen Resolution
1,920 × 1,080
-
Module Dimensions (W x H, mm)
250 × 281.25
-
No. of Modules per Cabinet (WxH)
12 × 6 (Total 72)
-
Screen Dimensions (W × H × D, mm)
3,004.6 × 1,692.1 × 36.5 (Thickest 70)
-
Screen Surface Area (m²)
5.06
-
Screen Weight (kg)
129
-
Physical Pixel Density (pixels/m² )
409,600
-
Flatness of Cabinet (mm)
±0.2
-
Cabinet Material
Aluminum
-

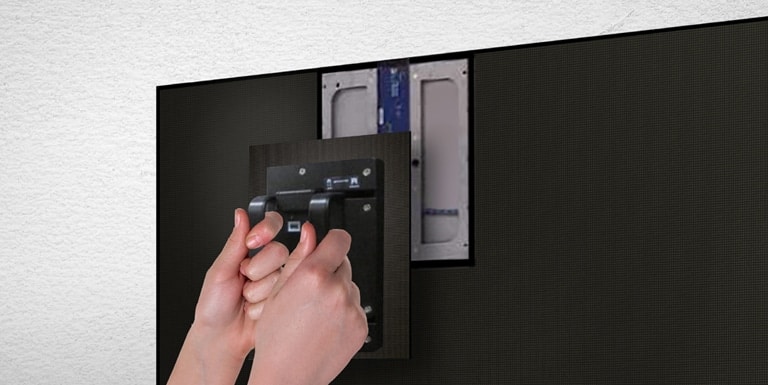

Service Access
Front
OPTICAL SPECIFICATIONS
-
Brightness
500 nit
-
Colour Temperature
3,200 - 9,300
-
Visual Viewing Angle (H × V)
160 x 160
-
Brightness Uniformity
98%
-
Colour Uniformity
±0.015Cx,Cy
-
Contrast Ratio
3,000
-
Processing Depth (bit)
16
KEY FEATURES
-
Key Features
DPM, HDMI CEC, Auto Brightness, PIP/2PBP, On/Off Scheduling, Play via URL, Content Manager, SuperSign CMS , CestronConnected, HDR10/HDR10 Pro, SoftAP, ScreenShare(Miracast), Office Meeting Mode, One:Quick Share, LG ConnectedCare ,Height Adjustable Floor Stand (Sold separately).
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/Screen, Max.)
2,000
-
Power Consumption (W/Screen, Avg.)
800
-
Power Consumption(W/m²) Max
395
-
Power Consumption (BTU/h/Screen, Max.)
6,824
-
Power Consumption (BTU/h/Screen, Avg.)
2,730
-
Power Consumption (BTU/h/m², Max.)
1,348
-
Power Supply (V)
100 to 240
-
Frame Rate (Hz)
50 / 60
-
Refresh Rate (Hz)
≥2,880
OPERATION SPECIFICATIONS
-
Lifetime (Hours to Half Brightness)
100,000
-
Operating Temperature
0°C to +40°C
-
Operating Humidity
<90%RH (without condensation)
SPEAKER
-
Speaker
Built-in (9W + 9W)
CERTIFICATION
-
Certification
CE, FCC, ETL, CB
ENVIRONMENT
-
Environment
RoHS, REACH
CONTROLLER
-
Controller
Embedded LG WebOS Controller
CONNECTIVITY
-
Connectivity
HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, SPDIF
To access more technical documentation and resources, please visit the LG B2B partner portal.
