All-in-one Smart Series
All-in-one Smart Series
LG LED All-in-One Smart Series

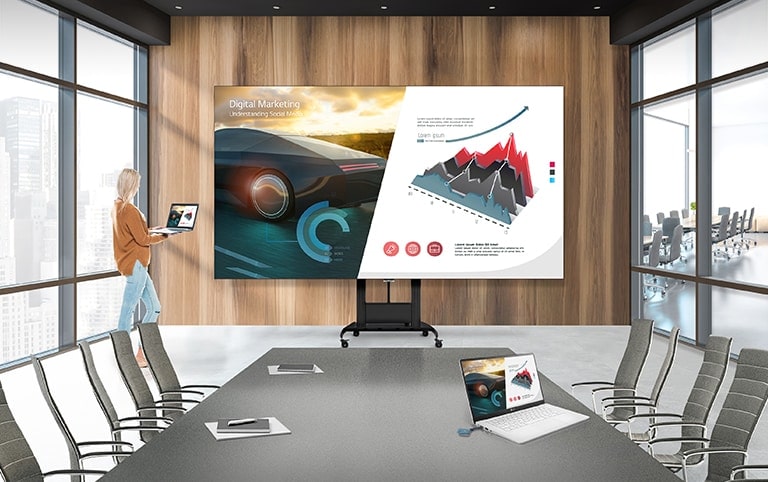

The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share.
* All images in this web page are for illustrative purposes only and may differ from the actual product.
* One:Quick Share dongle shown is not included with the product.
* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.
LG’s Wireless Screen Sharing Solution, LG One:Quick Share

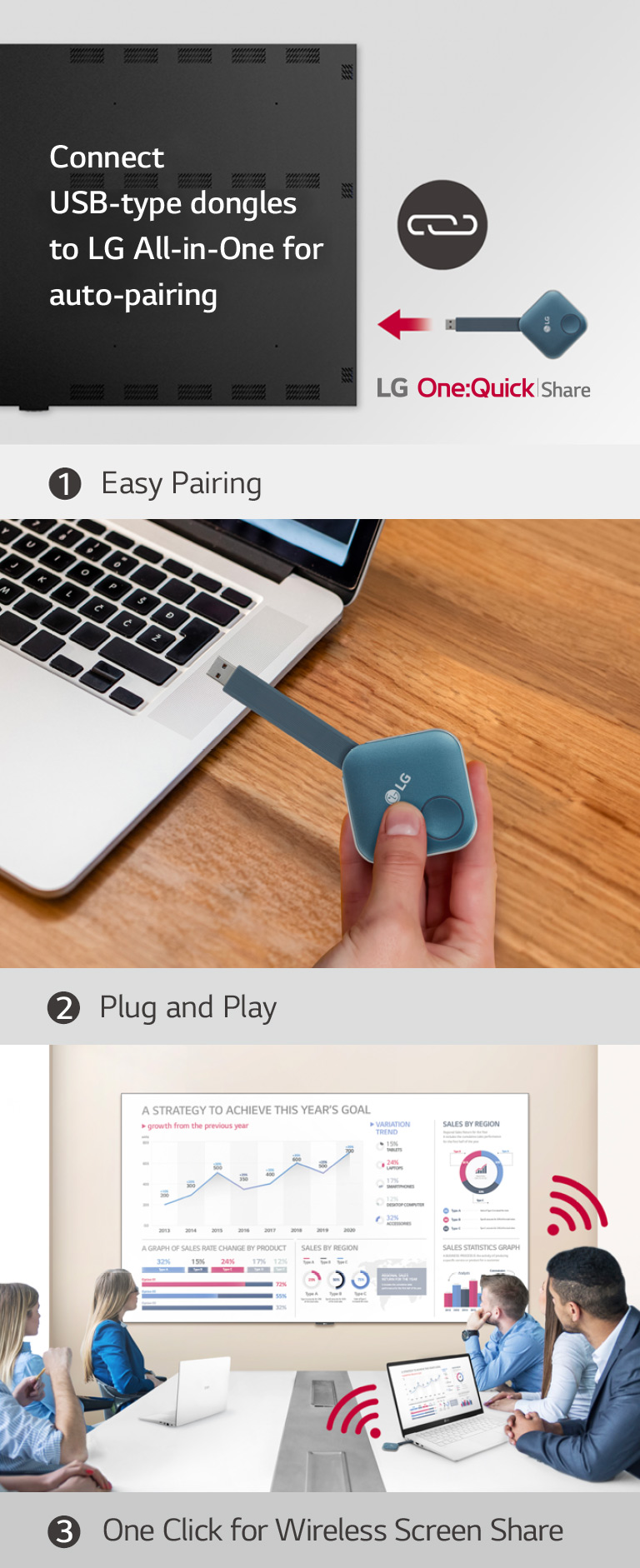

This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.
Easy Installation

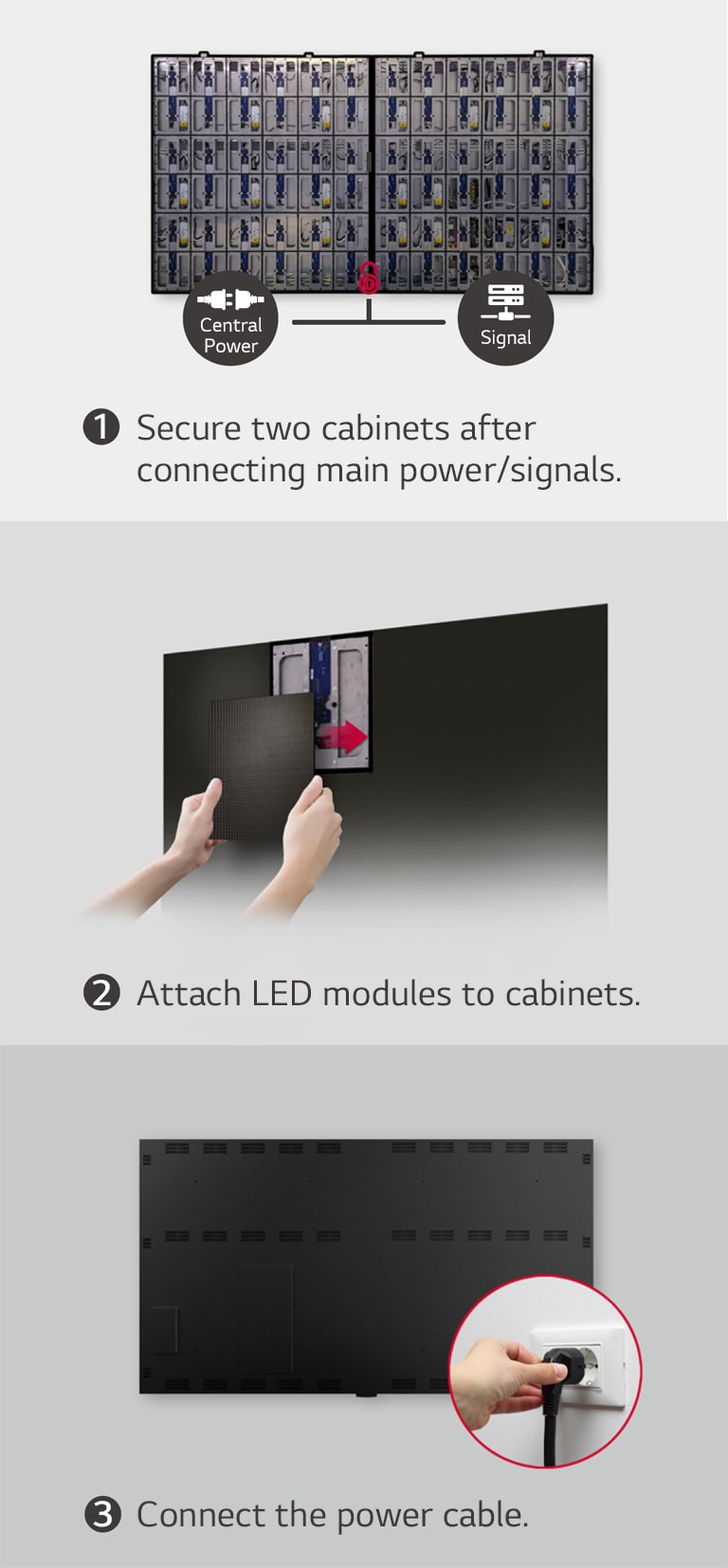

This consists of total 3 steps' images for securing two cabinets, attaching LED modules, and connecting the power cable.
* Fixing screws or installing wall mount / accessories is needed additionally.
Installation Accessories

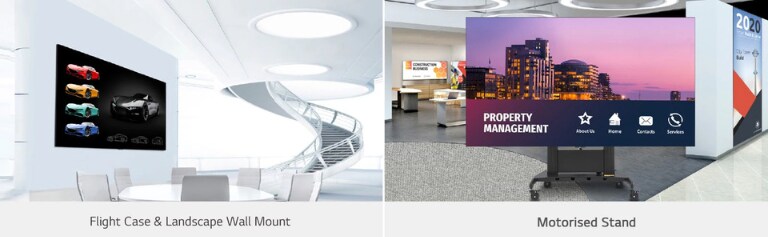

The LAEC installed on the wall of high-rise space with wall mounted. The LAEC’s have been installed along with the motorized stand in an event hall.
*Optional Motorised Stand available for Purchase Separately.

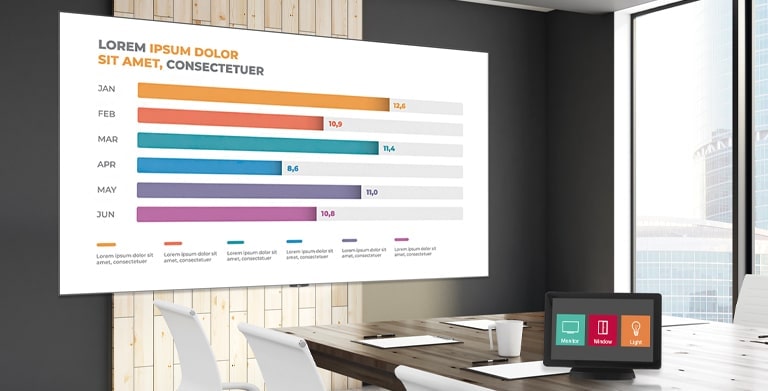

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control

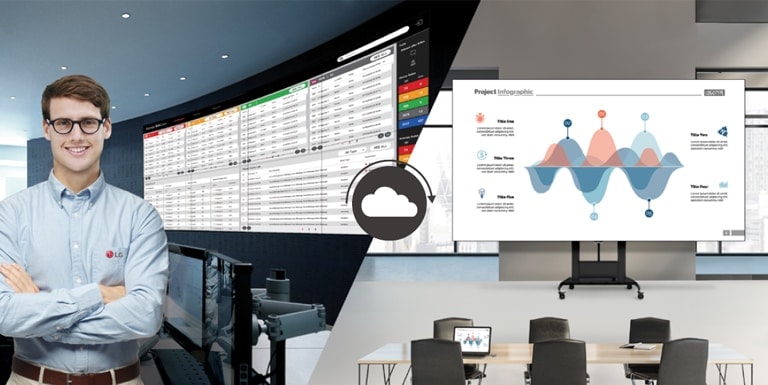

*LG ConnectedCare' needs to purchase separately.
Gallery
All Spec
INFORMATION
-
Model name

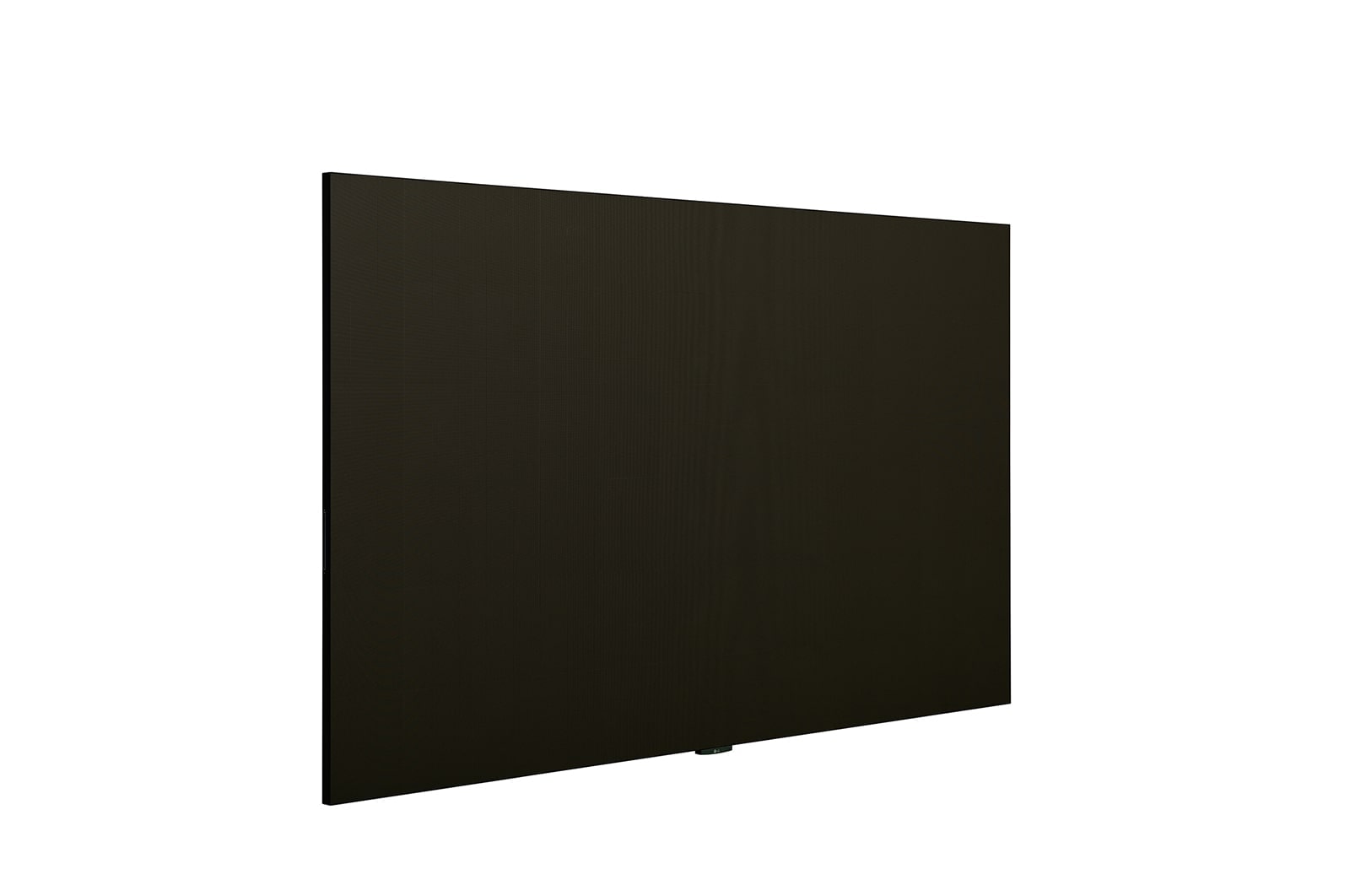

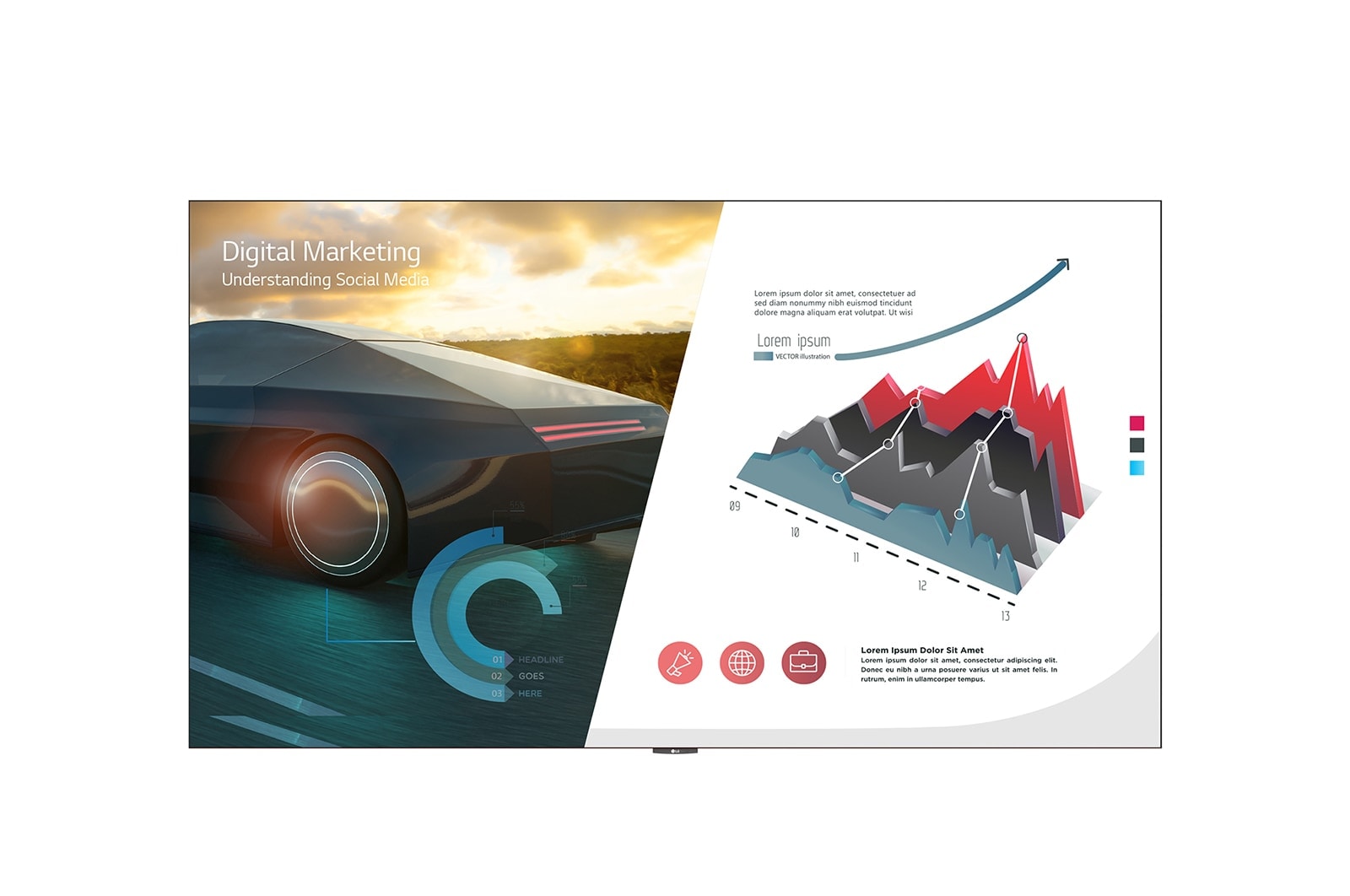

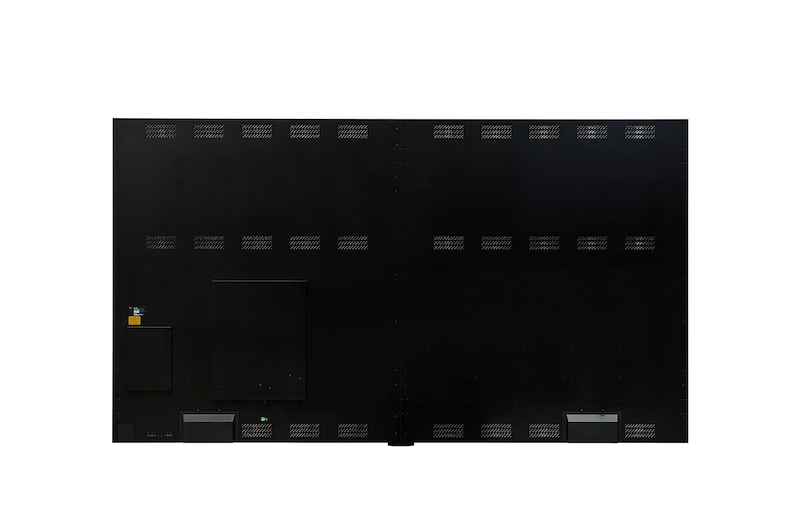

LAEC015-GN2
PHYSICAL PARAMETERS
-
Pixel Configuration
Single SMD
-
Pixel Pitch (mm)
1.56
-
Module Dimensions(WxH,mm)
250x281.25
-
Physical Pixel Density (pixels/㎡)
409,600
-
Flatness of Cabinet (mm)
±0.2
-
Cabinet material
Aluminum
-
Service access
Front
-
No. of Modules per Screen (WxH)
12x6 (Total 72)
-
Screen Resolution (WxH)
1,920x1,080
-
Screen Dimensions (W x H x D, mm, including bezel)
3,004x1,692x36.5 (Thickest 70)
-
Screen Surface Area (㎡)
5.06
-
Weight of the screen
132
OPTICAL SPECIFICATIONS
-
Max Brightness (After Calibration, nit)
500
-
Visual Viewing Angle (Horizontal)
160
-
Visual Viewing Angle (Vertical)
160
-
Brightness Uniformity
0.98
-
Color Uniformity
±0.015Cx,Cy
-
Contrast Ratio
3,000:1
-
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
-
Color Temperature
3,200~9,300
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/㎡, Max.)
336
-
Heat Dissipation (BTU/h/㎡, Max.)
1,146
-
Power Supply (V)
100 to 240
-
Frame Rate (Hz)
50 / 60
-
Refresh Rate (Hz)
3,960
-
Power Consumption (W/Screen, Max.)
1,700
-
Power Consumption (W/Screen, Avg.)
680
-
Heat Dissipation (BTU/h/Screen, Max.)
5,800
-
Heat Dissipation (BTU/h/Screen, Avg.)
2,321
OPERATION SPECIFICATIONS
-
Operating Temperature(℃)
0℃ to +40℃
-
Operating Humidity
10~90%RH
-
IP rating Front
IP30
-
IP rating Rear
IP20
-
LED Lifetime (Half brightness)
100,000
STANDARD
-
Certification
CE,FCC,ETL,CB,CE-RED
ENVIRONMENT
-
Environment
RoHS, REACH
CONTROLLER
-
Controller
Embedded(webOS)
SPEAKER
-
Speaker

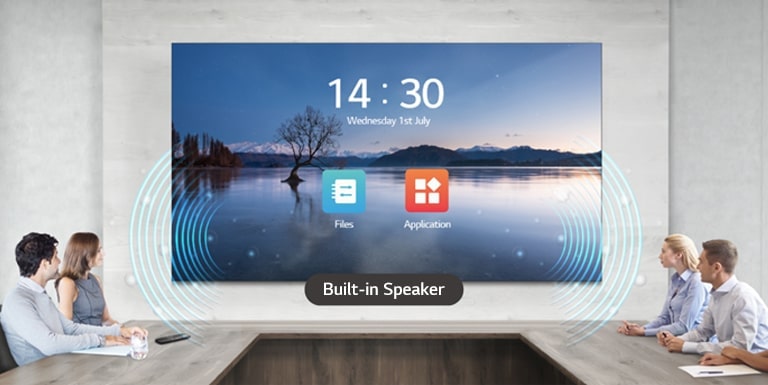

Built-in(9W+9W)
I/O PORT
-
I/O Port
HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Optical Digital Audio Out
To access more technical documentation and resources, please visit the LG B2B partner portal.
