All Spec
INFORMATION
-
Model name
-

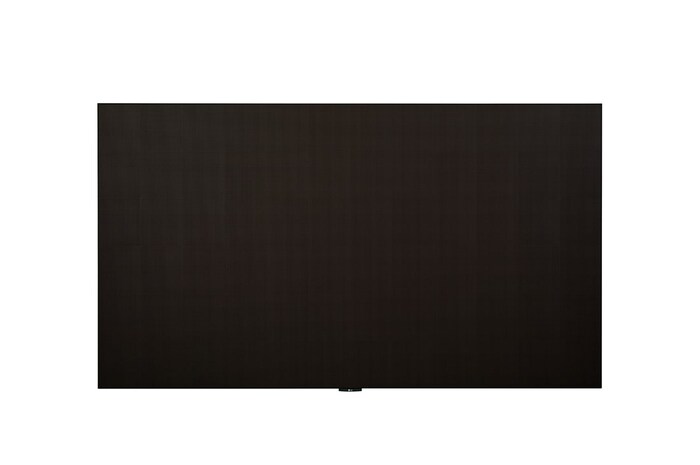

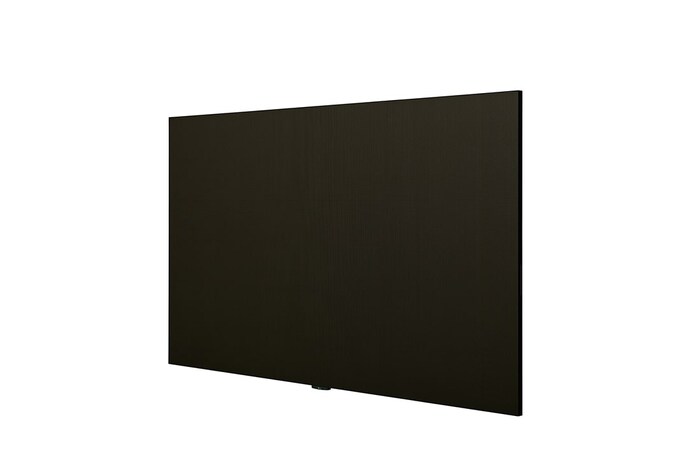

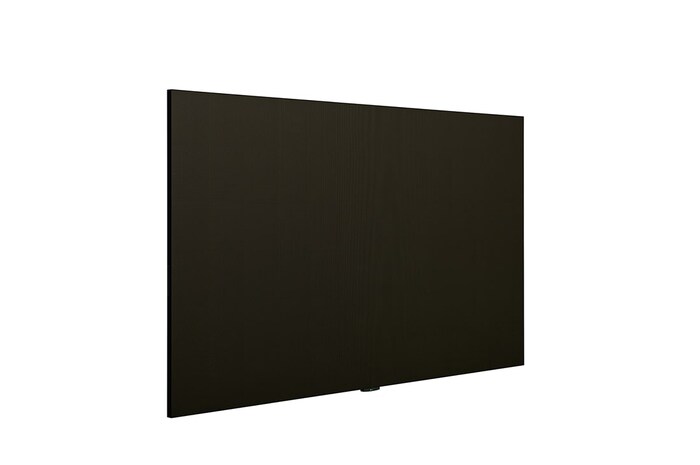

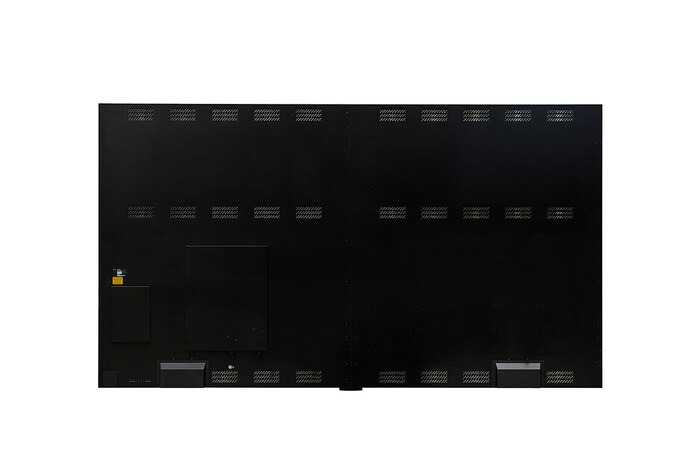

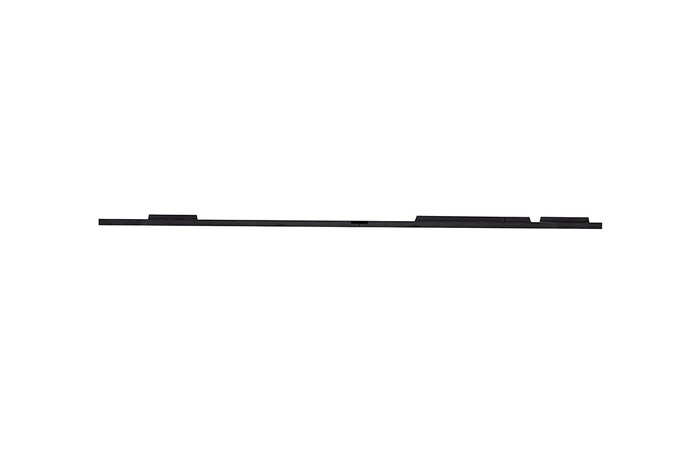

LAEC015-GN2
PHYSICAL PARAMETERS
-
Pixel Configuration
-
Single SMD
-
Pixel Pitch (mm)
-
1.56
-
Module Dimensions(WxH,mm)
-
250x281.25
-
Physical Pixel Density (pixels/㎡)
-
409,600
-
Flatness of Cabinet (mm)
-
±0.2
-
Cabinet material
-
Aluminum
-
Service access
-
Front
-
No. of Modules per Screen (WxH)
-
12x6 (Total 72)
-
Screen Resolution (WxH)
-
1,920x1,080
-
Screen Dimensions (W x H x D, mm, including bezel)
-
3,004x1,692x36.5 (Thickest 70)
-
Screen Surface Area (㎡)
-
5.06
-
Weight of the screen
-
132
OPTICAL SPECIFICATIONS
-
Max Brightness (After Calibration, nit)
-
500
-
Visual Viewing Angle (Horizontal)
-
160
-
Visual Viewing Angle (Vertical)
-
160
-
Brightness Uniformity
-
0.98
-
Color Uniformity
-
±0.015Cx,Cy
-
Contrast Ratio
-
3,000:1
-
Processing Depth (bit)
-
16 (HDR10, HDR10 Pro)
-
Color Temperature
-
3,200~9,300
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/㎡, Max.)
-
336
-
Heat Dissipation (BTU/h/㎡, Max.)
-
1,146
-
Power Supply (V)
-
100 to 240
-
Frame Rate (Hz)
-
50 / 60
-
Refresh Rate (Hz)
-
3,960
-
Power Consumption (W/Screen, Max.)
-
1,700
-
Power Consumption (W/Screen, Avg.)
-
680
-
Heat Dissipation (BTU/h/Screen, Max.)
-
5,800
-
Heat Dissipation (BTU/h/Screen, Avg.)
-
2,321
OPERATION SPECIFICATIONS
-
Operating Temperature(℃)
-
0℃ to +40℃
-
Operating Humidity
-
10~90%RH
-
IP rating Front
-
IP30
-
IP rating Rear
-
IP20
-
LED Lifetime (Half brightness)
-
100,000
STANDARD
-
Certification
-
CE,FCC,ETL,CB,CE-RED
ENVIRONMENT
-
Environment
-
RoHS, REACH
CONTROLLER
-
Controller
-
Embedded(webOS)
SPEAKER
-
Speaker
-
Built-in(9W+9W)
I/O PORT
-
I/O Port
-
HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Optical Digital Audio Out
