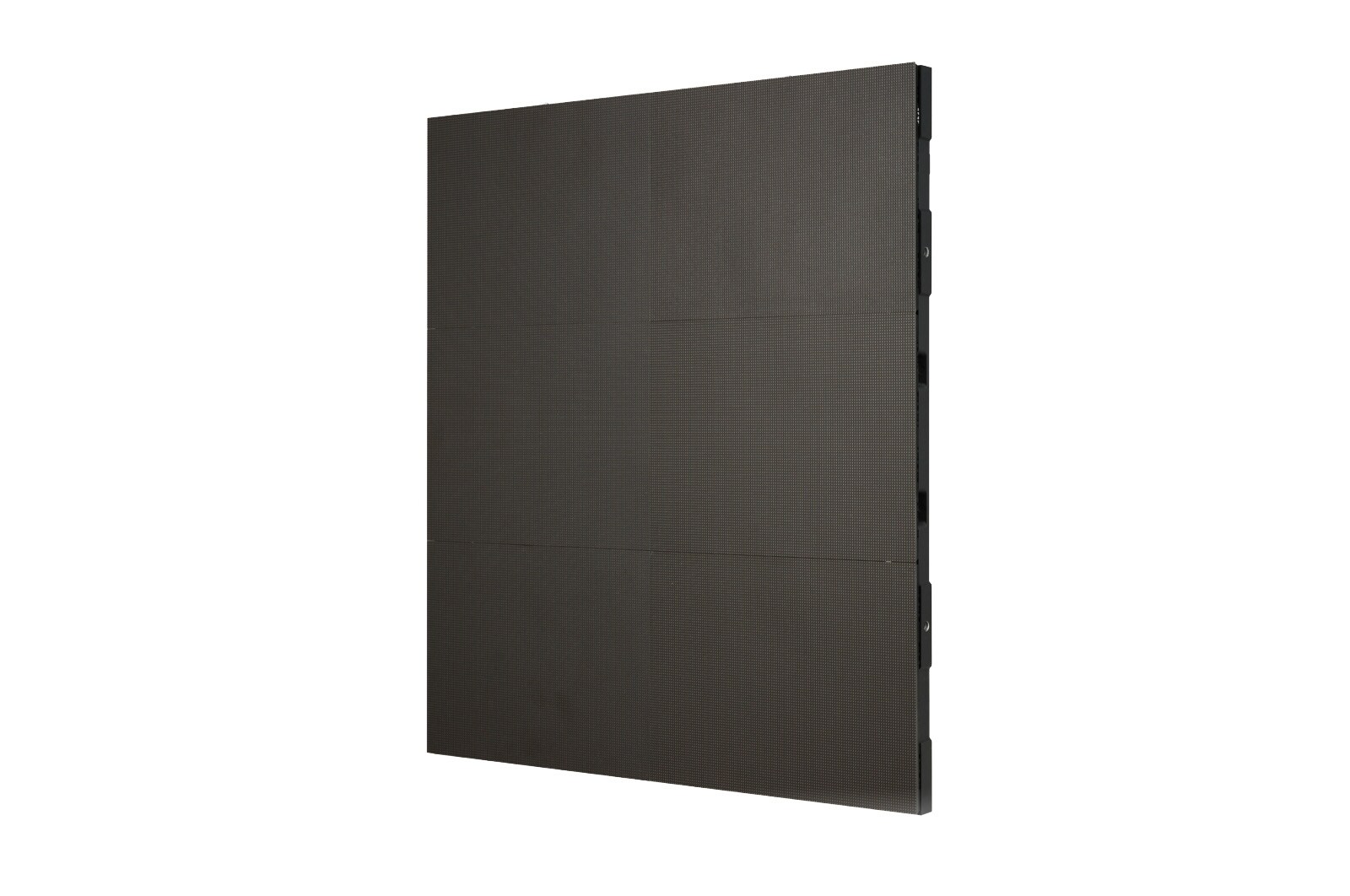

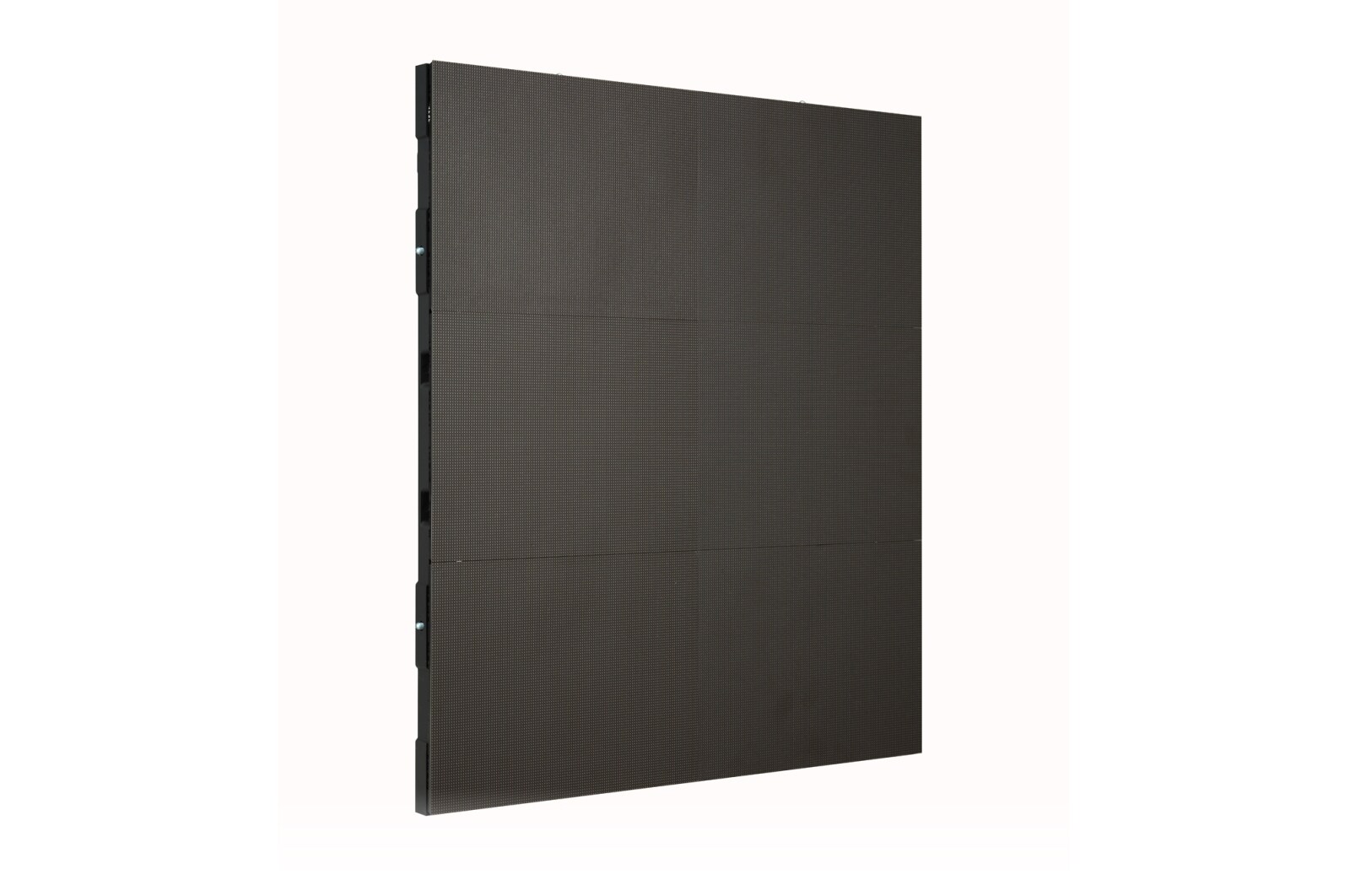

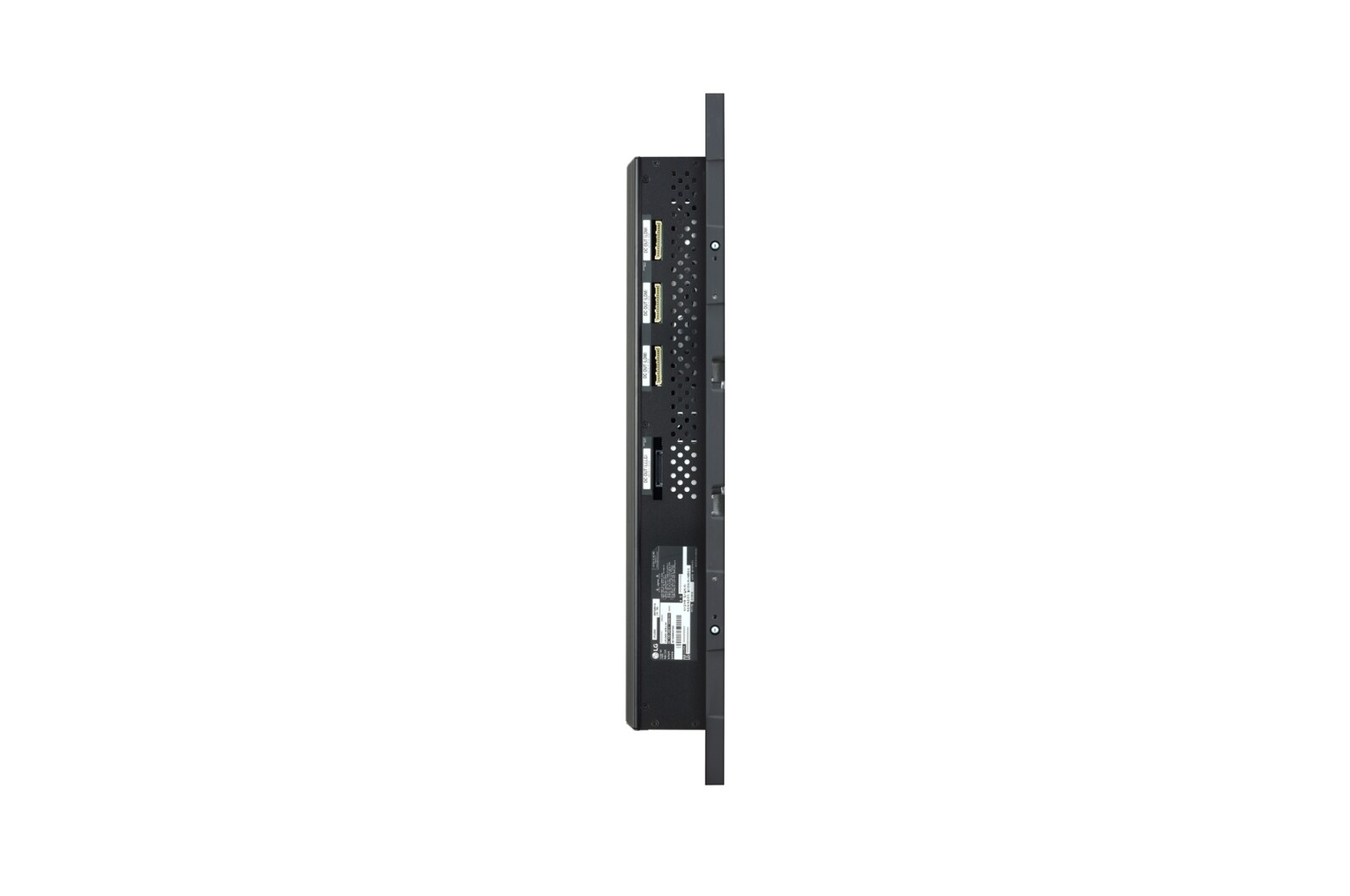

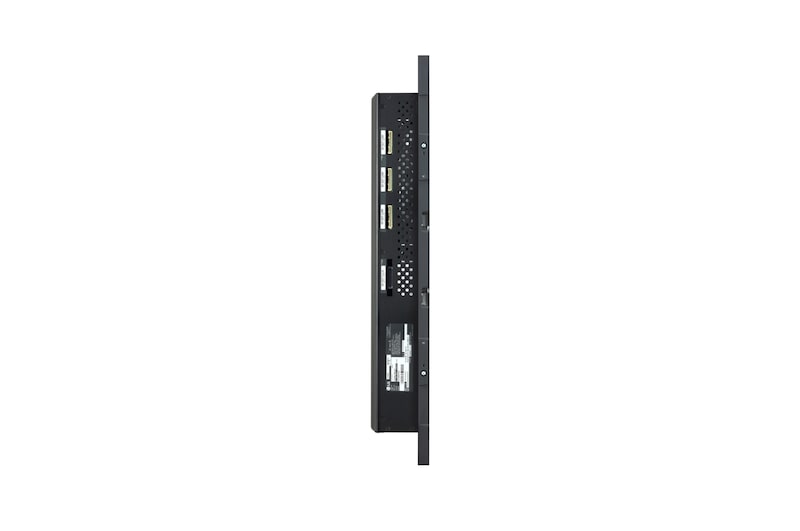

P2.0 700nit LG LED Curve Series for Indoor
*Indicated depth is for LDM + Unit frame + Power Gender
*Images dramatised for illustrative purposes only.
*Images dramatised for illustrative purposes only.
*Images dramatised for illustrative purposes only.
*Images dramatised for illustrative purposes only.
*The "Conventional" shown above refers to LED displays which do not support the signal redundancy mode.
*The "Conventional" shown above refers to LED displays that don't have an all-in-one system controller
*Additional charges apply
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
2.00 mm
Module Resolution (W × H)
120 x 90

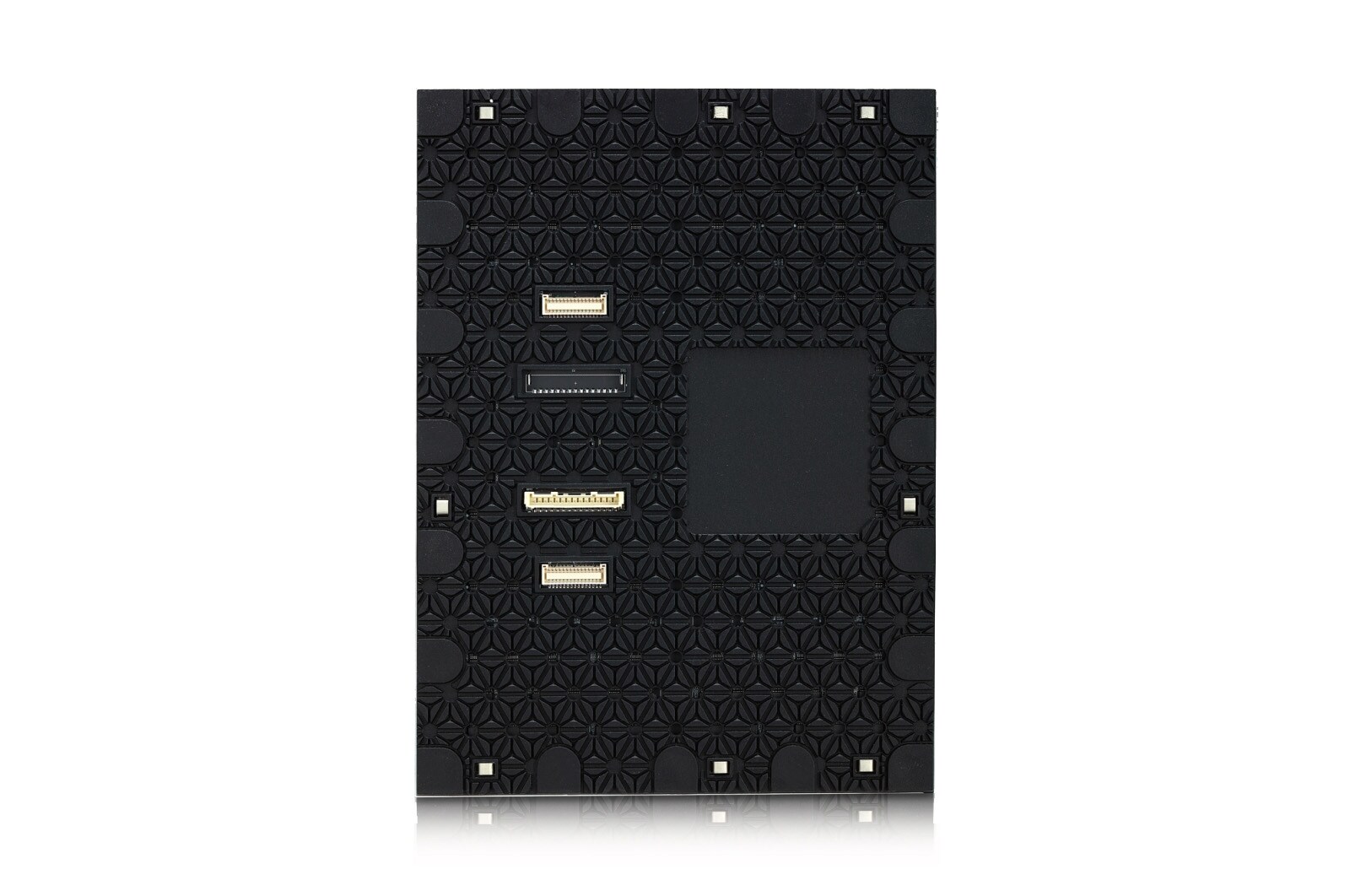

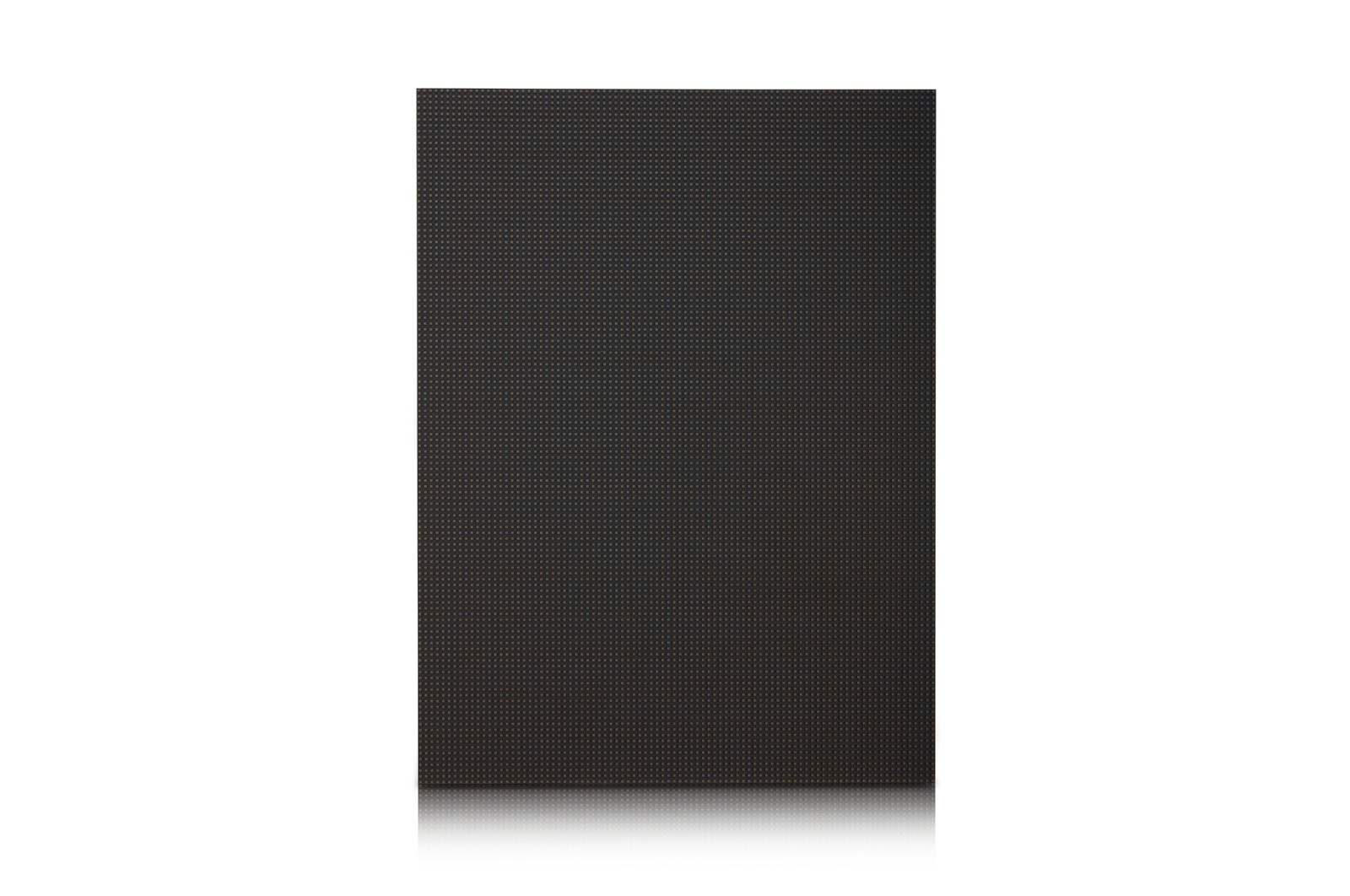

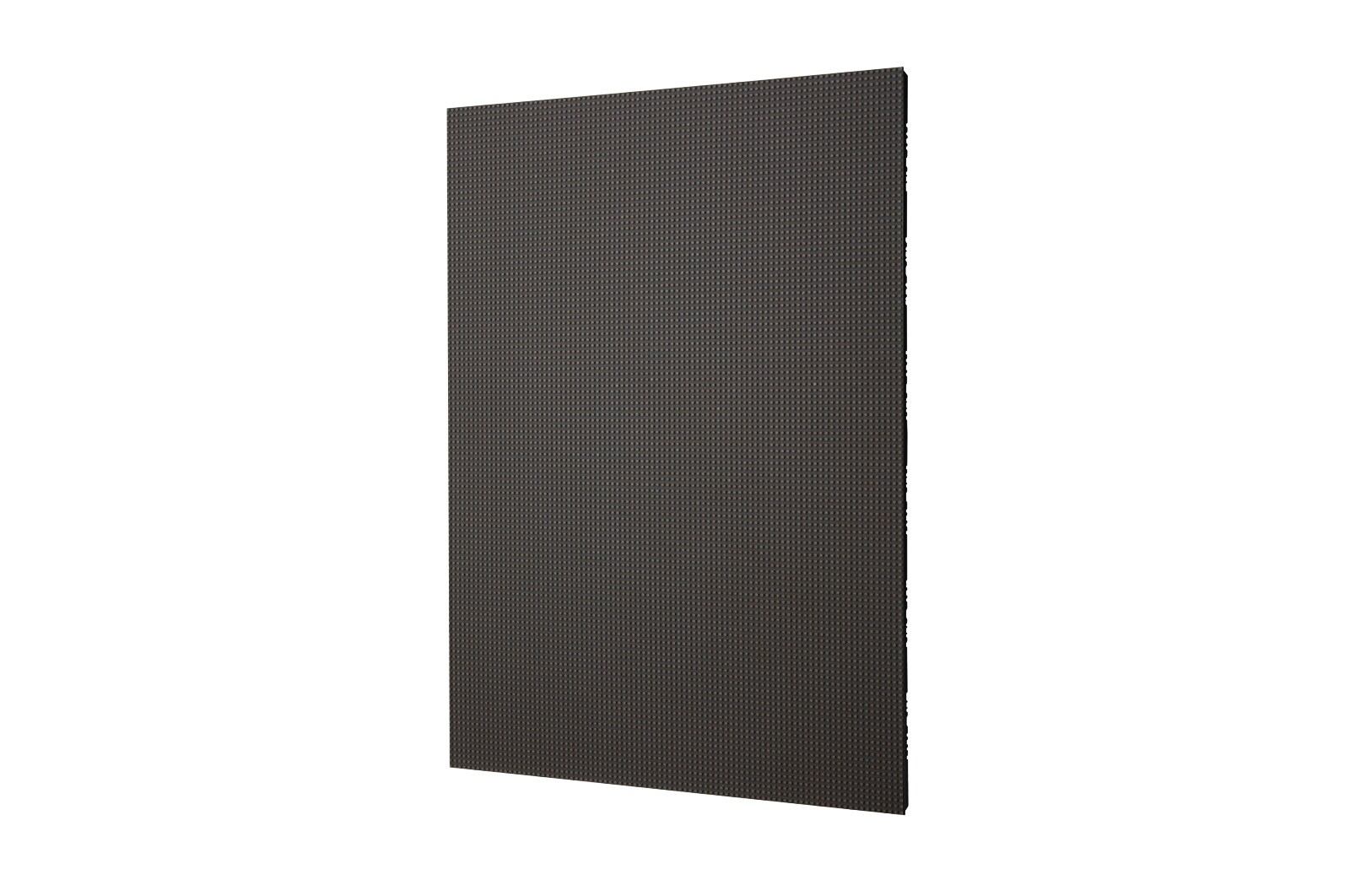

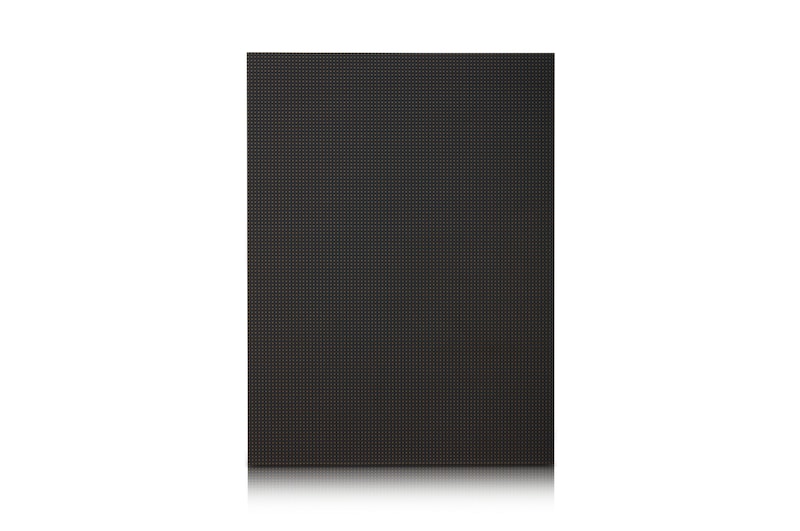

Module Dimensions(W × H, mm)
240 x 180 x 40 mm
Weight per Module (kg)
0.33

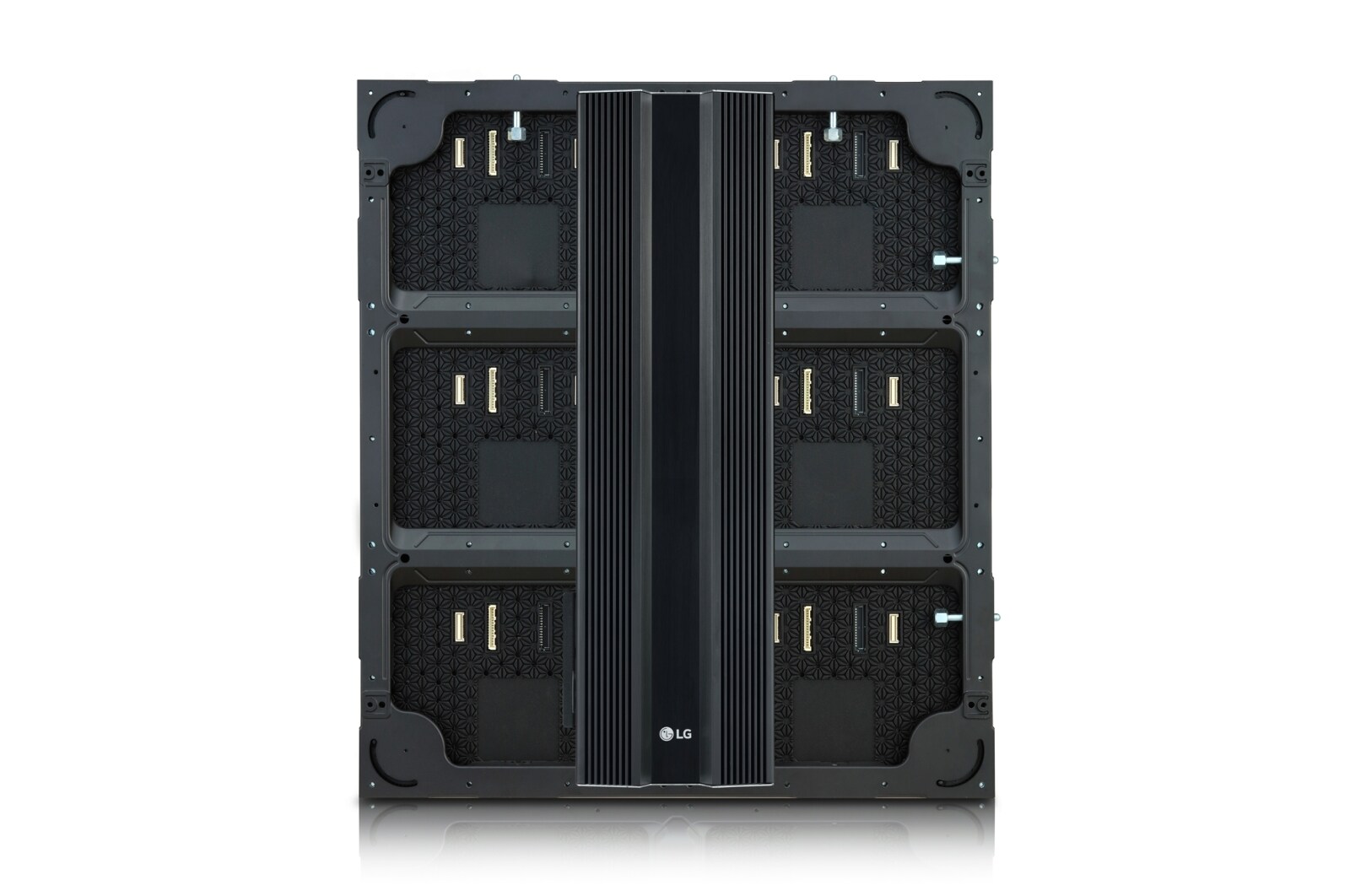

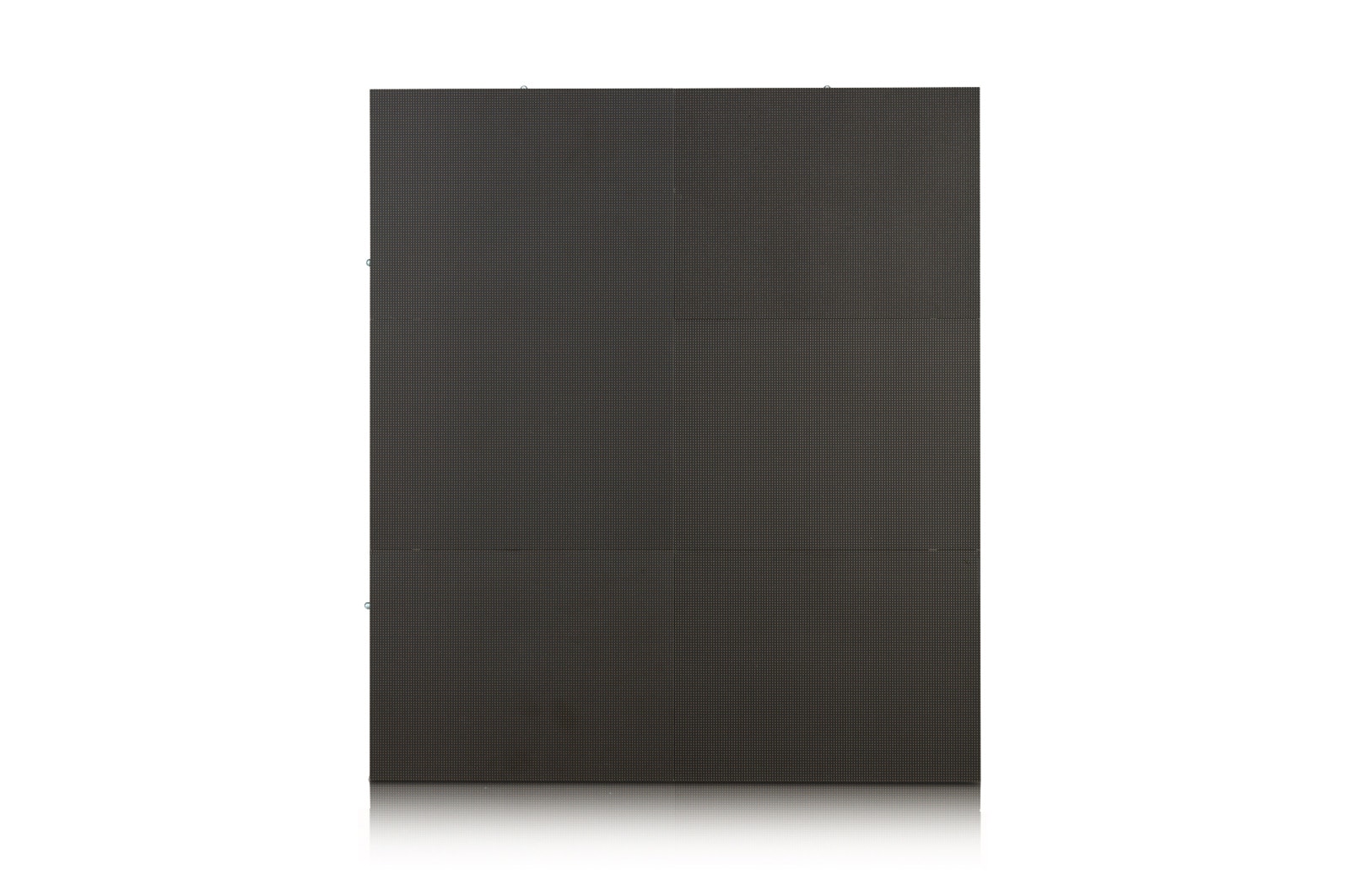

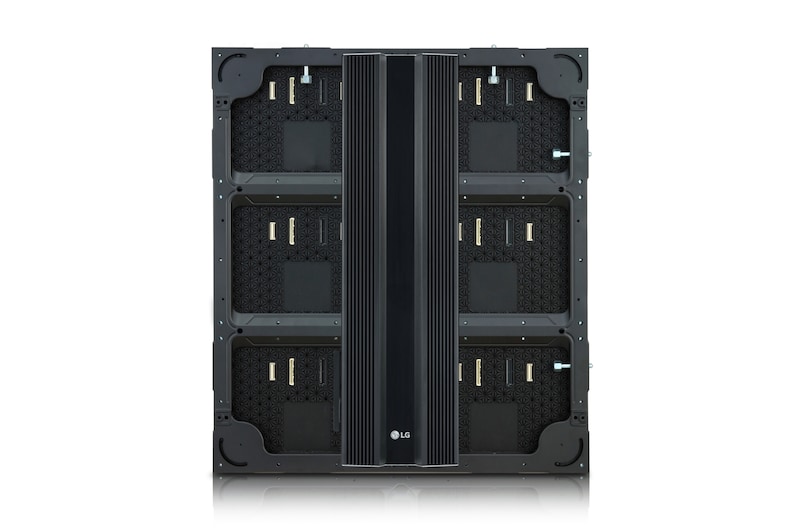

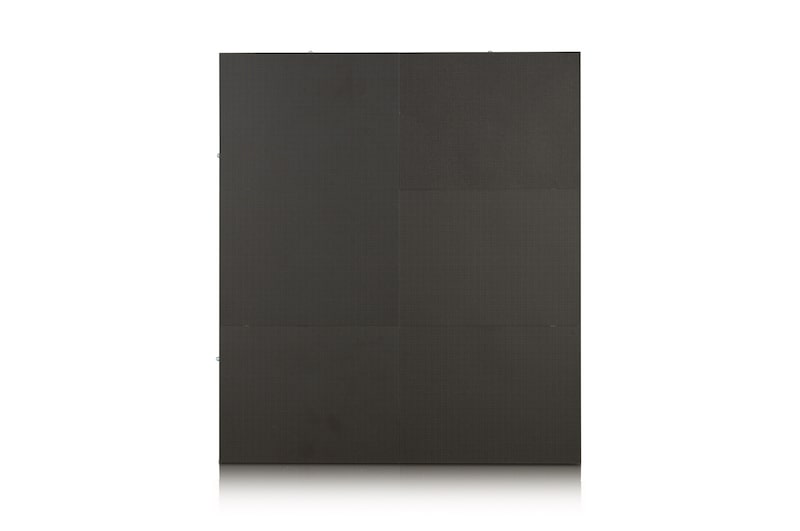

No. of Modules per Unit Case (W × H)
2 x 3
Unit Case Resolution (W × H)
240 x 270

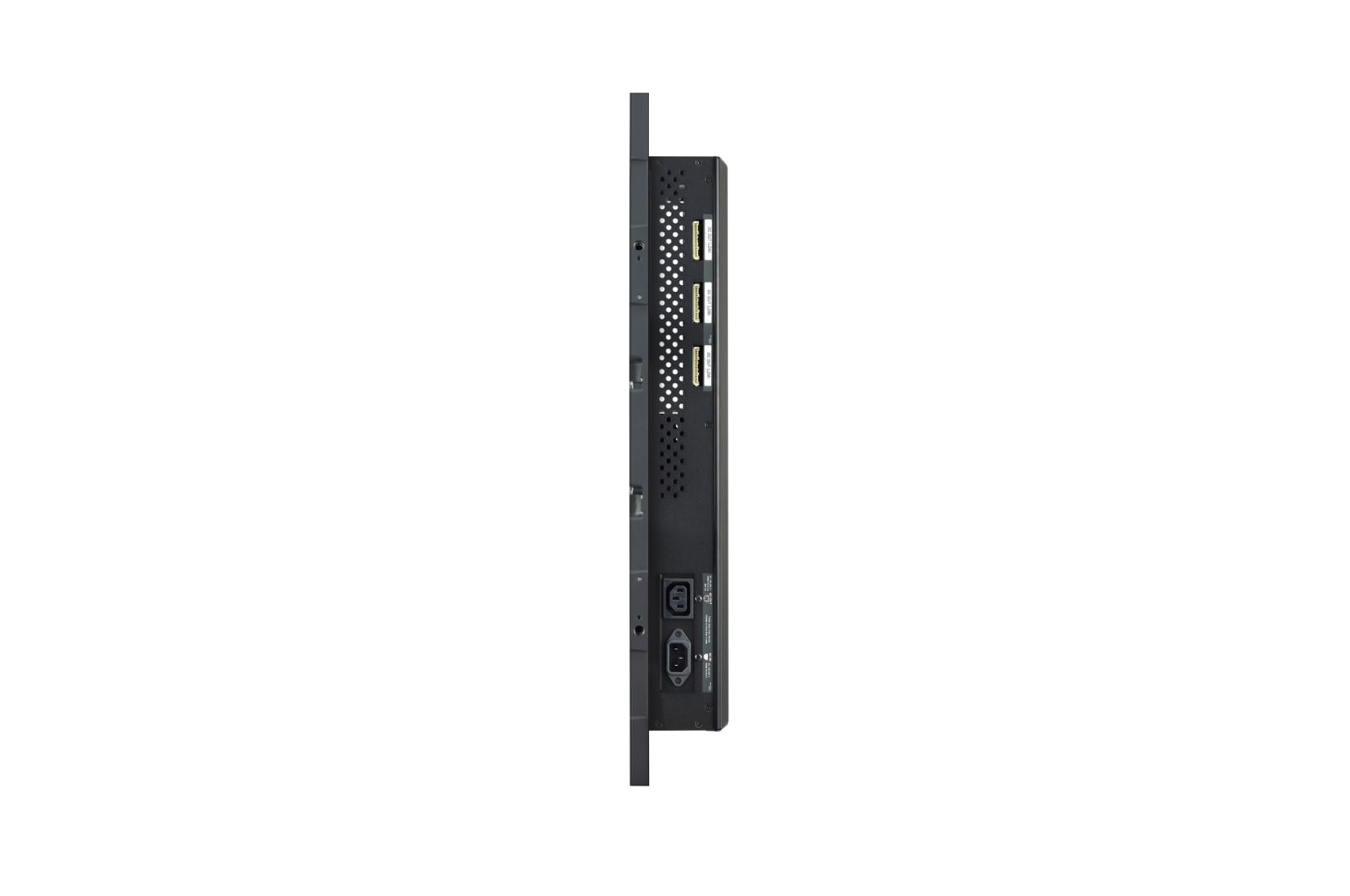

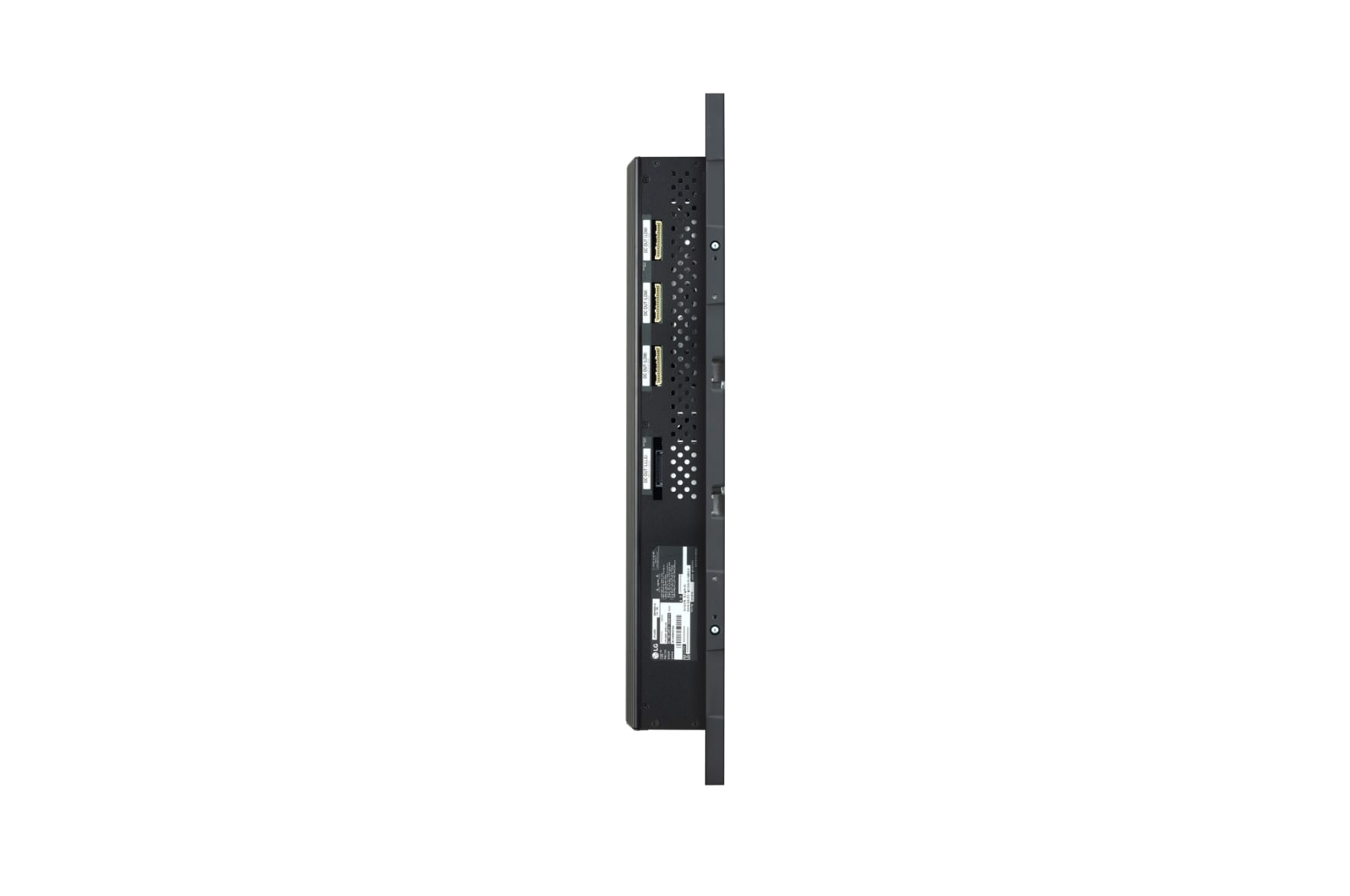

Unit Case Dimensions (W × H × D, mm)
480 x 540 x 105mm2)
Unit Case Surface Area (m²)
0.26 m²
Weight per Unit Case (kg/unit)
9.3 kg2)
Weight per Square Meter (kg/m²)
35.9 kg2)
Physical Pixel Density (pixels/m²)
250,000 pixels/m²
Flatness of Unit Case (mm)
±0.2
Unit Case material
Die Casting Aluminium
Service Access
Front / Rear
Min. Brightness (After Calibration)
700cd/m²
Colour Temperature
3,200 - 9,300
Visual Viewing Angle (Horizontal)
160°
Visual Viewing Angle (Vertical)
140°
Brightness Uniformity
95%
Colour Uniformity
±0.015Cx, Cy
Contrast Ratio
6,000:1
Processing Depth (bit)
16
Power Consumption (W/Unit, Avg.)
250W
Power Consumption (W/Unit, Max.)
125W
Power Consumption (W/㎡, Max.)
965W
Power Supply (V)
100 to 240V
Frame Rate (Hz)
50 / 60 Hz
Refresh Rate (Hz)
3840 Hz
Lifetime (Half Brightness, hrs) 2)
100,000 Hrs
Operating Temperature (°C)
0°C to 40°C
Operating Humidity
10% to 80% RH
EMC
AS/NZS CISPR32,RCM(Class A)
Environment
RoHS
Controller
LCLG003
Video Inputs
HDMI In, DP In, OPS In, USB
Control
RJ45 In, RS232C In/out
Special Features
Temperature Sensor, Power Detection,
Optional Accessory
ACC-LAPPC06(DC PSU Cable 6m),
ACC-LAPPC60(DC PSU Cable 60m)
To access more technical documentation and resources, please visit the LG B2B partner portal.
