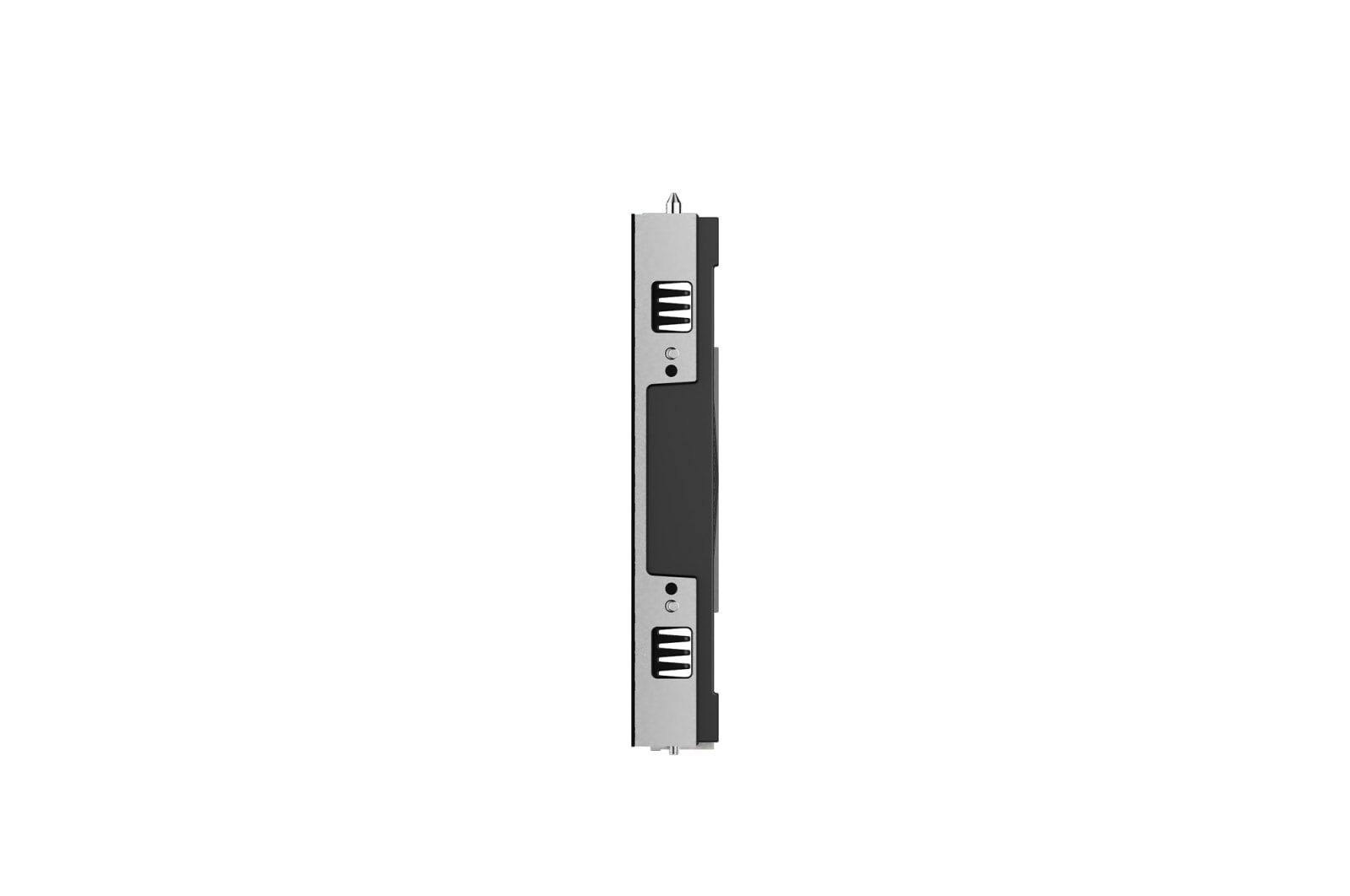

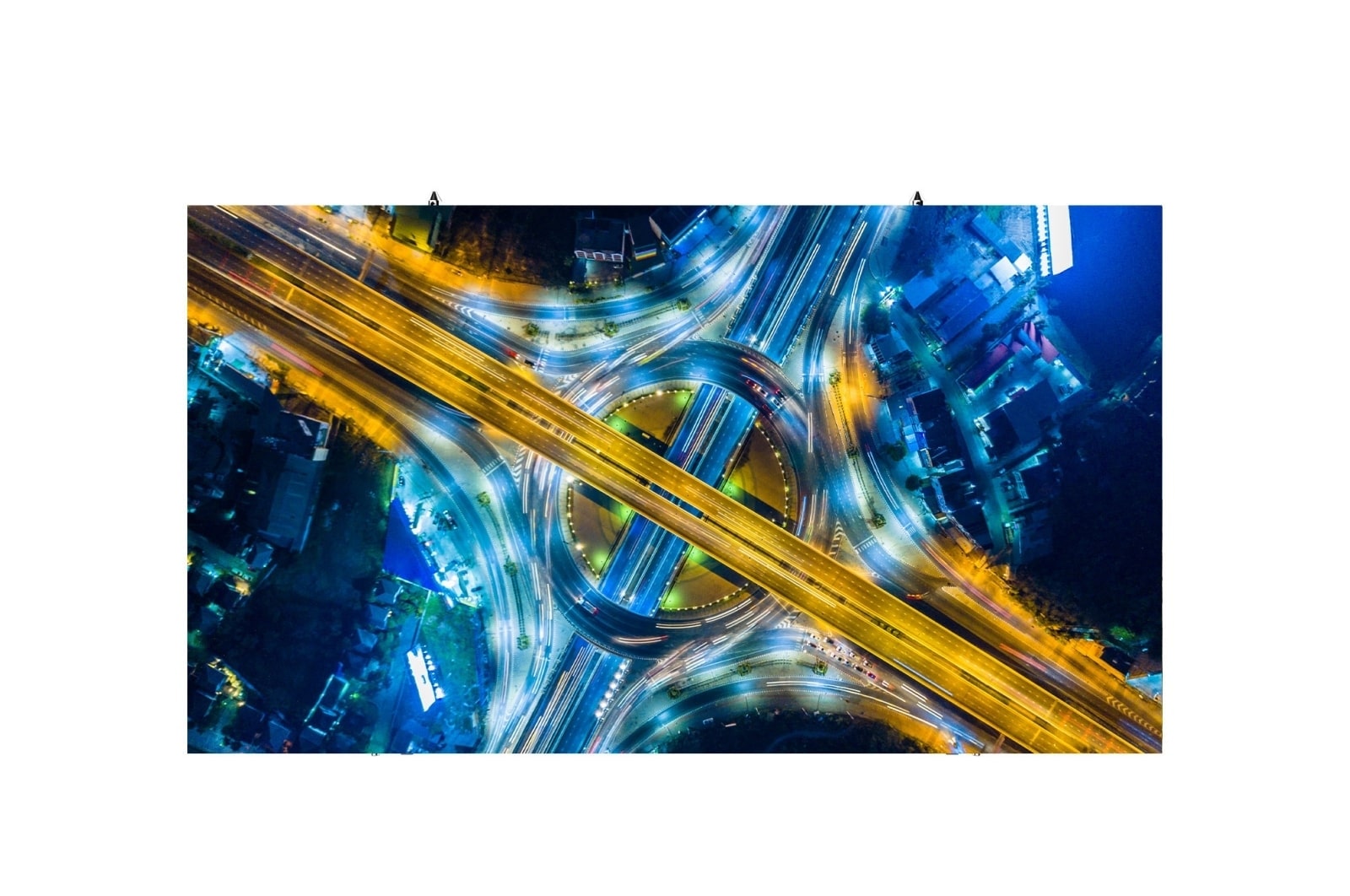

Fine-pitch Essential Series
* All images in this web page are for illustrative purposes only.

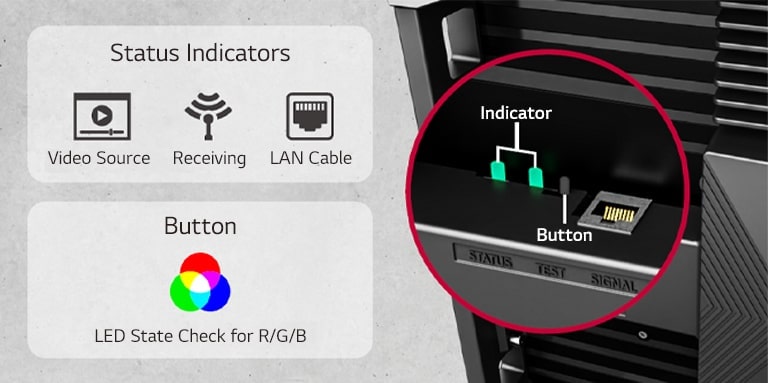

* Visit LSBB user manual for more details of the status indicators and button.

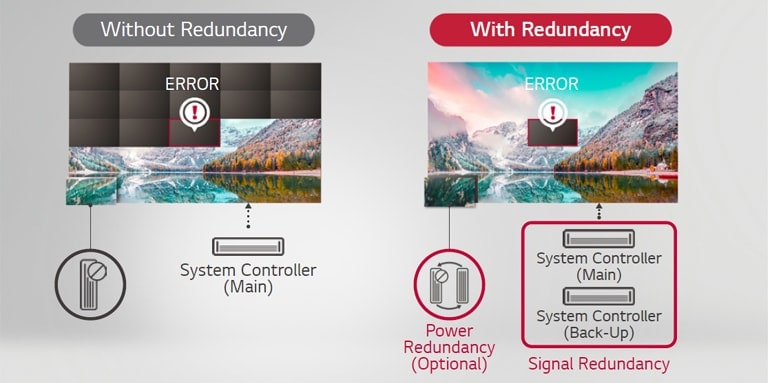

* In the case of Power Redundancy, additional options are available as add-ons while ordering and will incur additional costs.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
Model name
LSBB009-GF
Pixel Configuration
Single SMD
Pixel Pitch (mm)
0.94
Module Resolution (WxH)
160x360
Module Dimensions(WxH,mm)
150x337.5
Weight per Module (kg)
0.5
No. of Modules per Cabinet (WxH)
4x1
Cabinet Resolution (WxH)
640x360
Cabinet Dimensions (W x H x D, mm)
600x337.5x56
Cabinet Surface Area (㎡)
0.2
Weight per Cabinet (kg/unit)
6.9
Weight per Square Meter (kg/㎡)
35
Physical Pixel Density (pixels/㎡)
1,137,777
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum

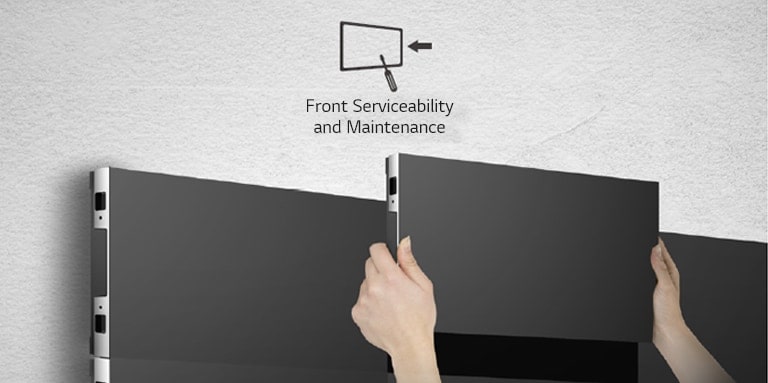

Service access
Front
Max Brightness (After Calibration, nit)
600
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
16
Power Consumption (W/Cabinet, Max.)
120
Power Consumption (W/Cabinet, Avg.)
40
Power Consumption (W/㎡, Max.)
600
Heat Dissipation (BTU/h/Cabinet, Max.)
409
Heat Dissipation (BTU/h/Cabinet, Avg.)
136
Heat Dissipation (BTU/h/㎡, Max.)
2,047
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
-20℃ to +40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP50
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, cTUVus, CB, EN13501-1
Environment
RoHS, REACH
Controller
CVBA
90 degree corner cut
X
To access more technical documentation and resources, please visit the LG B2B partner portal.
