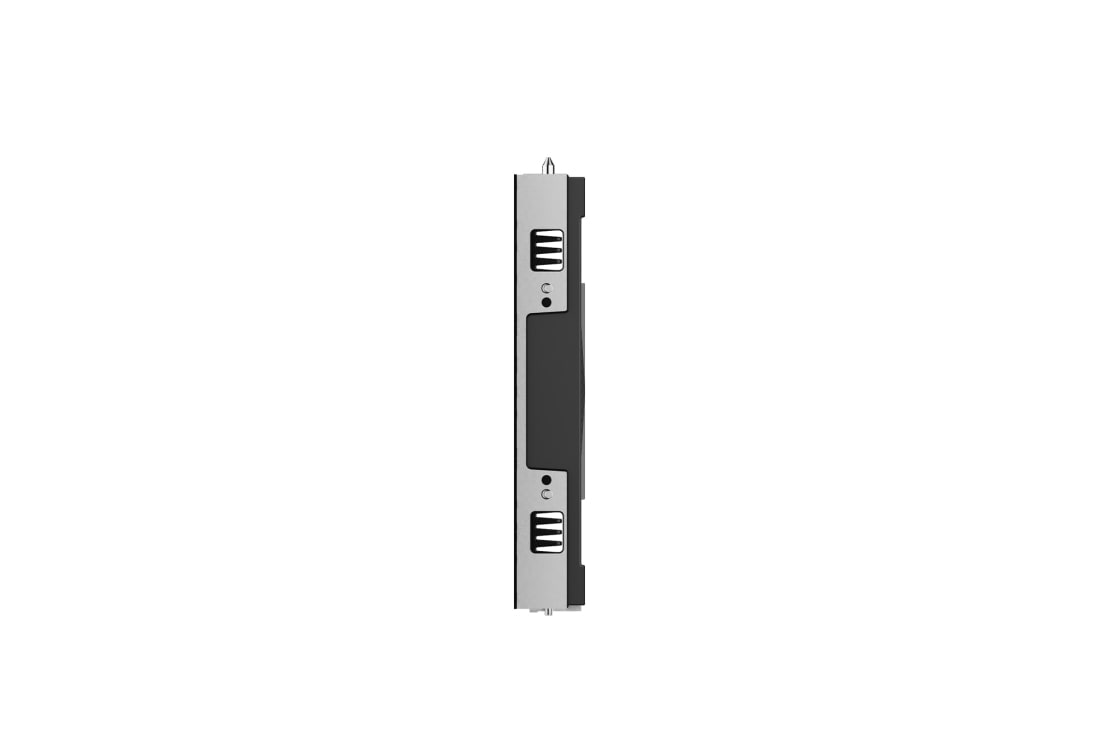

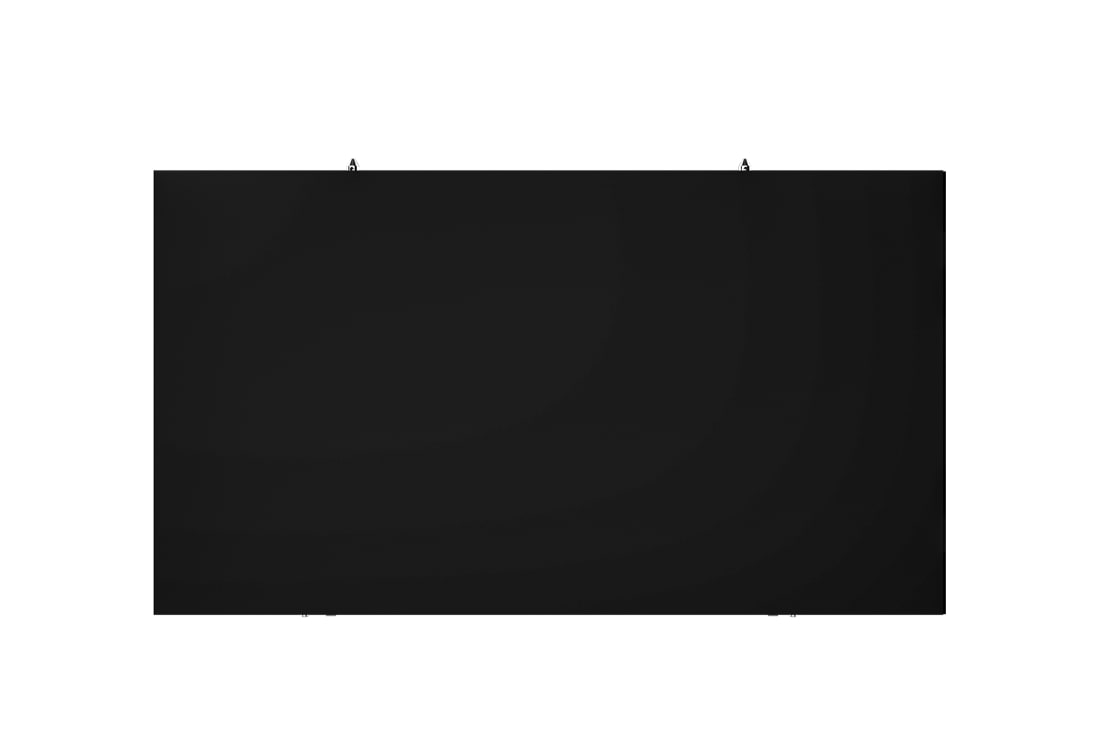

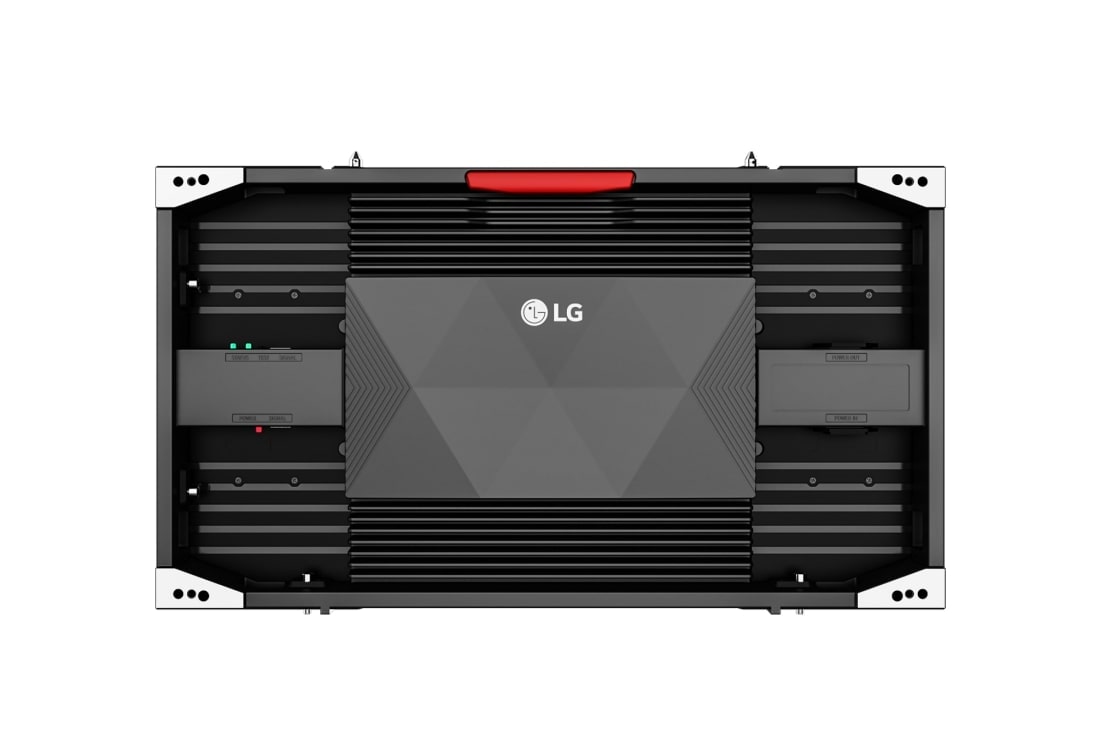

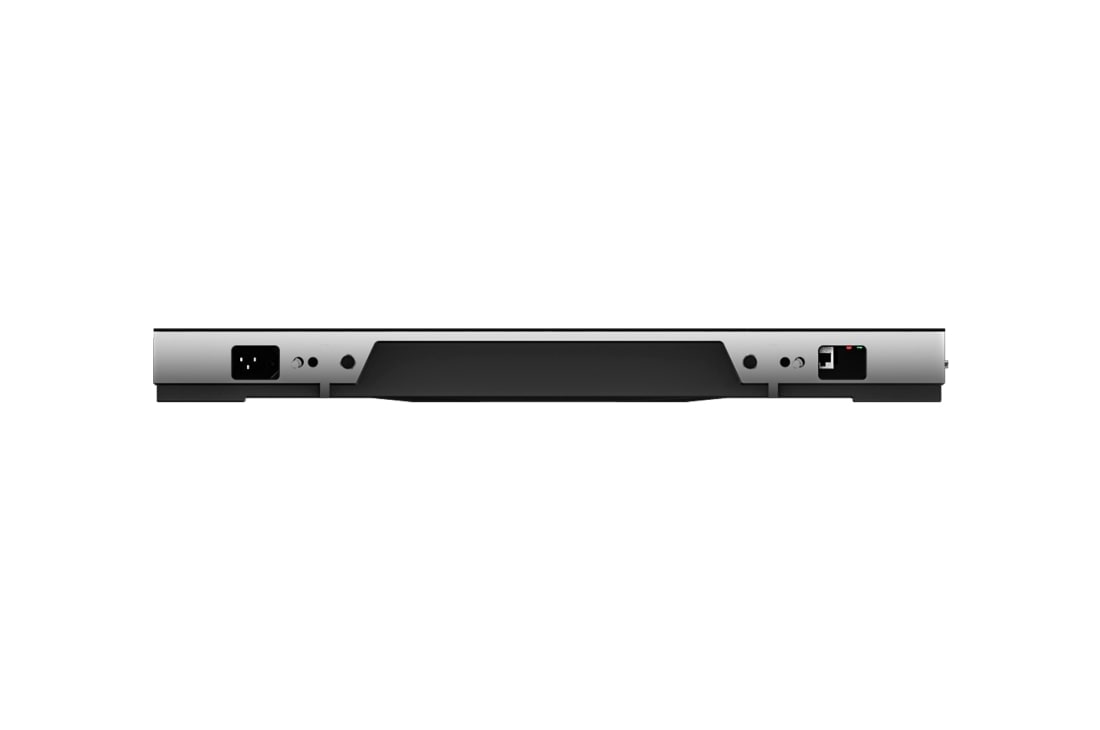

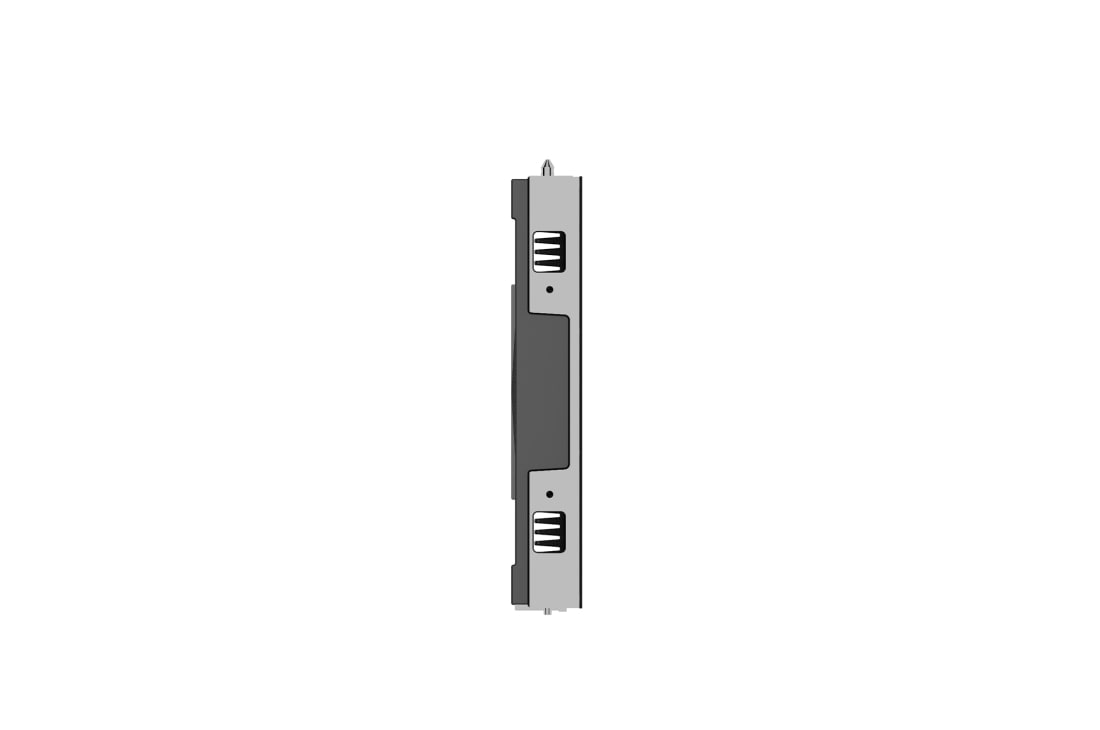

Model name
LSBB012-GD
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.25
Module Resolution (WxH)
120x270
Module Dimensions(WxH,mm)
150x337.5
Weight per Module (kg)
0.5
No. of Modules per Cabinet (WxH)
4x1
Cabinet Resolution (WxH)
480x270
Cabinet Dimensions (W x H x D, mm)
600x337.5x56
Cabinet Surface Area (㎡)
0.2
Weight per Cabinet (kg/unit)
6.9
Weight per Square Meter (kg/㎡)
35
Physical Pixel Density (pixels/㎡)
640,000
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
600
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
120
Power Consumption (W/Cabinet, Avg.)
40
Power Consumption (W/㎡, Max.)
600
Heat Dissipation (BTU/h/Cabinet, Max.)
409
Heat Dissipation (BTU/h/Cabinet, Avg.)
136
Heat Dissipation (BTU/h/㎡, Max.)
2,047
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
-20℃ to +40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP50
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, cTUVus, CB
Environment
RoHS, REACH
Controller
CVBA
90 degree corner cut
X
