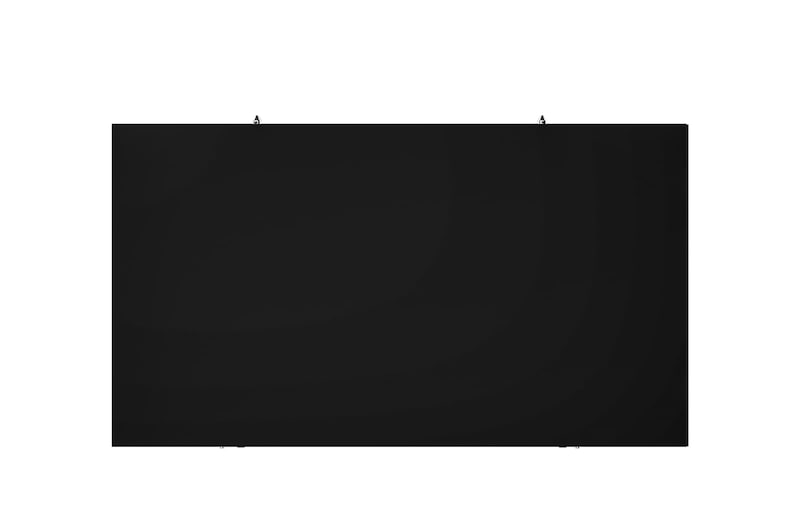

LSBB018-GD

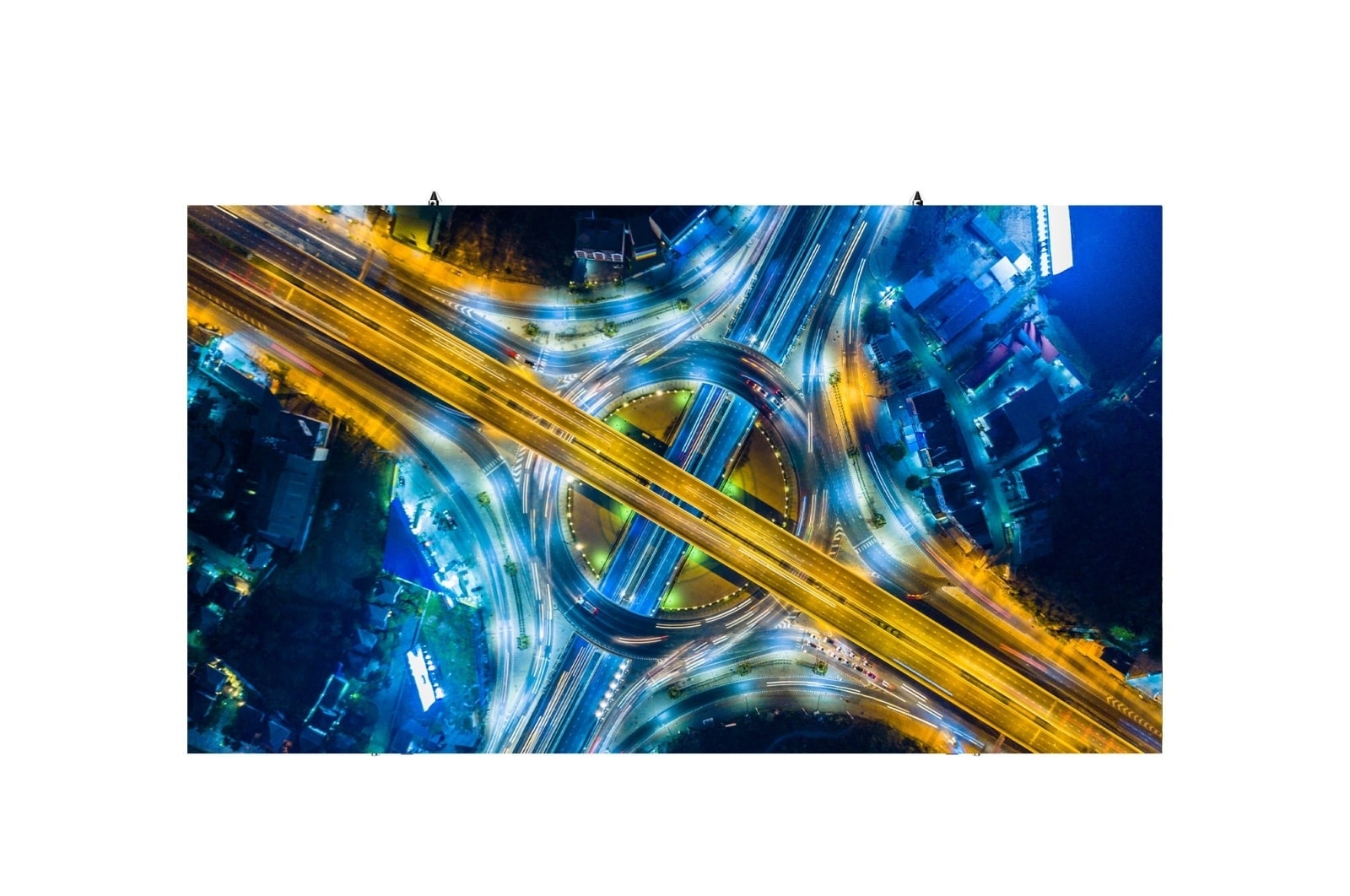

Fine-pitch Essential Series

Fine-pitch Essential Series

* All images in this web page are for illustrative purposes only.

Status indicator for Signal Detection

Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back.

* Visit LSBB user manual for more details of the status indicators and button.

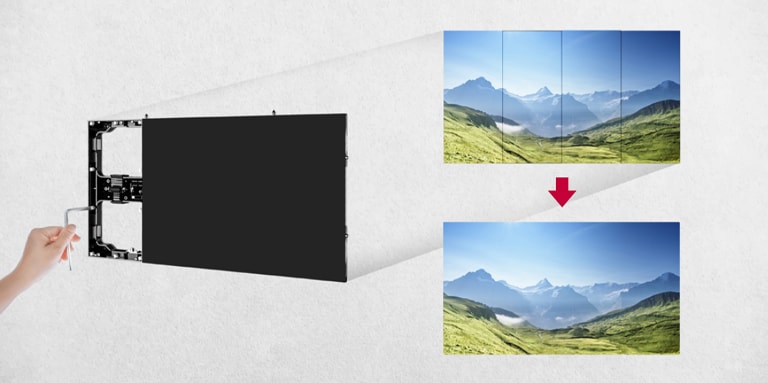

Controlling the X/Y/Z 6-axis between panels with a uniform tool.

Easy Alignment in Z-direction

A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Module can be easily adjusted in Z-direction, and flatness can be optimized again.

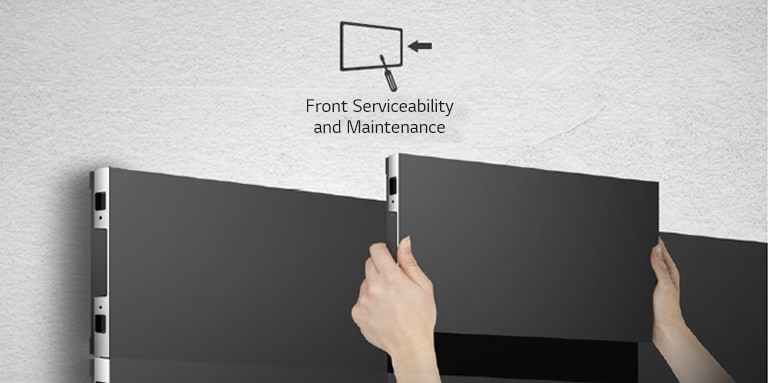

LSBB series is demonstrating its convenient installation from the front side.

Front Serviceability

The product offers front access, freeing customers from needing rear access space.

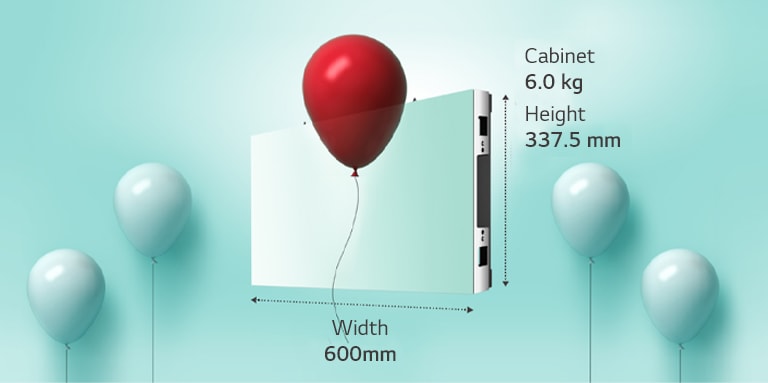

Shows that the cabinet is light with a balloon.

Easy-handling Lightweight Cabinet

It’s lightweight and easy to install, effectively reducing the risk of damage during installation. A full set of LED screens is still light, reducing strain on the structure holding the screens.

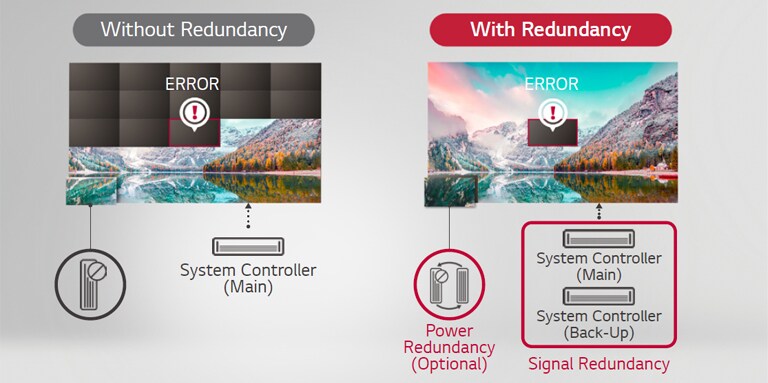

In the case of “Without Redundancy” even more than the error is blacked out, but in the case of “With Redundancy” only the error is blacked out and displayed.

Signal / Power Redundancy

With an optional controller available for purchase and power unit, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy). The product also offers Power Redundancy as an option.* Two power units are provided in single LED cabinet one activates to provide power when the other fails.

* In the case of Power Redundancy, additional options are available as add-ons while ordering and will incur additional costs.

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LSBB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

All Spec

INFORMATION

  • Model name

    LSBB018-GD

PHYSICAL PARAMETERS

  • Pixel Configuration

    Single SMD

  • Pixel Pitch (mm)

    1.88

  • Module Resolution (WxH)

    80x180

  • Module Dimensions(WxH,mm)

    150x337.5

  • Weight per Module (kg)

    0.5

  • No. of Modules per Cabinet (WxH)

    4x1

  • Cabinet Resolution (WxH)

    320x180

  • Cabinet Dimensions (W x H x D, mm)

    600x337.5x56

  • Cabinet Surface Area (㎡)

    0.2

  • Weight per Cabinet (kg/unit)

    6.9

  • Weight per Square Meter (kg/㎡)

    35

  • Physical Pixel Density (pixels/㎡)

    284,444

  • Flatness of Cabinet (mm)

    ±0.5

  • Cabinet material

    Die-casting Aluminum

  • Service access

    Front

OPTICAL SPECIFICATIONS

  • Max Brightness (After Calibration, nit)

    600

  • Color Temperature (K)

    3,200~9,300

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    140

  • Brightness Uniformity

    0.97

  • Color Uniformity

    ±0.003Cx,Cy

  • Contrast Ratio

    5,000:1

  • Processing Depth (bit)

    16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Cabinet, Max.)

    120

  • Power Consumption (W/Cabinet, Avg.)

    40

  • Power Consumption (W/㎡, Max.)

    600

  • Heat Dissipation (BTU/h/Cabinet, Max.)

    409

  • Heat Dissipation (BTU/h/Cabinet, Avg.)

    136

  • Heat Dissipation (BTU/h/㎡, Max.)

    2,047

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • Operating Temperature(℃)

    -20℃ to +40℃

  • Operating Humidity

    10~80%RH

  • IP rating Front

    IP50

  • IP rating Rear

    IP50

  • LED Lifetime (Half brightness)

    100,000

STANDARD

  • Certification

    CE, FCC, cTUVus, CB

ENVIRONMENT

  • Environment

    RoHS, REACH

CONTROLLER

  • Controller

    CVBA

90 DEGREE CORNER CUT

  • 90 degree corner cut

    X

To access more technical documentation and resources, please visit the LG B2B partner portal.
