Compact Series

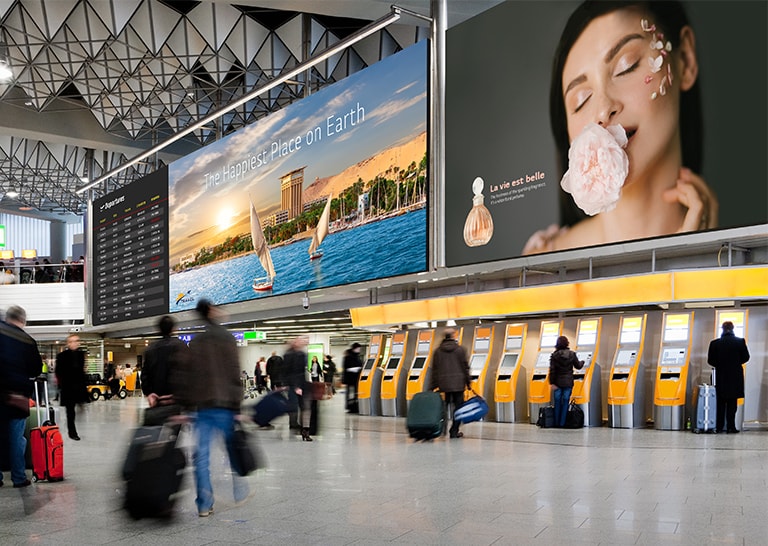

Large LEDs inside an airport show passengers’ departure schedules and advertisements.
*All images in this web page are for illustrative purposes only.
*HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
Images provided for illustrative purposes only. Actual results may vary.

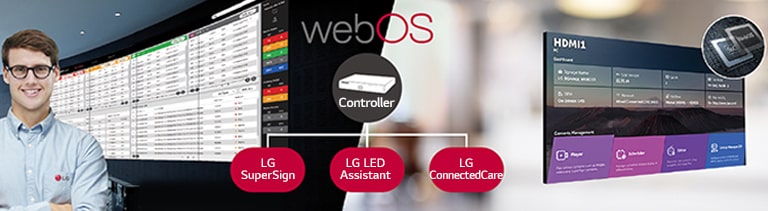

The LG employee is remotely monitoring the LSBC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBC series to be compatible with LG software solutions.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
*Actual GUI may vary in different webOS versions.
Model name
LSBC019-GD
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.95
Module Resolution (WxH)
128x128
Module Dimensions(WxH,mm)
250x250
Weight per Module (kg)
0.7
No. of Modules per Cabinet (WxH)
2x4
Cabinet Resolution (WxH)
256x512

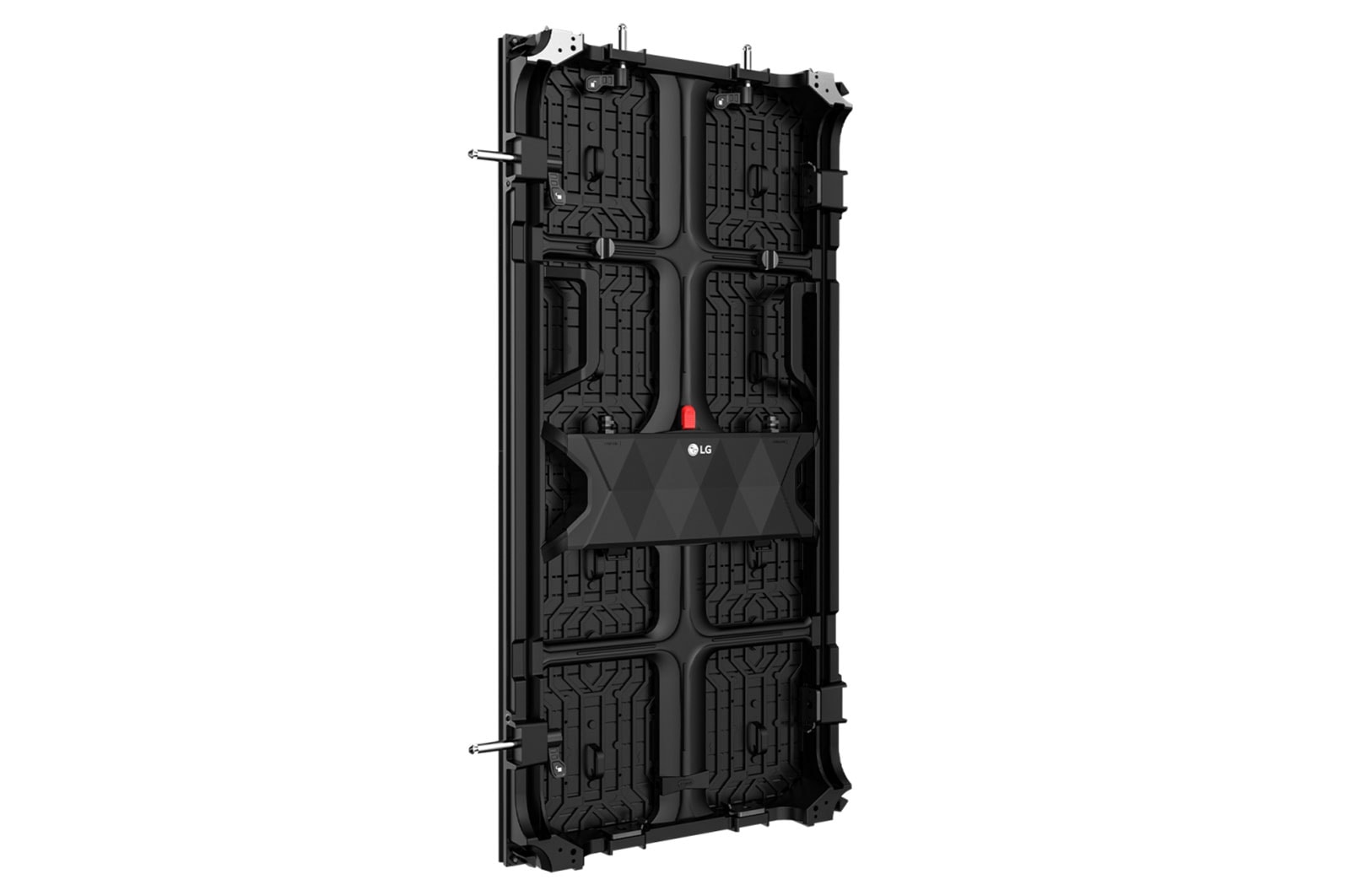

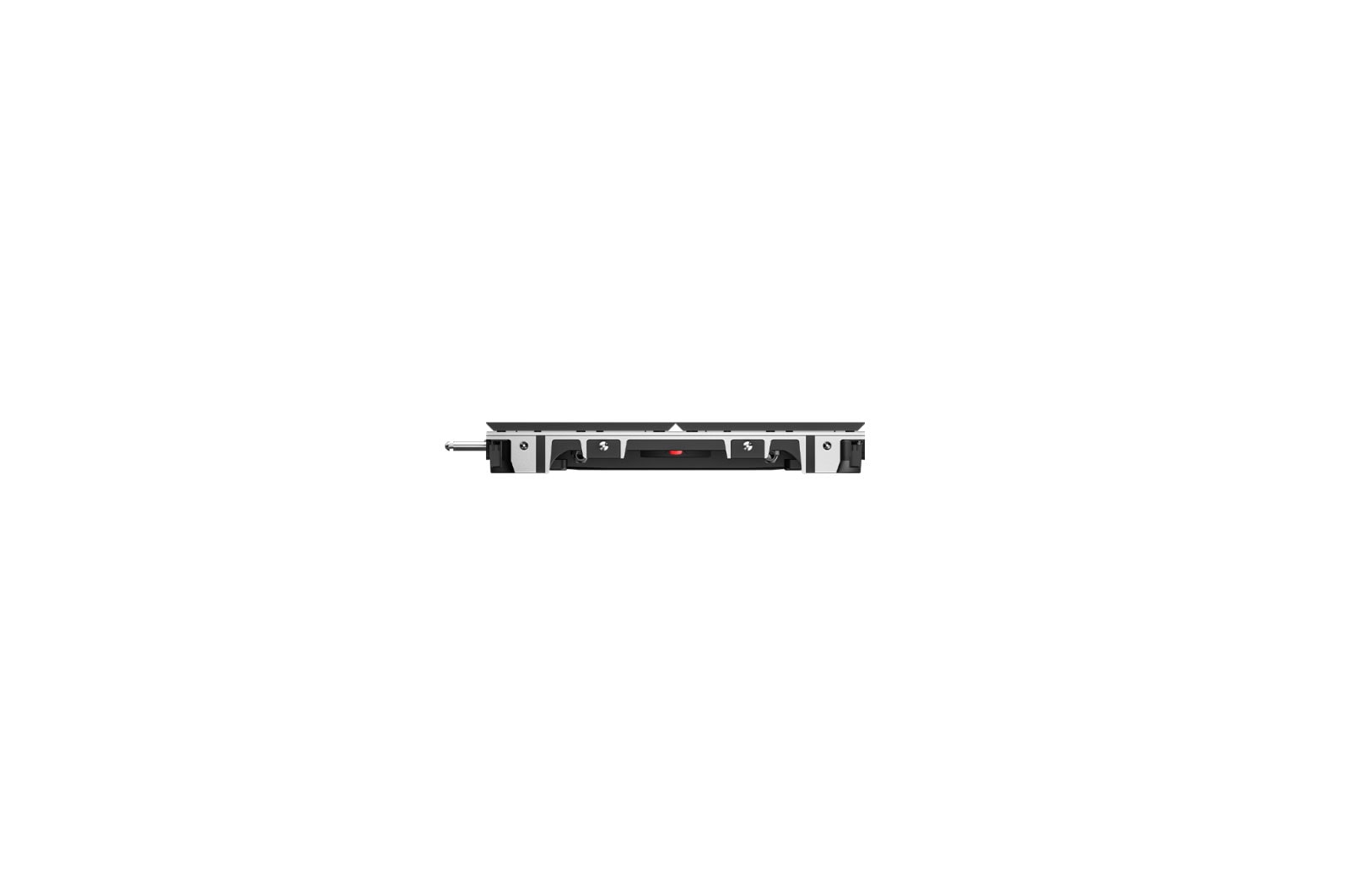

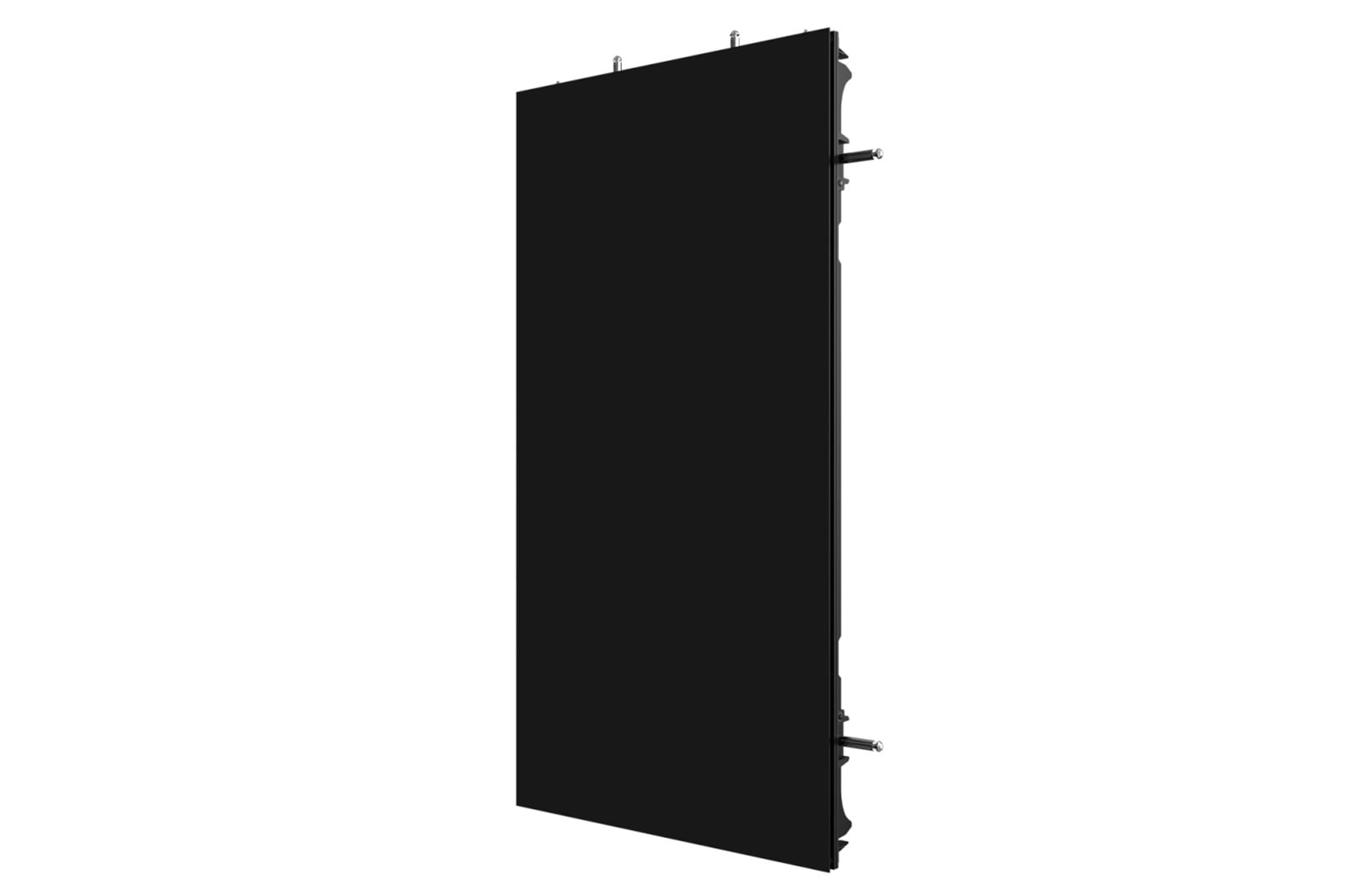

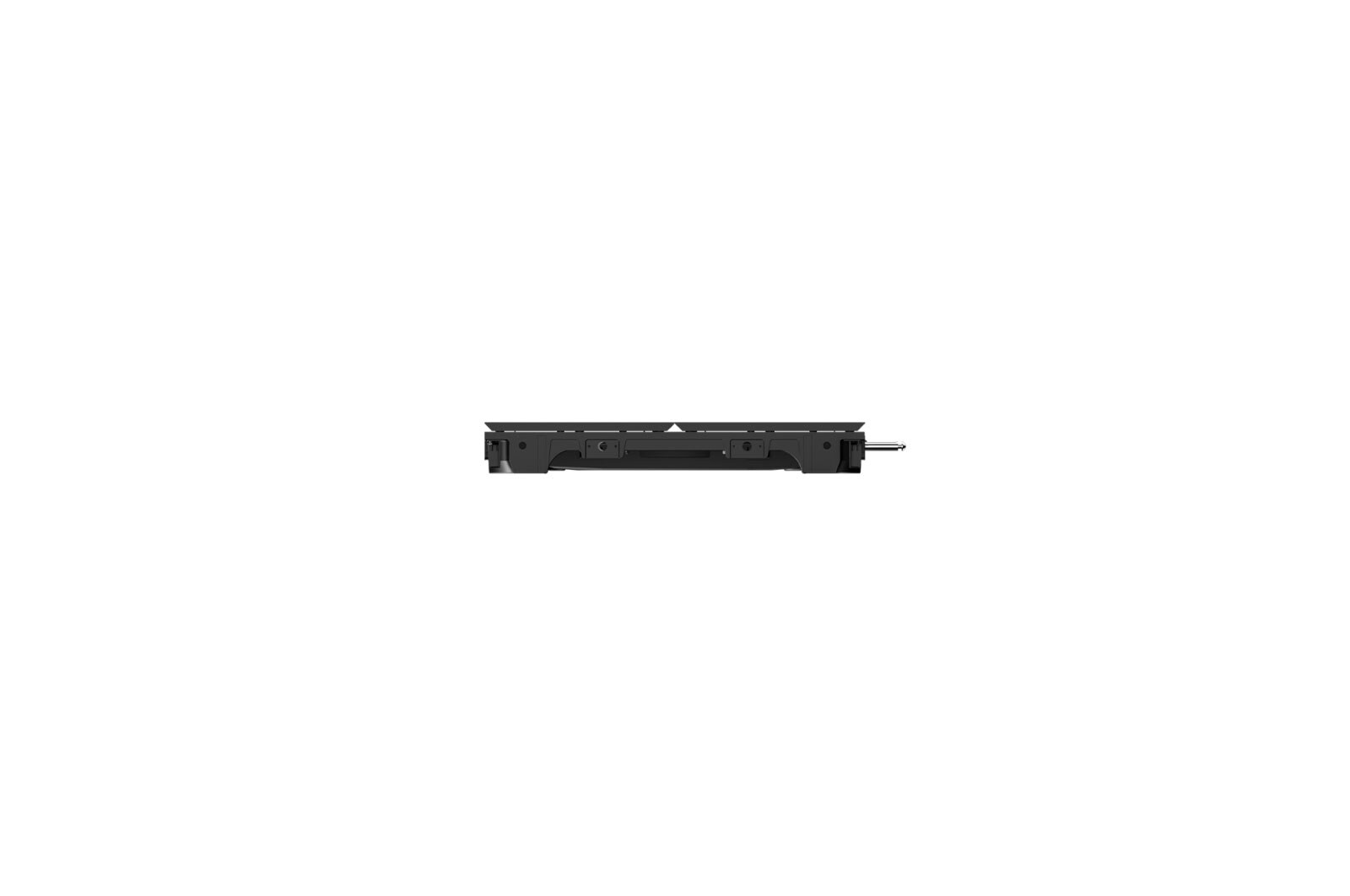

Cabinet Dimensions (W x H x D, mm)
500x1,000x69
Cabinet Surface Area (㎡)
0.5
Weight per Cabinet (kg/unit)
12.8
Weight per Square Meter (kg/㎡)
26
Physical Pixel Density (pixels/㎡)
262,144
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum

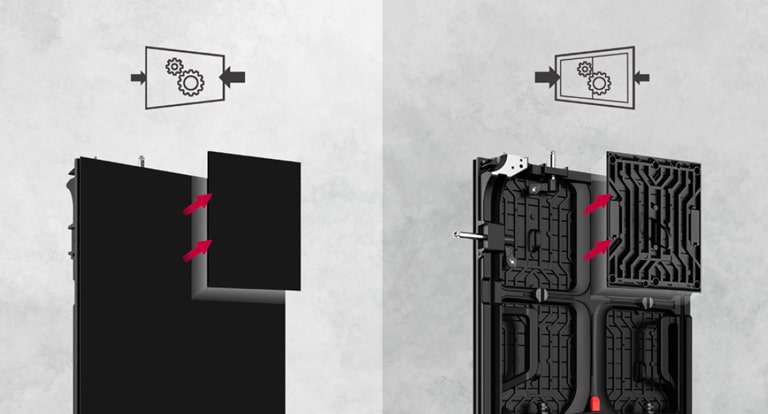

Service access
Front or Rear (select one only)
Max Brightness (After Calibration, nit)
800
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
300
Power Consumption (W/Cabinet, Avg.)
100
Power Consumption (W/㎡, Max.)
600
Heat Dissipation (BTU/h/Cabinet, Max.)
1,024
Heat Dissipation (BTU/h/Cabinet, Avg.)
341
Heat Dissipation (BTU/h/㎡, Max.)
2,047
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
-20℃ to +40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP50
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, cTUVus, CB
Environment
RoHS, REACH
Controller
CVBA

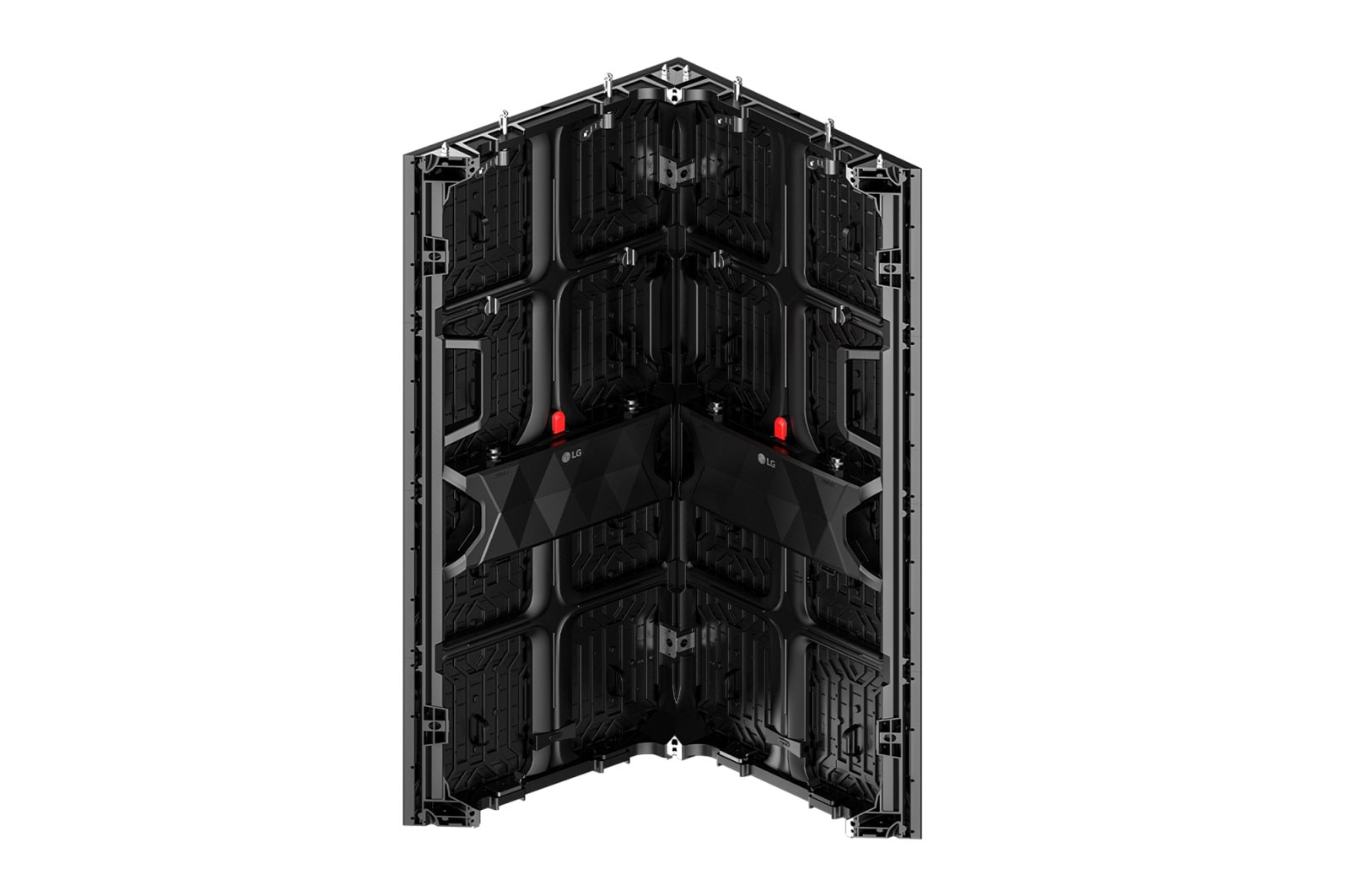

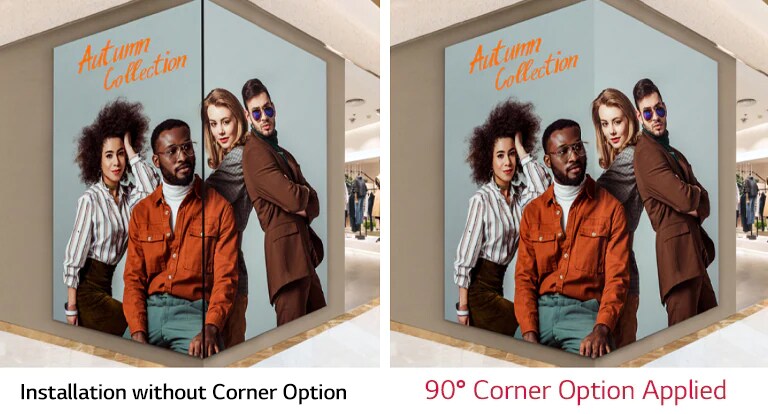

90 degree corner cut
O
To access more technical documentation and resources, please visit the LG B2B partner portal.
