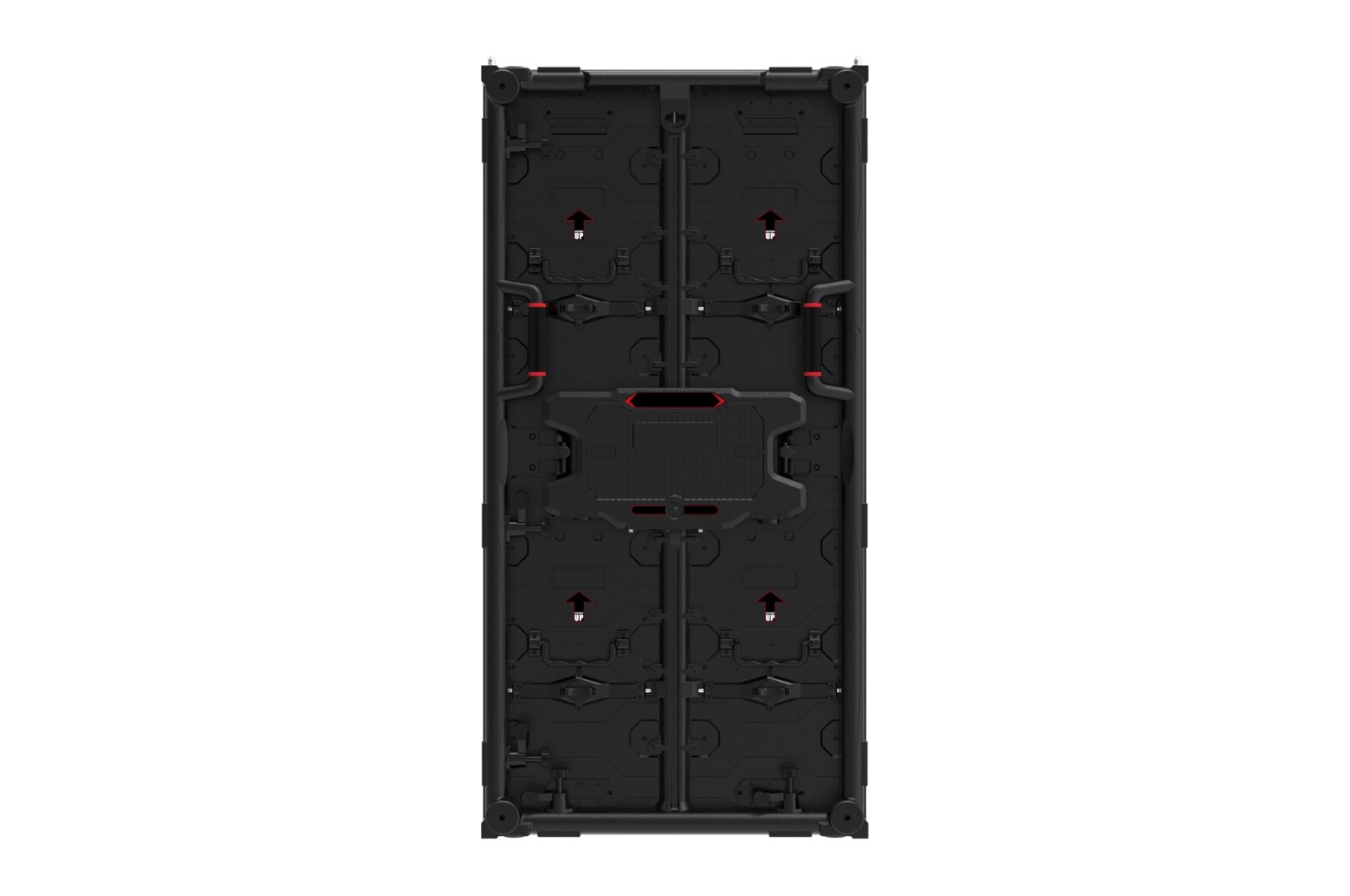

LSCA Versatile Series

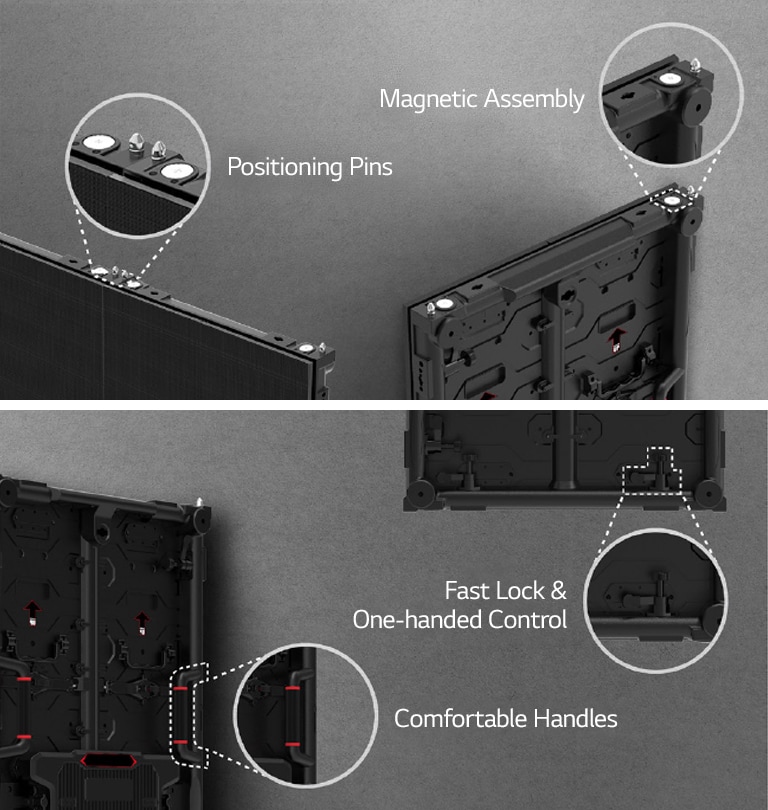

Easy Installation
Easy Installation

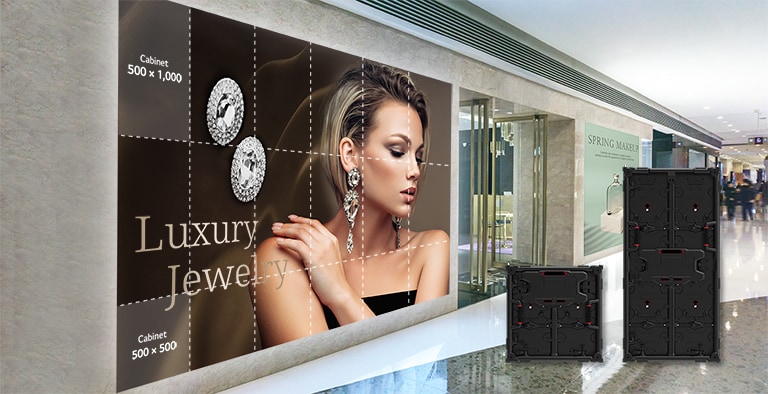

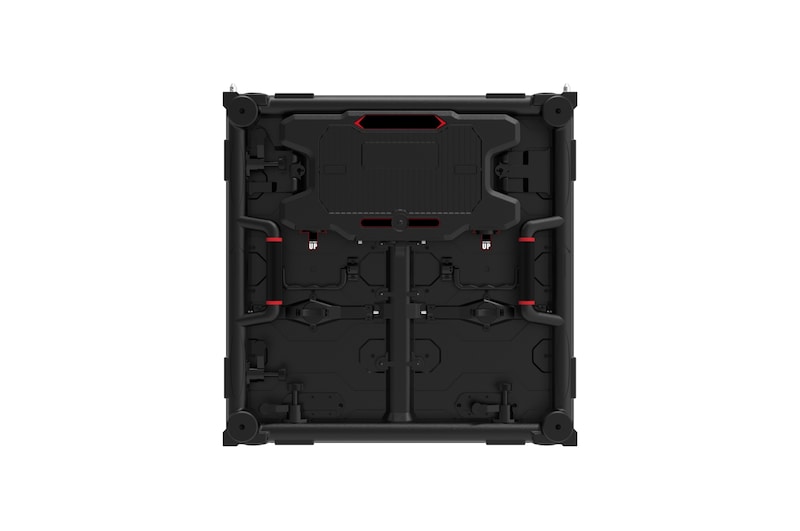

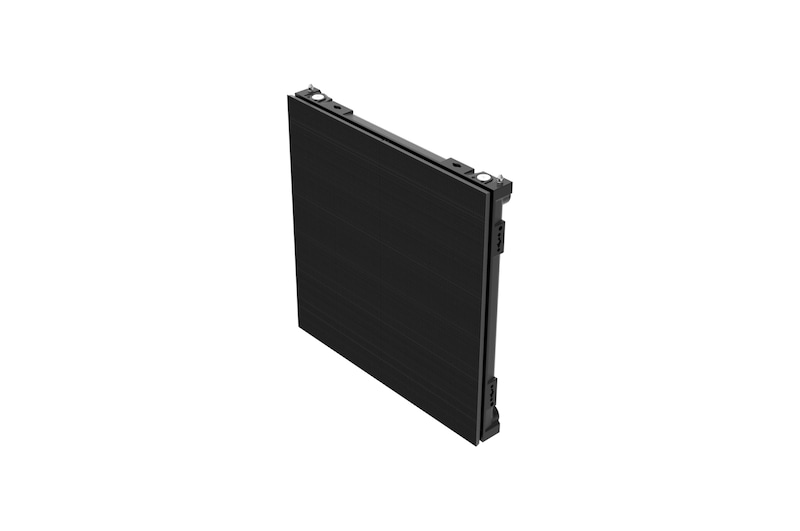

Two Cabinet Options
provides greater versatility for installation.
Two Cabinet Options

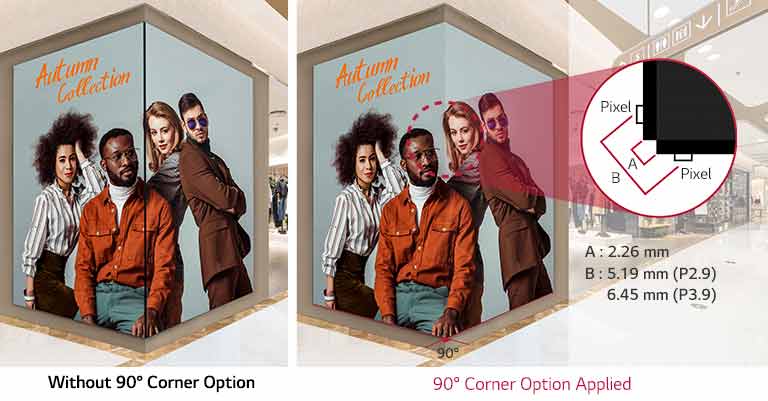

90° Corner Design Available
90° Corner Design Available

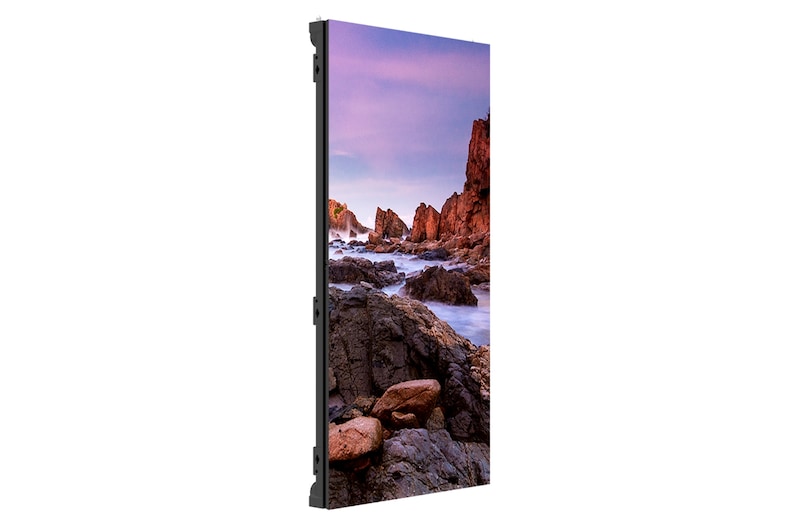

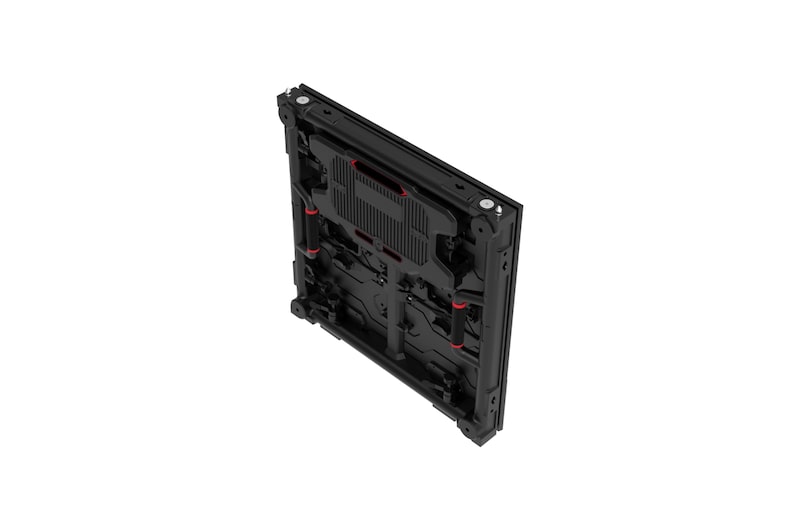

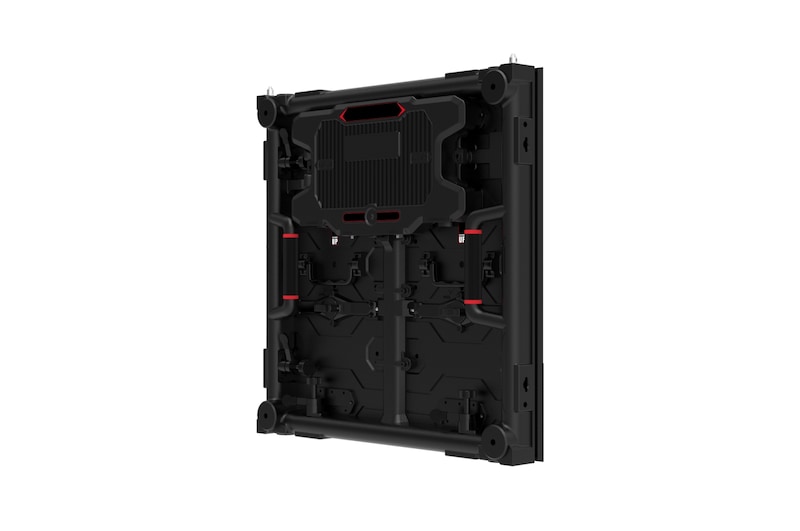

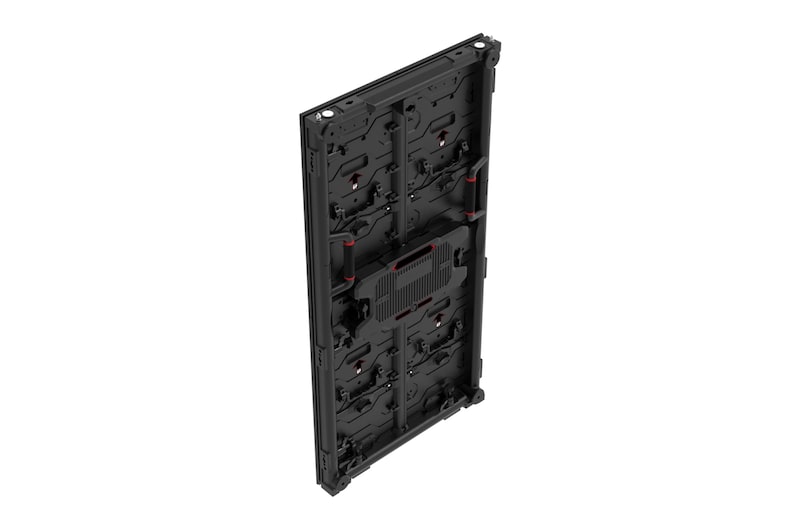

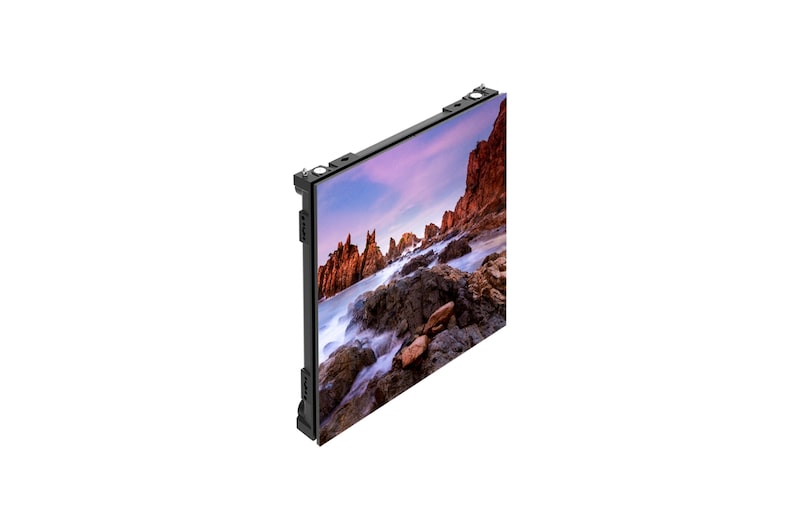

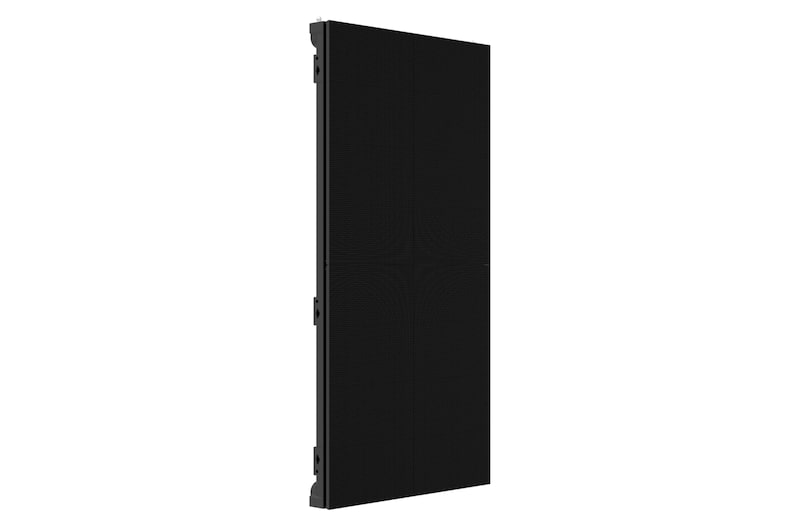

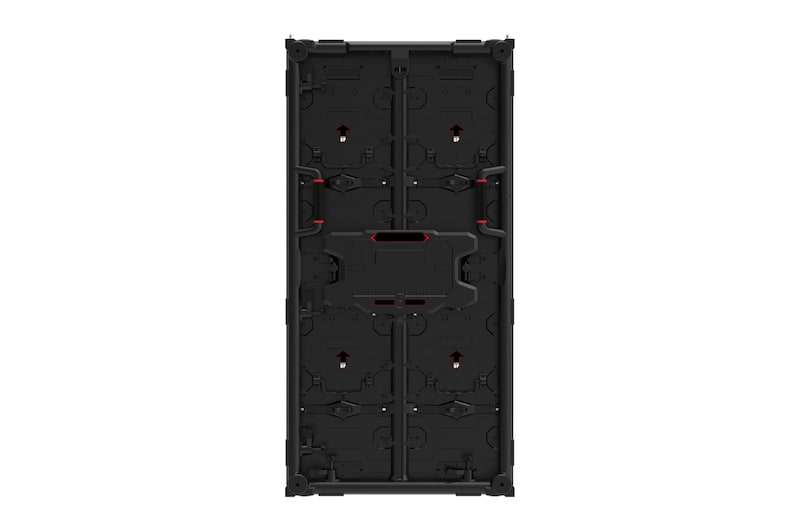

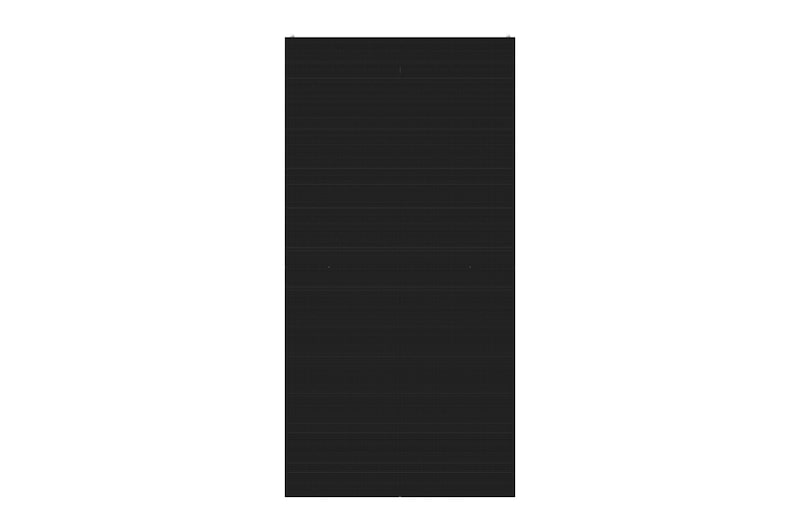

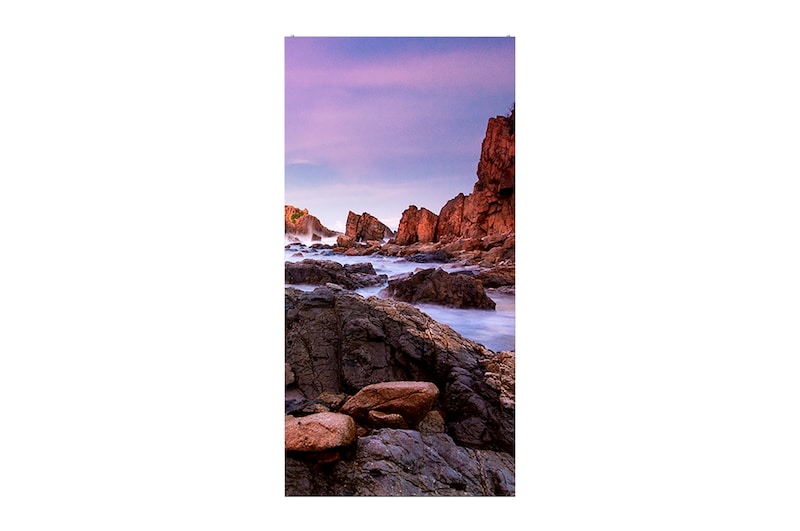

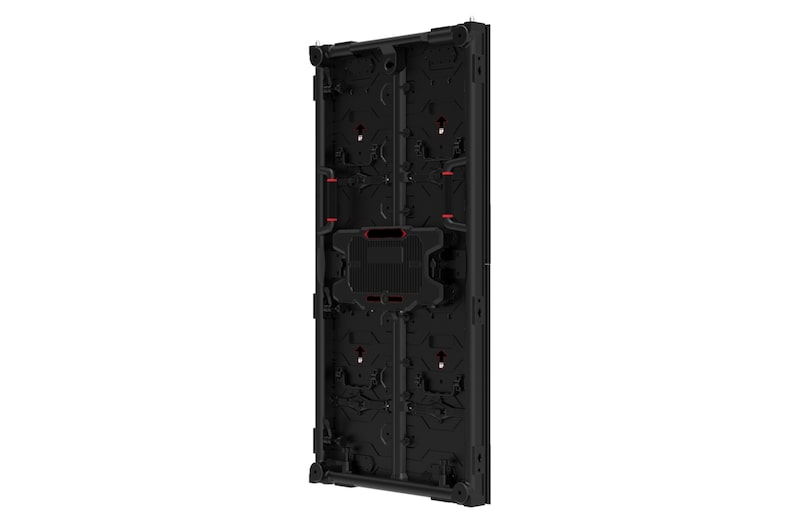

Gallery
All Spec
PHYSICAL PARAMETERS
-
Pixel Configuration
3 in 1 SMD
-
Pixel Pitch
2.97
-
Module Resolution(WxH)
84x168
-
Module Dimensions(WxH,mm)
250x500
-
Weight per Module(Kg)
1.3
-
No. of Modules per Unit Case(WxH)
2x2
-
Unit Case Resolution(WxH)
168x336
-
Unit Case Dimensions(WxHxD, mm)
500x1,000x66
-
Unit Case Surface Area(m²)
0.5
-
Weight per Unit Case(kg/unit)
14
-
Weight per Square Meter(Kg/m²)
28
-
Physical Pixel Density(Pixels/m²)
112,896
-
Unit Case material
Die Casting Aluminum Alloy
-
Service Access
Front or Rear (Select one Only)
OPTICAL SPECIFICATIONS
-
Min. Brightness(After Calibration)
1000 cd/m²
-
Colour Temperature
6500
-
Visual Viewing Angle(Horizontal)
160
-
Visual View Angel(Vertical)
160
-
Brightness Uniformity
97%
-
Colour Uniformity
±0.003CxCy
-
Contrast Ratio
5,000
-
Processing Depth(bit)
14
ELECTRICAL SPECIFICATIONS
-
Power Consumption(W/Unit, Max)
270
-
Power Consumption(W/Unit, Avg)
90
-
Power Consumption(W/m²)
540
OPERATION SPECIFICATION
-
Life time (Half Brightness)
100,000
-
Operating Temperature(℃)
-10℃ to +45℃
-
Operating Humidity
0~80%RH
-
IP Rating Front
IP30
-
IP Rating Rear
IP30
CERTIFICATION
-
Certification
CE,FCC,ETL
ENVIRONMENT
-
Environment
RoHS
CONTROLLER
-
Input
HDMI, Single- link DVI, Audio Input
-
Output
4 x RJ45 ,HDMI- Loop, DVI- Loop
-
Control
RJ45 , USB In/Out
-
Power
AC-100-240V-50/60HZ
