LSCA Versatile Series

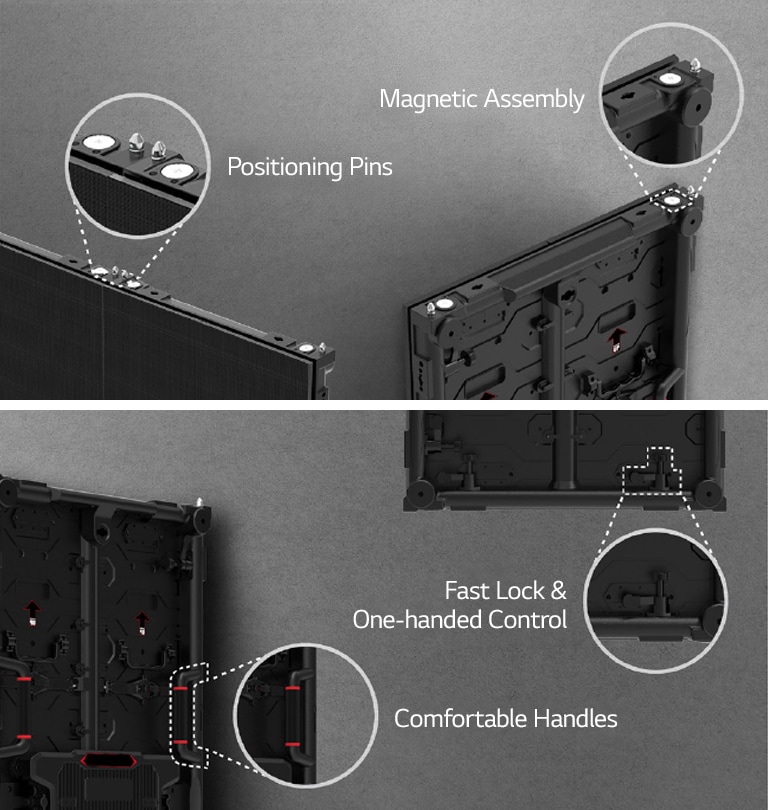

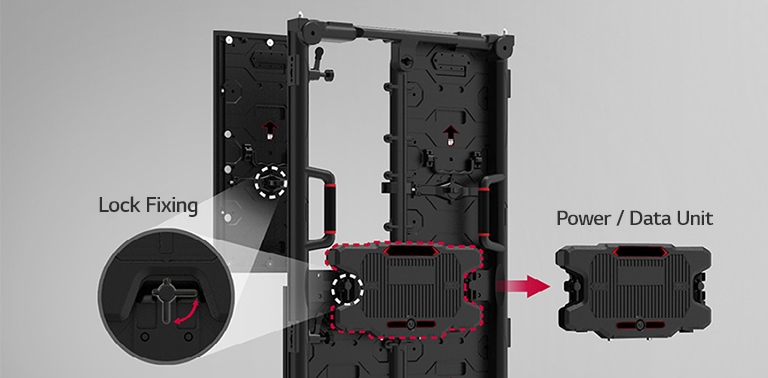

Easy Installation

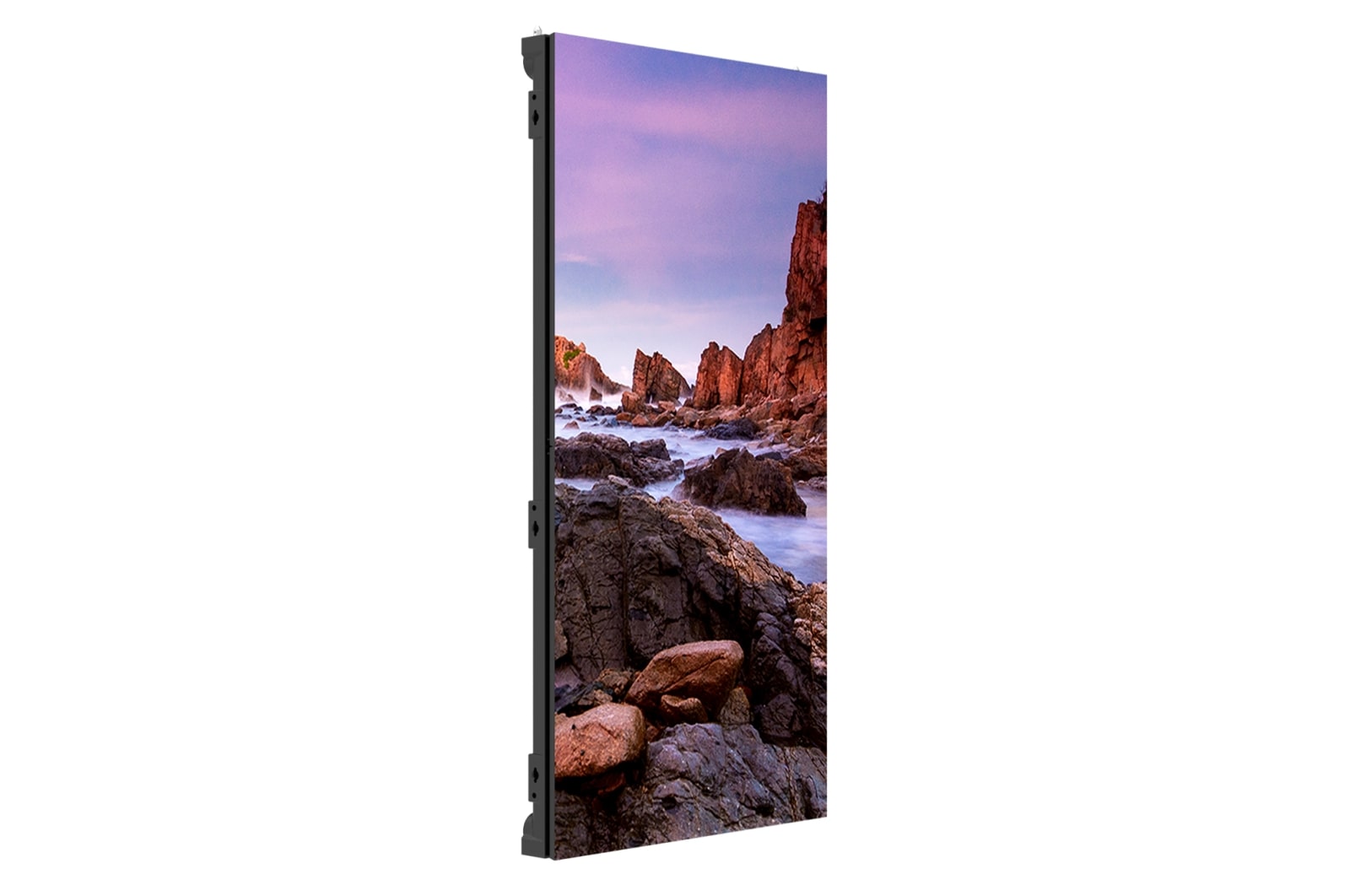

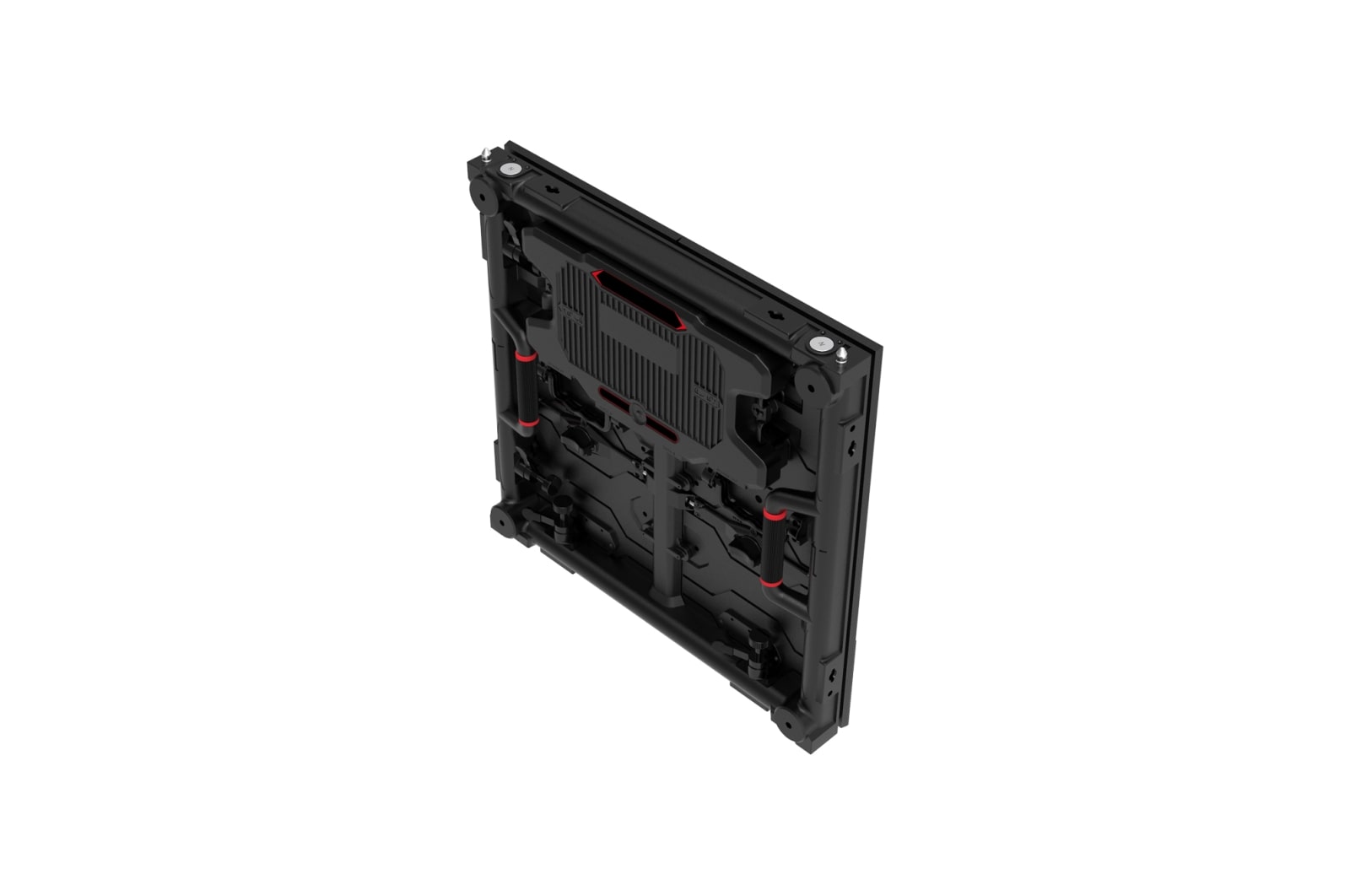

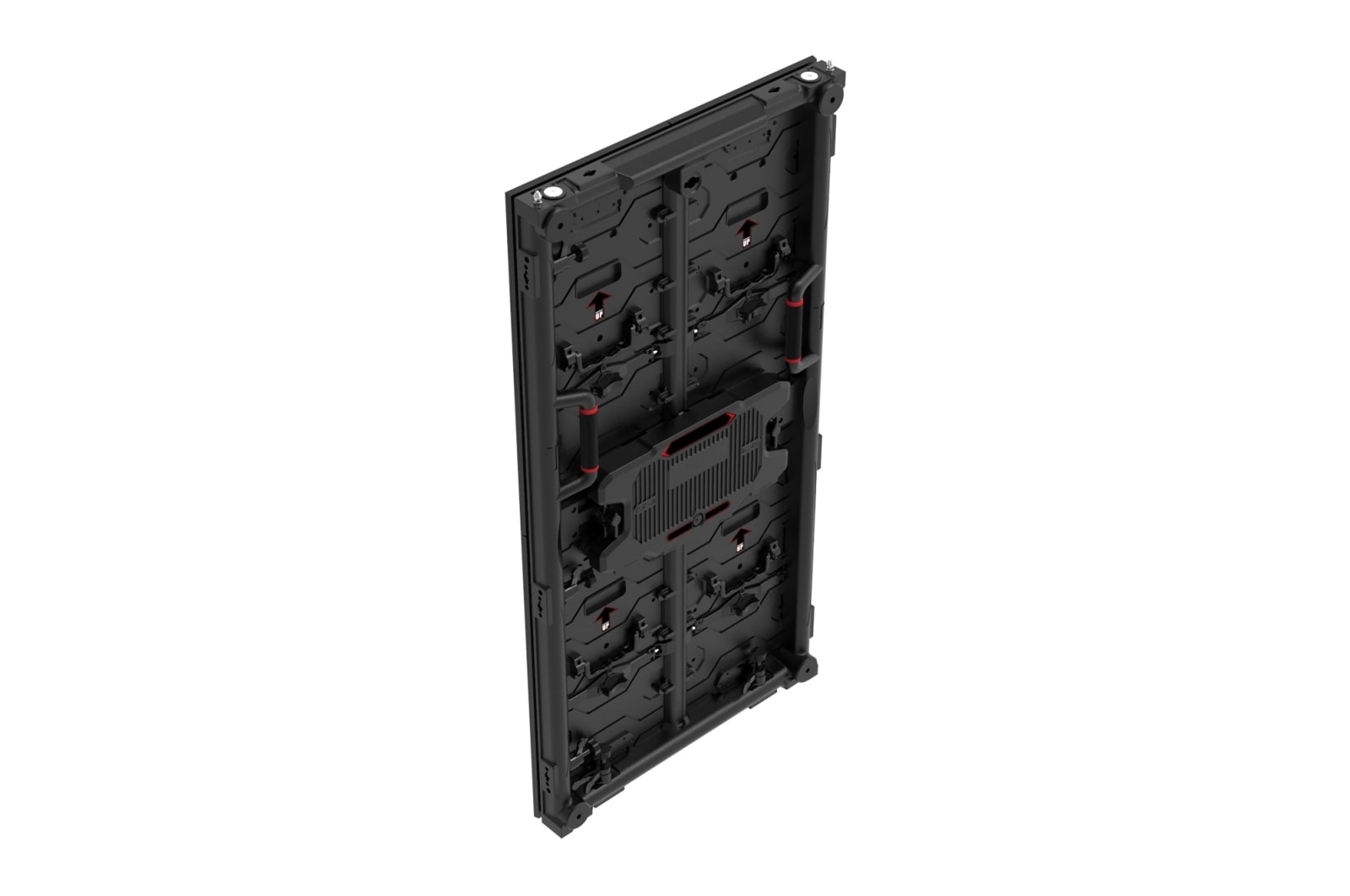

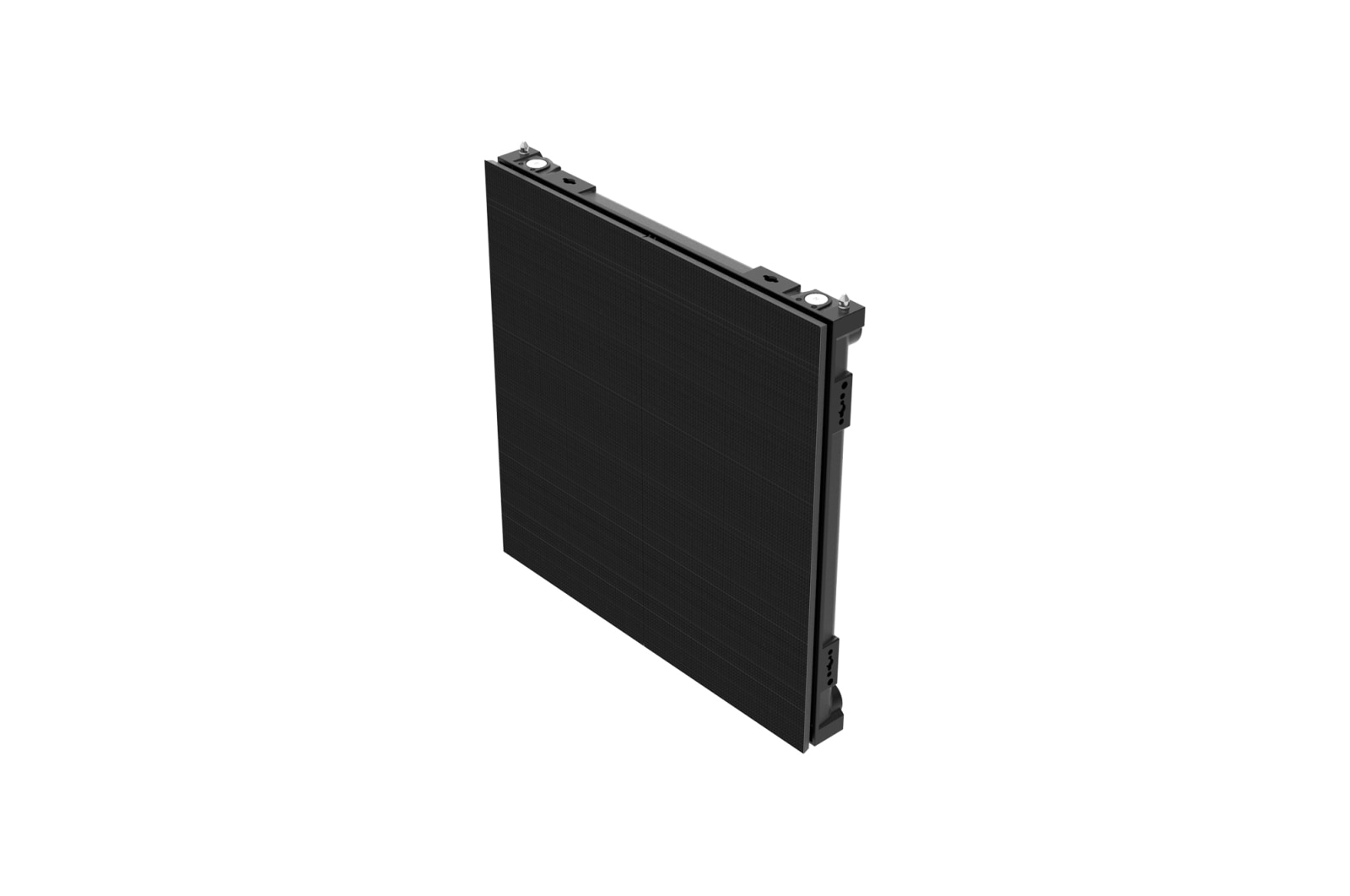

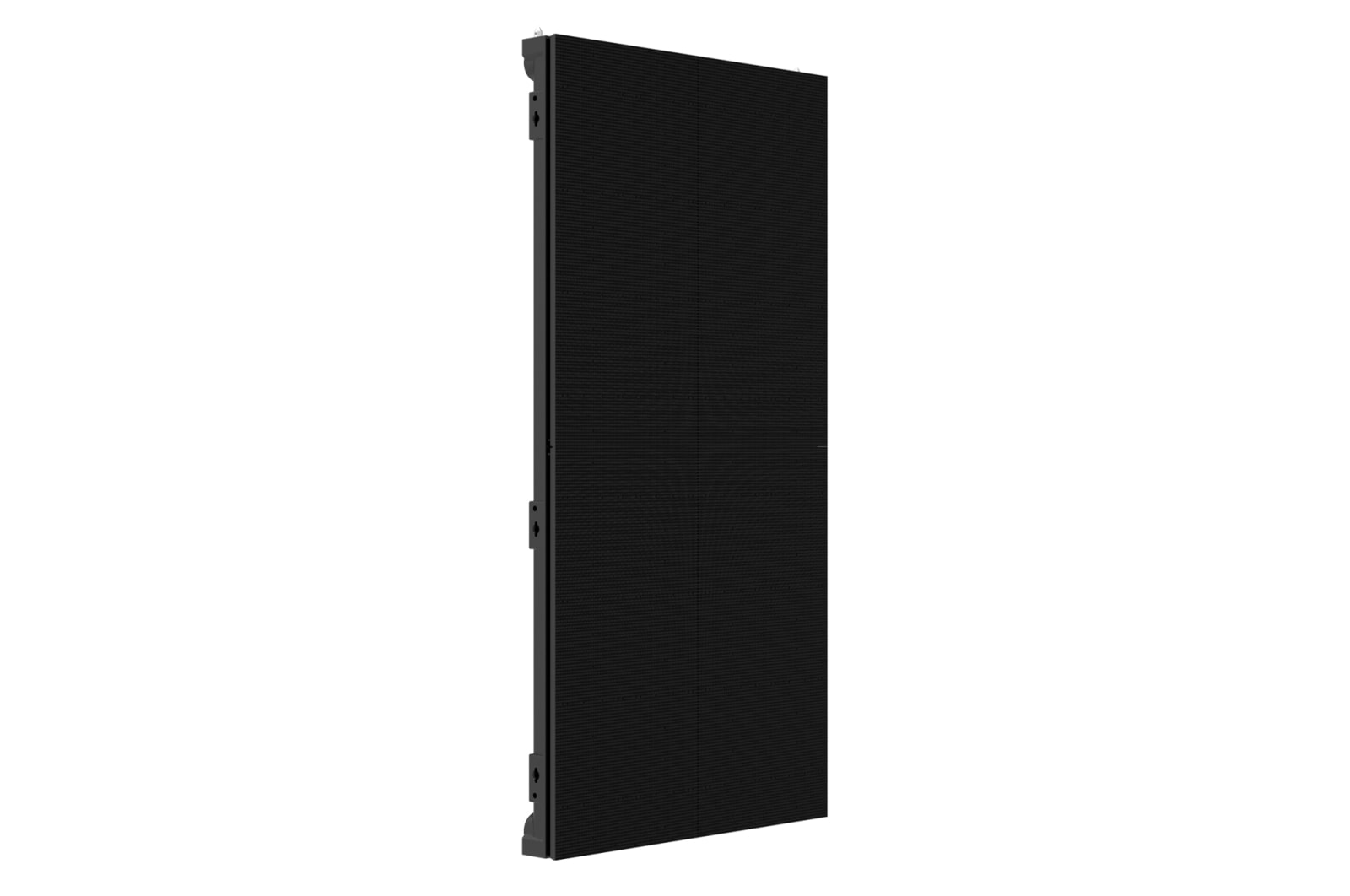

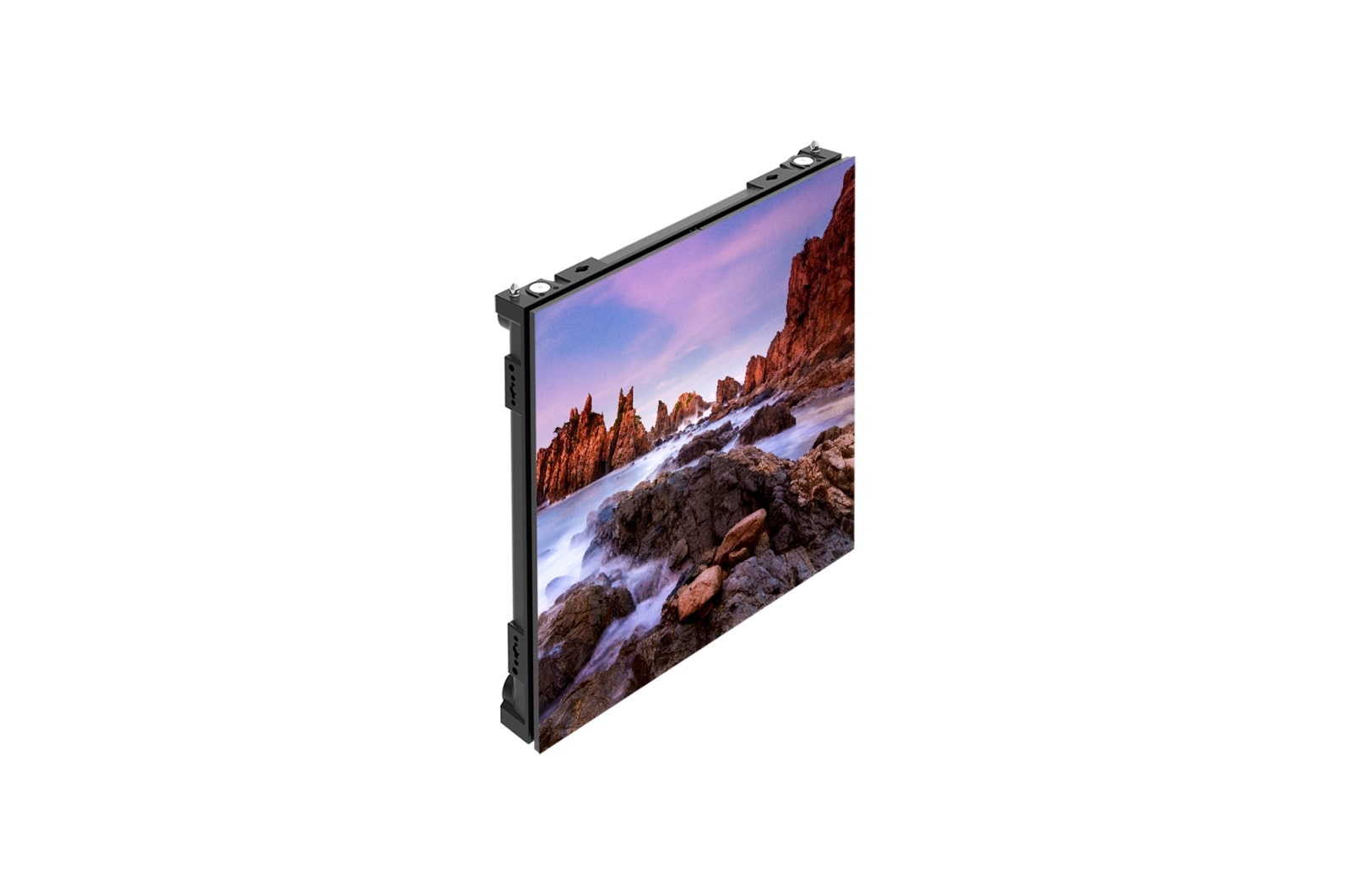

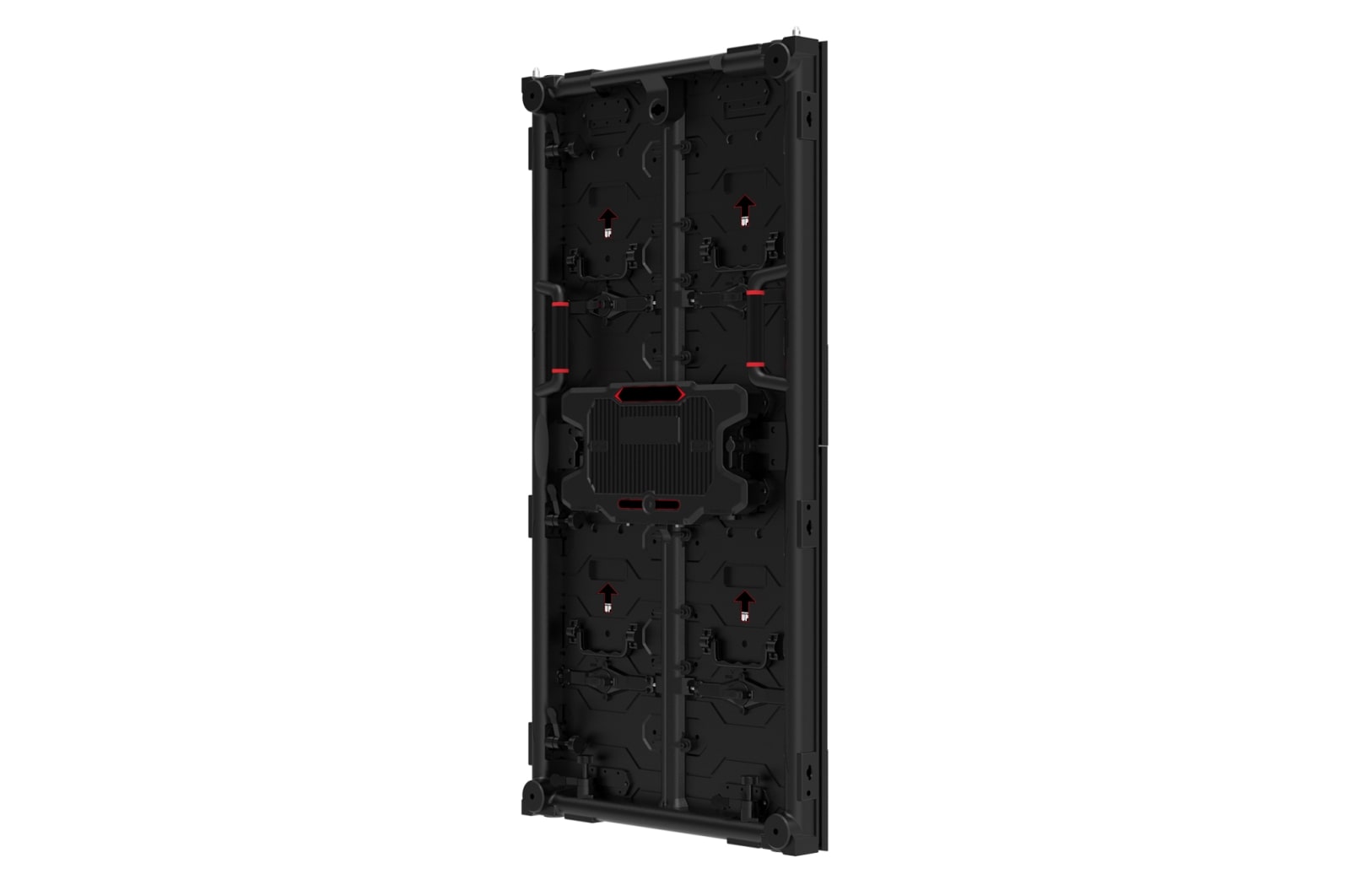

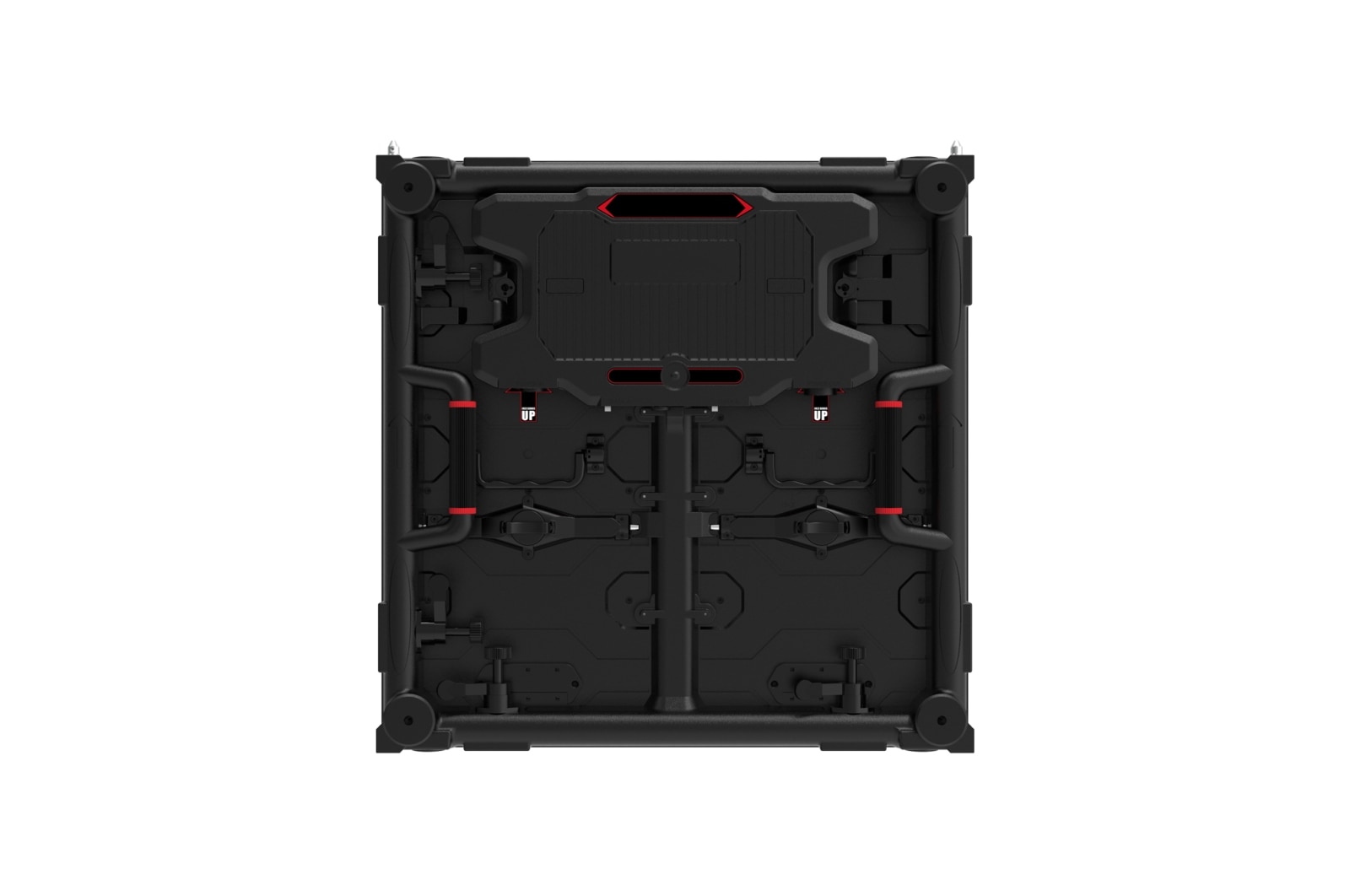

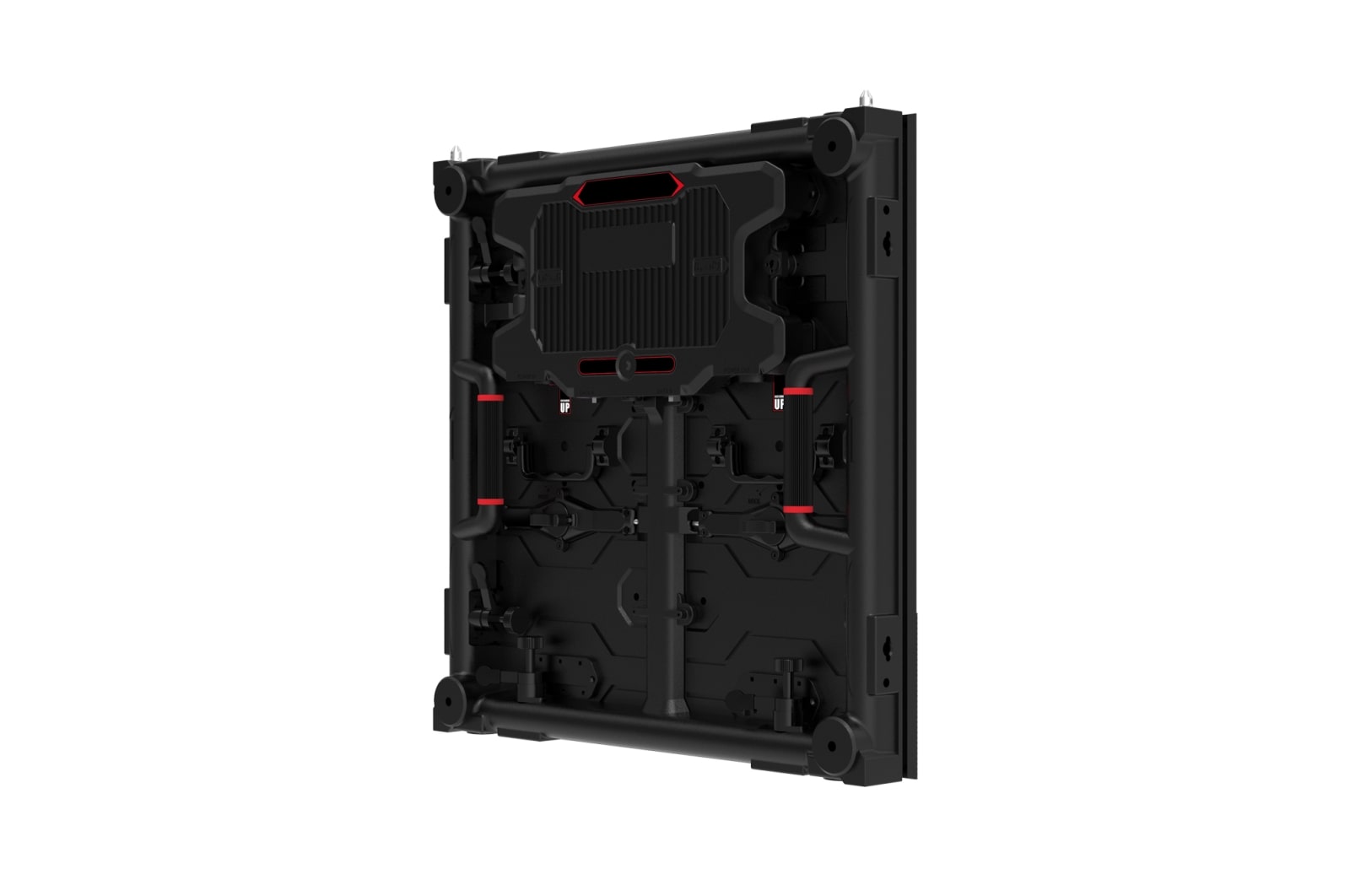

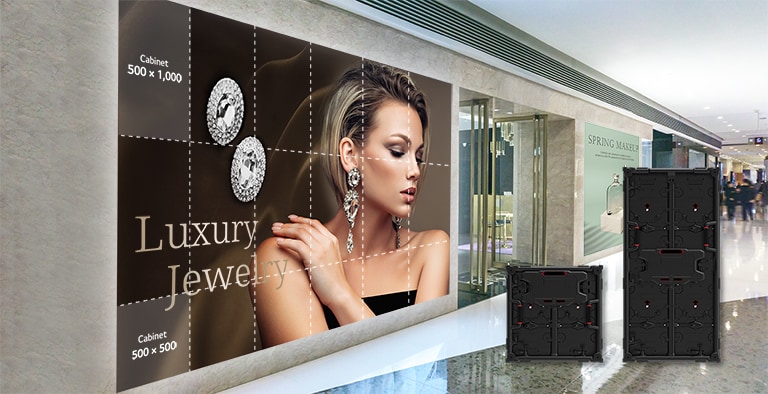

Two Cabinet Options

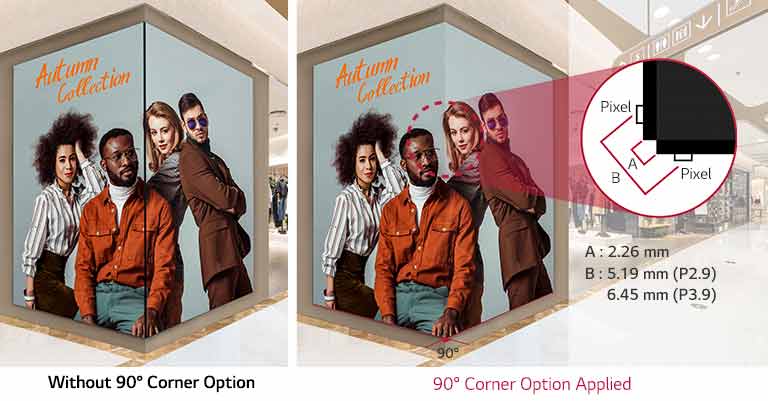

90° Corner Design Available
Pixel Configuration
3 in 1 SMD
Pixel Pitch
3.91
Module Resolution(WxH)
64x128
Module Dimensions(WxH,mm)
250x500
Weight per Module(Kg)
1.3
No. of Modules per Unit Case(WxH)
2x2
Unit Case Resolution(WxH)
128x256

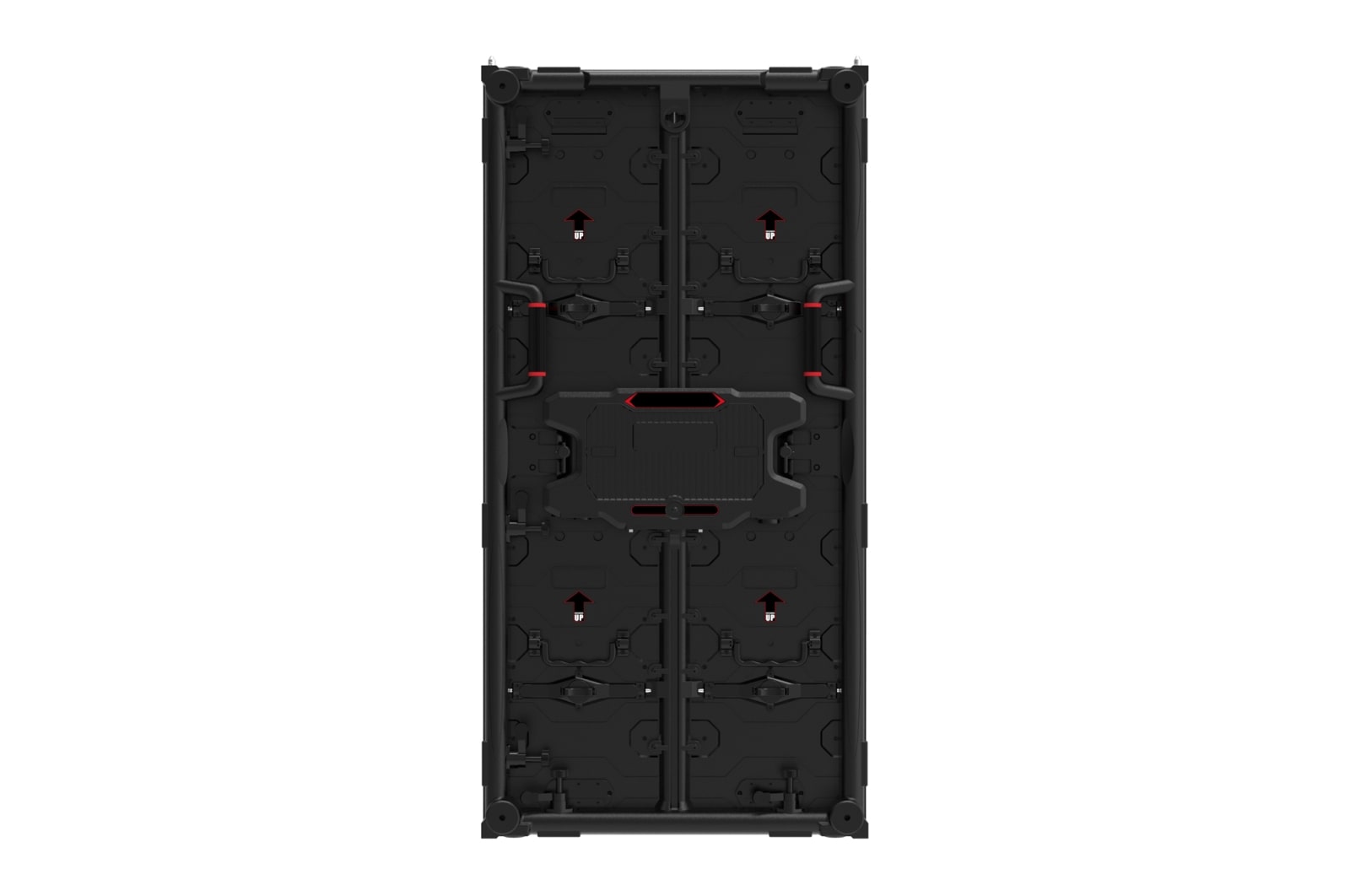

Unit Case Dimensions(WxHxD, mm)
500x1,000x66
Unit Case Surface Area(m²)
0.5
Weight per Unit Case(kg/unit)
12
Weight per Square Meter(Kg/m²)
24
Physical Pixel Density(Pixels/m²)
65,536
Unit Case material
Die Casting Aluminum Alloy

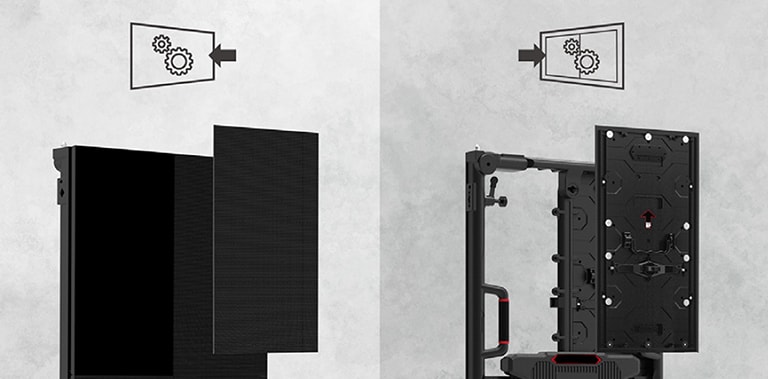

Service Access
Front or Rear (Select one Only)
Min. Brightness(After Calibration)
1000 cd/m²
Colour Temperature
6500
Visual Viewing Angle(Horizontal)
160
Visual View Angel(Vertical)
160
Brightness Uniformity
97%
Colour Uniformity
±0.003CxCy
Contrast Ratio
7,000
Processing Depth(bit)
14
Power Consumption(W/Unit, Max)
270
Power Consumption(W/Unit, Avg)
90
Power Consumption(W/m²）
540
Life time (Half Brightness)
100,000
Operating Temperature(℃)
-10℃ to +45℃
Operating Humidity
0~80%RH
IP Rating Front
IP30
IP Rating Rear
IP30
Certification
CE,FCC,ETL
Environment
RoHS
Input
HDMI, Single- link DVI, Audio Input
Output
4 x RJ45 ,HDMI- Loop, DVI- Loop
Control
RJ45 , USB In/Out
Power
AC-100-240V-50/60HZ
To access more technical documentation and resources, please visit the LG B2B partner portal.
