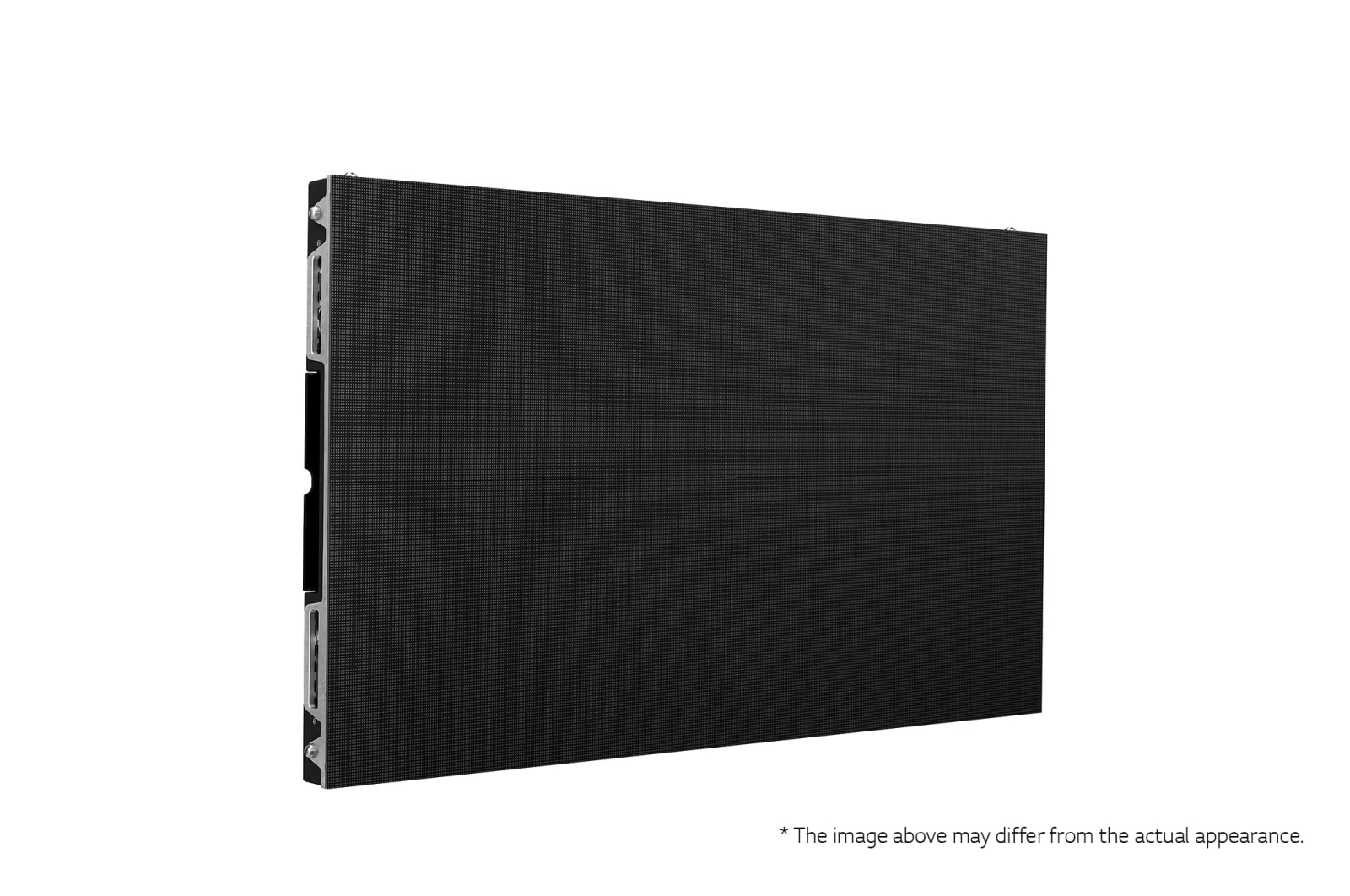

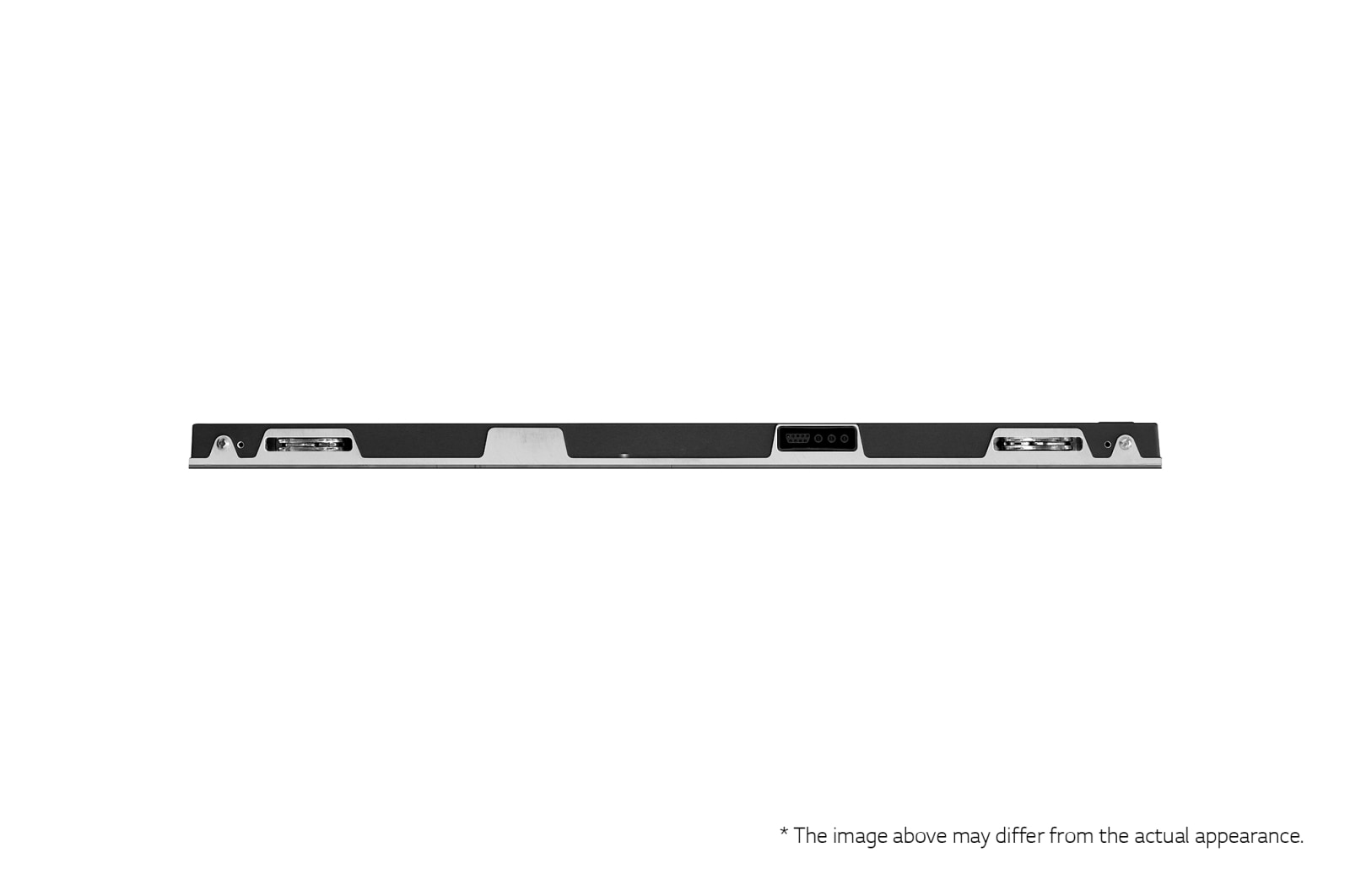

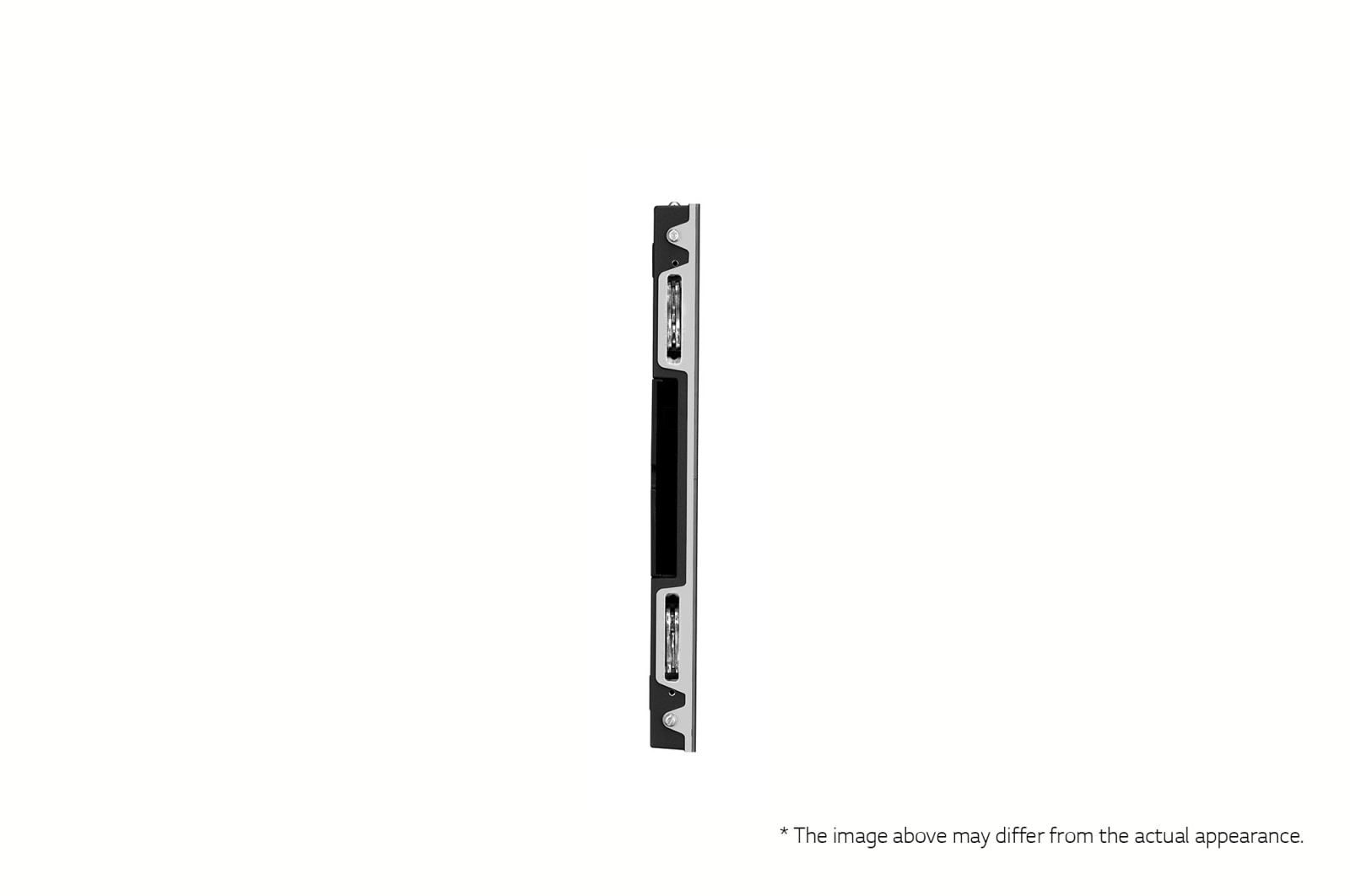

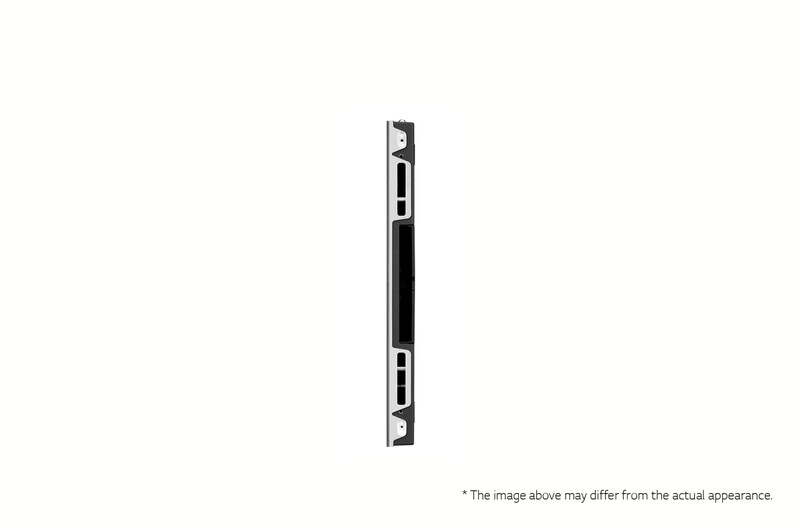

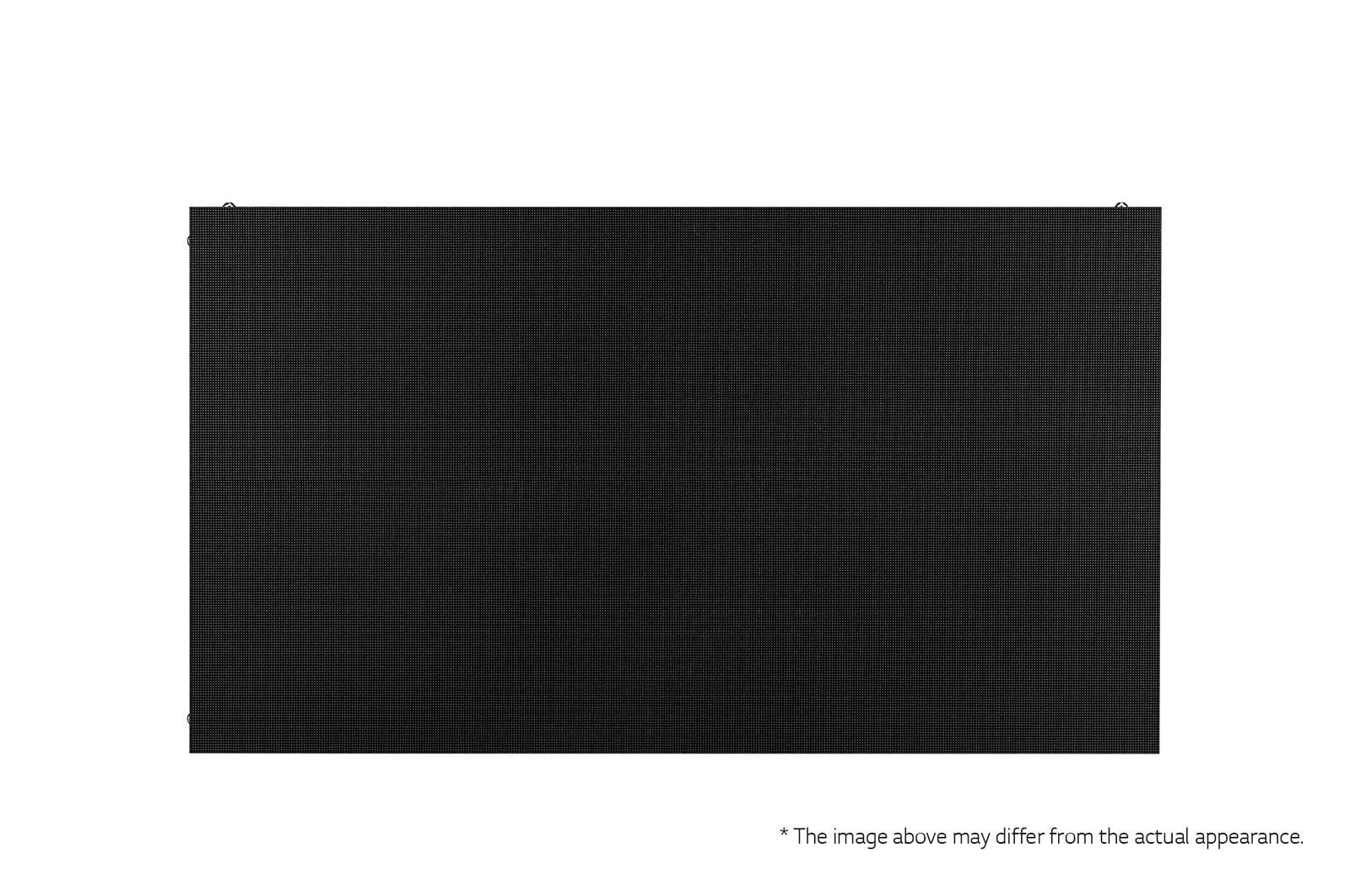

LSCB Series
Slim LED Signage

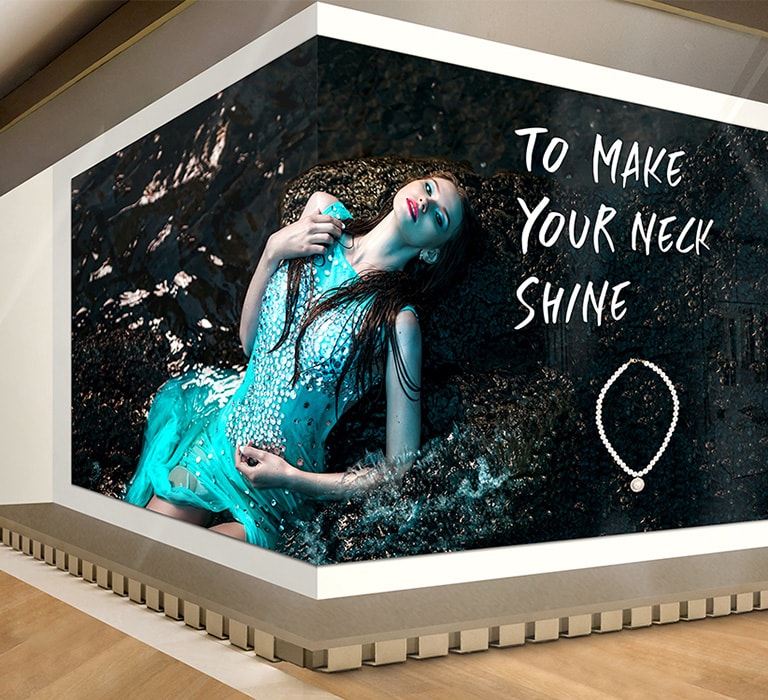

LG Ultra Slim LED Signage
Slim Depth
Ultra Slim Depth

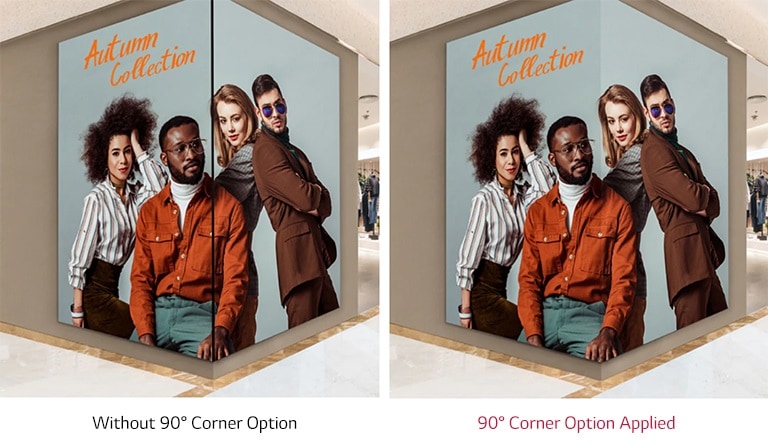

90° Corner Design Available
90° Corner Design Available

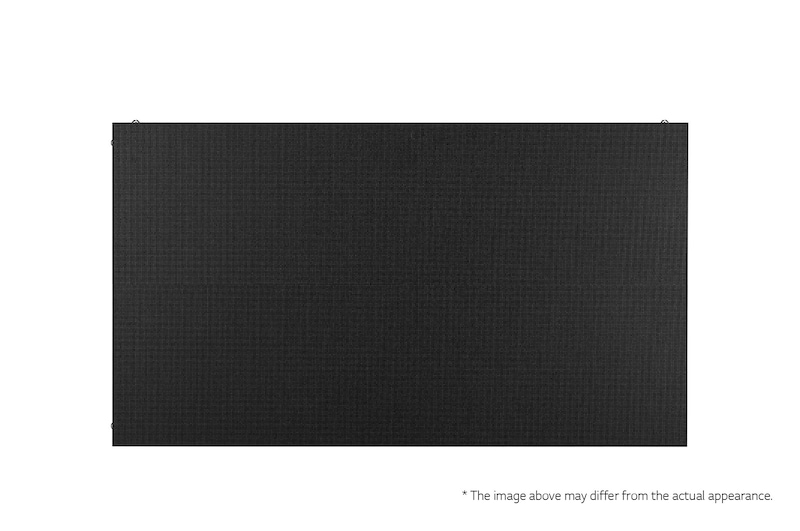

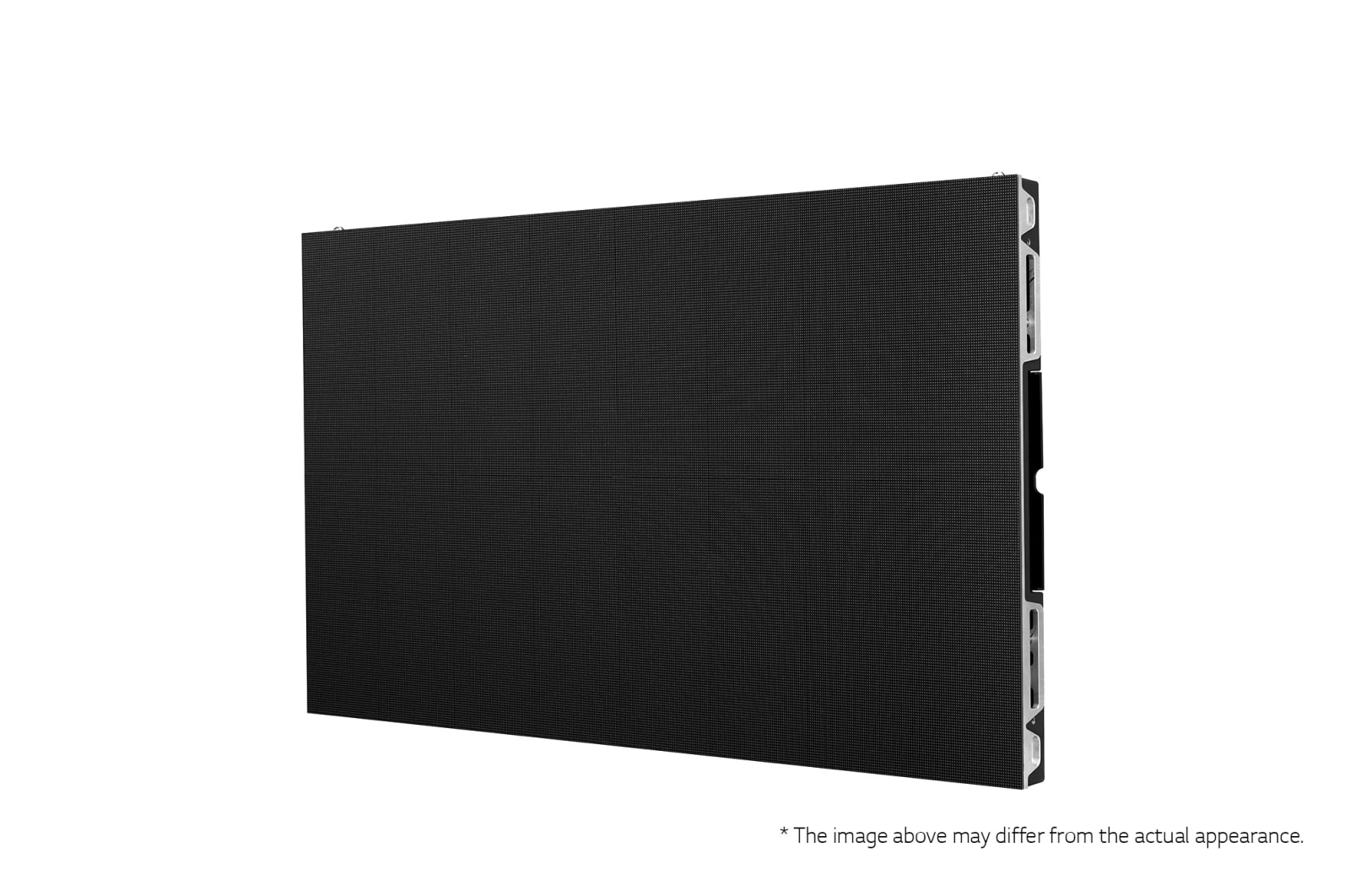

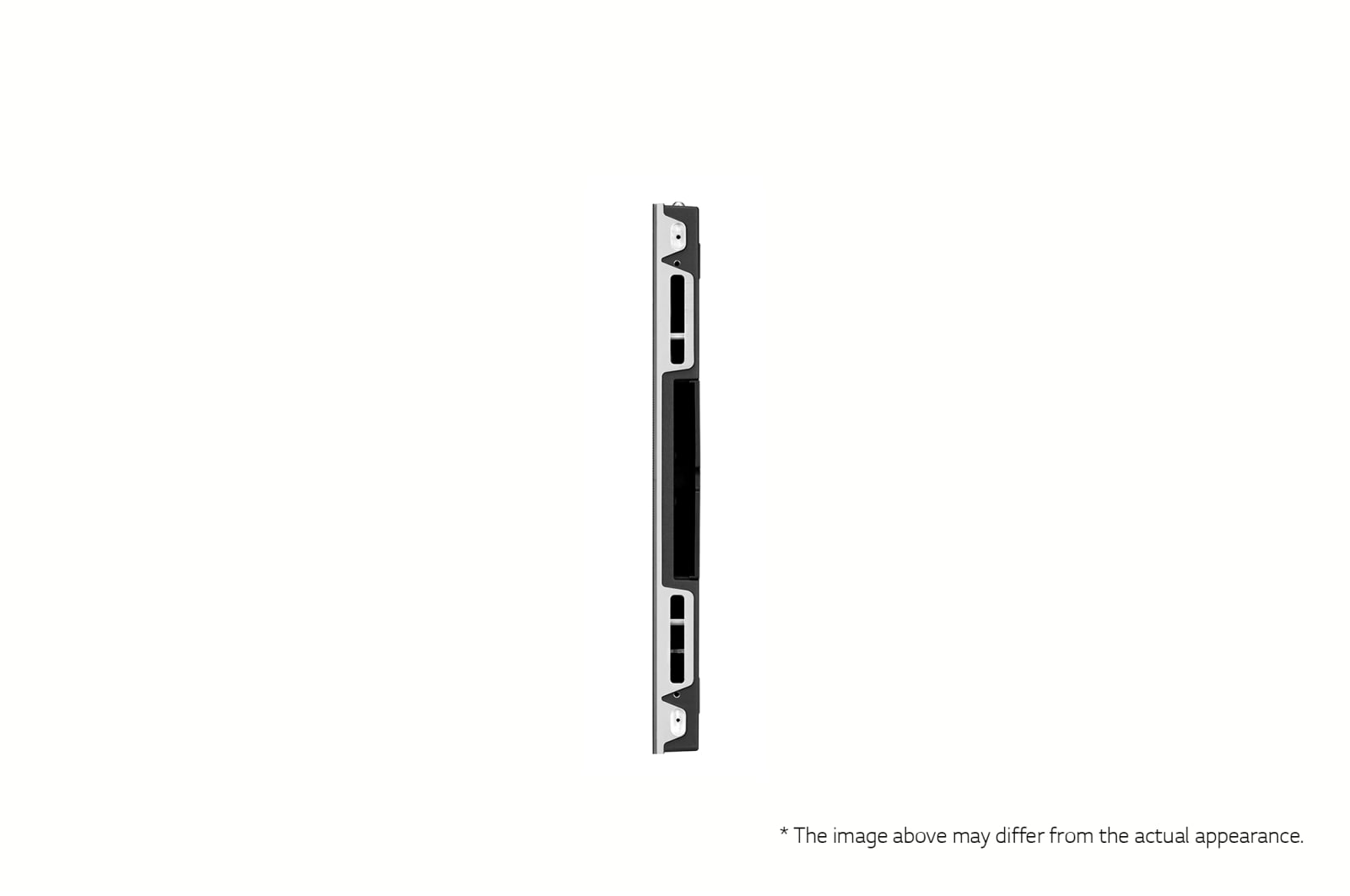

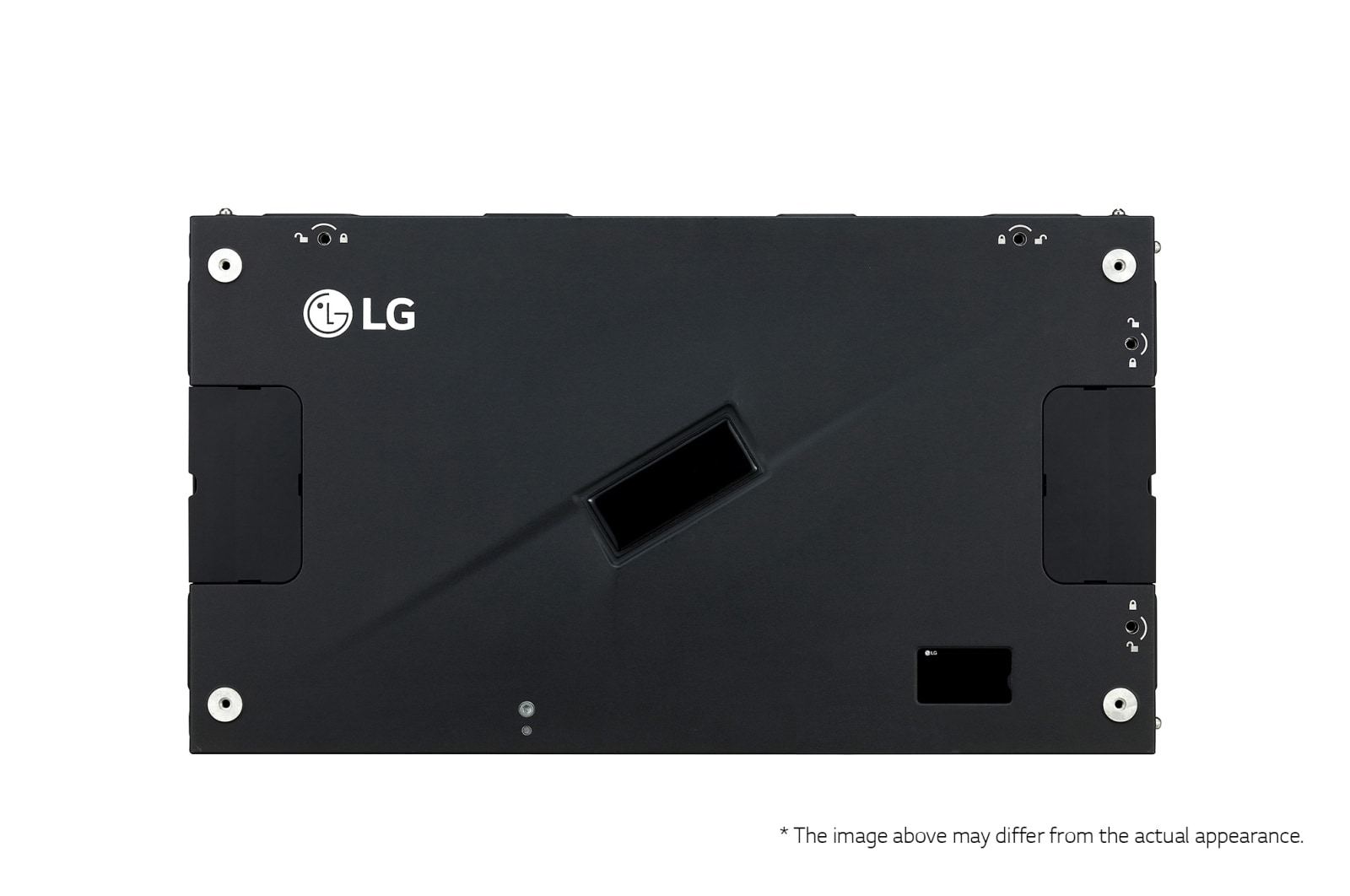

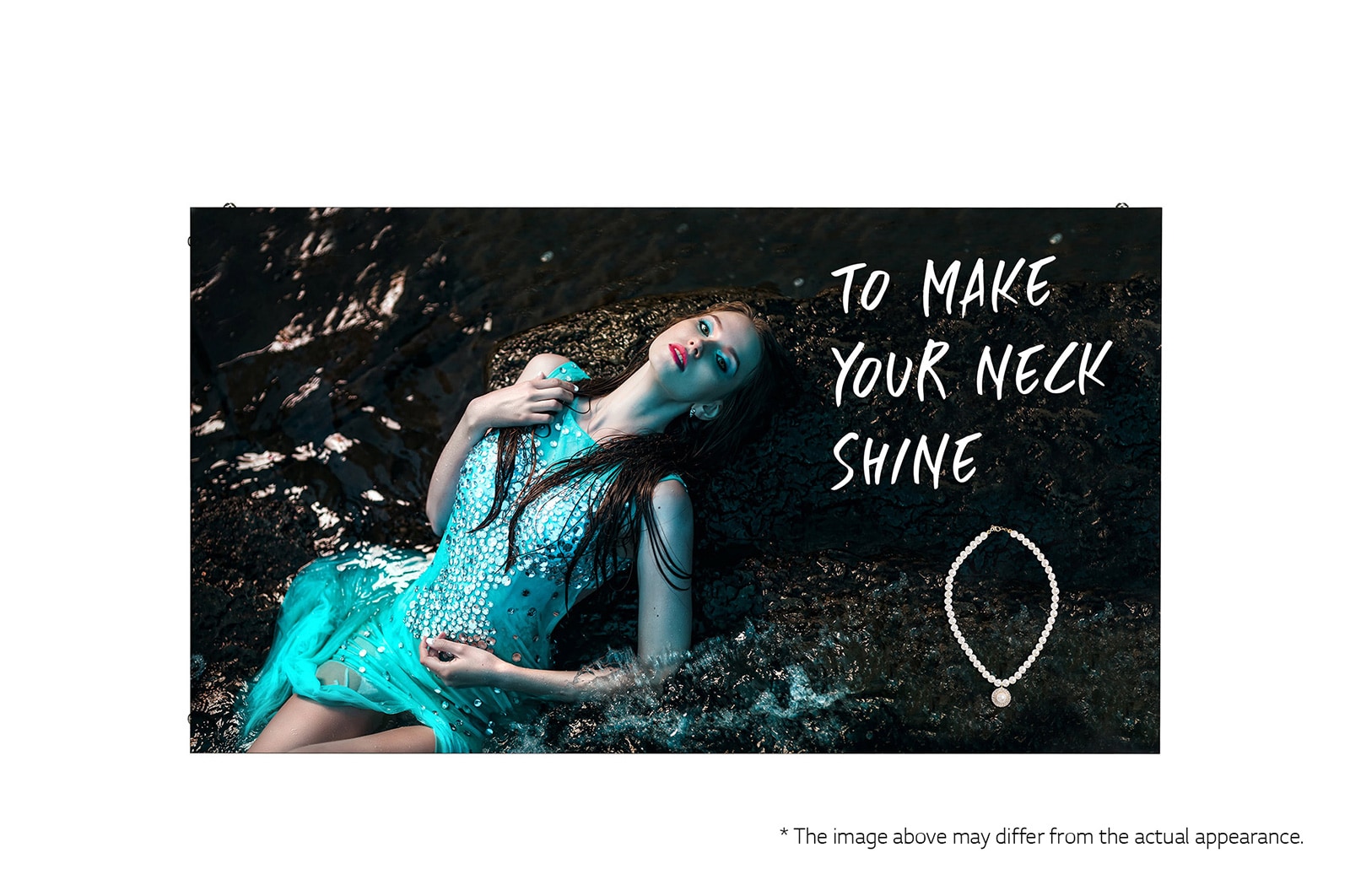

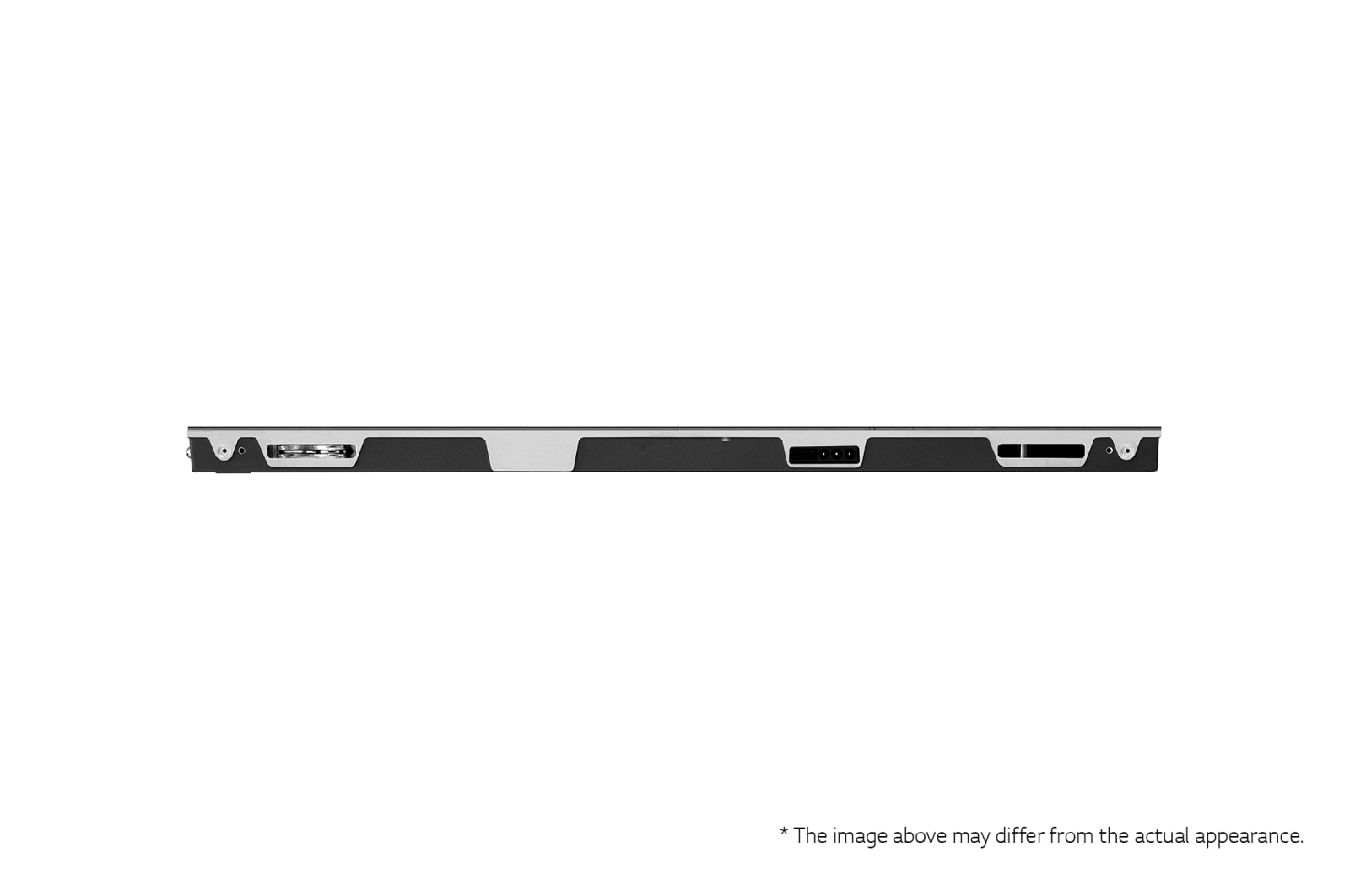

Gallery
All Spec
PHYSICAL PARAMETERS
-
Pitch Name
P2.5
-
Pixel Configuration
3 in 1 SMD
-
Pixel Pitch
2.5
-
Module Resolution(WxH)
120x135
-
Module Dimensions(WxH,mm)
300 x 337.5
-
Weight per Module(Kg)
0.66
-
No. of Modules per Unit Case(WxH)
2x1
-
Unit Case Resolution(WxH)
240x135
-
Unit Case Dimensions(WxHxD, mm)
600 x 337.5
-
Unit Case Surface Area(m²)
0.203
-
Weight per Unit Case(kg/unit)
5.2
-
Weight per Square Meter(Kg/m²)
25.7
-
Physical Pixel Density(Pixels/m²)
160,000
-
Unit Case material
Die Casing Aluminum Alloy
-
Service Access
Front
-
Power Consumption(W/Unit, Max)
150
-
Power Consumption(W/Unit, Avg)
50
-
Power Consumption(W/m²)
740
-
Power Supply(V)
100 to 240
-
Frame Rate(Hz)
50/60
-
Refresh Rate(Hz)
3,840
OPTICAL SPECIFICATIONS
-
Min. Brightness(After Calibration)
800 cd/m²
-
Colour Temperature
3,200 - 9,300
-
Visual Viewing Angle(Horizontal)
160
-
Visual View Angel(Vertical)
160
-
Brightness Uniformity
97%
-
Colour Uniformity
±0.003CxCy
-
Contrast Ratio
5,000
-
Processing Depth(bit)
14
OPERATION SPECIFICATION
-
Life time (Half Brightness)
100,000
-
Operating Temperature(℃)
-10℃ to +45℃
-
Operating Humidity
0~80%RH
-
IP Rating Front
IP30
-
IP Rating Rear
IP30
CERTIFICATION
-
Certification
CE,FCC,ETL
ENVIRONMENT
-
Environment
RoHS
CONTROLLER(LG CVCA)
-
Input
HDMI, DisplayPort, USB
-
Output
16 x RJ45, RS-232C In/Out (4 pin phone-jack)
-
Control
RJ45
-
Power
AC-100-240V-50/60HZ
