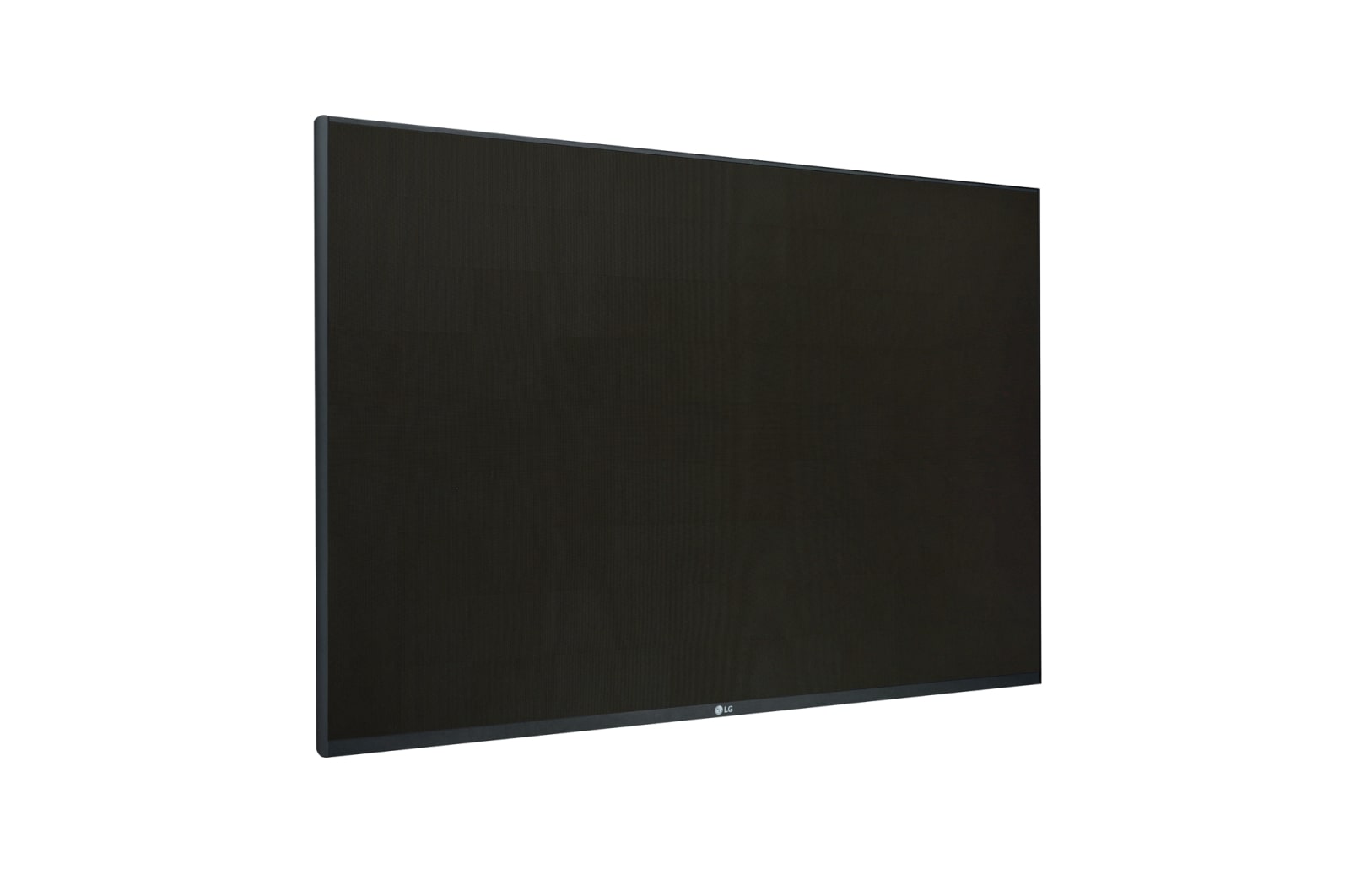

130" All-in-one LED Screen
All Spec
PHYSICAL PARAMETERS
-
Pitch Name
P1.5
-
Pixel Configuration
3 in 1 SMD
-
Pixel Pitch (mm)
1.50
-
Screen Resolution (WxH)
1,920x1,080
-
Screen Dimension (W x H x D,mm)
2,880 x 1,620 x 128.5 (w/o Screen Frame)
-
Screen Weight (kg)
175 (w/o Screen Frame)
-
No. of Modules per Unit Case (W × H)
4 × 3
-
Unit Case Resolution (W × H)
640 × 360
-
Unit Case Dimensions (W × H × D, mm)
960 × 540 × 127.4
-
Unit Case Surface Area (m² )
0.518
-
Weight per Unit Case (kg/unit)
Master: 20.85, Slave: 19.24
-
Weight per Square Meter (kg/m² )
37.6
-
Physical Pixel Density (pixels/m² )
444,444
-
Flatness of Unit Case (mm)
±0.2
-
Unit Case material
Front : Die Casting Aluminum, Rear : PC+ABS
-
Service Access
Front and Rear
OPTICAL SPECIFICATIONS
-
Max. Brightness (cd/m²)
500
-
Colour Temperature
6,500
-
Visual Viewing Angle (Horizontal)
160
-
Visual Viewing Angle (Vertical)
140
-
Brightness Uniformity
95%
-
Colour Uniformity
±0.015Cx,Cy
-
Contrast Ratio
5,000
-
Processing Depth (bit)
16(HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/Screen, Max.)
2,900
-
Power Consumption (W/Screen, Avg.)
980
-
Power Consumption (W/m², Max.)
622
-
Power Supply (V)
100 to 240
-
Frame Rate (Hz)
50 / 60
-
Refresh Rate (Hz)
3,840
-
Sound Output (Max.)
162W
OPERATION SPECIFICATIONS
-
Lifetime (Half Brightness, hrs) 1)
100,000
-
Operating Temperature(℃)
0°C to +40°C
-
Operating Humidity
10 ~ 80%RH
CERTIFICATION
-
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
-
EMC
FCC Class A / CE / KC
-
Safety / EMC
AS/NZS 60950,CB Scheme / AS/NZS CISPR32,RCM(Class A)
-
Environment
RoHS

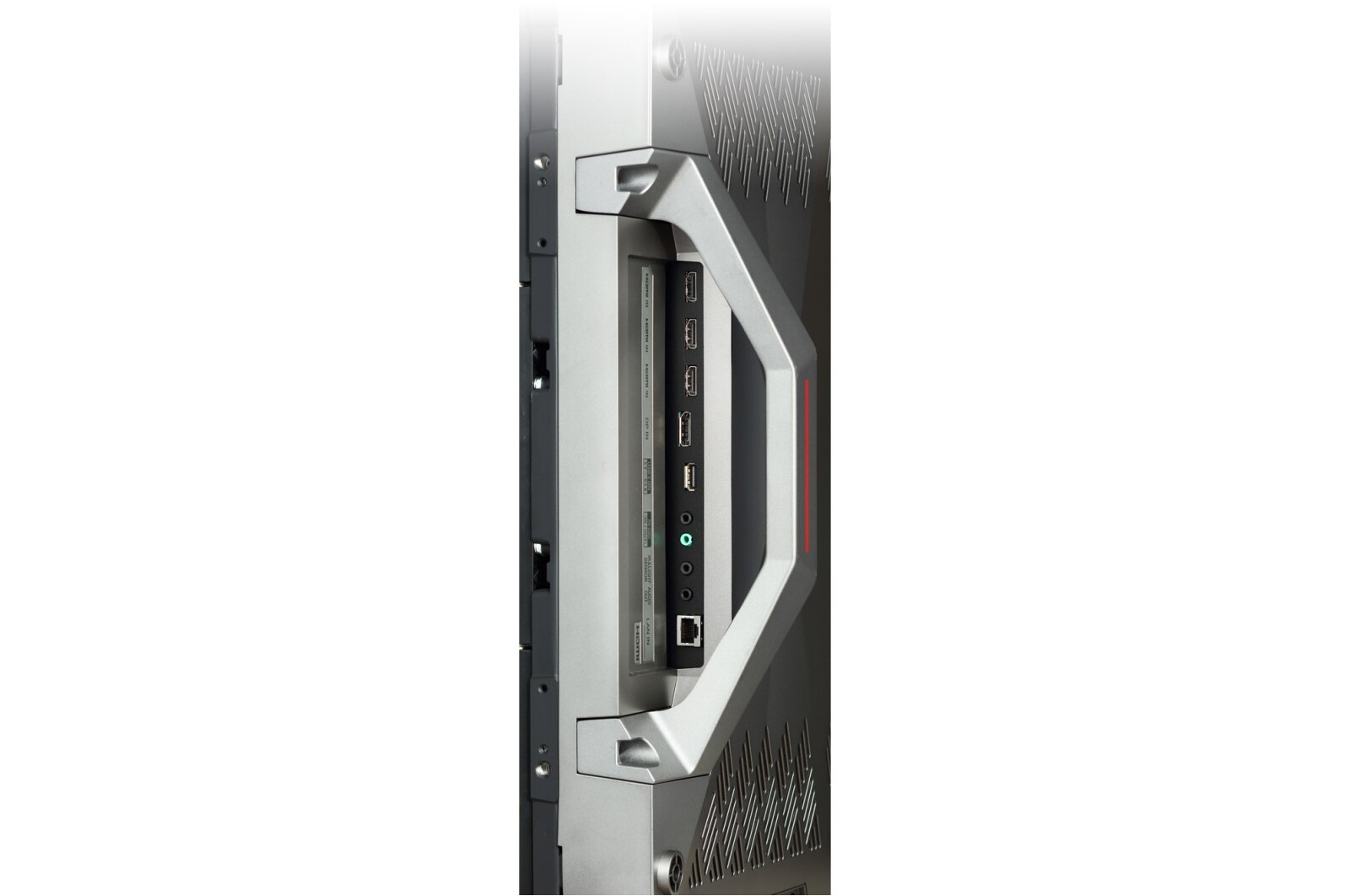

CONNECTIVITY(EMBEDDED CONTROLLER)
-
Video Inputs
HDMI In(3), DP In, USB
-
Control
RJ45 In, RS232C In/out
-
Special Features
Temperature Sensor, Ambient Light Sensor, Crestron Connected 2)
BASIC ACCESSORY
-
Basic Accessory
Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual
