LG MAGNIT
LG MAGNIT received a design excellence award from Reddot Design Award.
LG MAGNIT received a design excellence award from IDEA Design Award.

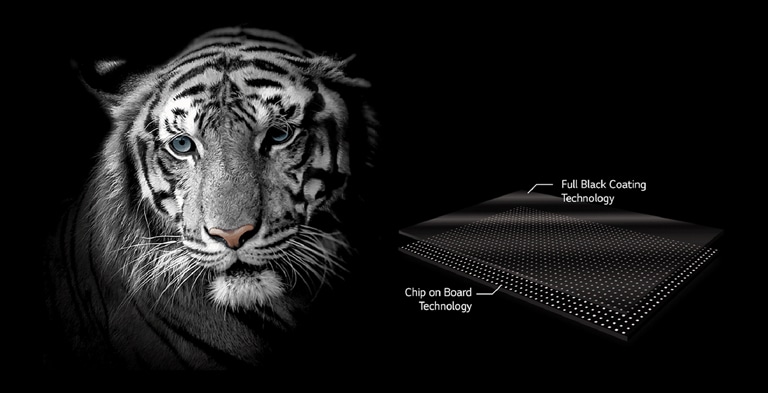

A face of a white tiger for emphasizing the black color
*Based on previous LG LED Signage models
Floor fountain with different colors to show difference between LG Conventional LED Signage and MAGNIT about contrast ratio and distinctiveness
*Images dramatised for illustrative purposes.
The Seattle Great Wheel shining with lots of colors
* The above functions are created by using deep learning AI technology to improve the picture quality.
Night view of a village on HDR and SDR, having difference in color spectrum and contrast ratio
*HDR Pro is a proprietary HDR solution from LG that processes HDR signal using enhanced dynamic tone mapping.^Images dramatised for illustrative purposes.
MAGNIT showing waterfall viewed from the side angles

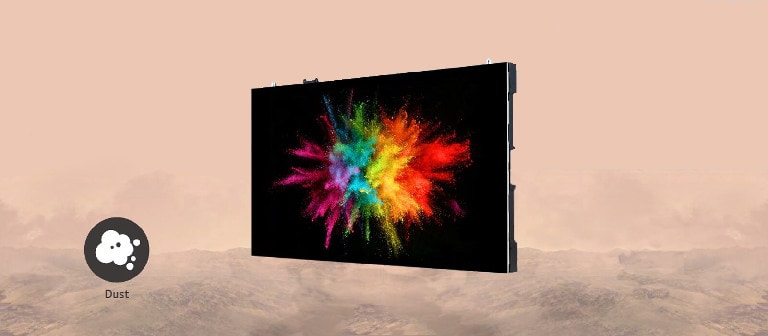

Protecting LED chips from water drops, dust, static electricity and physical impacts
* Based on in-house testing in accordance with the certification criteria, or under actual operating conditions.

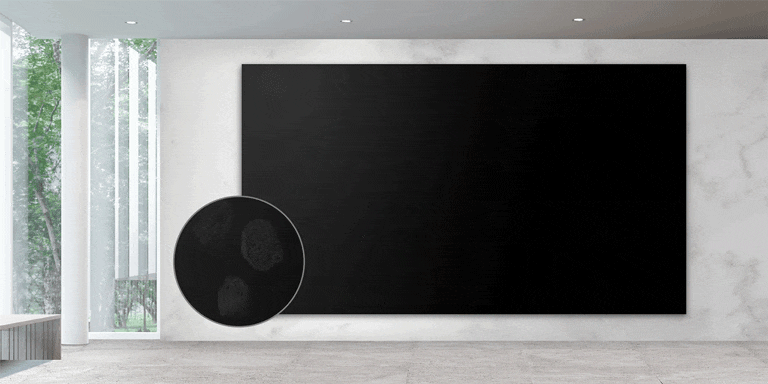

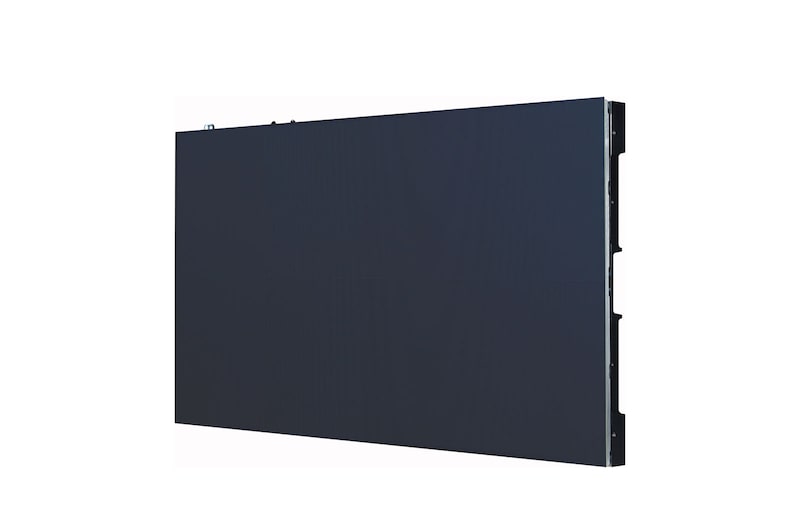

The sleek look of MAGNIT with smooth surface

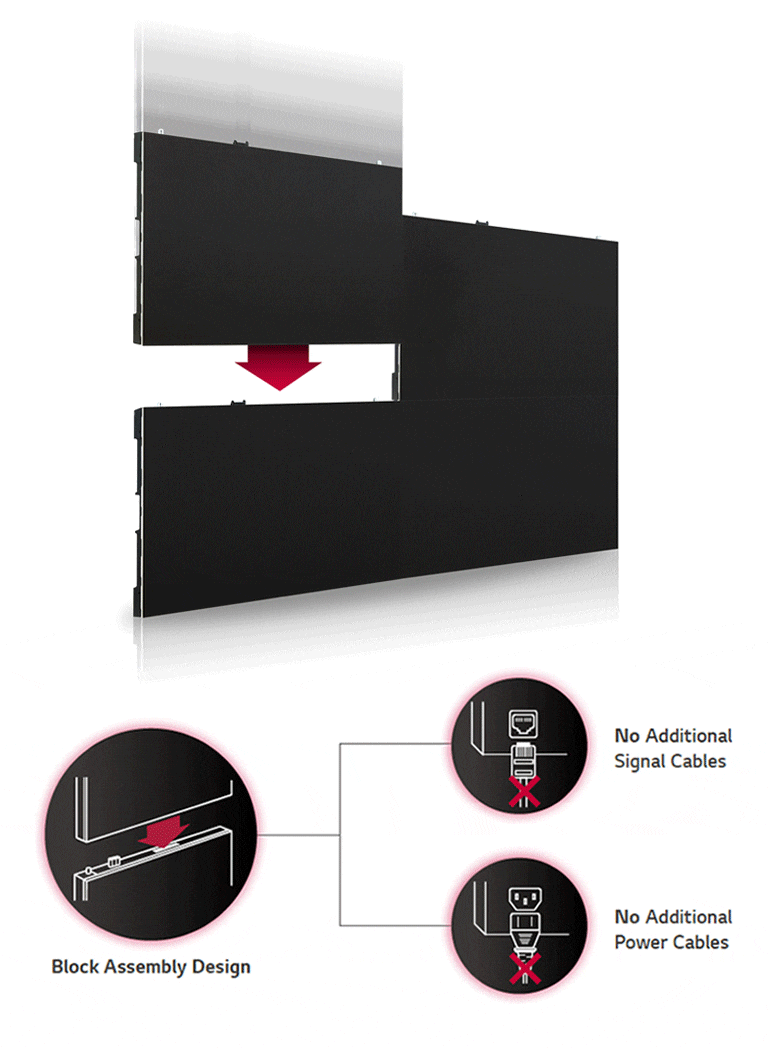

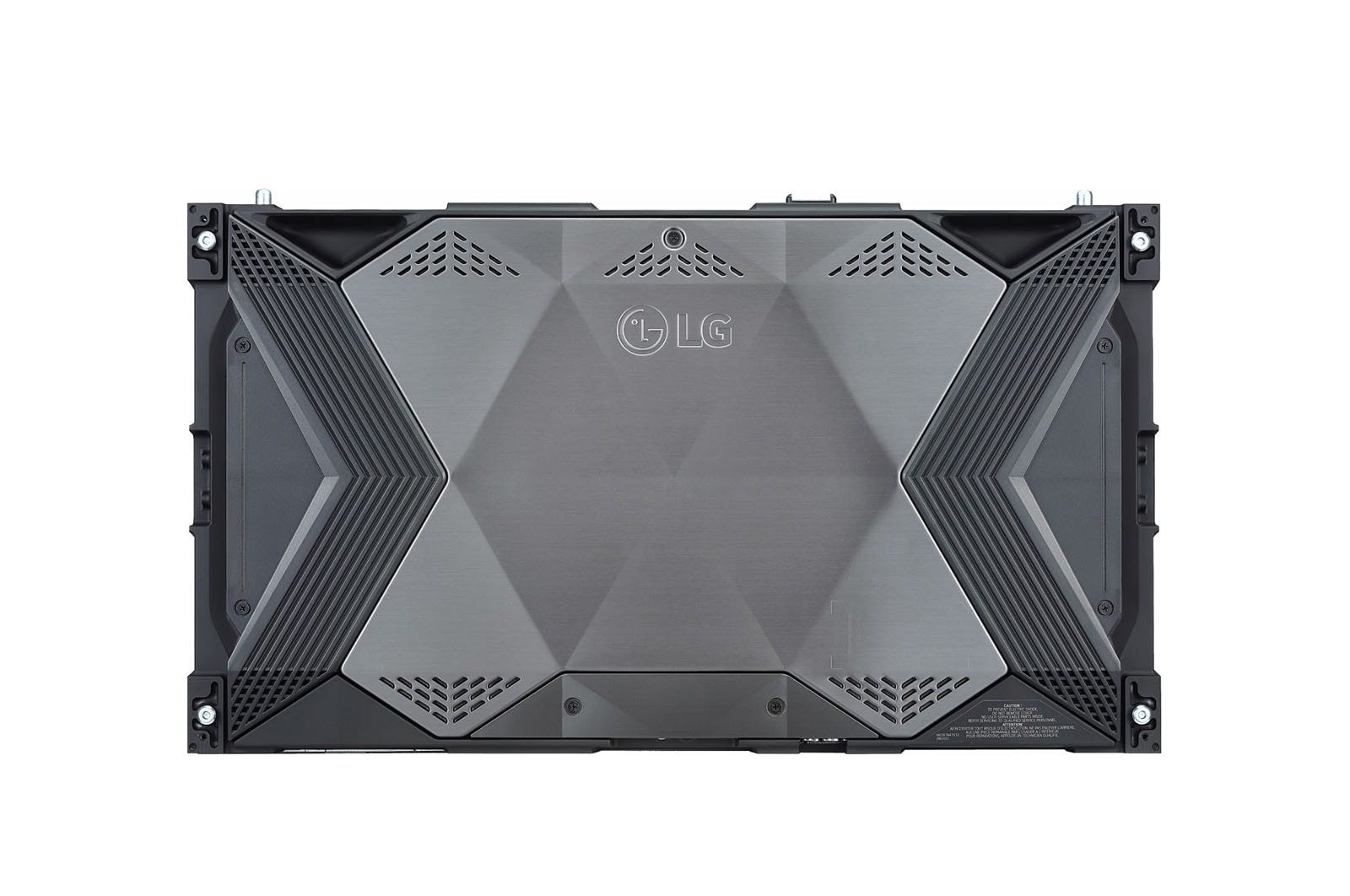

The wireless broadband transmission technology enables cabinets to connect to each other, and its assembly design simplifies rear structure of the screen.

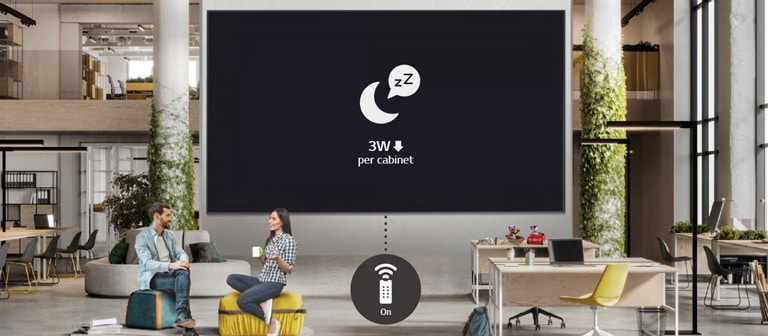

Employees are resting in the office without using the display which is in standby mode for minimizing power consumption.
*Available with 1280 x 720 or larger resolution screens only
* Network-based control

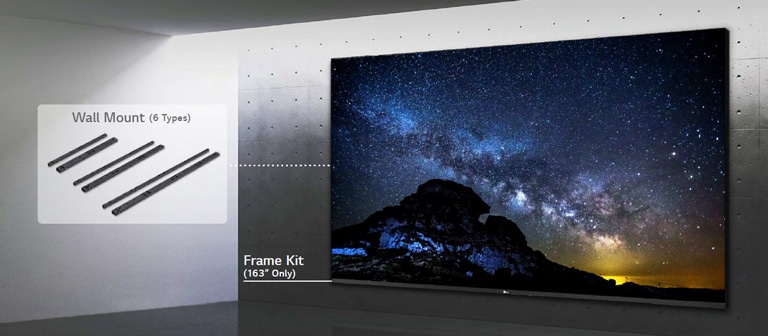

LG MAGNIT being installed neatly with wall mount kits and a frame kit.
*Wall mount and frame kit are optional extras and must be purchased separately

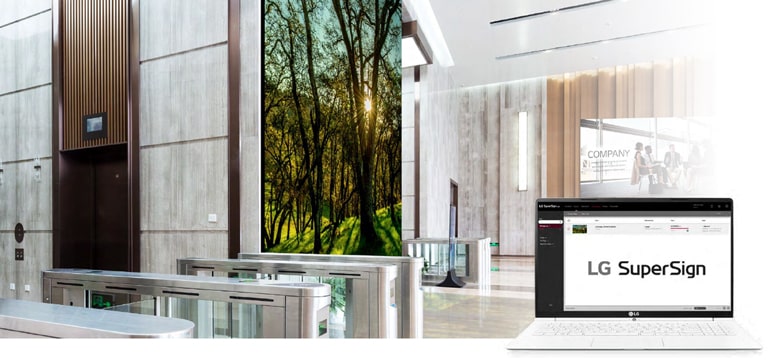

The MAGNIT is installed in a corporate lobby, and it is being managed by LG SuperSign solution.
*SuperSign CMS Licence required and must be purchased separately

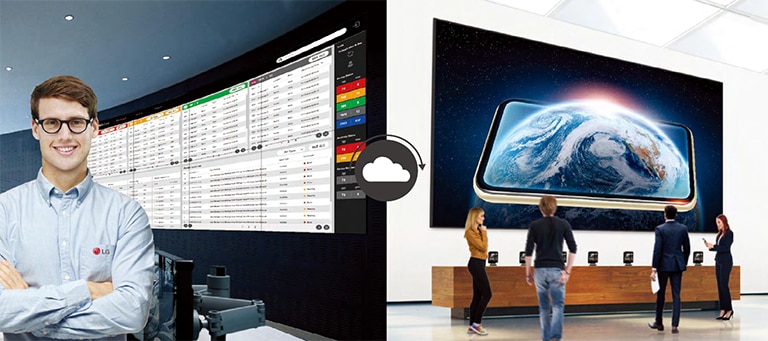

LG engineer is monitoring the status of MAGNIT installed in electronic equipment stores in real-time.
*ConnectedCare sold separately, additional charges apply.
Pixel Configuration
Micro LED
Pixel Pitch
0.94
Module Resolution(WxH)
160 x 180
Module Dimensions(WxH,mm)
150 x 168.8
Weight per Module(Kg)
145
No. of Modules per Unit Case(WxH)
4 x 2
Unit Case Resolution(WxH)
640 x 360
Unit Case Dimensions(WxHxD, mm)
600 x 337.5 x 44.9
Unit Case Surface Area(m²)
0.2025
Weight per Unit Case(kg/unit)
7
Weight per Square Meter(Kg/m²)
34.6
Physical Pixel Density(Pixels/m²)
1,137,778
Unit Case material
Die-cast Aluminum
Service Access
Front and Rear
Min. Brightness(After Calibration)
Peak. 1,200nit ; Typ. 600nit
Colour Temperature
6,500K / 2,800~10,000K
Visual Viewing Angle(Horizontal)
160
Visual View Angel(Vertical)
140
Brightness Uniformity
95%
Colour Uniformity
±0.02Cx,Cy
Contrast Ratio
Peak. 100,000; Typ. 50,000:1
Processing Depth(bit)
20(HDR10, HDR10 Pro)
Power Consumption(W/Unit, Max)
135
Power Consumption(W/Unit, Avg)
81
Power Consumption(W/m²) Max
667
Power Supply (V)
100 to 240
Frame Rate (Hz)
50/60
Refresh Rate (Hz)
3,840
Life time (Half Brightness)
100,000
Operating Temperature(℃)
0°C∘to +40°C
Operating Humidity
10-80%RH
IP Rating Front
IP50
IP Rating Rear
IP20
Certification
Safety 60950-1, EMC Class B
Environment
RoHS
Input
HDMI(3), DP(1), USB(1)
Output
Ethernet(5Gx8), SPDIF(Audio, 5.1ch)
Control
IR(1), RS232C In(1)/Out(1), Ethernet(1)
Power
AC-100-240V-50/60HZ
Features
WebOS 4.1,Cisco Compatible,Creston Connected,SuperSign CMS, Signage 365, 16GB storage,Built-in Wi-FI
To access more technical documentation and resources, please visit the LG B2B partner portal.
