All Spec
INFORMATION
-
Model name
-

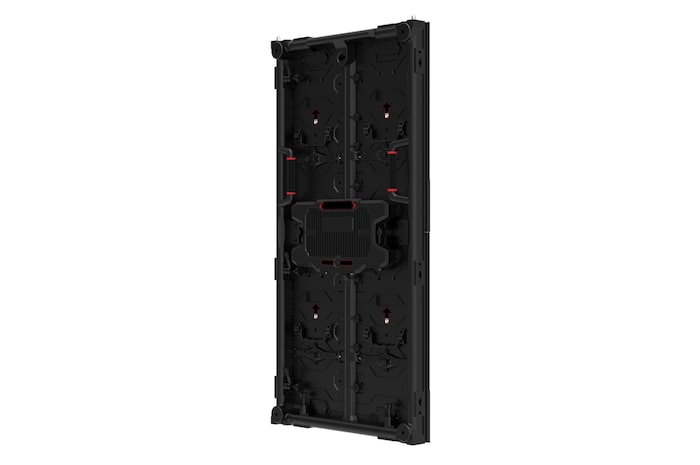

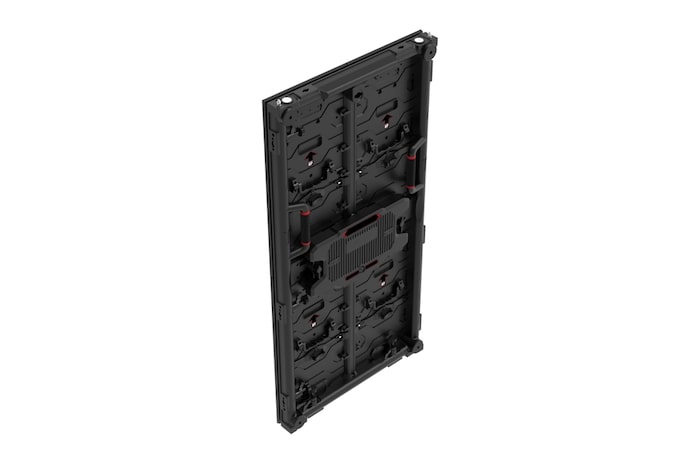

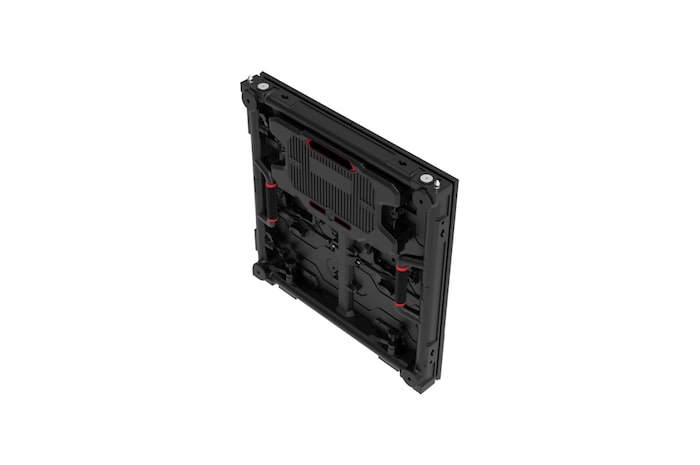

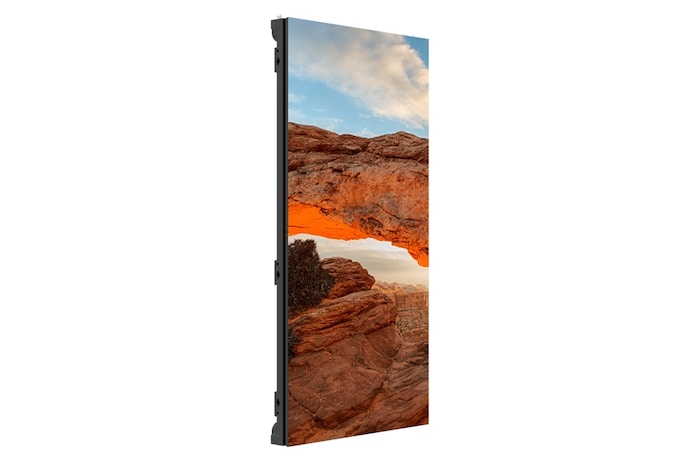

GSCA039-GN
PHYSICAL PARAMETERS
-
Pixel Configuration
-
Single SMD
-
Pixel Pitch (mm)
-
3.91
-
Module Resolution (WxH)
-
64x128
-
Module Dimensions(WxH,mm)
-
250x500
-
Weight per Module (kg)
-
1.4
-
No. of Modules per Cabinet (WxH)
-
2x2
-
Cabinet Resolution (WxH)
-
128x256
-
Cabinet Dimensions (W x H x D, mm)
-
500x1,000x66.05
-
Cabinet Surface Area (㎡)
-
0.5
-
Weight per Cabinet (kg/unit)
-
12.5
-
Weight per Square Meter (kg/㎡)
-
25
-
Physical Pixel Density (pixels/㎡)
-
65,536
-
Flatness of Cabinet (mm)
-
±0.3
-
Cabinet material
-
Die-casting Magnesium
-
Service access
-
Front or Rear (select one only)
OPTICAL SPECIFICATIONS
-
Max Brightness (After Calibration, nit)
-
5,000
-
Color Temperature (K)
-
3,200~9,300
-
Visual Viewing Angle (Horizontal)
-
160
-
Visual Viewing Angle (Vertical)
-
155
-
Brightness Uniformity
-
0.97
-
Color Uniformity
-
±0.003Cx,Cy
-
Contrast Ratio
-
6,000:1
-
Processing Depth (bit)
-
14 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/Cabinet, Max.)
-
300
-
Power Consumption (W/Cabinet, Avg.)
-
100
-
Power Consumption (W/㎡, Max.)
-
600
-
Heat Dissipation (BTU/h/Cabinet, Max.)
-
1,024
-
Heat Dissipation (BTU/h/Cabinet, Avg.)
-
341
-
Heat Dissipation (BTU/h/㎡, Max.)
-
2,047
-
Power Supply (V)
-
100 to 240
-
Frame Rate (Hz)
-
50 / 60
-
Refresh Rate (Hz)
-
3,840
OPERATION SPECIFICATIONS
-
Operating Temperature(℃)
-
-30℃ to +45℃
-
Operating Humidity
-
10~99%RH
-
IP rating Front
-
IP65
-
IP rating Rear
-
IP65
-
LED Lifetime (Half brightness)
-
100,000
STANDARD
-
Certification
-
CE, ETL, FCC, KC Class A
ENVIRONMENT
-
Environment
-
RoHS, REACH
CONTROLLER
-
Controller
-
CVCA
90 DEGREE CORNER CUT
-
90 degree corner cut
-
O
