GSCA Versatile Series

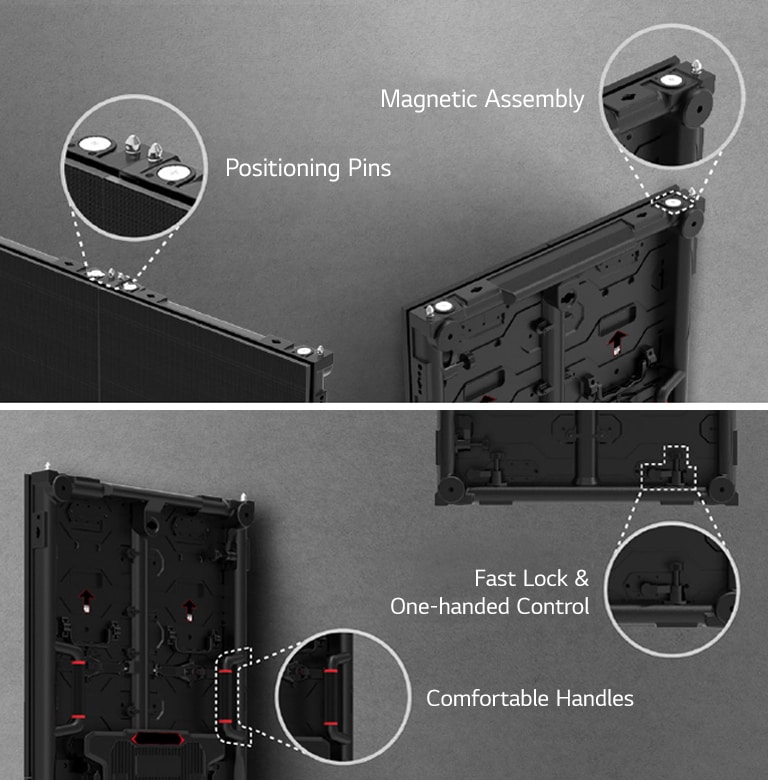

Fast Installation
Fast Installation

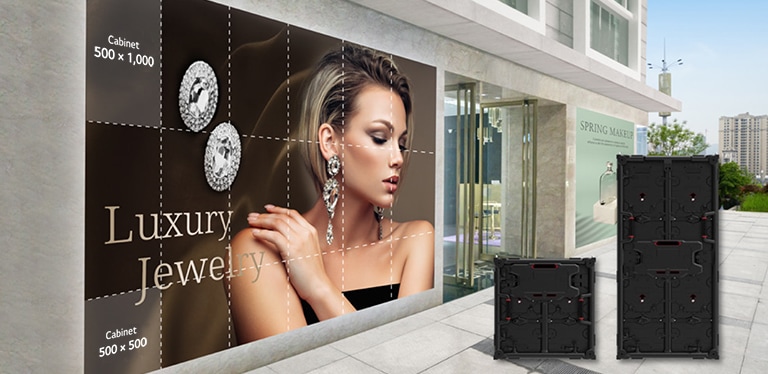

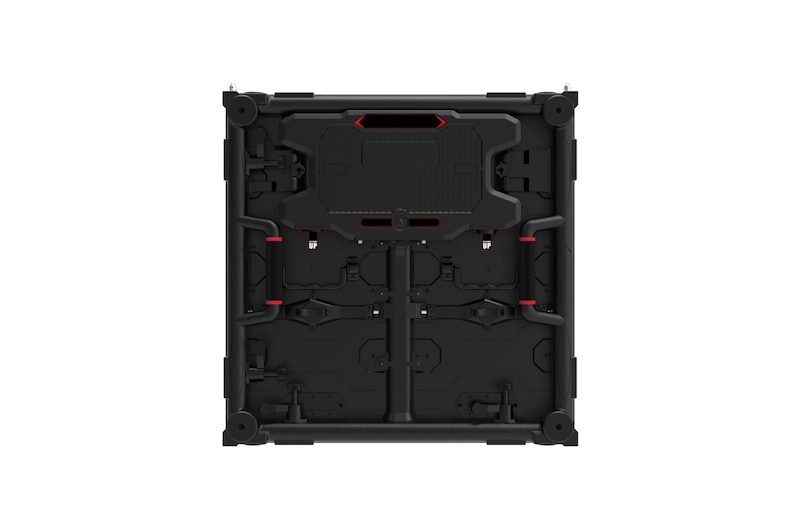

Two Cabinet Options
Two Cabinet Options

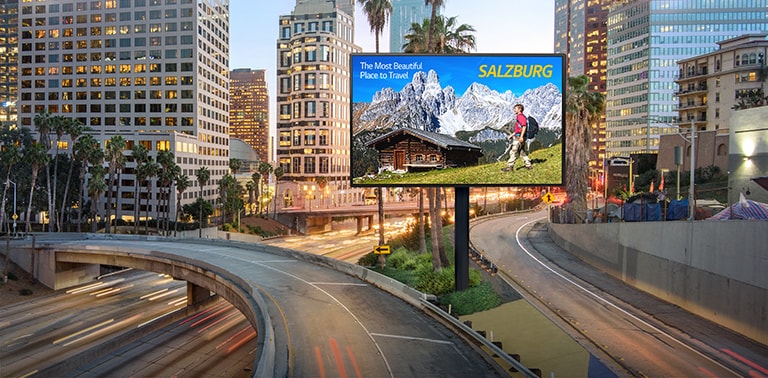

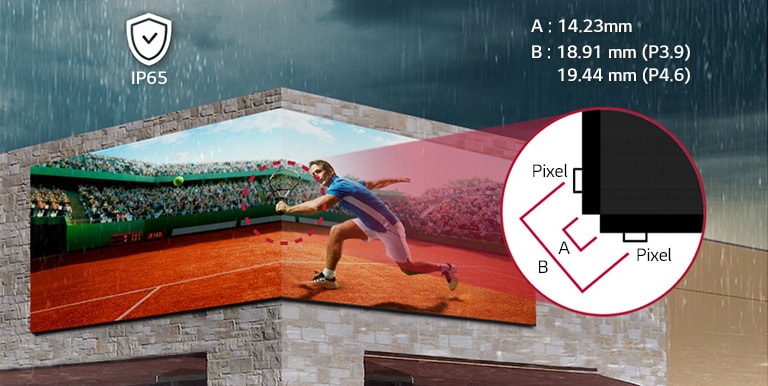

IP Rated Weatherproof
& 90° Corner Design
IP Rated Weatherproof

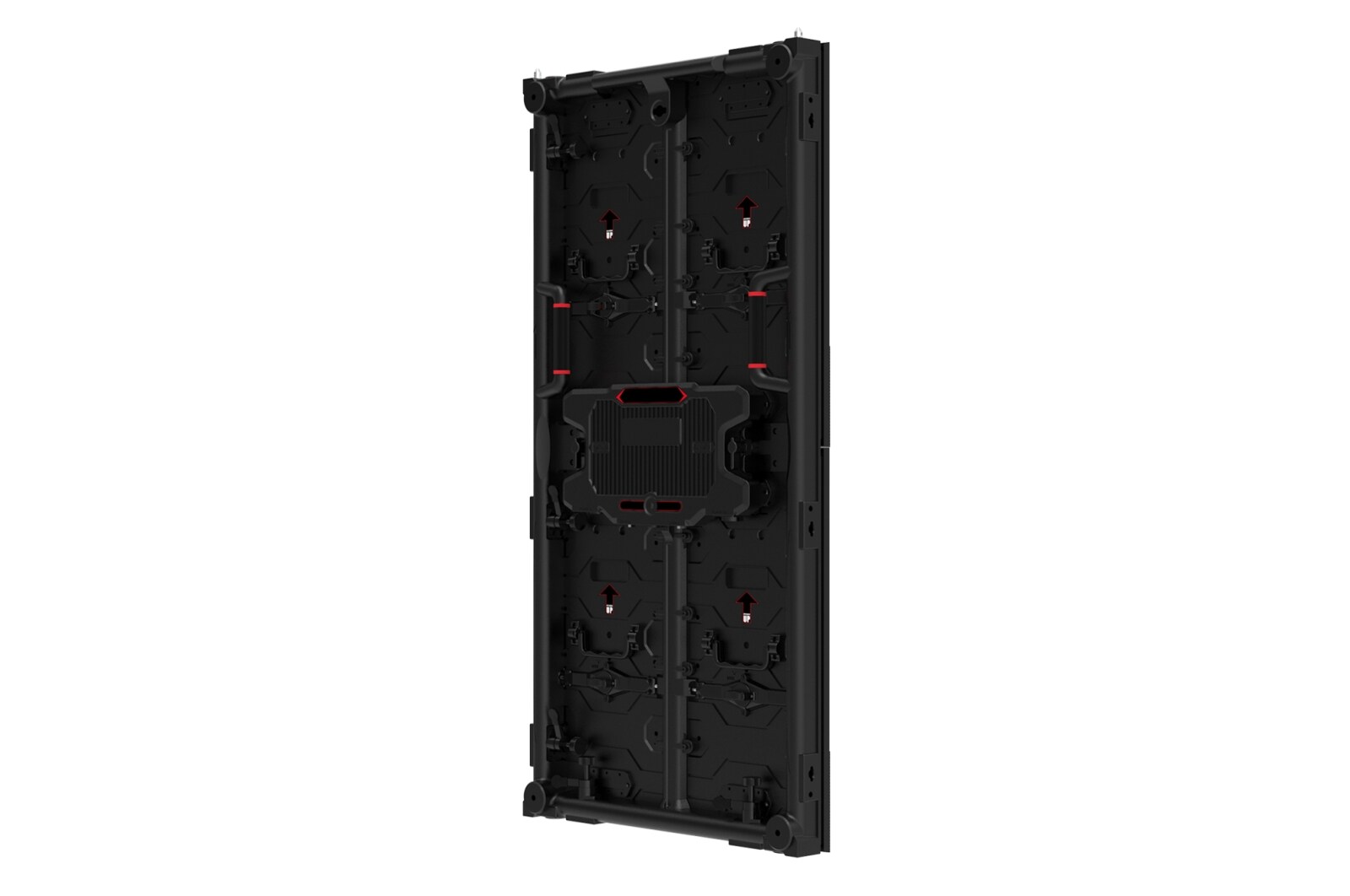

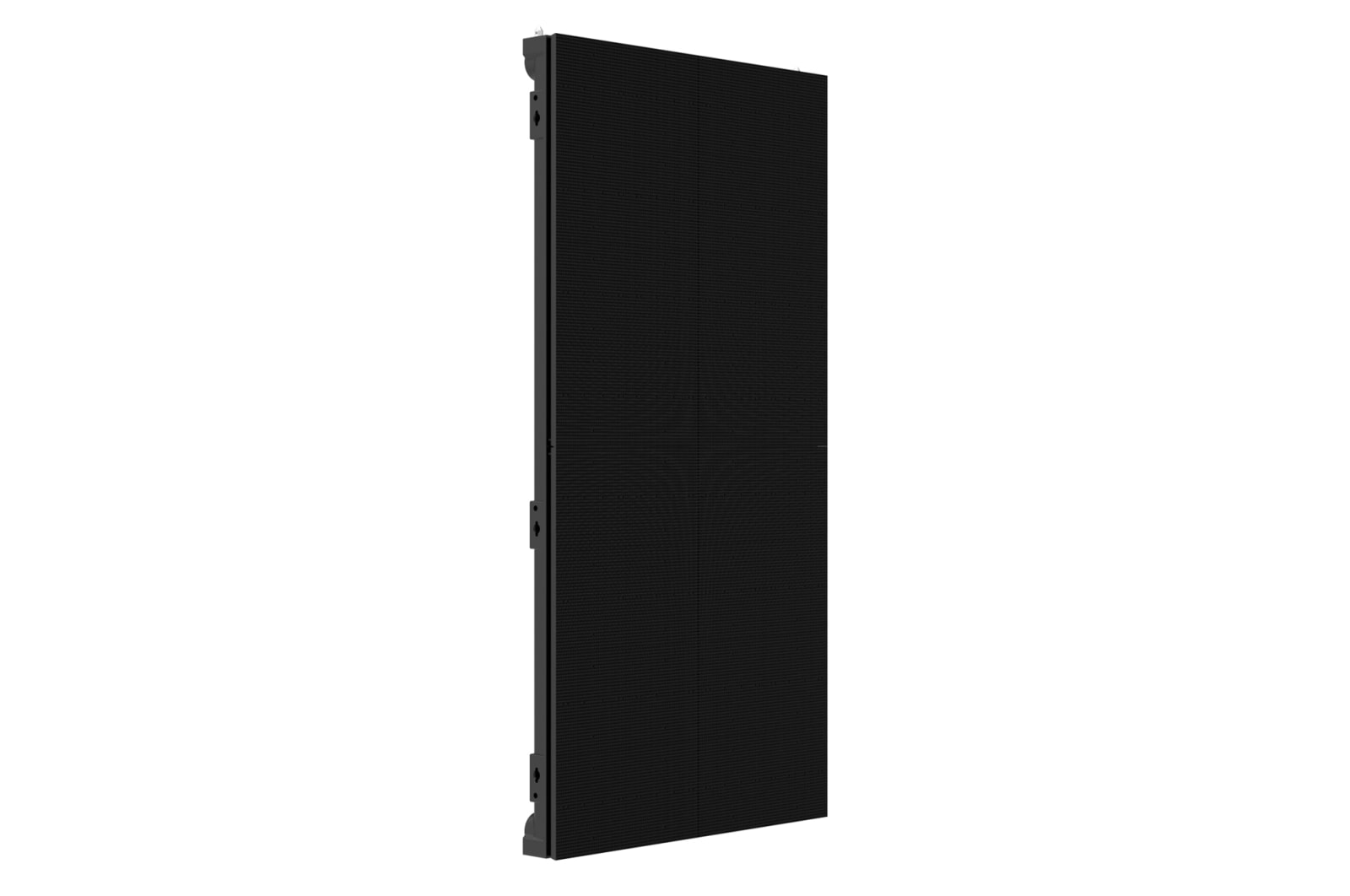

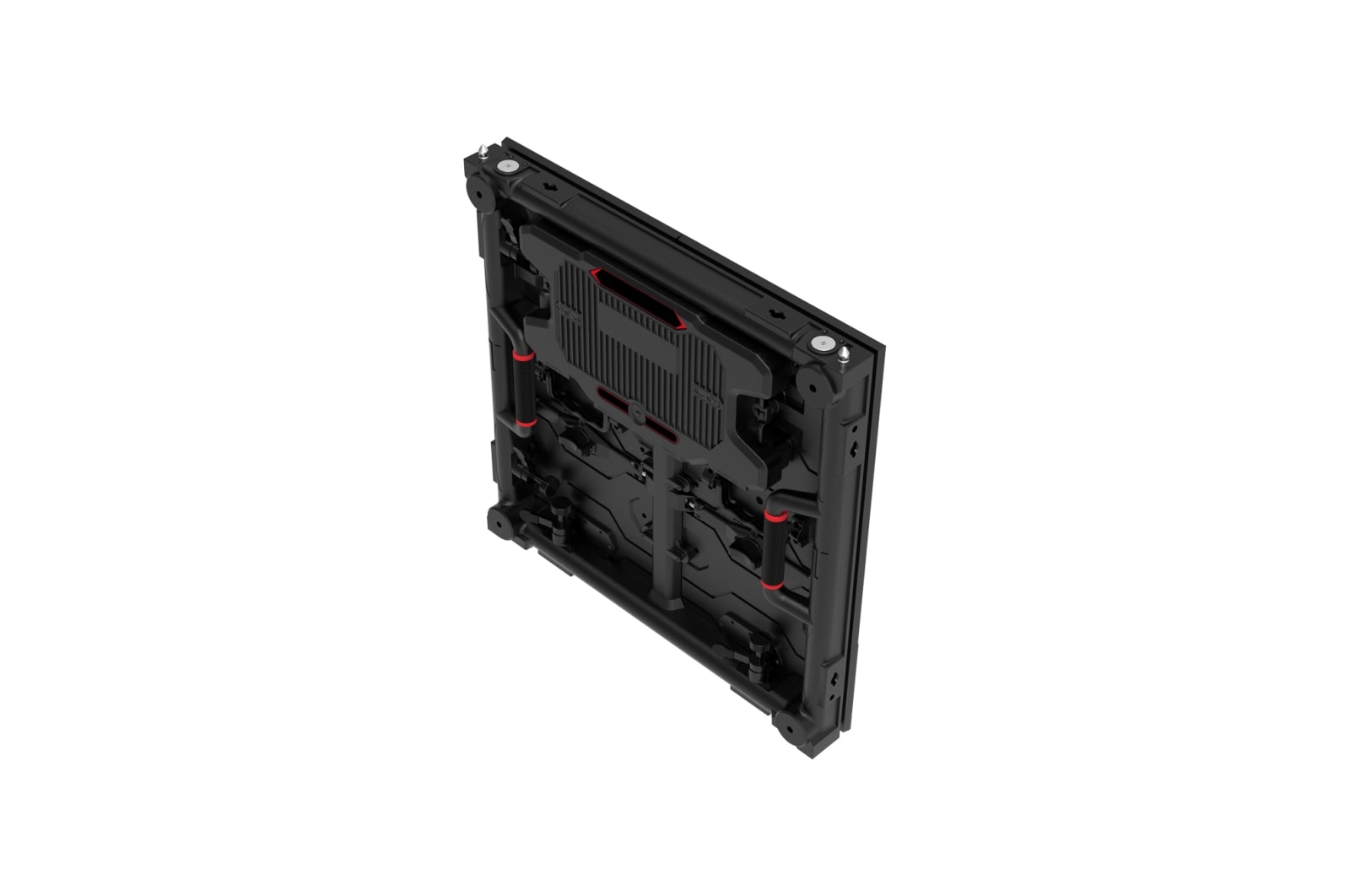

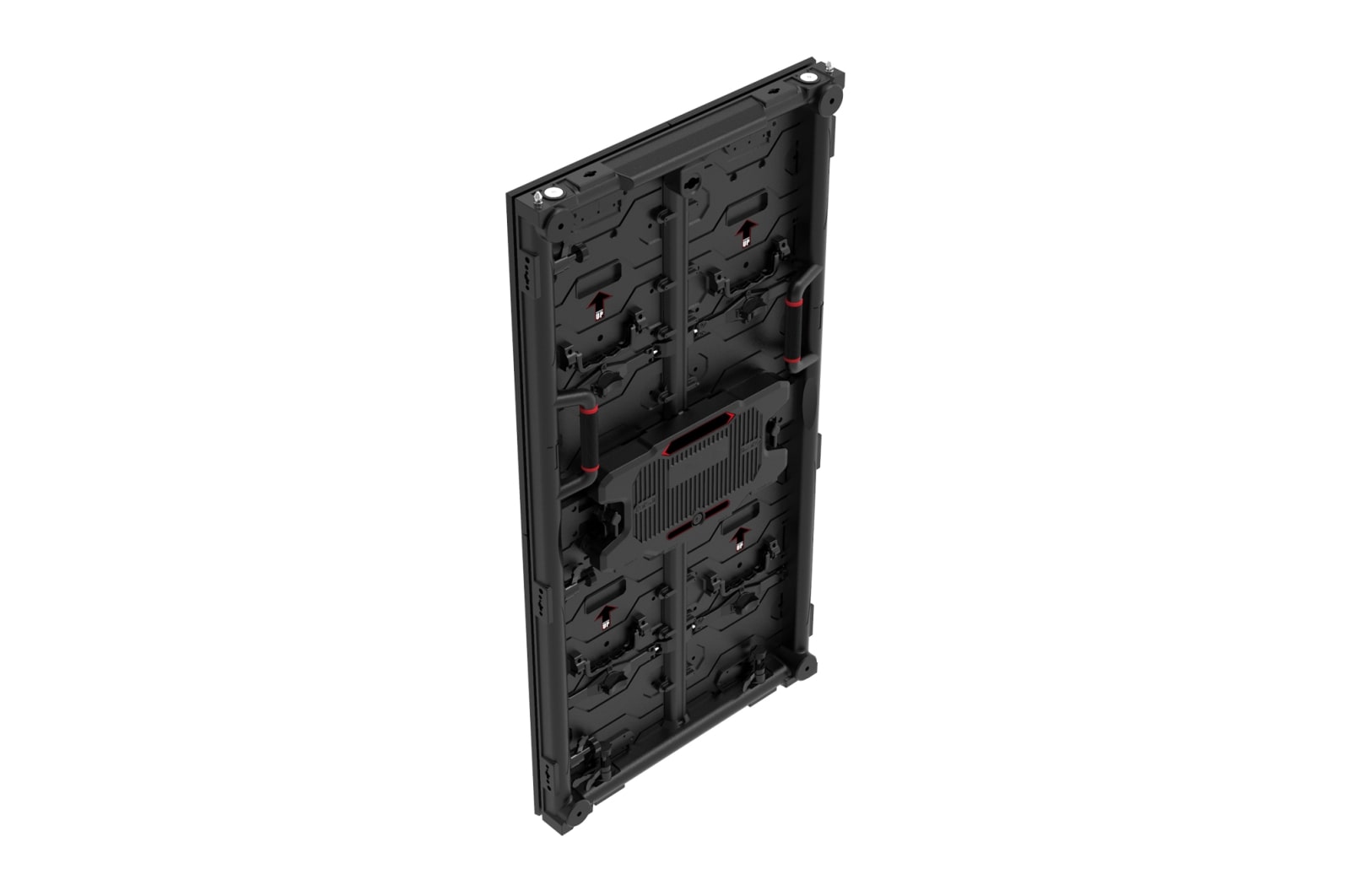

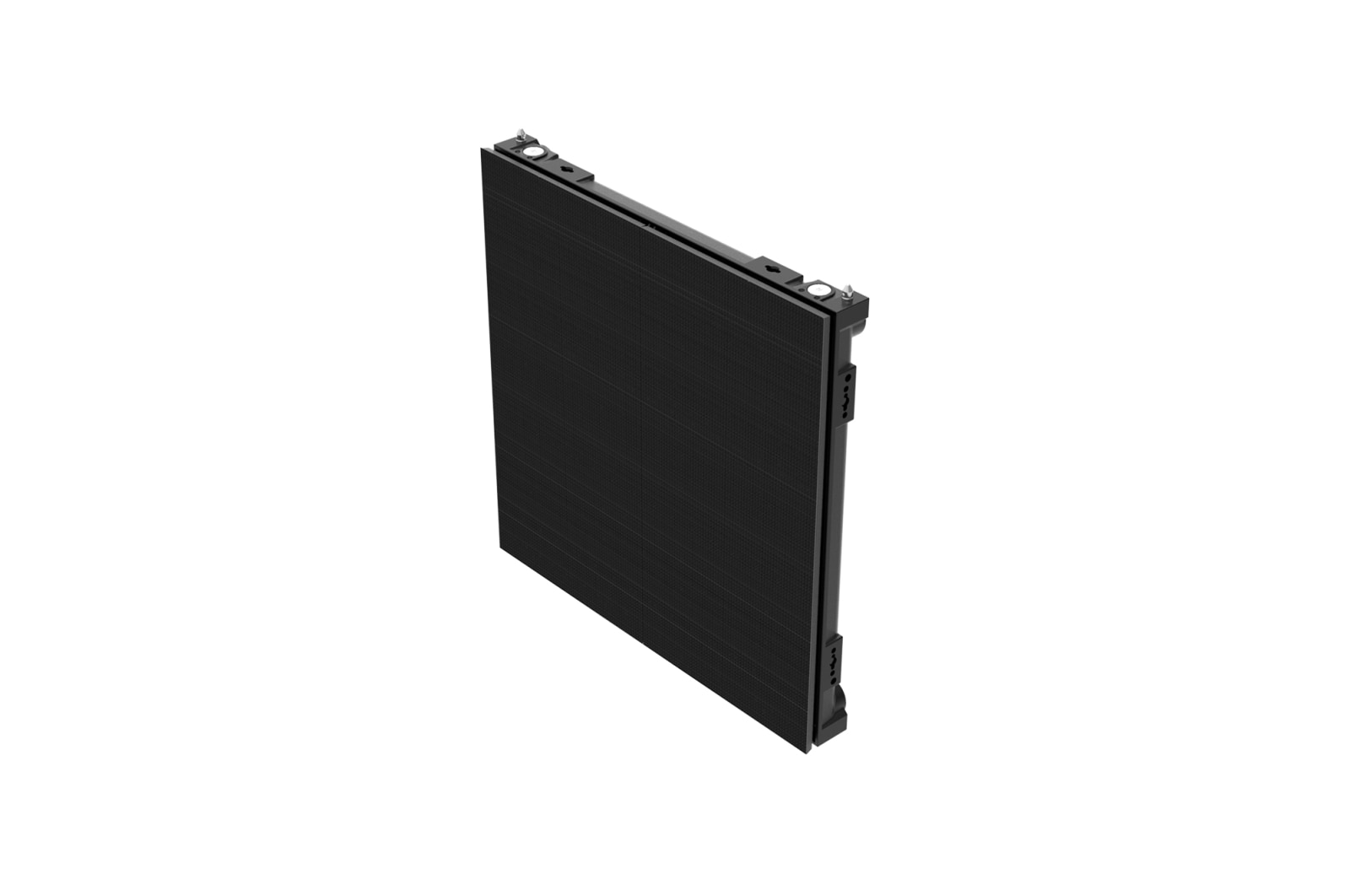

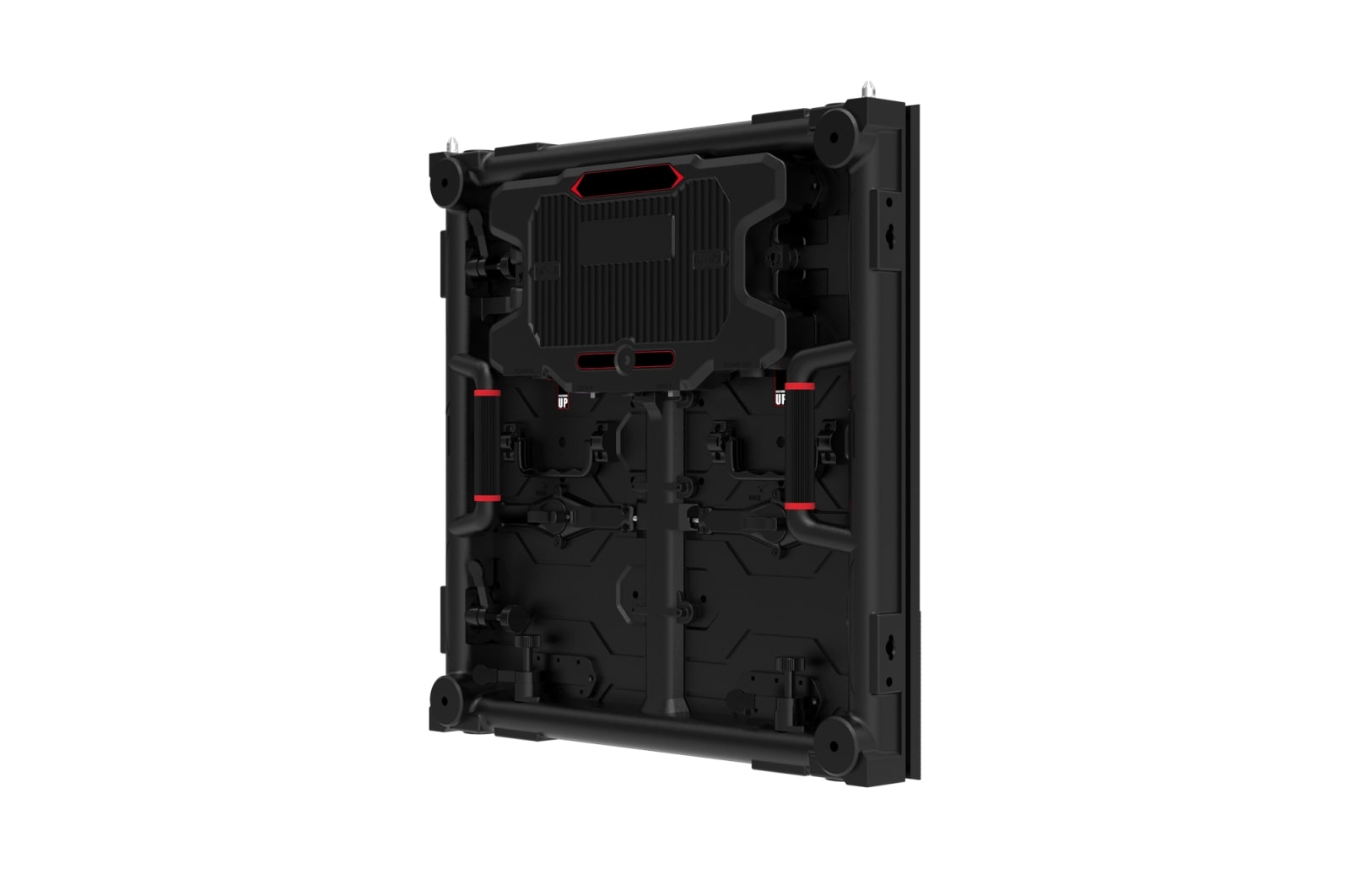

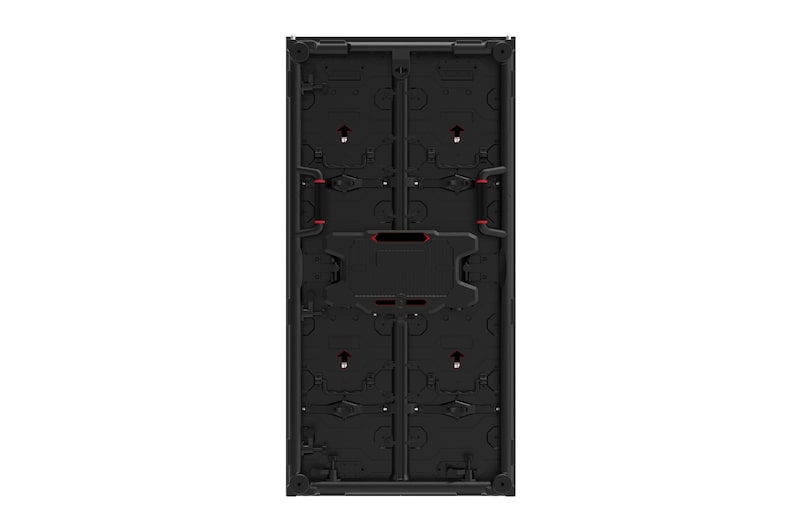

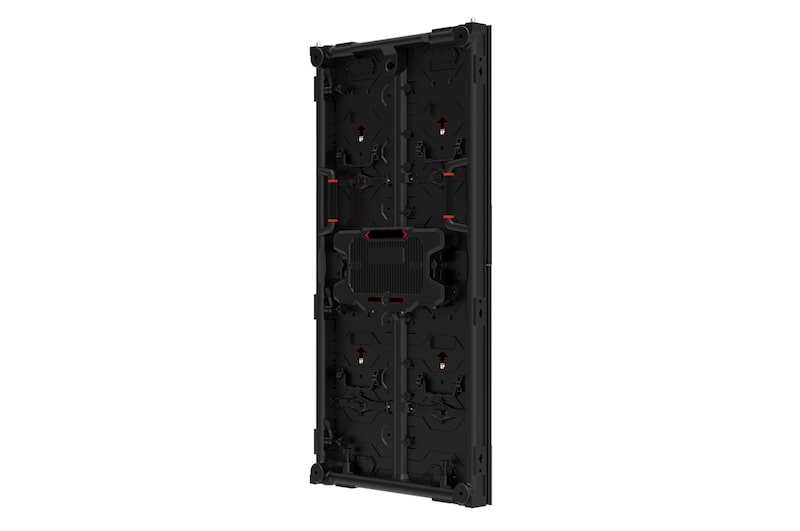

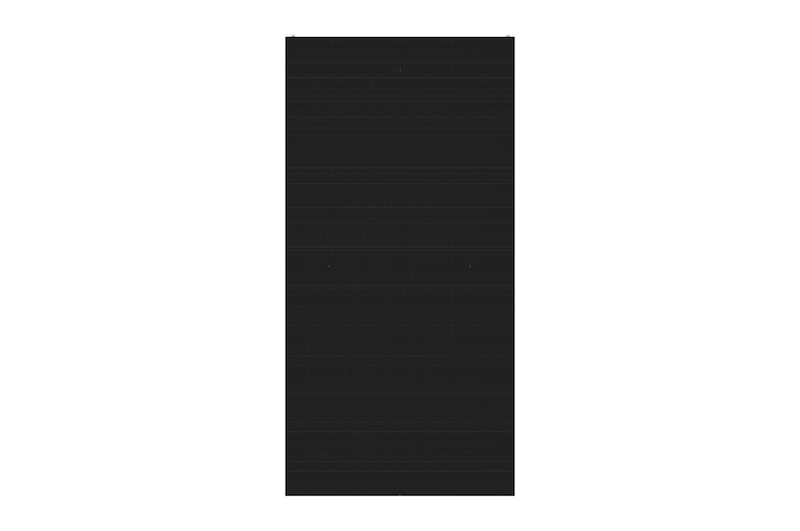

Gallery
All Spec
INFORMATION
-
Model name
GSCA046-GN
PHYSICAL PARAMETERS
-
Pixel Configuration
Single SMD
-
Pixel Pitch (mm)
4.63
-
Module Resolution (WxH)
54x108
-
Module Dimensions(WxH,mm)
250x500
-
Weight per Module (kg)
1.4
-
No. of Modules per Cabinet (WxH)
2x2
-
Cabinet Resolution (WxH)
108x216
-
Cabinet Dimensions (W x H x D, mm)
500x1,000x67.2
-
Cabinet Surface Area (㎡)
0.5
-
Weight per Cabinet (kg/unit)
12.7
-
Weight per Square Meter (kg/㎡)
25.4
-
Physical Pixel Density (pixels/㎡)
46,656
-
Flatness of Cabinet (mm)
±0.3
-
Cabinet material
Die-casting Magnesium
-

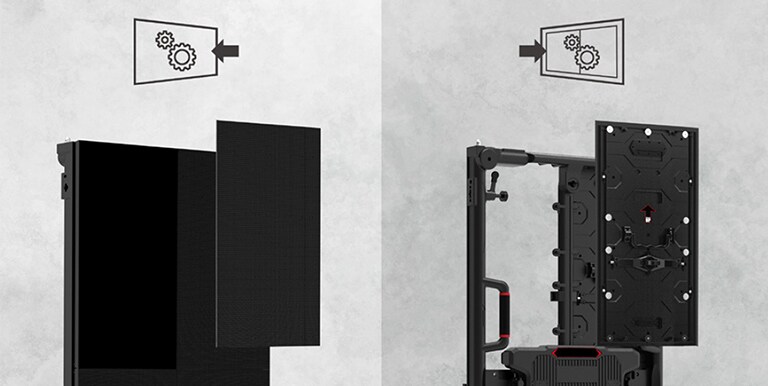

Service access
Front or Rear (select one only)
OPTICAL SPECIFICATIONS
-
Max Brightness (After Calibration, nit)
5,000
-
Color Temperature (K)
3,200~9,300
-
Visual Viewing Angle (Horizontal)
160
-
Visual Viewing Angle (Vertical)
135
-
Brightness Uniformity
0.97
-
Color Uniformity
±0.003Cx,Cy
-
Contrast Ratio
11,000:1
-
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/Cabinet, Max.)
300
-
Power Consumption (W/Cabinet, Avg.)
100
-
Power Consumption (W/㎡, Max.)
600
-
Heat Dissipation (BTU/h/Cabinet, Max.)
1,024
-
Heat Dissipation (BTU/h/Cabinet, Avg.)
341
-
Heat Dissipation (BTU/h/㎡, Max.)
2,047
-
Power Supply (V)
100 to 240
-
Frame Rate (Hz)
50 / 60
-
Refresh Rate (Hz)
3,840
OPERATION SPECIFICATIONS
-
Operating Temperature(℃)
-30℃ to +45℃
-
Operating Humidity
10~99%RH
-
IP rating Front
IP65
-
IP rating Rear
IP65
-
LED Lifetime (Half brightness)
100,000
STANDARD
-
Certification
CE, FCC, ETL
ENVIRONMENT
-
Environment
RoHS
CONTROLLER
-
Controller
CVCA
90 DEGREE CORNER CUT
-
90 degree corner cut
O
