All Spec
SERIES DIMENSIONS
-
Series Dimensions (W x H x D, mm)
-
GSCD069-GN: 1,000 × 1,000 × 84.4
GSCD069-GN2: 1,000 × 500 × 84.4
GSCD069-GN3: 500 × 1,000 × 84.4
GSCD069-GN4: 500 × 500 × 84.4
PHYSICAL PARAMETERS
-
Pixel Configuration
-
3 in 1 SMD
-
Pixel Pitch (mm)
-
6.94
-
Module Resolution (W x H)
-
72 x 36
-

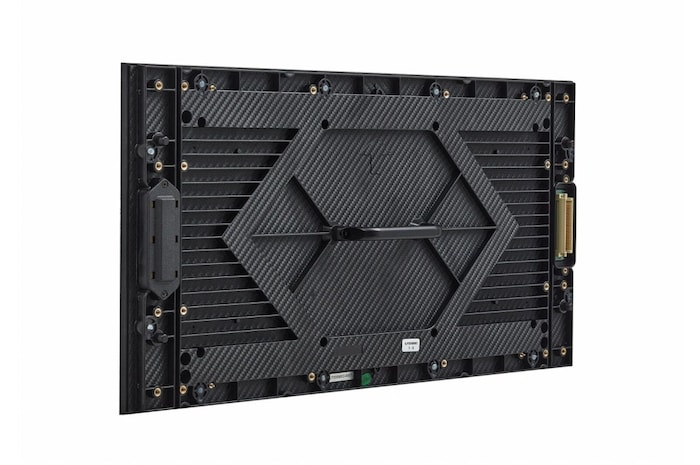

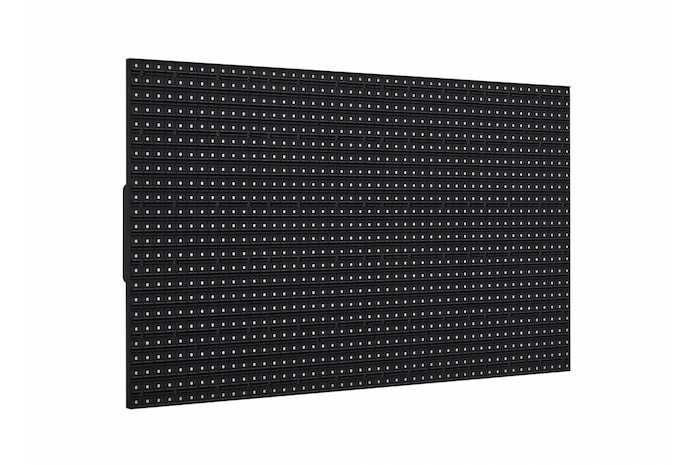

Module Dimensions (W x H, mm)
-
500 x 250
-
Weight per Module (kg)
-
1.3
-
No. of Modules per Cabinet (WxH)
-
2 x 4
-
Cabinet Resolution (WxH)
-
144 x 144
-

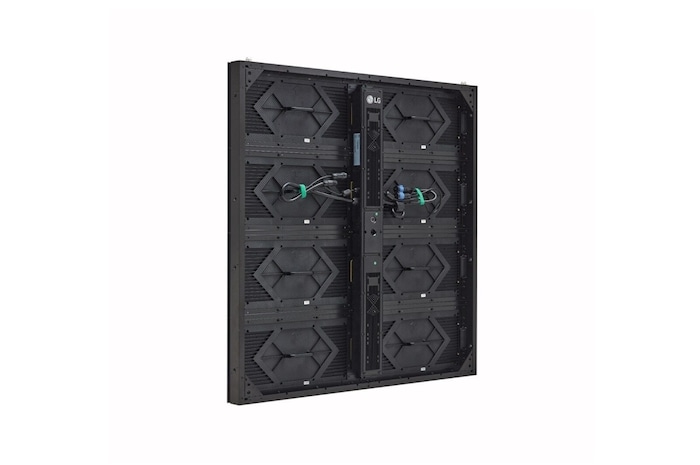

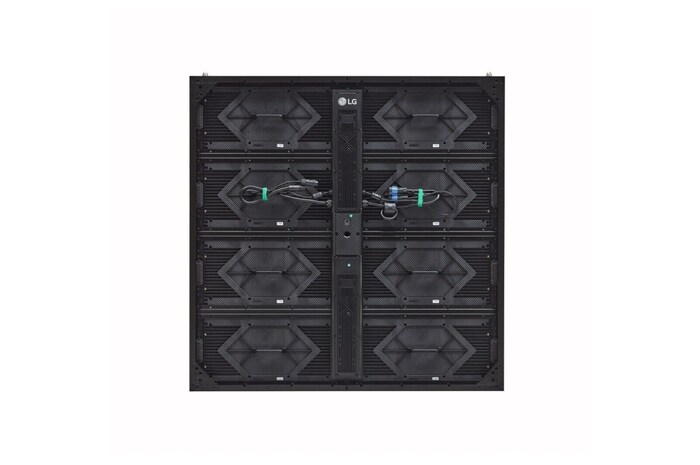

Cabinet Dimensions (W x H x D, mm)
-
1,000 × 1,000 × 84.4
-
Cabinet Surface Area (m²)
-
1.000
-
Weight per Cabinet (kg/Cabinet)
-
18.5
-
Weight per Square Meter (kg/m² )
-
18.5
-
Physical Pixel Density (pixels/m² )
-
20,736
-
Flatness of Cabinet (mm)
-
±0.5
-
Cabinet Material
-
Aluminum Profile
-
Service Access
-
Front or Rear (One Option Only)
OPTICAL SPECIFICATIONS
-
Max. Brightness (After Calibration)
-
5,000
-
Colour Temperature (K)
-
3,200 ~ 9,300
-
Visual Viewing Angle (H × V)
-
160 x 134
-
Brightness Uniformity
-
97%
-
Contrast Uniformity
-
±0.003 Cx,Cy
-
Contrast Ratio
-
6,000
-
Processing Depth (bit)
-
16
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/Cabinet, Max.)
-
680
-
Power Consumption (W/Cabinet, Avg.)
-
226
-
Power Consumption (W/m², Max.)
-
680
-
Power Supply (V)
-
100 to 240
-
Frame Rate (Hz)
-
50 / 60
-
Refresh Rate (Hz)
-
3,840
OPERATION SPECIFICATIONS
-
Lifetime (Hours to Half Brightness)
-
100,000
-
Operating Temperature (°C)
-
-30°C to +50°C
-
Operating Humidity
-
10-99%RH
-
IP Rating Front / Rear
-
IP65 / IP65
