6.0mm 6,000 nits Stadium Series for Outdoor
6.0mm 6,000 nits Stadium Series for Outdoor
*Images dramatised for illustrative purposes only.
*Images dramatised for illustrative purposes only.
*Except the LBS060DA1D, LBS060DA3D, LBF160DA1D models
*Images dramatised for illustrative purposes only.
*Images dramatised for illustrative purposes only.

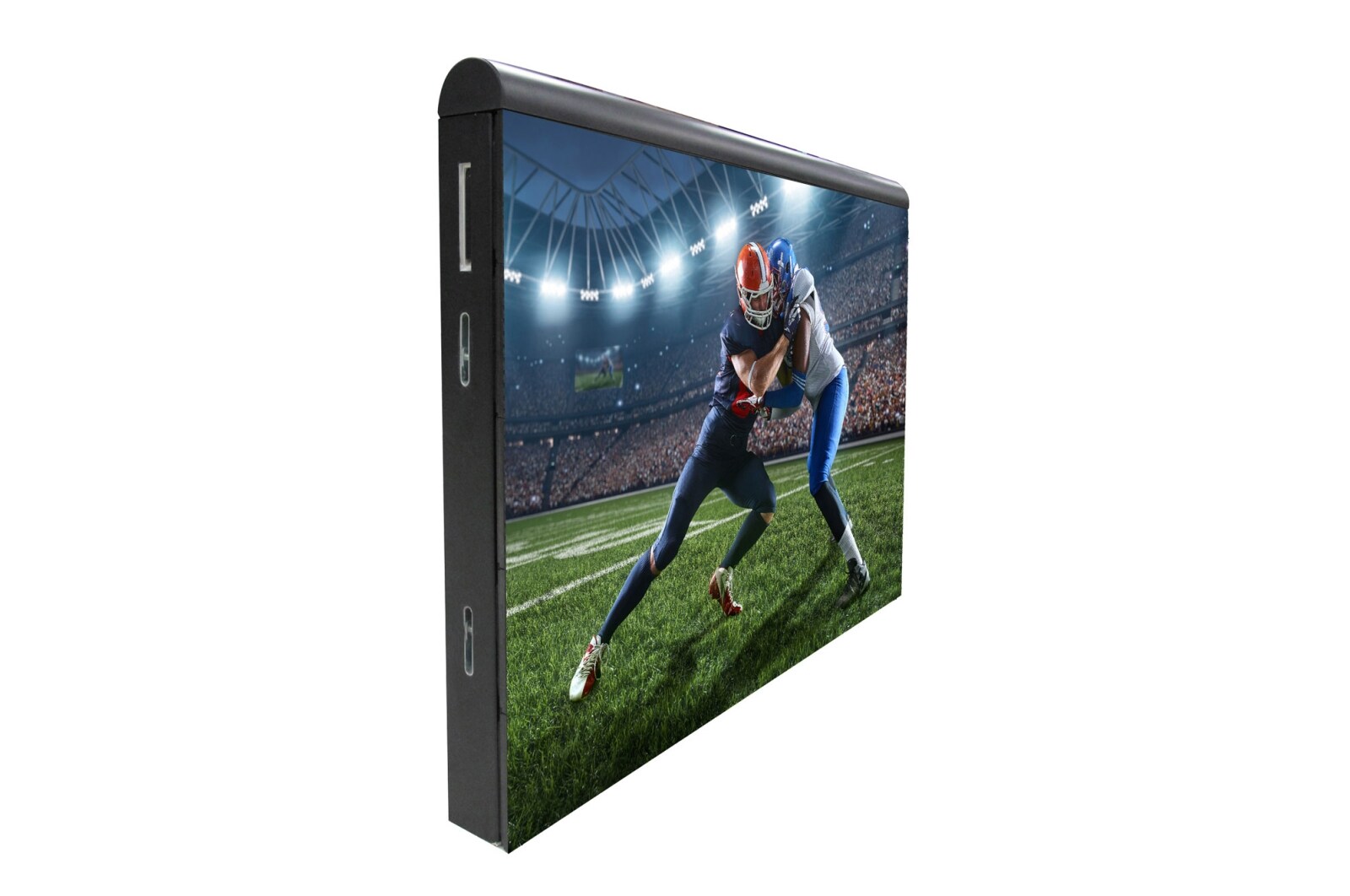

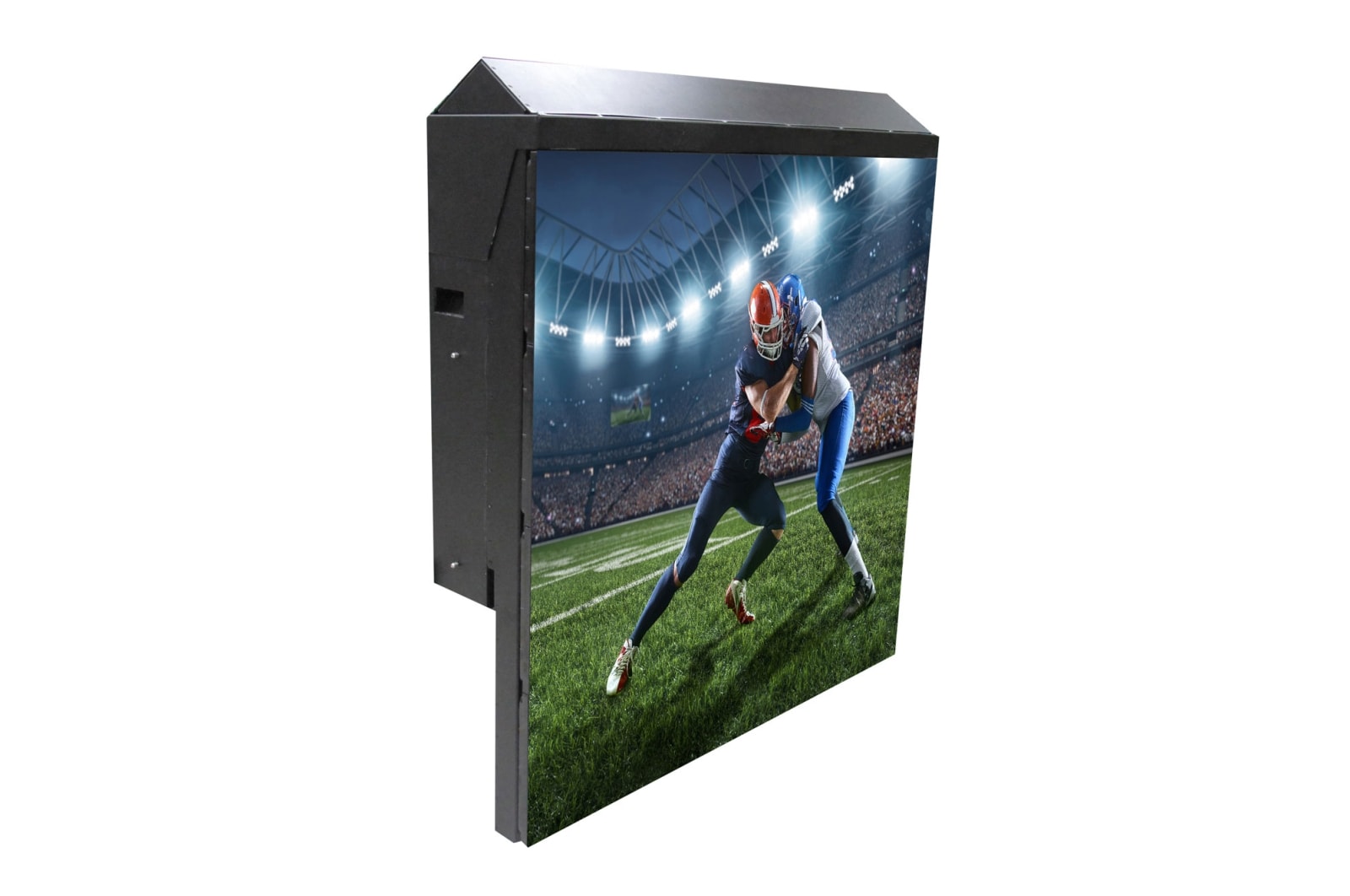

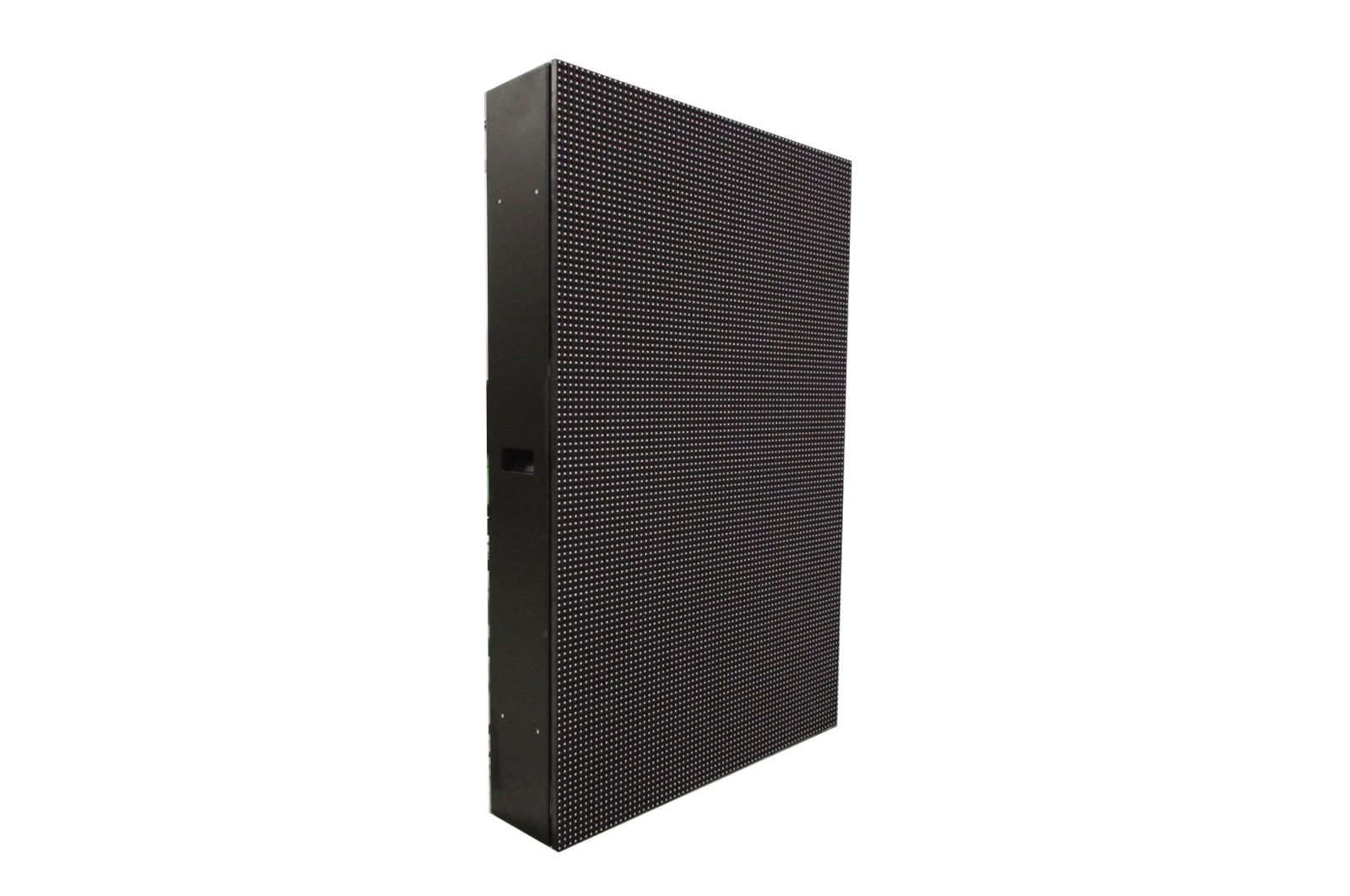

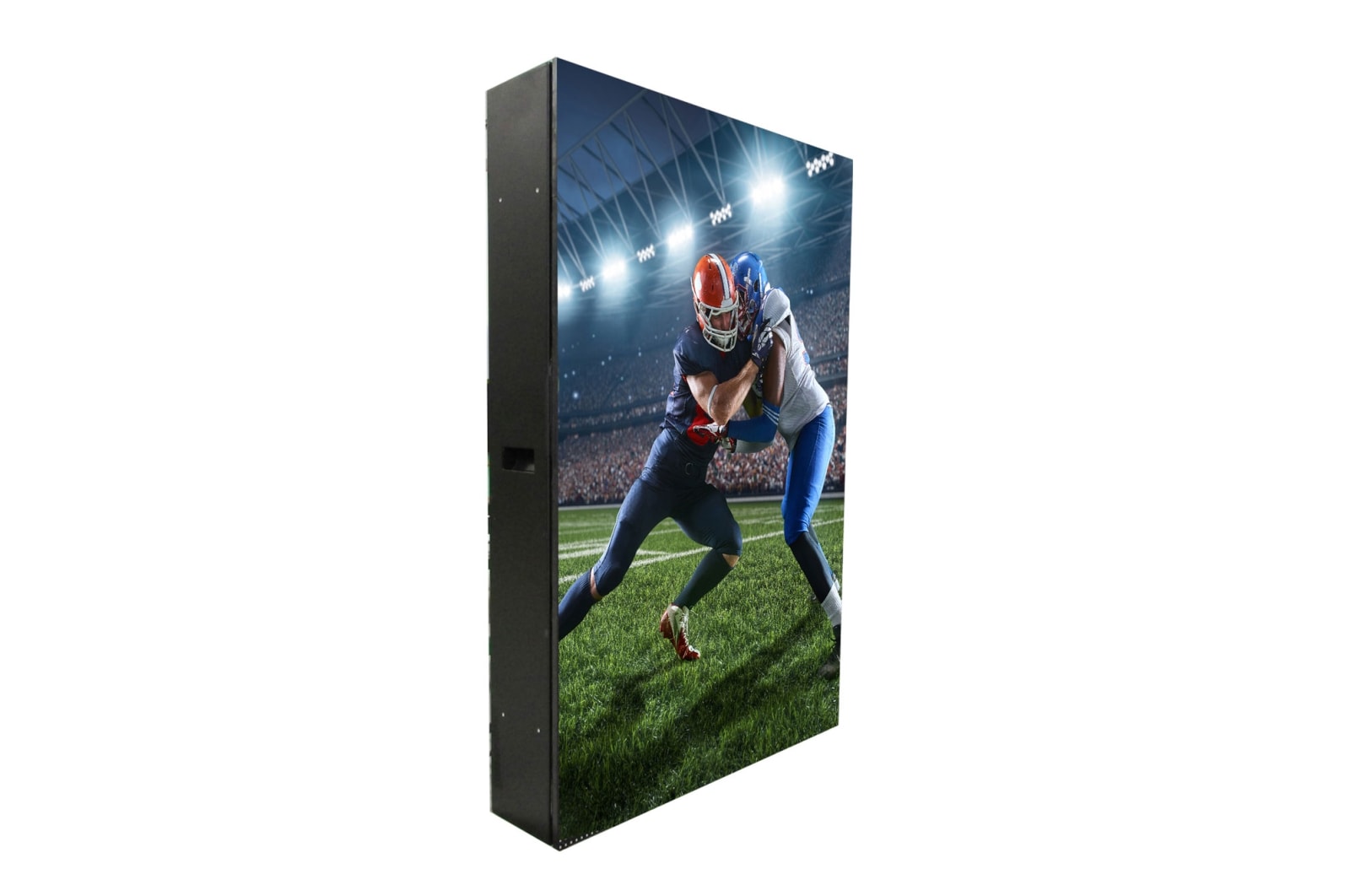

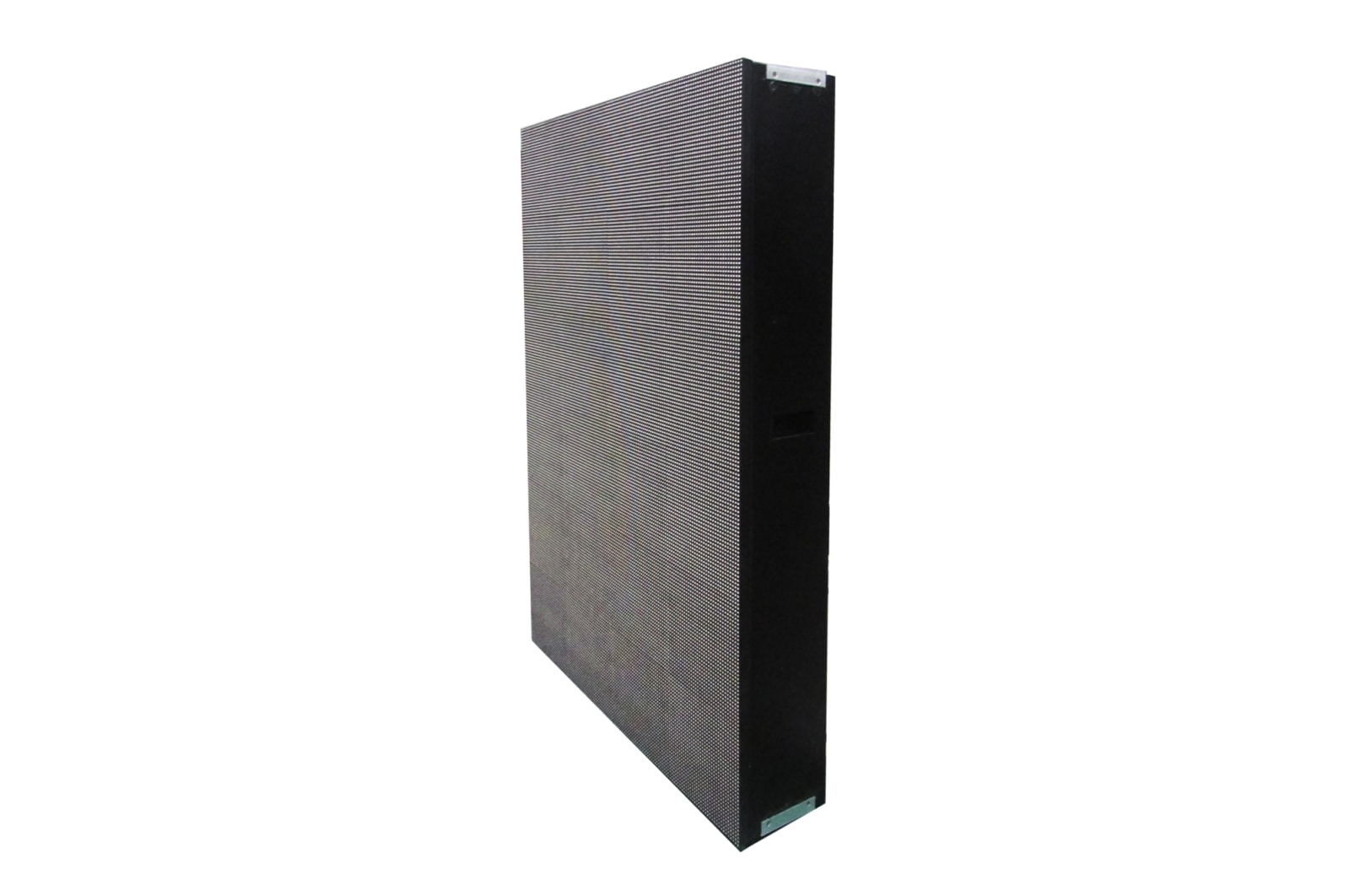

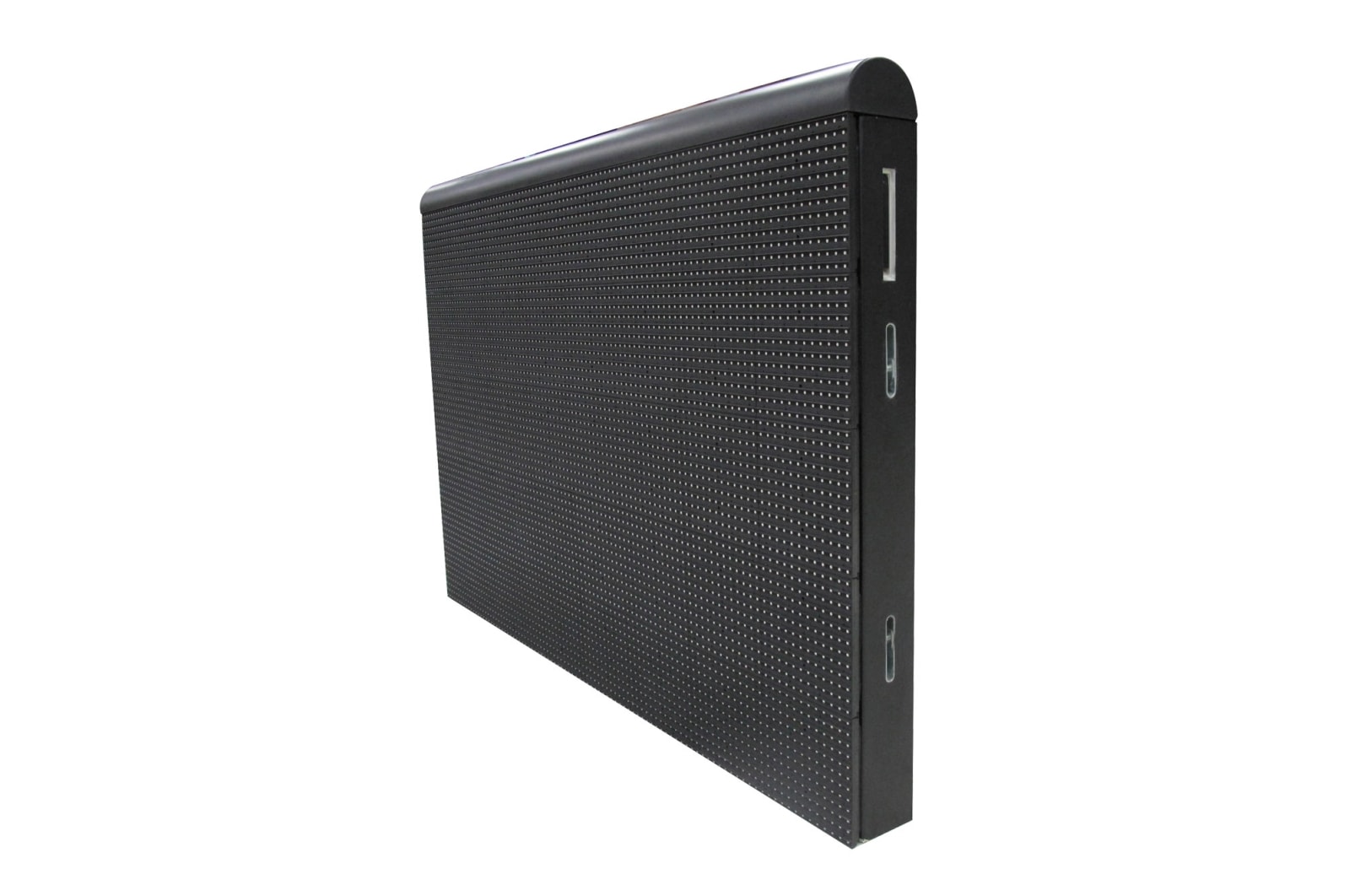

Gallery
All Spec
PHYSICAL PARAMETERS
-
Pixel Configuration
3 in 1 SMD
-
Pixel Pitch (mm)
6.00
-
Module Resolution (W x H)
32 x 32
-
Module Dimensions (W x H, mm)
192 x 192
-
Weight per Module (kg)
0.54
-
No. of Modules per Unit Case (W x H)
6 x 4
-
Unit Case Resolution (W x H)
192 x 128
-
Unit Case Dimensions (W x H x D, mm)
1,152 x 768 x 217
-
Unit Case Surface Area (㎡)
0.885
-
Weight per Unit Case (kg/unit)
42.0
-
Weight per Square Meter (kg/㎡)
47.5
-
Physical Pixel Density (pixels/㎡)
27,777
-
Flatness of Unit Case (mm)
± 1.0
-
Unit Case material
Aluminum
-
Service Access
Front or Rear
OPTICAL SPECIFICATIONS
-
Min. Brightness (After Calibration)
6,000
-
Color Temperature
3500-8500
-
Visual Viewing Angle (Horizontal)
160°
-
Visual Viewing Angle (Vertical)
135
-
Brightness Uniformity
≥97%
-
Colour Uniformity
±0.05Cx,Cy
-
Contrast Ratio
3,000
-
Processing Depth (bit)
16
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/Unit, Max.)
580
-
Power Consumption (W/Unit, Avg.)
232
-
Power Consumption (W/㎡, Max.)
656
-
Power Supply (V)
100 to 240
-
Frame Rate (Hz)
50 / 60
-
Refresh Rate (Hz)
4,000
OPERATION SPECIFICATIONS
-
Lifetime (Half brightness)*
100,000
-
Operating Temperature (°C)
-20 to +50
-
Operating Humidity
< 90%RH
CONTROLLER
-
Controller
LCLH001
