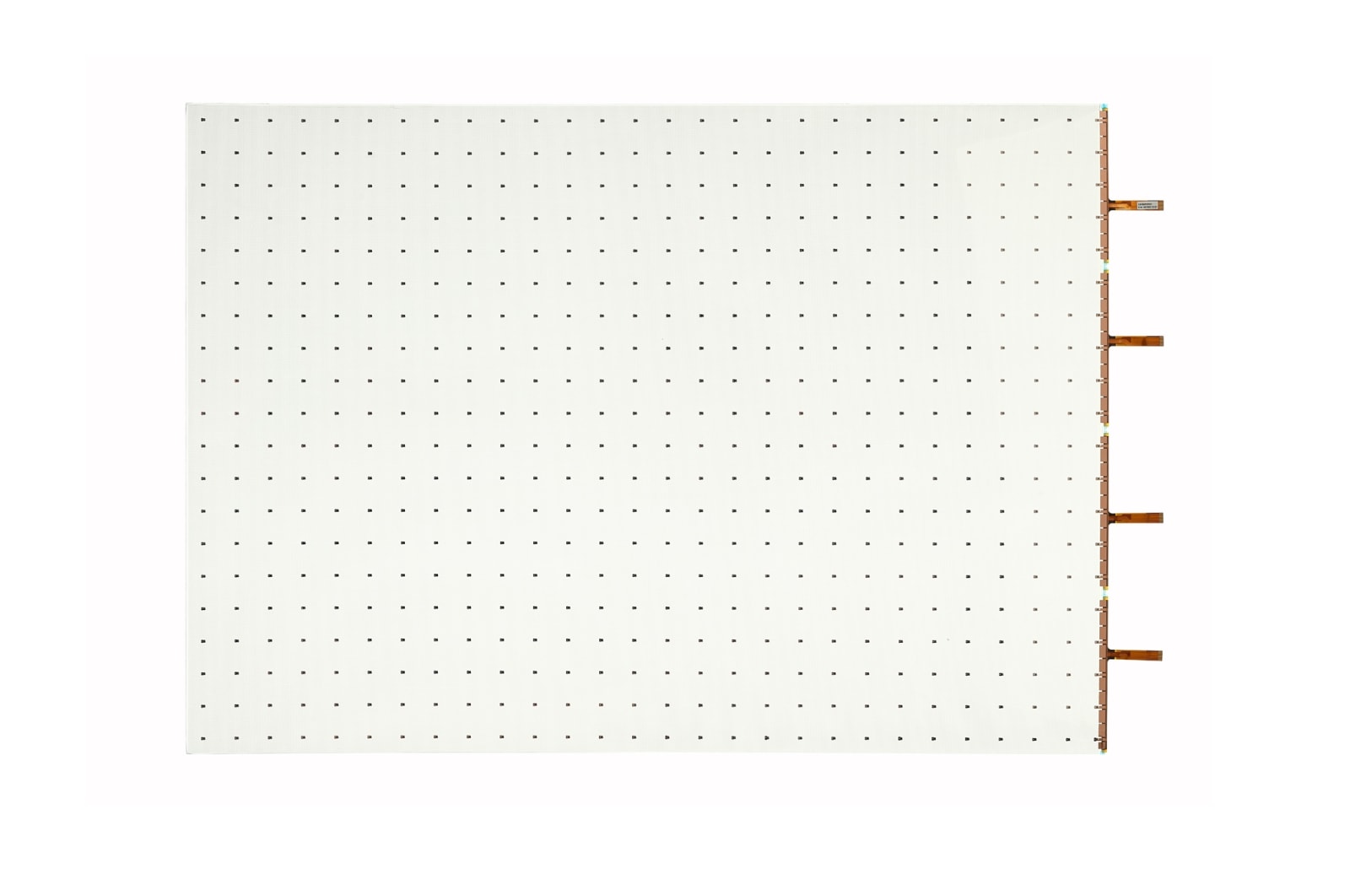

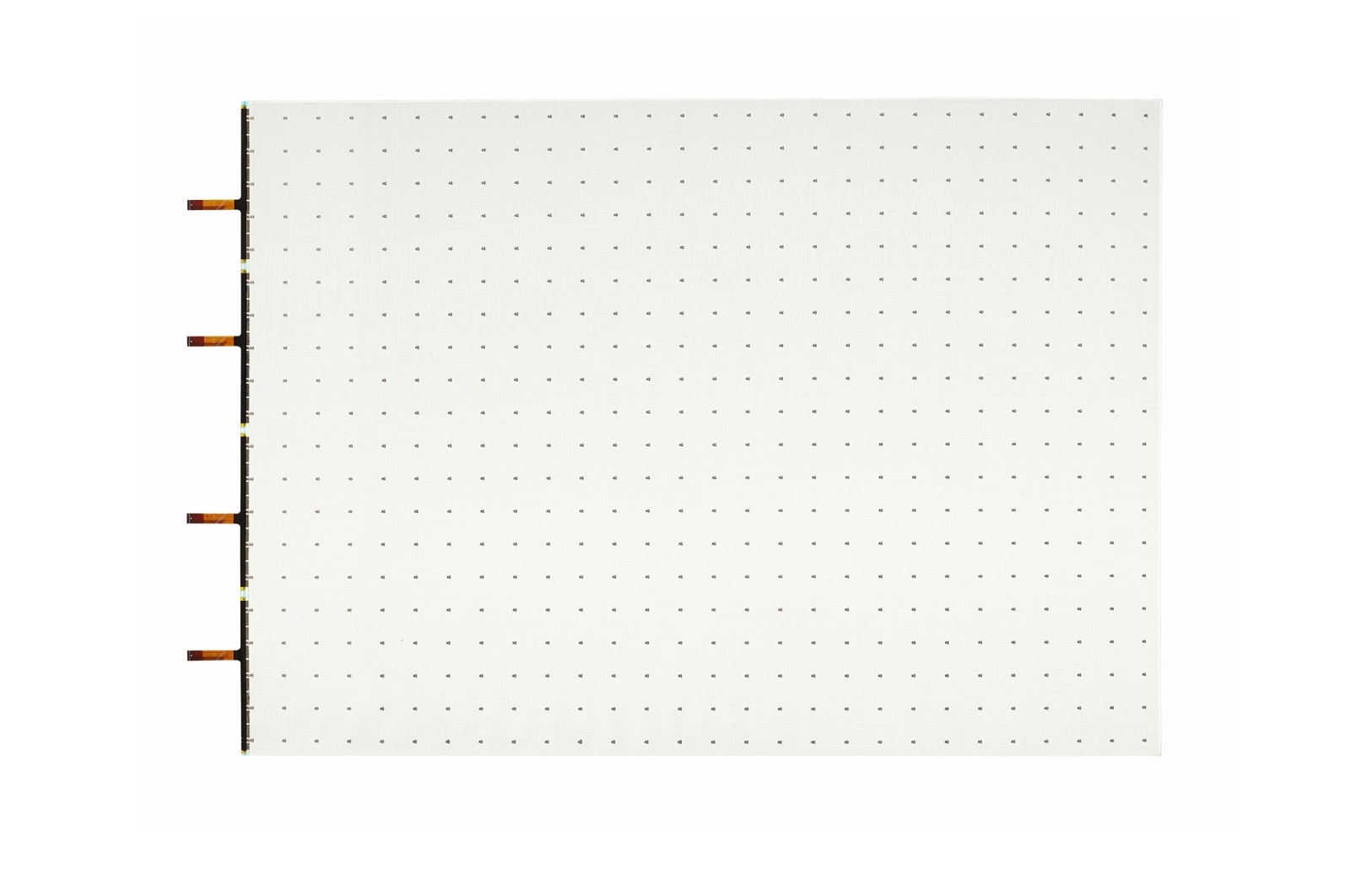

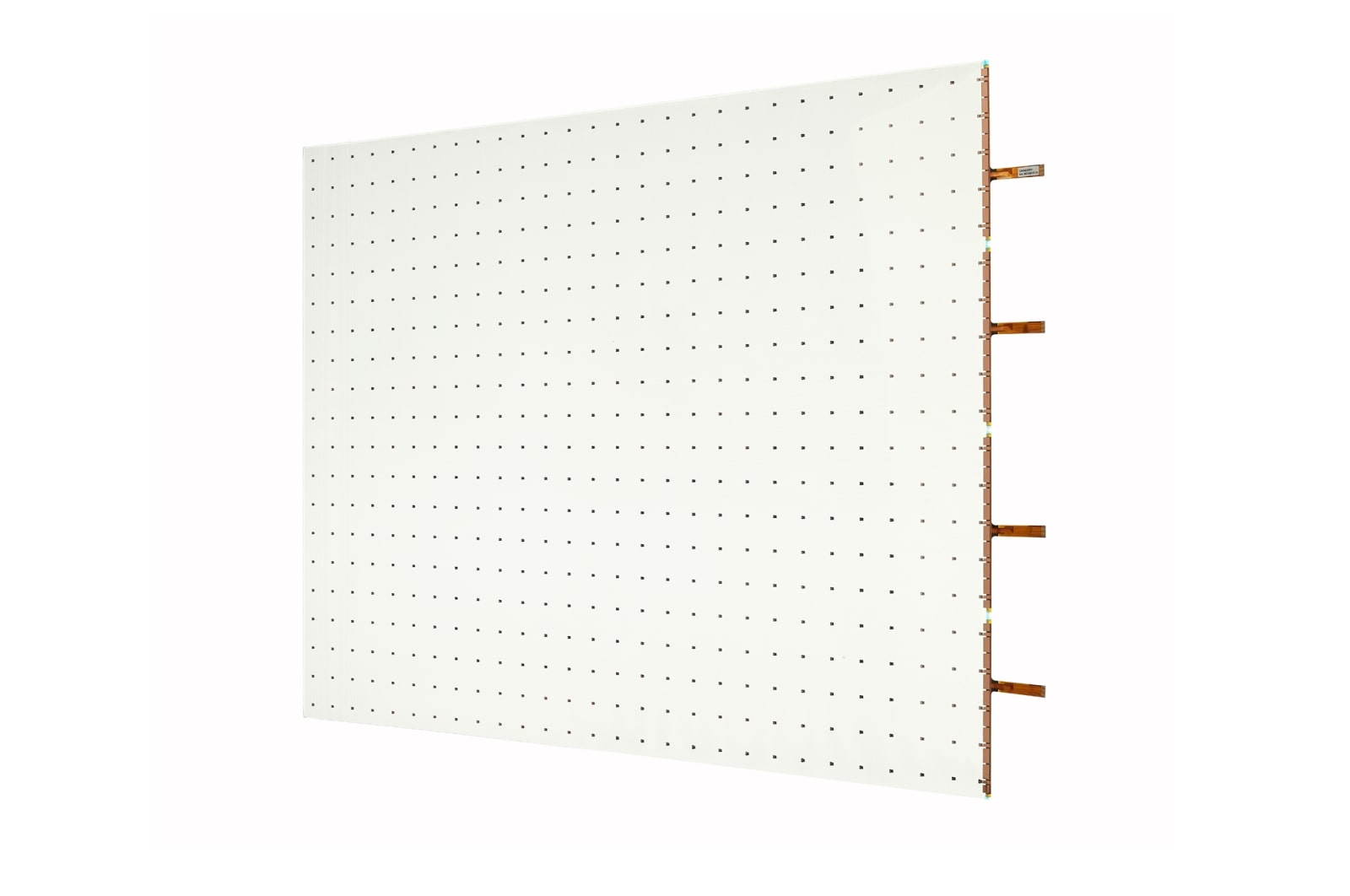

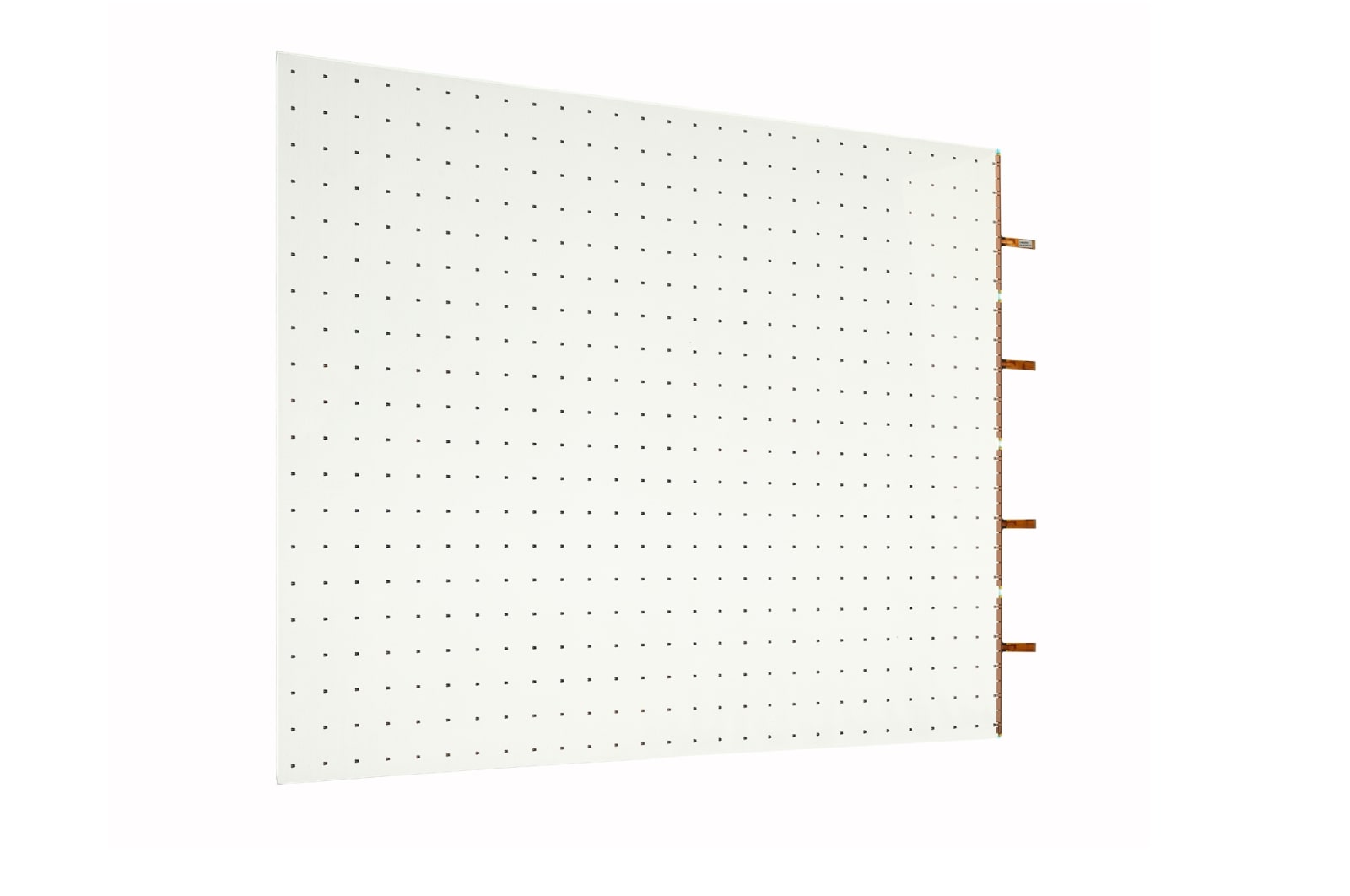

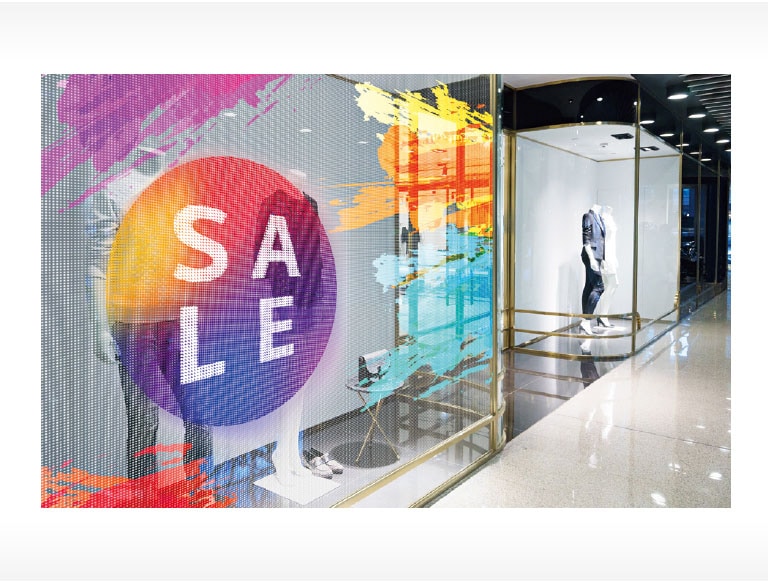

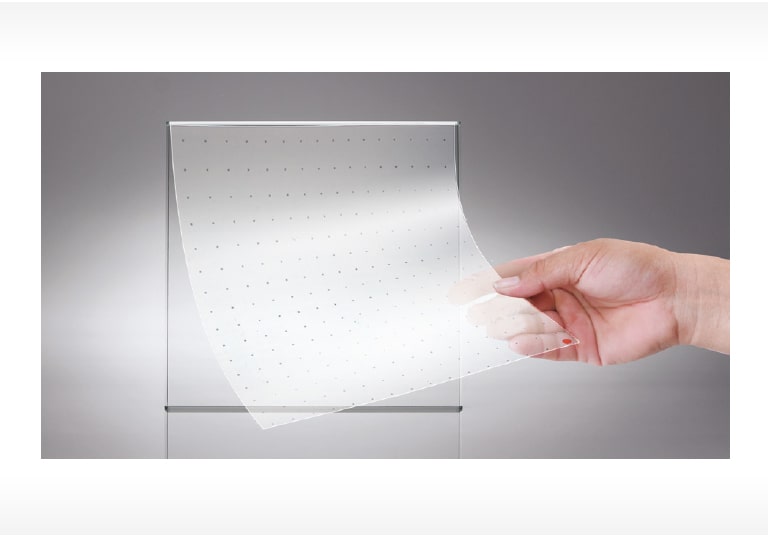

Colour Transparent LED Film
*Images simulated for illustrative purposes only.
*The film must be cut in parallel with the the bezel by 1 pixel.

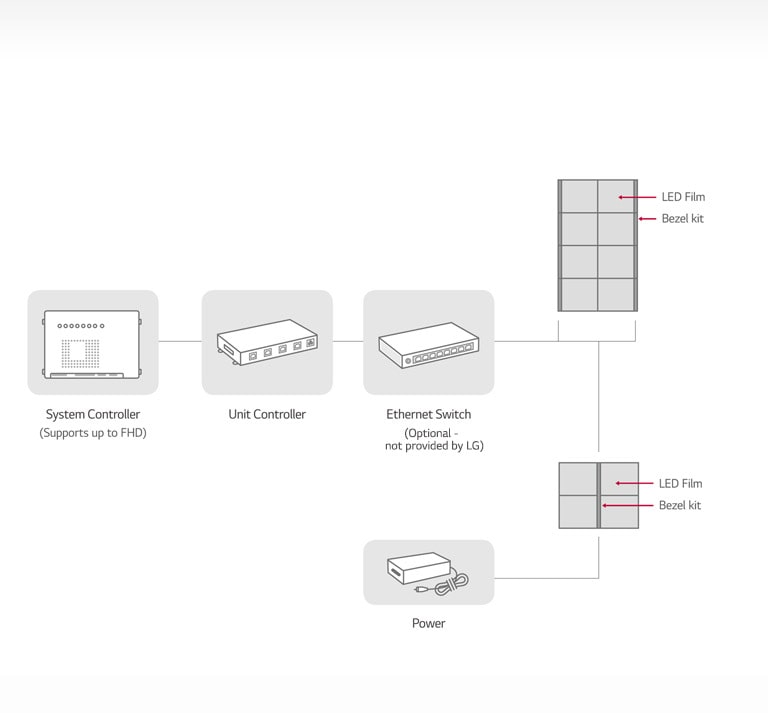

*The actual system structure may be subject to change from the above example.
Pitch
24 mm
LED Type
R, G, B 3in1 Colour Package (SMD1818)
Resolution
28 × 20
Pixels per Panel
560
Pixel Density (point/㎡ )
1,736
Brightness
>1,000 cd/㎡
Contrast Ratio
≥ 100,000:1
Luminance Uniformity
≥ 70%
Viewing Angle (H × V)
120 × 120
Life Time (Brightness 50%)
50,000 Hrs
Daily Usage
24 Hrs / 7 Days

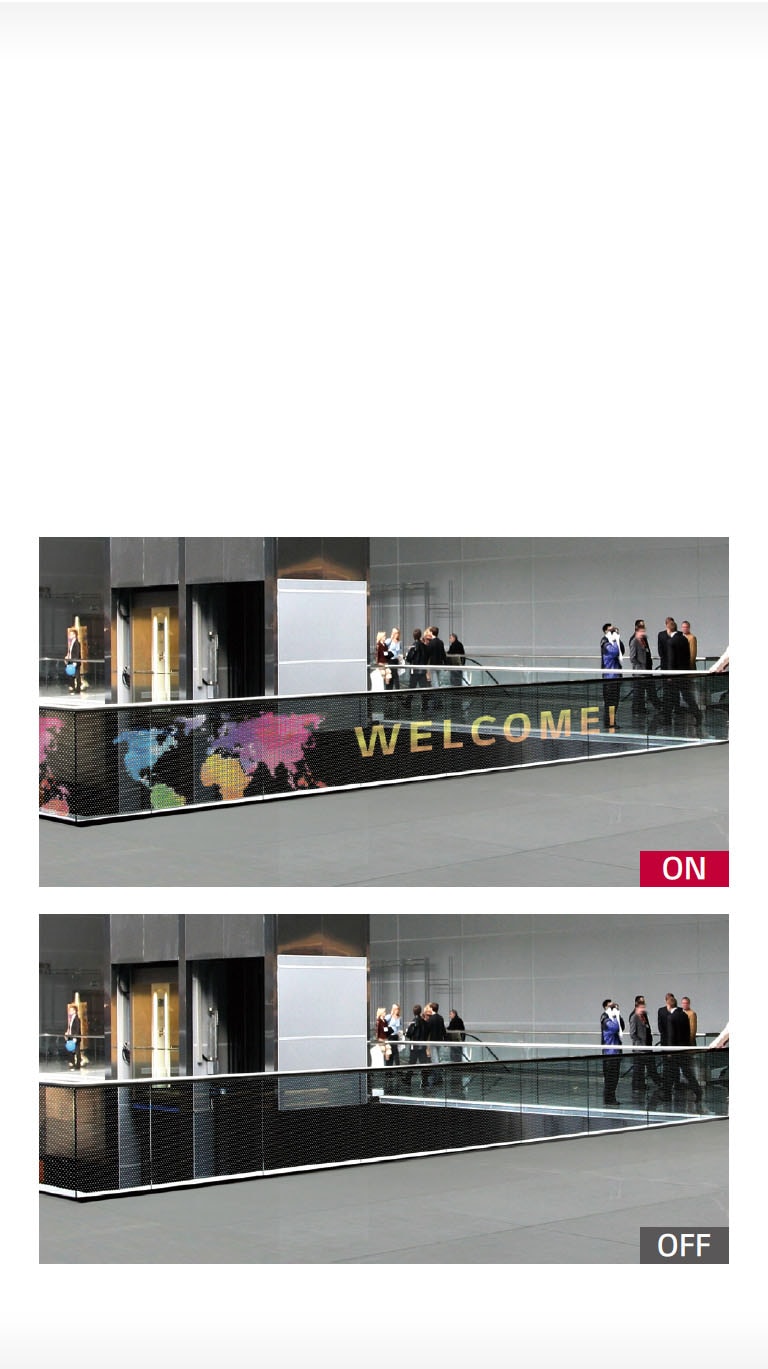

Transmittance
73%
Operating Temperature
0 °C ~ 45 °C (Indoor Glass Installation Only)

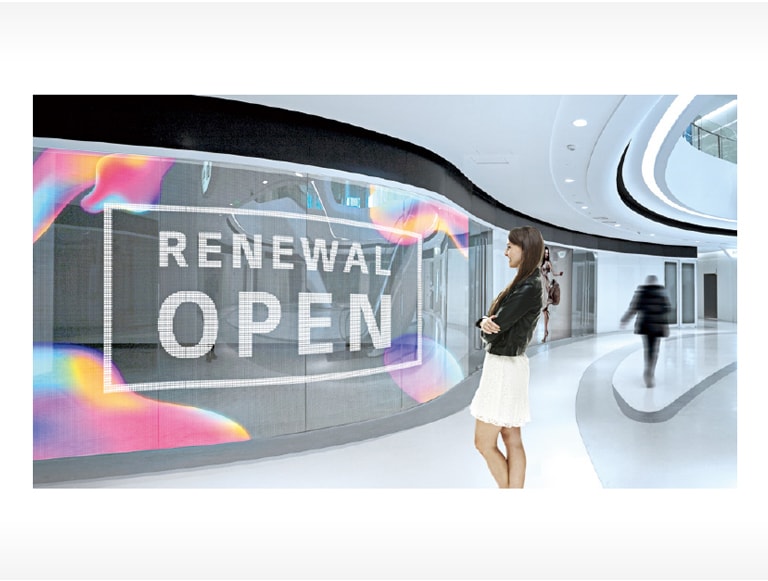

Curved Installation
1,100R (Concave)

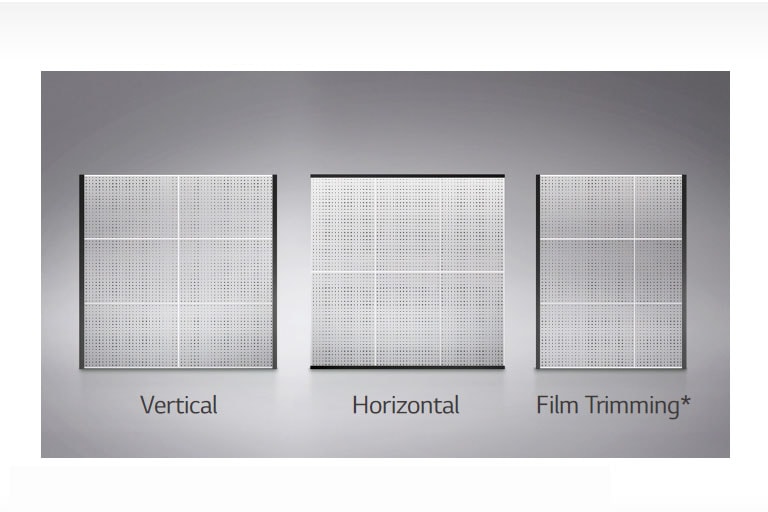

Film Trimming
Yes (Parallel to the Bezel Side Only)
Colour Processing
130/120/110 Level (R, G, B)
Colours
1,716,000 Colours
Colour Chromaticity
Cx: 0.28±0.03, Cy: 0.28±0.03
Dimension (W × H × D)
668 x 480 x 2.0 mm (with Front & Back Protection Film)
Weight
0.73 kg
Power Consumption
37 W (Transparent Panel 1ea, Bezel Kit 1ea)
Video
DP: 3,840 × 2,160 @30Hz / HDMI: 3,840 × 2,160 @30Hz / DVI-D: 1,920 × 1,080 @60Hz
Input
HDMI, DP, DVI-D, RS232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB
Output
DP, RS232C, RJ45 (w/o LED Indicator), LVDS
Dimension (W x H x D)
293 x 40.1 x 193.3 mm
Weight (Head)
1.6 kg
Temperature Sensor
O
Light Sensor
O
Source Selection
HDMI, DVI-D, DP
TPC
Yes
Power Consumption
17 W
CMS S/W
Yes
Accessories
Power Cord, IR & Bright Sensor, 4P Phone-to-RS232C Gender, ESG, Regulation Book, Warranty Card

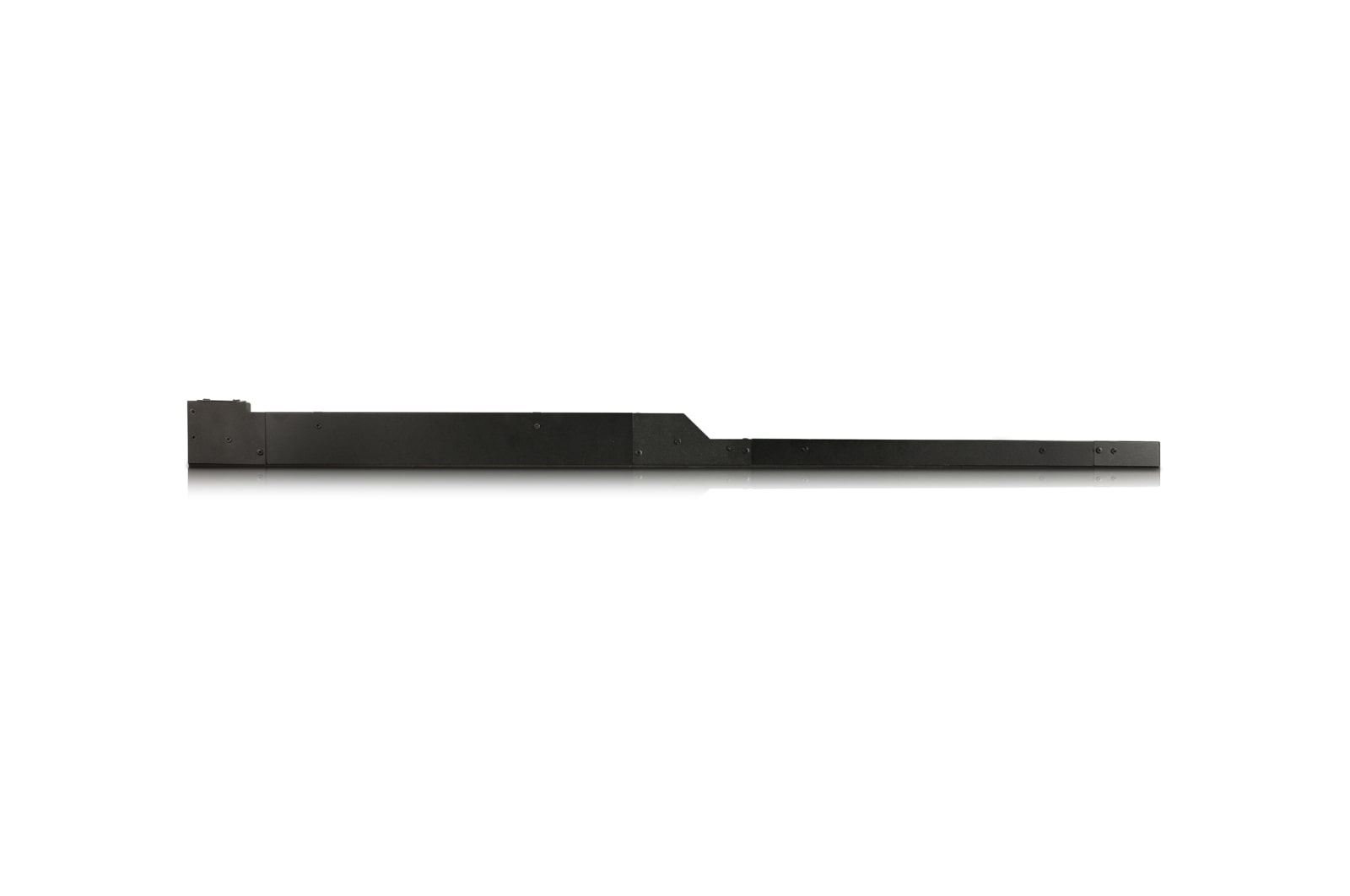

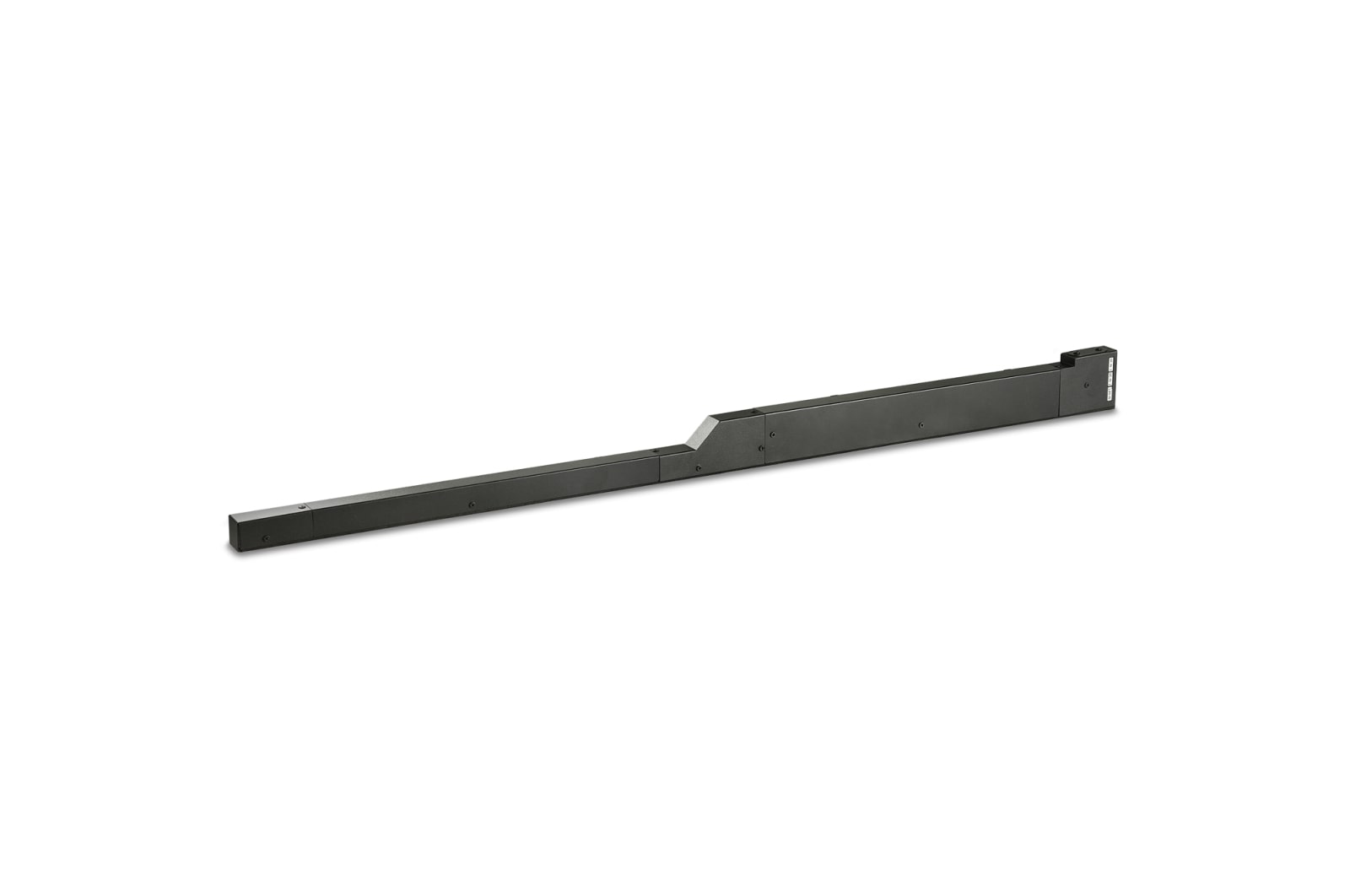

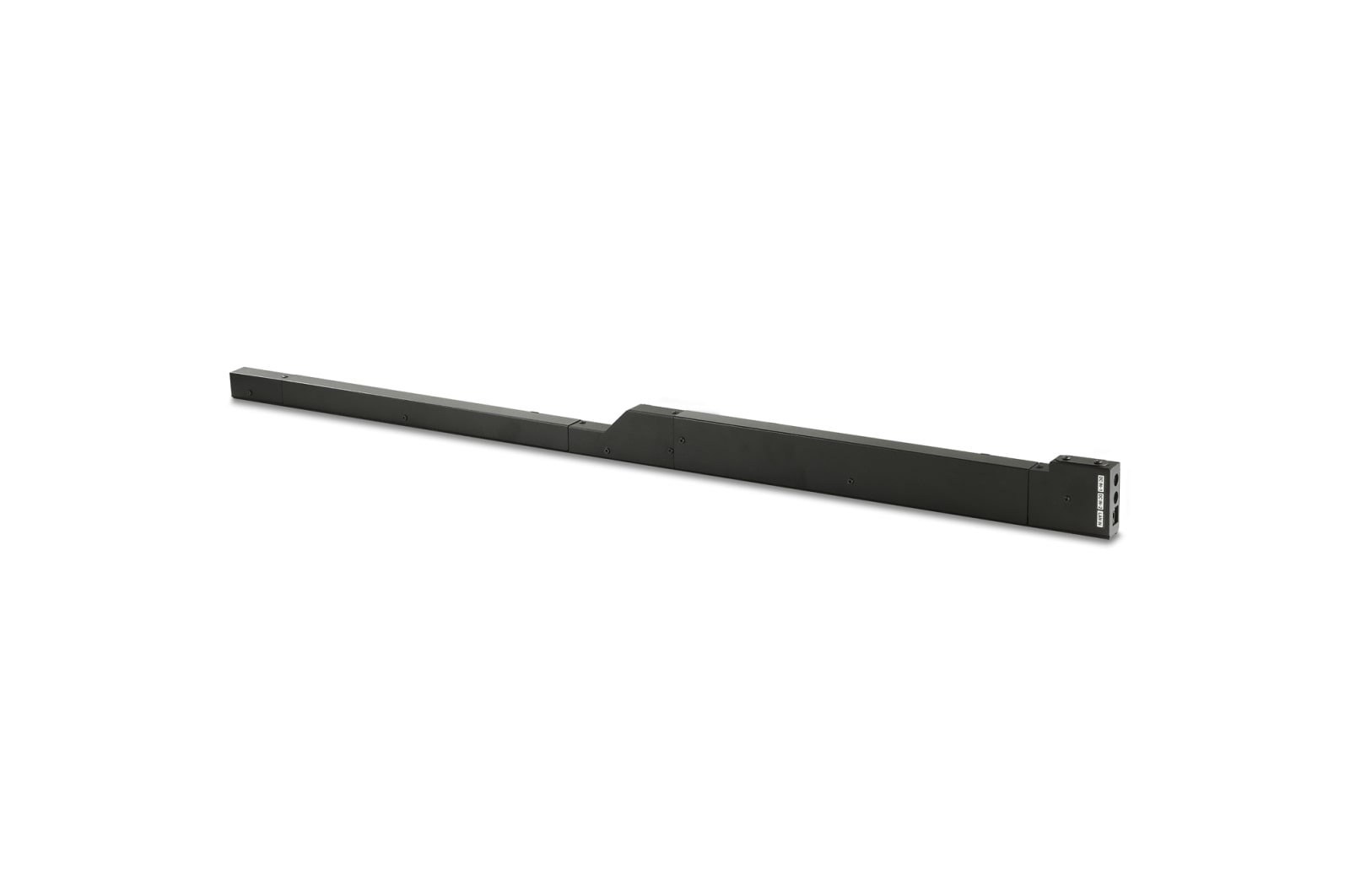

Dimension (W x H x D)
547.3 x 63 x 24 mm
Weight
0.45 kg

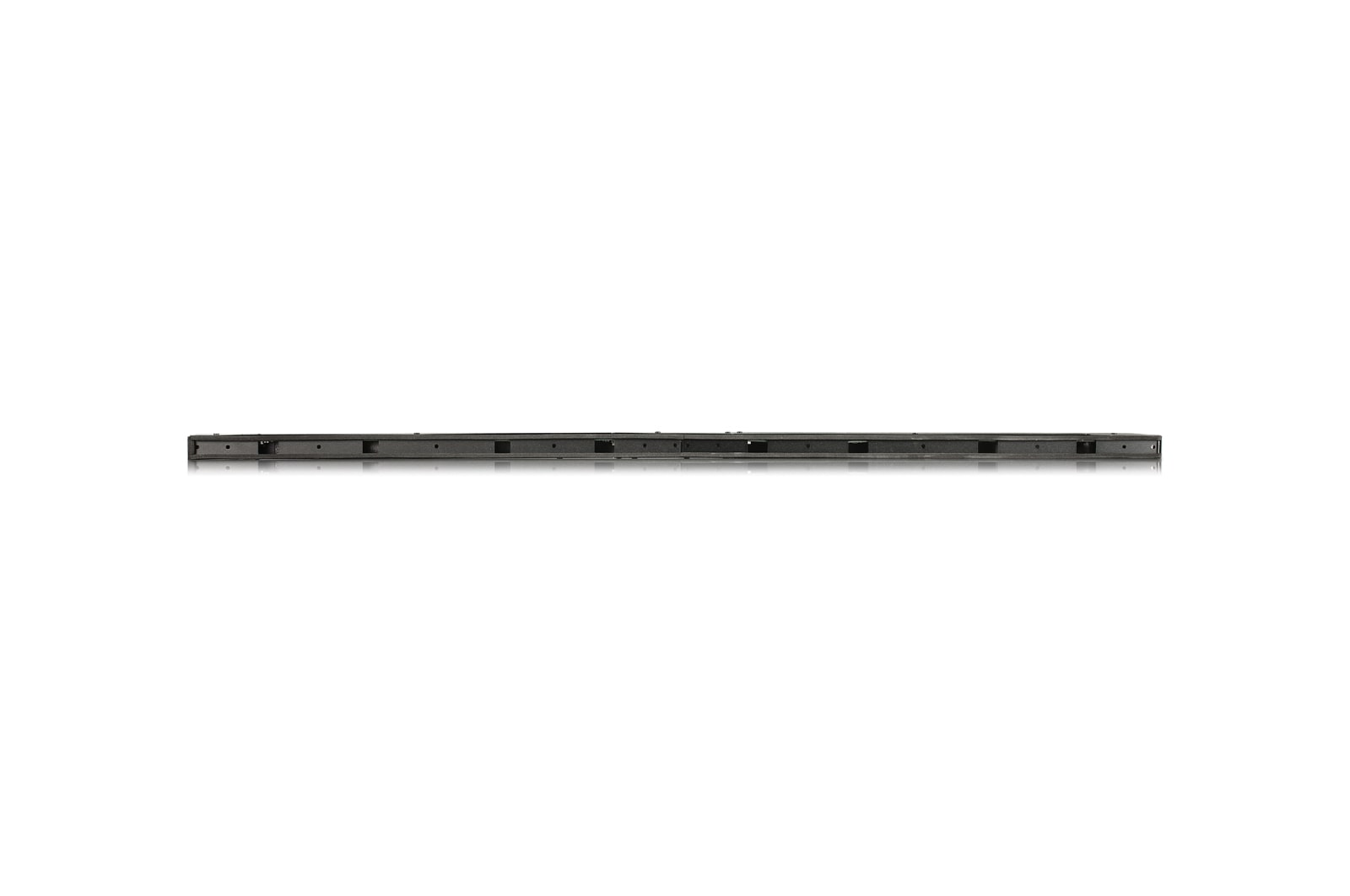

Dimension (W x H x D)
479.5 x 28.1 x 24 mm
Weight
0.26 kg
Resolution
960 x 540 (4 Unit Controllers Needed for FHD)
Interface
Input : LVDSOutput : RJ45 x4EA
Maximum Transmission Length
100 m

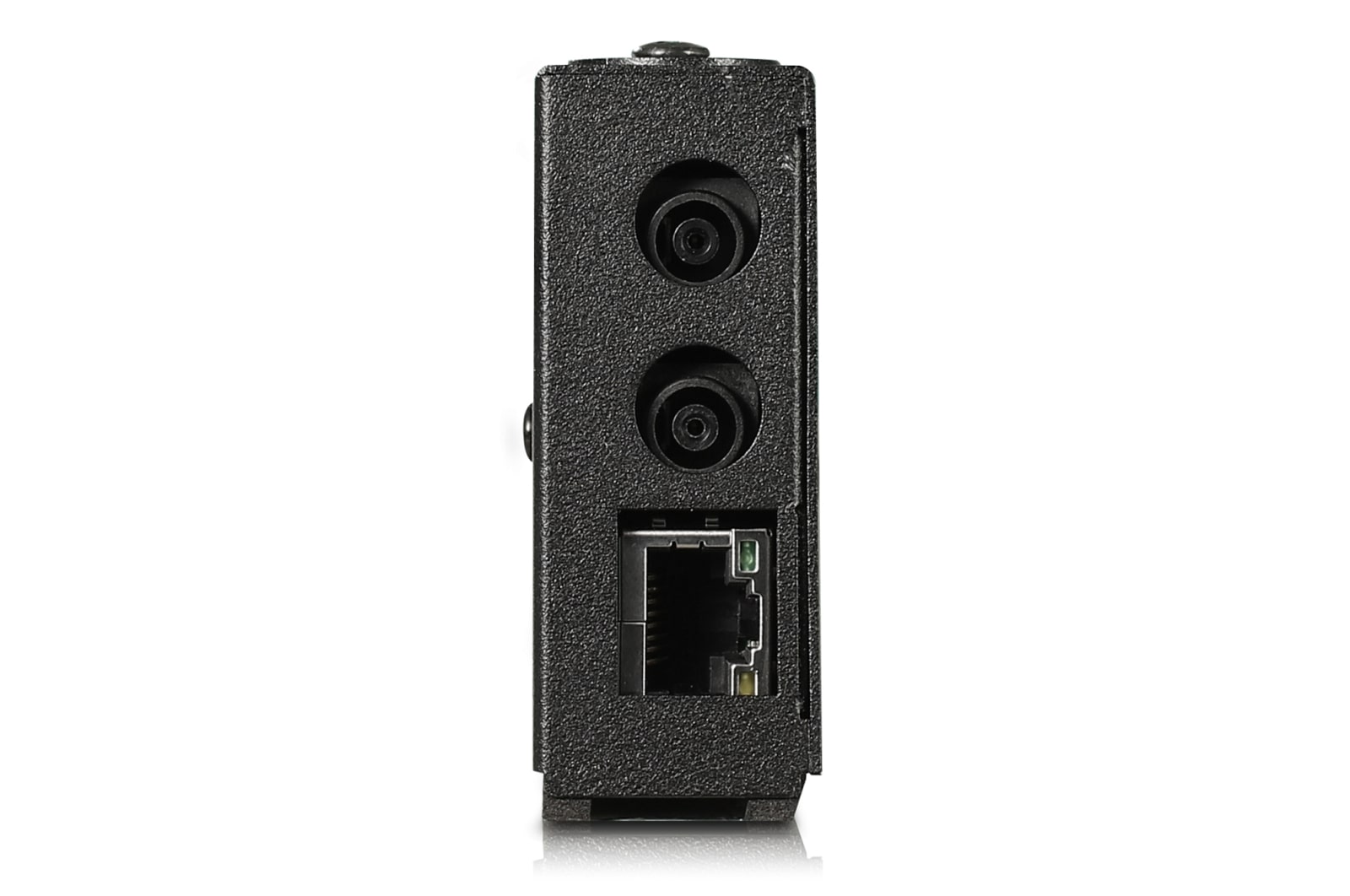

Dimension (W x H x D)
293 x 40.1 x 193.3 mm
Weight
1.5 kg
Temperature Sensor
Yes
Power Consumption
20 W
To access more technical documentation and resources, please visit the LG B2B partner portal.
