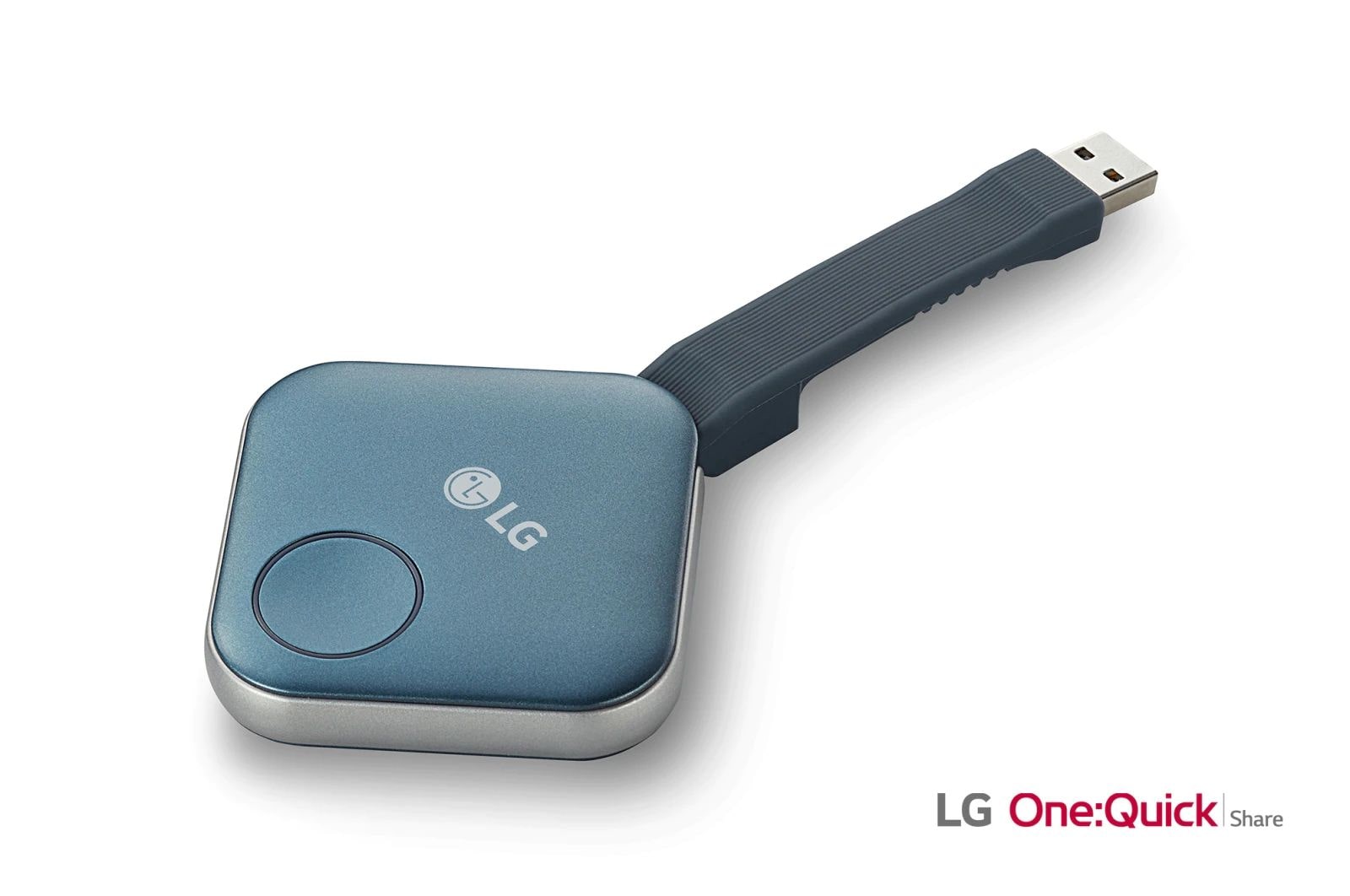

One:Quick Share

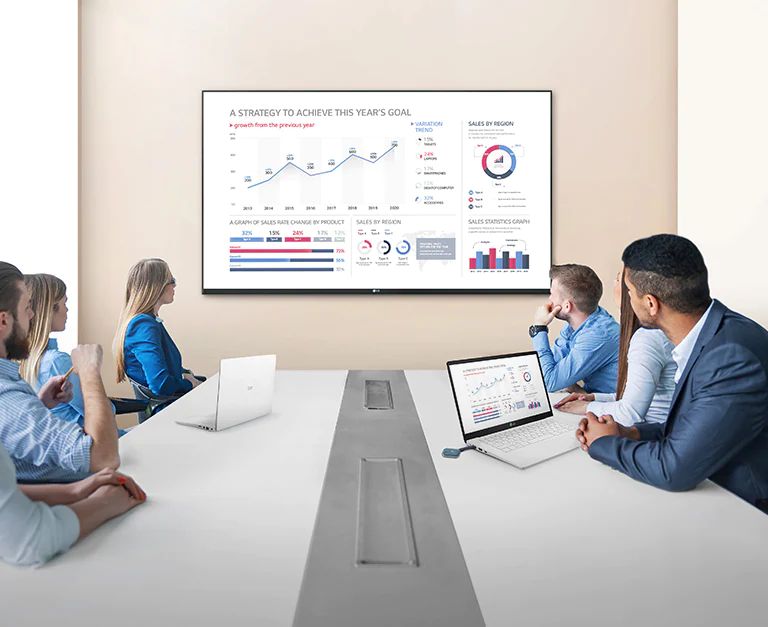

People are having a meet by connecting a USB dongle device to a laptop and sharing a screen with a large signage on the wall.
* All images in this web page are for illustrative purposes only and may differ from the actual product.
* One:Quick Share may not be available in certain products.
** Volume, Picture Mode, Auto Bright, Presentation Timer, Agenda/Note can be set on LG One:Quick Share PC App.
* One signage can be connected to a total of 4 USB-type dongle devices.

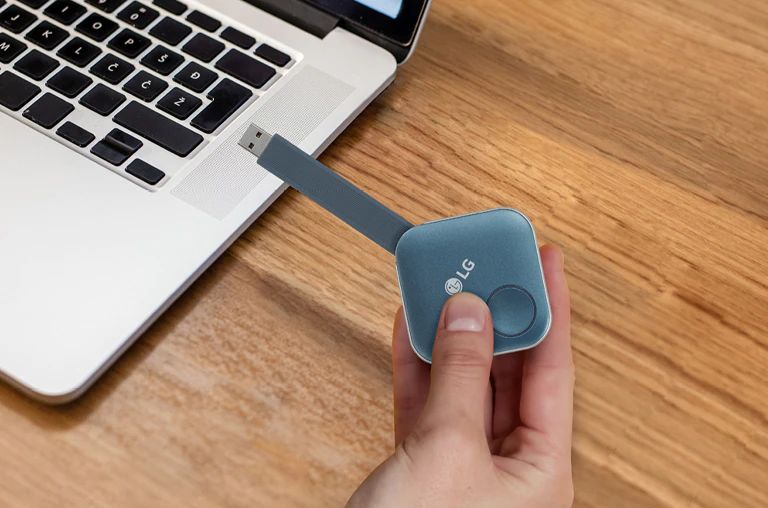

* Initial setup requires installation of One:Quick Share software by connection of the USB dongle.

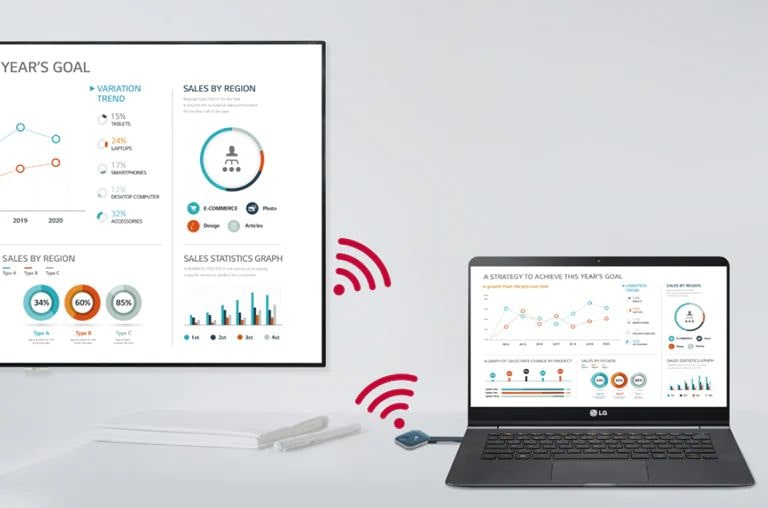

* LG Signage needs to set up Soft AP enabled at Network Menu in Settings App.

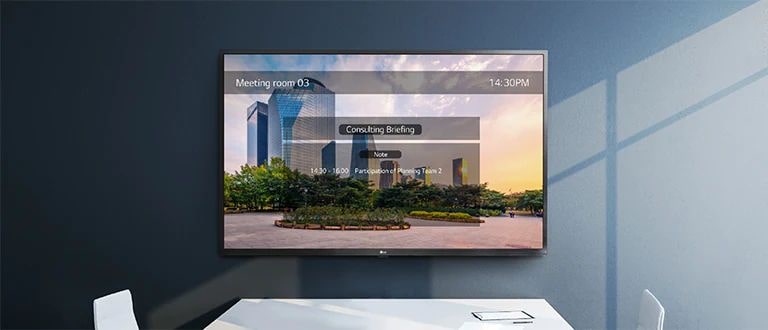

One:Quick Share PC application allows to adjust the settings of the signage without remote control. And the signage on the wall shows one example of the Office Meeting Mode which users can set from the app.
* Setting without remote control function is enabled when the USB Dongle is paired to the LG Signage and connected to the PC.
** Users can enable Office Meeting Mode at EZ Setting menu of the Signage.
Meeting organizer is free to control several screens shared in the signage. So this image shows that the LG Signage screen has the same order of the split screen which the user with the admin privileges sets on the One:Quick Share App.
OS
Linux
Connectivity
USB2.0 Type A
Wi-Fi
IEEE 802.11 a/b/g/n/ac (Max. 30 m available)
Dimension (H x W x D)
63.8mm x 63.8mm x 13.5mm/ USB cable (85.5mm)
Dimension (H x W x D)
63.8mm x 63.8mm x 13.5mm/ USB cable (85.5mm)
Weight
46g
Power Consumption
2.0W Typ.
2.5W Max.
Key Feature
User Switching, Split View (Max. 4 Screen), Admin mode, Signage Control, Sound (Window Only)
Compatible LG Signage Model
UL3J/ UM3DG/ UM3DF/ UH5F-H/ UH5F/ UH7F/WP400, UR640S/UT640S, LAEC015
Supported Operating System
Windows 8.1 64 bit or higher
macOS Sierra (10.12),
High Sierra (10.13),
Mojave (10.14),
Catalina (10.15) 64bit
Operation Temperature
0℃~40℃
Operation Humidity
0~85%
Storage Temperature
-20℃~60℃
Storage Humidity
0~90%
To access more technical documentation and resources, please visit the LG B2B partner portal.
