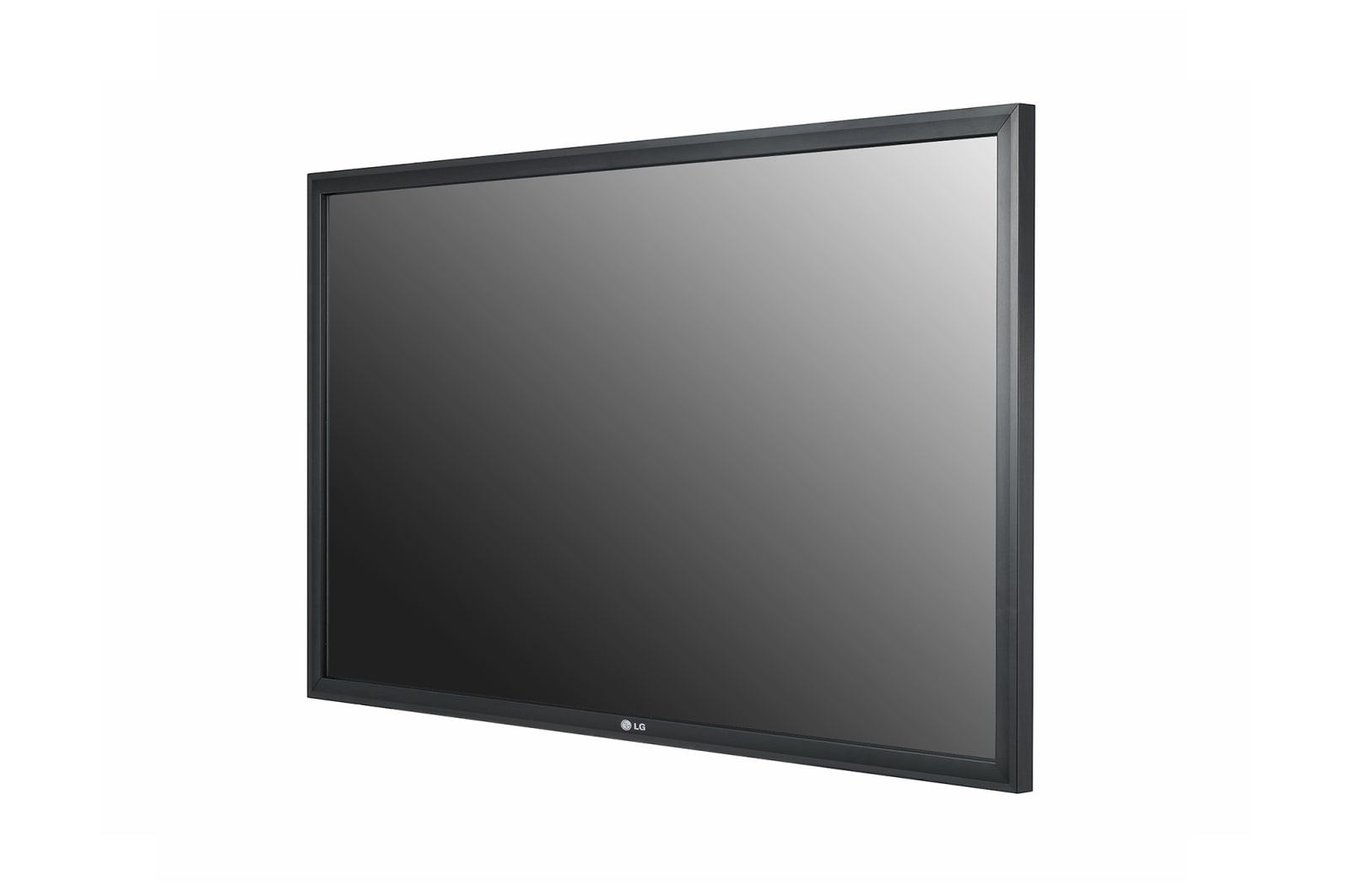

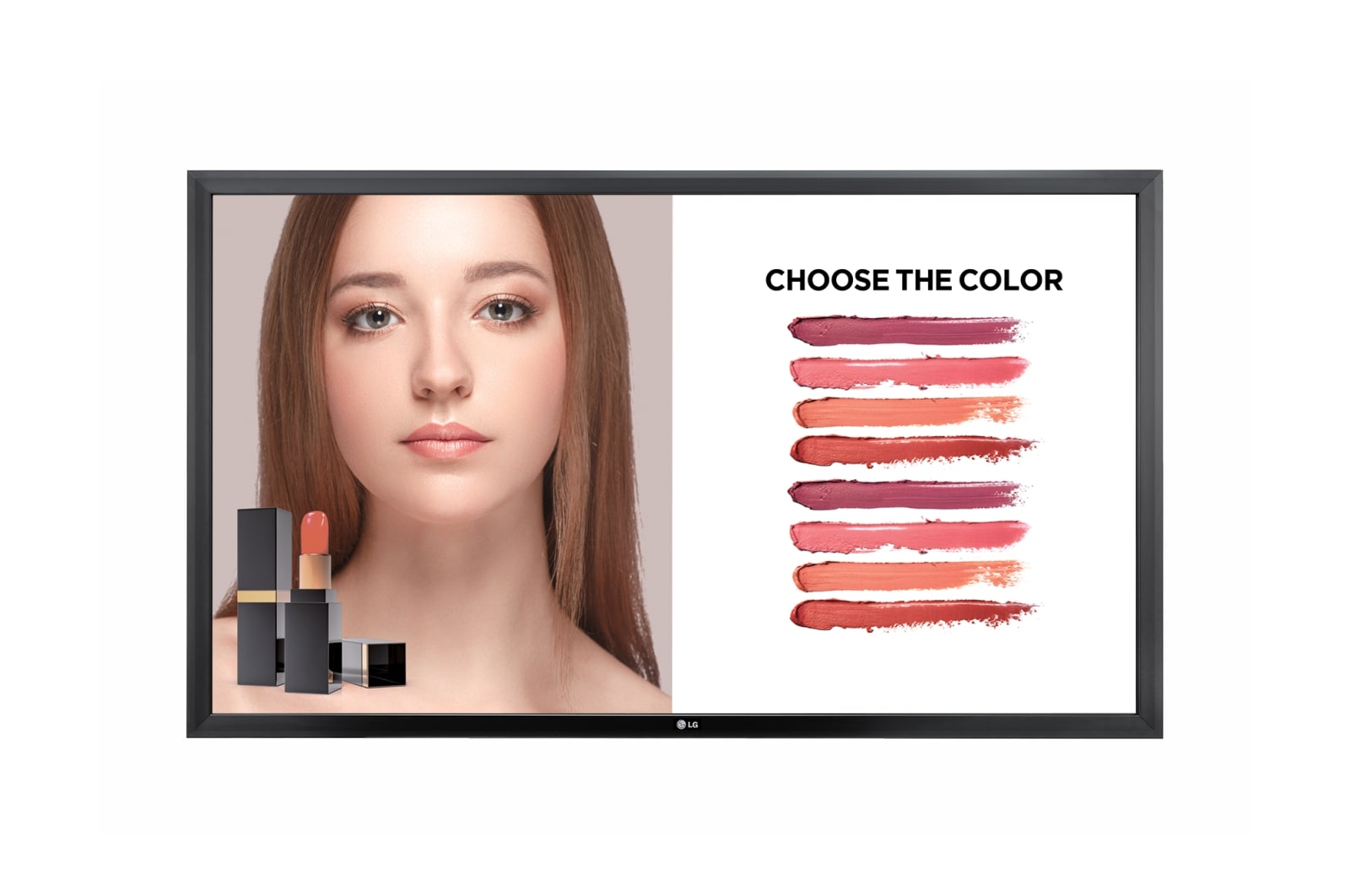

32" 400 nits FHD Built-in Touch Signage
32" 400 nits FHD Built-in Touch Signage
![](/content/dam/channel/wcms/au/images/digital-signage/32ta3e-b_aau_ehap_au_b/U02_md00037803-450x450.jpg)

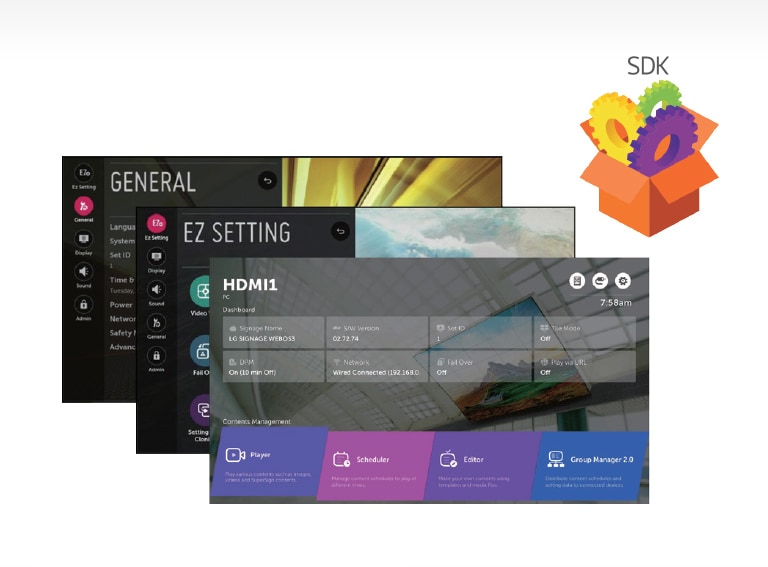

* SDK: Software Development Kit

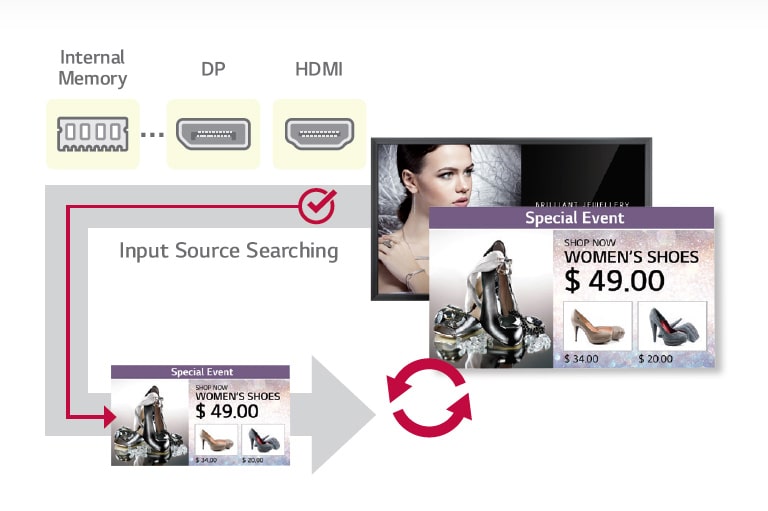

* The priority can be set by users.

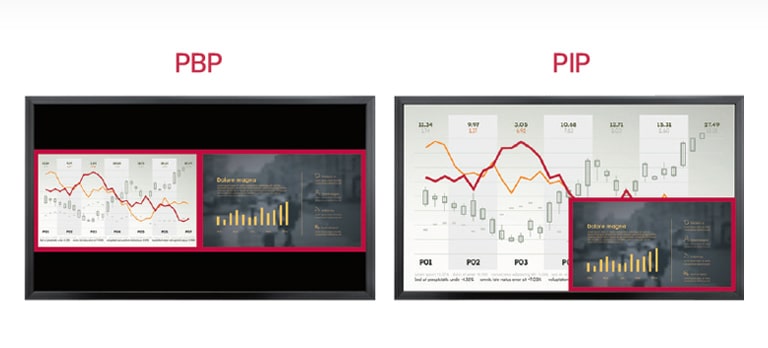

* PBP: Picture-by-Picture
** PIP: Picture-in-Picture
Gallery
All Spec
PANEL
-
Screen Size
32"(80cm)
-
Panel Technology
IPS
-
Aspect Ratio
16 : 9
-
Native Resolution
1,920 x 1,080 (FHD)
-
Brightness*
400 cd/m2 (w/Glass 289 cd/m2)
-
Viewing Angle (H x V)
178 x 178
-
Response Time
10 ms (G to G BW), 7.1 ms (WOT)
-
Surface Treatment
Hard Coating (3H), Anti-glare Treatment of the Front Polariser (Haze Typ. 1%)
-
Life Time (Typ.)
50,000 hrs
-
Operation Hours
24 Hrs
-
Orientation
Portrait & Landscape
CONNECTIVITY
-

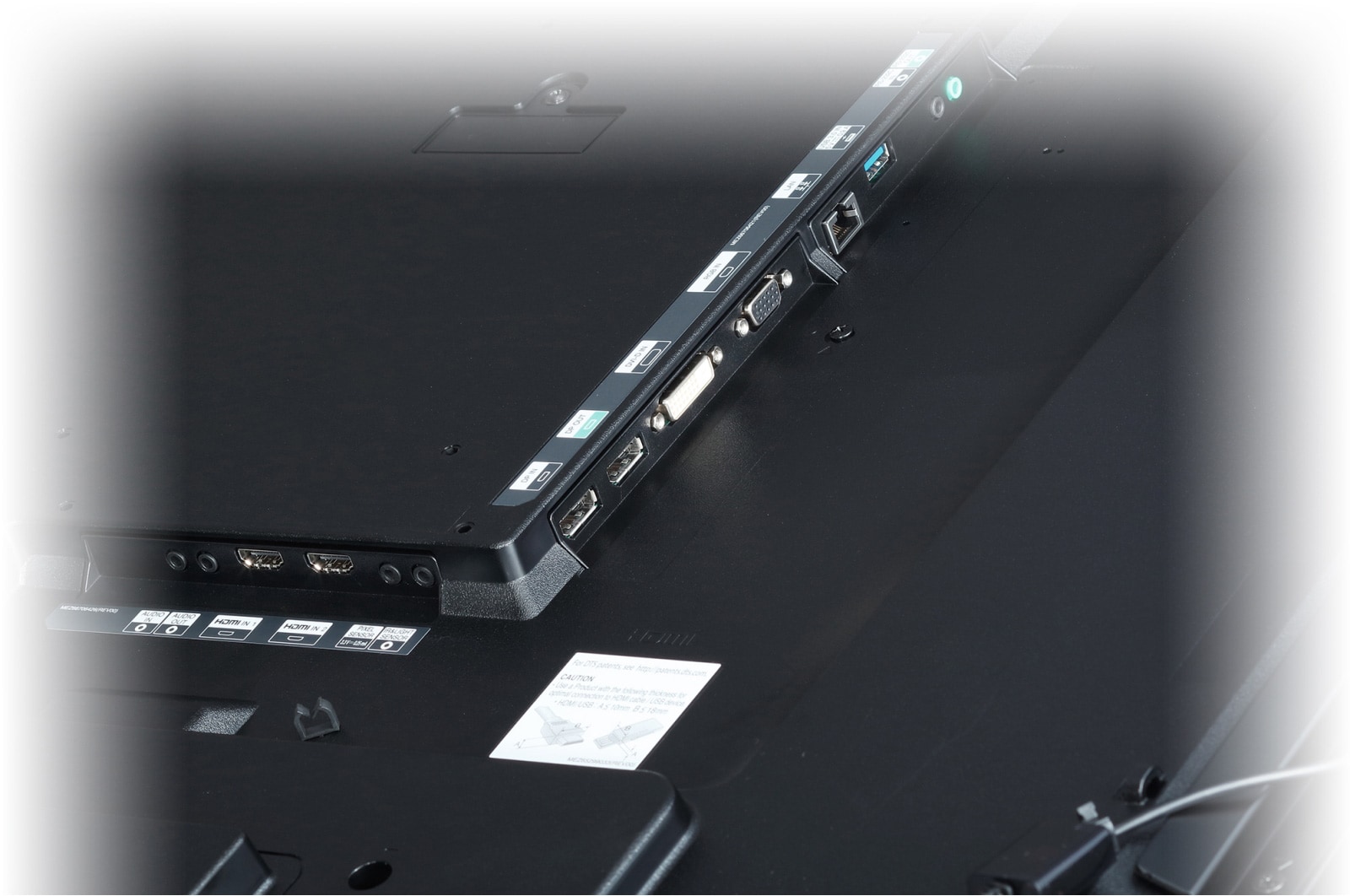

Input
HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0
-
Output
DP, Audio Out
-
External Control
RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In
PHYSICAL SPECIFICATION
-
Bezel Colour
Black
-
Bezel Width
32.7 mm (Even)
-

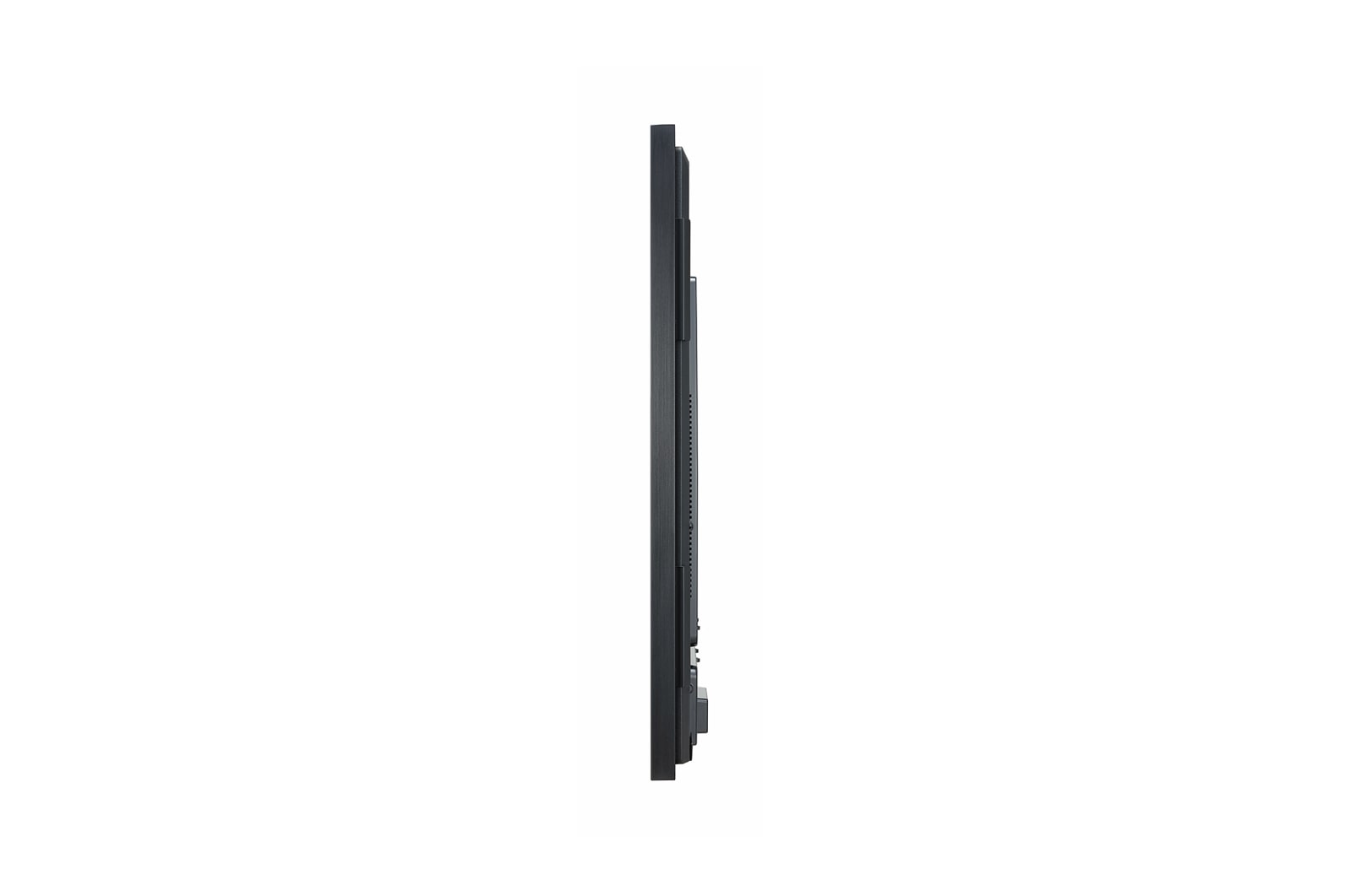

Monitor Dimension (W x H x D)
768.4 x 462.9 x 74.5 mm
-
Weight (Head)
10.3 kg
-
Carton Dimensions (W x H x D)
852 x 560 x 152 mm
-
Packed Weight
12.2 kg
-
VESATM Standard Mount Interface
200 x 200 mm
SPECIAL FEATURES
-
SPECIAL FEATURES

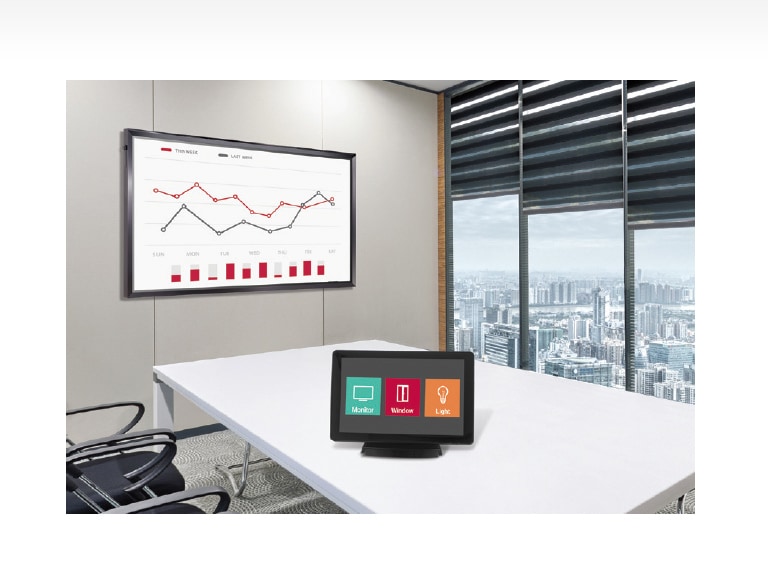

Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Built-in (802.11n combo), USB Cloning, Easy Brightness Control, IDB App. (Whiteboard App.), Fail Over, Mirroring, SoftAP, Beacon, Embedded Template, Built-in Speaker (10W+10W), Crestron ConnectedⓇ**
ENVIRONMENTAL CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10% to 80%
POWER
-
Power Type
Built-In Power
-
Power Supply
100-240V~, 50/60Hz
-
Power Consumption-Typ. / Max.
60 W / 85 W
-
Power Consumption-Smart Energy Saving
45 W
STANDARD(CERTIFICATION)
-
Safety
AS/NZS 60950,CB Scheme
-
EMC
AS/NZS CISPR32,RCM(Class A)
-
ErP / Energy Star
N/A / Yes (Energy Star 7.0)
-
EPEAT (US Only)
N/A
MEDIA PLAYER COMPATIBILITY
-
OPS Type Compatible
Yes
-
External Media player Attachable
No
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign CMS
-
Control and Monitoring Software
SuperSign Control/Control+
ACCESSORIES
-
Basic
Remote Controller (2ea Batteries Included), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory Cover
-
Optional
Wall Bracket (LSW230B), OPS Kit (KT-OPSA)

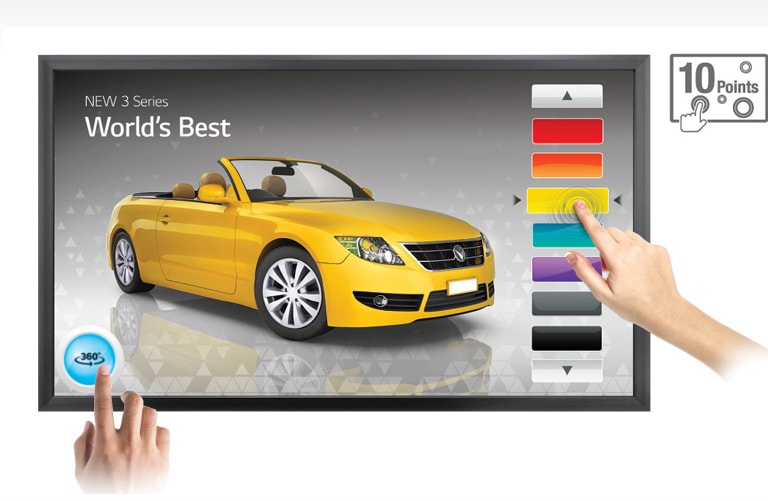

TOUCH
-
Touch Type
IR (Scattering)
-
Scan Time
10 ms ↓
-
Interface
USB 2.0
-
Protection Glass Thickness
2.8T (Anti-glare)
-
Operating System Support
Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later)
-
Multi Touch Point
Max 10 Points
