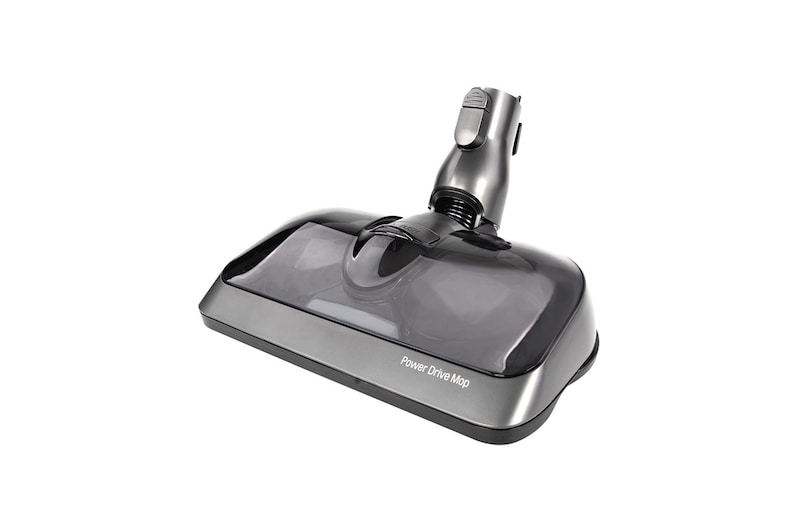

CordZero™ A9 Vacuum Cleaner Power Drive Mop Kit
How to Use
For more detailed information, please refer to the product manual for your model.
Filling the Water Tank
STEP 1
Press the PUSH button to remove the water tank from the mop nozzle.

STEP 2

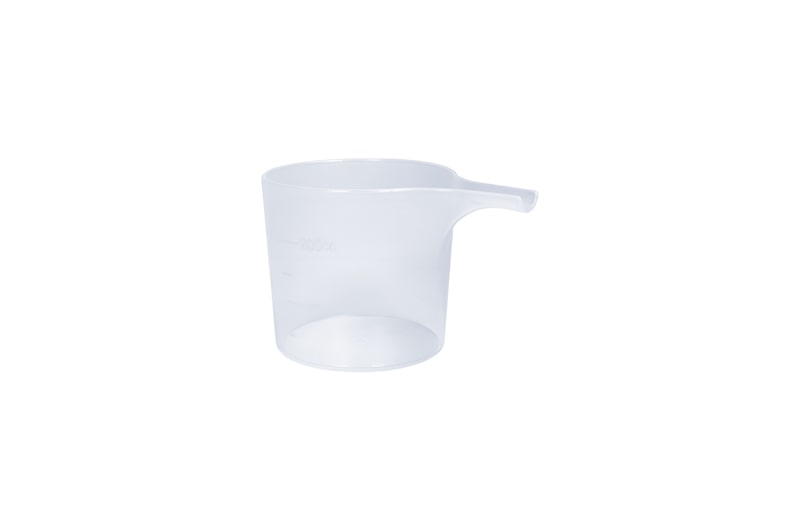

Open the water inlet cap on the side of the water tank and fill the tank with water using the measuring cup.
- Open only one water inlet cap to fill the water.
Opening both caps may cause the water to flush.
- Do not fill the tank over the MAX line.
- Do not put liquid other than water and hot water in the water tank.

STEP 3
Close the water inlet cap tightly.
- If the water inlet cap is not closed properly, water may leak.

STEP 4
Attach the water tank to the mop nozzle again.
- Insert the 2 tabs at the front of the water tank into the slots on the top of the mop nozzle.
Press down at the centre to lock the tank in place.

STEP 5
Open the 2 water inlet caps on the side of the water tank and empty the water tank.
Shake the water tank to remove the remaining water.

STEP 6
Leave the 2 water inlet caps open and allow the water tank to dry in a well-ventilated area out of direct sunlight for at least 24 hours.
- Keep the water tank after water is completely empty and dry.
Moisture or residual water in the tank may cause odour.

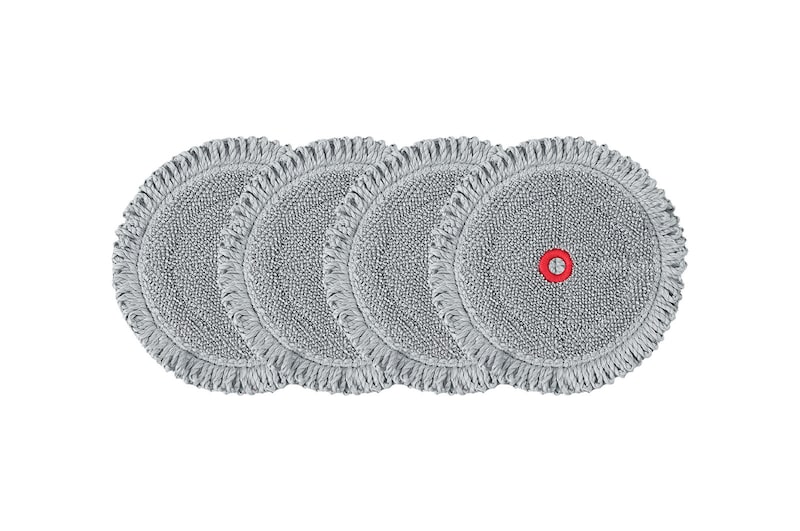

Attaching the Mop Pads
STEP 1
Wet both sides of the mop pads with water then squeeze out any excess water before attaching the pads.
- Do not attach pads while they are dripping wet.
- Attaching and using mop pads while they are dry may affect the cleaning results.

STEP 2

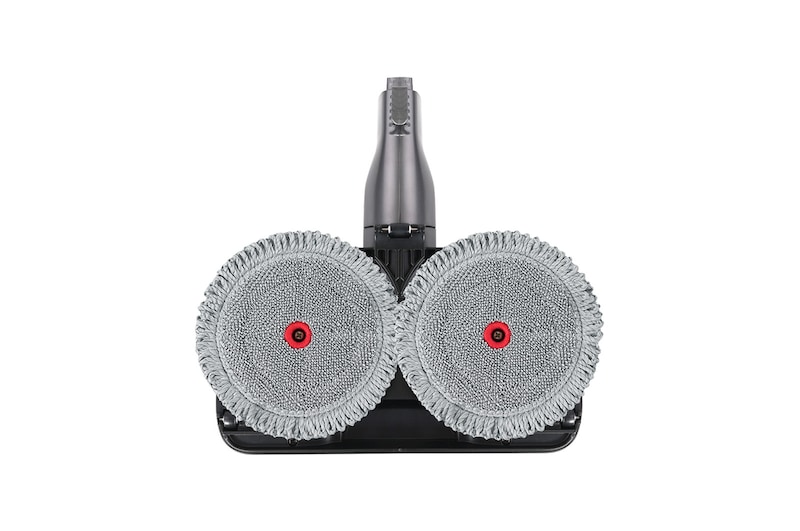

Place the mop nozzle upside down on the floor.
Align and attach the centre of the mop pad with the centre of the mop attachment plate.
- Attach the Velcro on the mop pad to the mop plate.
Attaching the mop pad upside down or improperly may affect the cleaning results.
Attach the mop nozzle to the appliance.

Storing the Mop Pads

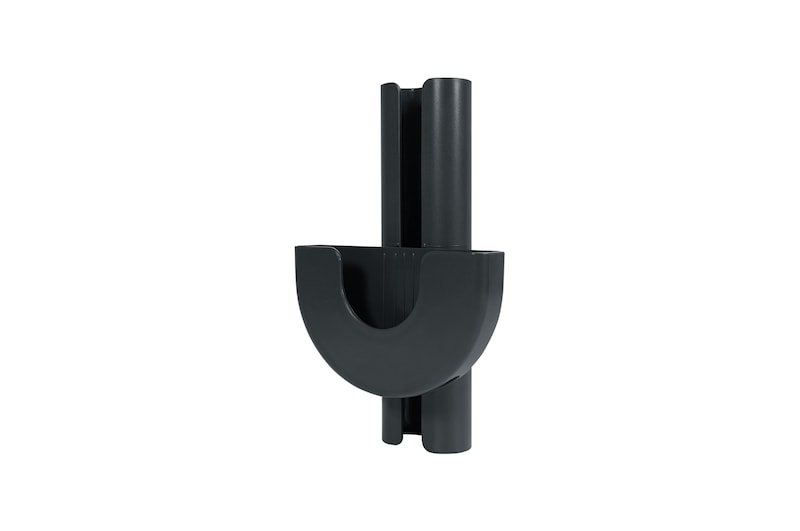

Up to 2 mop pads can be stored in the detachable mop pads storage.
- Store the mop pads completely in a dry state.
Otherwise, it can result in an unpleasant odour.

How to Clean
For more detailed information, please refer to the product manual for your model.
Cleaning the Mop Nozzle
Press the nozzle release button to remove the mop nozzle from the extension pipe and turn the nozzle upside down.
Use a damp towel or cloth to remove any remaining foreign objects and dust from the bottom of the mop nozzle.
Remove foreign objects, debris and hair from all Rollers of the nozzles using tweezers.

After Cleaning the Mop Nozzle
After cleaning, wipe off any remaining water on the water supply inlet on the mop nozzle with a soft cloth.
The water could drip onto the floor and damage it.
- Do not pull or stretch the rubber gasket on the water supply inlet.
Doing so may tear or damage it.

Drying the Mop Pads
1. Separate the mop pads from the mop attachment plate.
2. Hand wash the pads with a neutral detergent.
- Do not use bleach or fabric softener when washing the mop pads.
- Do not dry the pads in a clothes dryer.
- Do not boil the mop pad.
- Storing mop pads in a damp state can result in an unpleasant odour.
Set the pads in a well-ventilated area out of direct sunlight for at least 24 hours or until completely dry.
