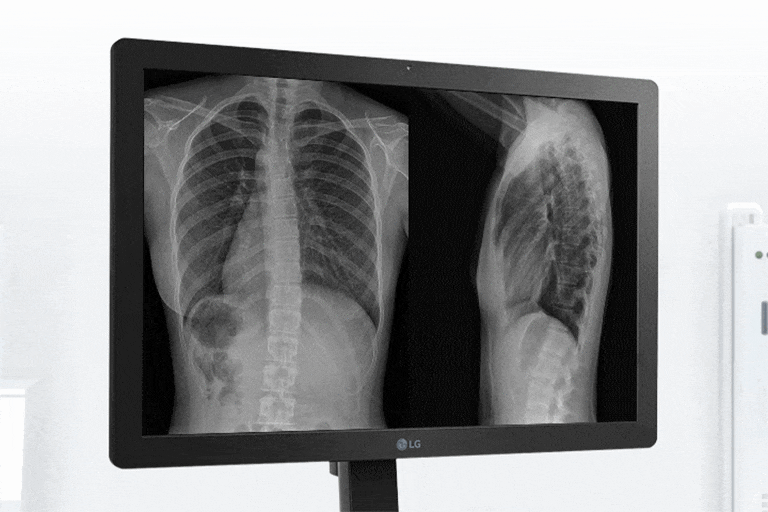

*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m².
^This display is not intended for mammography.
Images are for illustrative purposes only and may differ from actual product.
Images are for illustrative purposes only and may differ from actual product.
Images are for illustrative purposes only and may differ from actual product.

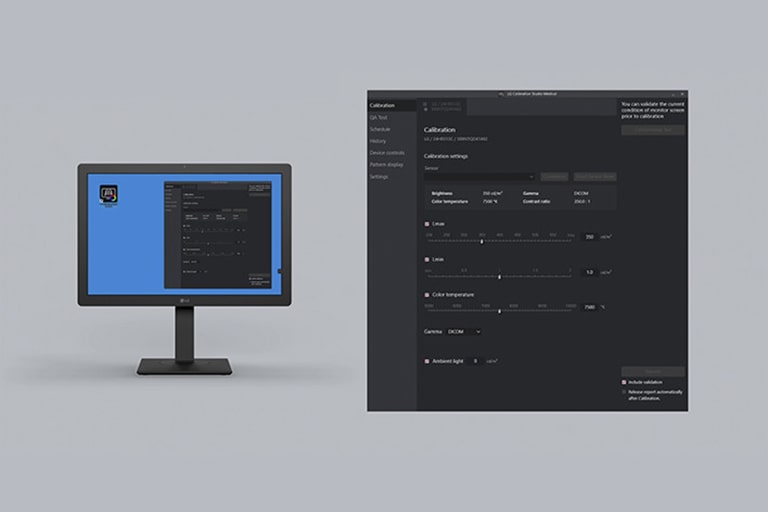

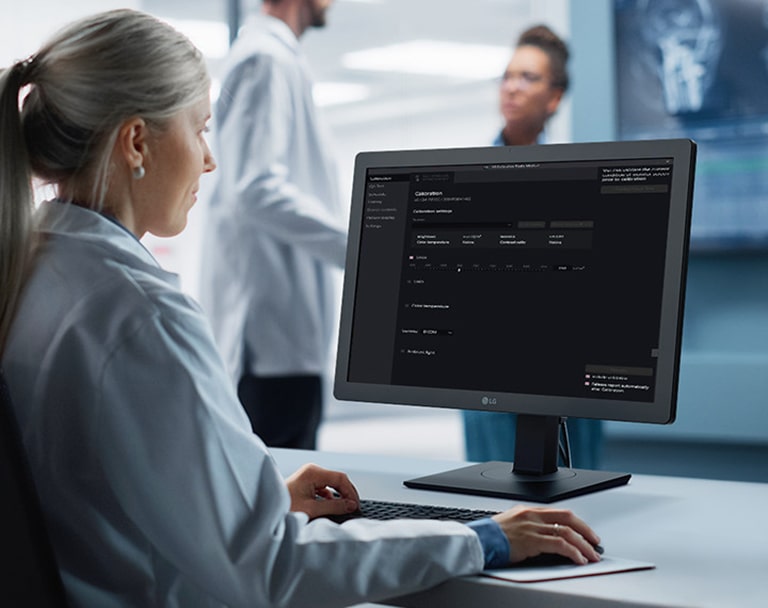

*LCS Medical : LG Studio Calibration Medical
^LCS Medical supports Quality Assurance Tests that comply with international QC Standards including AAPM TG18, ACR, DIN-6868-157, IEC 62563-1, NYC PDM, JESRA X-0093, and RANZCR.
You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
Images are for illustrative purposes only and may differ from actual product.
*The 3MP diagnostic monitor featured in the image is 21HQ513D.

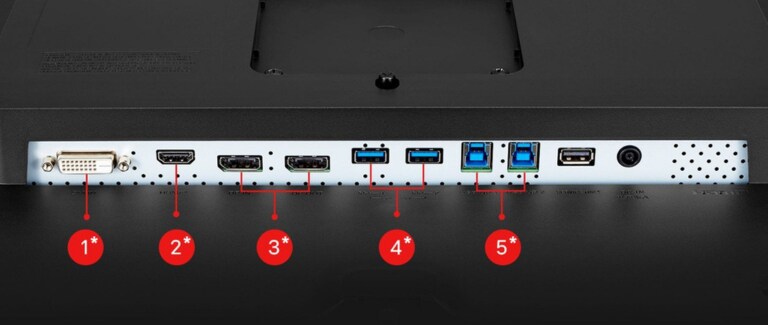

DVI IN, HDMI™, DisplayPort x 2, USB 3.0 Downstream x 2, USB 3.0 Upstream x 2.
*1. DVI IN / 2. HDMI™ / 3. DisplayPort x 2 / 4. USB 3.0 Downstream x 2 / 5. USB 3.0 Upstream x 2
Images are for illustrative purposes only and may differ from actual product.

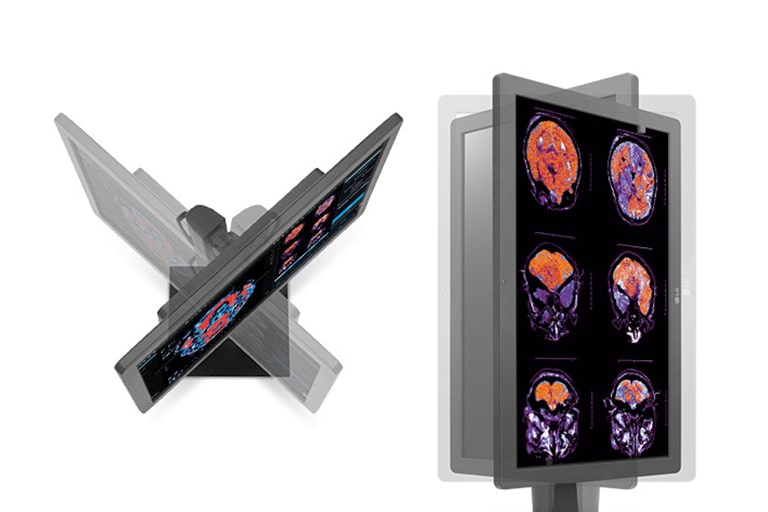

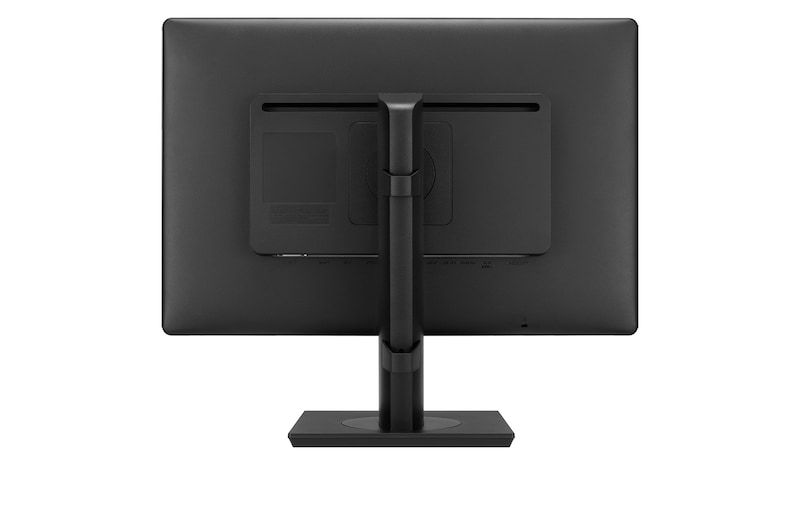

*Auto Pivot refers to the automatic screen rotation function based on the pivot direction.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Size [Inch]
24
Aspect Ratio
16:10
Surface Treatment
Anti-Glare
Response Time
5ms (GtG at Faster)
Resolution
1920 x 1200
Pixel Pitch [mm]
0.27 x 0.27
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Brightness (Typ.) [cd/m²]
600
Contrast Ratio (Typ.)
1000:1
Colour Gamut (Typ.)
NTSC 70% (CIE1931)
Colour Bit
8bit
12G-SDI
NO
3G-SDI
NO
D-Sub
NO
DVI-D
YES(1ea)
Component (Resolution)
NO
Composite (Resolution)
NO
HDMI
YES(1ea)
Daisy Chain
YES
DisplayPort
YES(In 1ea / Out 1ea)
Thunderbolt
NO
Headphone out
NO
RS-232
NO
S-Video
NO
USB Downstream Port
YES(2ea/ver3.0)
USB Upstream Port
YES(2ea/ver3.0)
HDR 10
NO
Auto Luminance Sensor
YES
Smart Energy Saving
YES
PIP
NO
PBP
NO
Flicker Safe
YES
HW Calibration
YES
Black Stabiliser
YES
Lighting
NO
Reader Mode
YES
Super Resolution+
YES
Hot Key
NO
Presence Sensor
NO
Front Sensor
YES
Color Temperature
6500K/7500K/9300K/Manual(5000K-10000K)
Rotation & Mirror Mode
NO
Failover Input Switch
NO

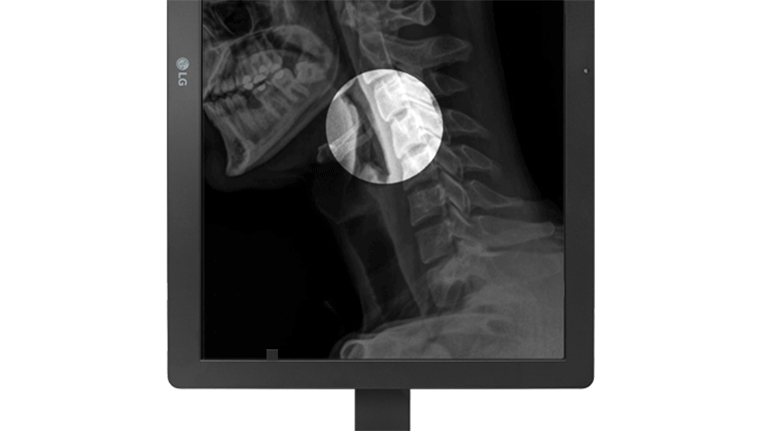

Focus View
YES
Light Box Mode
NO
Brightness stabilization
YES

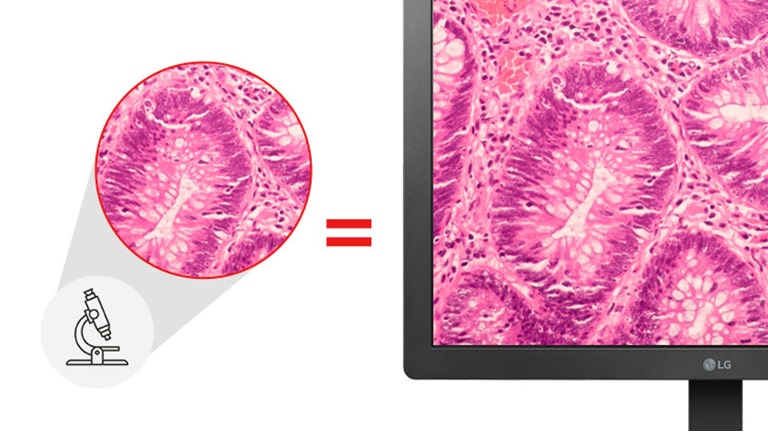

Pathology Mode
YES
DICOM Compliant
YES
HDR Effect
NO

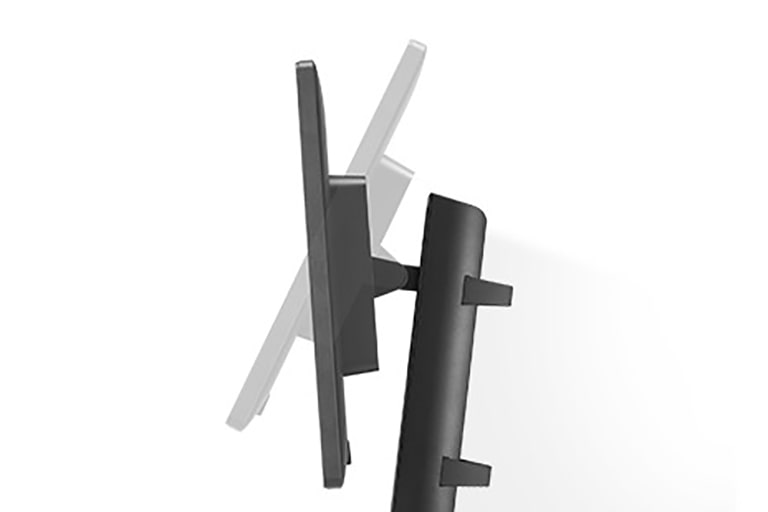

Display Position Adjustments
Tilt/Height/Swivel/Pivot
Borderless Design
Normal
Wall Mountable [mm]
100 x 100
OneClick Stand
YES
Machanical Power Switch
NO
Dimension in Shipping (W x H x D) [mm]
705 x 480 x 200
Dimension with Stand (W x H x D) [mm]
574.2 x 559.4 x 248.2
Dimension without Stand (W x H x D) [mm]
574.2 x 382.4 x 59.3
Weight in Shipping [kg]
9.7
Weight with Stand [kg]
7.1
Weight without Stand [kg]
4.35
Power Consumption (Max.)
65W
Power Consumption (DC Off)
Less than 0.3W
AC Input
100-240V (50/60Hz)
Type
External Power(Adapter)
DC Output
19V, 3.42A
Adapter
YES
Calibration Report (Paper)
YES
Display Port
YES
DVI-D
YES
DVI-D (Color/Length)
YES
D-Sub
NO
HDMI
YES
HDMI (Colour/Length)
YES
Power Cord
YES
USB3.0 Upstream Cable
YES
Dual Controller
YES
LG Calibration Studio (True Colour Pro)
NO
Qubyx
NO
UL (cUL)
YES
CE
YES
RoHS
YES
IP(Front/Except for front)
NO
Vandal-proof
NO
KGMP
YES
KC (for Rep. of Korea)
YES
IEC (IEC 60601-1 / IEC 60601-1-2)
YES
EN (EN 60601-1 / EN 60601-1-2)
YES
IEC (IEC 60950-1 / IEC 55032, 55024)
YES
EN (EN 60950-1 / EN 55032, 55024)
YES
FDA
Class II
ISO13485
YES
GMP
YES
WEEE
YES
MFDS
YES
REACH
YES
