UltraGear™ Logo.

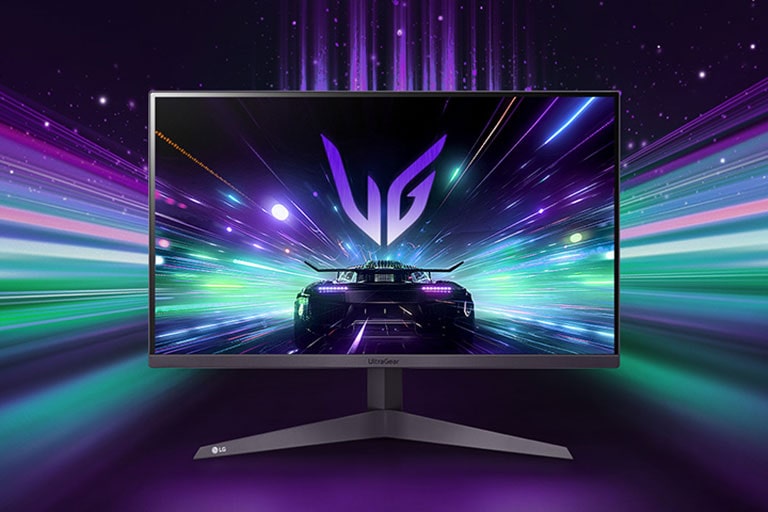

An image of a race car traveling at the speed of light inside an UltraGear monitor.
Images simulated to enhance feature understanding. It may differ from actual use.
24” FHD (1920x1080) display HDR 10
180Hz refresh rate 1ms MBR
AMD FreeSync™
It is a comparison image of a fast-paced game with a low refresh rate and a clear image with a 180Hz high refresh rate.
Comparison of 60Hz refresh rate (left image) and 180Hz refresh rate.
Images simulated to enhance feature understanding. It may differ from actual use.
Images simulated to enhance feature understanding. It may differ from actual use.
*1ms Motion Blur Reduction causes lowered luminance, and the following features cannot be used while it is activated : AMD FreeSync™ / DAS (Dynamic Action Sync)
*Flicker may occur during 1ms MBR operation.
Images simulated to enhance feature understanding. It may differ from actual use.
Images simulated to enhance feature understanding. It may differ from actual use.

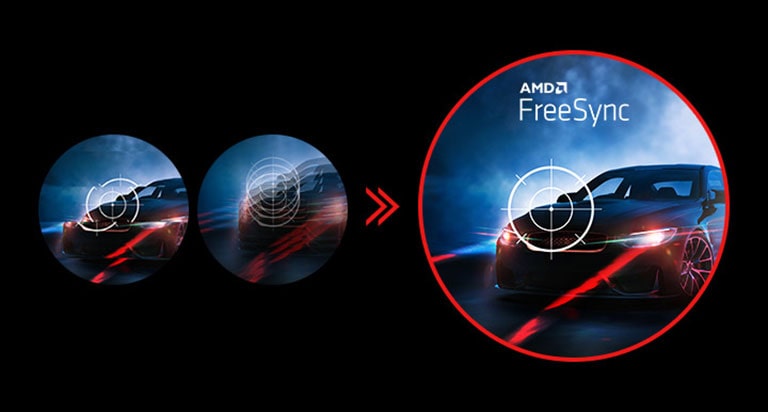

Comparison of Mode 'OFF' (left image) and AMD FreeSync™.
AMD Freesync™ is only available when connected to a Display Port and used in conjunction with a compatible AMD graphics card.
Images simulated to enhance feature understanding. It may differ from actual use.
Images simulated to enhance feature understanding. It may differ from actual use.
*To download the latest OnScreen Control software, visit LG.COM.
Dynamic Action Sync Mode allows you to see the action as it occurs in real time so that you can react immediately rather than respond after the delay of internal frame processing.
Black Stabiliser Mode brightens dark areas and gives you better visibility in dark scenes. It can make dark areas brighter to help you find the enemy or game objectives hidden in the dark.
The Crosshair feature helps enhance accuracy in first-person shooter games.
The FPS Counter will let you see how well everything is loading. Whether you're editing, playing games, or watching a movie, every frame matters, and with the FPS Counter, you'll have real-time data.
Images simulated to enhance feature understanding. It may differ from actual use.
*The Crosshair feature is unavailable while FPS Counter is activated.
^FPS Counter may display the value that exceeds the monitor’s maximum refresh rate.
FPS (Frame Per Second) Counter: Measurement of frames per second.
Size [Inch]
23.7
Resolution
1920 x 1080
Panel Type
VA
Aspect Ratio
16:9
Color Gamut (Typ.)
NTSC 72%
Brightness (Typ.) [cd/m²]
250
Curvature
NO
Refresh Rate (Max.) [Hz]
180
Response Time
1ms MBR, 5ms (GtG at Faster)
Display Position Adjustments
Tilt
Size [Inch]
23.7
Aspect Ratio
16:9
Panel Type
VA
Surface Treatment
Anti-Glare
Response Time
1ms MBR, 5ms (GtG at Faster)
Resolution
1920 x 1080
Pixel Pitch [mm]
0.2739 x 0.2739
Color Depth (Number of Colors)
16.7M
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Brightness (Typ.) [cd/m²]
250
Contrast Ratio (Typ.)
3000:1
Color Gamut (Typ.)
NTSC 72%
Curvature
NO
Color Gamut (Min.)
NTSC 68%
Refresh Rate (Max.) [Hz]
180
Brightness (Min.) [cd/m²]
200
Contrast Ratio (Min.)
1800:1
Color Bit
8bit (6bit+FRC)
Size [cm]
60.4
Audio In
NO
D-Sub
NO
Built-in KVM
NO
DVI-D
NO
HDMI
YES(2ea)
Daisy Chain
NO
DisplayPort
YES(1ea)
DP Version
1.4
D-Sub (Max. Resolution at Hz)
N/A
DVI (Max Resolution at Hz)
N/A
Thunderbolt
NO
USB-C
NO
Headphone out
3-pole (Sound Only)
LAN (RJ-45)
NO
Line out
NO
Mic In
NO
SPDIF out (Optical Digital Audio Out)
NO
Thunderbolt (Data Transsmission)
N/A
Thunderbolt (Max. Resolution at Hz)
N/A
Thunderbolt (Power Delivery)
N/A
USB Downstream Port
NO
USB Upstream Port
NO
USB-C (Data Transsmission)
NO
USB-C (Max. Resolution at Hz)
NO
USB-C (Power Delivery)
NO
HDR 10
YES
AMD FreeSync™
FreeSync
Auto Brightness
NO
Color Weakness
YES
Smart Energy Saving
YES
Color Calibrated in Factory
NO
PIP
YES
PBP
NO
Flicker Safe
YES
NVIDIA G-Sync™
NO
HW Calibration
NO
Dynamic Action Sync
YES
Black Stabilizer
YES
Crosshair
YES
Others (Features)
NO
Reader Mode
YES
FPS Counter
YES
VRR
NO
Super Resolution+
NO
Dolby Vision™
NO
VESA DisplayHDR™
NO
Mini-LED Technology
NO
Nano IPS™ Technology
NO
Advanced True Wide Pol.
NO
Motion Blur Reduction Tech.
YES
OverClocking
NO
User Defined Key
YES
Auto Input Switch
YES
RGB LED Lighting
NO
Camera
NO
Mic
NO
HDR Effect
YES
Display Position Adjustments
Tilt
Borderless Design
3-Side Virtually Borderless Design
Wall Mountable [mm]
100 x 100 mm
OneClick Stand
NO
Bluetooth Connectivity
NO
Bluetooth Connectivity
NO
DTS Headphone:X
NO
Maxx Audio
NO
Rich Bass
NO
Speaker
NO
Dimension in Shiping (W x H x D) [mm]
710 x 400 x 156
Dimension with Stand (W x H x D) [mm]
539.5 x 414.2 x 195.6
Dimension without Stand (W x H x D) [mm]
539.5 x 322.2 x 39
Weight in Shipping [kg]
5.3
Weight with Stand [kg]
3.55
Weight without Stand [kg]
2.95
Product name
UltraGear
Year
2024
Power Consumption (Max.)
16W
Power Consumption (Energy Star)
18W
Power Consumption (Sleep Mode)
Less than 0.5W
Power Consumption (Typ.)
15.7W
Power Consumption (DC Off)
Less than 0.3W
AC Input
100-240V (50/60Hz)
Type
External Power(Adapter)
DC Output
19V, 1.3A
Adapter
YES
Calibration Report (Paper)
NO
Display Port
NO
DVI-D
NO
D-Sub
NO
HDMI
YES
HDMI (Color/Length)
Black / 1.8m
Others (Accessory)
NO
Power Cord
YES
Remote Controller
NO
Thunderbolt
NO
USB A to B
NO
USB-C
NO
Dual Controller
NO
LG Calibration Studio (True Color Pro)
NO
LG UltraGear™ Control Center
N/A
LG UltraGear™ Studio
N/A
OnScreen Control (LG Screen Manager)
NO
UL (cUL)
YES
CE
YES
KC (for Rep. of Korea)
YES
