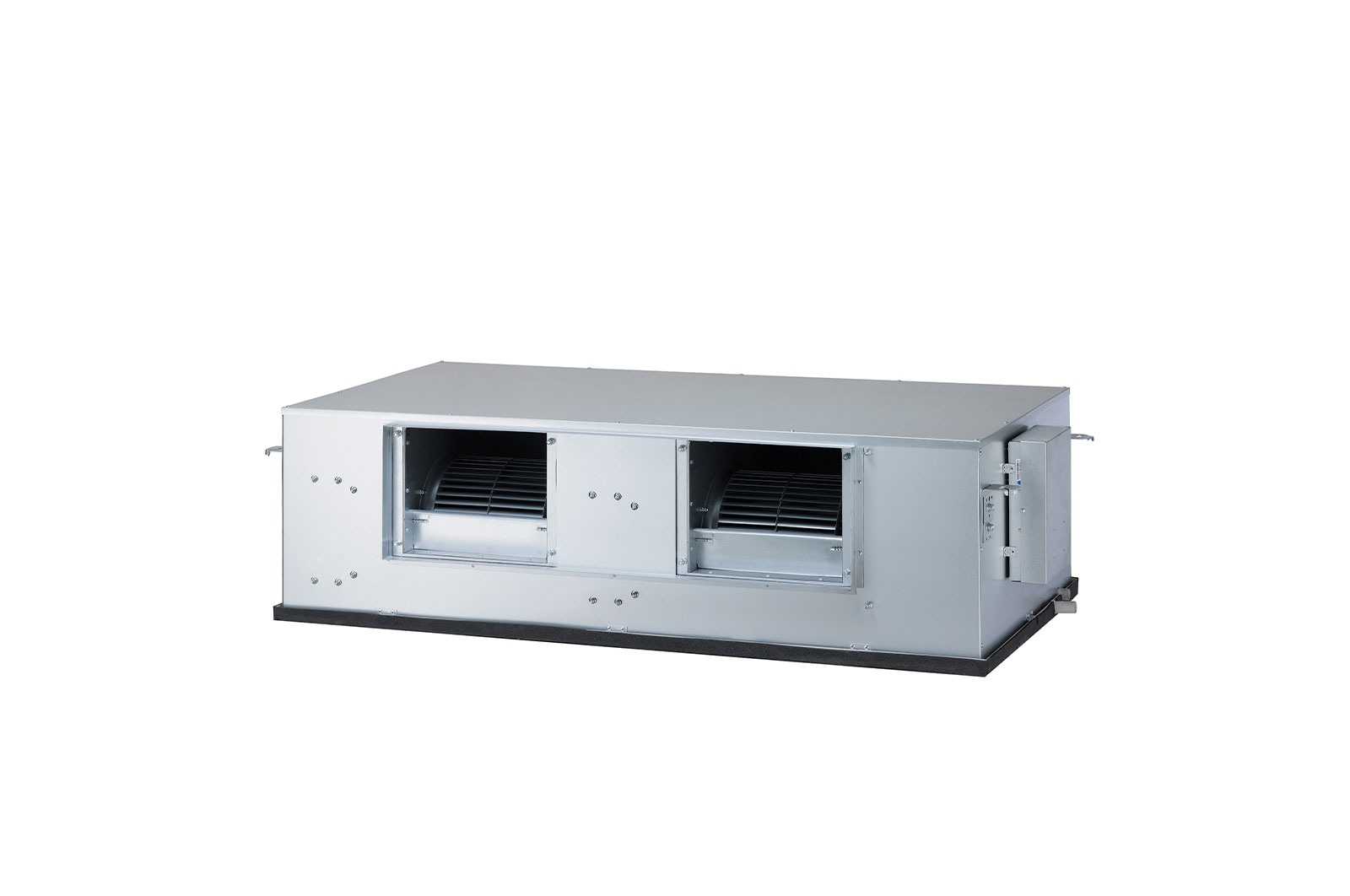

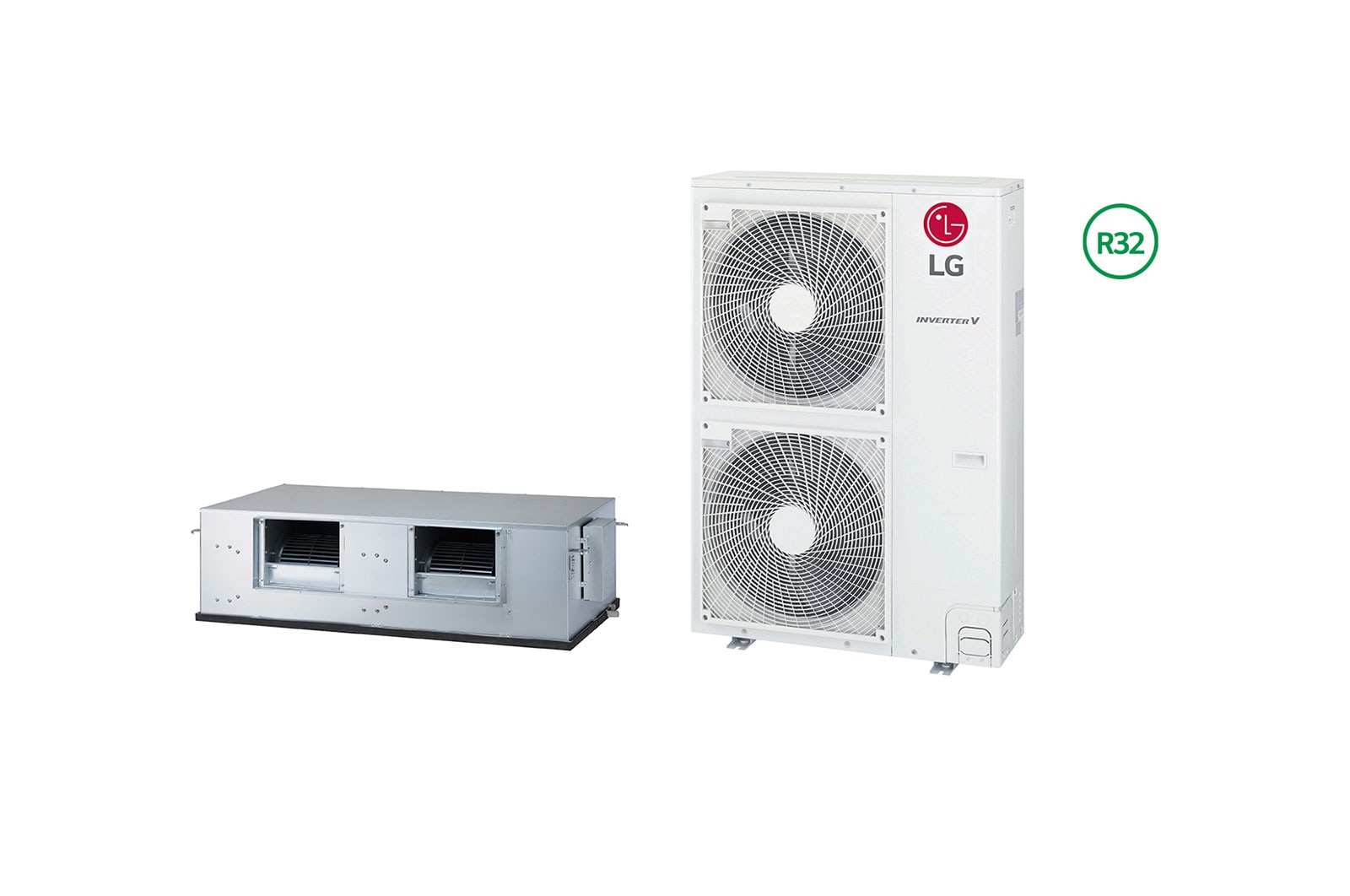

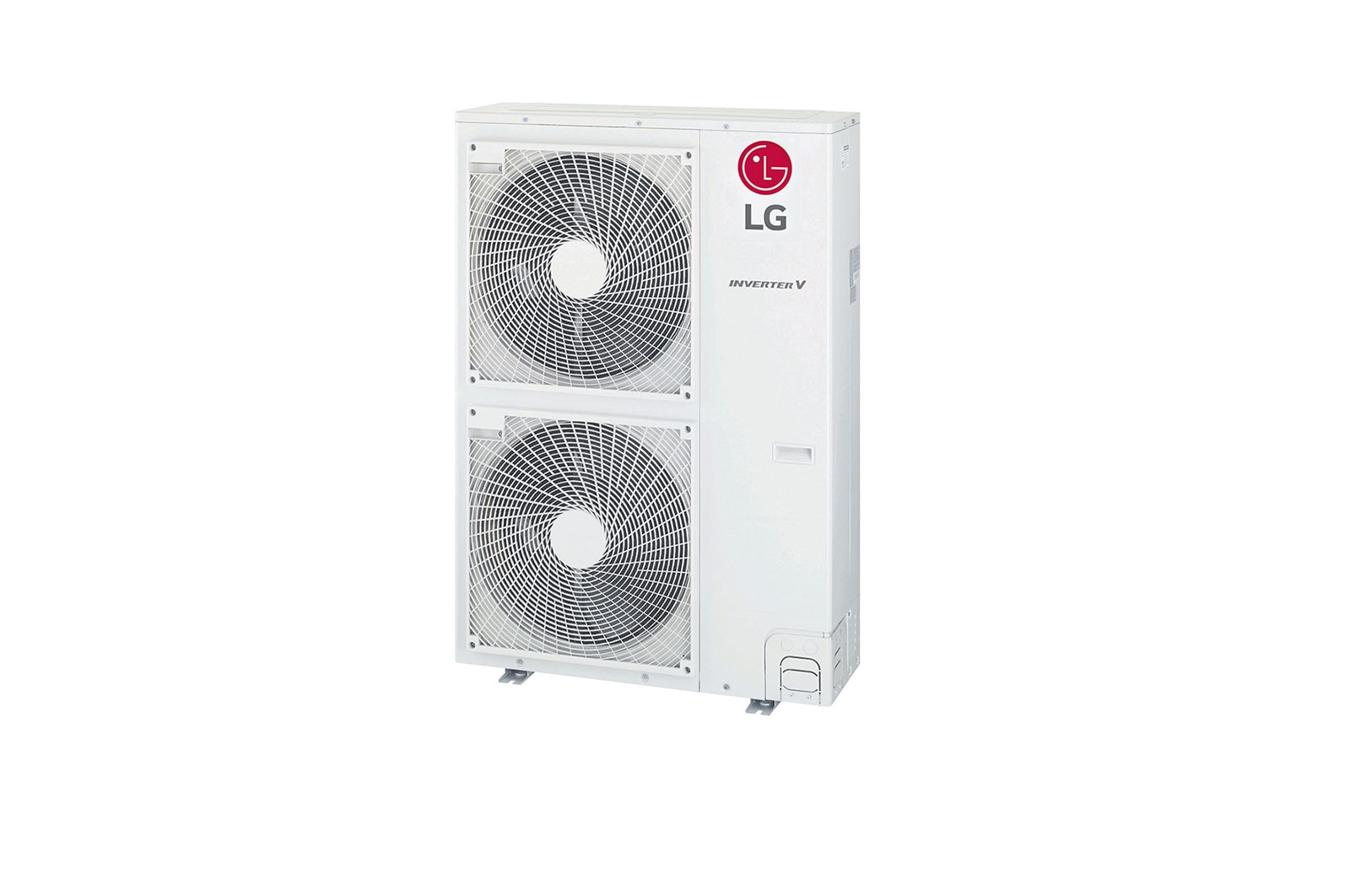

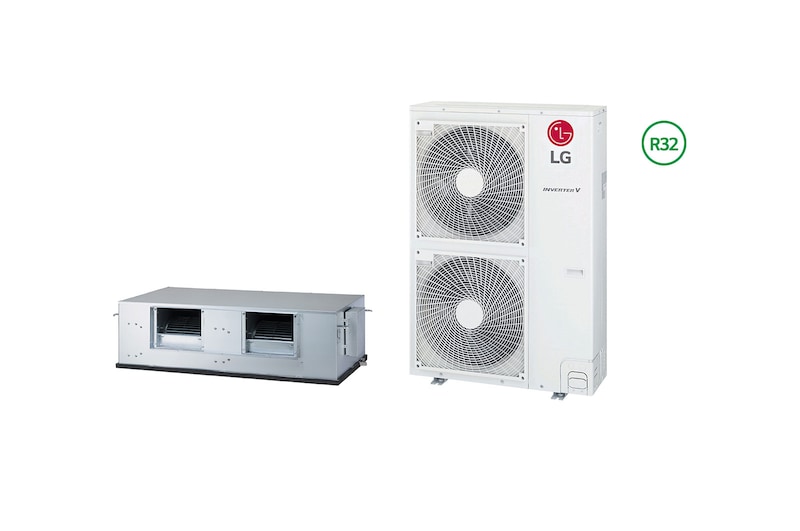

Ducted System - High Static 12.5kW (Cooling) | UHN125B7 _ UU125WR2

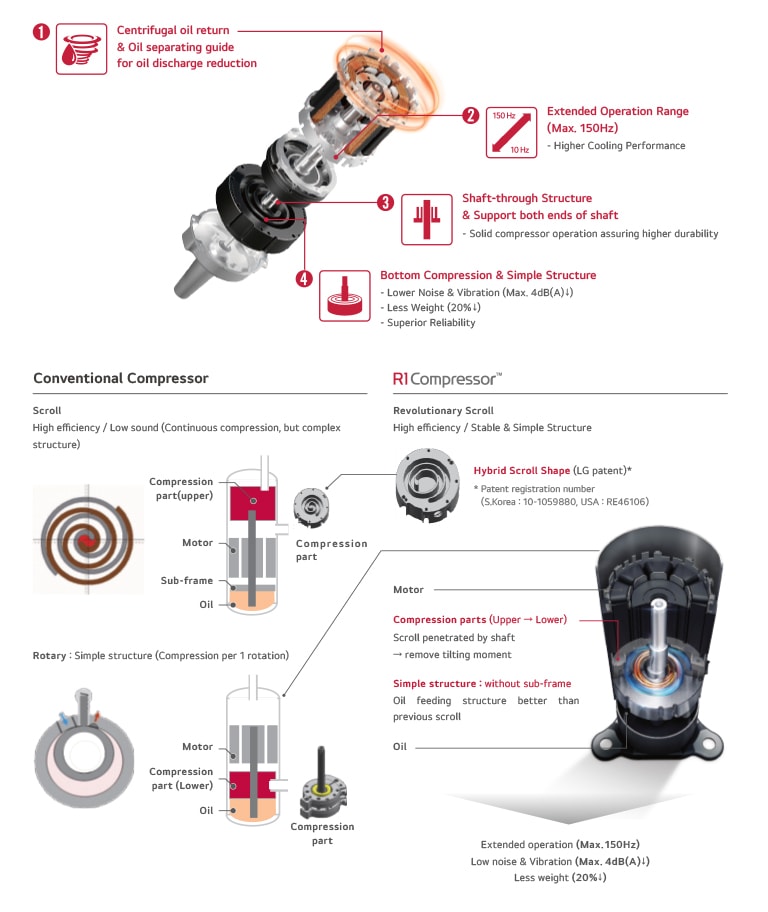

R1 Compressor™

R1 Compressor is one that combines high-efficiency, low sound characteristics of the scroll and the simple compressing structure of the rotary compressor. This technology enables a highly efficient compact model.

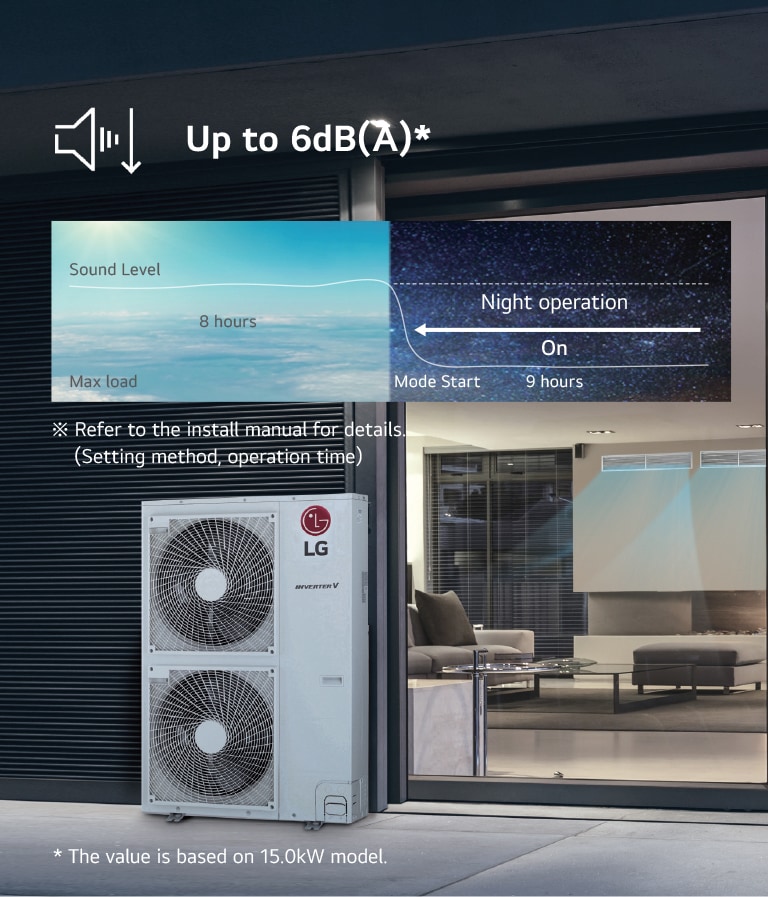

Night Operation

Night Operation can reduce noise levels at night time by simply setting the dip switch on the PCB of the outdoor unit.

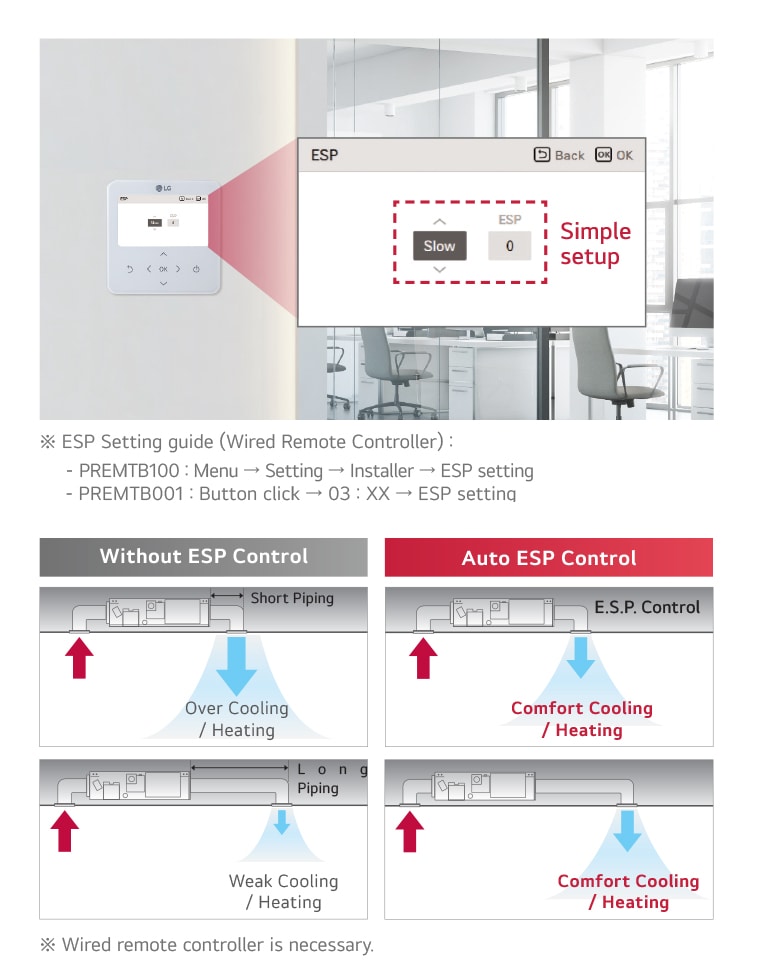

Auto E.S.P. (External Static Pressure) Setting

E.S.P. control function enables control of air volume easily with a remote controller. The Brushless DC (BLDC) motor can control fan speed and air volume regardless of the external static pressure. Set RPM by simple touch on remote control to change airflow

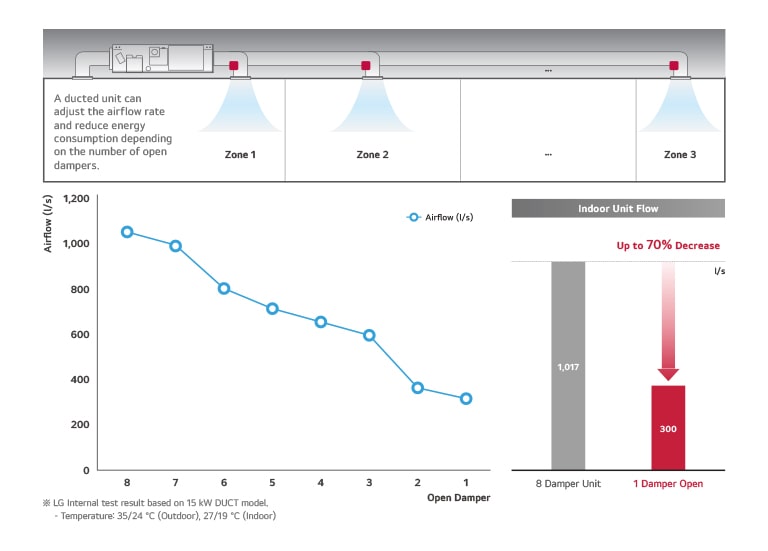

AUTO External Static Pressure + Zone Control (On/Off)

LG’s high static ducted unit does step control (High-Mid-Low Speed) to supply airflow rate to each zone depending on the number of open dampers.

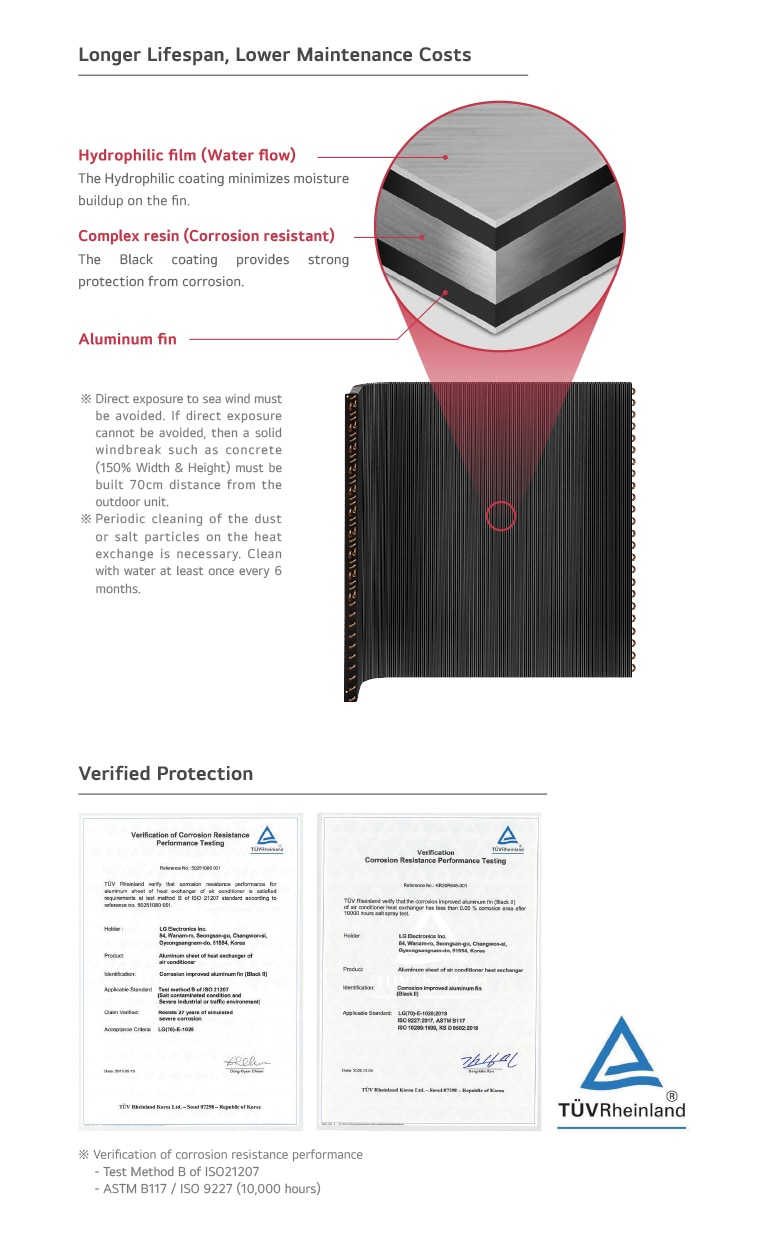

Corrosion Resistance Black Fin

The black coating with enhanced epoxy resin is applied for strong protection from various corrosive external conditions such as salt contamination and air pollution including fumes from factories.

Come Home to Comfort1

Wi-Fi Smart Control Compatible

Come Home to Comfort

The LG ThinQ® App* lets you access and control your air conditioner with your compatible smartphone even when you're not at home, so you can come home to comfort. (Optional Wi-Fi dongle module sold separately).


*LG ThinQ® app available from Google Play Store or Apple App required, for this feature, compatible with Android or iOS smartphones required (Android OS 7.0 or higher, iOS 14.0 or higher).Phone and Home Wi-Fi Data connection and product registration with LG ThinQ® required. Visit lg.com/au/lg-thinq for features, system compatibility and service availability which may vary by model.

Image used for illustrative purposes only. Actual user interface may differ with updates to ThinQ app from time to time

Unoccupied Mode (Optional Accessory)1

Unoccupied Mode (Optional Accessory)

When you leave your home unoccupied, instead of turning your system off and letting your home get hot or cold, you can press the dedicated unoccupied button which will set the room temperature to stay between a range of two set temperature points. This allows for a quicker return to a comfortable indoor environment when you return.

*Home Leave Set Temperature function can only be used in a 2 set control mode.

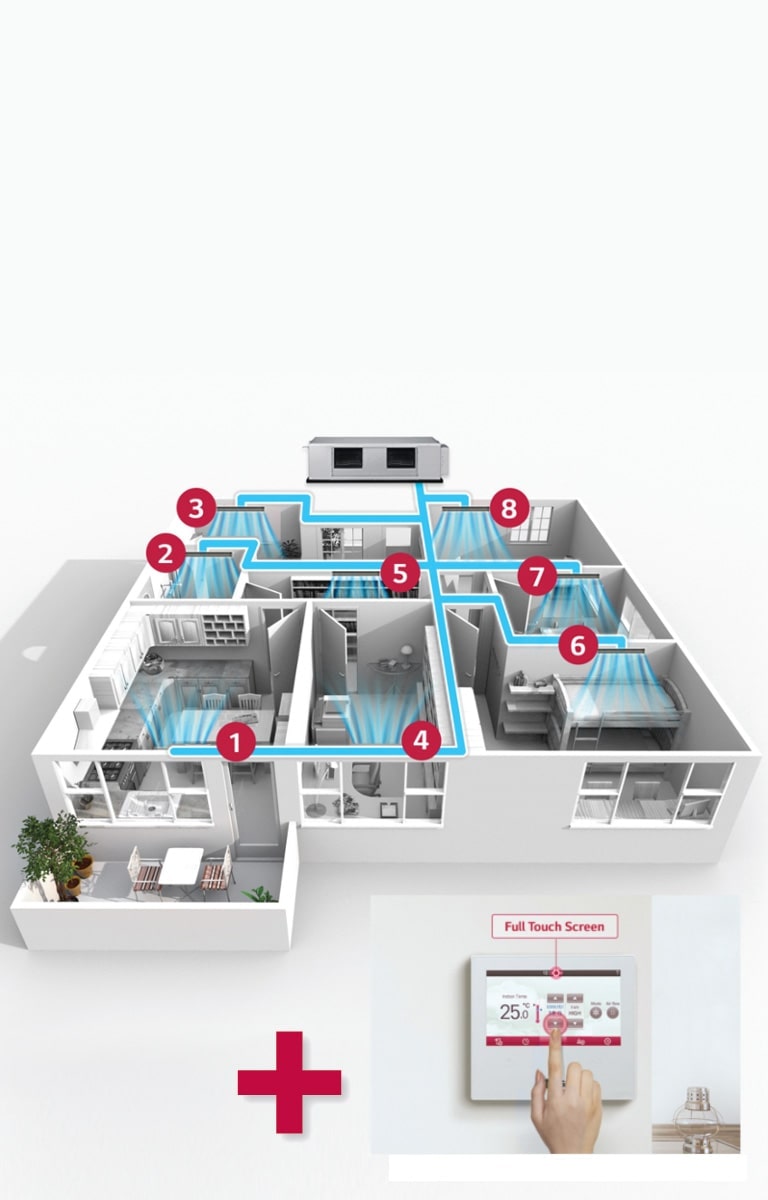

Zone Control (Optional Accessory)1

Zone Control (Optional Accessory)

It is possible to control up to 8 zones from the premium controller* and indicate a zone name such as Office, Hallway, etc. There are 18 names to choose from.

*Premium Controller sold separately.

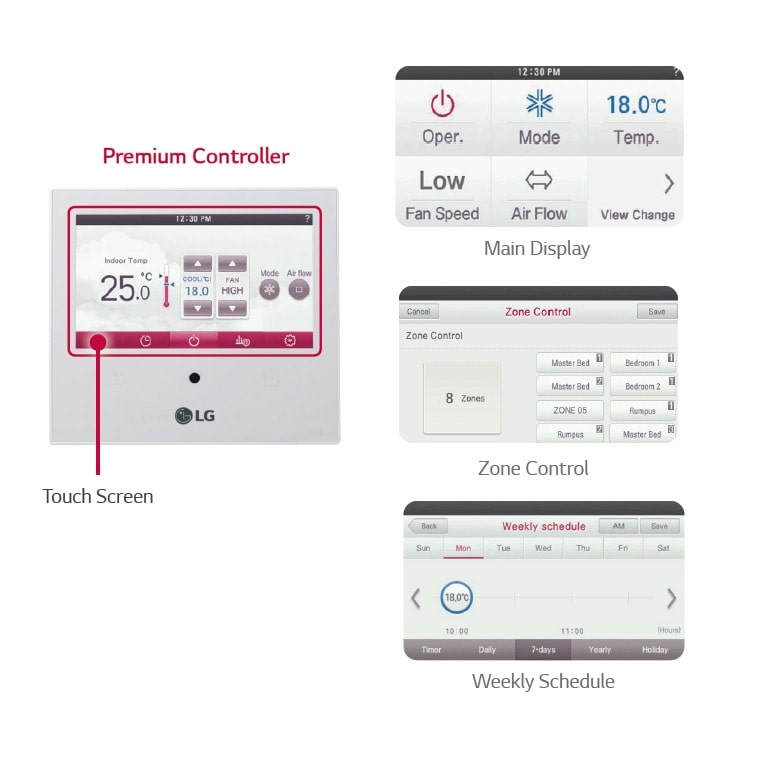

Premium Controller (Optional Accessory)1

Touch Colour Screen Controller*

Premium Controller (Optional Accessory)

The LG Individual controller provides an intuitive GUI with colour LCD and touchscreen interface. It provides additional visibility on filter cleaning status and energy usage, and the user-friendly button layout allows easy control of features such as Zone Control, Child Lock and Home Leave.

D04-01_Premium-Controller_D

*Sold Separately

Download Ducted Brochure<br>1

Download Ducted Brochure

Download a copy of the Ducted brochure for more information.

Get a quote

Get a quote

Looking for the perfect LG Air Conditioner for your home? Contact one of our Specialist Dealers for a FREE, no obligation quote.

All Spec

COMBINATIONAL SPECIFICATION

  • Cooling Capacity-Rated 2)(kW)

    12.50

  • Cooling Capacity-Min ~ Max(kW)

    4.00~14.80

  • Heating Capacity-Rated 2)(kW)

    15.00

  • Heating Capacity-Min ~ Max(kW)

    4.00~16.50

  • AEER

    3.679

  • ACOP

    3.899

  • Rated Current-Cooling(A)

    14.90

  • Rated Current-Heating(A)

    16.90

  • Full Load Amps(A)

    29.0

  • Air Flow Rate-Rated(L/s)

    833

  • Air Flow Rate-Min ~ Max(L/s)

    480 ~ 1,083

  • External Static Pressure-Min ~ Max(Pa)

    60 ~ 200

  • Indoor-Net(W x H x D)(mm)

    1,320 x 400 x 534

  • Indoor-Net Weight(kg)

    50.6

  • Indoor-Cooling ((SH)/H/M/L)(dB(A))

    - / 46.0 / 44.0 / 42.0

  • Outdoor-Net(W x H x D)(mm)

    950 x 1,380 x 330

  • Outdoor-Net Weight(kg)

    89.0

  • Outdoor-Cooling / Heating (@ 1.5m height)(dB(A))

    53.0 / 54.0

  • Power Supply(Ø , Hz , V)

    1 , 50 Hz, 220-240 V

  • Compressor-Type

    Inverter Scroll

  • Compressor-Motor Type

    BLDC

  • Heat Exchanger-Fin Type

    Wide Louver Plus

  • Heat Exchanger-Corrosion Protection (Coating)

    Black 2

  • Refrigerant-Type

    R32

  • Refrigerant-Pre-charge Length(m)

    20

  • Pipe size-Liquid(mm(inch))

    Φ9.52 (3/8)

  • Pipe size-Gas(mm(inch))

    Φ15.88 (5/8)

  • Pipe size-Drain Pipe (Drain Pump) OD/ID-(mm(inch))

    Ø 32(1-1/4) / 25(31/32)

  • Piping Length-IDU - ODU (Rated / Max / Min)(m)

    7.5 / 85 / 5.0

  • Maximum Height Difference -IDU - ODU (Max)(m)

    30

  • Supply Air Opening-H x W, Flange (Discharge) (mm)

    287 x 840

  • Return Air Opening-H x W, Flangeless(mm)

    317 x 1,172

  • Continuous Operation-Cooling(°C (DB))

    -15 ~ 48

  • Continuous Operation-Heating(°C (WB))

    -18 ~ 18

  • Wi-Fi Compatible4)

    Optional

CONVENIENCE

  • ThinQ(Wi-Fi)

    Optional

DISCLAIMER

  • Disclaimer

    1. Capacities are based on following conditions • Cooling: Indoor Temp 29°C DB / 19°C WB, Outdoor Temp 35°C DB / 24°C WB • Heating: Indoor Temp 20°C DB, Outdoor Temp 7°C DB / 6°C WB 2. (Sold separately) Dongle required for Wi-Fi Connectivity. Internet connection required.
