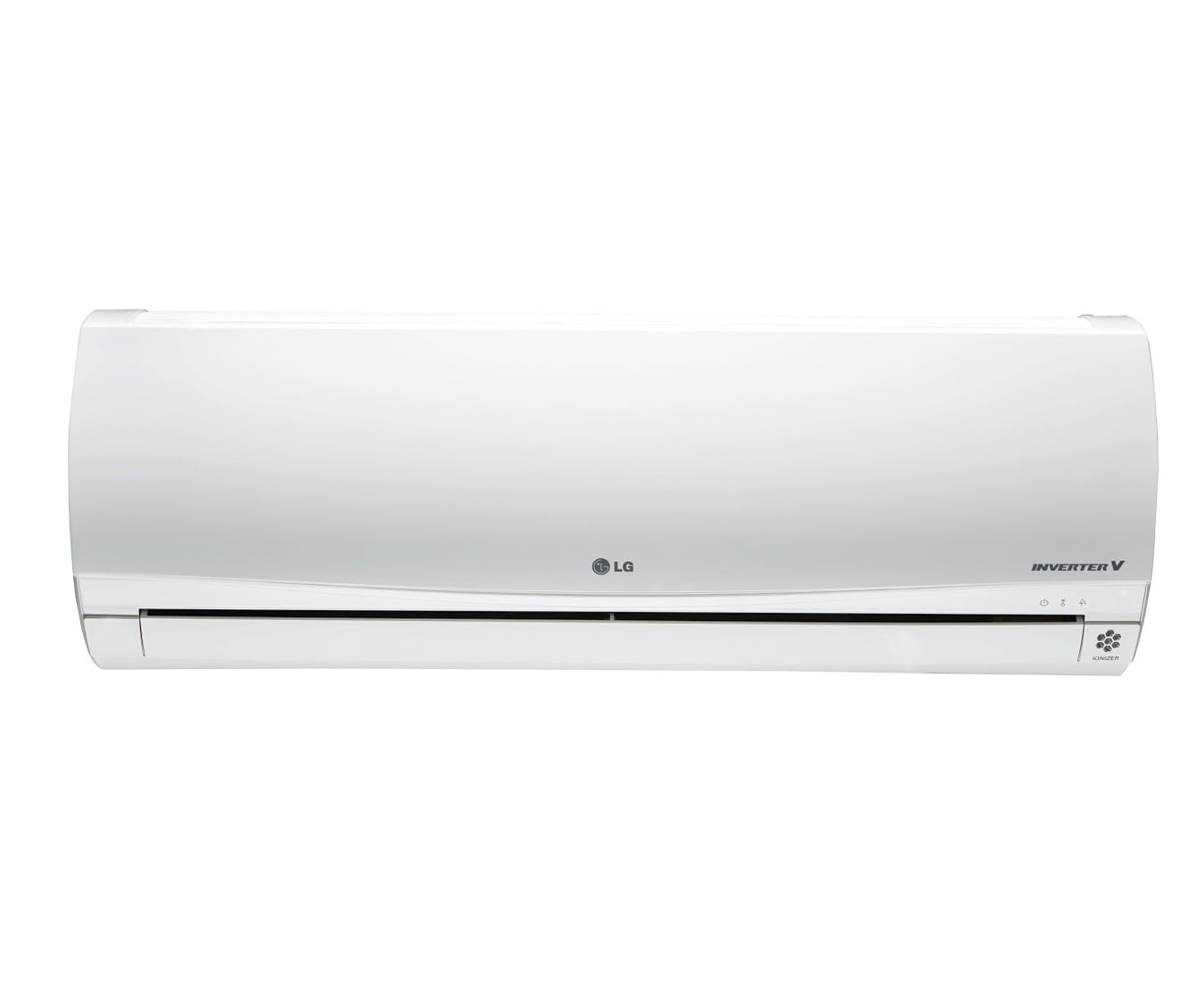

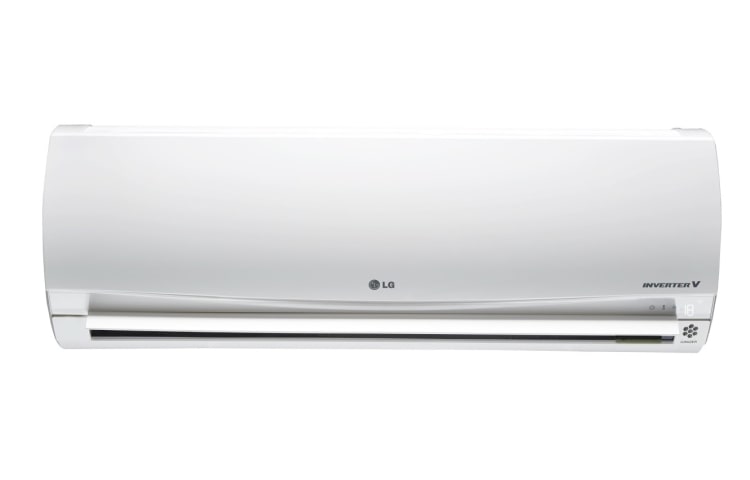

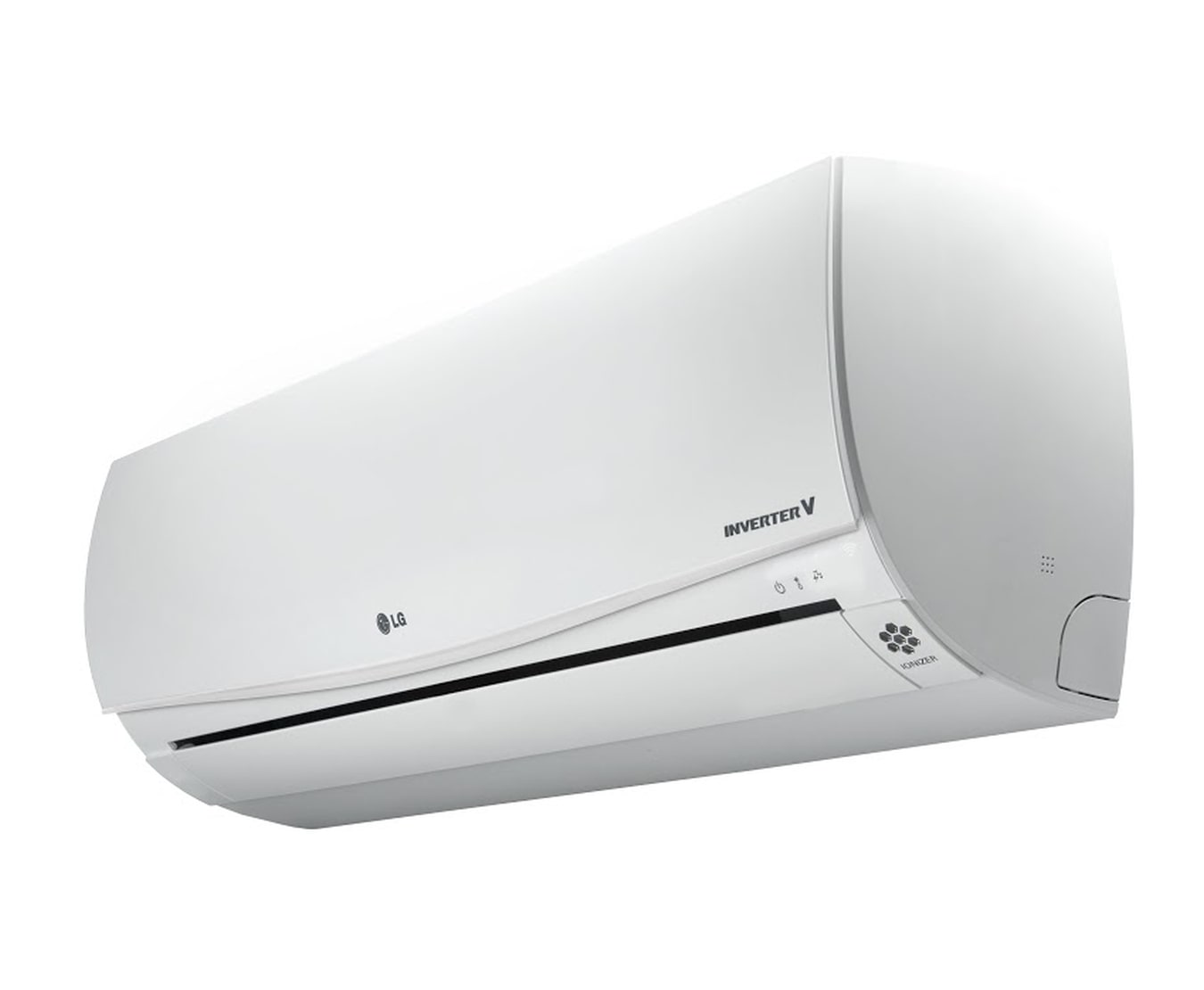

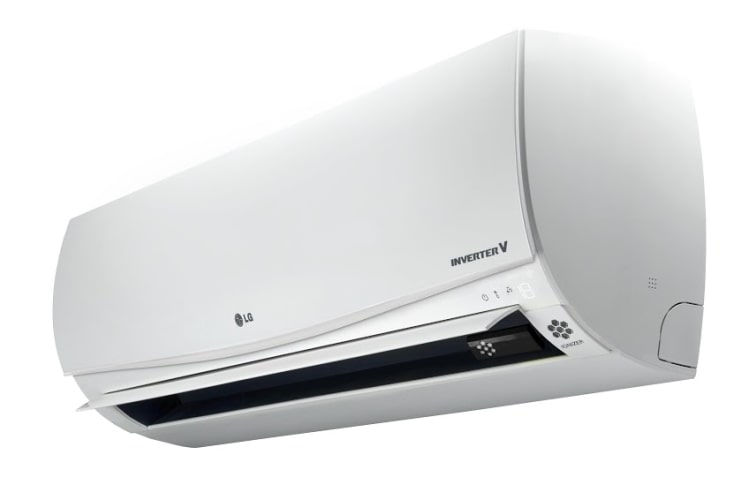

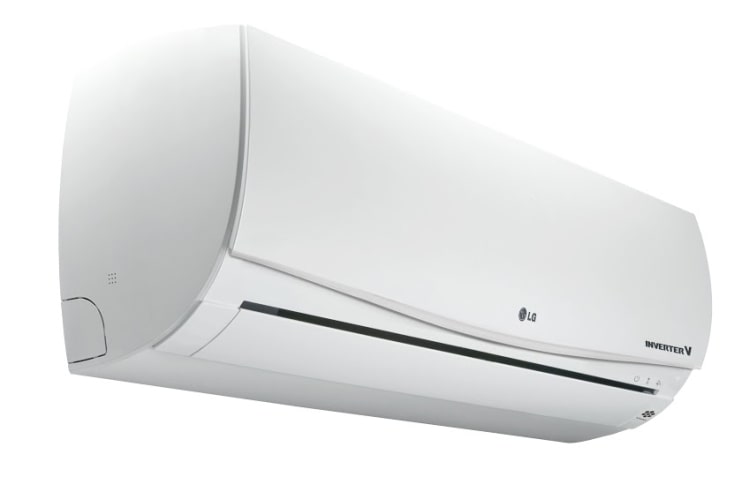

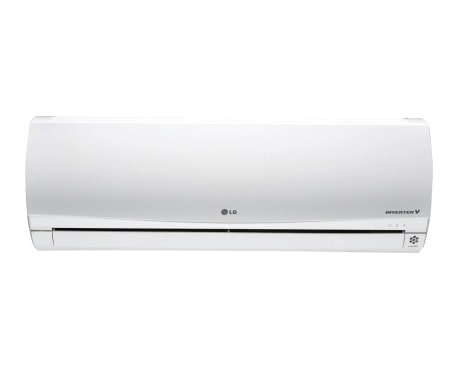

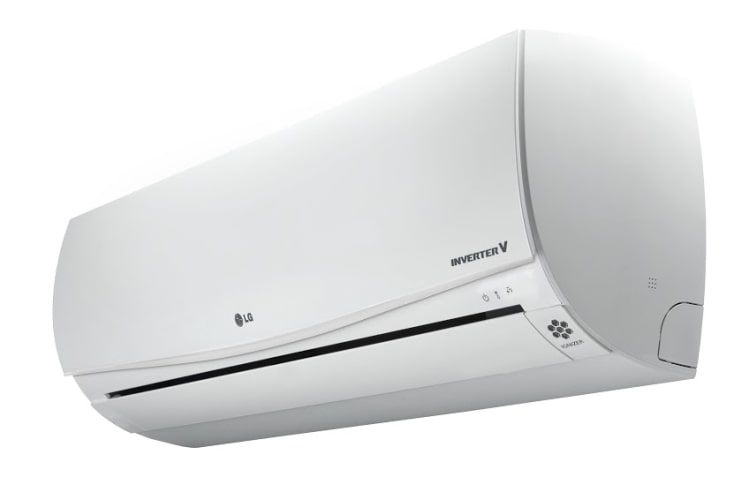

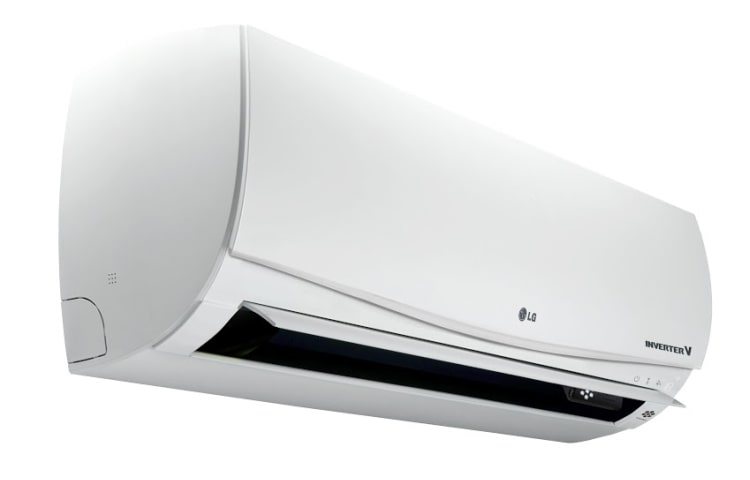

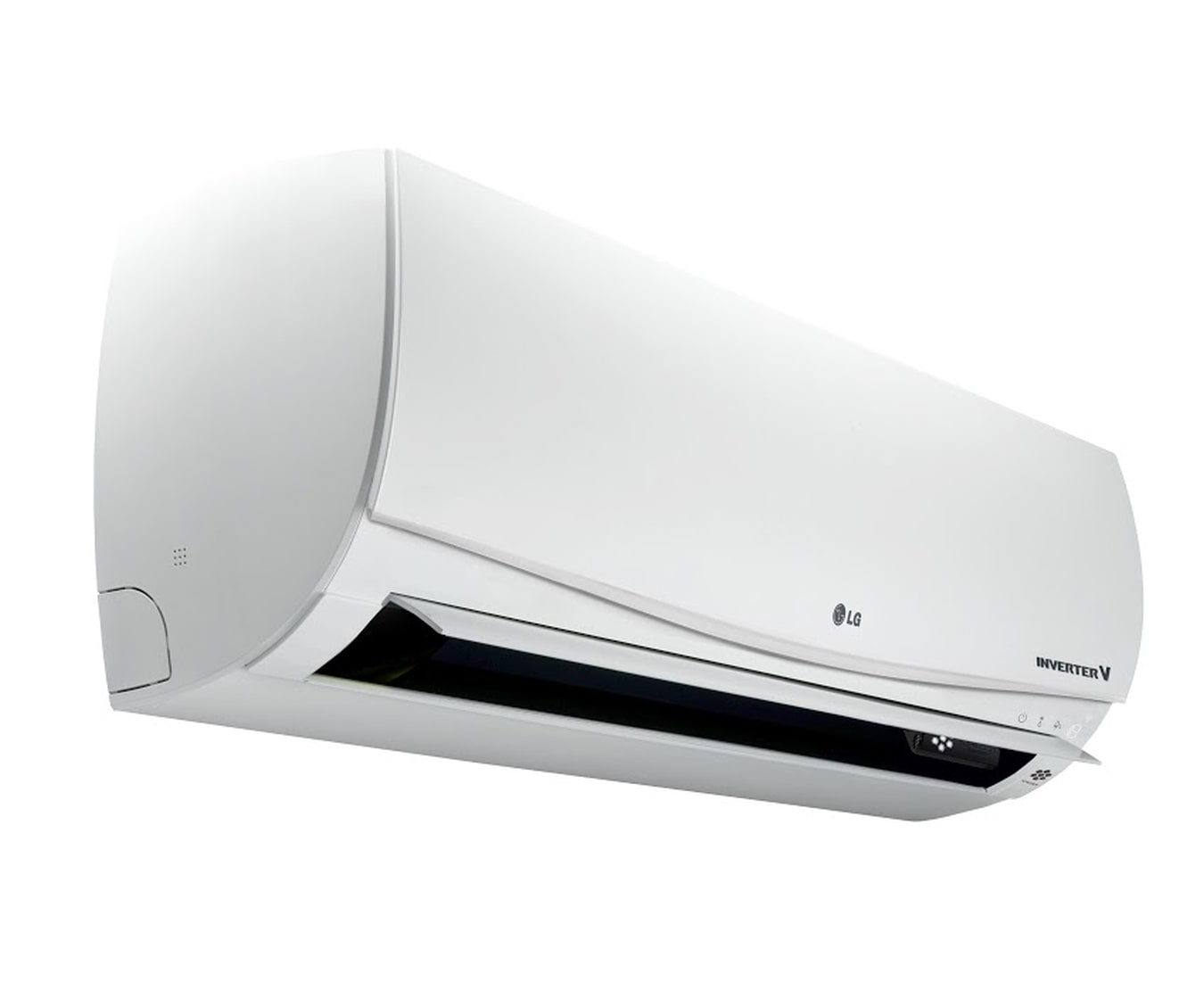

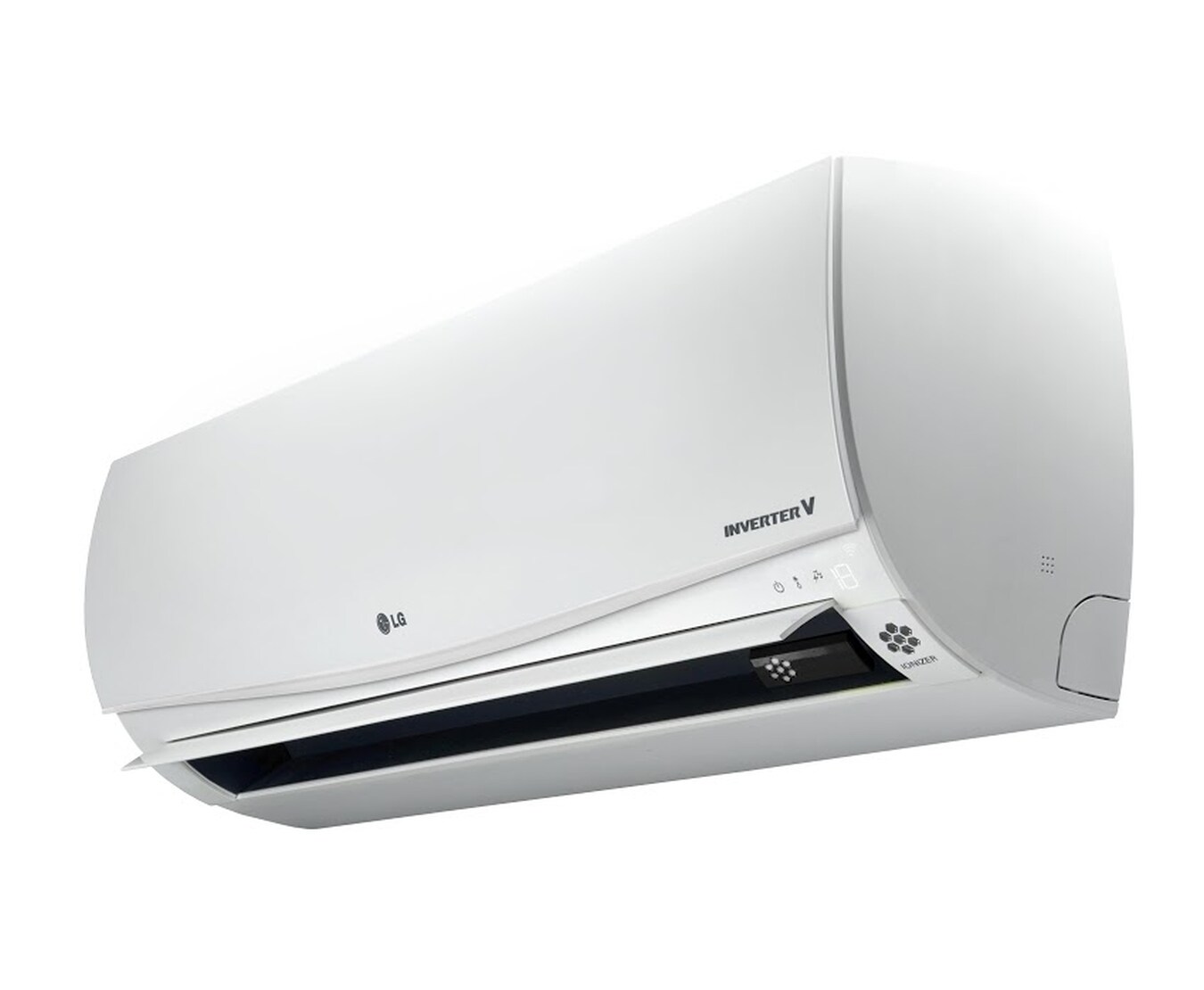

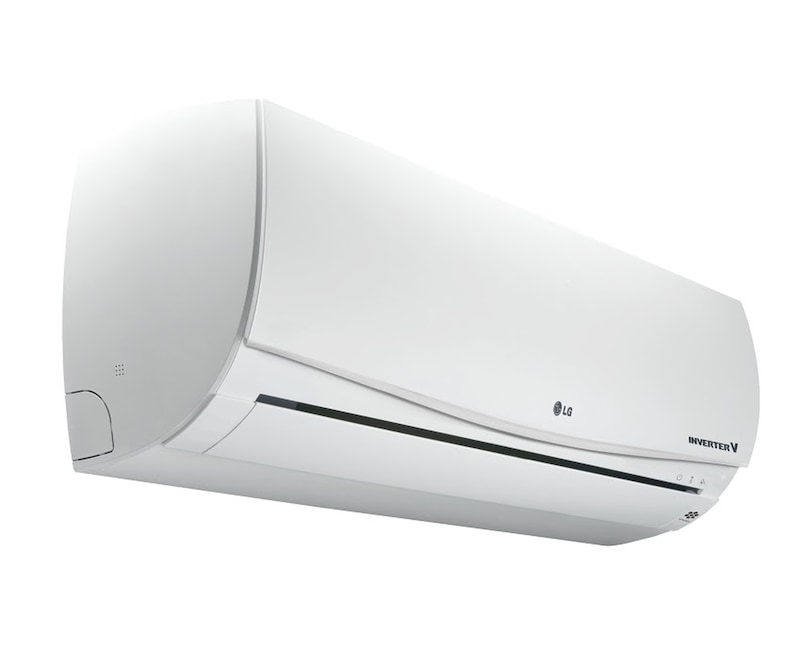

Premium 8.0kW Reverse Cycle Split System
![](/content/dam/channel/wcms/au/images/residential-air-conditioners/p28awn-n214_ambblap_ehap_au_c/P28AWN-N214_AMBBLAP_EHAP_AU_C-450x450.jpg)
All Spec
PERFORMANCE
-
Cooling Capacity (Rating)
8.00 kW
-
Heating Capacity (Rating)
9.00 kW
-
Power Input
Cooling: 2,450W, Heating: 2,500W
-
Rated Running Current
Cooling: 10.9A, Heating: 11.1A
-
Maximum Running Current
Cooling: 11.6A, Heating: 12.7A
-
AEER Cooling
3.27 W/W
-
ACOP Heating
3.60 W/W
-
Air Flow Rate (Indoor, Max)
385 l/sec
-
Indoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S)
47 / 42 / 38 / 29 (Actual installed noise levels vary depending on the installed location)
-
Outdoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S)
55 (Actual installed noise levels vary depending on the installed location)
-
Moisture Removal (l/h)
2.8
MODEL
-
Set
P28AWN-14
-
Indoor
P28AWN-N214
-
Outdoor
P28AWN-U214
FEATURES
-
Wi-Fi Smart Control
Yes (Optional)
-
Plasmaster Ioniser Plus
Yes
-
Dust Protection Filter
Yes
-
Auto Cleaning
Yes (Plasmaster)
-
Auto Changeover
Yes
-
Jet Cool / Jet Heat
Yes
-
Auto Swing
Yes (4-way)
-
Wireless Remote Control
Yes (Luminous)
-
Dehumidification Mode
Yes
-
24-hour On / Off Timer
Yes
OPTIONAL ACCESSORIES
-
Wired Remote Controller
Yes
-
Dry Contact
Yes
-
Wifi Dongle for Smart Control
Yes (PCRCUDT3)
TECHNICAL
-
Refrigerant Charge (R410A) at 7.5m
1900 g
-
Pipe Run (Min / Max) (max elevation 10m)
3 m / 30 m
-
Circuit Breaker Size
240 Volt 25 Amps
-
Additional Refrigerant (g/meter)
35 (Additional refrigerant required after 7.5m of piping)
-
Demand Response Enabling Device (DRED)
Compatible (DRED compatible. A Demand Response Enabled Device is required at the time of installation to activate the demand response modes. Available from you installing electrician.)
-
Operating Range (Outdoor)
Cooling -10 ~ 48°C, Heating -15 ~ 24°C
-
Pipe Size Connection (Ø)
Liquid mm (inch) - 9.52 (3/8), Gas mm (inch) - 15.88 (5/8)
-
Outdoor Sound Power Level² (SWL)
66 dB(A) (Sound Power Level specification is measured in a reverberation test room according to ISO 3741)
ENERGY CONSUMPTION
-
Energy Rating (Heating)
2.5 Stars
-
Energy Rating (Cooling)
2 Stars
DIMENSIONS
-
Indoor (WxHxD)
1090 x 330 x 248mm
-
Outdoor (WxHxD)
870 x 800 x 320mm
-
Indoor (Weight)
15kg
-
Outdoor (Weight)
55kg
WARRANTY
-
Warranty Details
Please see http://www.lg.com/au/support/warranty
