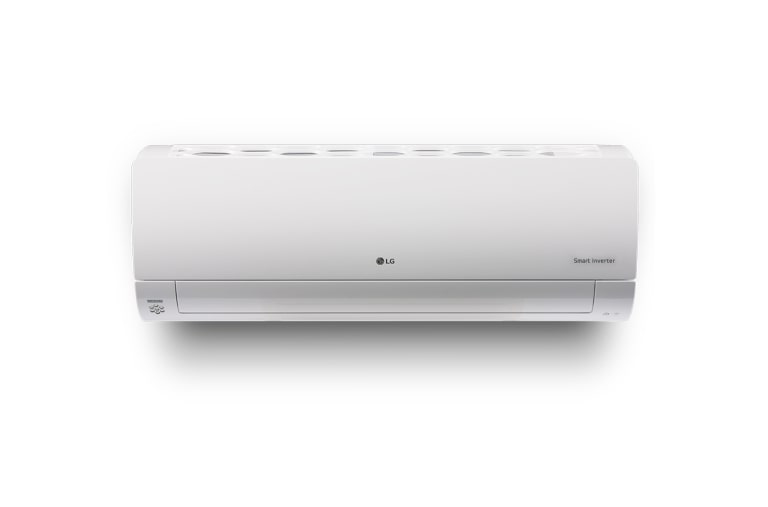

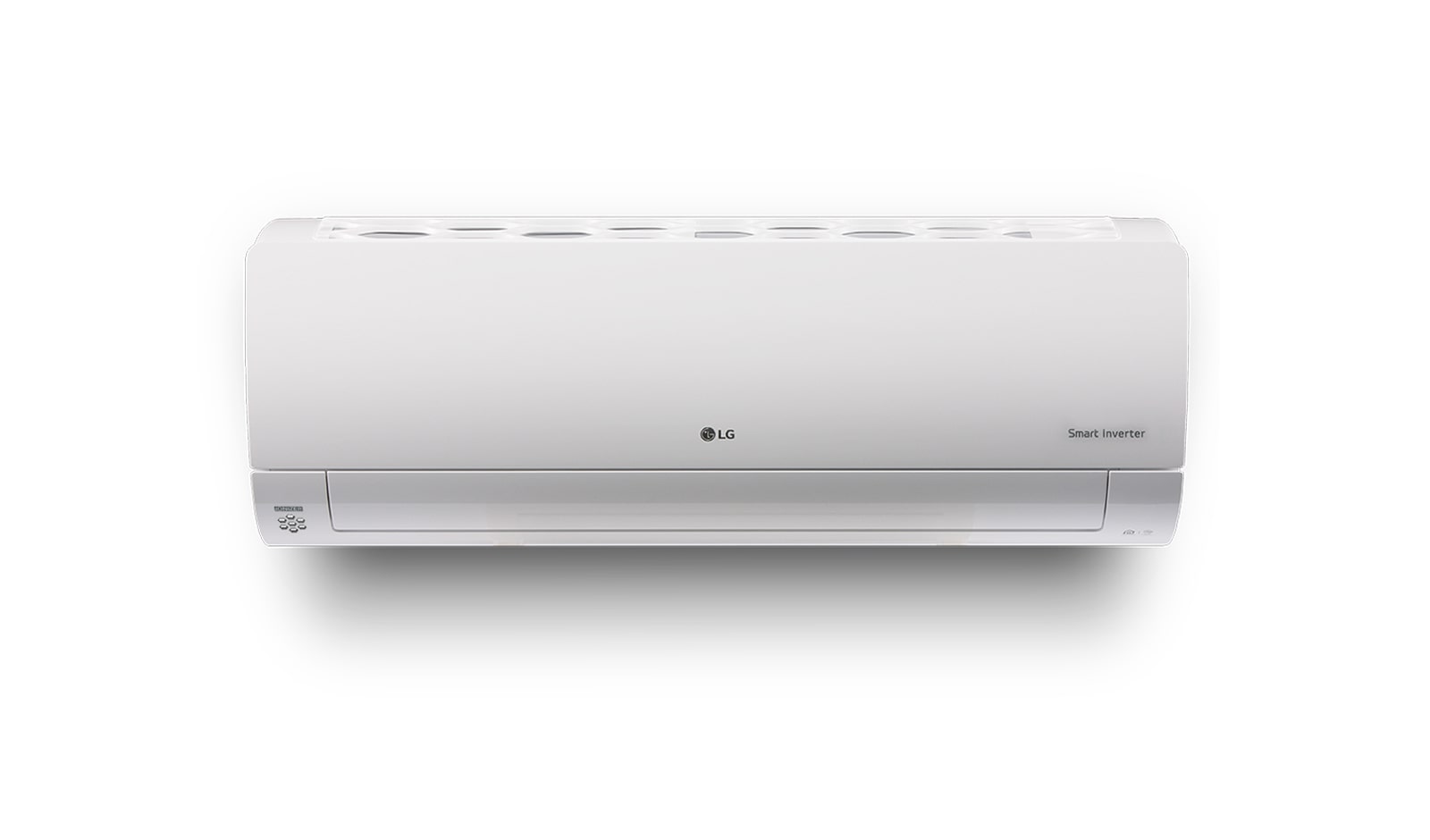

Premium 3.5kW Reverse Cycle Split System
![](/content/dam/channel/wcms/au/images/residential-air-conditioners/t12awn-nm17_at6glap_ehap_au_c/T12AWN-NM17_271017_450.jpg)
All Spec
PERFORMANCE
-
Cooling Capacity (Rating)
0.89kW Min/ 3.50kW Rated/ 4.04kW Max
-
Heating Capacity (Rating)
0.89kW Min/ 4.00kW Rated/ 6.00kW Max
-
Power Input
Cooling: 860kW, Heating: 870kW
-
Rated Running Current
Cooling: 3.8A, Heating: 3.9A
-
Maximum Running Current
Cooling: 6.0A, Heating: 6.5A
-
AEER Cooling
4.08 W/W
-
ACOP Heating
4.86 W/W
-
Air Flow Rate (Indoor, Max)
266 l/sec
-
Indoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S)
42 / 37 / 27 / 19 (Cooling)
42 / 37 / 27 (Heating) -
Outdoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S)
48 (Cooling, Rated)
50 (Heating, Rated) -
Moisture Removal (l/h)
1.3
MODEL
-
Set
T12AWN-17
-
Indoor
T12AWN-NM17
-
Outdoor
T12AWN-UM17
FEATURES
-
Wi-Fi Smart Control
Yes (Built-in)
-
Plasmaster Ioniser Plus
Yes
-
Dust Protection Filter
Yes
-
Auto Cleaning
Yes (Plasmaster)
-
Auto Changeover
Yes
-
Jet Cool / Jet Heat
Yes
-
Auto Swing
Yes (4-way)
-
Wireless Remote Control
Yes (Luminous)
-
Dehumidification Mode
Yes
-
24-hour On / Off Timer
Yes
OPTIONAL ACCESSORIES
-
Wired Remote Controller
Yes
-
Dry Contact
Yes
-
Wifi Dongle for Smart Control
In-Built
TECHNICAL
-
Refrigerant Charge (R410A) at 7.5m
1150 g
-
Pipe Run (Min / Max) (max elevation 10m)
3 m / 20 m
-
Circuit Breaker Size
240 Volt 15 Amps
-
Additional Refrigerant (g/meter)
20 (Additional refrigerant required after 12.5m of piping)
-
Demand Response Enabling Device (DRED)
Compatible (DRED compatible. A Demand Response Enabled Device is required at the time of installation to activate the demand response modes. Available from you installing electrician.)
-
Operating Range (Outdoor)
Cooling -10 ~ 48°C, Heating -15 ~ 24°C
-
Pipe Size Connection (Ø)
Liquid mm (inch) - 6.35 (1/4), Gas mm (inch) - 9.52 (3/8)
-
Outdoor Sound Power Level² (SWL)
63 dB(A) (Sound Power Level specification is measured in a reverberation test room according to ISO 3741)
ENERGY CONSUMPTION
-
Energy Rating (Heating)
5 Stars
-
Energy Rating (Cooling)
3.5 Stars
DIMENSIONS
-
Indoor (WxHxD)
885 x 325 x 236mm
-
Outdoor (WxHxD)
770 x 545 x 288mm
-
Indoor (Weight)
11.5kg
-
Outdoor (Weight)
33.5kg
WARRANTY
-
Warranty Details
Please see http://www.lg.com/au/support/warranty/
