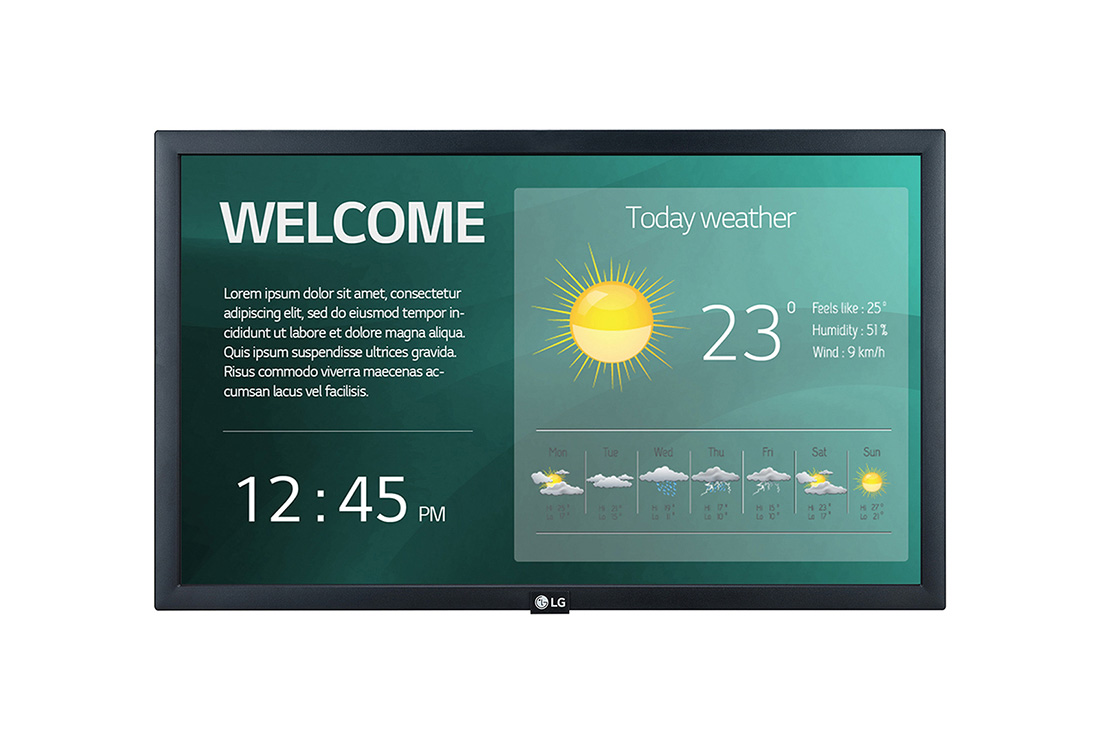

22" Standard Signage
22" Signage with More Utility for Commercial Space 22" Signage with More Utility for Commercial Space

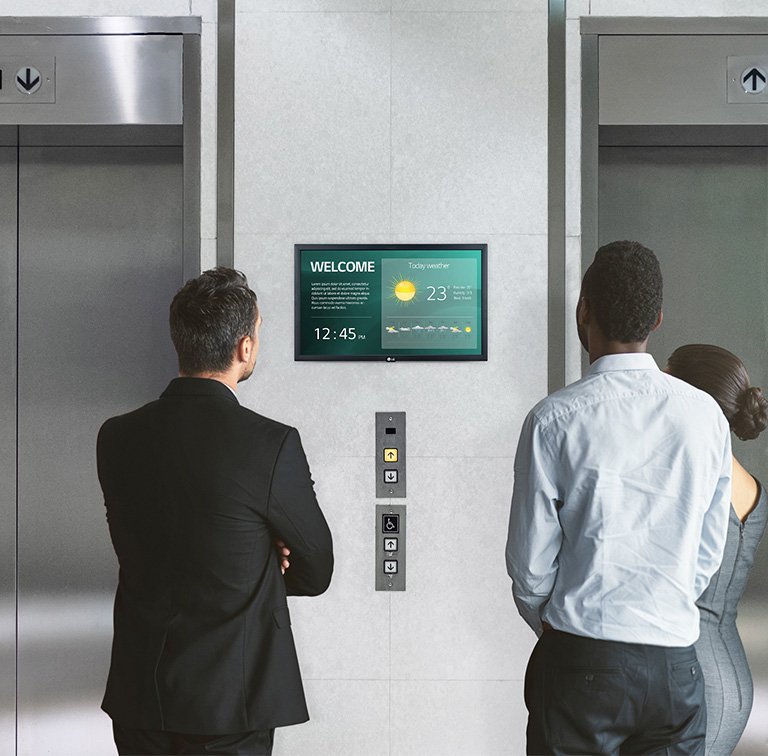

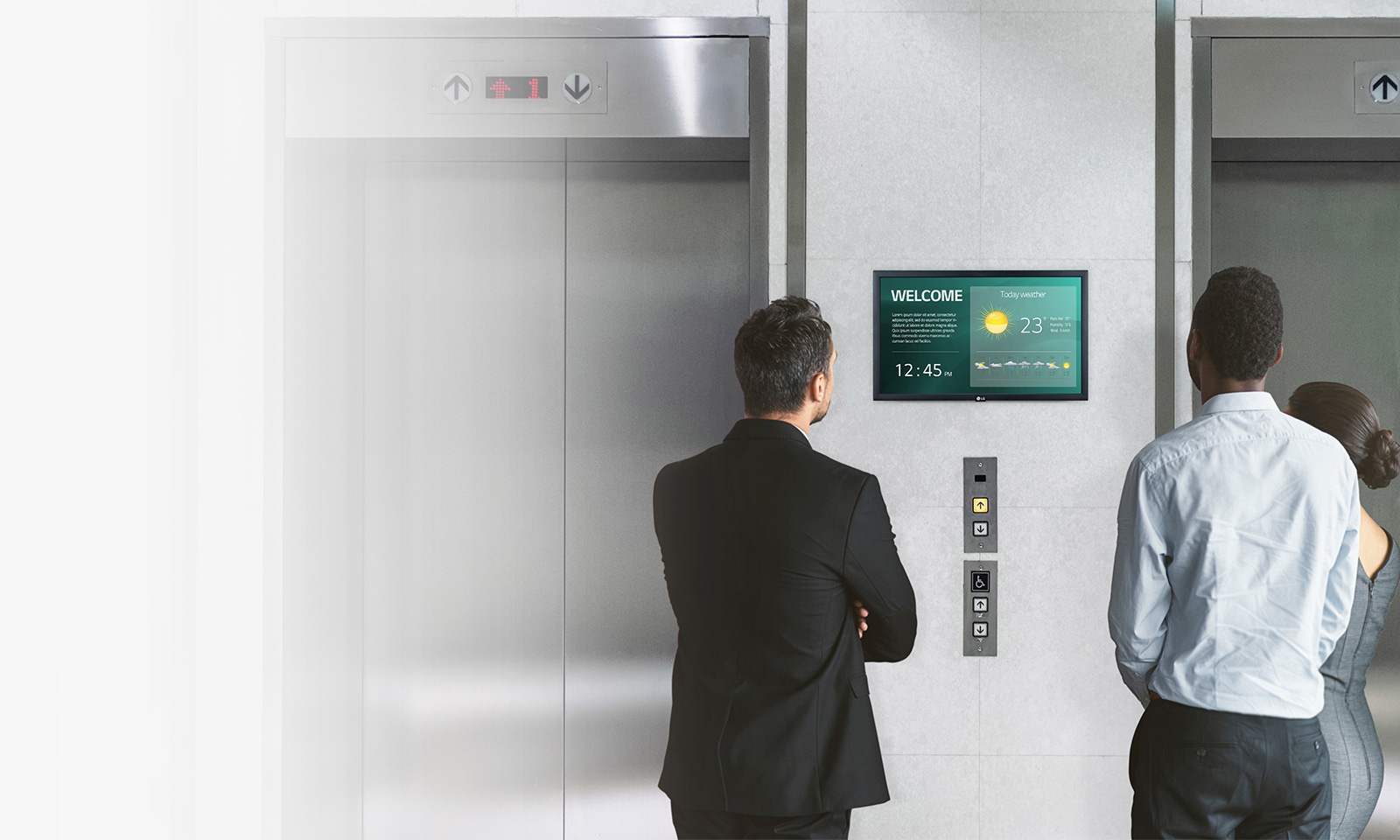

22" Signage with More Utility for Commercial Space

22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS1 High Performance SoC with webOS2
SMART SIGNAGE PLATFORM

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

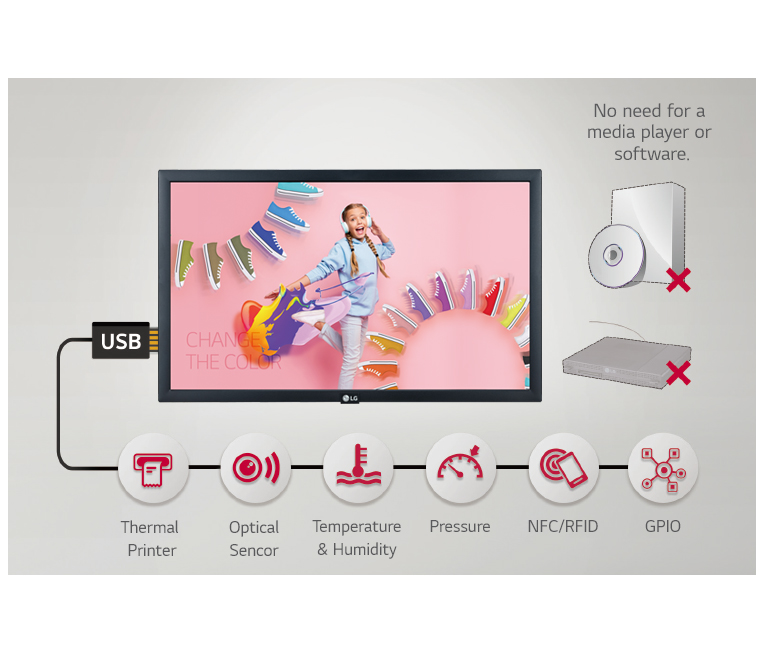

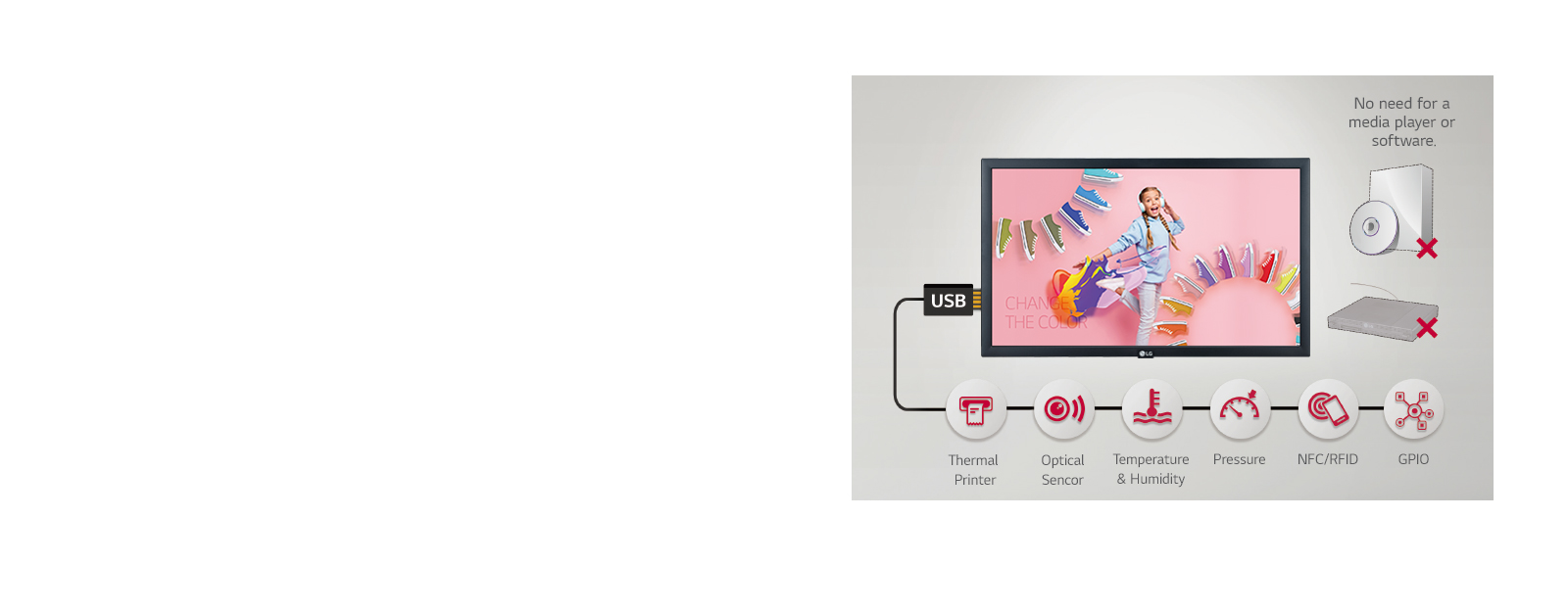

Various Sensor Applications Various Sensor Applications
SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

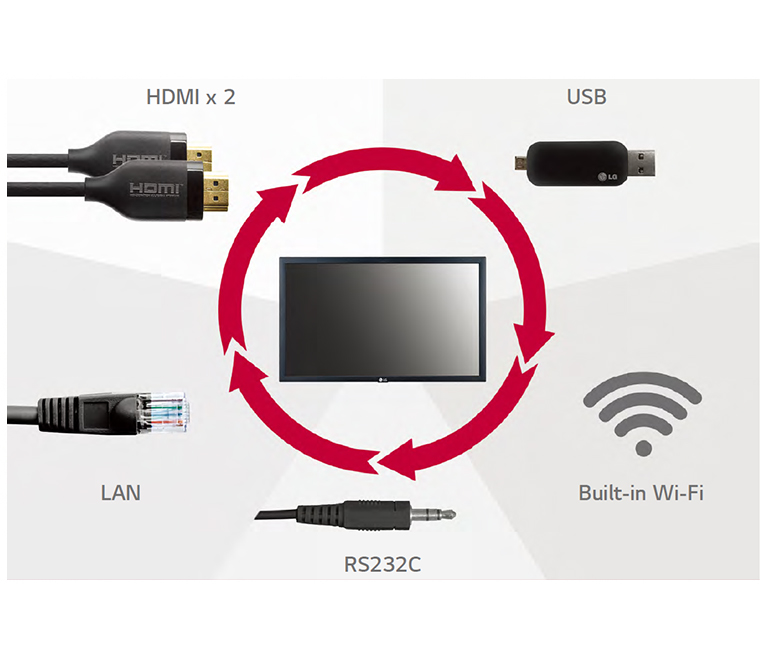

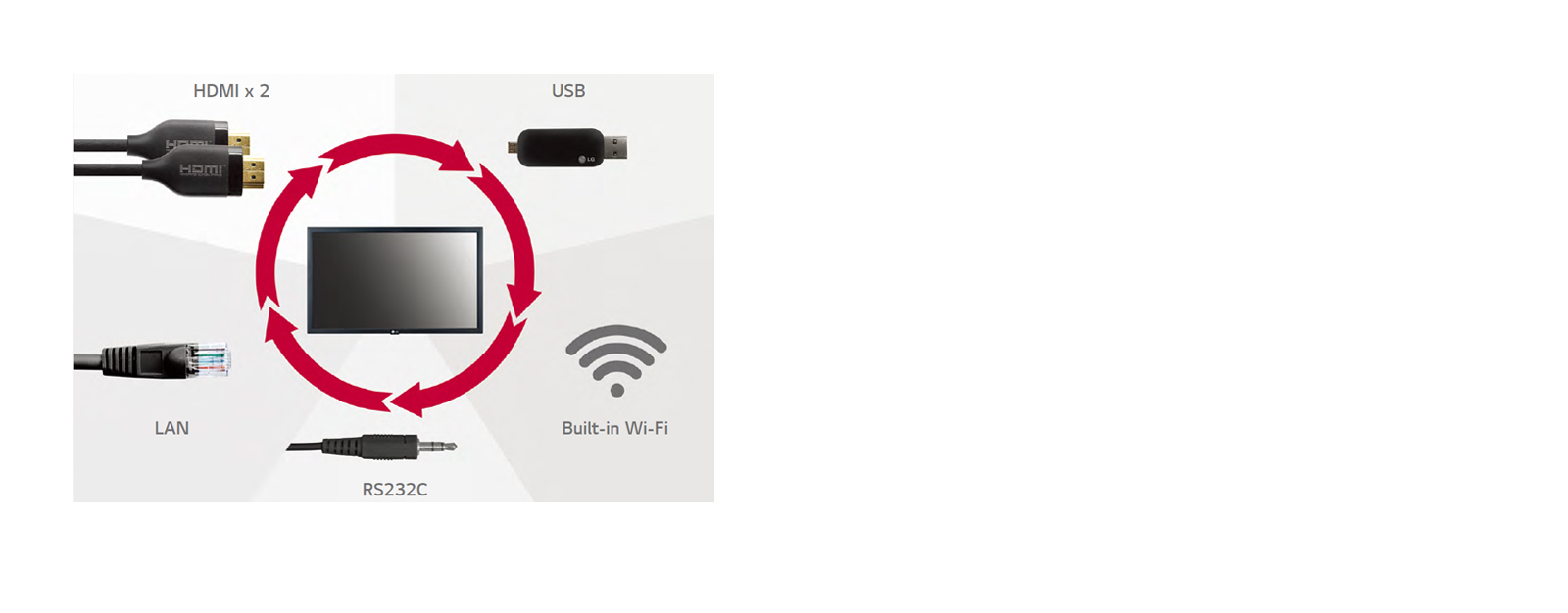

A Wide Range of Interfaces A Wide Range of Interfaces
SMART SIGNAGE PLATFORM

A Wide Range of Interfaces

Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

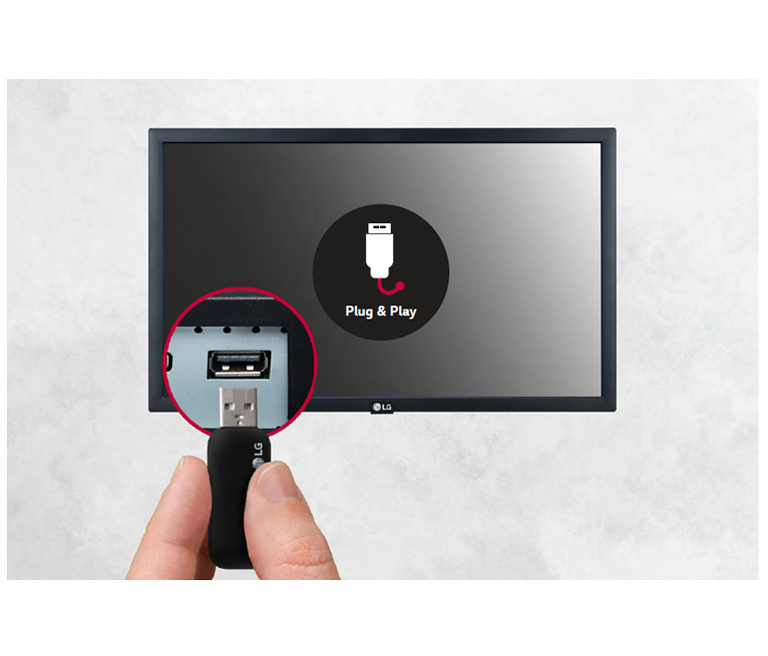

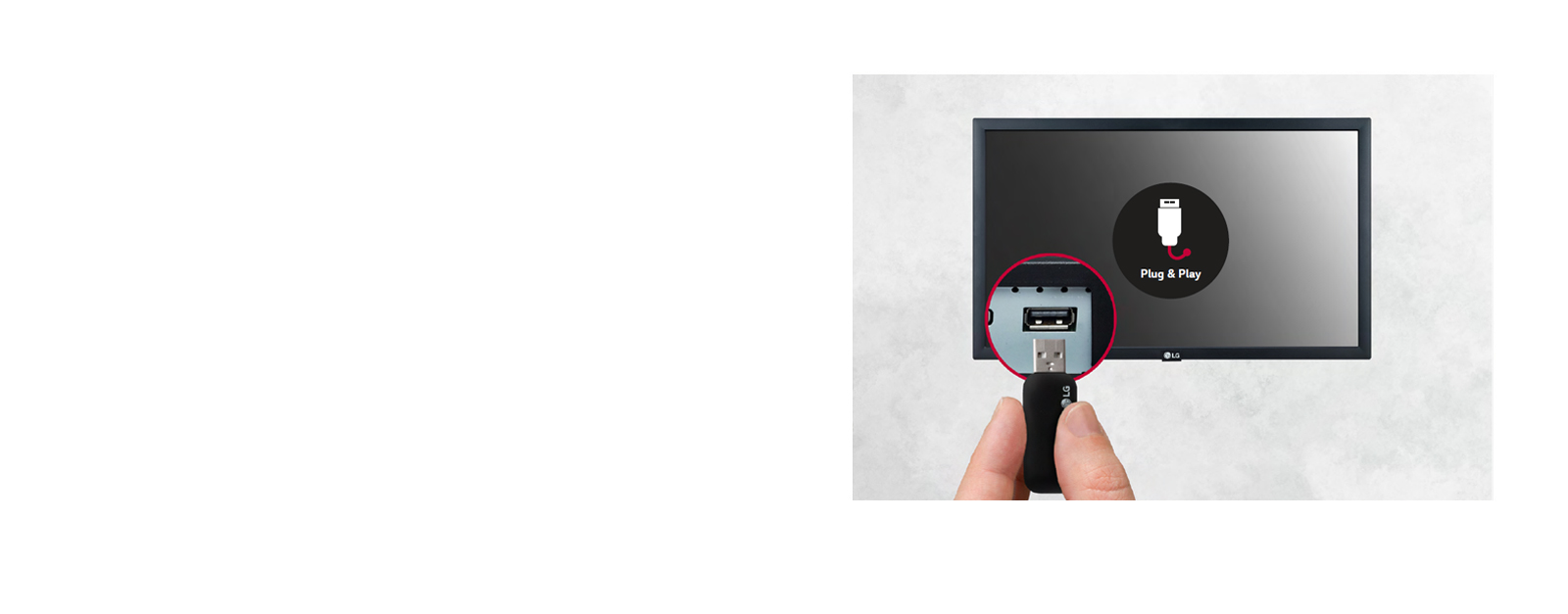

USB Plug & Play USB Plug & Play
SMART SIGNAGE PLATFORM

USB Plug & Play

22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

  • SMART SIGNAGE PLATFORM

    SMART SIGNAGE PLATFORM1 SMART SIGNAGE PLATFORM2

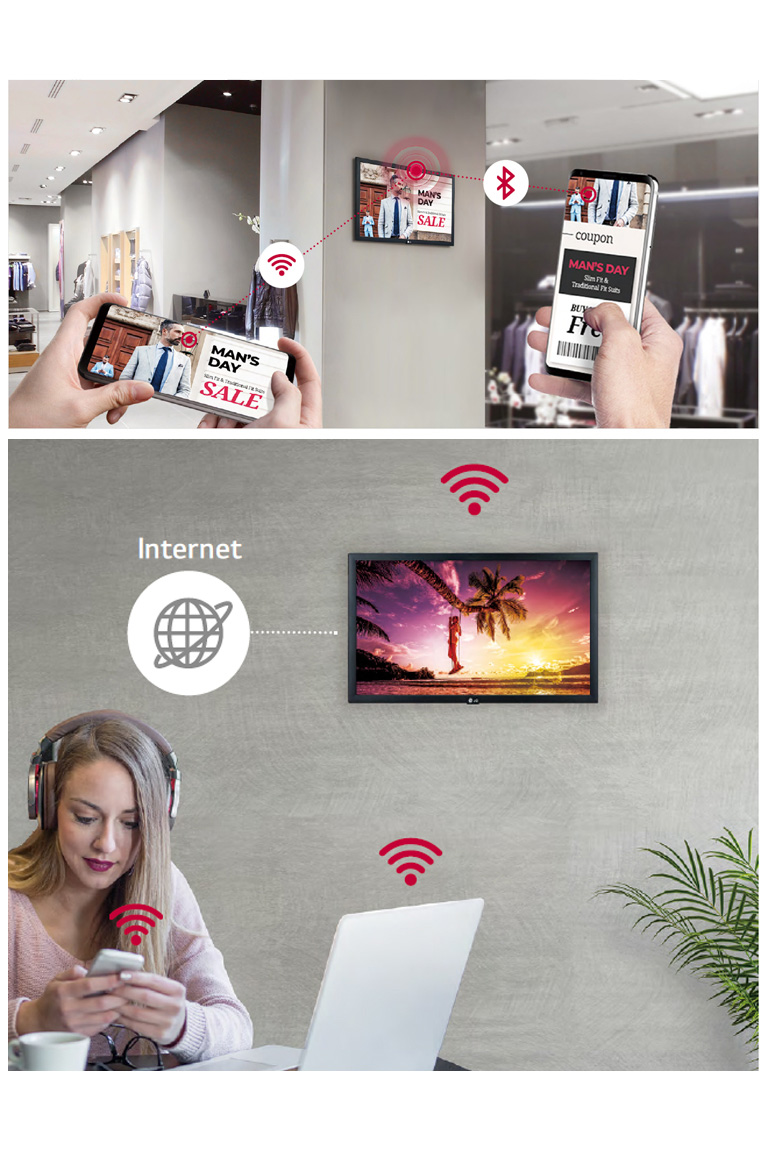

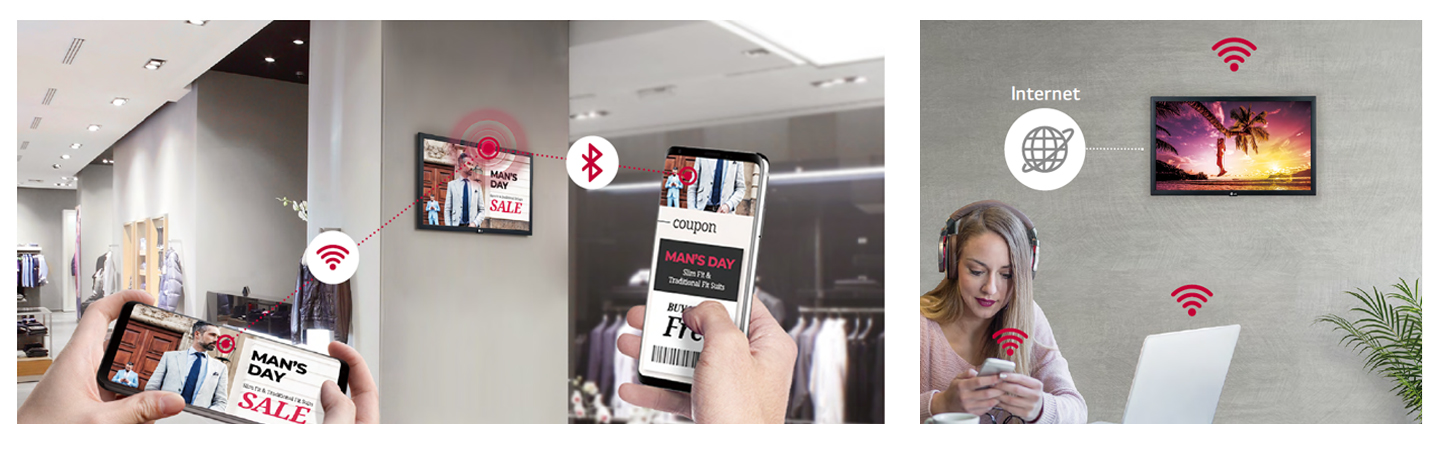

  • Content Sharing

    Content Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion

    With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

  • Wireless Solution

    22SM3G operates as a virtual router which can be a wireless access point for mobile devices.

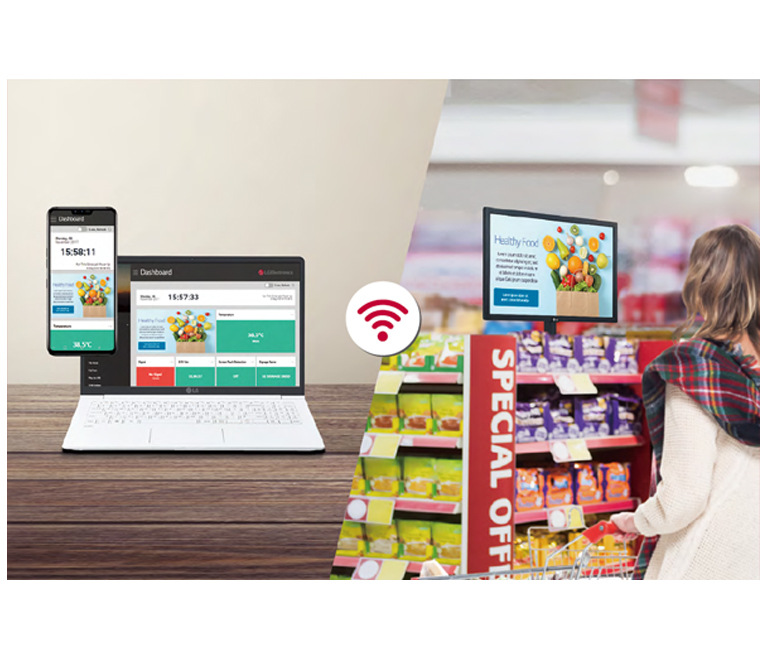

Remote Monitoring and Control Remote Monitoring and Control
OPERATIONAL EFFICIENCY

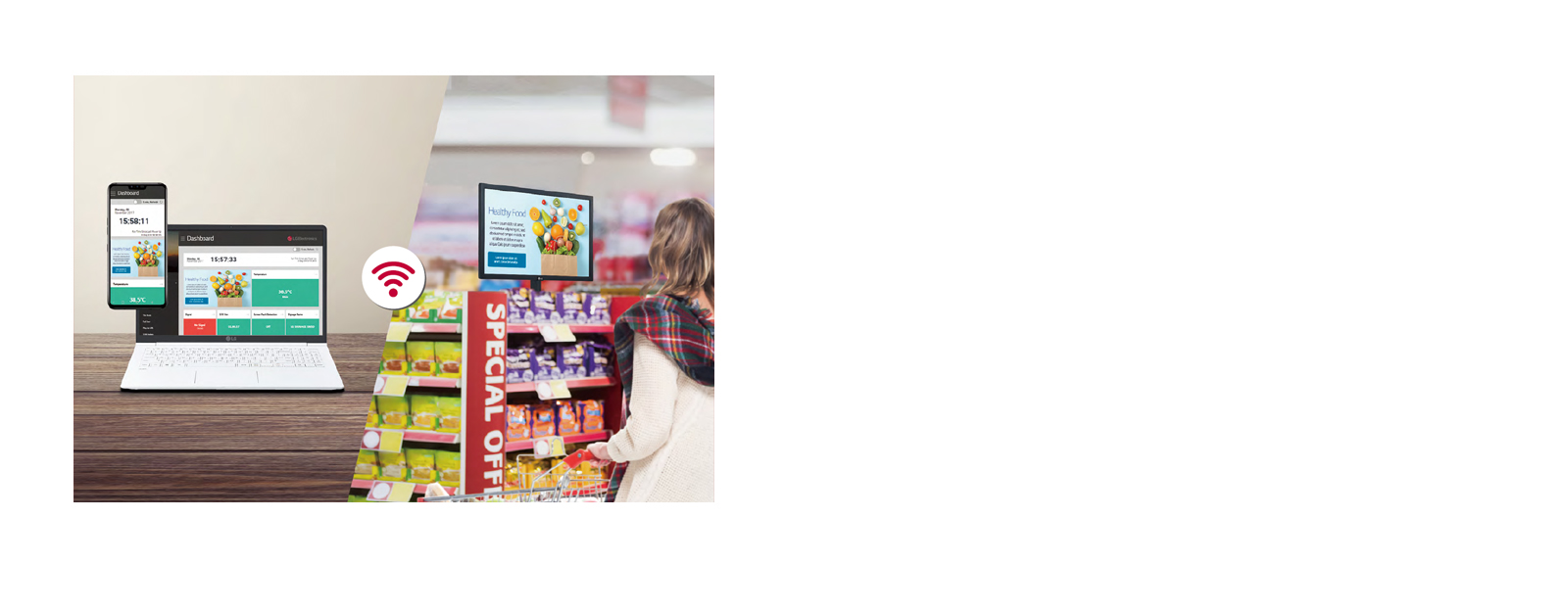

Remote Monitoring and Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

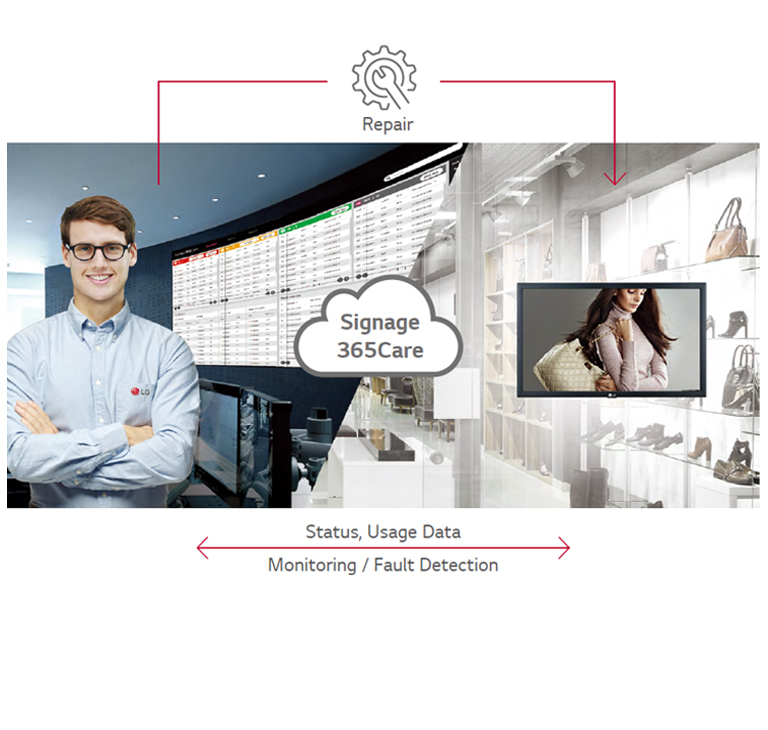

Real-time Care Service with LG Signage365Care Real-time Care Service with LG Signage365Care
OPERATIONAL EFFICIENCY

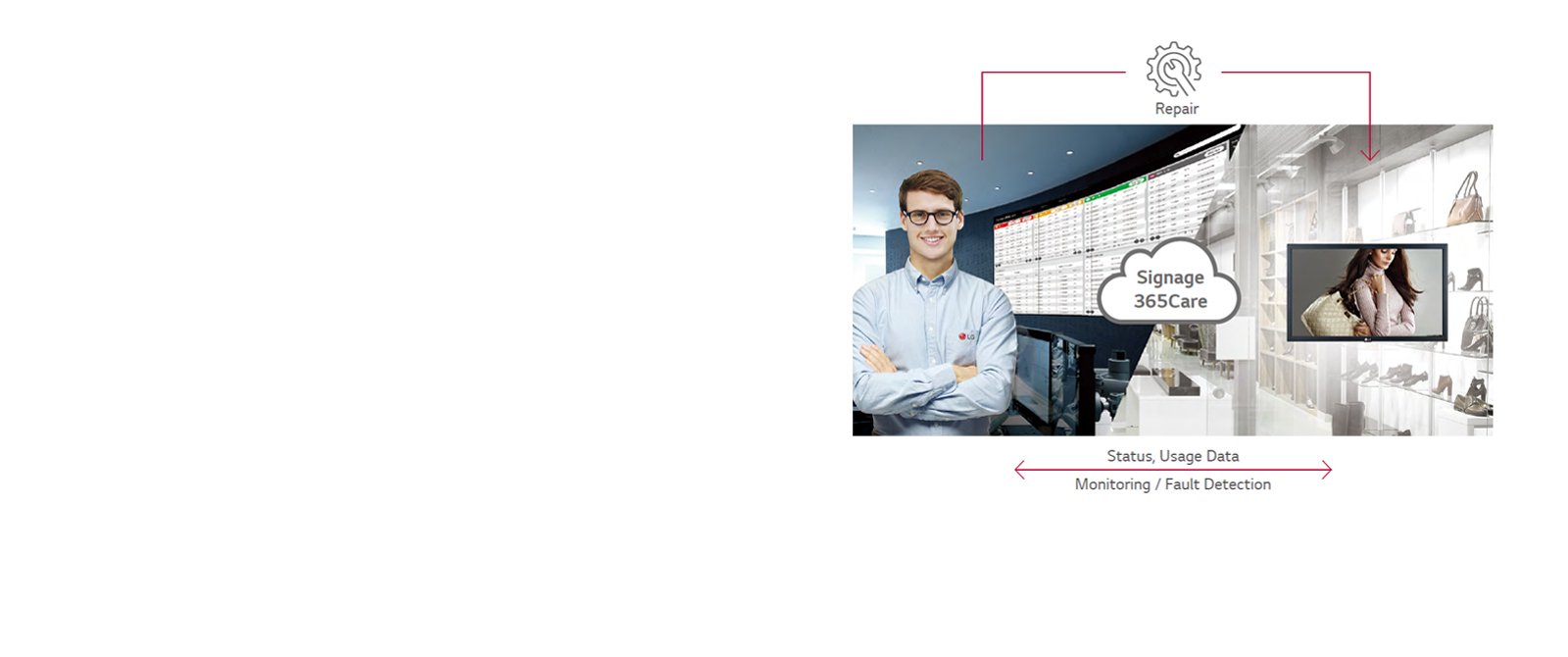

Real-time Care Service with LG Signage365Care

The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client's business.
* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.
Close
ACCESSORIES
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
CERTIFICATION
  • EMC
    FCC Class “A” / CE
    ePEAT (US Only)
    No
  • ErP / Energy Star
    Yes (EU Only) / No
    Safety
    CB / NRTL
CONNECTIVITY
  • External Control
    RS232C In (Phone-jack), RJ45 (LAN) In, IR In
    Input
    HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0 °C to 40 °C
KEY FEATURE
  • Key Feature
    Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected®1), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC2), SI Server Setting, webRTC, Pro:Idiom
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    16.3 mm (Even Bezel)
  • Carton Dimensions (W x H x D)
    565.0 x 357.0 x 103.0 mm
    Handle
    No
  • Monitor Dimensions (W x H x D)
    510.3 x 302.1 x 53.8 mm
    Packed Weight
    4.74 kg
  • VESATM Standard Mount Interface
    100 x 100 mm
    Weight (Head)
    3.34 kg
OPS COMPATIBILITY
  • OPS Power Built In
    No
    OPS Type Compatible
    No
PANEL
  • Aspect Ratio
    0.672916667
    Brightness
    250cd/m²
  • Contrast Ratio
    1,000:1
    Life Time (Min.)
    30,000 Hrs
  • Native Resolution
    1,920 x 1,080 (FHD)
    Operation Hours (Hours / Day)
    16 / 7
  • Panel Technology
    IPS
    Portrait / Landscape
    No / Yes
  • Refresh Rate
    60 Hz
    Response Time
    14ms (G to G)
  • Screen Size
    21.5"
    Surface Treatment (Haze)
    0.25
  • Viewing Angle (H x V)
    178 x 178
POWER
  • Power Consumption - Smart Energy Saving
    15 W
    Power Consumption - Typ.
    30 W
  • Power Supply
    AC 100-240 V~, 50 / 60 Hz
    Power Type
    Built-In Power
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+
  • Signage 365 Care3)
    Yes
SOUND
  • Speaker
    Yes (1 W x 2 ea)
