32SM5KC component-copyModelName
32'' 400 nits FHD Standard Signage

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32SM5KC)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32SM5KC)
    ৳
    ৳
    LG Members Price
Total

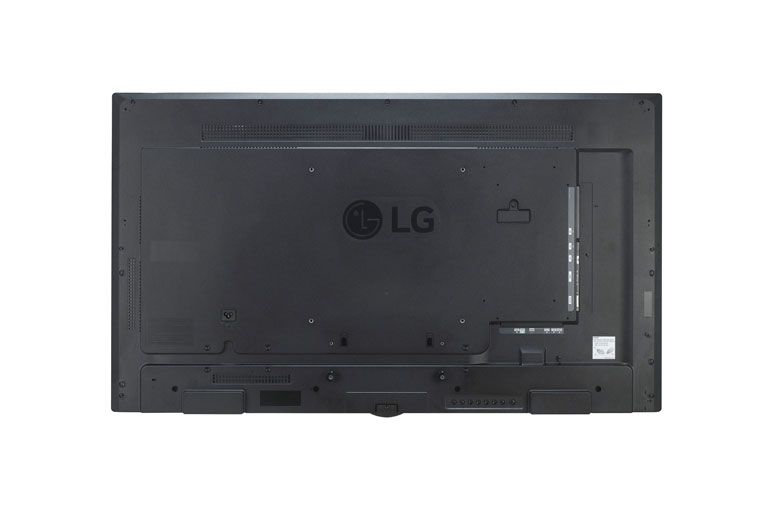

32" 400 nits FHD Standard Signage
Quad Core SoC*1 Quad Core SoC*2
Smart Platform

Quad Core SoC*

The high-performance SoC can execute several tasks at the same time and provides smooth content playback.
webOS 3.01 webOS 3.02
Smart Platform

webOS 3.0

The webOS 3.0 platform provides powerful and convenient creation tools, including app development materials.
Group Manager1 Group Manager2
Smart Platform

Group Manager

Content can be created, distributed and controlled by a signage without a dedicated PC or server.
PBP (Picture-By-Picture)/<br>PIP (Picture-In-Picture)1 PBP (Picture-By-Picture)/<br>PIP (Picture-In-Picture)2
Smart Platform

PBP (Picture-By-Picture)/
PIP (Picture-In-Picture)

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features enable you to compose various layouts for several digital devices.
IP Streaming Protocol1 IP Streaming Protocol2
Support Network Protocol

IP Streaming Protocol

Various types of IP video streaming protocol
are supported, such as RTSP/RTP, MMS, HLS
and MPEG-2 TS*.
Secure Communication Protocol1 Secure Communication Protocol2
Support Network Protocol

Secure Communication Protocol

By supporting HTTPS* protocol, communication between server and signage is more secure.
Proxy Server1 Proxy Server2
Support Network Protoco

Proxy Server

Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)
Mirroring1 Mirroring2
Built-in Wi-Fi

Mirroring

Content sharing is more convenient
on a Wi-Fi network.
Soft AP 1 Soft AP 2
Built-in Wi-Fi

Soft AP

The SM5KC with Soft AP software can
operate as a wireless access point for mobile
devices.
Simple Installation1 Simple Installation2
Built-in Wi-Fi

Simple Installation

Installation has been simplifi ed by removing
the external media player and Ethernet / RS232C cables.
Supportive Convenience1 Supportive Convenience2

Supportive Convenience

BEACON
With BEACON and Bluetooth Low Energy (BLE) supported by SM5KC*, retail stores can provide coupons and information in real time.
Industrial Design1 Industrial Design2

Industrial Design

Detachable logo

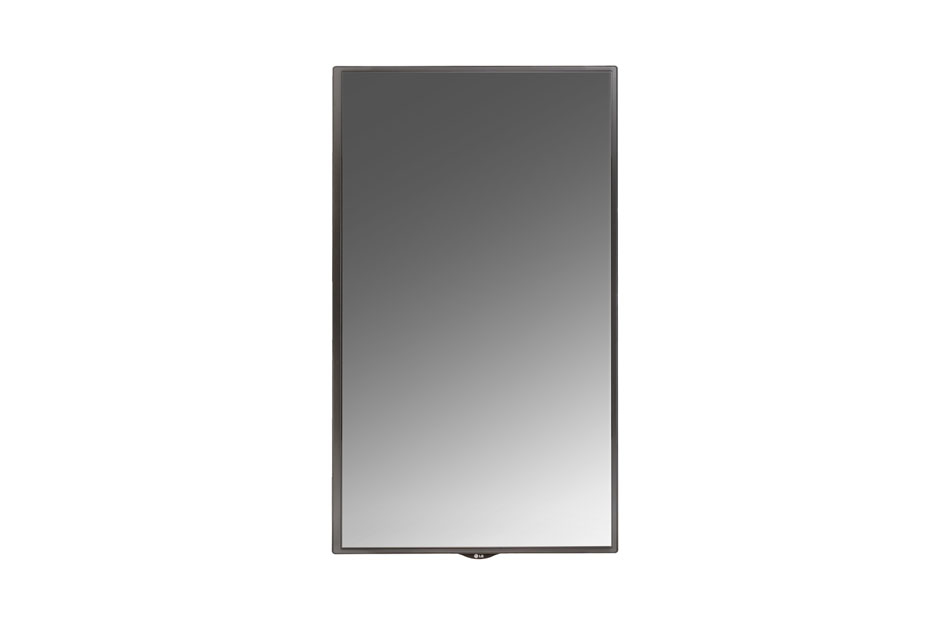

The detachable logo allows for installation in the desired orientation : landscape or portrait mode.
Enhanced Maintenance1 Enhanced Maintenance2

Enhanced Maintenance

Dust & Humidity Protection
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Close
ACCESSORIES
  • Basic
    Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
    Optional
    Speaker (SP-5000), Stand (ST-322T), Pixel sensor (KT-SP0), Wall bracket (LSW230B), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
CONNECTIVITY
  • External Control
    RS232C in/out, RJ in, IR Receiver, Pixel Sensor, USB 3.0, SD Card
    Input
    HDMI, DP, DVI-D, RGB, Audio, SD card
  • Output
    DP, Audio
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0°C to 40°C
MEDIA PLAYER COMPATIBILITY
  • External Media player Attatchable
    No
    OPS type compatible
    Yes
PANEL
  • Brightness
    400cd/m²
    Orientation
    Portrait & Landscape
  • Resolution
    1,920 x 1,080 (FHD)
    Screen Size
    32"
PHYSICAL SPECIFICATION
  • Bezel Width
    13 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    729.4 x 428.9 x 55.5 mm
  • VESA™ Standard Mount Interface
    200 x 200 mm
    Weight (Head)
    5.2kg
POWER
  • Power Consumption - Smart Energy Saving
    45 W
    Power Consumption - Typ.
    60 W
  • Power Supply
    100-240V~, 50/60Hz
    Power Switch
    No
  • Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    60 W
    Smart Energy Saving
    45 W
SOFTWARE COMPATIBILITY
  • SuperSign-c
    Yes
    SuperSign-w lite
    Yes
STANDARD(CERTIFICATION)
  • Audio Power
    20 W (10 W x 2) for Internal Speaker (6 ohm)
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    N/A / Yes (Energy Star 6.0)
    Safety
    UL / cUL / CB / TUV / KC
